5316-3. Using the storage features
6
Interior features

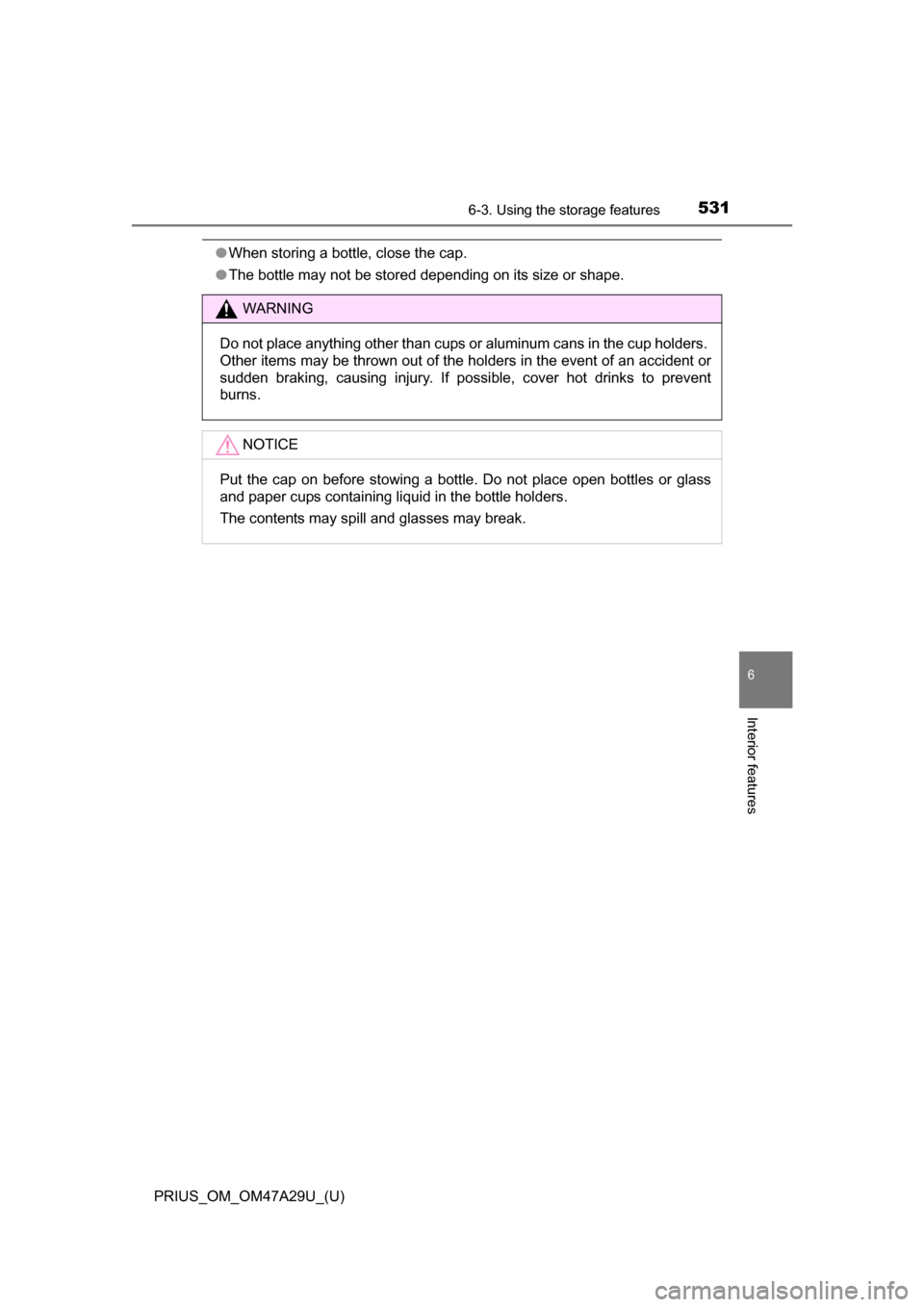

●When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
WARNING
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.
NOTICE
Put the cap on before stowing a bottle. Do not place open bottles or glass
and paper cups containing liquid in the bottle holders.
The contents may spill and glasses may break.

532
PRIUS_OM_OM47A29U_(U)
6-3. Using the storage features

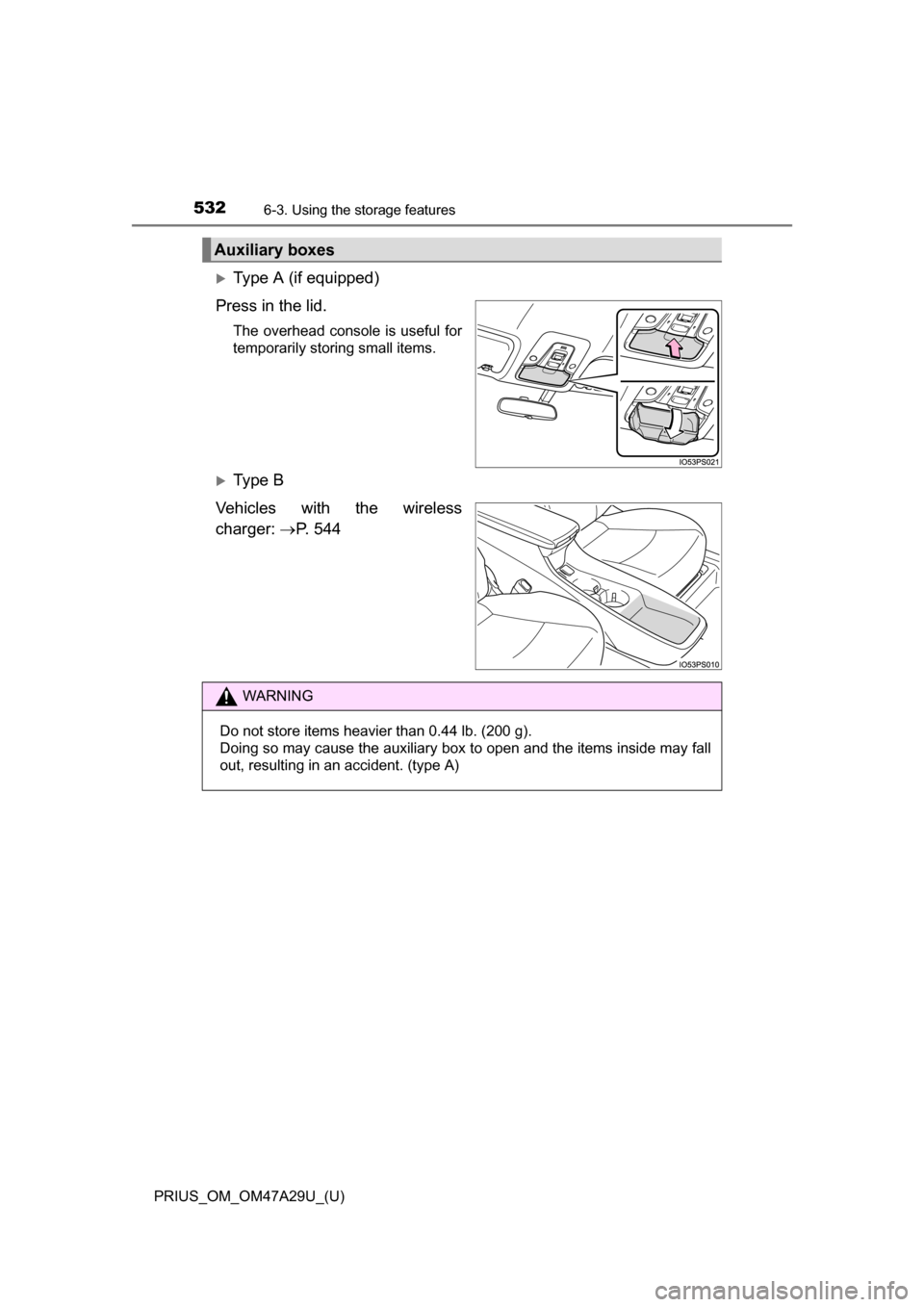

Type A (if equipped)
Press in the lid.
The overhead console is useful for
temporarily storing small items.
Ty p e B
Vehicles with the wireless
charger: P. 544
Auxiliary boxes
WARNING
Do not store items heavier than 0.44 lb. (200 g).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident. (type A)

533
PRIUS_OM_OM47A29U_(U)
6-3. Using the storage features
6
Interior features

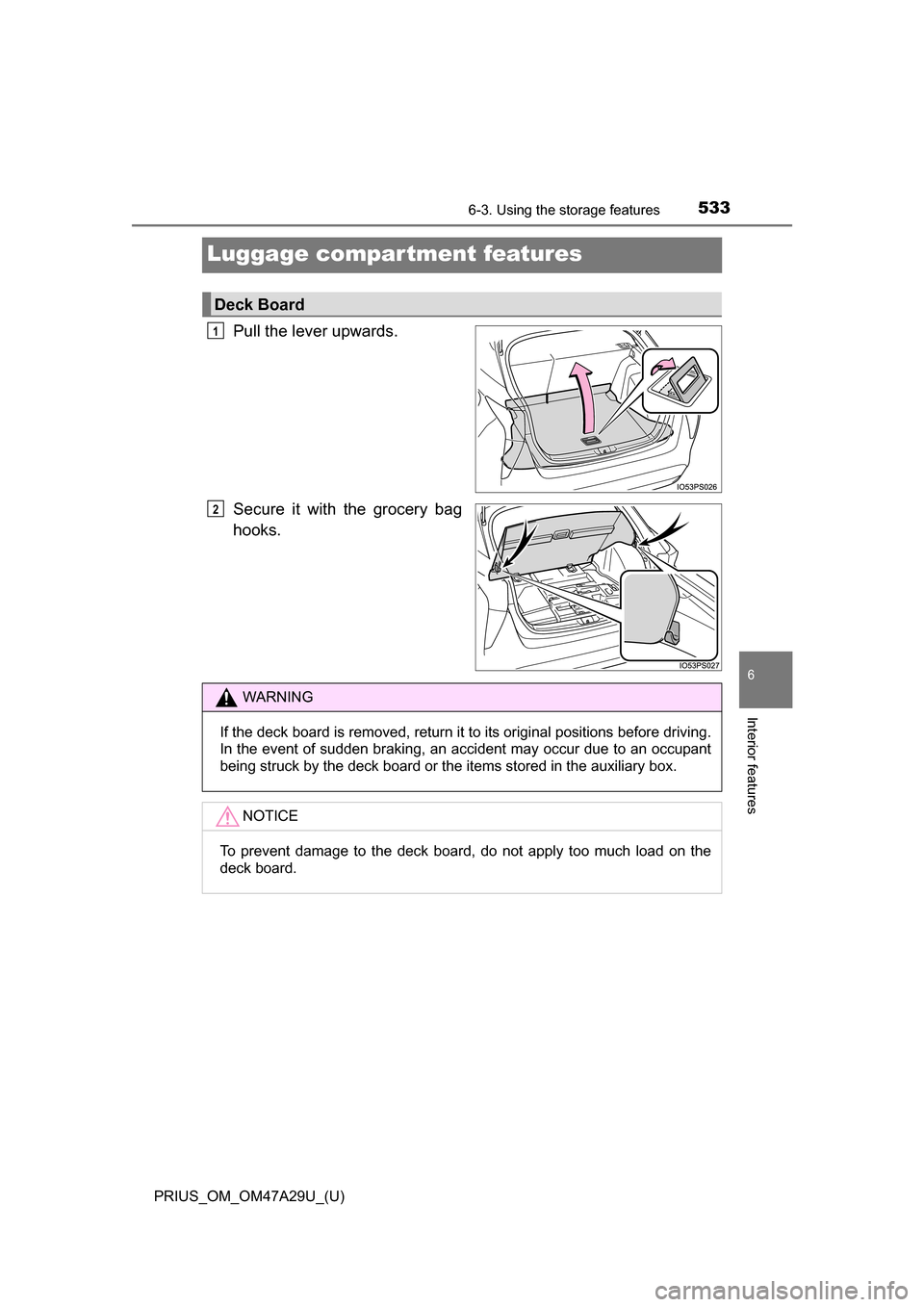

Luggage compartment features
Pull the lever upwards.
Secure it with the grocery bag
hooks.
Deck Board
1
2
WARNING
If the deck board is removed, return it to its original positions before driving.
In the event of sudden braking, an accident may occur due to an occupant
being struck by the deck board or the items stored in the auxiliary box.
NOTICE
To prevent damage to the deck board, do not apply too much load on the
deck board.

534
PRIUS_OM_OM47A29U_(U)
6-3. Using the storage features

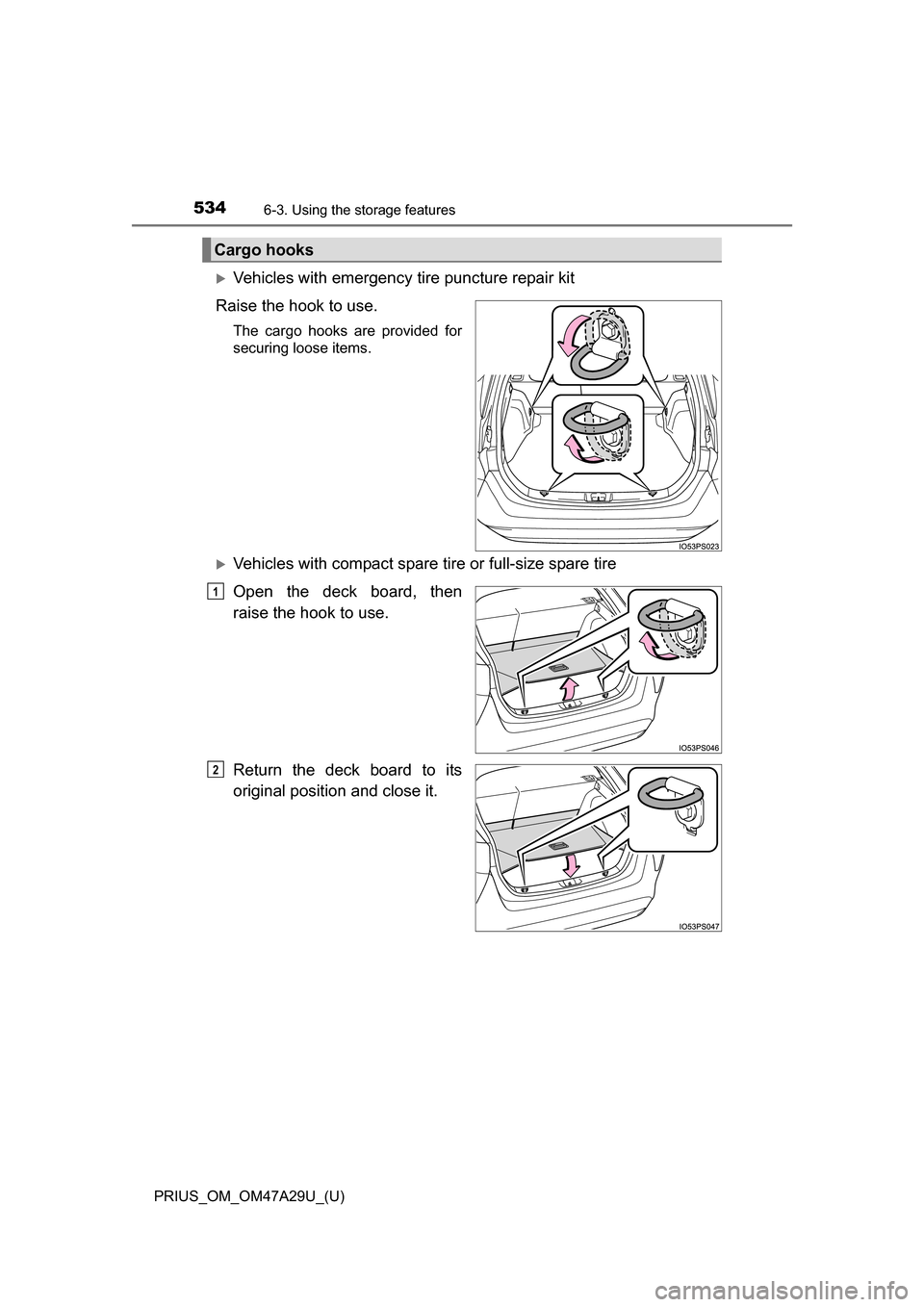

Vehicles with emergency tire puncture repair kit
Raise the hook to use.
The cargo hooks are provided for
securing loose items.
Vehicles with compact spare tire or full-size spare tire
Open the deck board, then
raise the hook to use.
Return the deck board to its
original position and close it.
Cargo hooks
1
2

PRIUS_OM_OM47A29U_(U)
5356-3. Using the storage features
6
Interior features

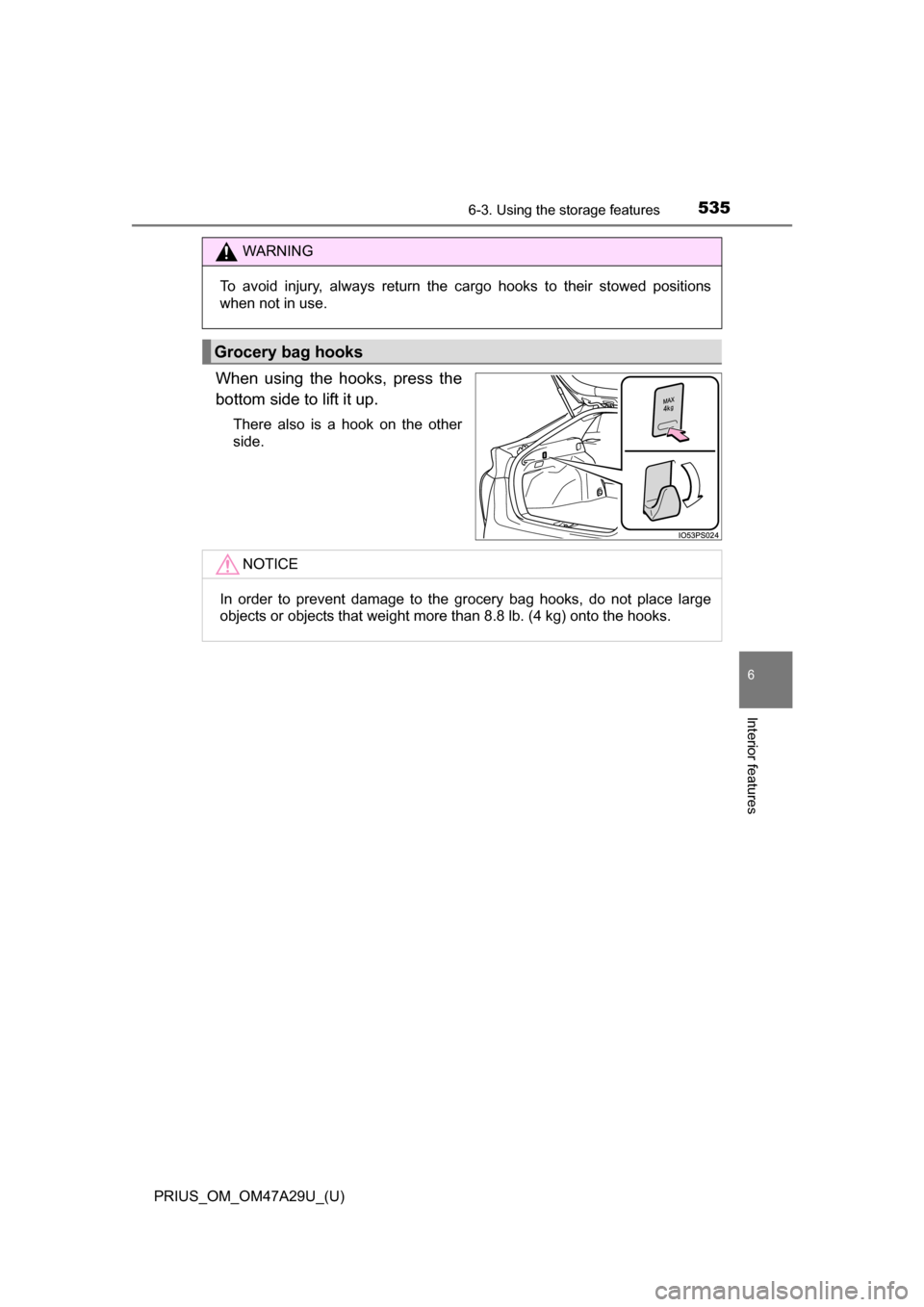

When using the hooks, press the
bottom side to lift it up.
There also is a hook on the other
side.
WARNING
To avoid injury, always return the cargo hooks to their stowed positions
when not in use.
Grocery bag hooks
NOTICE
In order to prevent damage to the grocery bag hooks, do not place large
objects or objects that weight more than 8.8 lb. (4 kg) onto the hooks.

536
PRIUS_OM_OM47A29U_(U)
6-3. Using the storage features

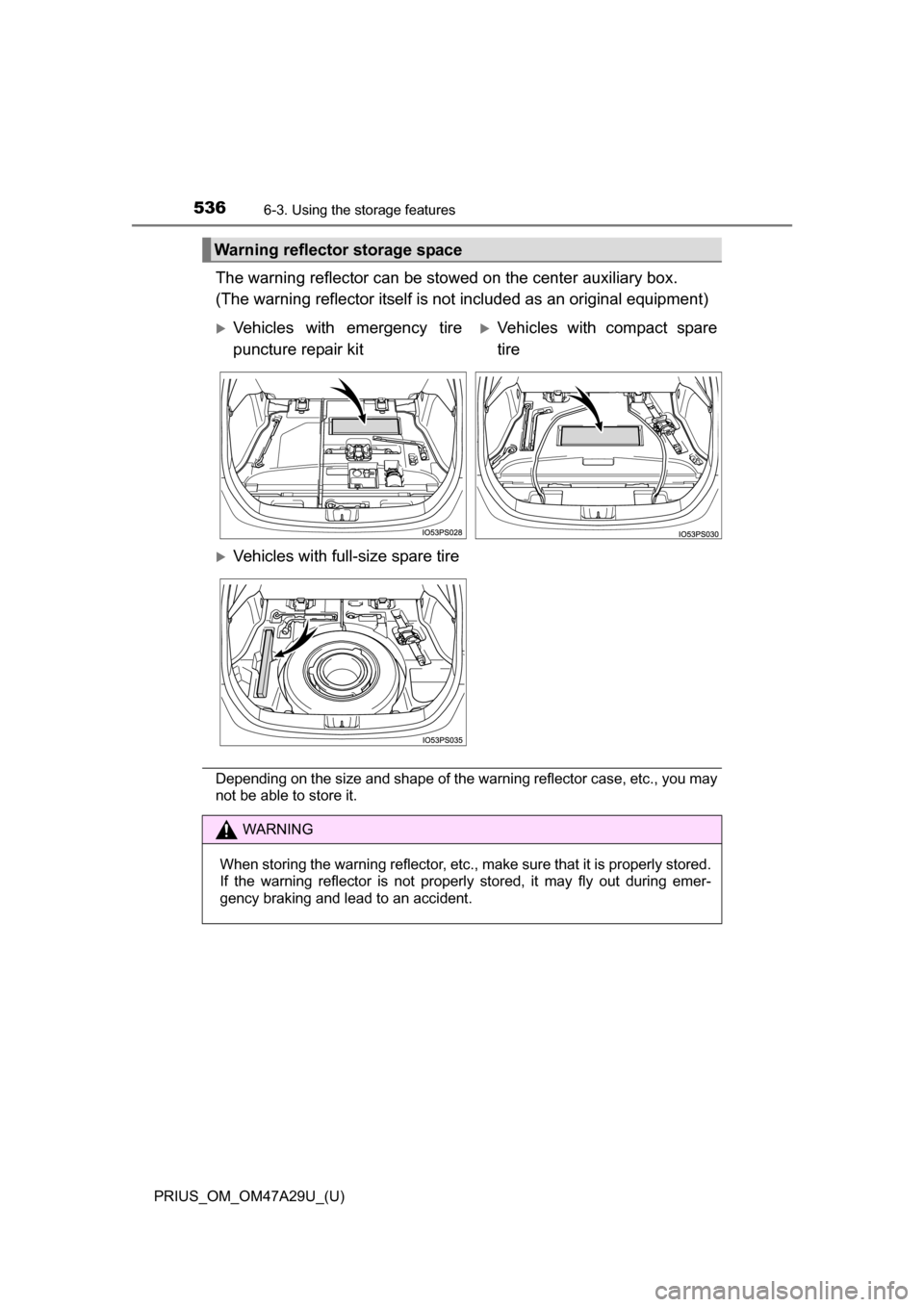

The warning reflector can be stowed on the center auxiliary box.
(The warning reflector itself is no t included as an original equipment)
Depending on the size and shape of the warning reflector case, etc., you may
not be able to store it.
Warning reflector storage space
Vehicles with emergency tire
puncture repair kitVehicles with compact spare
tire
Vehicles with full-size spare tire
WARNING
When storing the warning reflector, etc., make sure that it is properly stored.
If the warning reflector is not properly stored, it may fly out during emer-
gency braking and lead to an accident.

PRIUS_OM_OM47A29U_(U)
5376-3. Using the storage features
6
Interior features

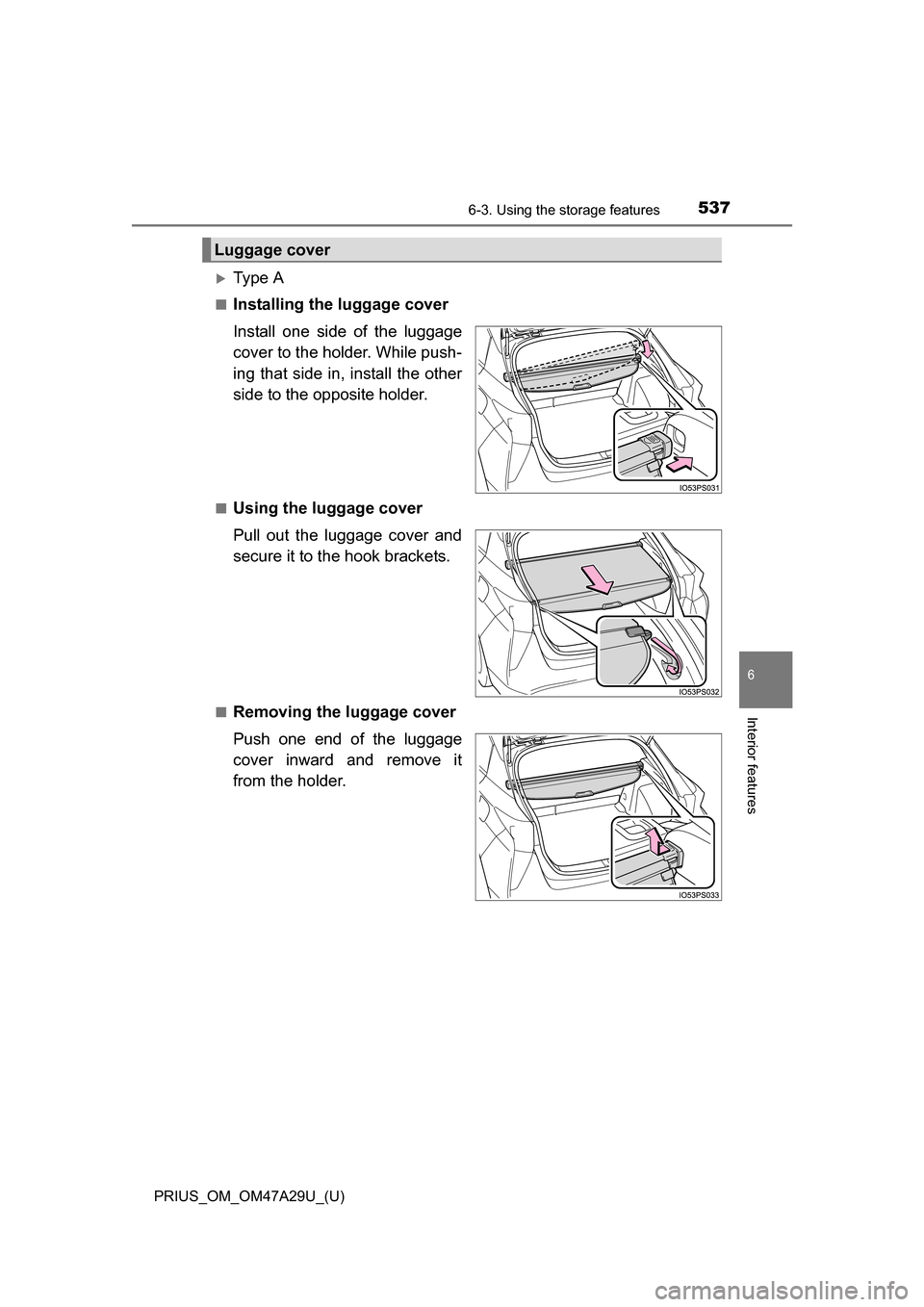

Ty p e A
■Installing the luggage cover
Install one side of the luggage
cover to the holder. While push-
ing that side in, install the other
side to the opposite holder.
■Using the luggage cover
Pull out the luggage cover and
secure it to the hook brackets.
■Removing the luggage cover
Push one end of the luggage
cover inward and remove it
from the holder.
Luggage cover

538
PRIUS_OM_OM47A29U_(U)
6-3. Using the storage features

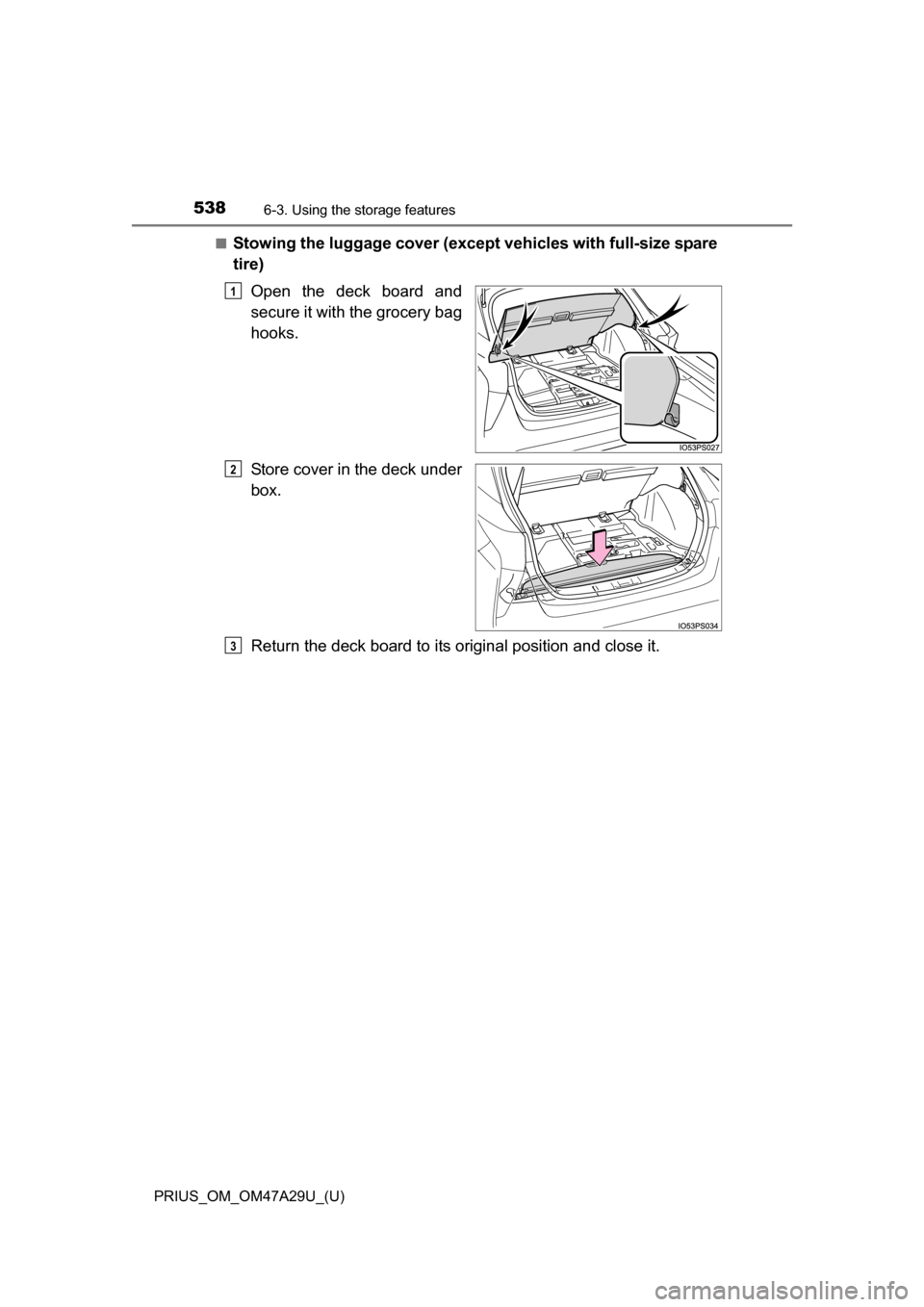

■Stowing the luggage cover (except vehicles with full-size spare
tire)
Open the deck board and
secure it with the grocery bag
hooks.
Store cover in the deck under
box.
Return the deck board to its or iginal position and close it.
1
2
3

PRIUS_OM_OM47A29U_(U)
5396-3. Using the storage features
6
Interior features

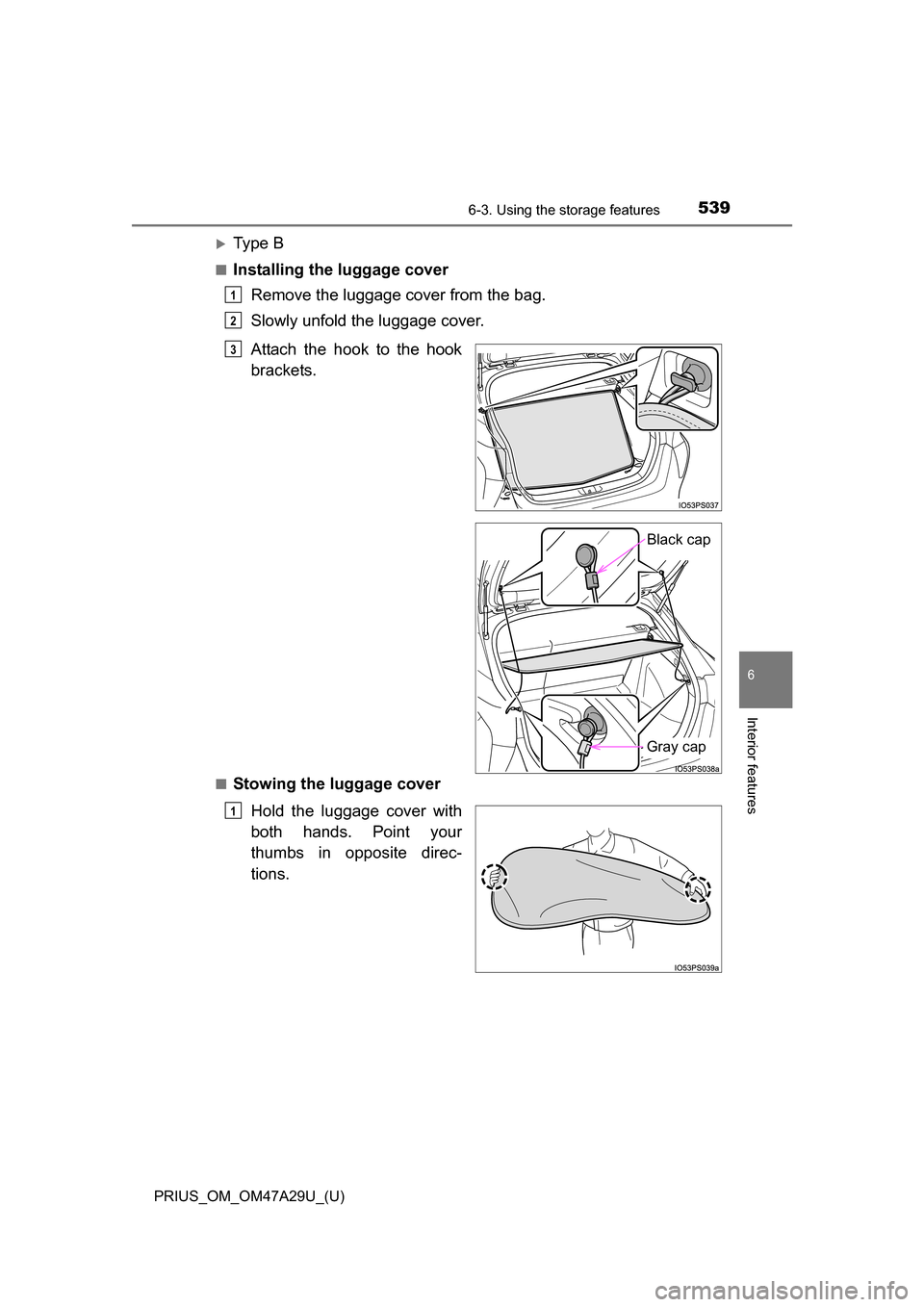

Ty p e B
■Installing the luggage coverRemove the luggage cover from the bag.
Slowly unfold the luggage cover.
■Stowing the luggage cover
Hold the luggage cover with
both hands. Point your
thumbs in opposite direc-
tions.
1
2
Attach the hook to the hook
brackets.3
Black cap
Gray cap
1

540

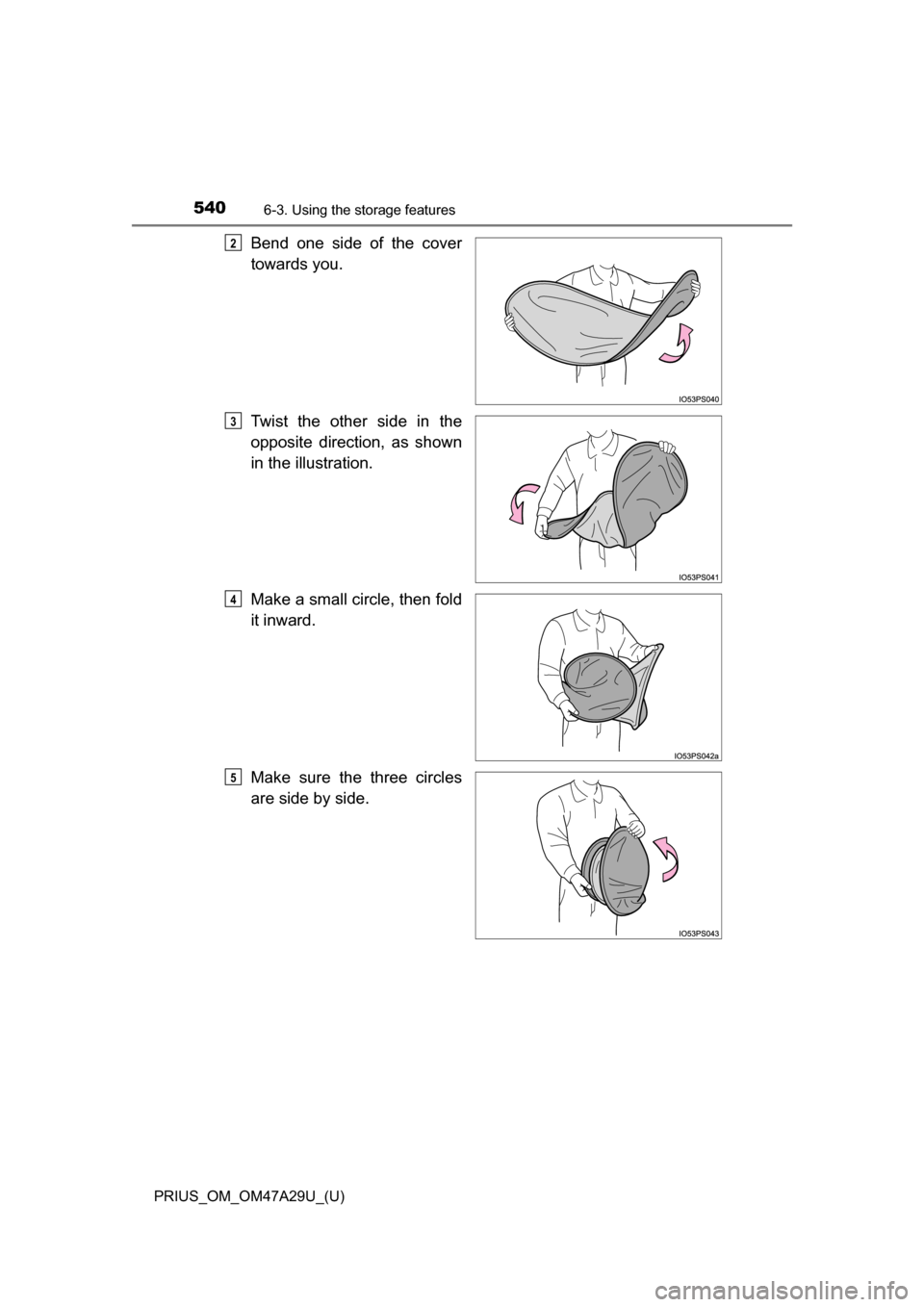

PRIUS_OM_OM47A29U_(U)
6-3. Using the storage features
Bend one side of the cover
towards you.
Twist the other side in the
opposite direction, as shown
in the illustration.
Make a small circle, then fold
it inward.
Make sure the three circles
are side by side.2
3
4
5
