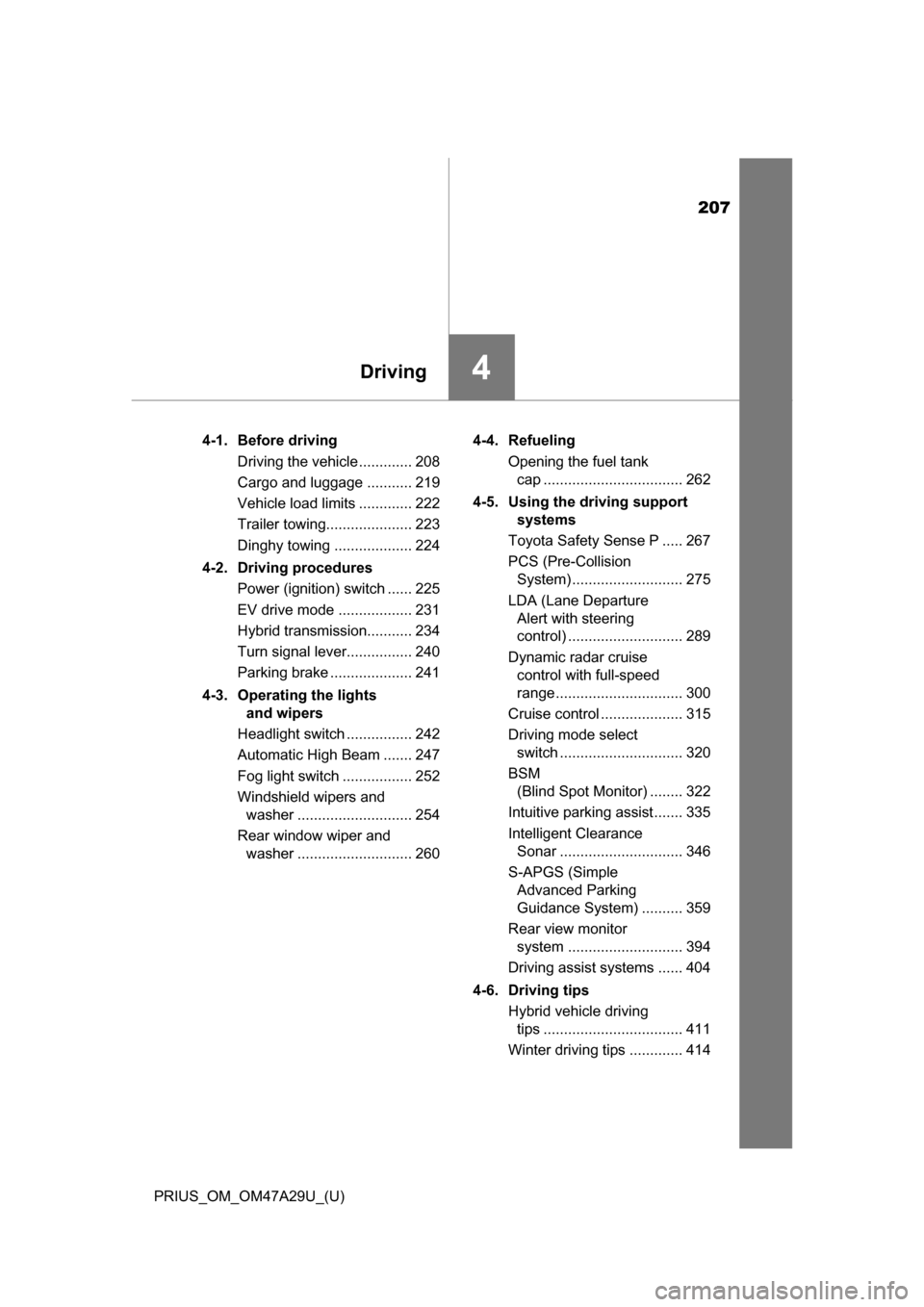

207
PRIUS_OM_OM47A29U_(U)
4Driving
4-1. Before drivingDriving the vehicle ............. 208
Cargo and luggage ........... 219
Vehicle load limits ............. 222
Trailer towing..................... 223
Dinghy towing ................... 224
4-2. Driving procedures Power (ignition) switch ...... 225
EV drive mode .................. 231
Hybrid transmission........... 234
Turn signal lever................ 240
Parking brake .................... 241
4-3. Operating the lights and wipers
Headlight switch ................ 242
Automatic High Beam ....... 247
Fog light switch ................. 252
Windshield wipers and washer ............................ 254
Rear window wiper and washer ............................ 260 4-4. Refueling
Opening the fuel tank cap .................................. 262
4-5. Using the driving support systems
Toyota Safety Sense P ..... 267
PCS (Pre-Collision System) ........................... 275
LDA (Lane Departure Alert with steering
control) ............................ 289
Dynamic radar cruise control with full-speed
range ............................... 300
Cruise control .................... 315
Driving mode select switch .............................. 320
BSM (Blind Spot Monitor) ........ 322
Intuitive parking assist....... 335
Intelligent Clearance Sonar .............................. 346
S-APGS (Simple Advanced Parking
Guidance System) .......... 359
Rear view monitor system ............................ 394
Driving assist systems ...... 404
4-6. Driving tips Hybrid vehicle driving tips .................................. 411
Winter driving tips ............. 414
Page 225 of 800
![TOYOTA PRIUS 2016 4.G Owners Manual 225
PRIUS_OM_OM47A29U_(U)
4-2. Driving procedures
4
Driving
Power (ignition) switch
Check that the parking brake is set.
Firmly depress the brake pedal.
and a message will be dis-
played on the mul TOYOTA PRIUS 2016 4.G Owners Manual 225
PRIUS_OM_OM47A29U_(U)
4-2. Driving procedures
4
Driving
Power (ignition) switch
Check that the parking brake is set.
Firmly depress the brake pedal.
and a message will be dis-
played on the mul](/img/14/6614/w960_6614-224.png)

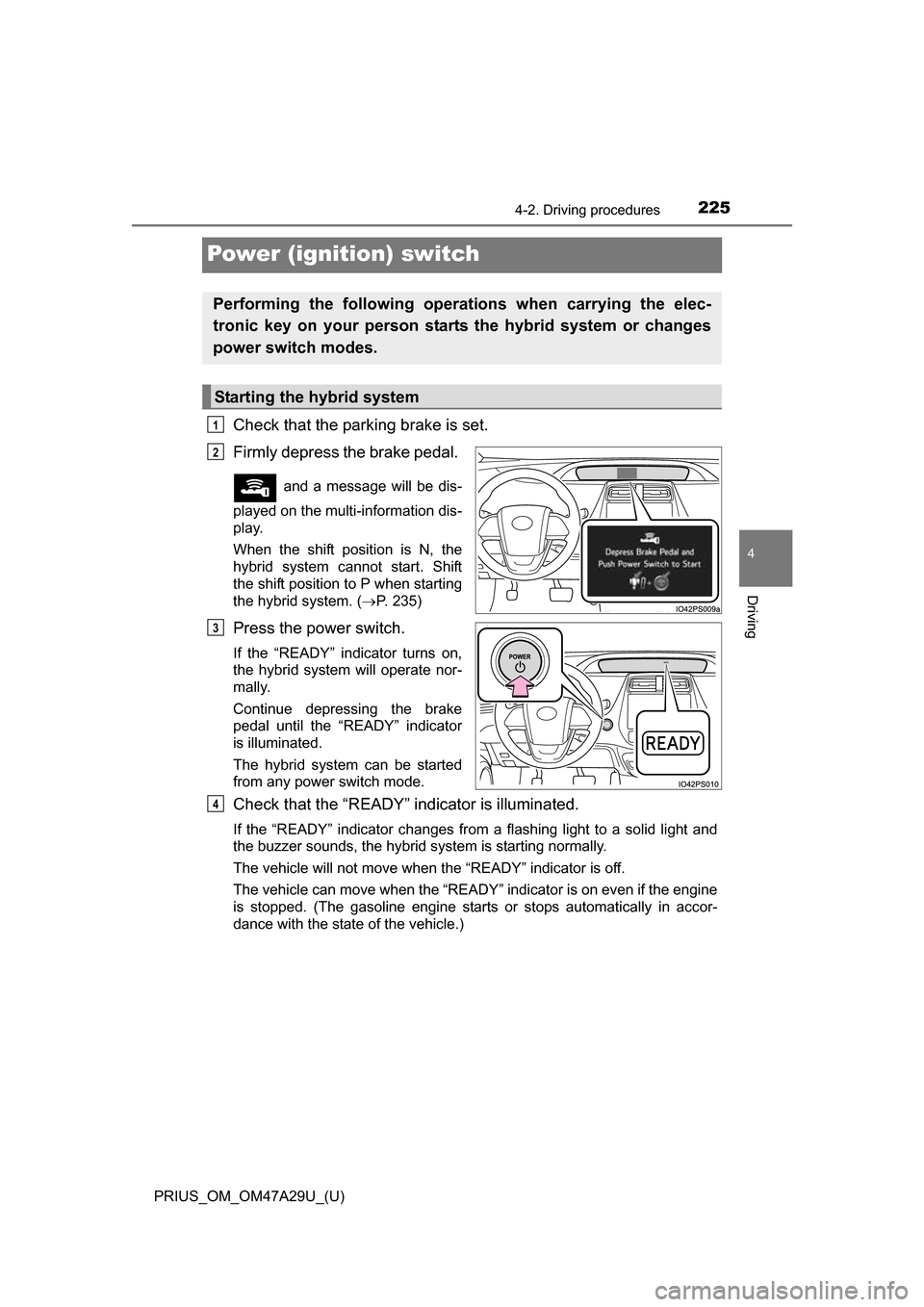

225
PRIUS_OM_OM47A29U_(U)
4-2. Driving procedures
4
Driving
Power (ignition) switch
Check that the parking brake is set.
Firmly depress the brake pedal.
and a message will be dis-
played on the multi-information dis-
play.
When the shift position is N, the
hybrid system cannot start. Shift
the shift position to P when starting
the hybrid system. ( P. 235)
Press the power switch.
If the “READY” indicator turns on,
the hybrid system will operate nor-
mally.
Continue depressing the brake
pedal until the “READY” indicator
is illuminated.
The hybrid system can be started
from any power switch mode.
Check that the “READY” indicator is illuminated.
If the “READY” indicator changes from a flashing light to a solid light and
the buzzer sounds, the hybrid system is starting normally.
The vehicle will not move when the “READY” indicator is off.
The vehicle can move when the “READY” indicator is on even if the engine
is stopped. (The gasoline engine starts or stops automatically in accor-
dance with the state of the vehicle.)
Performing the following operati ons when carrying the elec-
tronic key on your person starts the hybrid system or changes
power switch modes.
Starting the hybrid system
1
2
3
4
Page 227 of 800
![TOYOTA PRIUS 2016 4.G Owners Manual PRIUS_OM_OM47A29U_(U)
2274-2. Driving procedures
4
Driving

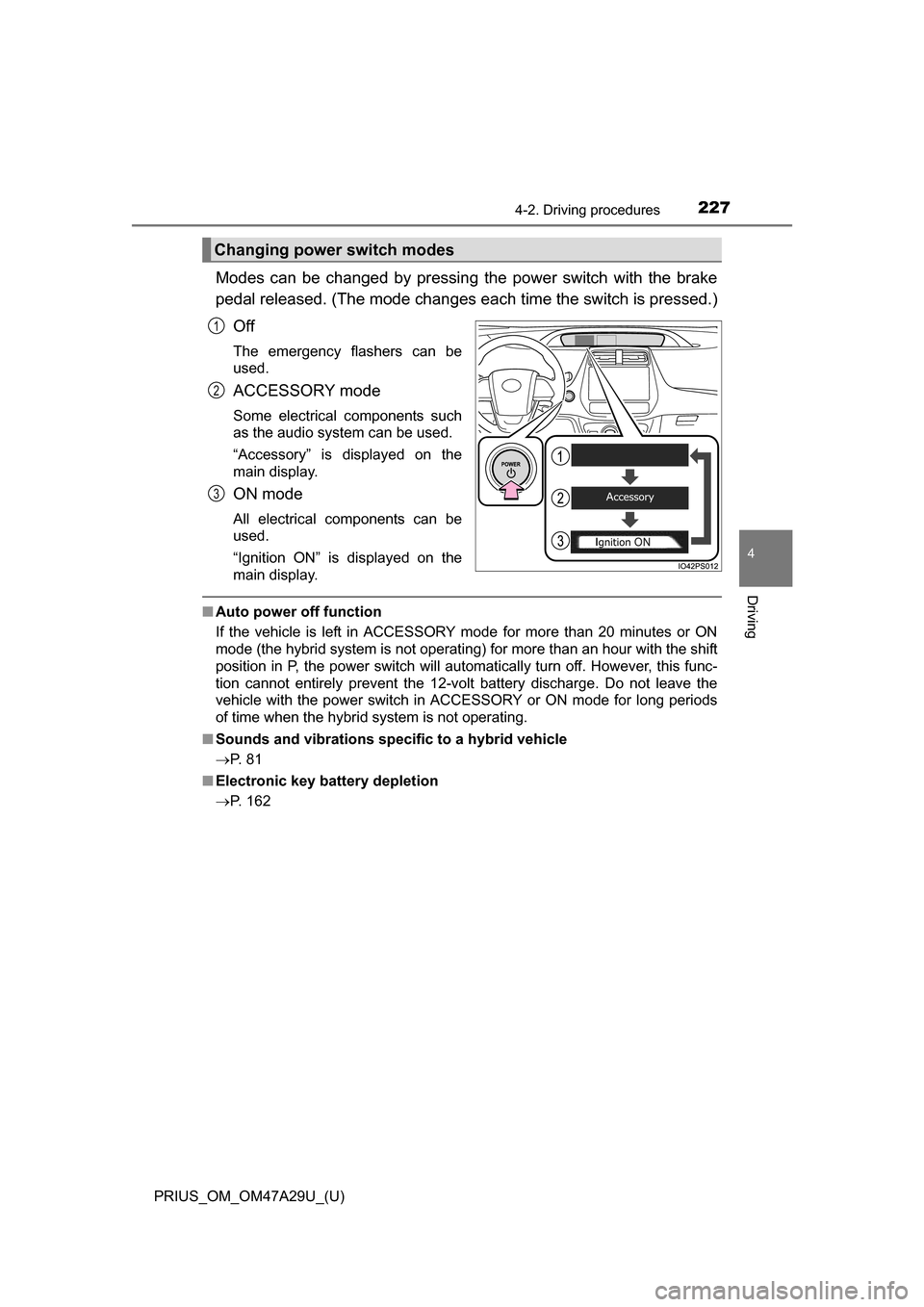

Modes can be changed by pressing the power switch with the brake
pedal released. (The mode changes ea ch time the switch is pressed.)
Off
The TOYOTA PRIUS 2016 4.G Owners Manual PRIUS_OM_OM47A29U_(U)
2274-2. Driving procedures
4
Driving
Modes can be changed by pressing the power switch with the brake
pedal released. (The mode changes ea ch time the switch is pressed.)
Off
The](/img/14/6614/w960_6614-226.png)
PRIUS_OM_OM47A29U_(U)
2274-2. Driving procedures
4
Driving
Modes can be changed by pressing the power switch with the brake
pedal released. (The mode changes ea ch time the switch is pressed.)
Off
The emergency flashers can be
used.
ACCESSORY mode
Some electrical components such
as the audio system can be used.
“Accessory” is displayed on the
main display.
ON mode
All electrical components can be
used.
“Ignition ON” is displayed on the
main display.
■ Auto power off function
If the vehicle is left in ACCESSORY mode for more than 20 minutes or ON
mode (the hybrid system is not operating) for more than an hour with the shift
position in P, the power switch will automatically turn off. However, this func-
tion cannot entirely prevent the 12-volt battery discharge. Do not leave the
vehicle with the power switch in ACCESSORY or ON mode for long periods
of time when the hybrid system is not operating.
■ Sounds and vibrations specific to a hybrid vehicle
P. 8 1
■ Electronic key battery depletion
P. 162
Changing power switch modes
1
2
3
Page 230 of 800
![TOYOTA PRIUS 2016 4.G Owners Manual 230
PRIUS_OM_OM47A29U_(U)
4-2. Driving procedures
NOTICE
■To prevent 12-volt battery discharge
●Do not leave the power switch in ACCESSORY or ON mode for long peri-
ods of time without the hybrid TOYOTA PRIUS 2016 4.G Owners Manual 230
PRIUS_OM_OM47A29U_(U)
4-2. Driving procedures
NOTICE
■To prevent 12-volt battery discharge
●Do not leave the power switch in ACCESSORY or ON mode for long peri-
ods of time without the hybrid](/img/14/6614/w960_6614-229.png)

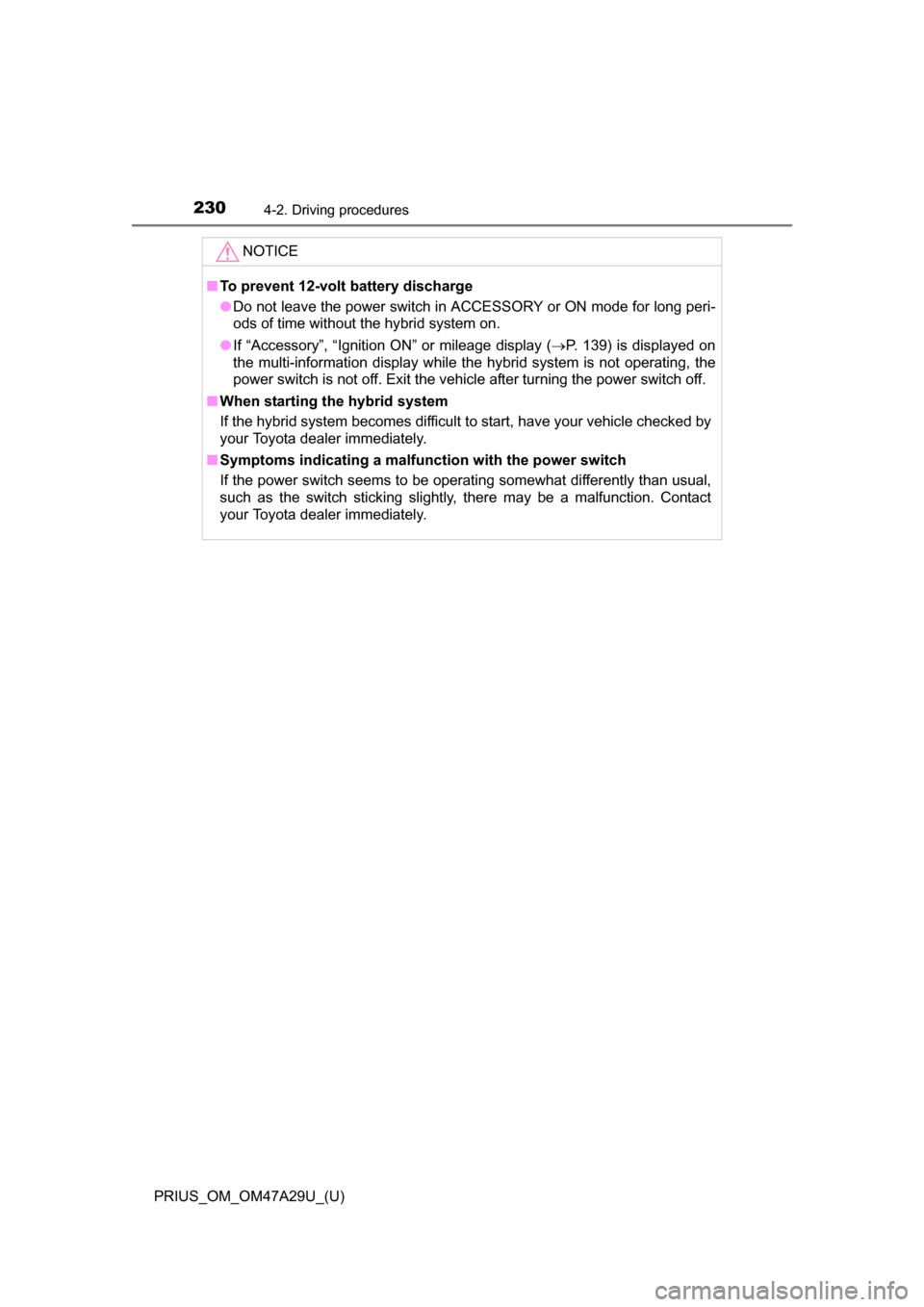

230
PRIUS_OM_OM47A29U_(U)
4-2. Driving procedures
NOTICE
■To prevent 12-volt battery discharge
●Do not leave the power switch in ACCESSORY or ON mode for long peri-
ods of time without the hybrid system on.
● If “Accessory”, “Ignition ON” or mileage display ( P. 139) is displayed on
the multi-information display while the hybrid system is not operating, the
power switch is not off. Exit the vehicle after turning the power switch off.
■ When starting the hybrid system
If the hybrid system becomes difficult to start, have your vehicle checked by
your Toyota dealer immediately.
■ Symptoms indicating a malf unction with the power switch
If the power switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact
your Toyota dealer immediately.
Page 263 of 800
![TOYOTA PRIUS 2016 4.G Owners Manual PRIUS_OM_OM47A29U_(U)
2634-4. Refueling
4
Driving
WARNING
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious i TOYOTA PRIUS 2016 4.G Owners Manual PRIUS_OM_OM47A29U_(U)
2634-4. Refueling
4
Driving
WARNING
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious i](/img/14/6614/w960_6614-262.png)
PRIUS_OM_OM47A29U_(U)
2634-4. Refueling
4
Driving
WARNING
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
●After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out of the filler neck and cause injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.

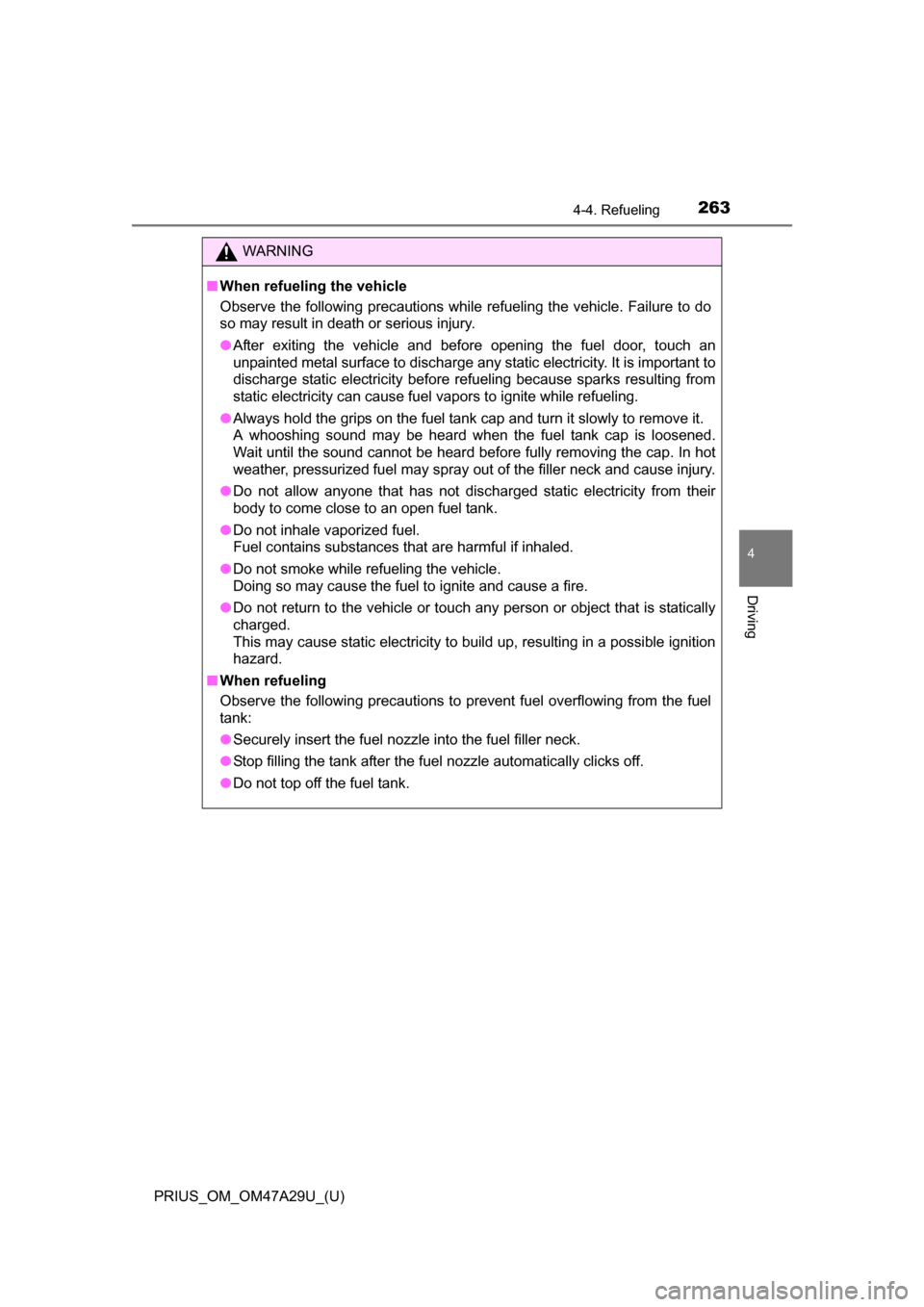

This may cause static electricity to build up, resulting in a possible ignition
hazard.
■ When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
●Securely insert the fuel nozzle into the fuel filler neck.
● Stop filling the tank after the fuel nozzle automatically clicks off.
● Do not top off the fuel tank.
Page 720 of 800
![TOYOTA PRIUS 2016 4.G Owners Manual 7208-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)
After stopping the hybrid system and waiting for 5 minutes or
more, start the hybrid system again and check if “Hybrid System
Overheated� TOYOTA PRIUS 2016 4.G Owners Manual 7208-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)
After stopping the hybrid system and waiting for 5 minutes or
more, start the hybrid system again and check if “Hybrid System
Overheated�](/img/14/6614/w960_6614-719.png)

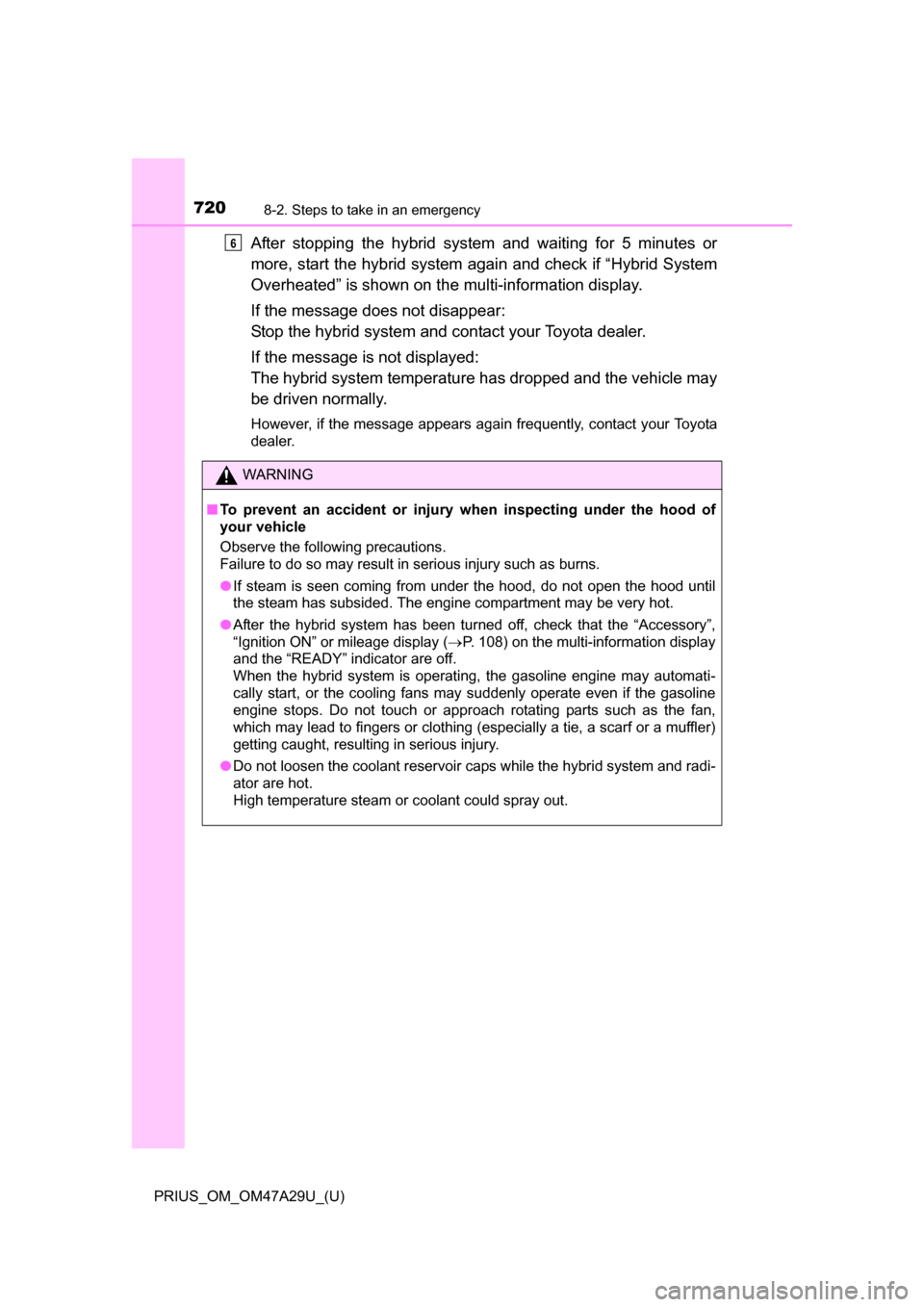

7208-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)
After stopping the hybrid system and waiting for 5 minutes or
more, start the hybrid system again and check if “Hybrid System
Overheated” is shown on the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Toyota dealer.
If the message is not displayed:
The hybrid system temperature has dropped and the vehicle may
be driven normally.
However, if the message appears again frequently, contact your Toyota
dealer.
WARNING
■ To prevent an accident or injury when inspecting under the hood of
your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● After the hybrid system has been turned off, check that the “Accessory”,
“Ignition ON” or mileage display ( P. 108) on the multi-information display
and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fans may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the coolant reservoir caps while the hybrid system and radi-
ator are hot.
High temperature steam or coolant could spray out.
6
Page 732 of 800
![TOYOTA PRIUS 2016 4.G Owners Manual 732
PRIUS_OM_OM47A29U_(U)
9-1. Specifications
*: The coolant capacity is a reference quantity.If replacement is necessary, contact your Toyota dealer.
Cooling system
Capacity*
Gasoline
engine6.2 qt. ( TOYOTA PRIUS 2016 4.G Owners Manual 732
PRIUS_OM_OM47A29U_(U)
9-1. Specifications
*: The coolant capacity is a reference quantity.If replacement is necessary, contact your Toyota dealer.
Cooling system
Capacity*
Gasoline
engine6.2 qt. (](/img/14/6614/w960_6614-731.png)

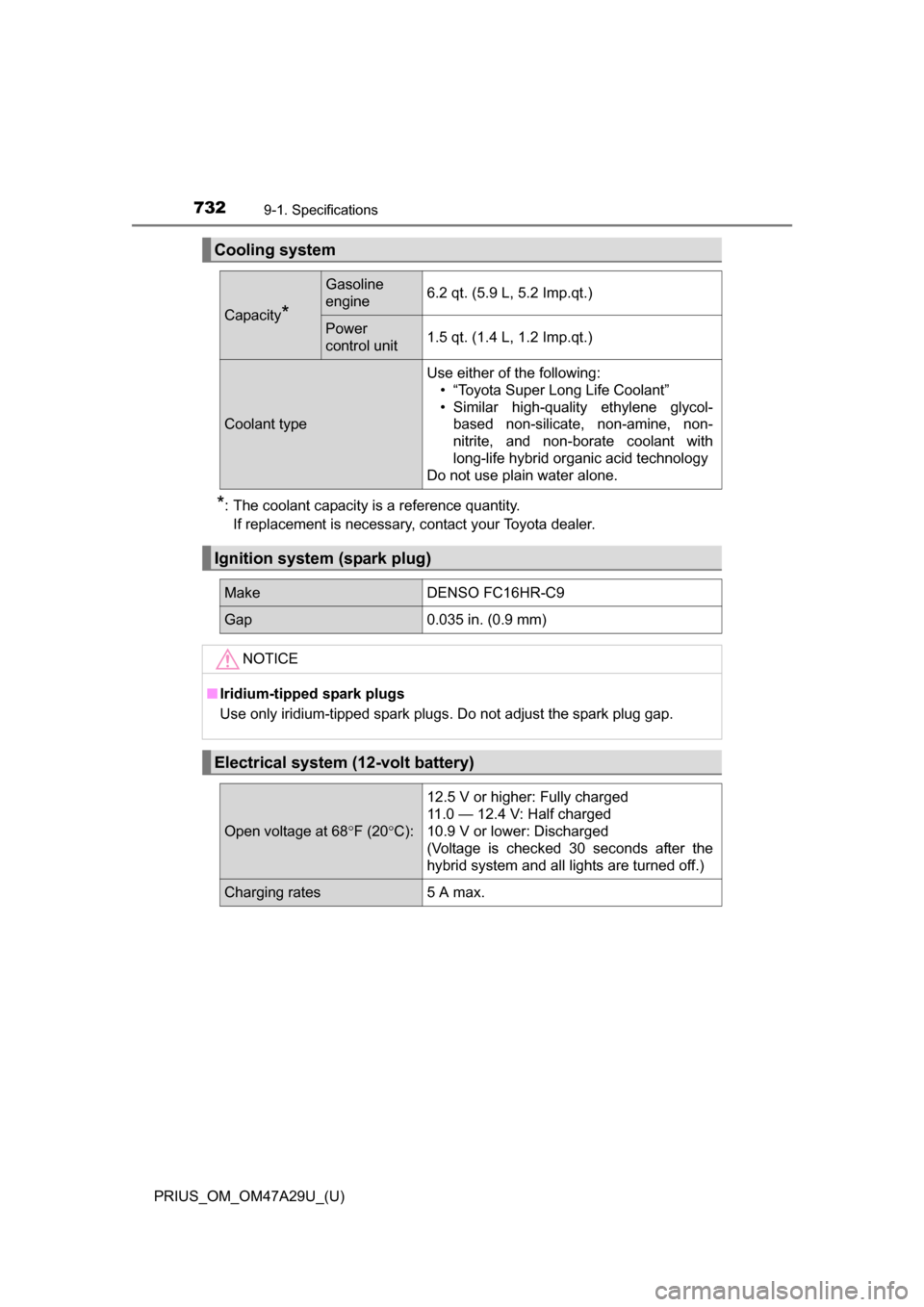

732
PRIUS_OM_OM47A29U_(U)
9-1. Specifications
*: The coolant capacity is a reference quantity.If replacement is necessary, contact your Toyota dealer.
Cooling system
Capacity*
Gasoline
engine6.2 qt. (5.9 L, 5.2 Imp.qt.)
Power
control unit1.5 qt. (1.4 L, 1.2 Imp.qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol- based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-C9
Gap0.035 in. (0.9 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system (12-volt battery)
Open voltage at 68 F (20 C):
12.5 V or higher: Fully charged
11.0 — 12.4 V: Half charged
10.9 V or lower: Discharged
(Voltage is checked 30 seconds after the
hybrid system and all lights are turned off.)
Charging rates5 A max.
Page 787 of 800
![TOYOTA PRIUS 2016 4.G Owners Manual 787Alphabetical index
PRIUS_OM_OM47A29U_(U)
If you have a flat tire ............. 673
If you lose your keys ..... 161, 164
If you think something is wrong .............................. 654
If your ve TOYOTA PRIUS 2016 4.G Owners Manual 787Alphabetical index
PRIUS_OM_OM47A29U_(U)
If you have a flat tire ............. 673
If you lose your keys ..... 161, 164
If you think something is wrong .............................. 654
If your ve](/img/14/6614/w960_6614-786.png)

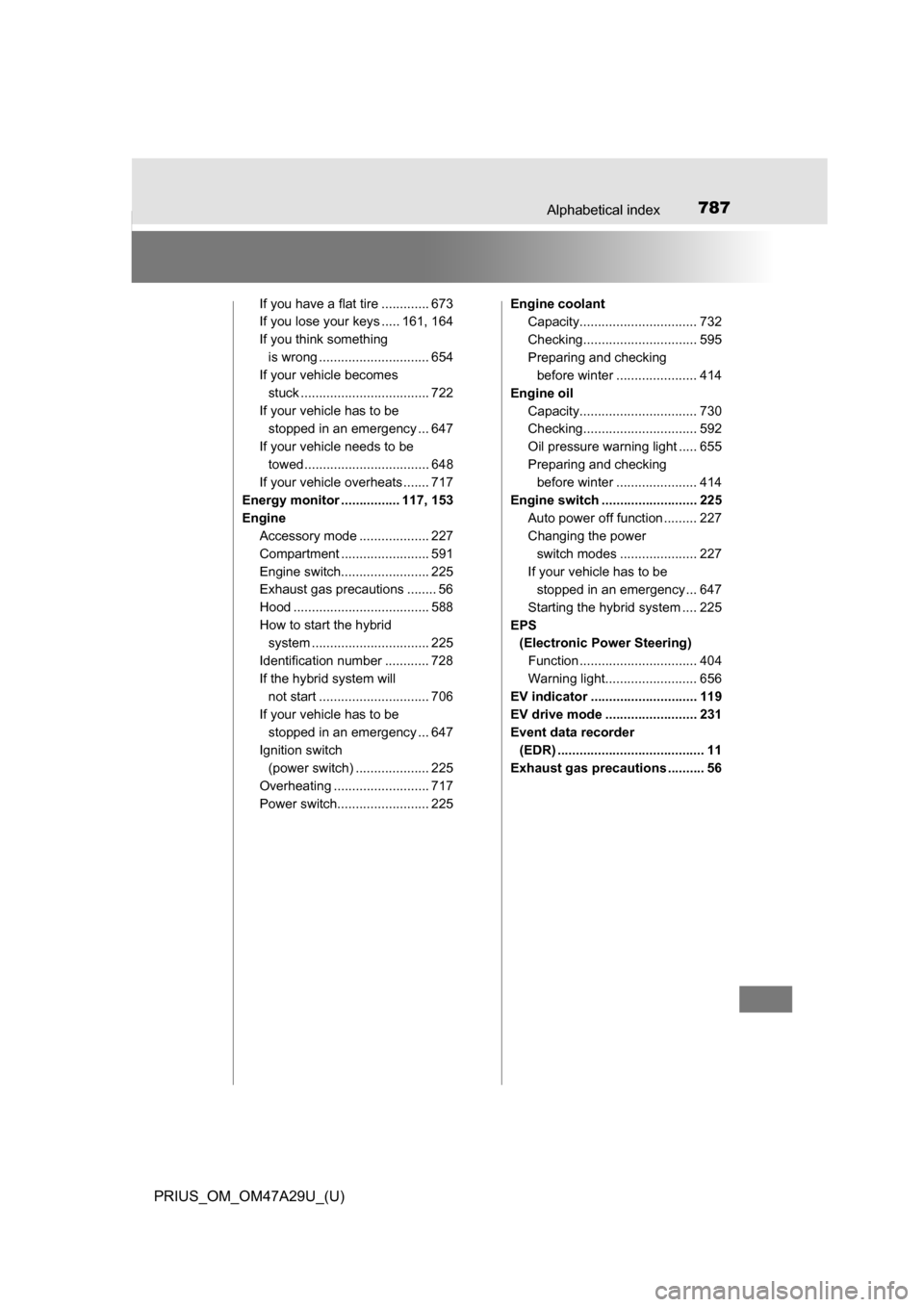

787Alphabetical index
PRIUS_OM_OM47A29U_(U)
If you have a flat tire ............. 673
If you lose your keys ..... 161, 164
If you think something is wrong .............................. 654
If your vehicle becomes
stuck ................................... 722
If your vehicle has to be stopped in an emergency ... 647
If your vehicle needs to be towed .................................. 648
If your vehicle overheats ....... 717
Energy monitor ................ 117, 153
Engine Accessory mode ................... 227
Compartment ........................ 591
Engine switch........................ 225
Exhaust gas precautions ........ 56
Hood ..................................... 588
How to start the hybrid system ......... ....................... 225
Identification number ............ 728
If the hybrid system will not start .............................. 706
If your vehicle has to be stopped in an emergency ... 647
Ignition switch (power switch) .................... 225
Overheating .......................... 717
Power switch......................... 225 Engine coolant
Capacity................................ 732
Checking............................... 595
Preparing and checking before winter ...................... 414
Engine oil Capacity................................ 730
Checking............................... 592
Oil pressure warning light ..... 655
Preparing and checking before winter ...................... 414
Engine switch .......................... 225 Auto power off function ......... 227
Changing the power switch modes ..................... 227
If your vehicle has to be stopped in an emergency ... 647
Starting the hybrid system .... 225
EPS (Electronic Power Steering)
Function ................................ 404
Warning light......................... 656
EV indicator ............................. 119
EV drive mode ......................... 231
Event data recorder
(EDR) ........................................ 11
Exhaust gas precautions .......... 56
Page 789 of 800
![TOYOTA PRIUS 2016 4.G Owners Manual 789Alphabetical index
PRIUS_OM_OM47A29U_(U)
High coolant temperature
warning light .......................... 657
High mounted stoplight Replacing .............................. 642
Hill-start assist TOYOTA PRIUS 2016 4.G Owners Manual 789Alphabetical index
PRIUS_OM_OM47A29U_(U)
High coolant temperature
warning light .......................... 657
High mounted stoplight Replacing .............................. 642
Hill-start assist](/img/14/6614/w960_6614-788.png)

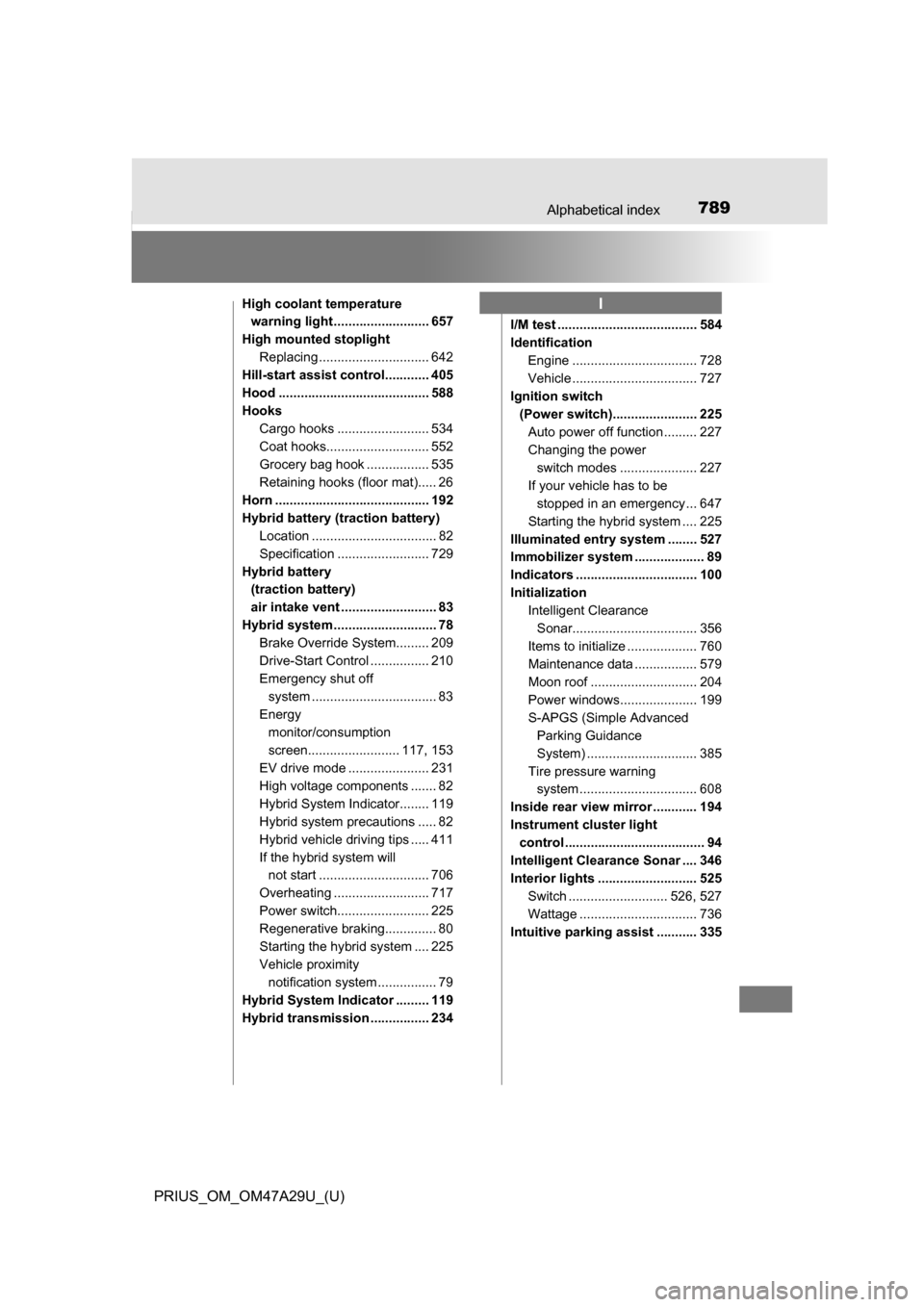

789Alphabetical index
PRIUS_OM_OM47A29U_(U)
High coolant temperature
warning light .......................... 657
High mounted stoplight Replacing .............................. 642
Hill-start assist control............ 405
Hood ......................................... 588
Hooks Cargo hooks ......................... 534
Coat hooks............................ 552
Grocery bag hook ................. 535
Retaining hooks (floor mat)..... 26
Horn .......................................... 192
Hybrid battery (traction battery) Location .................................. 82
Specification ......................... 729
Hybrid battery (traction battery)
air intake vent .......................... 83
Hybrid system ............................ 78 Brake Override System......... 209
Drive-Start Control ................ 210
Emergency shut off system ......... ......................... 83
Energy monitor/consumption
screen......................... 117, 153
EV drive mode ...................... 231
High voltage components ....... 82
Hybrid System Indicator........ 119
Hybrid system precautions ..... 82
Hybrid vehicle driving tips ..... 411
If the hybrid system will not start .............................. 706
Overheating .......................... 717
Power switch......................... 225
Regenerative braking.............. 80
Starting the hybrid system .... 225
Vehicle proximity notification system ................ 79
Hybrid System Indicator ......... 119
Hybrid transmission ................ 234 I/M test ...................................... 584
Identification
Engine .................................. 728
Vehicle .................................. 727
Ignition switch
(Power switch)....................... 225Auto power off function ......... 227
Changing the power switch modes ..................... 227
If your vehicle has to be stopped in an emergency ... 647
Starting the hybrid system .... 225
Illuminated entry system ........ 527
Immobilizer system ................... 89
Indicators ................................. 100
Initialization Intelligent Clearance
Sonar.................................. 356
Items to initialize ................... 760
Maintenance data ................. 579
Moon roof ............................. 204
Power windows..................... 199
S-APGS (Simple Advanced Parking Guidance
System) .............................. 385
Tire pressure warning system .......... ...................... 608
Inside rear view mirror ............ 194
Instrument cluster light control ...................................... 94
Intelligent Clearance Sonar .... 346
Interior lights ........................... 525 Switch ........................... 526, 527
Wattage ................................ 736
Intuitive parking assist ........... 335I
