bluetooth TOYOTA PRIUS 2016 4.G Quick Reference Guide

SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instruction\
s and more
information.
3 HomeLink® is a registered trademark of Gentex Corporation.

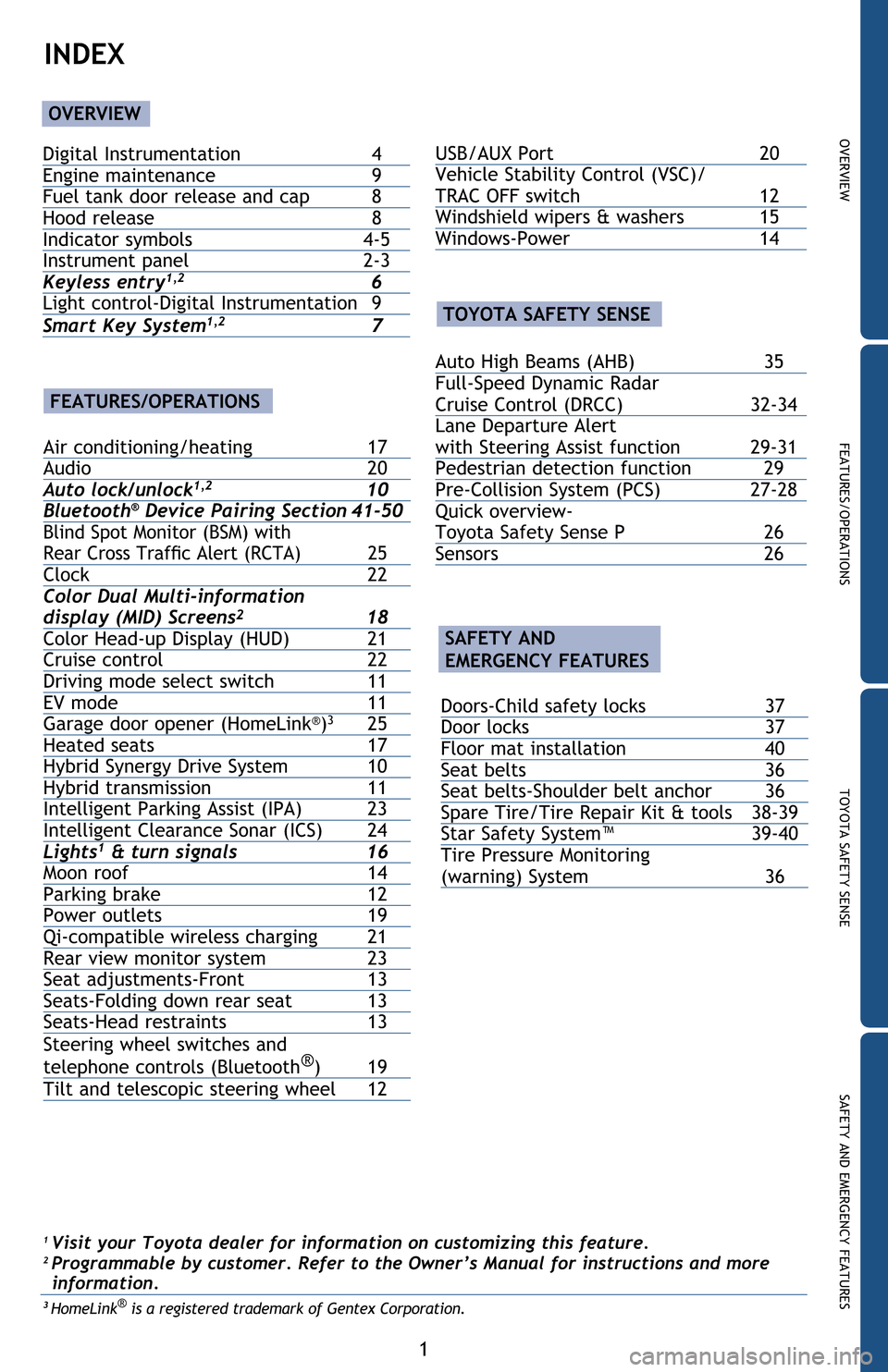

INDEX
OVERVIEW
Digital Instrumentation 4
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Digital Instrumentation 9
Smart Key System
1,2 7
Doors-Child safety locks 37
Door locks 37
Floor mat installation 40
Seat belts 36
Seat belts-Shoulder belt anchor 36
Spare Tire/Tire Repair Kit & tools 38-39
Star Safety System™ 39-40
Tire Pressure Monitoring
(warning) System 36
Air conditioning/heating 17
Audio 20
Auto lock/unlock
1,2 10
Bluetooth® Device Pairing Section 41-50Blind Spot Monitor (BSM) with
5HDU&URVV7UDI

18
FEATURES/OPERATIONS

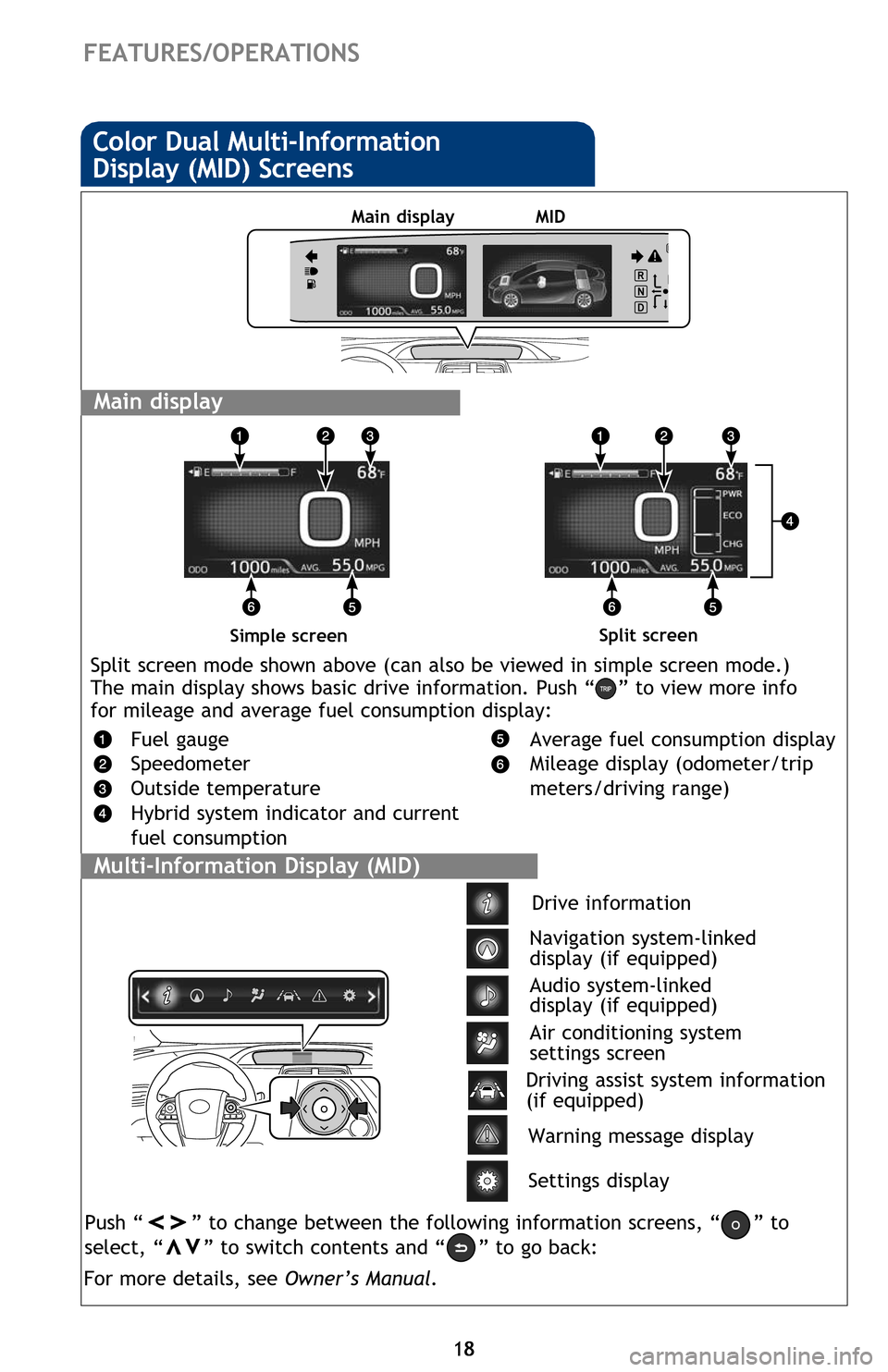

Main display
Color Dual Multi-Information
Display (MID) Screens
Split
screen
Multi-Information Display (MID)
pg 107, 114
18
Push “
vv” to change between the following information screens, “” to
select, “vv” to switch contents and “” to go back:
Split screen mode shown above (can also be viewed in simple screen mode.)
The main display shows basic drive information. Push “” to view more info
for mileage and average fuel consumption display:
For more details, see Owner’s Manual.
Fuel gauge
Speedometer
Outside temperature
Hybrid system indicator and current
fuel consumption
Average fuel consumption display
Mileage display (odometer/trip
meters/driving range)
Power outlets
Front
Power switch must be set at “ACCESSORY” or “ON” mode to be used.
Steering wheel audio and
telephone controls
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to mute/unmute
or pause/resume the current operation.
“
vv” Use to search within the selected audio medium (radio, CD, etc.).
End call
Start call
Steering wheel switches
and telephone controls (Bluetooth®)*
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and
the system. Refer to “Bluetooth
® Device Pairing Section,” in this guide, for more
information about phone connections and compatibility.
* Position of buttons may vary on some vehicles, for more details please refer to the Owner’s Manual.
Volume
control
Warning message display
Settings display
Driving assist system information
(if equipped)
Drive information
Navigation system-linked
display (if equipped)
Audio system-linked
display (if equipped)
Air conditioning system
settings screen
Simple screen Main display
MIDSplit screen
134261_Prius_QRG_GUTS.indd 1812/18/15 1:31 PM

SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
19
pg 543
pg 484
Push “vv” to change between the following information screens, “” to
select, “vv” to switch contents and “” to go back:
Split screen mode shown above (can also be viewed in simple screen mode.)
The main display shows basic drive information. Push “
” to view more info
for mileage and average fuel consumption display:
For more details, see Owner’s Manual. Average fuel consumption display
Mileage display (odometer/trip
meters/driving range)

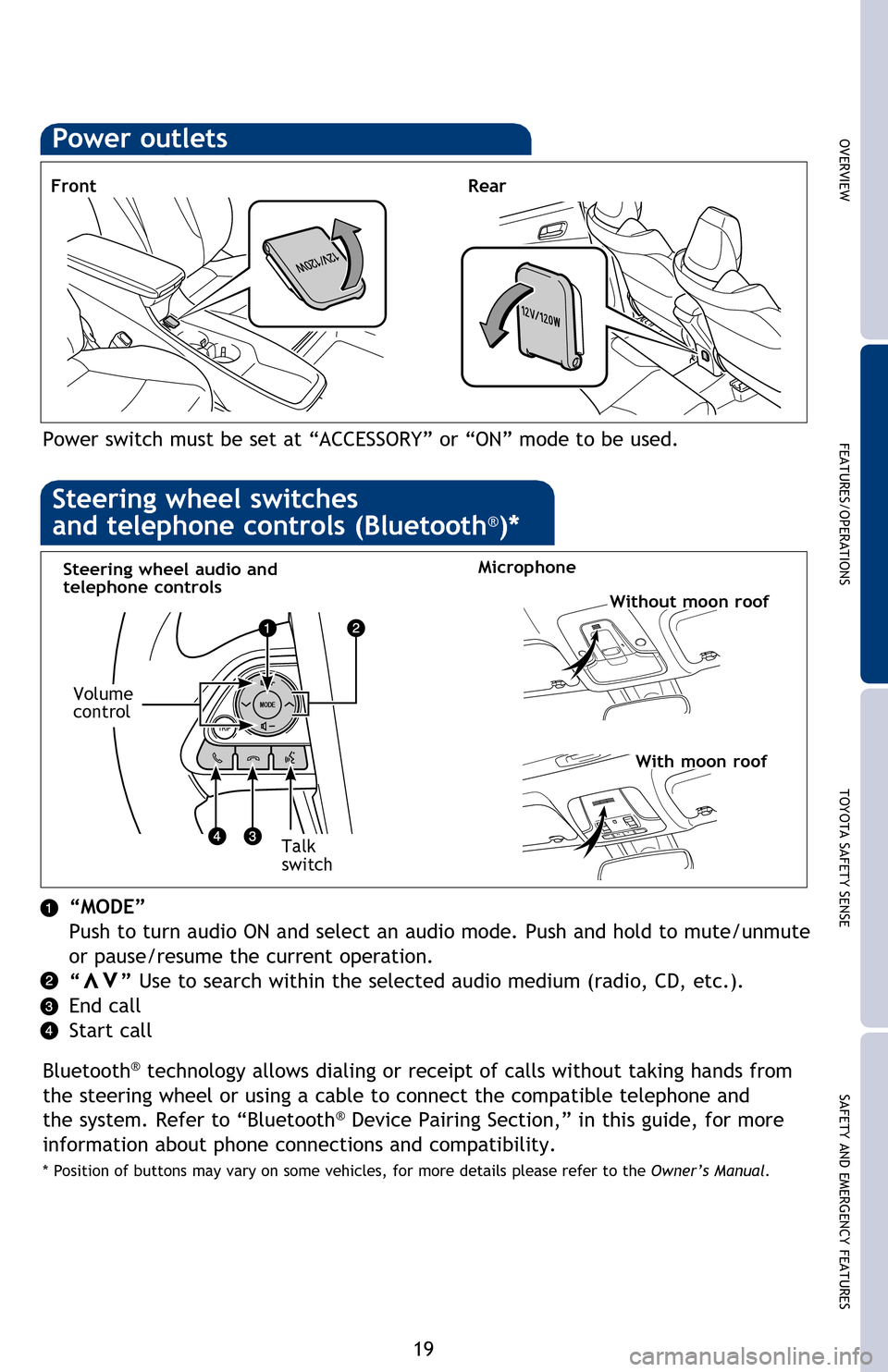

Power outlets
Front
Rear
Power switch must be set at “ACCESSORY” or “ON” mode to be used.
Microphone
Without moon roof
With moon roof
Steering wheel audio and
telephone controls
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to mute/unmute
or pause/resume the current operation.
“
vv” Use to search within the selected audio medium (radio, CD, etc.).
End call
Start call
Steering wheel switches
and telephone controls (Bluetooth®)*
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and
the system. Refer to “Bluetooth
® Device Pairing Section,” in this guide, for more
information about phone connections and compatibility.
* Position of buttons may vary on some vehicles, for more details please refer to the Owner’s Manual.
Volume
control
Talk
switch
Warning message display
Settings display
Driving assist system information
(if equipped)
134261_Prius_QRG_GUTS.indd 1912/18/15 1:31 PM

42

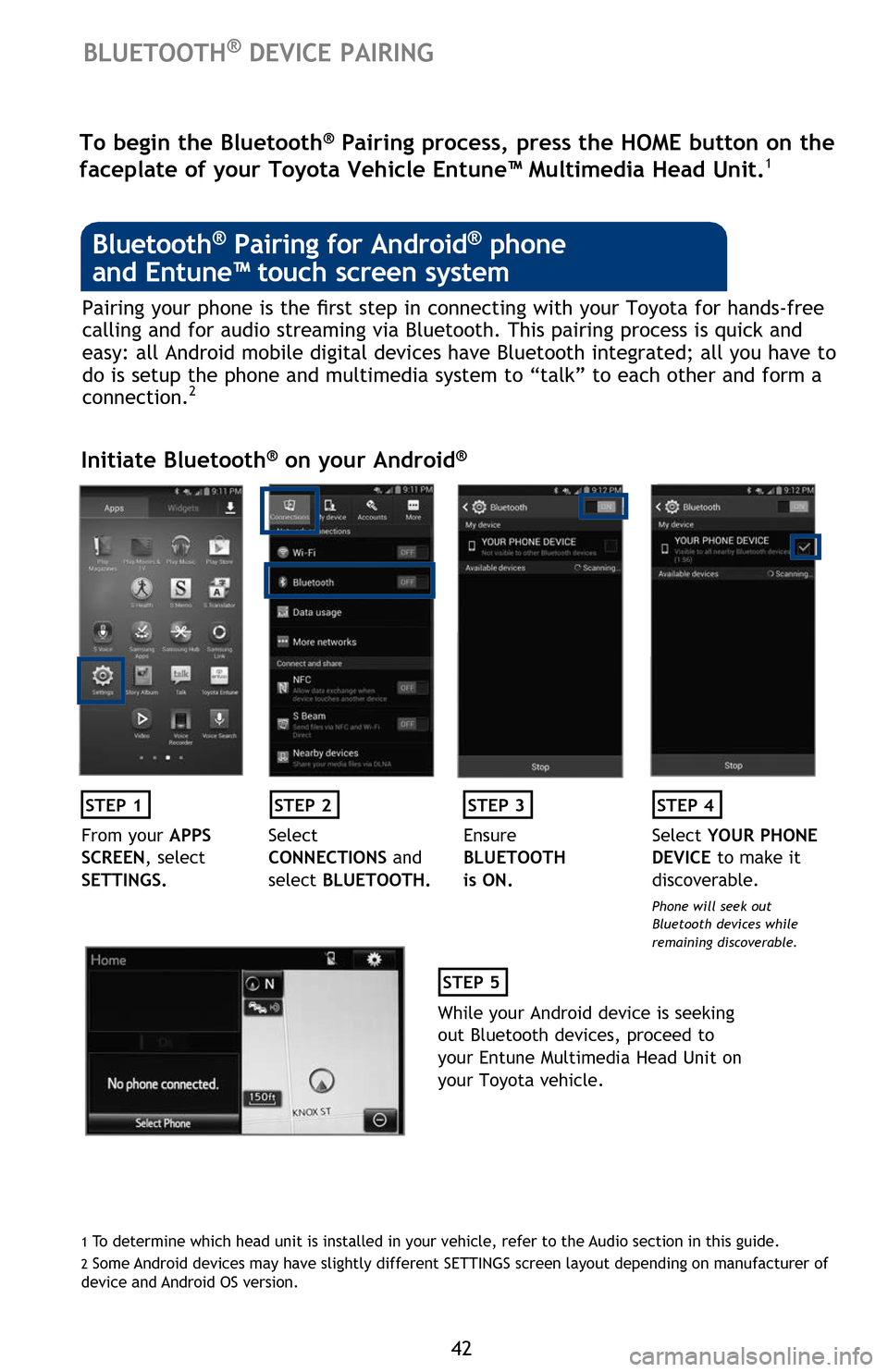

Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is TuicN and
easy all Android mobile digital devices have Bluetooth integrated all you have to
do is setup the phone and multimedia system to

43
Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is TuicN and
easy all Android mobile digital devices have Bluetooth integrated all you have to
do is setup the phone and multimedia system to

44

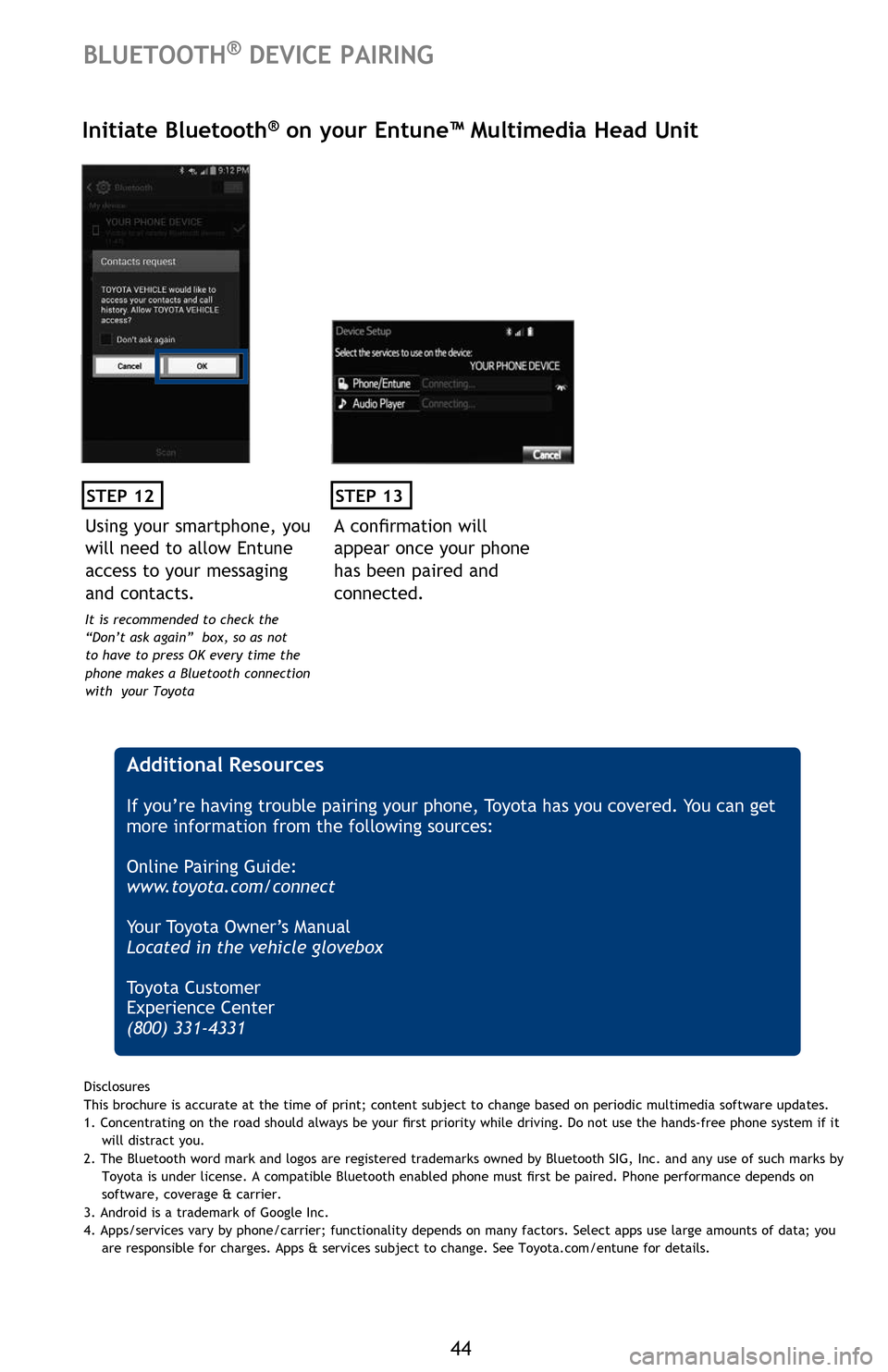

STEP 12
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
A confirmation will
appear once your phone
has been paired and
connected.
STEP 13
Additional Resources
,f you

45
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
Disclosures
This brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.
1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it
will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software coverage carrier.
3. Android is a trademark of Google Inc.
. Appsservices vary by phonecarrier functionality depends on many factors. 6elect apps use large amounts of data you
are responsible for charges. Apps services subMect to change. 6ee Toyota.comentune for details.

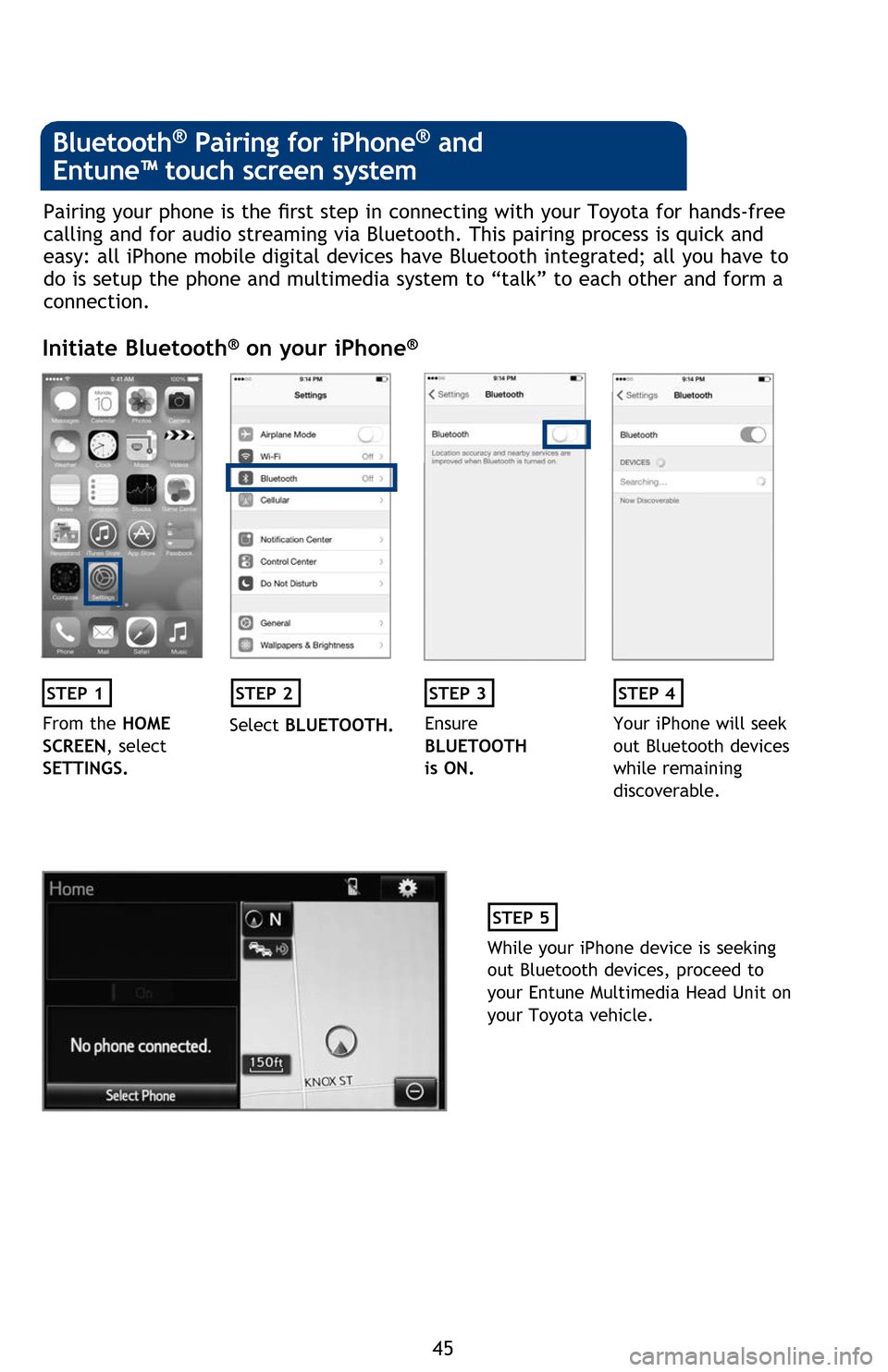

Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is TuicN and
easy all iPhone mobile digital devices have Bluetooth integrated all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.
Initiate Bluetooth® on your iPhone®
STEP 1STEP 2STEP 3STEP 4
From the HOME
SCREEN, select
SETTINGS. Select
BLUETOOTH. Ensure
BLUETOOTH
is ON. out Bluetooth devices
while remaining
discoverable.
STEP 5
:hile your iPhone device is seeNing
out Bluetooth devices proceed to
your Entune Multimedia Head Unit on
your Toyota vehicle.
Bluetooth® Pairing for iPhone® and
Entune™ touch screen system
BLUETOOTH® DEVICE PAIRING
134261_Prius_QRG_GUTS.indd 4512/18/15 1:55 PM

46

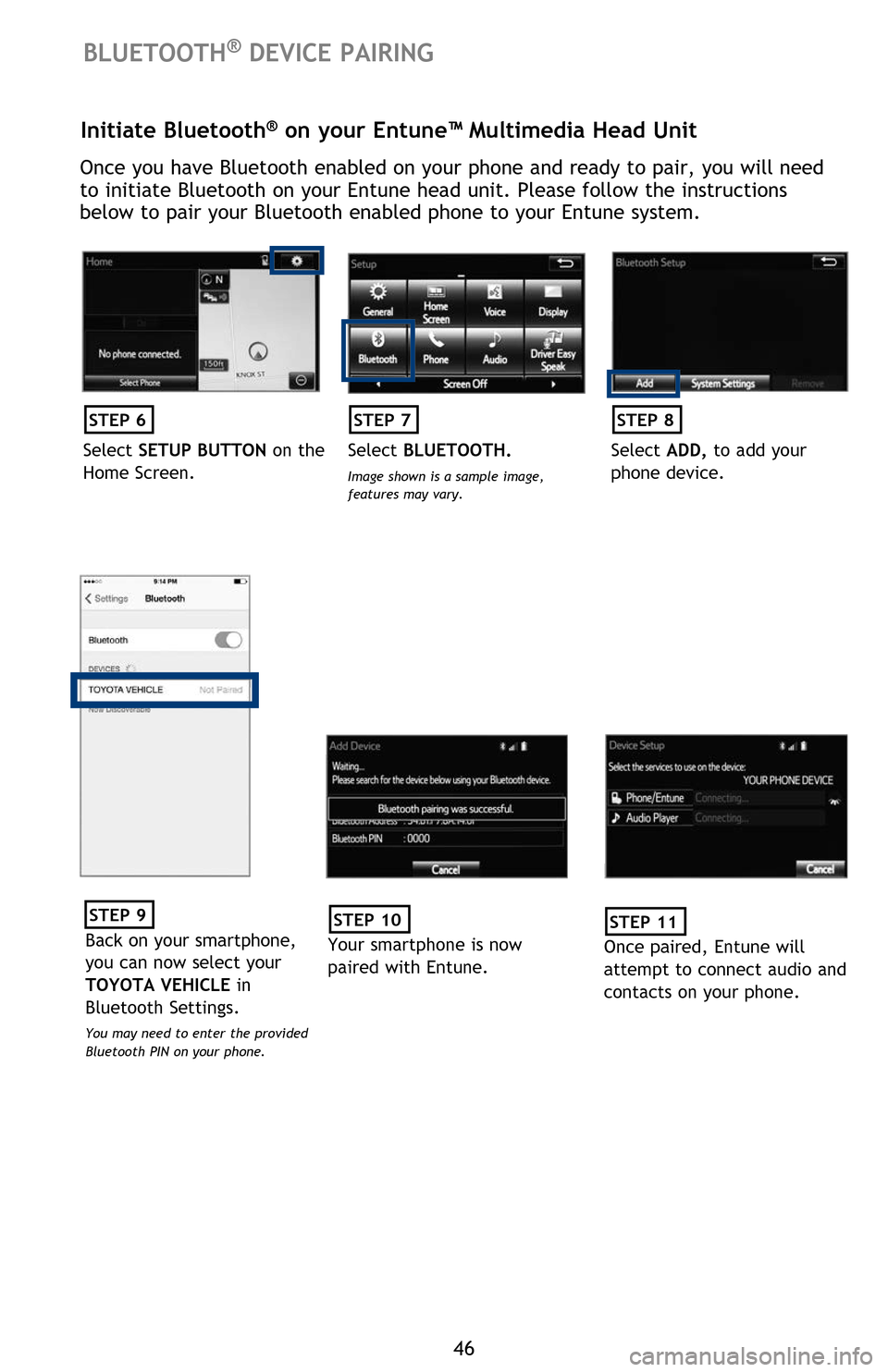

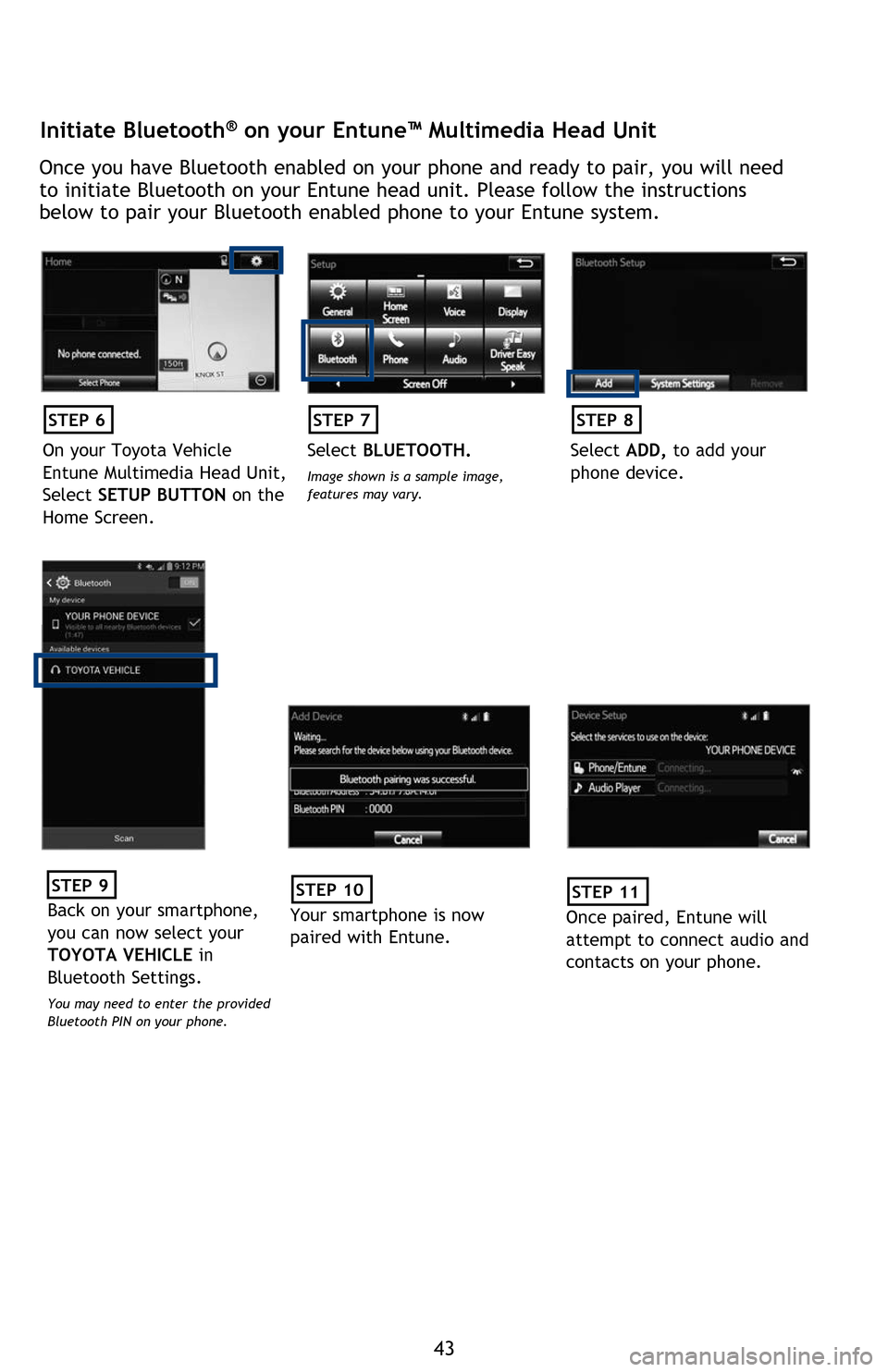

Initiate Bluetooth® on your Entune™ Multimedia Head Unit
Once you have Bluetooth enabled on your phone and ready to pair, you will need
to initiate Bluetooth on your Entune head unit. Please follow the instructions
below to pair your Bluetooth enabled phone to your Entune system.
STEP 6
Select SETUP BUTTON on the
Home Screen.
STEP 7
Select BLUETOOTH.
Image shown is a sample image,
features may vary.
STEP 8
Select ADD, to add your
phone device.
STEP 9
Back on your smartphone,
you can now select your
TOYOTA VEHICLE in
Bluetooth Settings.
You may need to enter the provided
Bluetooth PIN on your phone.
STEP 10
Your smartphone is now
paired with Entune.
STEP 11
Once paired, Entune will
attempt to connect audio and
contacts on your phone.
Using your smartphone, you may need to
allow Entune access to your messaging
and contacts.
Only current iPhone text messages can be viewed on the head unit. iPhone does not allow text message
reply.
STEP 12

DisclosuresThis brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.
1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it
will distract you.2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.3. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large amounts of data; you are responsible for charges. Apps & services subject to change. See Toyota.com/entune for details.
BLUETOOTH® DEVICE PAIRING
134261_Prius_QRG_GUTS.indd 4612/18/15 1:55 PM

47
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
Once you have Bluetooth enabled on your phone and ready to pair, you will need to initiate Bluetooth on your Entune head unit. Please follow the instructions
below to pair your Bluetooth enabled phone to your Entune system.
Select ADD, to add your
phone device.
Once paired, Entune will
attempt to connect audio and contacts on your phone.
Using your smartphone, you may need to
allow Entune access to your messaging
and contacts.
Only current iPhone text messages can be viewed on
the head unit. iPhone does not allow text message
reply.
STEP 12
A confirmation will
appear once your phone
has been paired and
connected.
STEP 13
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. Yo u can get
more information from the following sources:
Online Pairing Guide:
www.toyota.com/connect
Your Toyota Owner’s Manual
Located in the vehicle glovebox
Toyota Customer
Experience Center
(800) 331-4331
Disclosures
This brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.
1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it
will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on
software, coverage & carrier.
3. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large amounts of data; you
are responsible for charges. Apps & services subject to change. See Toyota.com/entune for details.
BLUETOOTH® DEVICE PAIRING
134261_Prius_QRG_GUTS.indd 4712/18/15 1:55 PM

48

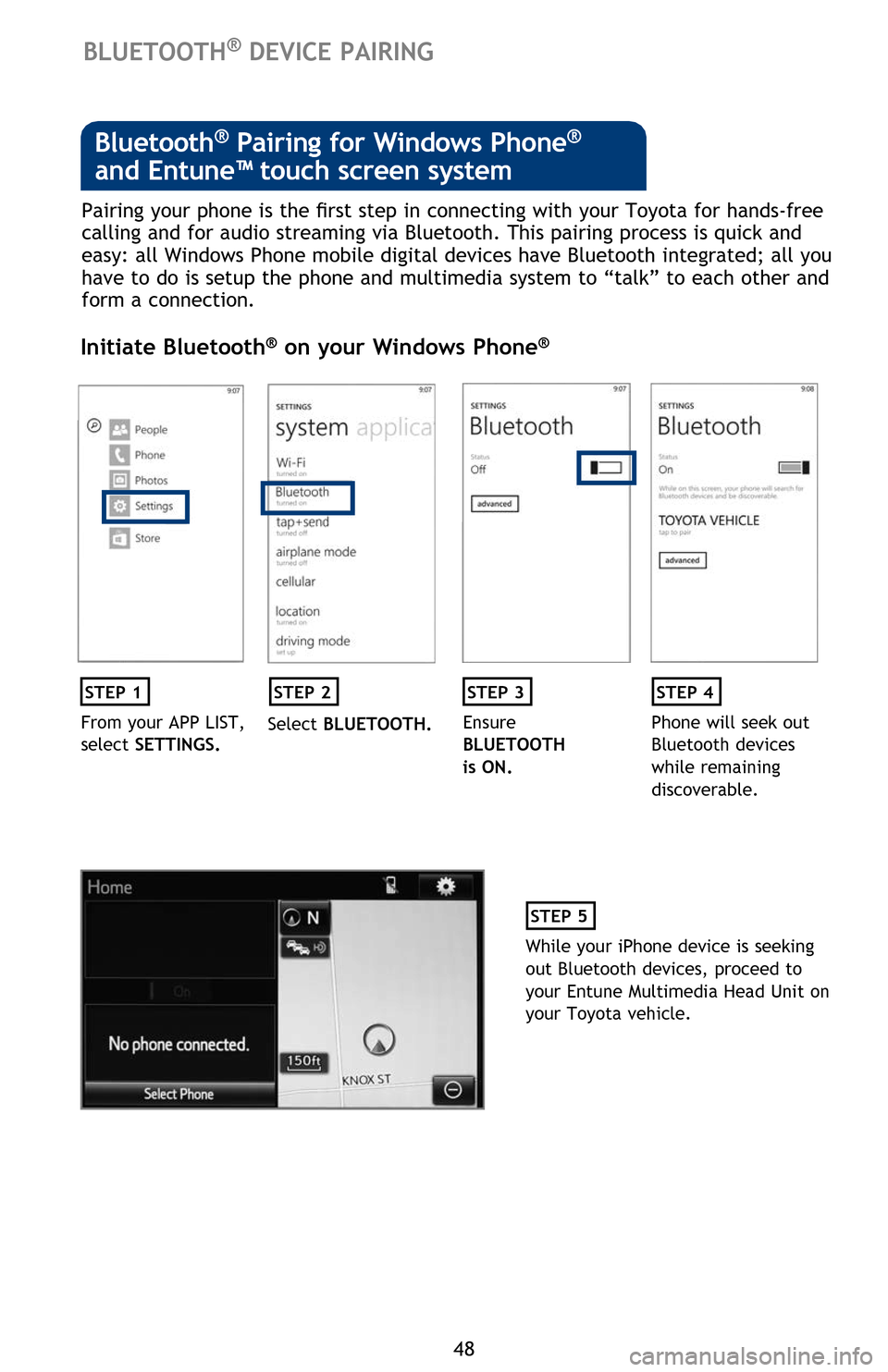

Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is TuicN and
easy all :indows Phone mobile digital devices have Bluetooth integrated all you
have to do is setup the phone and multimedia system to
