SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
5
Main Display
Multi-Information Display (MID)
Clock Display
Transmission shift position indicator
Service indicators and reminders
3 If this light flashes, refer to “Cruise control,” or “Full-Speed Dynamic radar cruise control,”
Section 4-5, 2016 Owner’s Manual.
4 If equipped.
Anti-lock Brake System warning1
Low engine oil pressure warning1
Pre-collision System warning1,2,4
Turn signal indicator Intelligent Parking Assist
4
Slip indicator/Hill-start Assist
Control indicator1,2
Headlight low/
high beam indicator
Immobilizer system indicator
Blind Spot Monitor4
Electric power
steering system warning1
Automatic High Beams1,4
READY indicator
S-APGS indicator4
Front fog light indicator4
ECO Mode indicator
EV Drive Mode indicator
1
If indicator does not turn off within a few seconds of starting hybrid system, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 The light flashes to indicate a malfunction.
For details, refer to “Indicators and warning lights,” Section 2, 2016 Owner’s
Manual .
Cruise control indicator3/
Full-Speed Dynamic Radar Cruise Control3,4
High coolant temperature warning light1
Power Mode indicator
EV indicator
Intelligent Clearance Sonar (ICS)
OFF indicator1,2,4
Parking brake indicator
Shift position indicators
VSC OFF indicator1
Lane Departure Alert indicator4
Steering Assist indicator4
Smart key system
Brake Overrride System/Drive-Start control/Intelligent
Clearance Sonar4
Lane Departure Alert (LDA) with Steering Assist4
Lane Departure Alert (LDA) Sway Control4
Arrow direction indicates fuel
tank door position
134261_Prius_QRG_GUTS.indd 512/18/15 1:30 PM
8
OVERVIEW
Hood release
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may illuminate.
Pull
Turn to open
Store

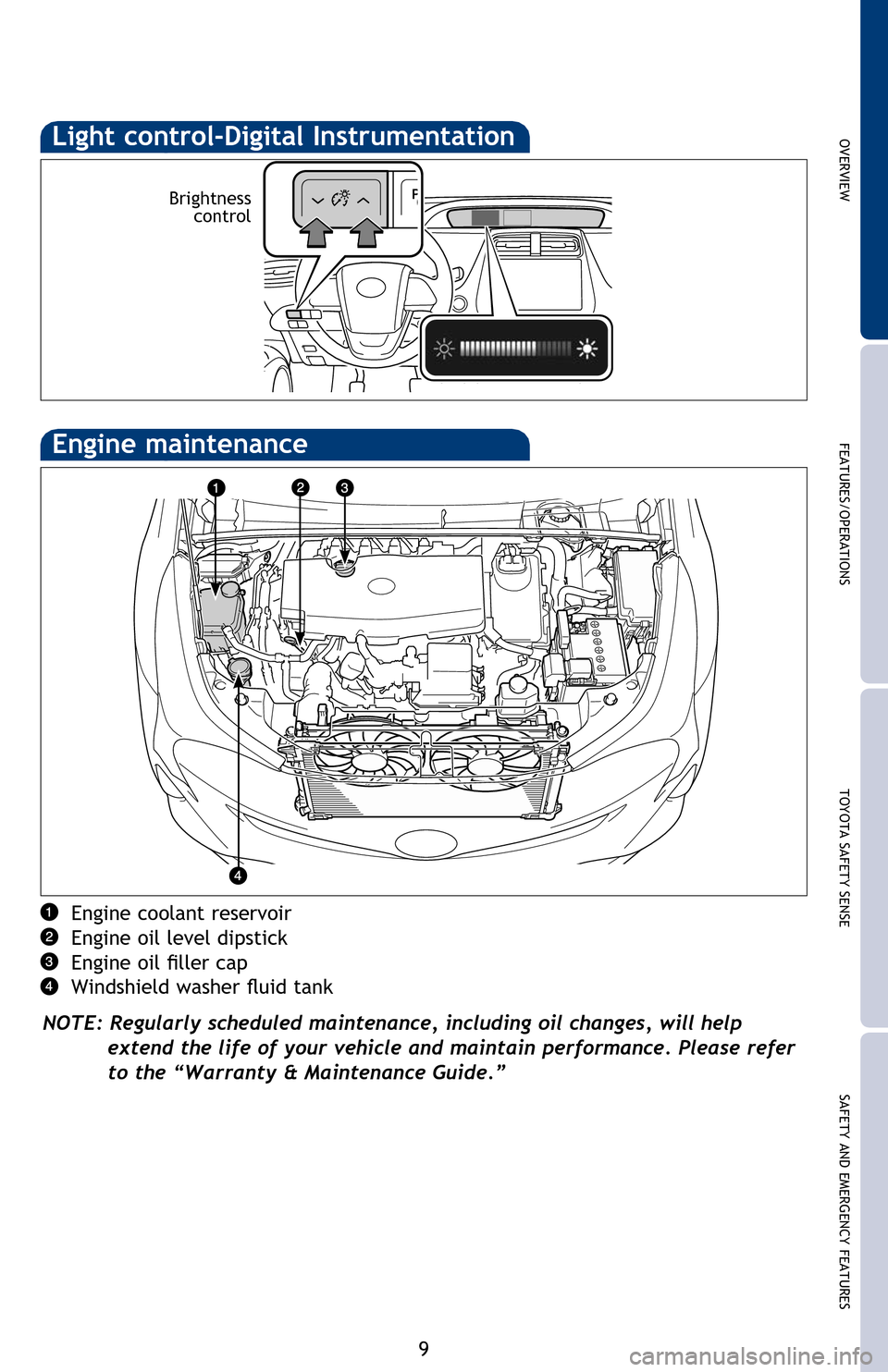

Engine coolant reservoir
Engine oil level dipstick
(ngine oil filler cap
:indshield washer
