steering TOYOTA PRIUS 2016 4.G Quick Reference Guide

2
EV drive mode switch
Driving mode select switch
Seat heater switches
1
“ENGINE START STOP” button (Smart key)
Tilt and telescopic steering lock release lever
Parking brake
Hood lock release lever
Fuel tank door opener
Instrument cluster light control switch
Intelligent Parking Assist (IPA) switch
1
Vehicle Stability Control (VSC) OFF switch
Automatic High Beam (AHB) switch1
Color Head-up Display (HUD) switch1
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual.”3 For details, refer to the “2016 Entune™ Audio Quick Reference Guide.”
“TRIP” switch
Steering wheel audio controls2,3
Meter control switches
Full-Speed Dynamic Radar Cruise Control (DRCC) vehicle-to-vehicle distance switch1
Full-Speed Dynamic Radar Cruise Control (DRCC)1/Cruise control switch
Lane Departure Alert (LDA) switch
Voice command button
2,3
Telephone control switches2,3
Headlight and turn signal controls/Headlight, turn signal and front fog light
controls1
Wiper and washer controls
Digital instrumentation
“P” position switch
Multi-Information Display (MID)
Shift lever
(mergency

SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
3
EV drive mode switch
Driving mode select switch
Seat heater switches
1
“ENGINE START STOP” button (Smart key)
Tilt and telescopic steering lock release lever
Parking brake
Hood lock release lever
Fuel tank door opener
Instrument cluster light control switch
Intelligent Parking Assist (IPA) switch
1
Vehicle Stability Control (VSC) OFF switch
Automatic High Beam (AHB) switch1
Color Head-up Display (HUD) switch1
1
If equipped2 For details, refer to the “Navigation System Owner’s Manual.”3 For details, refer to the “2016 Entune™ Audio Quick Reference Guide.”
“TRIP” switch
Steering wheel audio controls2,3
Meter control switches
Full-Speed Dynamic Radar Cruise Control (DRCC) vehicle-to-vehicle distance switch1
Full-Speed Dynamic Radar Cruise Control (DRCC)1/Cruise control switch
Lane Departure Alert (LDA) switch
Voice command button
2,3
Telephone control switches2,3
Headlight and turn signal controls/Headlight, turn signal and front fog light
controls1
Wiper and washer controls
Digital instrumentation
“P” position switch
Multi-Information Display (MID)
Shift lever
(mergency

SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
5
Main Display
Multi-Information Display (MID)
Clock Display
Transmission shift position indicator
Service indicators and reminders
3 If this light flashes, refer to “Cruise control,” or “Full-Speed Dynamic radar cruise control,”
Section 4-5, 2016 Owner’s Manual.
4 If equipped.
Anti-lock Brake System warning1
Low engine oil pressure warning1
Pre-collision System warning1,2,4
Turn signal indicator Intelligent Parking Assist
4
Slip indicator/Hill-start Assist
Control indicator1,2
Headlight low/
high beam indicator
Immobilizer system indicator
Blind Spot Monitor4
Electric power
steering system warning1
Automatic High Beams1,4
READY indicator
S-APGS indicator4
Front fog light indicator4
ECO Mode indicator
EV Drive Mode indicator
1
If indicator does not turn off within a few seconds of starting hybrid system, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 The light flashes to indicate a malfunction.
For details, refer to “Indicators and warning lights,” Section 2, 2016 Owner’s
Manual .
Cruise control indicator3/
Full-Speed Dynamic Radar Cruise Control3,4
High coolant temperature warning light1
Power Mode indicator
EV indicator
Intelligent Clearance Sonar (ICS)
OFF indicator1,2,4
Parking brake indicator
Shift position indicators
VSC OFF indicator1
Lane Departure Alert indicator4
Steering Assist indicator4
Smart key system
Brake Overrride System/Drive-Start control/Intelligent
Clearance Sonar4
Lane Departure Alert (LDA) with Steering Assist4
Lane Departure Alert (LDA) Sway Control4
Arrow direction indicates fuel
tank door position
134261_Prius_QRG_GUTS.indd 512/18/15 1:30 PM

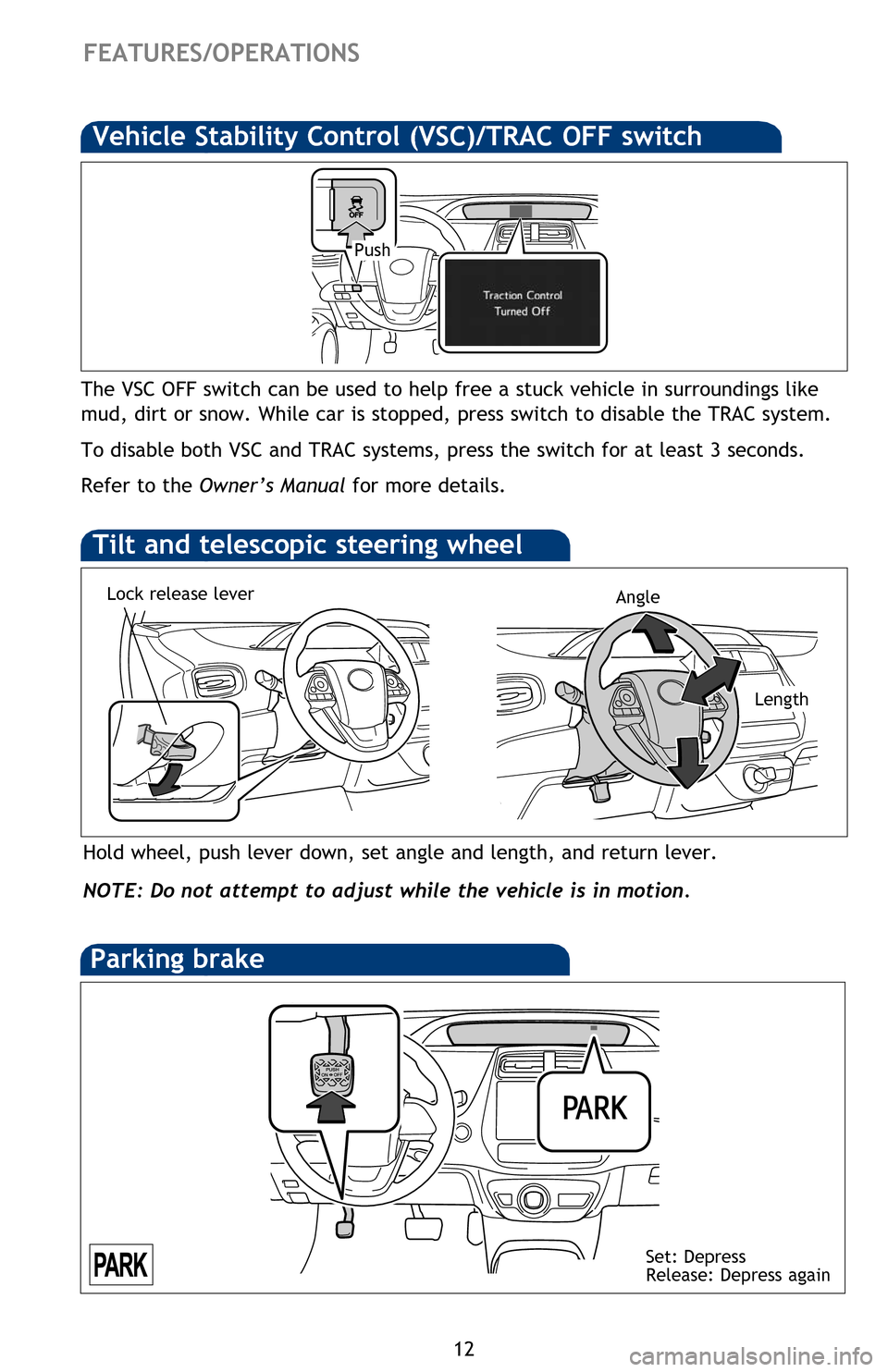

12
FEATURES/OPERATIONS
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
AngleLock release lever
Parking brake
Set: Depress
Release: Depress again
Seats-Head restraints (if equipped)
Front
Lock release button
Seat-Folding down rear seat
Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle and height
Lumbar support
Manual seat
Length
The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While car is stopped, press switch to disable the TRAC system.
To disable both VSC and TRAC systems, press the switch for at least 3 seconds.
Refer to the Owner’s Manual for more details.
Push
Vehicle Stability Control (VSC)/TRAC OFF switch
134261_Prius_QRG_GUTS.indd 1212/18/15 1:30 PM

18
FEATURES/OPERATIONS
Main display
Color Dual Multi-Information
Display (MID) Screens
Split
screen
Multi-Information Display (MID)
pg 107, 114
18
Push “
vv” to change between the following information screens, “” to
select, “vv” to switch contents and “” to go back:
Split screen mode shown above (can also be viewed in simple screen mode.)
The main display shows basic drive information. Push “” to view more info
for mileage and average fuel consumption display:
For more details, see Owner’s Manual.
Fuel gauge
Speedometer
Outside temperature
Hybrid system indicator and current
fuel consumption
Average fuel consumption display
Mileage display (odometer/trip
meters/driving range)
Power outlets
Front
Power switch must be set at “ACCESSORY” or “ON” mode to be used.
Steering wheel audio and
telephone controls
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to mute/unmute
or pause/resume the current operation.
“
vv” Use to search within the selected audio medium (radio, CD, etc.).
End call
Start call
Steering wheel switches
and telephone controls (Bluetooth®)*
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and
the system. Refer to “Bluetooth
® Device Pairing Section,” in this guide, for more
information about phone connections and compatibility.
* Position of buttons may vary on some vehicles, for more details please refer to the Owner’s Manual.
Volume
control
Warning message display
Settings display
Driving assist system information
(if equipped)
Drive information
Navigation system-linked
display (if equipped)
Audio system-linked
display (if equipped)
Air conditioning system
settings screen
Simple screen Main display
MIDSplit screen
134261_Prius_QRG_GUTS.indd 1812/18/15 1:31 PM

SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
19
pg 543
pg 484
Push “vv” to change between the following information screens, “” to
select, “vv” to switch contents and “” to go back:
Split screen mode shown above (can also be viewed in simple screen mode.)
The main display shows basic drive information. Push “
” to view more info
for mileage and average fuel consumption display:
For more details, see Owner’s Manual. Average fuel consumption display
Mileage display (odometer/trip
meters/driving range)
Power outlets
Front
Rear
Power switch must be set at “ACCESSORY” or “ON” mode to be used.
Microphone
Without moon roof
With moon roof
Steering wheel audio and
telephone controls
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to mute/unmute
or pause/resume the current operation.
“
vv” Use to search within the selected audio medium (radio, CD, etc.).
End call
Start call
Steering wheel switches
and telephone controls (Bluetooth®)*
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and
the system. Refer to “Bluetooth
® Device Pairing Section,” in this guide, for more
information about phone connections and compatibility.
* Position of buttons may vary on some vehicles, for more details please refer to the Owner’s Manual.
Volume
control
Talk
switch
Warning message display
Settings display
Driving assist system information
(if equipped)
134261_Prius_QRG_GUTS.indd 1912/18/15 1:31 PM

28
TOYOTA SAFETY SENSE
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select from the MID.
(3) Press “
” from the meter switches.
Each time “
” is pressed, the response to the warning distance changes as
follows:
Far
Middle (default)
Near
Note: The PCS warning timing is set when the power switch is turned off.

Changing the pre-collision warning distance

Disabling the Pre-Collision System (PCS)
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select from the MID.
(3) Press “
” from the meter switches.
The Pre-Collision System will be disabled.
Note: The system is automatically enabled each time the power switch is
turned to ON mode.
The Lane Departure Alert system recognizes visible white or yellow lane markers
via camera sensor. The system alerts the driver with a warning buzzer sound
and message in the Multi-Information Display (MID) when it detects the vehicle
deviating from or swaying multiple times within its lane.
Lane Departure Alert (LDA) with
Steering Assist (SA) function
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: The system will continue in the last state it was in (ON or OFF)
when the engine is started again.
Turning on the LDA system
As part of PC6 this function is also designed to first provide an alert and then
automatic braking if needed.
Pedestrian Detection Function
The Pre-Collision System also features a pedestrian detection function. Using
a millimeter wave radar and monocular camera sensor, this advanced sensor
system can recognize pedestrians in some circumstances. It may provide detection
capability while driving at low as well as higher speeds.
134261_Prius_QRG_GUTS.indd 2812/18/15 1:32 PM

29
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “ ” switches and select from the MID.
(3) Press “
” from the meter switches.
Each time “
” is pressed, the response to the warning distance changes as
follows:
Far
Middle (default)
Near
Note: The PCS warning timing is set when the power switch is turned off.


(1) Press “ ” switches and select from the Multi-Information Display (MID).
(2) Press “ ” switches and select from the MID.
(3) Press “
” from the meter switches.
The Pre-Collision System will be disabled.
Note: The system is automatically enabled each time the power switch is
turned to ON mode.
The Lane Departure Alert system recognizes visible white or yellow lane markers
via camera sensor. The system alerts the driver with a warning buzzer sound
and message in the Multi-Information Display (MID) when it detects the vehicle
deviating from or swaying multiple times within its lane.
Lane Departure Alert (LDA) with
Steering Assist (SA) function
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: The system will continue in the last state it was in (ON or OFF)
when the engine is started again.
Turning on the LDA system
Monocular camera sensor
Millimeter wave radar
As part of PC6 this function is also designed to first provide an alert and then
automatic braking if needed.
Pedestrian Detection Function
The Pre-Collision System also features a pedestrian detection function. Using
a millimeter wave radar and monocular camera sensor, this advanced sensor
system can recognize pedestrians in some circumstances. It may provide detection
capability while driving at low as well as higher speeds.
SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
134261_Prius_QRG_GUTS.indd 2912/18/15 1:32 PM
