TOYOTA PRIUS 2017 4.G Owners Manual

PRIUS_OM_OM47B54U_(U)
7519-2. Customization
9
Vehicle specifications
■Smart key system (→P. 176)
*: This function can also be changed using the wireless remote control.
(→P. 169)
■
Wireless remote control ( →P. 166)
FunctionDefault
settingCustomized setting
Smart key systemOnOff–OO
Smart door unlocking*Driver’s doorAll the doors–OO
Time elapsed before unlock-
ing all the door when gripping
and holding the driver’s door
handle
2 seconds
Off
––O1.5 seconds
2.5 seconds
Number of consecutive door
lock operations2 timesAs many as
desired––O
123
FunctionDefault settingCustomized setting
Unlocking operation
Driver’s door unlocked in
first step, all
doors
unlocked in
second step
All doors
unlocked in first step
–OO
Wireless remote control On Off – – O
Locking operation when door
opened On Off – – O
123

752
PRIUS_OM_OM47B54U_(U)
9-2. Customization
■Power windows and moon roof* (→ P. 198, 202)
*: If equipped
■
Reverse warning buzzer (→ P. 236)
■Turn signal lever (→P. 240)
FunctionDefault
settingCustomized setting
Mechanical key linked opera-
tion (open)OffOn––O
Mechanical key linked opera-
tion (close)OffOn––O
Wireless remote control linked
operation (open only)OffOn––O
Mechanical key, wireless
remote control linked opera-
tion signal (buzzer)
OnOff––O
123
FunctionDefault
settingCustomized setting
Signal (buzzer) when the shift
position is in RIntermittentSingle––O
123
FunctionDefault settingCustomized setting
Times of flashing of the lane
change signal flashers3
Off
––O5
7
123

PRIUS_OM_OM47B54U_(U)
7539-2. Customization
9
Vehicle specifications
■Automatic light control system (→P. 242)
*: This function cannot be customized for vehicles sold in Canada.
■
Rain-sensing windshield wipers* ( → P. 256)
*: If equipped
■
Intuitive parking assist* ( → P. 333)
*: If equipped
FunctionDefault
settingCustomized setting
Time elapsed before the
headlights turn off 30 secondsOff
–OO
60 seconds
90 seconds
Light sensor sensitivityLevel 0Level -2 to 2–OO
Daytime running lights*OnOff–OO
123
FunctionDefault
settingCustomized setting
Wiper operation when the
wiper switch is in the “AUTO”
positionRain-sensing operation
Intermittent
operation
linked to vehi- cle speed
(with interval adjuster)
––O
123
FunctionDefault
settingCustomized setting
Detection distance of the front
center sensorsFarNear––O
Detection distance of the rear
center sensorsFarNear––O
Buzzer volume31 to 5––O
123

754
PRIUS_OM_OM47B54U_(U)
9-2. Customization
■Automatic air conditioning system (→P. 510)
■Illumination ( →P. 523)
*: If equipped
■
Seat belt reminder ( →P. 657)
FunctionDefault
settingCustomized setting
A/C auto switching operationOffOn––O
Switching between outside air
and recirculated air mode
linked to A/C auto switch oper-
ation
OnOff–OO
123
FunctionDefault settingCustomized setting
Time elapsed before the inte-
rior lights turn off 15 secondsOff
–OO
7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff––O
Operation when the doors are
unlockedOnOff––O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff––O
Footwell lighting*OnOff––O
Interior lights illumination con-
trolOnOff––O
123
FunctionDefault settingCustomized setting
Vehicle speed linked seat belt
reminder buzzerOnOff––O
123

PRIUS_OM_OM47B54U_(U)
7559-2. Customization
9
Vehicle specifications
■Vehicle customization
●When the Speed linked door locking function and the Shift position linked
door locking function are both on, the door lock operates as follows.
• When shifting the shift position to any position other than P, all the doors
will be locked.
• If the vehicle is started with all the doors locked, the Speed linked door locking function would not operate.
• If the vehicle is started with any door unlocked, the Speed linked door locking function will operate.
● When the smart key system is off, Smart door unlocking cannot be custom-
ized.
● When the doors remain closed after unlocking the doors and the automatic
door lock function is activated, the signals will be generated in accordance
with the operation signal (buzzer) and the operation signal (emergency
flashers) settings.
■ In the following situations, customize mode will automatically be turned
off.
●A warning message appears after the customize mode screen is displayed.
● The power switch is turned off.
● The vehicle begins to move while the customize mode screen is displayed.
■
Maintenance system
WARNING
■ Cautions during customization
As the hybrid system needs to be oper ating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.
Oil Maintenance
(U.S.A. only)Resetting the message indicating maintenance
is required: →P. 578
Tire pressure warning
systemInitializing the tire pressure warning system:
→ P. 6 0 6

756
PRIUS_OM_OM47B54U_(U)
9-3. Initialization

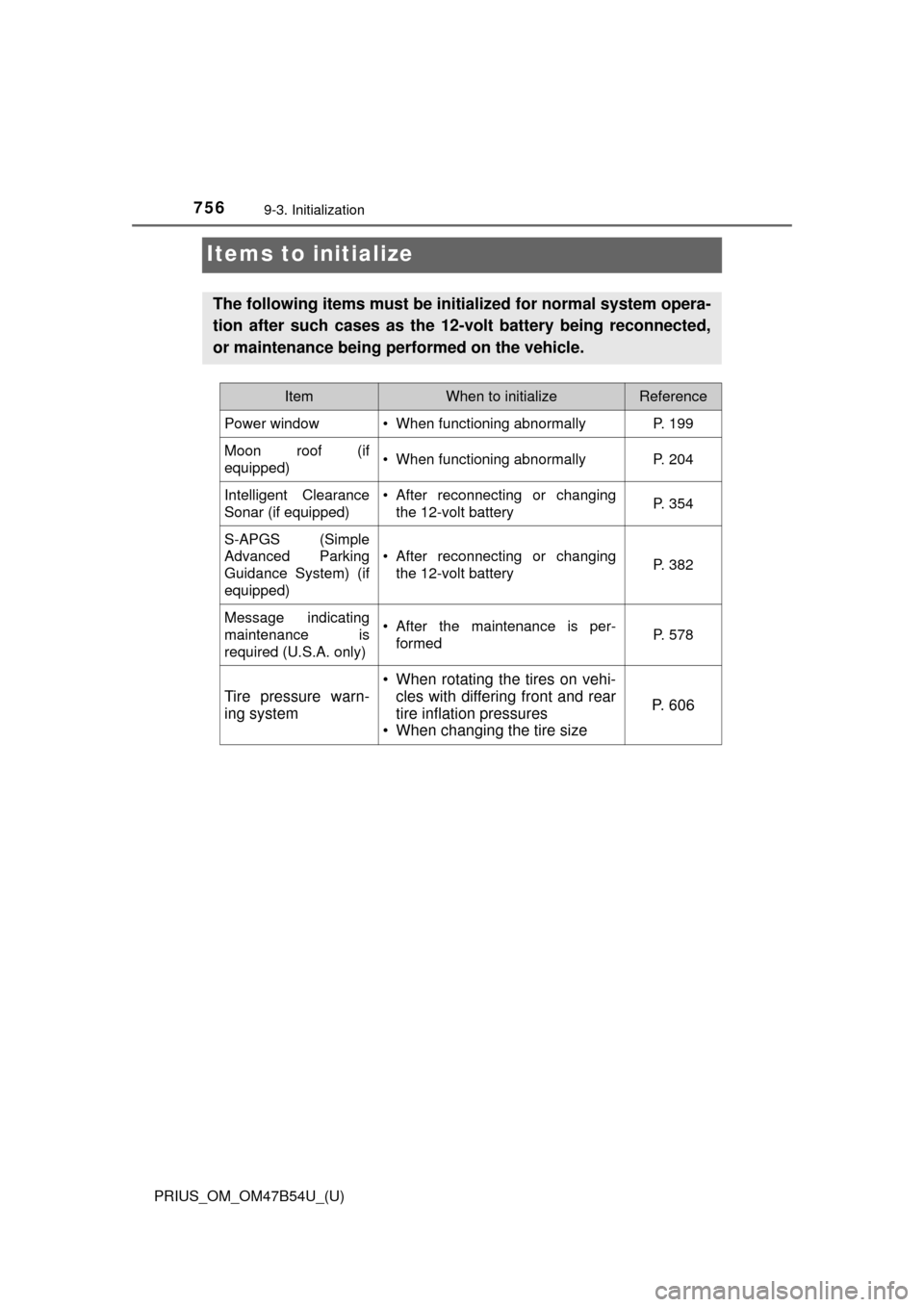

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle.
ItemWhen to initializeReference
Power window• When functioning abnormallyP. 199
Moon roof (if
equipped)• When functioning abnormallyP. 204
Intelligent Clearance
Sonar (if equipped)• After reconnecting or changing the 12-volt batteryP. 354
S-APGS (Simple
Advanced Parking
Guidance System) (if
equipped)
• After reconnecting or changingthe 12-volt batteryP. 382
Message indicating
maintenance is
required (U.S.A. only)• After the maintenance is per-formedP. 578
Tire pressure warn-
ing system
• When rotating the tires on vehi-cles with differing front and rear
tire inflation pressures
• When changing the tire size
P. 6 0 6

757
PRIUS_OM_OM47B54U_(U)
10For owners
Reporting safety defects for U.S. owners........................ 758
Seat belt instructions for Canadian owners
(in French) ............................... 759
SRS airbag instructions for Canadian owners
(in French) ............................... 761
Headlight aim instructions for Canadian owners
(in French) ............................... 770

758
PRIUS_OM_OM47B54U_(U)

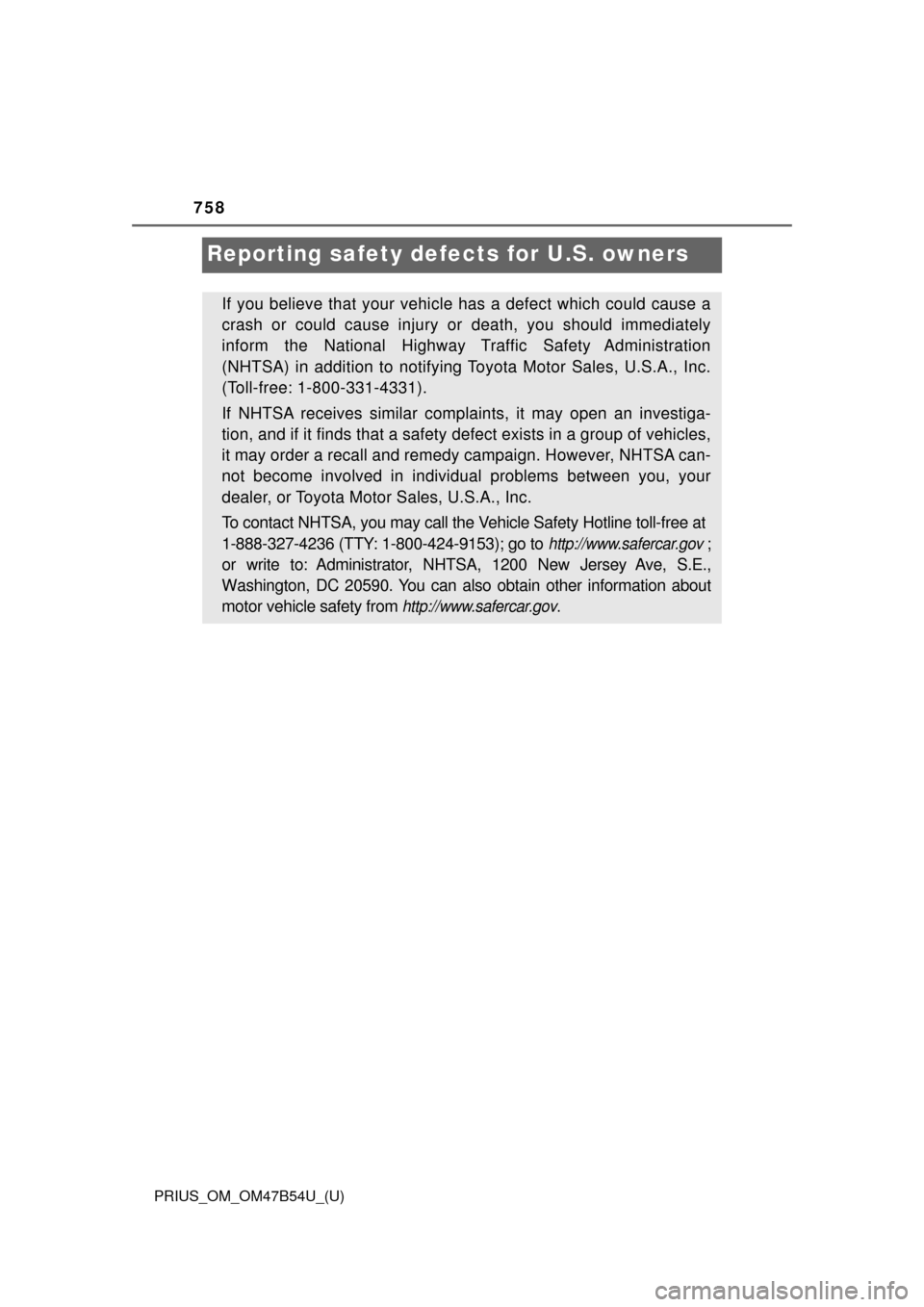

Reporting safety defects for U.S. owners
If you believe that your vehicl e has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-331-4331).
If NHTSA receives similar comp laints, it may open an investiga-
tion, and if it finds that a safety defect exists in a group of vehicles,
it may order a recall and remedy campaign. However, NHTSA can-
not become involved in individual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E.,
Washington, DC 20590. You can also obtain other information about
motor vehicle safety from
http://www.safercar.gov.

759
PRIUS_OM_OM47B54U_(U)
10
For owners
Seat belt instructions for Canadian owners
(in French)
● Tirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre
entièrement l’épaule; elle ne
doit cependant pas toucher le
cou ni glisser de l’épaule.
● Placez la ceinture abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier. Tenez-vous assis bien au fond du
siège, le dos droit.
● Ne vrillez pas la ceinture de sécurité.
The following is a French explan ation of seat belt instructions
extracted from the seat be lt section in this manual.
See the seat belt secti on for more detailed seat belt instructions in
English.
Utilisation adéquate des ceintures de sécurité

760
PRIUS_OM_OM47B54U_(U)■
Ceintures de sécurité
Avec un chiffon ou une éponge, nettoyez à l’aide d’un savon doux
et de l’eau tiède. Vérifiez aussi les ceintures régulièrement pour
vous assurer qu’elles ne présentent
pas d’usure excessive, d’effilo-
chage ou de coupures.
Entretien et nettoyage
AVERTISSEMENT
■ Dommages et usure de la ceinture de sécurité
Vérifiez périodiquement le système de ceintures de sécurité. Vérifiez qu’il
n’y a pas de coupures, d’effilochures ni de pièces desserrées. N’utilisez pas
une ceinture de sécurité endommagée avant qu’elle ne soit remplacée. Les
ceintures de sécurité endommagées ne peuvent pas protéger les occu-
pants contre les blessures graves, voire mortelles.
