engine TOYOTA PRIUS 2017 4.G Quick Reference Guide

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
INDEX
Digital Instrumentation 4
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Digital Instrumentation 8
Smart Key system
1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instruction\
s and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW FEATURES & OPERATIONS (continued)
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES TOYOTA SAFETY SENSE™ P (TSS-P)
Air conditioning/heating 17
Audio 20
Auto lock/unlock
1,2 10
Blind Spot Monitor (BSM) with
Rear Cross Traffic Alert (RCTA) 25
Clock 22
Color Dual Multi-Information
Display (MID)
2 18
Door locks 14
Color Head-up Display (HUD) 19
Cruise control 22
Driving mode select switch 11
EV drive mode switch 11
Garage door opener (HomeLink
®)3 25
Heated seats 17
Hybrid Synergy Drive System 10
Hybrid transmission 11
Intelligent Clearance Sonar (ICS) 24
Intelligent Parking Assist (IPA) 23
Lights
1 & turn signals 16
Moon roof 14
Parking brake 12
Power outlets 21
Qi-compatible wireless charging 21
Rear view monitor system 24
Seat adjustments-Front 13
Seats-Folding down rear seat 13
Seats-Head restraints 13Doors-Child safety locks
38
Floor mat installation 41
Seat belts 37
Seat belts-Shoulder belt anchor 37
Spare tire /Tire repair kit & tools 38-39
Star Safety System
™ 40
Tire Pressure Monitoring
(warning) System (TPMS) 37 Automatic High Beams (AHB) 36
Full-Speed Range Dynamic
Radar Cruise Control (DRCC) 33-35
Lane Departure Alert with Steering
Assist function (LDA w/SA) 29-32
Pre-Collision System with Pedestrian
Detection function (PCS w/PD) 27-29
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 26
Sensors 26
Steering wheel switches &
Telephone controls (Bluetooth
®) 19
Tilt & telescopic steering wheel 12
USB/AUX Port 20
Vehicle Stability Control
(VSC)/TRAC OFF switch 12
Windows-Power 14
Windshield wipers & washers 15
PRIUS 2017
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your new
Prius.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Prius operations\
. Every
Prius owner should review the Owner’s Manual that accompanies this ve\
hicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
BLUETOOTH® DEVICE
PAIRING SECTION 42-51
2017_Prius_D6_1.indd 19/25/16 2:37 AM

2
OVERVIEWInstrument panel
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual.”3 For details, refer to the “2017 Entune™ Audio Quick Reference Guid\
e.”
Steering wheel controls
Vehicle Stability Control (VSC) OFF switch
Intelligent Parking Assist (IPA) switch
1
Automatic High Beam
(AHB) switch Color Head-up Display
(HUD) switch
1
Instrument cluster
light control switch
“ENGINE START STOP”
button (Smart key)
Tilt and telescopic steering
lock release lever
Steering wheel
audio controls2,3
Lane Departure Alert (LDA)
switch
Full-Speed Dynamic Radar
Cruise Control (DRCC)/Cruise
control switch
Full-Speed Dynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle distance
button
Telephone
controls
2,3
Voice command
switch2,3
“TRIP” switch
Digital instrumentation
“P” position switch
Wiper and washer controls
Fuel tank door opener
Meter control switches
Hood lock release lever
Headlight, turn signal and front
fog light controls
1
137379_PriusQRG_guts.r1.indd 29/27/16 1:45 PM

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
3
1
If equipped
2 For details, refer to the “Navigation System Owner’s Manual.”3 For details, refer to the “2017 Entune™ Audio Quick Reference Guid\
e.”
“ENGINE START STOP”
button (Smart key)
Tilt and telescopic steering
lock release lever
Lane Departure Alert (LDA)
switch
Full-Speed Dynamic Radar
Cruise Control (DRCC)/Cruise
control switch
Full-Speed Dynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle distance
button
Digital instrumentation
“P” position switch Multi-Information Display (MID)
Emergency flasher switch
Shift leverAudio
3/navigation system1,2,3
Air conditioning controls
EV drive mode switch
Driving mode select switch
Seat heater switches
1
Meter control switches
2017_Prius_D6_1.indd 39/25/16 2:37 AM

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
5
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2017 Owner’s
Manual.
1 If indicator does not turn off within a few seconds of starting Hybrid \
System, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.2 If this light flashes, refer to “Cruise control,” or “Dynamic \
Radar Cruise Control,” Section 4-5, 2017 Owner’s Manual.
High coolant temperature warning1
Low engine oil pressure warning1
Hybrid System warning1Power Mode indicator
Hybrid System overheat warning1
READY indicator
Low Tire Pressure Warning1
Open door warning
Electric power steering system warning1
Immobilizer system indicator
Low fuel level warning
Maintenance required reminder1
Parking lock system warning1
P position request indicator1
Master warning1
Go to service warning1
Traction Control OFF indicator
VSC OFF indicator
1
Fog light indicator
LED headlight warning
1
Turn signal
indicator
Intelligent Parking Assist
S-APGS indicator
Intelligent Clearance Sonar (ICS) OFF
indicator1
Parking brake indicator
Shift position indicators
Steering Assist indicator Smart Key system warning
Lane Departure Alert (LDA) with Steering
Assist
Lane Departure Alert (LDA) Sway Control
Driver seat belt reminder and/
or front passenger seat belt reminder (alarm
will sound if speed is over 12 mph)
Headlight low/high beam
indicators
Lane Departure Alert (LDA) indicator
Low hybrid battery
(traction battery) warning
Malfunction/
Check Engine indicator1
Parking lock system warning
message
Pre-Collision System (PCS)
warning light1
Slip indicator/Hill-start Assist
Control indicator1
Rear passenger seat belt
reminder indicator
Multi-Information Display (MID)
Service indicators and reminders
2017_Prius_D6_1.indd 59/25/16 2:37 AM

6
LOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door \
only, or
all doors. Grasping passenger door handle or pushing unlock button on rear \
hatch
will unlock all doors.
NOTE: Fuel consumption and energy information of the hybrid system are
shown on the Dual Multi-Information Displays.
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
PANIC BUTTON
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
START FUNCTION
NOTE: Tighten until one click is heard. If the cap is not locked or tightened\
,
Check Engine “
” indicator may illuminate.
OVERVIEWKeyless entry
Push
ONCE: Driver door TWICE: All doors
Carry remote
Smart key feature
All-door lock
Touch Carry remote
Smart key feature
Grasp
Driver door unlock*
Push
Push and hold
Without depressing the brake pedal, pressing the “POWER” switch will chan\
ge the
operation mode in succession from:
When starting the hybrid system, make sure you are carrying the Smart key, t\
he
parking brake is set and shift position is in P.
Carry remote to
lock/unlock
LockUnlock
POWER (WITHOUT STARTING HYBRID SYSTEM)
2017_Prius_D6_1.indd 69/25/16 2:38 AM

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors. Grasping passenger door handle or pushing unlock button on re\
ar hatch
will unlock all doors.
NOTE: Fuel consumption and energy information of the hybrid system are
shown on the Dual Multi-Information Displays.
NOTE: If a door is not opened within 60 seconds of unlocking, all doors \
will
relock for safety.
7
START FUNCTION
Fuel tank door release & cap
NOTE: Tighten until one click is heard. If the cap is not locked or tigh\
tened,
Check Engine “
” indicator may illuminate.
Smart Key system (and remote entry)
Carry remote
Smart key feature
Carry remote
Smart key feature
Driver door unlock*
Turn to open
Store
Without depressing the brake pedal, pressing the “POWER” switch wi\
ll change the
operation mode in succession from:
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
When starting the hybrid system, make sure you are carrying the Smart ke\
y, the
parking brake is set and shift position is in P.
POWER (WITHOUT STARTING HYBRID SYSTEM)
2017_Prius_D6_1.indd 79/25/16 2:38 AM

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
9

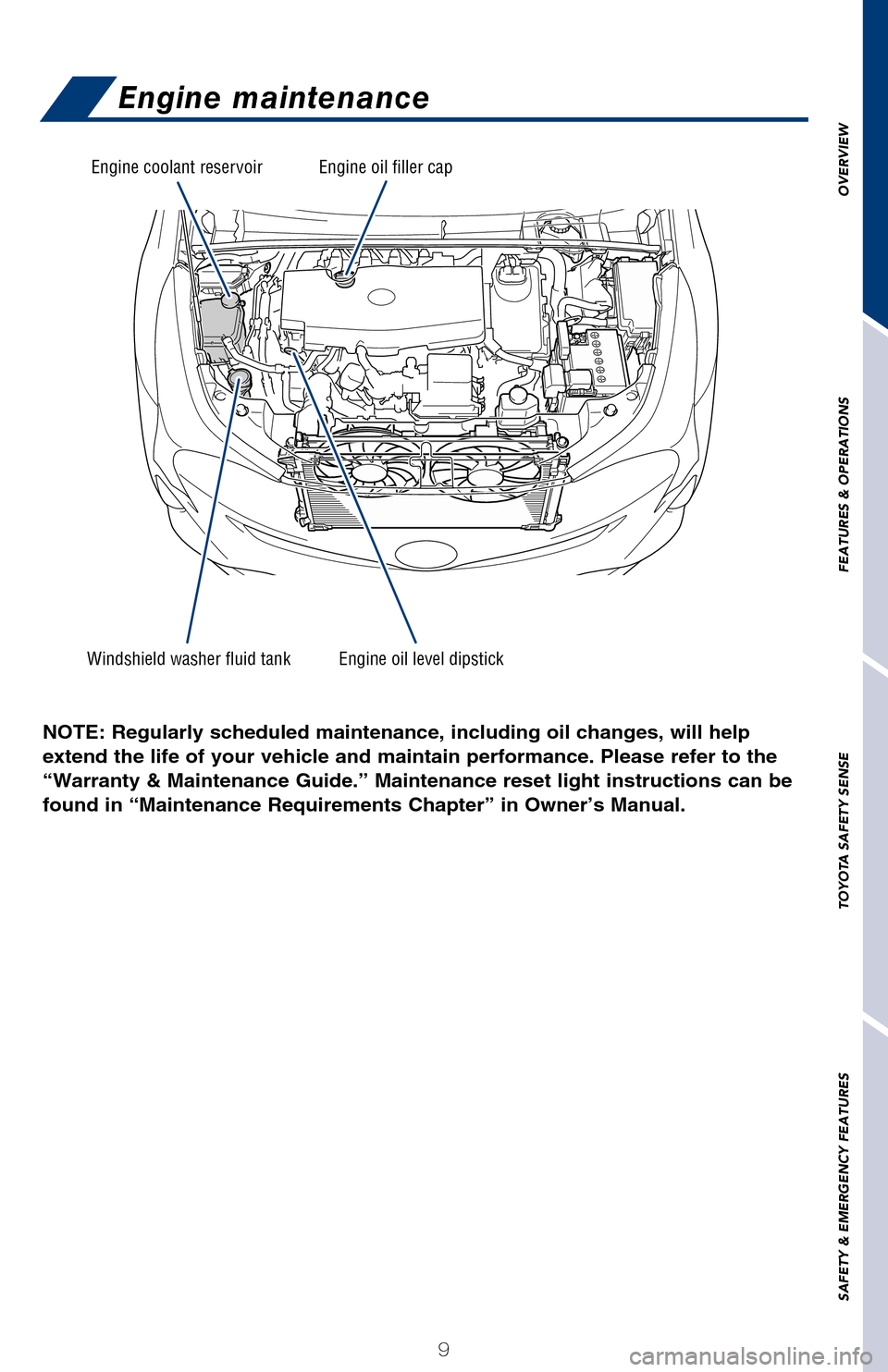

Engine maintenance
Windshield washer fluid tank Engine oil level dipstick Engine coolant reservoir Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help \
extend the life of your vehicle and maintain performance. Please refer t\
o the
“Warranty & Maintenance Guide.” Maintenance reset light instructio\
ns can be
found in “Maintenance Requirements Chapter” in Owner’s Manual.
2017_Prius_D6_1.indd 99/25/16 2:38 AM

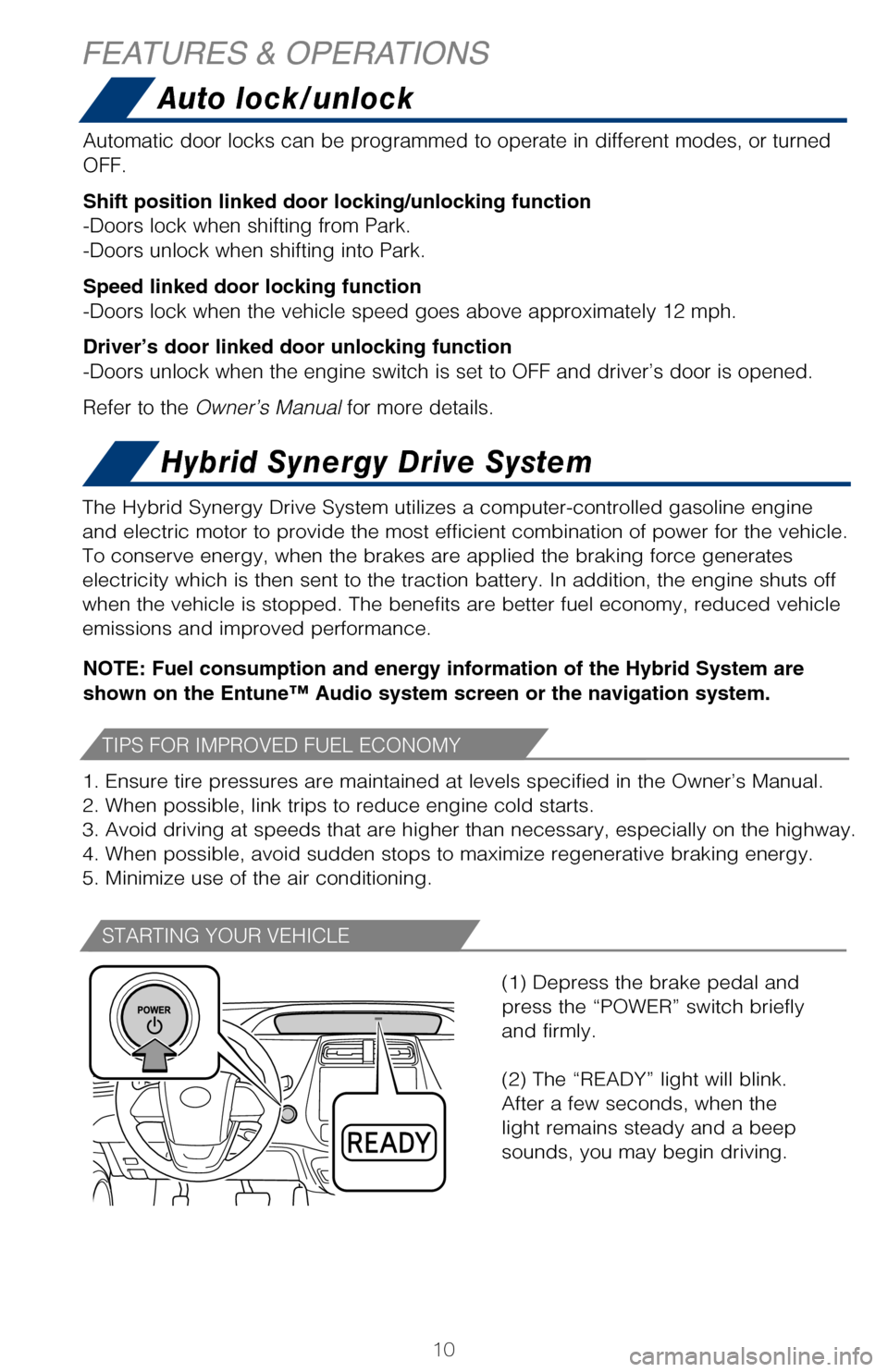

10
TIPS FOR IMPROVED FUEL ECONOMY
STARTING YOUR VEHICLE
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Entune™ Audio system screen or the navigation system.
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the vehicle.
To conserve energy, when the brakes are applied the braking force genera\
tes
electricity which is then sent to the traction battery. In addition, the\
engine shuts off
when the vehicle is stopped. The benefits are better fuel economy, reduc\
ed vehicle
emissions and improved performance.
1. Ensure tire pressures are maintained at levels specified in the Owner\
’s Manual.
2. When possible, link trips to reduce engine cold starts.
3. Avoid driving at speeds that are higher than necessary, especially on\
the highway.
4. When possible, avoid sudden stops to maximize regenerative braking en\
ergy.
5. Minimize use of the air conditioning.

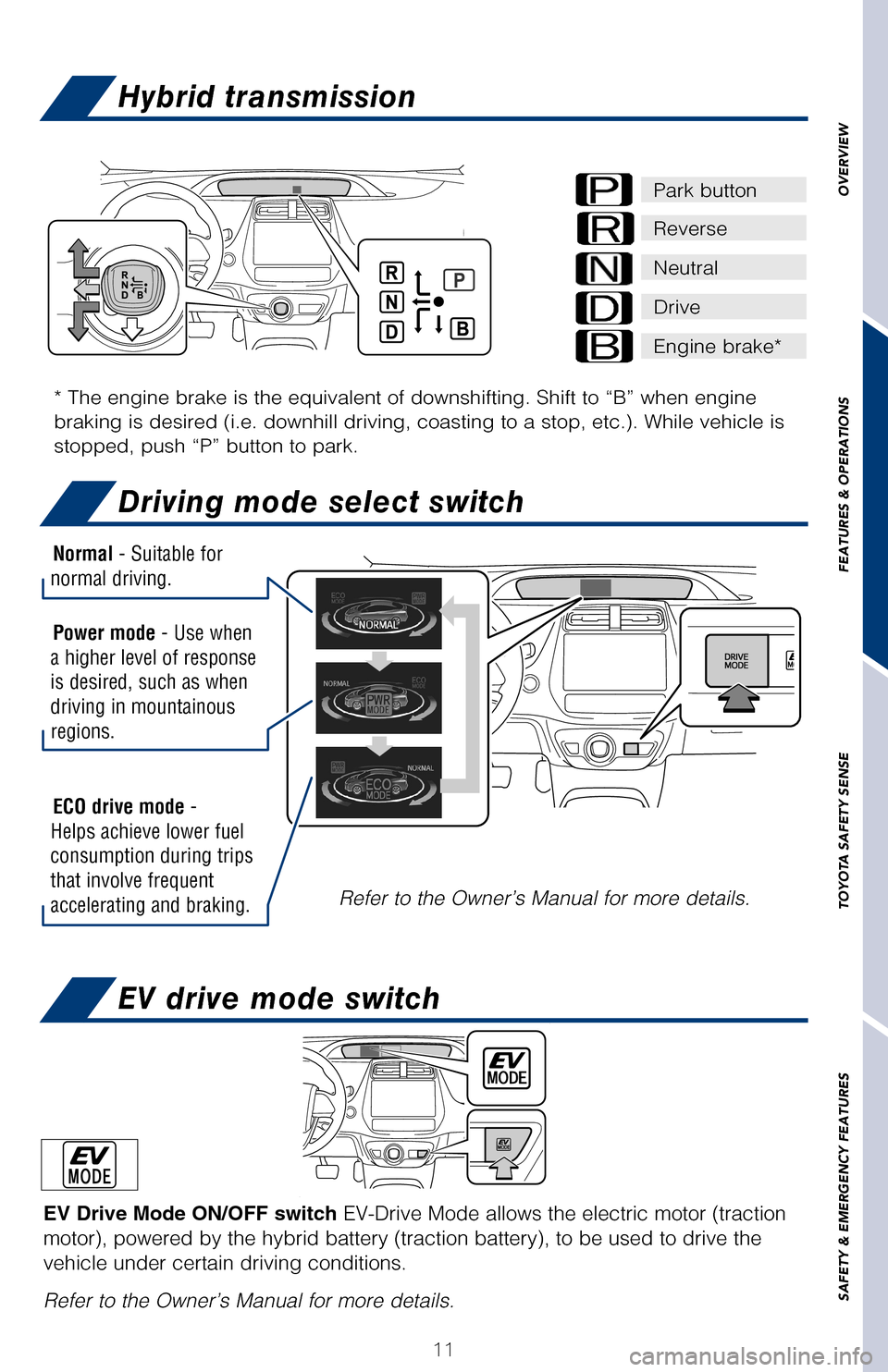

* The engine brake is the equivalent of downshifting. Shift to “B”\
when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.). \
While vehicle is
stopped, push “P” button to park.
Hybrid Synergy Drive System
Auto lock/unlock
FEATURES & OPERATIONS
EV Drive Mode ON/OFF switch EV-Drive Mode allows the electric motor (traction
motor), powered by the hybrid battery (traction battery), to be used \
to drive the
vehicle under certain driving conditions.
Refer to the Owner’s Manual for more details.
Normal - Suitable for
normal driving.
Power mode - Use when
a higher level of response
is desired, such as when
driving in mountainous
regions.
ECO drive mode -
Helps achieve lower fuel
consumption during trips
that involve frequent
accelerating and braking.
(1) Depress the brake pedal and
press the “POWER” switch briefly
and firmly.
(2) The “READY” light will blink.
After a few seconds, when the
light remains steady and a beep
sounds, you may begin driving.
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph.
Driver’s door linked door unlocking function
-Doors unlock when the engine switch is set to OFF and driver’s door i\
s opened.
Refer to the Owner’s Manual for more details.
2017_Prius_D6_1.indd 109/25/16 2:38 AM

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Entune™ Audio system screen or the navigation system.
11
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the vehicle.
To conserve energy, when the brakes are applied the braking force genera\
tes
electricity which is then sent to the traction battery. In addition, the\
engine shuts off
when the vehicle is stopped. The benefits are better fuel economy, reduc\
ed vehicle
emissions and improved performance.
1. Ensure tire pressures are maintained at levels specified in the Owner\
’s Manual.
2. When possible, link trips to reduce engine cold starts.
3. Avoid driving at speeds that are higher than necessary, especially on\
the highway.
4. When possible, avoid sudden stops to maximize regenerative braking en\
ergy.
5. Minimize use of the air conditioning.
* The engine brake is the equivalent of downshifting. Shift to “B”\
when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.). \
While vehicle is
stopped, push “P” button to park.
Reverse
Park button
Neutral
Drive
Engine brake*
Hybrid transmission
Driving mode select switch
EV Drive Mode ON/OFF switch EV-Drive Mode allows the electric motor (traction
motor), powered by the hybrid battery (traction battery), to be used \
to drive the
vehicle under certain driving conditions.
Refer to the Owner’s Manual for more details.
Normal - Suitable for
normal driving.
Power mode - Use when
a higher level of response
is desired, such as when
driving in mountainous
regions.
ECO drive mode -
Helps achieve lower fuel
consumption during trips
that involve frequent
accelerating and braking. Refer to the Owner’s Manual for more details.
EV drive mode switch(1) Depress the brake pedal and
press the “POWER” switch briefly
and firmly.
(2) The “READY” light will blink.
After a few seconds, when the
light remains steady and a beep
sounds, you may begin driving.
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph.
Driver’s door linked door unlocking function
-Doors unlock when the engine switch is set to OFF and driver’s door i\
s opened.
Refer to the Owner’s Manual for more details.
2017_Prius_D6_1.indd 119/25/16 2:38 AM

22
Clock
Cruise control
If the sensors detect an obstacle, the buzzer and MID display informs the \
driver of
the approximate position and distance of the obstacle by illuminating conti\
nuously
(far) or blinking (near).
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine\
is
started again.
Refer to section S-APGS (Simple Advanced Parking Guidance System) in the
Owner’s Manual for more details.
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
To adjust the time, use meter control switches to go to the screen on the MID.
Then, select the
option to access the clock setting.
TURN SYSTEM ON/OFF
FUNCTIONS
FEATURES & OPERATIONS
System ON/OFF
Increase speed
Multi-Information Display (MID)
Clock display
Meter control switches
Decrease speed
Cancel1
Resume2
Set
2017_Prius_D6_1.indd 229/25/16 2:38 AM
