window TOYOTA PRIUS 2017 4.G Quick Reference Guide

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
INDEX
Digital Instrumentation 4
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Digital Instrumentation 8
Smart Key system
1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instruction\
s and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW FEATURES & OPERATIONS (continued)
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES TOYOTA SAFETY SENSE™ P (TSS-P)
Air conditioning/heating 17
Audio 20
Auto lock/unlock
1,2 10
Blind Spot Monitor (BSM) with
Rear Cross Traffic Alert (RCTA) 25
Clock 22
Color Dual Multi-Information
Display (MID)
2 18
Door locks 14
Color Head-up Display (HUD) 19
Cruise control 22
Driving mode select switch 11
EV drive mode switch 11
Garage door opener (HomeLink
®)3 25
Heated seats 17
Hybrid Synergy Drive System 10
Hybrid transmission 11
Intelligent Clearance Sonar (ICS) 24
Intelligent Parking Assist (IPA) 23
Lights
1 & turn signals 16
Moon roof 14
Parking brake 12
Power outlets 21
Qi-compatible wireless charging 21
Rear view monitor system 24
Seat adjustments-Front 13
Seats-Folding down rear seat 13
Seats-Head restraints 13Doors-Child safety locks
38
Floor mat installation 41
Seat belts 37
Seat belts-Shoulder belt anchor 37
Spare tire /Tire repair kit & tools 38-39
Star Safety System
™ 40
Tire Pressure Monitoring
(warning) System (TPMS) 37 Automatic High Beams (AHB) 36
Full-Speed Range Dynamic
Radar Cruise Control (DRCC) 33-35
Lane Departure Alert with Steering
Assist function (LDA w/SA) 29-32
Pre-Collision System with Pedestrian
Detection function (PCS w/PD) 27-29
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 26
Sensors 26
Steering wheel switches &
Telephone controls (Bluetooth
®) 19
Tilt & telescopic steering wheel 12
USB/AUX Port 20
Vehicle Stability Control
(VSC)/TRAC OFF switch 12
Windows-Power 14
Windshield wipers & washers 15
PRIUS 2017
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your new
Prius.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Prius operations\
. Every
Prius owner should review the Owner’s Manual that accompanies this ve\
hicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
BLUETOOTH® DEVICE
PAIRING SECTION 42-51
2017_Prius_D6_1.indd 19/25/16 2:37 AM

14

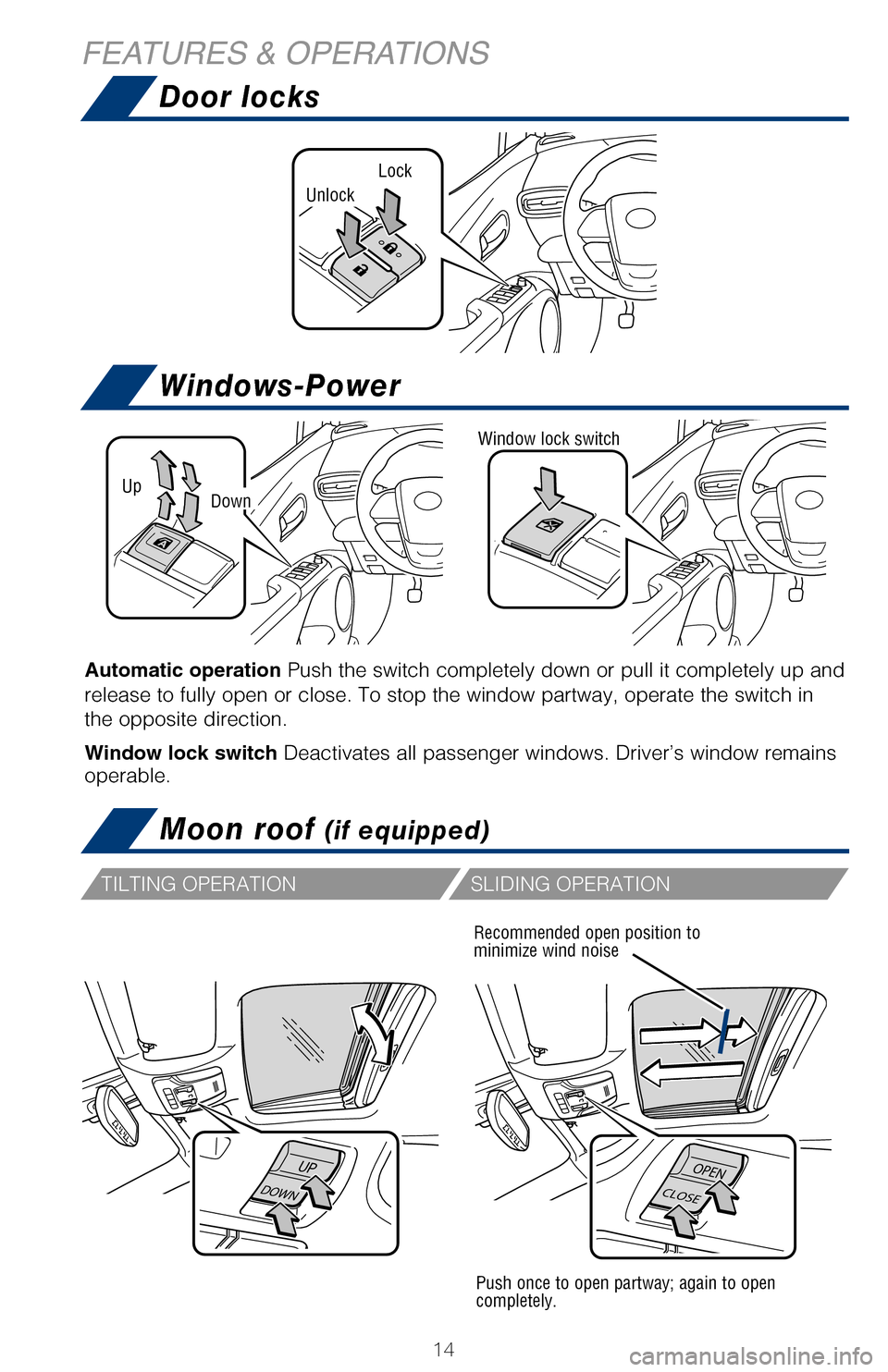

FRONT-INTERMITTENT
REAR (IF EQUIPPED)
FRONT-AUTO (RAIN-SENSING)(IF EQUIPPED)
Windows-Power
Door locks
Moon roof (if equipped)
UpDown
Window lock switch
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop the window partway, operate the switch \
in
the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
1 Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency.
2 Rain-sensing windshield wipers Rotate to increase/decrease sensor sensitivity.
Type A
Type A
Type A
Push once to open partway; again to open
completely.
Unlock
Lock
TILTING OPERATION
SLIDING OPERATION
FEATURES & OPERATIONS
Recommended open position to
minimize wind noise
Pull to wash and wipe
Adjustment frequency1
Adjust sensitivity2
Pull to wash and wipe
Push to wash and wipe
2017_Prius_D6_1.indd 149/25/16 2:38 AM

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
15

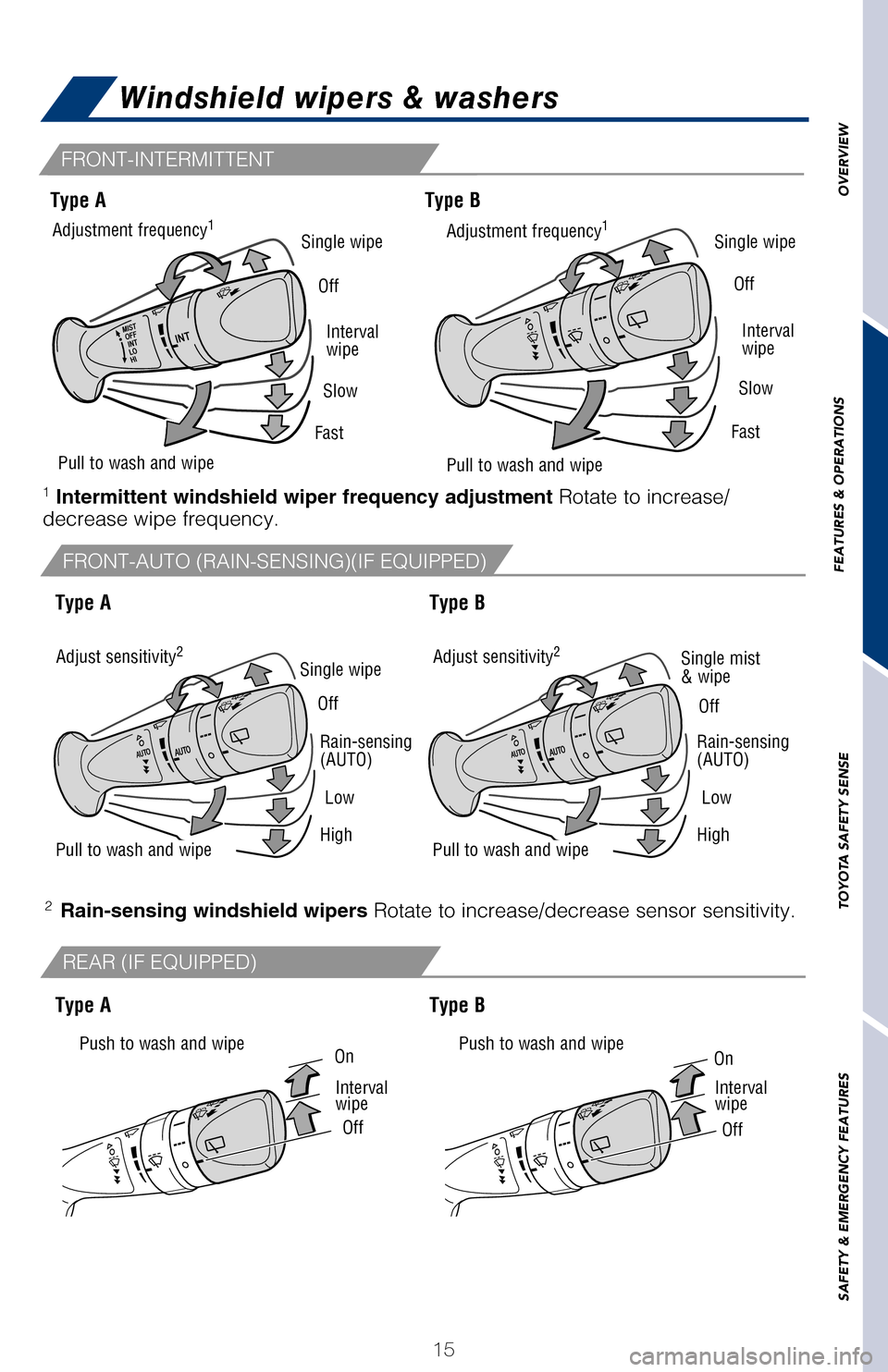

FRONT-INTERMITTENT
REAR (IF EQUIPPED)
FRONT-AUTO (RAIN-SENSING)(IF EQUIPPED)
Windshield wipers & washers
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop the window partway, operate the \
switch in
the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
1 Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency.
2 Rain-sensing windshield wipers Rotate to increase/decrease sensor sensitivity.
Type A
Type A
Type A
Type B
Type B
Type B
SLIDING OPERATION
Interval
wipe
Single wipe
Single wipe
Slow
Off
Fast
Pull to wash and wipe
Adjustment frequency1
Pull to wash and wipe
Adjustment frequency1
Interval
wipe
Slow
Fast Off
Single wipe Single mist
& wipe
Off Off
Adjust sensitivity
2Adjust sensitivity2
Pull to wash and wipePull to wash and wipe
Rain-sensing
(AUTO)
Rain-sensing
(AUTO)
Low Low
High High
Off
On
Interval
wipe Off
On
Interval
wipe
Push to wash and wipePush to wash and wipe
2017_Prius_D6_1.indd 159/25/16 2:38 AM

Using your smartphone, you may need to
allow Entune access to your messaging
and contacts.
Only current iPhone text messages can
be viewed on the head unit. iPhone does
not allow text message reply.A confirmation will ap
-
pear once your phone
has been paired and
connected.
Pairing your phone is the first step in connecting with your Toyota for hands-f\
ree
calling and for audio streaming via Bluetooth. This pairing process is quick an\
d
easy: all Windows Phone mobile digital devices have Bluetooth integrated; all\
you
have to do is setup the phone and multimedia system to “talk” to each \
other and
form a connection.
Initiate Bluetooth® on your Windows Phone®
From your APP LIST,
select SETTINGS.
STEP 1
STEP 12STEP 13
BLUETOOTH® DEVICE PAIRING
Disclosures
This brochure is accurate at the time of print; content subject to chang\
e based on periodic multimedia
software updates.
1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free
phone system if it will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by \
Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired.
Phone performance depends on software, coverage & carrier.
3. Android is a trademark of Google Inc.
4. Apps/services vary by phone/carrier; functionality depends on many fa\
ctors. Select apps use large amounts of data; you are responsible for charges. Apps & services subjec\
t to change. See Toyota.com/
entune for details.
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. Yo u can get more information
from the following sources:
Online Pairing Guide:
www.toyota.com/connect
Your Toyota Owner’s Manual
Located in the vehicle glovebox
Toyota Customer
Experience Center
(800) 331-4331
48
2017_Prius_D6_1.indd 489/25/16 2:38 AM

Pairing your phone is the first step in connecting with your Toyota for hands-f\
ree
calling and for audio streaming via Bluetooth. This pairing process is quick an\
d
easy: all Windows Phone mobile digital devices have Bluetooth integrated; all\
you
have to do is setup the phone and multimedia system to “talk” to each \
other and
form a connection.
Initiate Bluetooth® on your Windows Phone®
From your APP LIST,
select SETTINGS.Select BLUETOOTH.
Ensure
BLUETOOTH
is ON.Phone will seek out
Bluetooth devices
while remaining
discoverable.
While your iPhone device is seeking
out Bluetooth devices, proceed to your
Entune Multimedia Head Unit on your
Toyota vehicle.
Bluetooth® Pairing for Windows Phone® and
Entune™ touch screen system
STEP 1STEP 2STEP 3STEP 4
STEP 5
Disclosures
This brochure is accurate at the time of print; content subject to chang\
e based on periodic multimedia
software updates.
1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free
phone system if it will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by \
Bluetooth SIG, Inc. and any use
of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired.
Phone performance depends on software, coverage & carrier.
3. Android is a trademark of Google Inc.
4. Apps/services vary by phone/carrier; functionality depends on many fa\
ctors. Select apps use large amounts of data; you are responsible for charges. Apps & services subjec\
t to change. See Toyota.com/
entune for details.
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. Yo u can get more information
from the following sources:
Online Pairing Guide:
www.toyota.com/connect
Your Toyota Owner’s Manual
Located in the vehicle glovebox
Toyota Customer
Experience Center
(800) 331-4331
**Do not attempt the Bluetooth® Pairing process while driving.**
49
