TOYOTA PRIUS 2020 Accessories, Audio & Navigation (in English)

101
2. RADIO OPERATION
PRIUS_Navi_OM47D54U_(U)
19.06.11 09:06
AUDIO SYSTEM
3If “Ch 000” is selected using the “TUNE”
button, the ID code, which is 8 alphanu-
meric characters, will be displayed. If
another channel is selected, the ID code
will no longer be displayed. The channel
(000) alternates between displaying the
radio ID and the specific radio code.
1Select “Channel List” .
2Select the desired channel category.
3Select the desired channel.
“Info” : Select to display the control
screen.
INFORMATION
● SiriusXM All Access Subscription
• Listen everywhere with All Access. You
get every channel available in your
ride, plus you can listen on the app and
online  so you can enjoy the best Sir-
iusXM has to offer, anywhere life takes
you. It’s the only package that gives
you all of our premium programming,
including Howard Stern, every NFL,
MLB
® and NBA game, every
NASCAR® race, NHL® games, 24/7
talk channels dedicated to the biggest
leagues, and more. You get all kinds of
commercial-free music, including
artist-dedicated channels and more,
plus sports, news, talk and entertain-
ment.
Did you know? SiriusXM also delivers
a wide variety of services to certain
vehicles’ entertainment and navigation
systems such as Traffic, Weather,
Sports Scores, Movie Listings, Fuel
Prices, Stock Prices and more. For a
list of available features in your vehi-
cle, visit siriusxm.com/infotainment
and get the most out of your driving
experience.
● RADIO OPERATION
• Look for the Sirius, XM, SiriusXM,
Band, SAT, AUX, Radio or Source but-
ton and you’re in. If you can’t hear us,
it’s easy to get started:
Locate your Radio ID by turning to
Channel 0. If you don’t see your num-
ber there, go to siriusxm.com/
activationhelp to find it.
Visit siriusxm.com/refresh or call
1-855-MYREFRESH (697-3373) to
send a refresh signal to your radio.
Canadian Customers:
Locate your Radio ID by turning to
Channel 0.
Visit siriusxm.ca/refresh
to send a
refresh signal to your radio or call
1-888-539-7474 for service.
DISPLAYING THE RADIO ID
Each XM tuner is identified with a
unique radio ID. The radio ID is re-
quired when activating an XM service
or when reporting a problem.
SELECTING A CHANNEL
FROM THE LIST

102
2. RADIO OPERATION
PRIUS_Navi_OM47D54U_(U)
19.06.11 09:06
IF THE SATELLITE RADIO TUNER MALFUNCTIONS
When problems occur with the XM tuner, a message will appear on the screen. Re-
ferring to the table below to identify the problem, take the suggested corrective ac-
tion.
MessageExplanation
“Ck Antenna”
The XM antenna is not connected. Check whether the XM antenna
cable is attached securely.
A short circuit occurs in the antenna or the surrounding antenn a ca-
ble. See a Toyota certified dealer for assistance.
“Ch Unauth”
You have not subscribed to XM Satellite Radio. The radio is bei ng
updated with the latest encryption code. Contact XM Satellite R adio
for subscription information. When a contract is canceled, you can
choose “Ch 000” and all free-to-air channels.
The premium channel you selected is not authorized. Wait for ab out
2 seconds until the radio returns to the previous channel or “C h 001”.
If it does not change automatically, select another channel. To listen
to the premium channel, contact XM Satellite Radio.
“No Signal”The XM signal is too weak at the current location. Wait until y our ve-
hicle reaches a location with a stronger signal.
“Loading...”The unit is acquiring audio or program information. Wait until the unit
has received the information.
“Ch Off Air”The channel you selected is not b roadcasting any programming. Se-
lect another channel.
-----There is no song/program title or artist name/feature associate d with
the channel at that time. No action is required.
“Ch Unavail”
The channel you selected is no longer available. Wait for about 2
seconds until the radio returns to the previous channel or “Ch 001”.
If it does not change automatic ally, select another channel.

103
2. RADIO OPERATION
PRIUS_Navi_OM47D54U_(U)
19.06.11 09:06
AUDIO SYSTEM
3
INFORMATION
●Contact the XM Listener Care Center at 1-877-447-0011 (U.S.A.) or 1-877-438-9677
(Canada).

104
2. RADIO OPERATION
PRIUS_Navi_OM47D54U_(U)
19.06.11 09:06
3. INTERNET RADIO
1Display the “Select Audio Source”
screen. (P.84)
2Select the internet radio application.
The internet radio application screen is
displayed.
 Perform operations according to the dis-
played application screen.
 If a compatible phone is already regis-
tered, it will be connected automatically.
LISTENING TO INTERNET
RADIO
One of Toyota apps features is the
ability to listen to internet radio. In or-
der to use this service, a compatible
phone and the system need to be set
up. For details: P.282
INFORMATION
●Other applications can be activated
while listening to internet radio.
● Some parts of applications can be
adjusted using the switches on the
steering wheel.
● For additional information, refer to
https://www.toyota.com/audio-
multimedia/ or call
1-800-331-4331.

105
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
AUDIO SYSTEM
3
3. MEDIA OPERATION
1. USB MEMORY
*: This function is not made available in some countries or areas.
OVERVIEW
The USB memory operation screen can be reached by the following methods:
Connect a USB memory. ( P.85)
 Select “USB” on the “Select Audio Source” screen. ( P.84)
When an Apple CarPlay connection is established, this function will be unavail-
able.*
USB audio
USB video

106
3. MEDIA OPERATION
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49

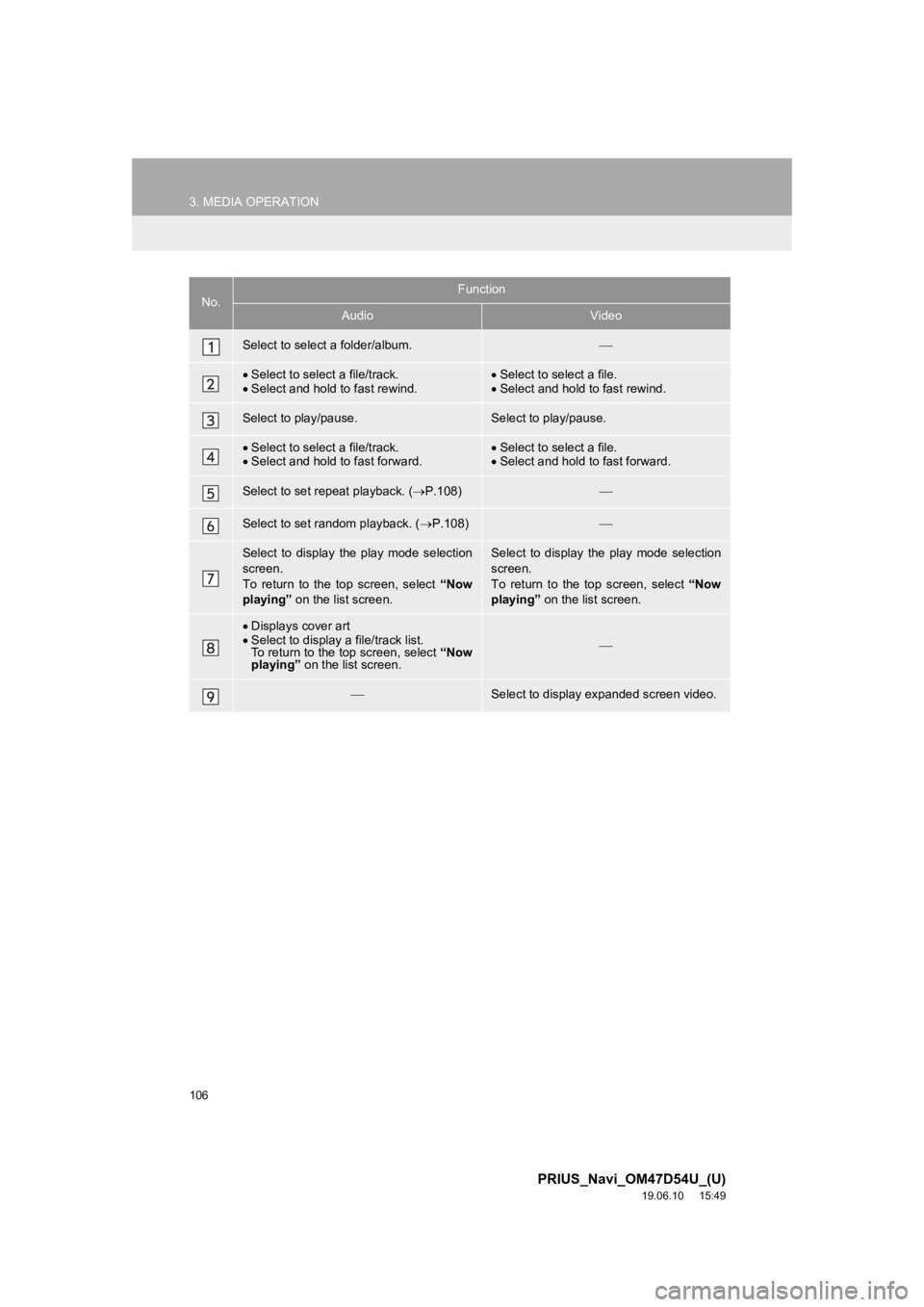

No.Function
AudioVideo
Select to select a folder/album.
Select to select a file/track.
 Select and hold to fast rewind.Select to select a file.
 Select and hold to fast rewind.
Select to play/pause.Select to play/pause.
 Select to select a file/track.
 Select and hold to fast forward.Select to select a file.
 Select and hold to fast forward.
Select to set repeat playback. ( P.108)
Select to set random playback. ( P.108)
Select to display the play mode selection
screen.
To return to the top screen, select “Now
playing” on the list screen. Select to display the play mode selection
screen.
To return to the top screen, select “Now
playing” on the list screen.
Displays cover art
 Select to display a file/track list.
To return to the top screen, select “Now
playing” on the list screen.

Select to display expanded screen video.

107
3. MEDIA OPERATION
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
AUDIO SYSTEM
3
Select to display the option screen.
( P.108)
Select to stop the video screen.
Select to display the file information.
WARNING
● Do not operate the player’s controls or connect the USB memory while driving.
NOTICE
●Do not leave your portable player in the car. In particular, hi gh temperatures inside the
vehicle may damage the portable player.
● Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the portable player or its terminal.
● Do not insert foreign objects into the port as this may damage the portable player or its
terminal.
INFORMATION
● The system can only output the sound while driving.
No.Function
AudioVideo

108
3. MEDIA OPERATION
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
1Select the repeat button to change on/
off.
1Select the shuffle button to change on/
off.
1Select “Options” .
2Select the desired setting to change.
USB AUDIO
REPEATING
The file/track currently being listened
to can be repeated.
RANDOM ORDER
Files/tracks can be automatically and
randomly selected.
USB VIDEO
To change to USB video mode, select
“Browse” on the USB audio screen,
then select the “Video” tab and select
the desired video file.
USB VIDEO OPTIONS
No.FunctionPage
Select to change the screen
size. 87
Select to display the image
quality adjustment screen.88

109
3. MEDIA OPERATION
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
AUDIO SYSTEM
3
2. iPod
*: When an Apple CarPlay connection is established, this switch will not be displayed.
OVERVIEW
The iPod operation screen can be reached by the following metho ds:
Connect an iPod. ( P.85)
 Select “iPod (DEVICE NAME)” on the “Select Audi o Source” screen. (P.84)
No.Function
Displays cover art
 Select to display a track list.
To return to the top screen, sel ect “Now Playing” on the list screen.
*Select to display the play mode selection screen.
To return to the top screen, select “Now Playing” on the list screen.
Select to set random playback.
Select to set repeat playback.
Press to select a track.
 Press and hold to fast forward.
Select to play/pause.
Press to select a track.
 Press and hold to fast rewind.

110
3. MEDIA OPERATION
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
WARNING
●Do not operate the player’s controls or connect the iPod while driving.
NOTICE
●Do not leave your portable player in the car. In particular, high temperatures inside the
vehicle may damage the portable player.
● Do not push down on or apply unnecessary pressure to the portab le player while it is con-
nected as this may damage the portable player or its terminal.
● Do not insert foreign objects into the port as this may damage the portable player or its
terminal.
