TOYOTA PRIUS 2020 Accessories, Audio & Navigation (in English)

271
5. SETUP
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
NAVIGATION SYSTEM
8
■MODIFYING PREFERRED ROADS
1Select “Modify” .
2Select the preferred road to be modi-
fied if 2 preferred roads have been set.
3Scroll the map to the desired point and
select “OK”.
4Select “OK” to use this road.
“Next” : Select to change road.
■DELETING PREFERRED ROADS
1Select “Delete” .
2Select the preferred road to be deleted
if 2 preferred road s have been set.
“Delete All” : Select to delete all preferred
roads on the list.
3Select “Yes” when the confirmation
screen appears.

272
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
6. TIPS FOR THE NAVIGATION SYSTEM
1. GPS (GLOBAL POSITIONING SYSTEM)
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate
current position, normally using 4 or more
satellites, and in some case 3 satellites.
The GPS system has a certain level of in-
accuracy. While the navigation system
compensates for this most of the time, oc-
casional positioning errors of up to 300 ft.
(100 m) can and should be expected. Gen-
erally, position errors will be corrected
within a few seconds.When the vehicle is r
eceiving signals from
satellites, the “GPS” mark appears at the
top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle po-
sition on the map screen. Tunnels, tall
buildings, trucks, or even the placement of
objects on the control panel may obstruct
the GPS signals.
The GPS satellites may not send signals
due to repairs or improvements being
made to them.
Even when the navigation system is re-
ceiving clear GPS signals, the vehicle po-
sition may not be shown accurately or
inappropriate route guidance may occur in
some cases.
LIMITATIONS OF THE
NAVIGATION SYSTEM
This navigation system calculates the
current position using satellite signals,
various vehicle signals, map data, etc.
However, an accurate position may not
be shown depending on satellite condi-
tions, road configuration, vehicle con-
dition or other circumstances.
NOTICE
● The installation of window tinting may
obstruct the GPS signals. Most window
tinting contains some metallic content
that will interfere with GPS signal recep-
tion of the antenna in the instrument
panel. We advise against the use of win-
dow tinting on vehicles equipped with
navigation systems.

273
6. TIPS FOR THE NAVIGATION SYSTEM
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
NAVIGATION SYSTEM
8
Accurate current position may not be
shown in the following cases:
• When driving on a small angled Y-
shaped road.
• When driving on a winding road.
• When driving on a slippery road such as in sand, gravel, snow, etc.
• When driving on a long straight road.
• When freeway and surface streets run in parallel.
• After moving by ferry or vehicle carrier.
• When a long route is searched during high speed driving.
• When driving without setting the current position calibration correctly.
• After repeating a change of direction by going forward and backward, or turning
on a turntable in a parking lot.
• When leaving a covered parking lot or parking garage.
• When a roof carrier is installed.
• When driving with tire chains installed.
• When the tires are worn.
• After replacing a tire or tires.
• When using tires that are smaller or larger than the factory specifications.
• When the tire pressure in any of the 4
tires is not correct. 
Inappropriate route guidance may occur in
the following cases:
• When turning at an intersection off the
designated route guidance.
• If you set more than 1 destination but skip any of them, auto reroute will dis-
play a route returning to the destination
on the previous route.
• When turning at an intersection for which there is no route guidance.
• When passing through an intersection for which there is no route guidance.
• During auto reroute, the route guidance
may not be available for the next turn to
the right or left.
• During high speed driving, it may take a long time for auto reroute to operate. In
auto reroute, a detour route may be
shown.
• After auto reroute, the route may not be changed.
• If an unnecessary U-turn is shown or announced.
• If a location has multiple names and the
system announces 1 or more of them.
• When a route cannot be searched.
• If the route to your destination includes
gravel, unpaved roads or alleys, the
route guidance may not be shown.
• Your destination point might be shown
on the opposite side of the street.
• When a portion of the route has regula- tions prohibiting the entry of the vehicle
that vary by time or season or other rea-
sons.
• The road and map data stored in the
navigation system may not be complete
or may not be the latest version.
 If the vehicle cannot receive GPS sig-
nals, the current position can be
adjusted manually. For information on
setting the current position calibration:
P. 2 6 3
 After replacing a tire:  P. 2 6 4

274
6. TIPS FOR THE NAVIGATION SYSTEM
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
INFORMATION
●This navigation system uses tire turning
data and is designed to work with fac-
tory-specified tires for the vehicle.
Installing tires that are larger or smaller
than the originally equipped diameter
may cause inaccurate display of the cur-
rent position. The tire pressure also
affects the diameter of the tires, so make
sure that the tire pressure of all 4 tires is
correct.

275
6. TIPS FOR THE NAVIGATION SYSTEM
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
NAVIGATION SYSTEM
8
2. MAP DATABASE VERSION AND COVERED AREA
1Press the “HOME” button.
2Select “Options” .
3Select “Map Data” .
4Check that the map data screen is dis-
played.MAP INFORMATION
Coverage areas and legal information
can be displayed and map data can be
updated.
No.Function
Map version
Select to display map coverage ar-
eas.
Select to display legal information.
INFORMATION
●Map data updates are available for a
fee. Contact your Toyota dealer for fur-
ther information.

276
6. TIPS FOR THE NAVIGATION SYSTEM
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
ABOUT THE MAP DATA
Map data for the navigation system is
contained in a SD card that is inserted
in the SD card slot.
Do not eject the SD card, as doing so
may deactivate the navigation system.
WARNING
●Do not allow children to touch the SD
card. It may be accidently swallowed
and get stuck in the throat resulting in
death or serious injury.
NOTICE
●Do not edit or delete the map data on
the SD card, as doing so may deactivate
the navigation system.
● Take care not to lose the micro SD card,
as it is a small part that may easily
become lost when ejected or dropped.
INFORMATION
●microSDHC Logo is a trademark of SD-
3C,LLC.

9
277
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
1
2
3
4
5
6
7
8
9

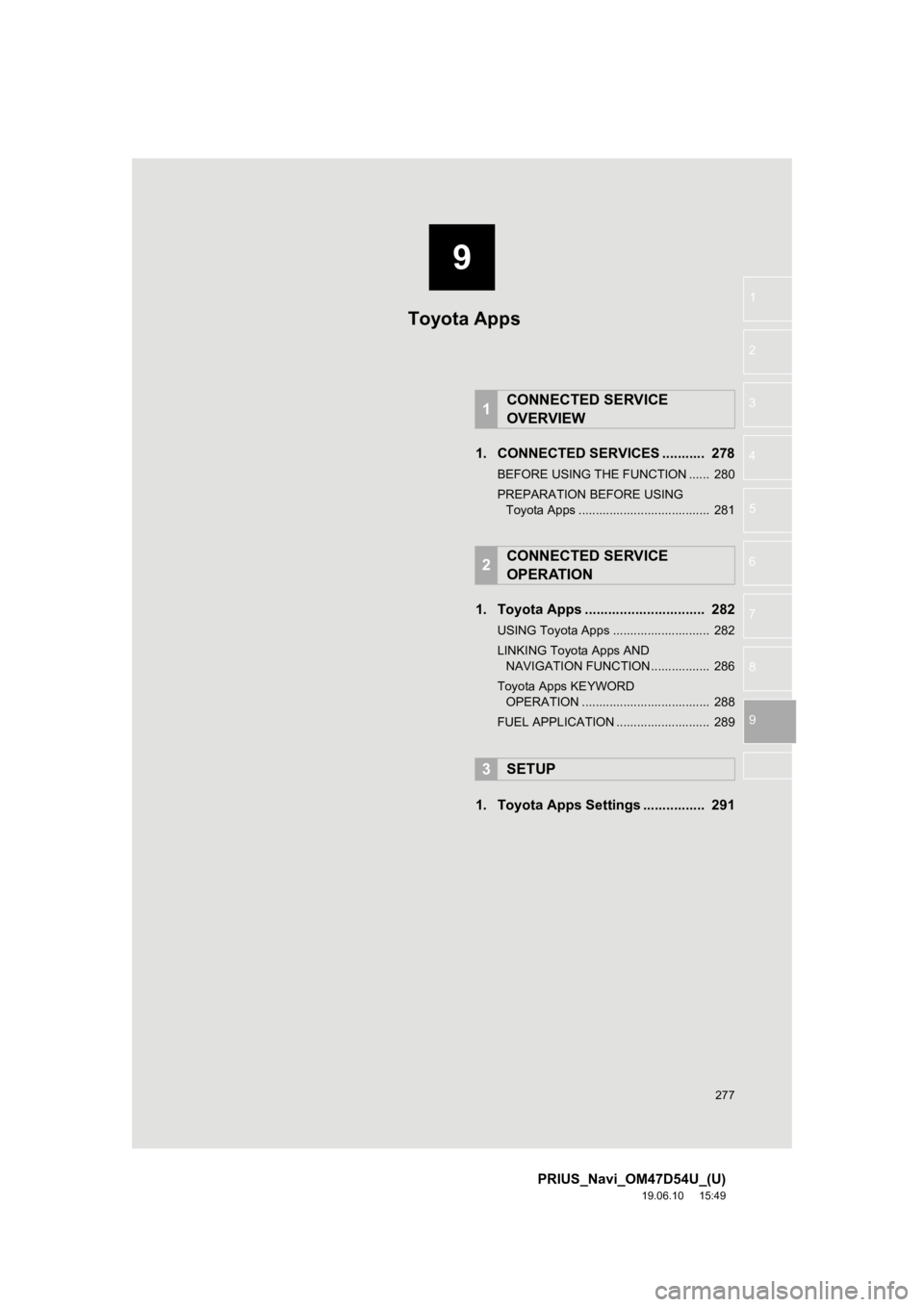

1. CONNECTED SERVICES ........... 278
BEFORE USING THE FUNCTION ...... 280
PREPARATION BEFORE USING Toyota Apps ...................................... 281
1. Toyota Apps ............................... 282
USING Toyota Apps ............................ 282
LINKING Toyota Apps AND NAVIGATION FUNCTION ................. 286
Toyota Apps KEYWORD OPERATION ..................................... 288
FUEL APPLICATION ........................... 289
1. Toyota Apps Settings ................ 291
1CONNECTED SERVICE
OVERVIEW
2CONNECTED SERVICE
OPERATION
3SETUP
Toyota Apps

278
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
1. CONNECTED SERVICE OVERVIEW
1. CONNECTED SERVICES*
Toyota apps is a service that enables downloadable applications to be displayed
on and operated from the navigation screen. Before Toyota apps can be used, a
few actions need to be performed first. (P.281)
*: Toyota apps is available in the contiguous United States, D.C., Alaska, Puerto Rico, Canada and
United States Virgin Islands.

279
1. CONNECTED SERVICE OVERVIEW
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
Toyota Apps
9
No.NameFunction
Content providerProvides content to the system via a cellular phone.
Application serverProvides downloadable application to the system via a cellular
phone.
Cellular phone*
Using the Toyota mobile application, communication is relayed
between the system, the application server and the contents
provider.
Applications
Downloaded Toyota mobile applications provide access to au-
dio/visual content from a content provider when connected via
a compatible phone with a data connection.
Toyota appsContents received, via a cellular phone, from the contents pro-
vider servers are displayed on the screen. The system is
equipped with an application player to run applications.
*: For known compatible phones, refer to http://www.toyota.com/audio-multimedia/
.
INFORMATION
● The actual service availability is dependent on the network condition.

280
1. CONNECTED SERVICE OVERVIEW
PRIUS_Navi_OM47D54U_(U)
19.06.10 15:49
Services requiring a separate subscription
can also be used.*
*: For details, refer to
http://www.toyota.com/connected-
services/ or call 1-800-331-4331.
Toyota apps are available in the contigu-
ous United States, D.C., Alaska, Puerto
Rico, Canada and United States Virgin
Islands. 
The following personal data can be
deleted from the system and returned to
their default settings:
• Downloaded applications
• Downloaded application content
• Input history
BEFORE USING THE
FUNCTION
SUBSCRIPTION
AVAILABILITY OF SERVICE
INFORMATION
●When using Toyota apps, depending on
the details of your cellular phone con-
tract, data usage fees may apply. Con-
firm data usage fees before using this
service.
● The actual service availability is depen-
dent on the network connection and sig-
nal strength.
INITIALIZING PERSONAL
DATA
The personal data used in applications
can be removed from the system.
( P.74)
INFORMATION
● Once initialized, data will be erased from
the system. Pay close attention when
initializing the data.
