warning TOYOTA PRIUS C 2012 NHP10 / 1.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 9
Smart Key system1,27
Air Conditioning/Heating 16
Audio 18-19
Auto lock/unlock111
Clock 22
Cruise control 20
EV-Drive Mode 21
Hill-start Assist Control (HAC) 23
Hybrid Synergy Drive System 10
Lights1& turn signals 15
Moonroof 17
Multi-Information Display222
Parking brake 20
Power outlets 19
Seat adjustments-Front 13
Seat heaters 17
Seat-Folding down rear seat 13
Seats-Head restraints 12
Steering wheel switches 19
Telephone controls (Bluetooth®)23
Tilt and telescopic steering wheel 21
Transmission 11
Windows-Power 14
Windshield wipers & washers 14
Doors-Child safety locks 25
Door locks 25
Floor mat installation 27
Seat belts 24
Spare tire & tools 25
Star Safety SystemTM 26-27
Tire Pressure Monitoring (warning) System 24
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Air Conditioning system
Shift lever
“ECO MODE” switch
Parking brake
“EV” switch
Seat heater controls
1
Wiper and washer controls
Tilt and telescopic steering lock release lever
Tire Pressure Monitoring (warning) System reset
Hood lock release lever
Fuel filler door opener
Power rearview mirror controls
Instrument panel light control
1If equipped2Refer to the “Display Audio System Owner’s Manual.”3For vehicles with a Display Audio System, refer to the “Display Audio System
Owner’s Manual.”

4
OVERVIEW
Indicator symbols
Instrument cluster
Speedometer
Transmission shift position indicator
Fuel gauge
Multi-information display
Service indicators and reminders
Charging system warning1
Brake system warning1
Low Tire Pressure Warning1
Immobilizer system indicator
Airbag SRS warning1
Master warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator
1
Low fuel level warning
Electric power steering system warning1
Brake system warning light (yellow indicator)1
1
If indicator does not turn off within a few seconds of starting hybrid system, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2, 2012 Owner’s
Manual.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
2If this light flashes, refer to “Cruise control,” Section 2-4, 2012 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control indicator2
READY indicator
Front fog light indicator
Eco Mode indicator
EV Drive Mode indicator
EV drive indicator

24

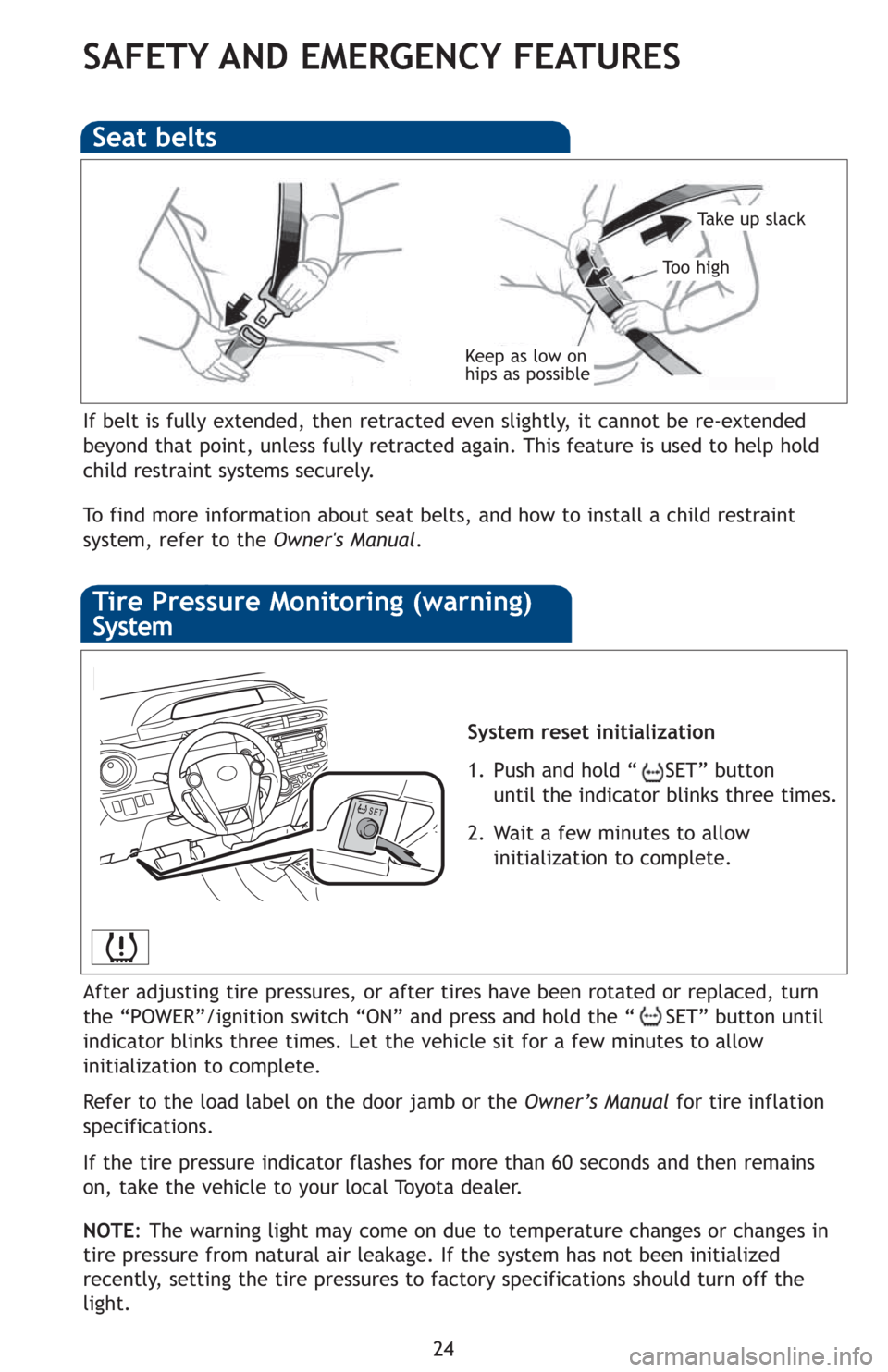

SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Tire Pressure Monitoring (warning)
System
STEP4
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks three times.
2. Wait a few minutes to allow
initialization to complete.
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the “POWER”/ignition switch “ON” and press and hold the “ SET” button until
indicator blinks three times. Let the vehicle sit for a few minutes to allow
initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains
on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes in
tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the
light.
