TOYOTA PRIUS C 2013 NHP10 / 1.G Owners Manual

231
2-5. Driving information
2
When driving
■
Tire chain installation
Observe the following precautions when installing and removing chains:
●Install and remove tire chains in a safe location.
● Install tire chains on the front tires only. Do not install tire chains on the
rear tires.
● Install tire chains on front tires as tightly as possible. Retighten chains
after driving 1/4  1/2 mile (0.5  1.0 km).
● Install tire chains following the instructions provided with the tire chains.
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the size specified.
● Maintain the recommended level of air pressure.
● Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
● Use snow tires on all, not just some wheels.

232 2-5. Driving information
CAUTION
■Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being
used, or 30 mph (50 km/h), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden turns and braking, as use of chains may adversely affect
vehicle handling.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly\
when tire chains are fitted.

233
2-5. Driving information
2
When driving

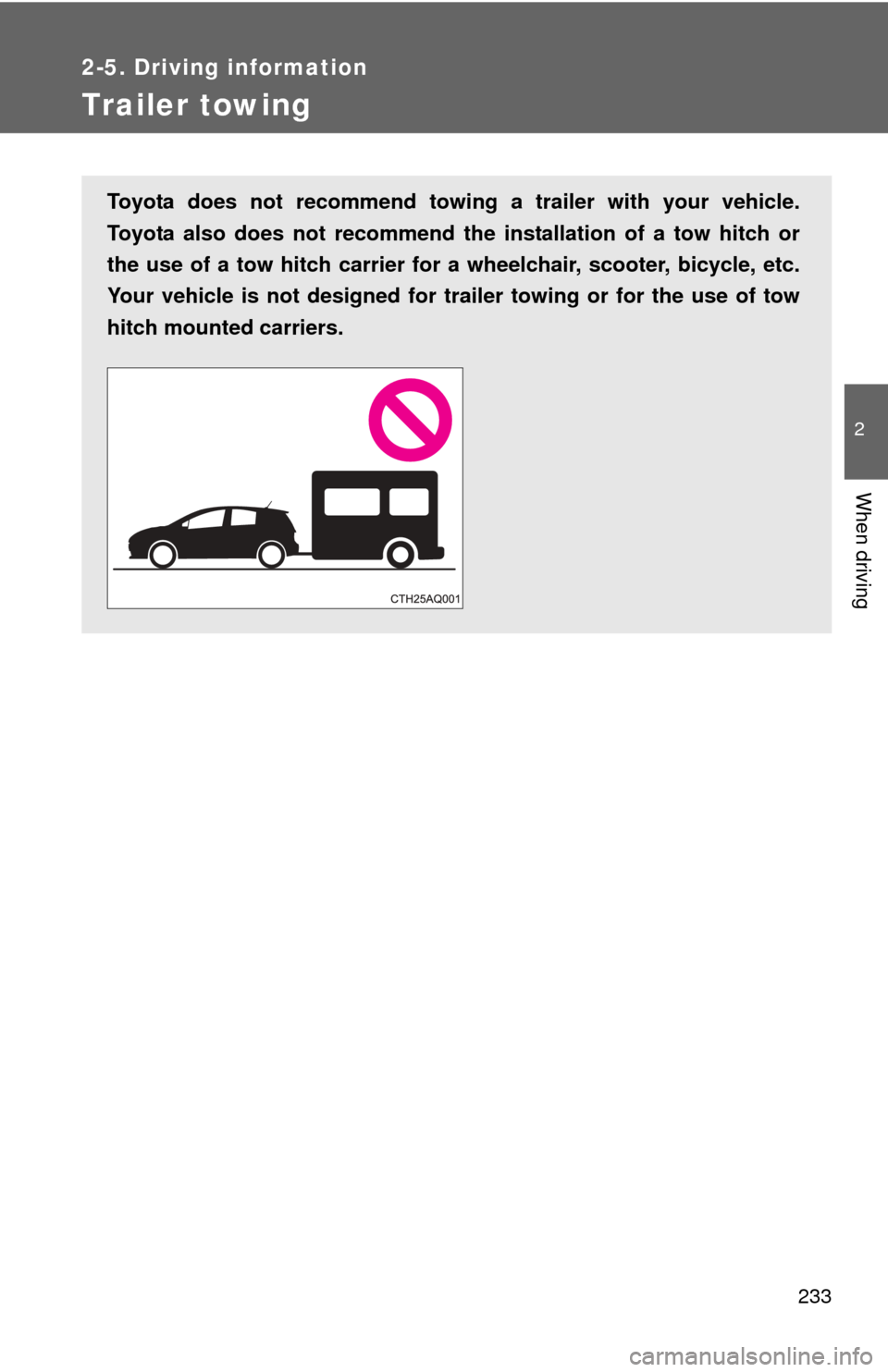

Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your vehicle is not designed for tra iler towing or for the use of tow
hitch mounted carriers.

234
2-5. Driving information
Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with the four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

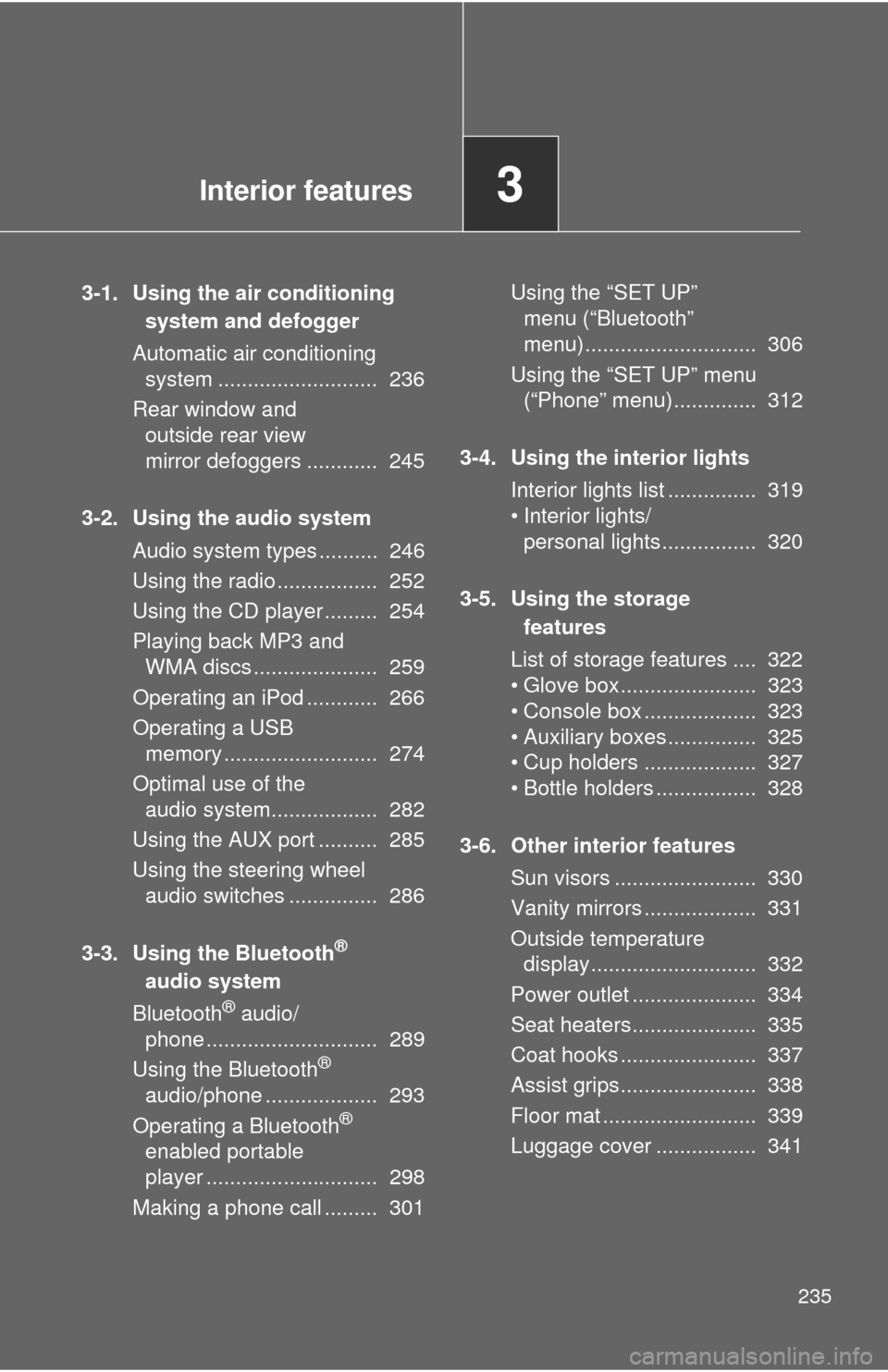

Interior features3
235
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ........................... 236
Rear window and outside rear view
mirror defoggers ............ 245
3-2. Using the audio system Audio system types .......... 246
Using the radio ................. 252
Using the CD player ......... 254
Playing back MP3 and WMA discs ..................... 259
Operating an iPod ............ 266
Operating a USB memory .......................... 274
Optimal use of the audio system.................. 282
Using the AUX port .......... 285
Using the steering wheel audio switches ............... 286
3-3. Using the Bluetooth
®
audio system
Bluetooth
® audio/
phone ............................. 289
Using the Bluetooth
®
audio/phone ................... 293
Operating a Bluetooth
®
enabled portable
player ............................. 298
Making a phone call ......... 301 Using the “SET UP”
menu (“Bluetooth”
menu)............................. 306
Using the “SET UP” menu (“Phone” menu).............. 312
3-4. Using the interior lights Interior lights list ............... 319
• Interior lights/personal lights................ 320
3-5. Using the storage features
List of storage features .... 322
• Glove box....................... 323
• Console box ................... 323
• Auxiliary boxes ............... 325
• Cup holders ................... 327
• Bottle holders ................. 328
3-6. Other interior features Sun visors ........................ 330
Vanity mirrors ................... 331
Outside temperature display............................ 332
Power outlet ..................... 334
Seat heaters..................... 335
Coat hooks ....................... 337
Assist grips....................... 338
Floor mat .......................... 339
Luggage cover ................. 341

236
3-1. Using the air conditioning system and defogger

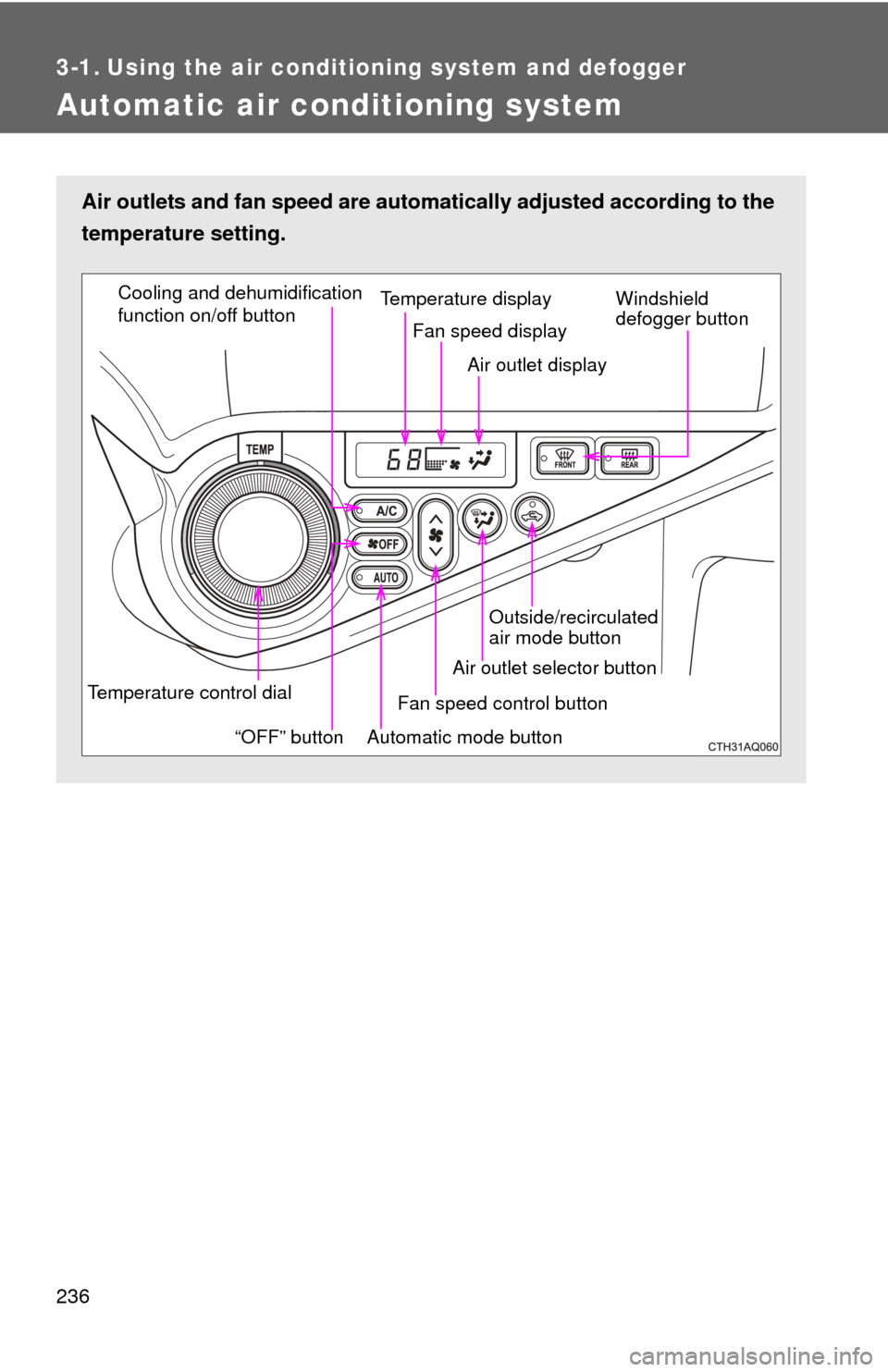

Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according to the
temperature setting.
Temperature control dial
“OFF” buttonTemperature display
Fan speed display
Air outlet display
Cooling and dehumidification
function on/off button
Windshield
defogger button
Automatic mode button Fan speed control button
Air outlet selector button Outside/recirculated
air mode button

237
3-1. Using the air conditioning system
and defogger
3
Interior features
Using the automatic air conditioning system
Press .
The air conditioning system beg ins to operate. Air outlets and
fan speed are automatically adjus ted according to the temper-
ature setting.
To adjust the temperature setting, turn clockwise to
increase the temperature and turn counterclockwise to
decrease the temperature.
Adjusting the settings manually
To adjust the fan speed, press “ ” on to increase the
fan speed and “ ” to decrease the fan speed.
Press to turn the fan off.
To adjust the temperature setting, turn clockwise to
increase the temperature and turn counterclockwise to
decrease the temperature.
To change the air outlets, press .
The air outlets used are switched each time the button is pressed.
( P. 238)
STEP1
STEP2
STEP1
STEP2
STEP3

238 3-1. Using the air conditioning system and defogger
Defogging the windshield
Press .
The dehumidification function
operates and fan speed
increases.
Set the outside/recirculated air
mode button to the outside air
mode if the recirculated air mode
is used. (It may switch automati-
cally.)
To defog the windshield and the
side windows early, turn the air
flow and temperature up.
To return to the previous mode,
press again when the
windshield is defogged.
Air outlets and air flow
Air flows to the upper body.

239
3-1. Using the air conditioning system
and defogger
3
Interior features
Air flows to the upper body and
feet.
: Some models
Air flows mainly to the feet.
*: When the warming function is
operating, air flows to the upper
body as well to warm the upper
body effectively.
: Some models
Air flows to the feet and the
windshield defogger operates.
: Some models
*
*

240 3-1. Using the air conditioning system and defogger
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (the indicator is off) and
recirculated air mode (the indicator is on) each time the button is
pressed.
Adjusting the position of and opening and closing the air outlets Center outlets Direct air flow to the left or right,
up or down.
Right and left side outlets Direct air flow to the left or right,
up or down.
