TOYOTA PRIUS C 2013 NHP10 / 1.G Owners Manual

411
4-3. Do-it-yourself maintenance
4
Maintenance and care
13 DOOR R/L 20 A Rear pow
er window (left side)
14 DOOR D 20 A Front power window (left side)
15 CIG 15 A Power outlet
16 ACC 5 A Main body ECU, audio system, out-
side rear view mirrors, shift lock
control system
17 D/L 25 A Power door lock system
18 OBD 7.5 A On-board diagnosis
19 STOP 7.5 A Starter system, shift lock control
system, vehicle proximity notifica-
tion system, brake system, stop
lights, high mounted stoplight
20 AM1 7.5 A Starter system
21 FOG FR 15 A Front fog lights
22 S/ROOF 25 A Moon roof
23 S/HTR 15 A Seat heaters, air conditioning sys-
tem
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 413)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
FuseAmpereCircuit

412 4-3. Do-it-yourself maintenance
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
■ Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

413
4-3. Do-it-yourself maintenance
4
Maintenance and care

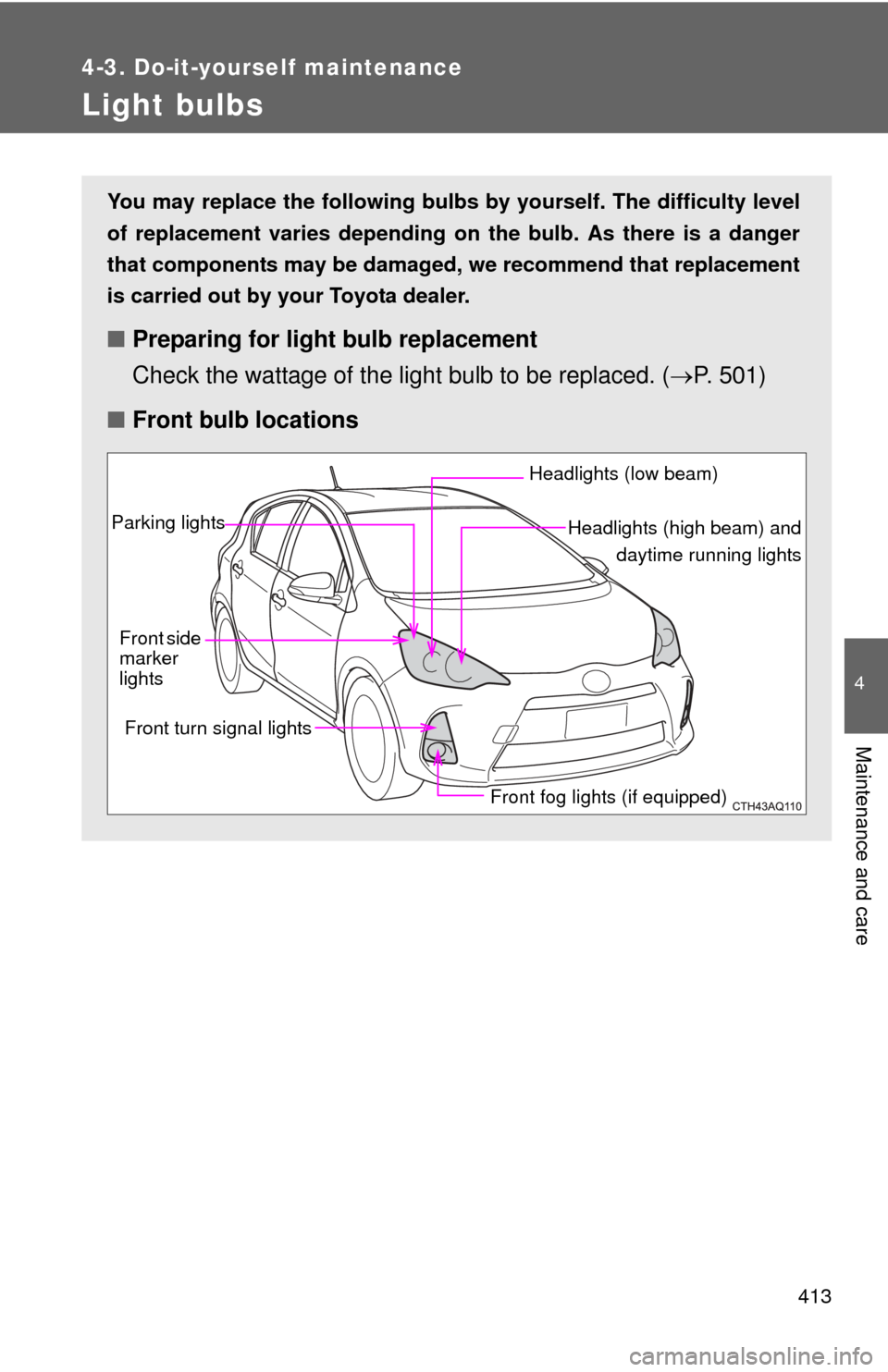

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by your Toyota dealer.
■Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 501)
■ Front bulb locations
Front fog lights (if equipped)
Front side
marker
lights
Front turn signal lights
Parking lights
Headlights (low beam)
Headlights (high beam) and daytime running lights

414 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlights and daytime running lights
Turn the bulb base counterclock-
wise.
High beam and daytime run-
ning lights (inside)
Low beam (outside)

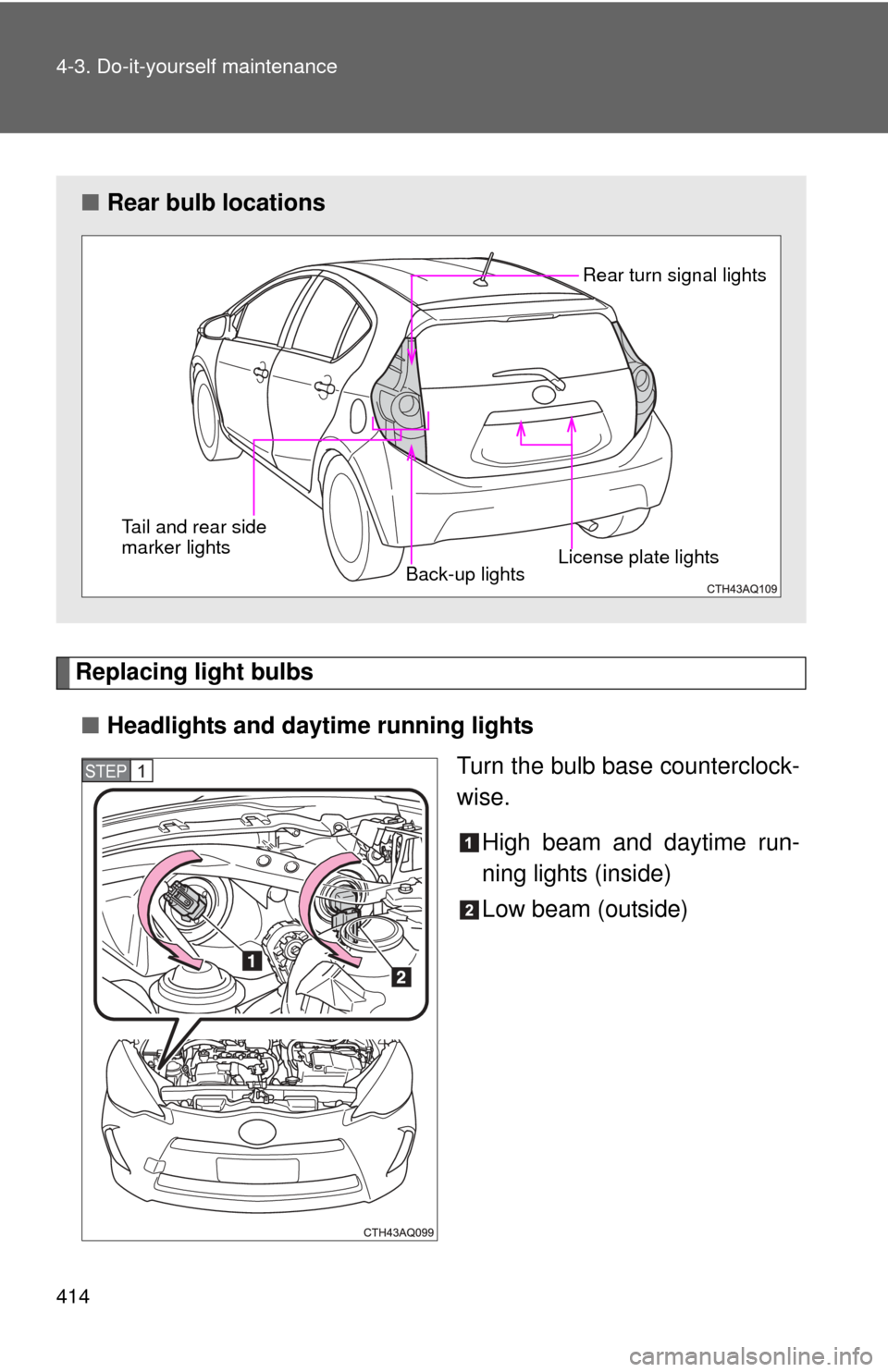

■Rear bulb locations
Back-up lights Rear turn signal lights
Tail and rear side
marker lights License plate lights
STEP1

415
4-3. Do-it-yourself maintenance
4
Maintenance and care

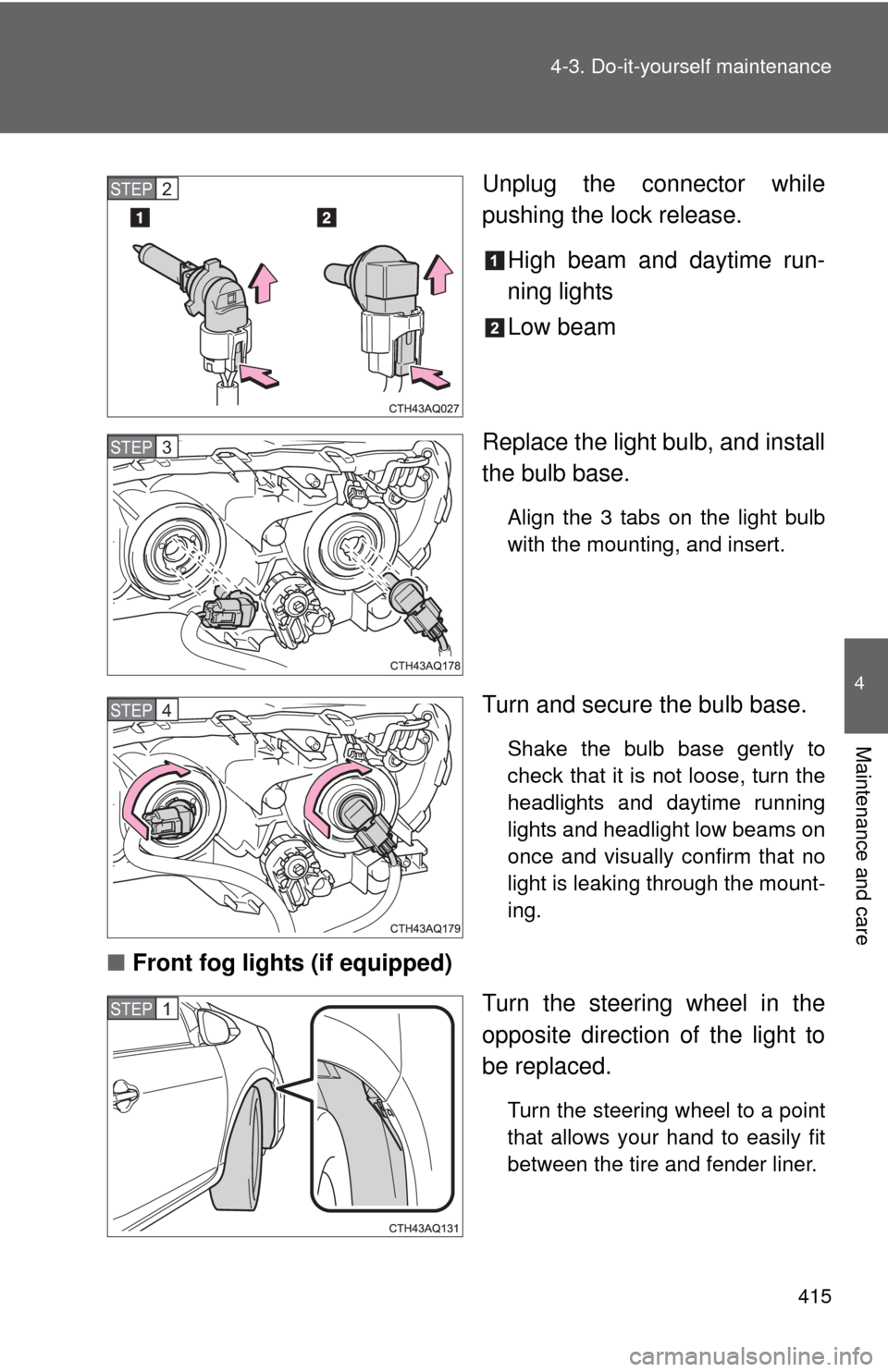

Unplug the connector while
pushing the lock release.
High beam and daytime run-
ning lights
Low beam
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights and daytime running
lights and headlight low beams on
once and visually confirm that no
light is leaking through the mount-
ing.
■ Front fog lights (if equipped)
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
STEP2
STEP3
STEP4
STEP1

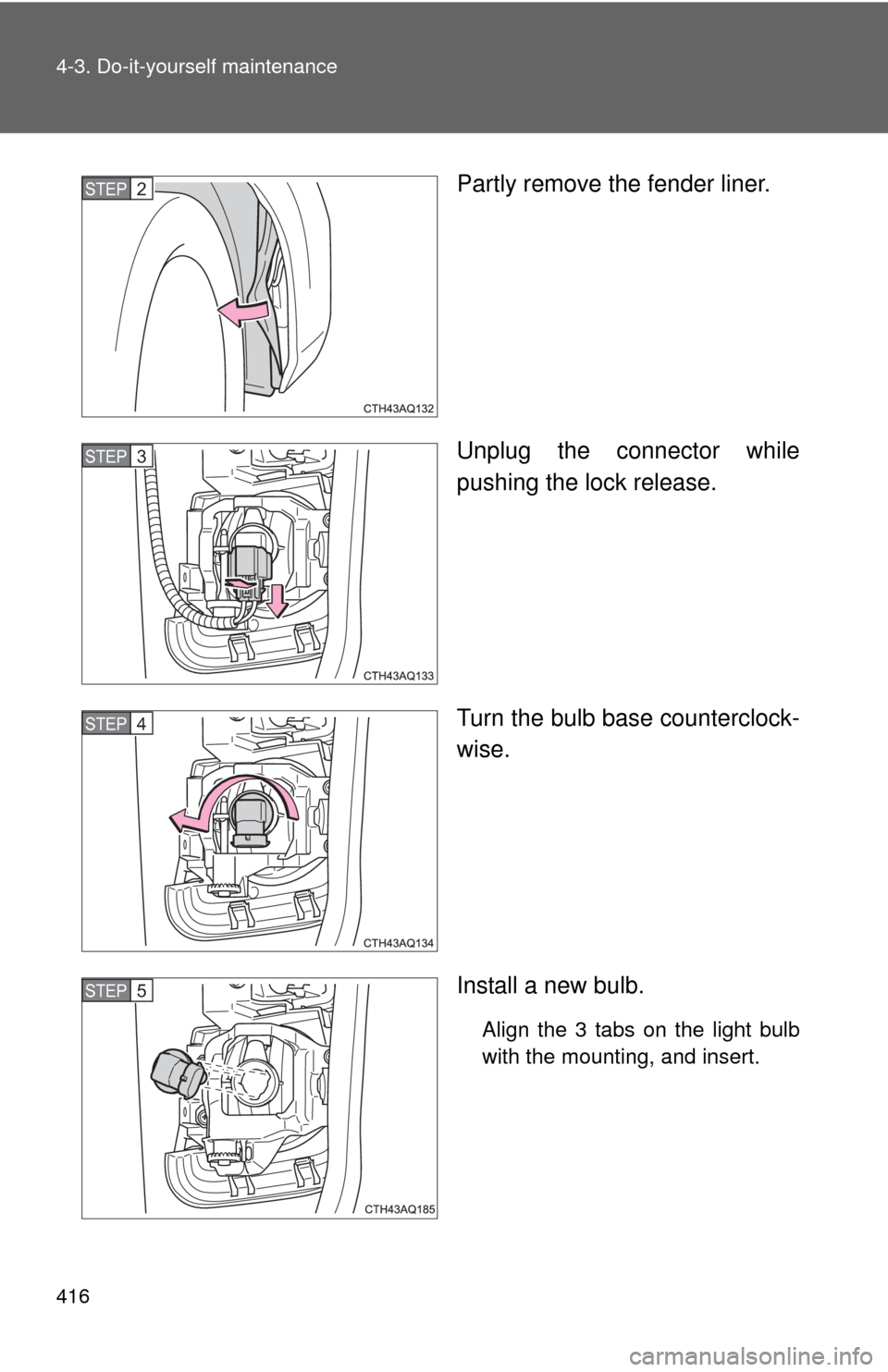

416 4-3. Do-it-yourself maintenance
Partly remove the fender liner.
Unplug the connector while
pushing the lock release.
Turn the bulb base counterclock-
wise.
Install a new bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
STEP2
STEP3
STEP4
STEP5

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn and secure the bulb. Install
the connector.
Shake the bulb base gently to
check that it is not loose, turn the
front fog light on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
with the directions reversed.
■ Parking lights
Unplug the connector while
pushing the lock release.
STEP6
STEP5STEP7STEP5STEP7STEP2
STEP1

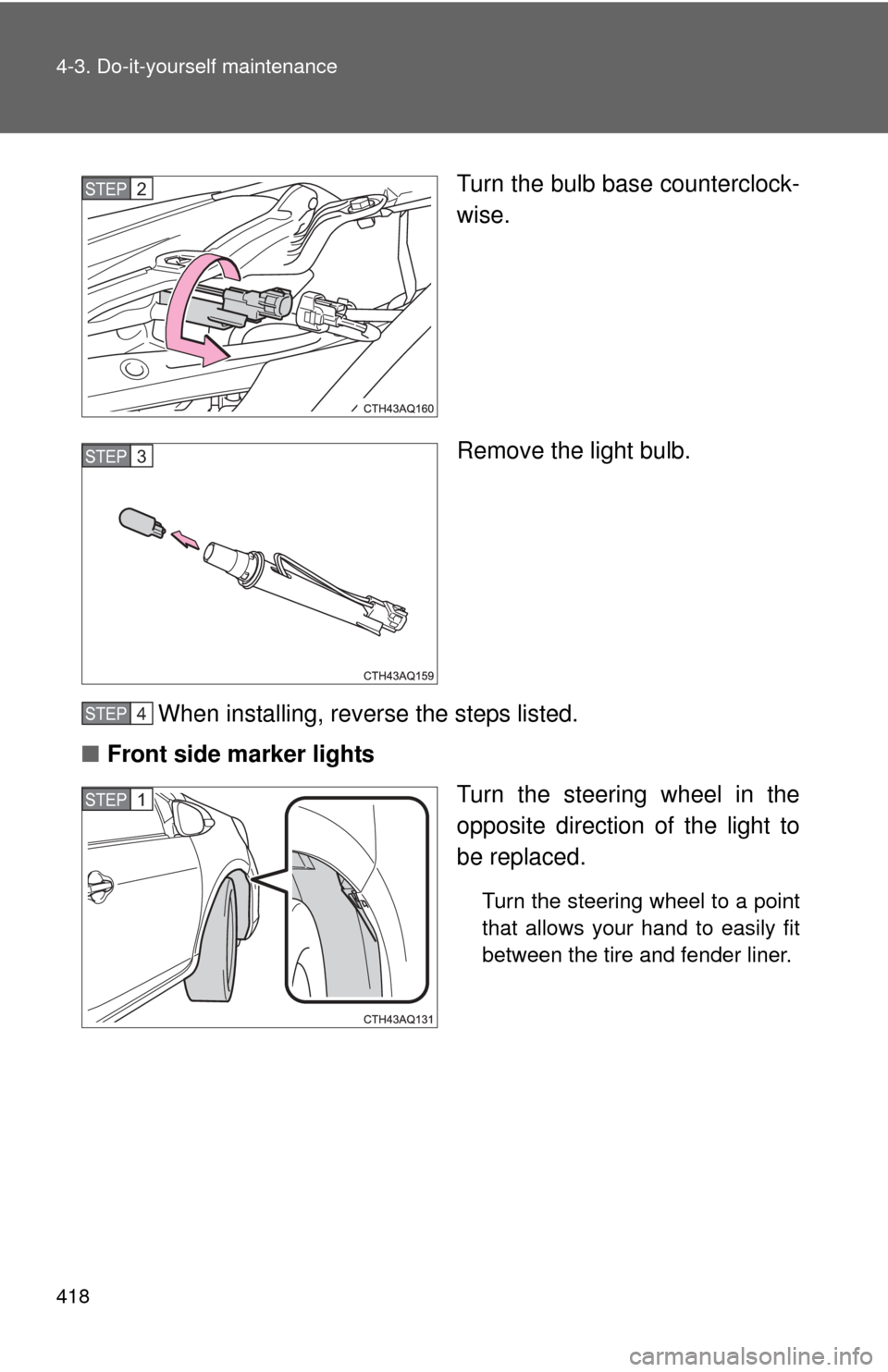

418 4-3. Do-it-yourself maintenance
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
■ Front side marker lights
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
STEP2
STEP3
STEP4
STEP1

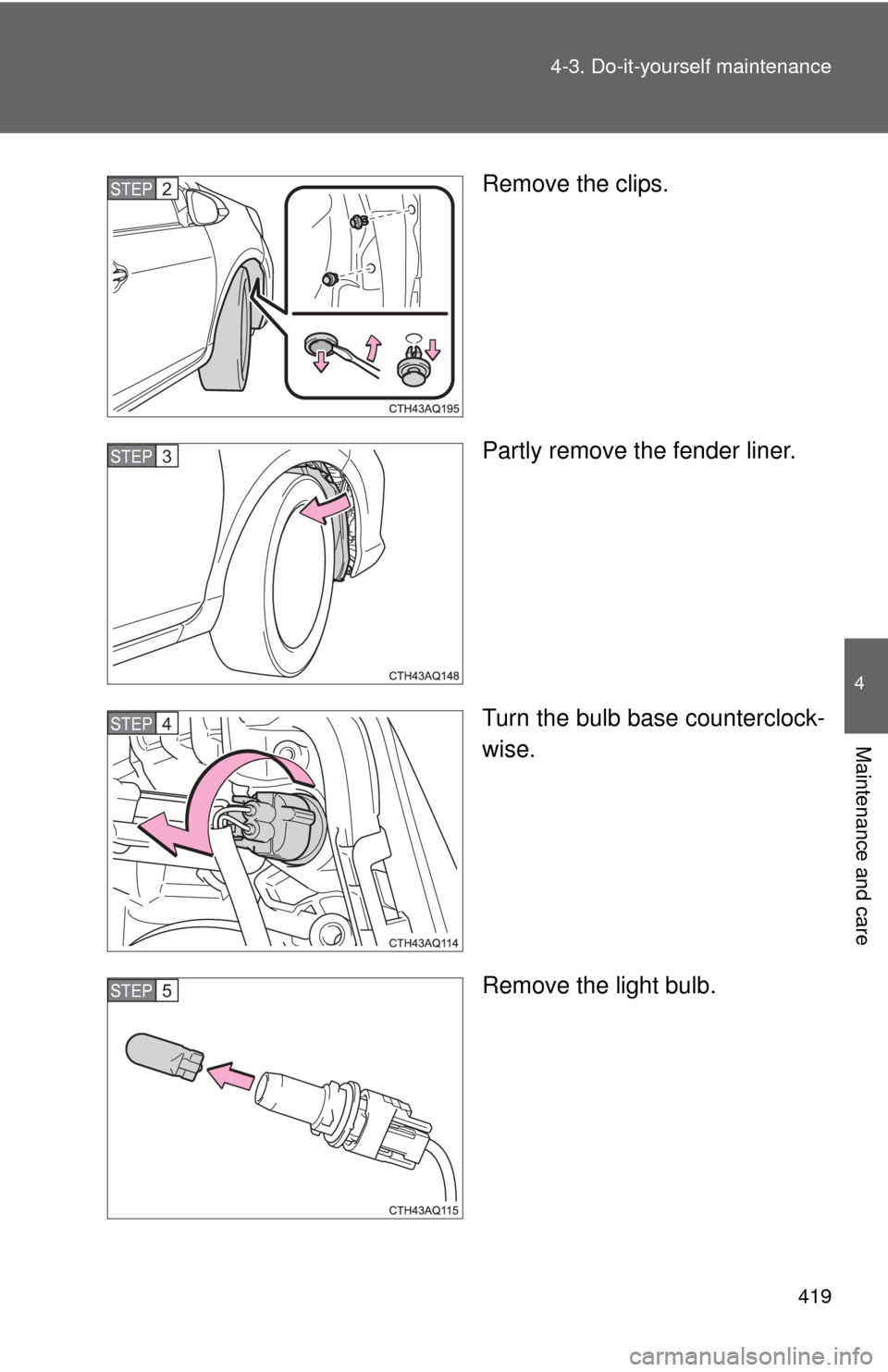

419
4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the clips.
Partly remove the fender liner.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP2
STEP3
STEP4
STEP5

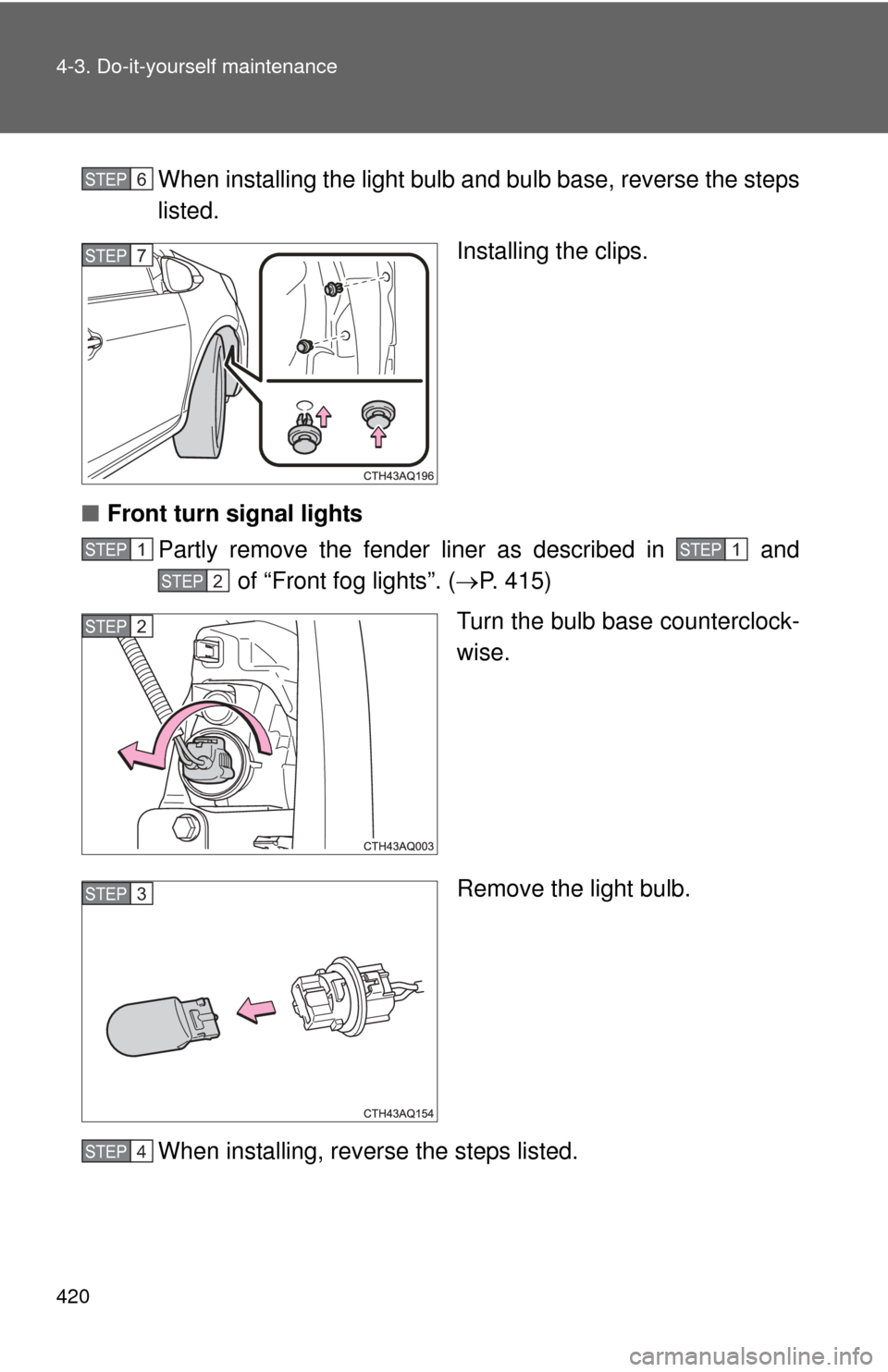

420 4-3. Do-it-yourself maintenance
When installing the light bulb and bulb base, reverse the steps
listed.
Installing the clips.
■ Front turn signal lights
Partly remove the fender liner as described in and of “Front fog lights”. ( P. 415)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.STEP6
STEP7
STEP1STEP1
STEP2
STEP2
STEP3
STEP4
