climate control TOYOTA PRIUS C 2013 NHP10 / 1.G Quick Reference Guide

2
OVERVIEW
Instrument panel
Steering wheel controls
Shift lever
“ECO MODE” switch
Parking brake
“EV” switch
Seat heater controls
1
Wiper and washer controls
Tilt and telescopic steering lock release lever
Tire Pressure Monitoring (warning) System reset
Hood lock release lever
Fuel filler door opener
Power rearview mirror controls
Instrument panel light control
1 If equipped2 For vehicles with a Display Audio System, refer to the “Display Audio System
Owner’s Manual.”
Steering wheel audio controls
Voice command button1,2
Steering wheel climate controls
Multi-Information Display button
“TRIP” button
Cruise control
1
Ignition switch (standard key)1
Telephone controls
Headlight and turn signal controls/Headlight, turn signal and front fog
light
controls1
Power button (Smart Key)1
Emergency flasher button
Multi-Information Display
Audio system or Display Audio system
1,2
USB/AUX port
Air Conditioning/Heating controls
Outside rearview mirror
1/Rear window defogger button
12V DC power outlet
2013Prius-c.indd 212/7/12 9:06 PM

16
FEATURES/OPERATIONS

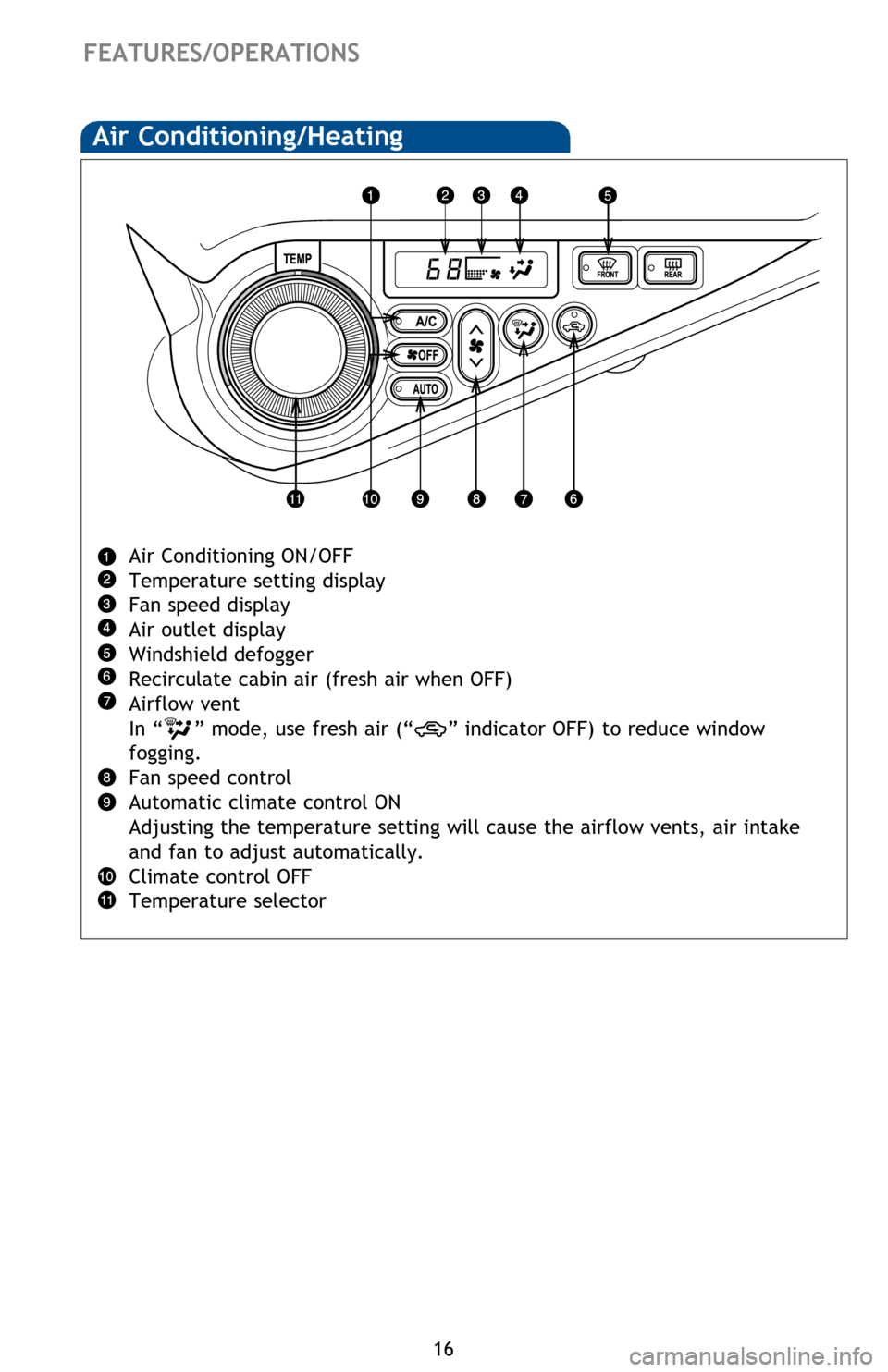

Air Conditioning/Heating
Air Conditioning ON/OFF
Temperature setting display
Fan speed display
Air outlet display
Windshield defogger
Recirculate cabin air (fresh air when OFF)
Airflow vent
In “
” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Fan speed control
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake
and fan to adjust automatically.
Climate control OFF
Temperature selector
Seat heaters (if equipped)
Moonroof (if equipped)
Sliding operation
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
2013Prius-c.indd 1612/7/12 9:06 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
Air Conditioning ON/OFF
Temperature setting display
Fan speed display
Air outlet display
Windshield defogger
Recirculate cabin air (fresh air when OFF)
Airflow vent
In “
” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Fan speed control
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake
and fan to adjust automatically.
Climate control OFF
Temperature selector
Seat heaters (if equipped)
Push
PushDriver seat
Front passenger seat

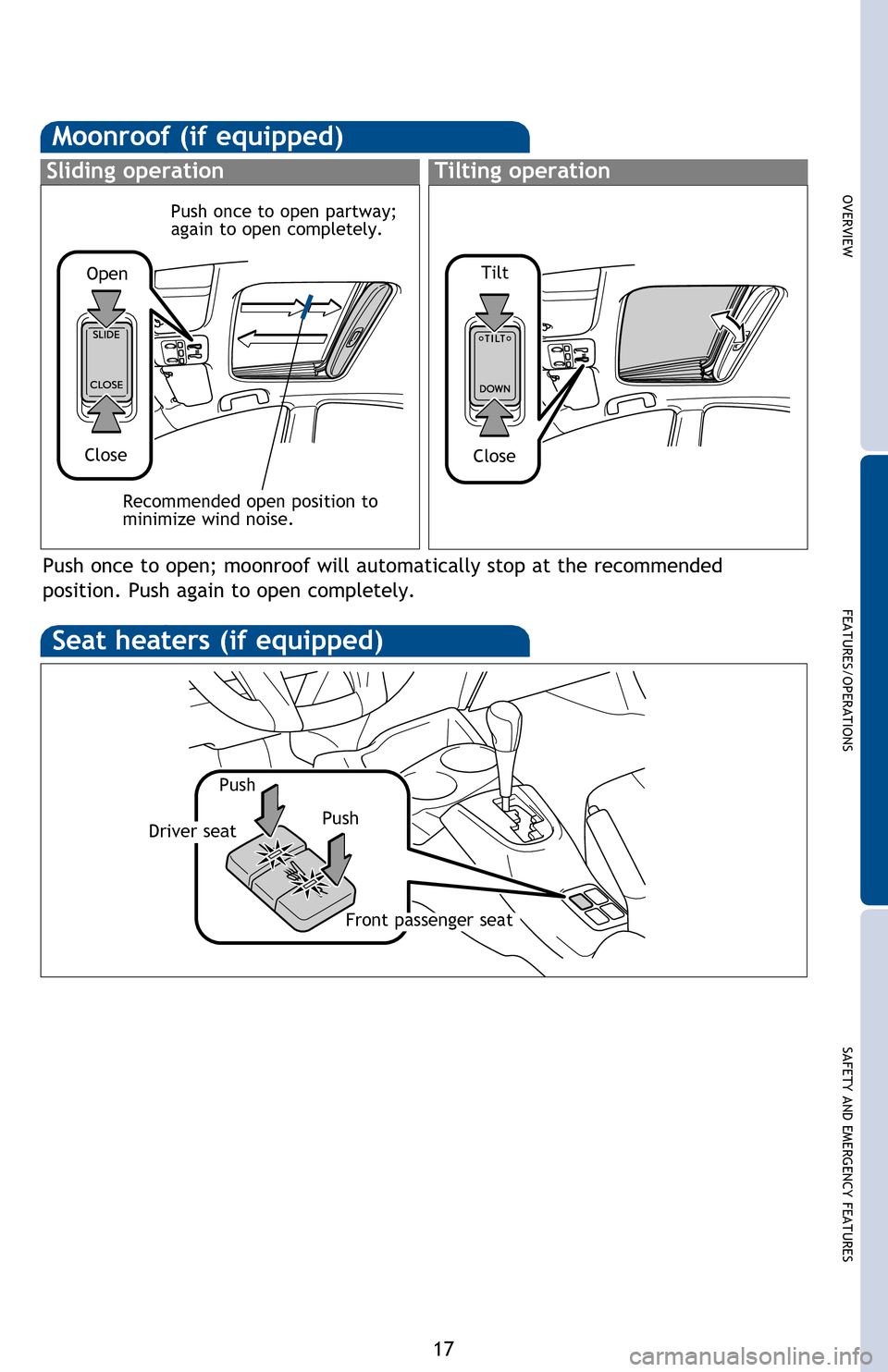

Moonroof (if equipped)
Sliding operationTilting operation
Recommended open position to
minimize wind noise.
Open
Close
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
Push once to open partway;
again to open completely.
Close
Tilt
2013Prius-c.indd 1712/7/12 9:06 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Push and
turn to
adjust tone
& balance
iPod®/USB/AUX port
Power outlets
The “POWER”/ignition switch must be set at the “ACC” or “ON” position for use.
Steering wheel switches
Audio controlClimate control
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
“ ”
Use to search within the selected audio medium (radio, CD, iPod
®, etc.).
vv
Volume
controlTemperature
selector
Fresh or
recirculated
cabin air
Turn to
tune radio
stations
manually or
select tracks
or files
Premium
Display Audio
system
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
To select a file (MP3/WMA only) Turn “TUNE .
SCROLL.”
To select a folder (MP3/WMA only) Push “
” ( ) or “ ” ( ).
To prese
t stations Tune in the desired station and hold down a preset button until
you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
* Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
iPod®/USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
2013Prius-c.indd 1912/7/12 9:06 PM
