fuses TOYOTA PRIUS C 2014 NHP10 / 1.G Owners Manual

TABLE OF CONTENTSIndex
4
3-4. Using the interior lightsInterior lights list ................. 321
• Interior lights/personal lights .................. 322
3-5. Using the storage features List of storage features....... 324
• Glove box ......................... 325
• Console box ..................... 325
• Auxiliary boxes ................. 327
• Cup holders ...................... 329
• Bottle holders ................... 330
3-6. Other interior features Sun visors .......................... 332
Vanity mirrors ..................... 333
Outside temperature display .............................. 334
Power outlet ....................... 336
Seat heaters ....................... 337
Coat hooks ......................... 339
Assist grips ......................... 340
Floor mat ............................ 341
Luggage cover ................... 343 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior ........... 346
Cleaning and protecting the vehicle interior ............ 349
4-2. Maintenance Maintenance requirements .................... 352
General maintenance ......... 355
Emission inspection and maintenance (I/M)
programs .......................... 359
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions ....................... 360
Hood ................................... 364
Positioning a floor jack........ 366
Engine compartment .......... 368
12-volt battery ..................... 379
Tires.................................... 384
Tire inflation pressure ......... 392
Wheels................................ 396
Air conditioning filter ........... 399
Wireless remote control/ electronic key battery ....... 401
Checking and replacing fuses ................................. 404
Light bulbs .......................... 415
4Maintenance and care

295

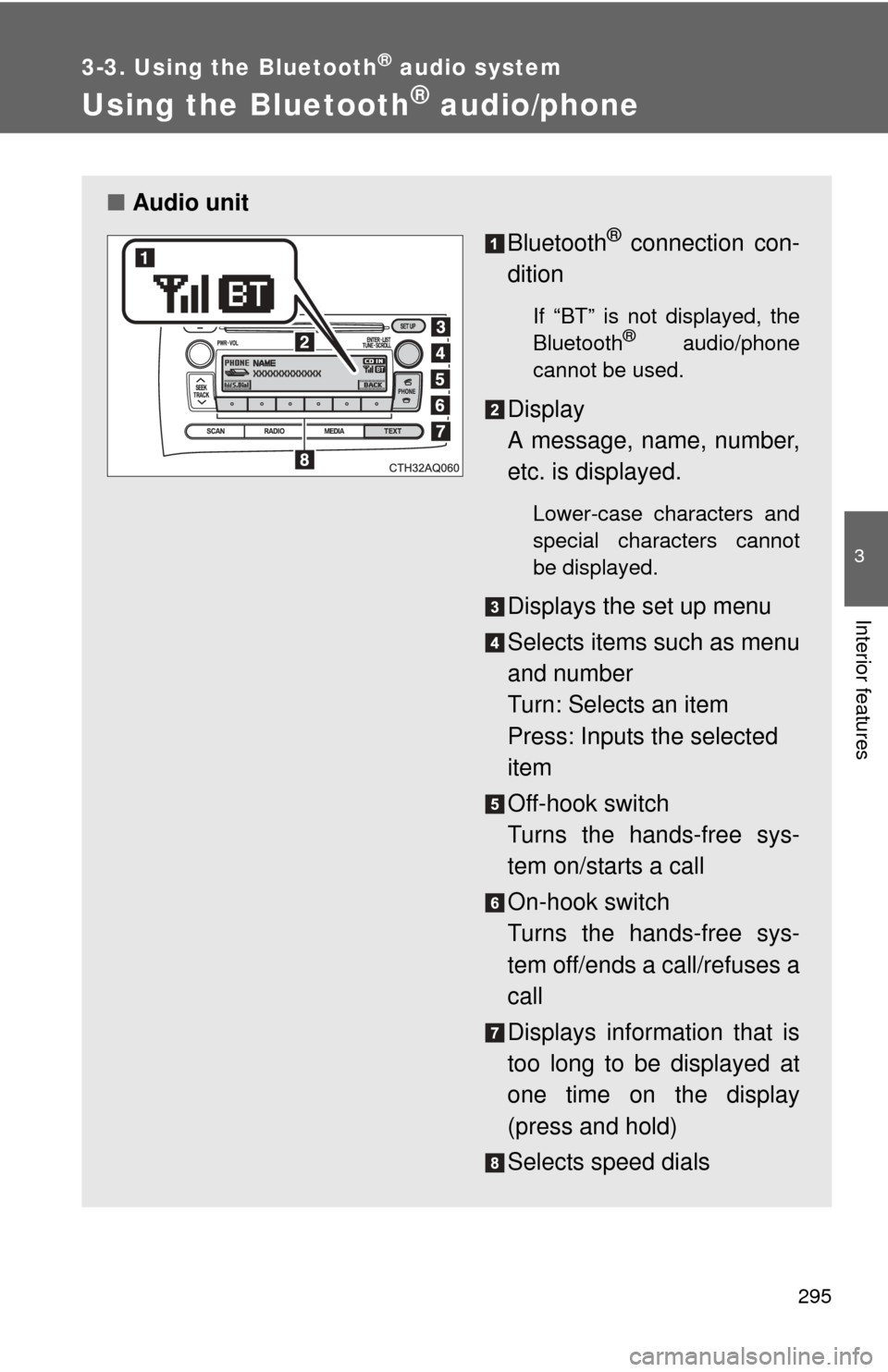

3-3. Using the Bluetooth® audio system
3
Interior features
Using the Bluetooth® audio/phone
■Audio unit
Bluetooth
® connection con-
dition
If “BT” is not displayed, the
Bluetooth® audio/phone
cannot be used.
Display
A message, name, number,
etc. is displayed.
Lower-case characters and
special characters cannot
be displayed.
Displays the set up menu
Selects items such as menu
and number
Turn: Selects an item
Press: Inputs the selected
item
Off-hook switch
Turns the hands-free sys-
tem on/starts a call
On-hook switch
Turns the hands-free sys-
tem off/ends a call/refuses a
call
Displays information that is
too long to be displayed at
one time on the display
(press and hold)
Selects speed dials

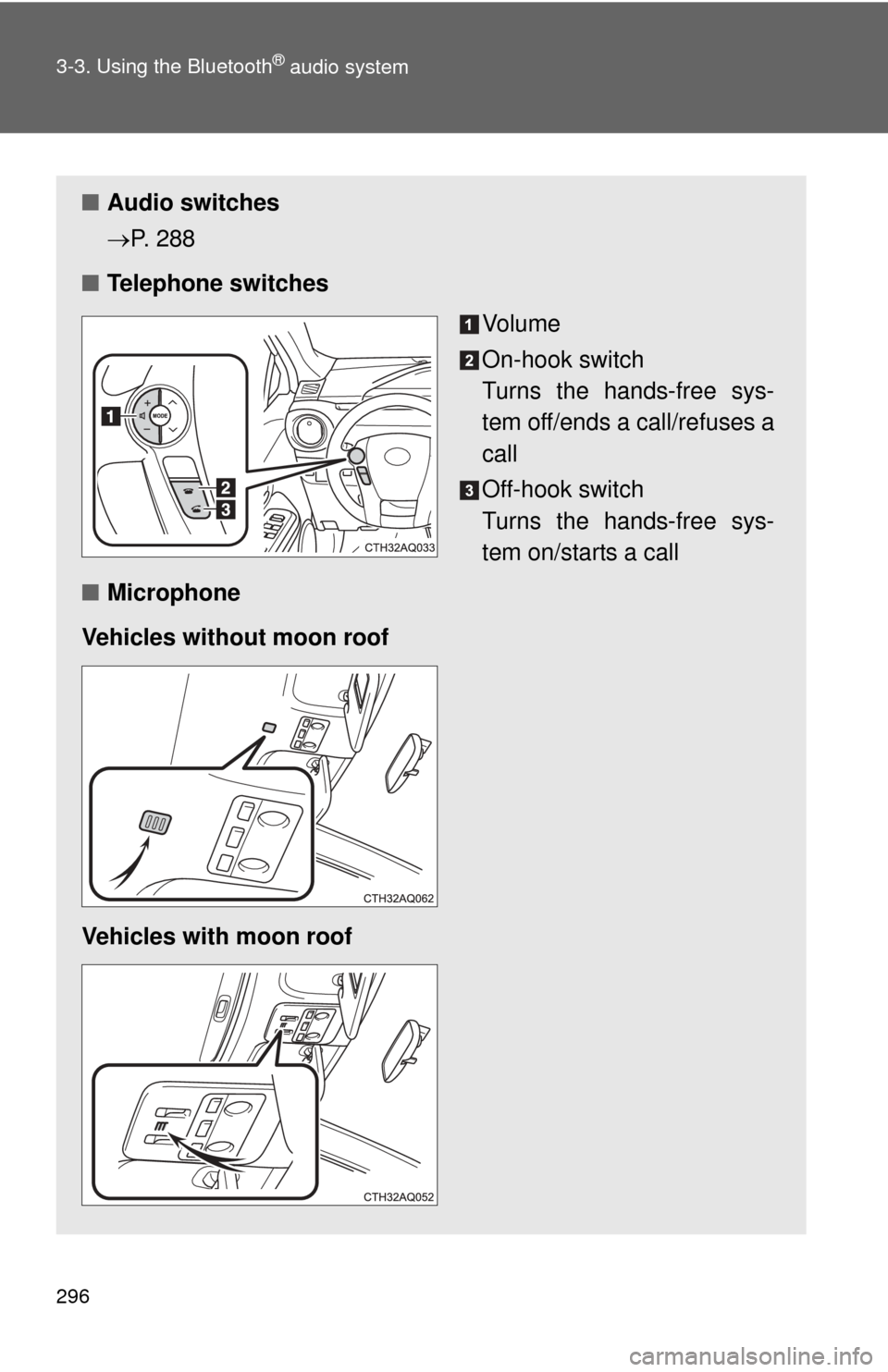

296 3-3. Using the Bluetooth
® audio system
■Audio switches
P. 288
■ Telephone switches
Vo l u m e
On-hook switch
Turns the hands-free sys-
tem off/ends a call/refuses a
call
Off-hook switch
Turns the hands-free sys-
tem on/starts a call
■ Microphone
Vehicles without moon roof
Vehicles with moon roof

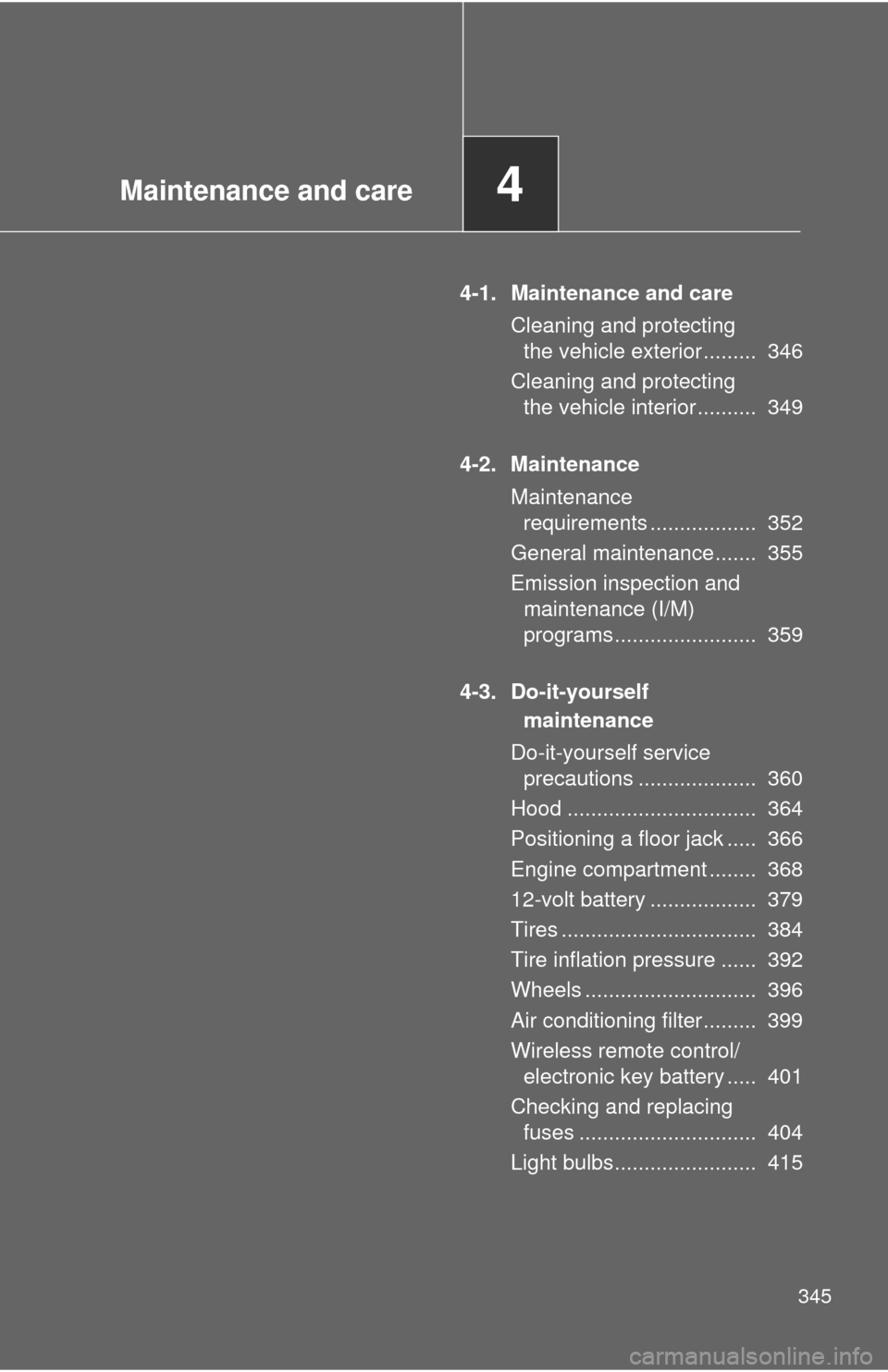

Maintenance and care4
345
4-1. Maintenance and careCleaning and protecting the vehicle exterior ......... 346
Cleaning and protecting the vehicle interior .......... 349
4-2. Maintenance Maintenance requirements .................. 352
General maintenance....... 355
Emission inspection and maintenance (I/M)
programs........................ 359
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions .................... 360
Hood ................................ 364
Positioning a floor jack ..... 366
Engine compartment ........ 368
12-volt battery .................. 379
Tires ................................. 384
Tire inflation pressure ...... 392
Wheels ............................. 396
Air conditioning filter......... 399
Wireless remote control/ electronic key battery ..... 401
Checking and replacing fuses .............................. 404
Light bulbs........................ 415

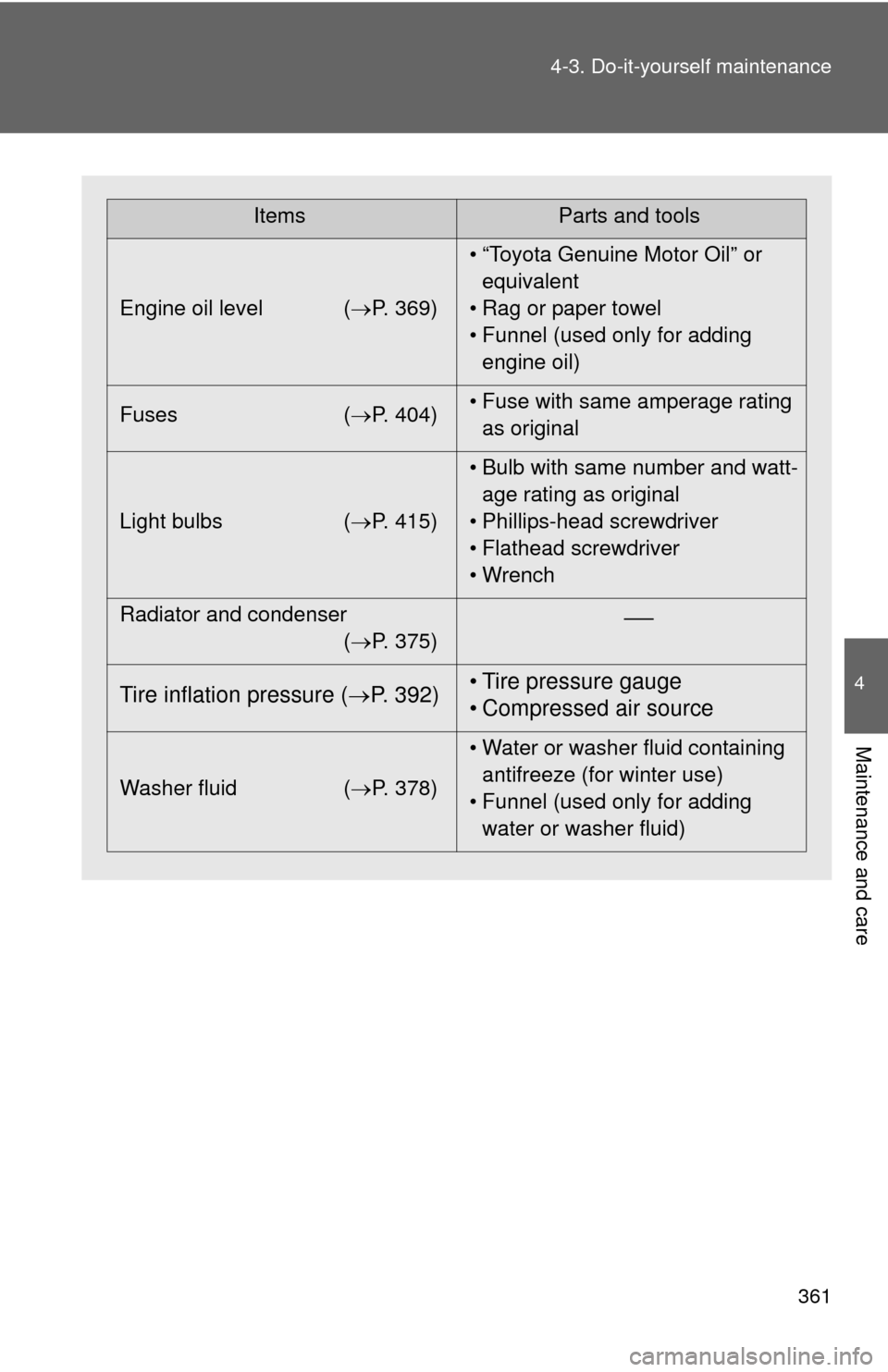

361
4-3. Do-it-yourself maintenance
4
Maintenance and care
ItemsParts and tools
Engine oil level ( P. 369)• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 404)• Fuse with same amperage rating
as original
Light bulbs ( P. 415)• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Flathead screwdriver
• Wrench
Radiator and condenser (P. 375)

Tire inflation pressure ( P. 392) • Tire pressure gauge
• Compressed air source
Washer fluid
(P. 378) • Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

404
4-3. Do-it-yourself maintenance

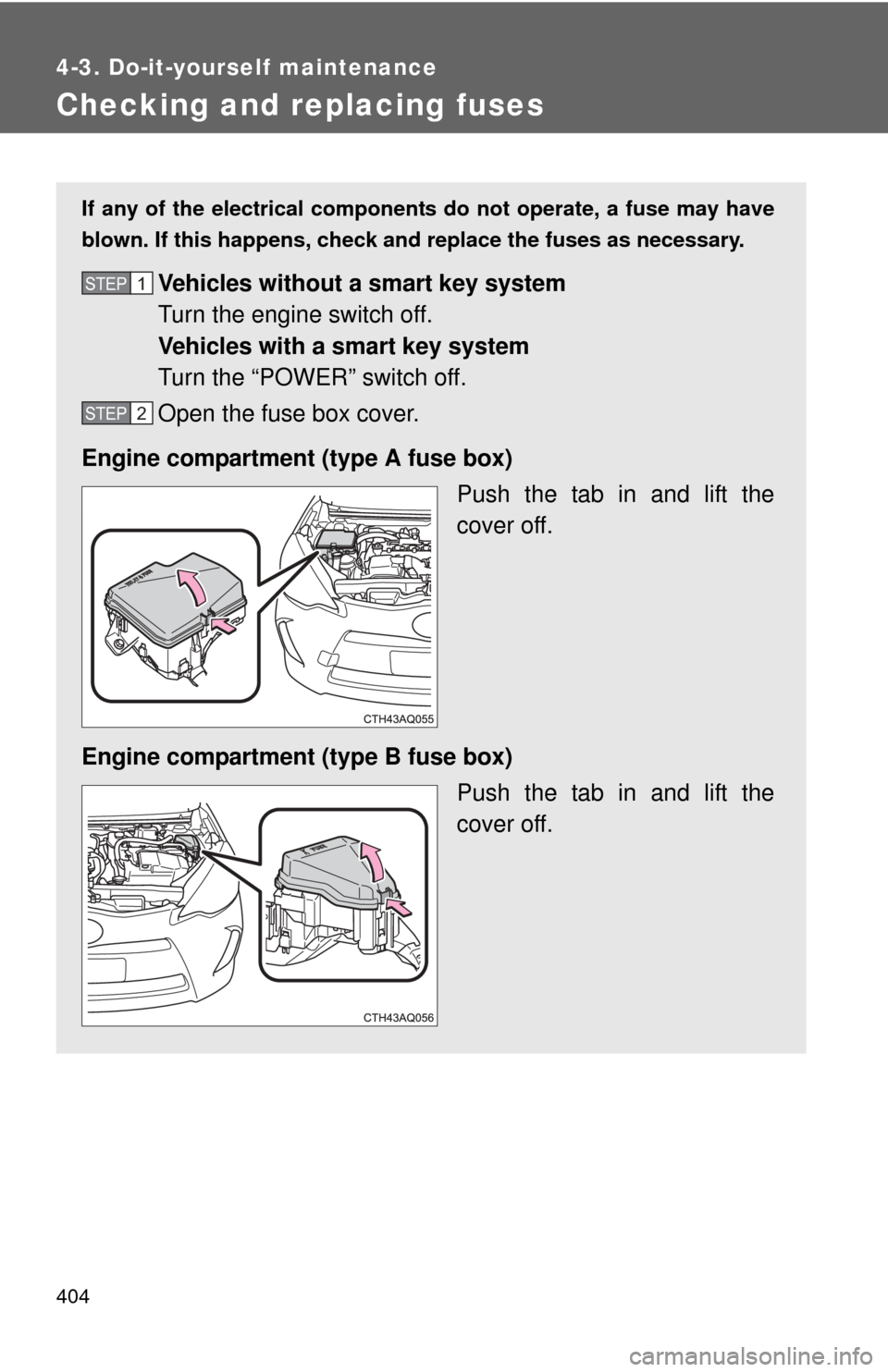

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a smart key system
Turn the engine switch off.
Vehicles with a smart key system
Turn the “POWER” switch off.
Open the fuse box cover.
Engine compartment (type A fuse box) Push the tab in and lift the
cover off.
Engine compartment (type B fuse box) Push the tab in and lift the
cover off.STEP1
STEP2

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
13 DOOR R/L 20 A Rear pow
er window (left side)
14 DOOR D 20 A Front power window (left side)
15 CIG 15 A Power outlet
16 ACC 5 A Main body ECU, audio system, out-
side rear view mirrors, shift lock
control system
17 D/L 25 A Power door lock system
18 OBD 7.5 A On-board diagnosis
19 STOP 7.5 A Starter system, shift lock control
system, vehicle proximity notifica-
tion system, brake system, stop
lights, high mounted stoplight
20 AM1 7.5 A Starter system
21 FOG FR 15 A Front fog lights
22 S/ROOF 25 A Moon roof
23 S/HTR 15 A Seat heaters, air conditioning sys-
tem
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 415)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
FuseAmpereCircuit

414 4-3. Do-it-yourself maintenance
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
■ Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

550 Alphabetical index
Engine oilCapacity ................................ 499
Checking ............................... 369
Preparing and checking before winter ....................... 231
Engine/power control unit coolantCapacity ................................ 500
Checking ............................... 373
Preparing and checking before winter ....................... 231
Engine switch ................... 160, 164
EPS ............................................ 221
EV drive mode .......................... 172
Event data recorder ...................18
Exclusive jump starting terminal .................... 481
Floor mat................................... 341
Fluid Brake ..................................... 503
Washer .................................. 378
Fog lights Replacing light bulbs ............. 415
Switch.................................... 208
Wattage ................................. 505
Front fog lights Replacing light bulbs ............. 415
Switch.................................... 208
Wattage ................................. 505
Front passenger occupant
classification system ............ 130 Front passenger’s seat
belt reminder light ................. 439
Front seats Adjustment .............................. 76
Front side marker lights
Replacing light bulbs ............. 415
Switch ................................... 204
Wattage................................. 505
Front turn signal lights Replacing light bulbs ............. 415
Switch ................................... 178
Wattage................................. 505
Fuel Capacity ................................ 498
Fuel gauge ............................ 181
Gas station information ......... 560
Information ............................ 506
Refueling ............................... 105
Type ...................................... 498
Fuel door .................................. 105
Fuel filler door .......................... 105
Fuses ........................................ 404
Gas station information .......... 560
Gauges...................................... 181
Glove box ................................. 325
Hazard lights
Switch ................................... 428
Head restraints
Adjusting ................................ 81
Headlights Replacing light bulbs ............. 415
Switch ................................... 204
Wattage................................. 505
F
G
H

553
Alphabetical index
Radiator.................................... 375
Radio ........................................ 254
Rear seat
Folding down .......................... 77
Rear turn signal lights
Replacing light bulbs ............ 415
Wattage ................................ 505
Rear window defogger............ 247
Rear window wiper.................. 214
Reset the maintenance data... 353
Replacing
Fuses.................................... 404
Key battery ........................... 401
Light bulbs ............................ 415
Tires ..................................... 463
Reporting safety defects for U.S. owners ..................... 530 Seat belts
Adjusting the seat belt .............84
Automatic Locking
Retractor (ALR).....................88
Child restraint system
installation ...........................140
Cleaning and maintaining the seat belts ......................349
Emergency Locking Retractor (ELR).................... 88
How to wear your seat belt......84
How your child should
wear the seat belt .................88
Pregnant women,
proper seat belt use ..............90
Reminder light .......................439
Seat belt extenders .................89
Seat belt pretensioners ...........88
Seat cushion airbag .................116
Seat heaters..............................337
Seating capacity.......................230RS
