hood open TOYOTA PRIUS C 2014 NHP10 / 1.G Owners Manual

12
Pictorial indexInstrument panel
Hood lock release lever P. 364
Gauges and meters
Multi-information display P. 181
P. 187
Glove box
P. 325
Fuel filler door opener P. 105
Tire pressure warning reset switch P. 385
AUX port/USB port
P. 268, 276, 287
Power outlet P. 336
Power (ignition) switch (vehicles with
a smart key system)
P. 160
Tilt and telescopic steering lock release lever P. 93
Audio system 
Display Audio system
, *
P. 248
Emergency flasher switch P. 428
Headlight switch P. 204
Turn signal lever P. 178
Fog light switch  P. 208
Floor mat P. 341
Cord hook P. 272
Windshield wiper and washer switch
Rear window wiper and washer switch

P. 210
P. 214

364
4-3. Do-it-yourself maintenance
Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release
lever.
The hood will pop up slightly.
Pull up the auxiliary catch
lever and lift the hood.
Hold the hood open by insert-
ing the supporting rod into the
slot.
STEP1
STEP2
STEP3

365
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.

5
When trouble arises
481

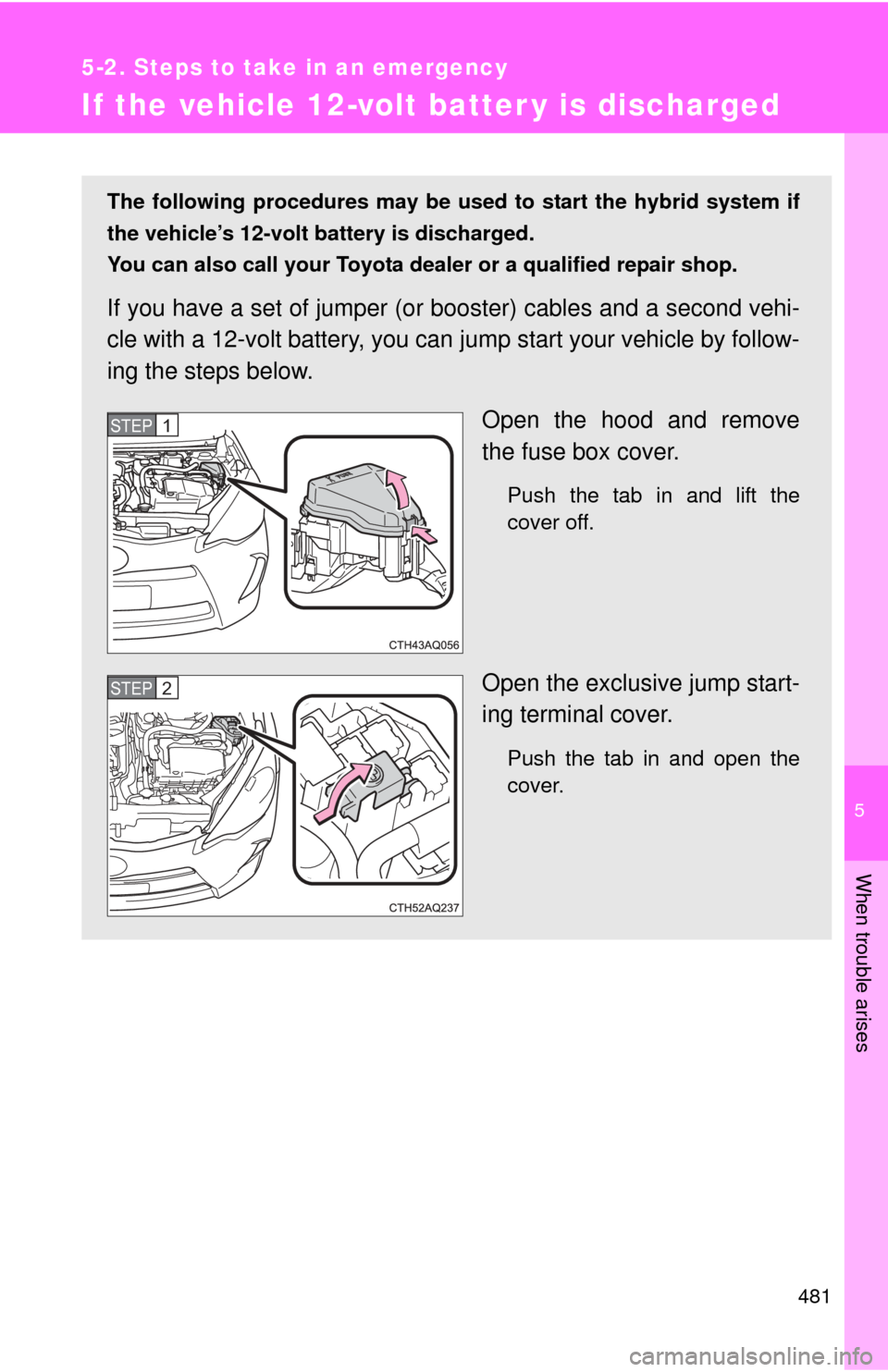

5-2. Steps to take in an emergency
If the vehicle 12-volt batter y is discharged
The following procedures may be used to start the hybrid system if
the vehicle’s 12-volt battery is discharged.
You can also call your Toyota deal er or a qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehi-
cle with a 12-volt battery, you can jump start your vehicle by follow-
ing the steps below.
Open the hood and remove
the fuse box cover.
Push the tab in and lift the
cover off.
Open the exclusive jump start-
ing terminal cover.
Push the tab in and open the
cover.
STEP1
STEP2

490 5-2. Steps to take in an emergency
Start the hybrid system and check for the multi-information
display.
If the message does not disappear:Stop the hybrid system and c ontact your Toyota dealer.
If the message is not displayed: Have the vehicle inspected at the nearest Toyota dealer.
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
● After the hybrid system has been turned off, check that on the
multi-information display and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fan may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the radiator cap while the hybrid system and radiator are
hot.
Serious injuries, such as burns, may result from hot coolant and steam
released under pressure.
STEP6

552 Alphabetical index
Luggage compartment lightWattage ................................. 505
Luggage cover ......................... 343
Maintenance Do-it-yourself maintenance ....................... 360
Emission inspection and maintenance (I/M)
programs............................. 359
General maintenance ............ 355
Maintenance data.................. 496
Maintenance requirements.... 352
Meter Instrument panel light control ................................. 182
Meters ................................... 181
Microphone............................... 296
Mirrors Inside rear view mirror.............94
Outside rear view mirror defogger.............................. 247
Outside rear view mirrors ........96
Vanity mirrors ........................ 333
Moon roof ................................. 101
MP3 disc ................................... 261
Multi-information display ........ 187
Noise from under vehicle ..........16 Odometer .................................. 189
Oil
Engine oil .............................. 369
Opener Back door ................................ 71
Fuel filler door ....................... 105
Hood ..................................... 364
Outside rear view mirrors
Adjusting and folding............... 96
Defogger ............................... 247
Outside temperature
display .................................... 334
Overheating, Hybrid system .................................... 487
Parking brake ........................... 179
Parking lights Replacing light bulbs ............. 415
Switch ................................... 204
Wattage................................. 505
Personal lights Switch ................................... 322
Wattage................................. 505
Power outlet ............................. 336
“POWER” switch ..................... 164
Power windows .......................... 98
M
N
O
P

560
GAS STATION INFORMATION
Fuel filler door openerP. 105Tire inflation pressureP. 504Hood lock release lever P. 364
Auxiliary catch leverP. 364Fuel filler doorP. 1 0 5
Fuel tank capacity
(Reference) 9.5 gal. (36 L, 7.9 Imp. gal.)
Fuel type
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Cold tire inflation
pressure
P. 5 0 4
Engine oil capacity
(Drain and refill
 reference)qt. (L, Imp. qt.)
With filter 3.9 (3.7, 3.3)
Without filter 3.6 (3.4, 3.0)
Engine oil type Toyota Genuine Motor Oil or equivalent
Oil grade: P. 499
ILSAC GF-5 multigrade engine oil
Recommended oil viscosity: SAE 0W-20
