Page 12 of 563
12
Pictorial indexInstrument panel
Hood lock release lever P. 364
Gauges and meters
Multi-information display P. 181
P. 187
Glove box
P. 325
Fuel filler door opener P. 105
Tire pressure warning reset switch P. 385
AUX port/USB port
P. 268, 276, 287
Power outlet P. 336
Power (ignition) switch (vehicles with
a smart key system)
P. 160
Tilt and telescopic steering lock release lever P. 93
Audio system
Display Audio system
, *
P. 248
Emergency flasher switch P. 428
Headlight switch P. 204
Turn signal lever P. 178
Fog light switch P. 208
Floor mat P. 341
Cord hook P. 272
Windshield wiper and washer switch
Rear window wiper and washer switch
P. 210
P. 214
Page 367 of 563
364

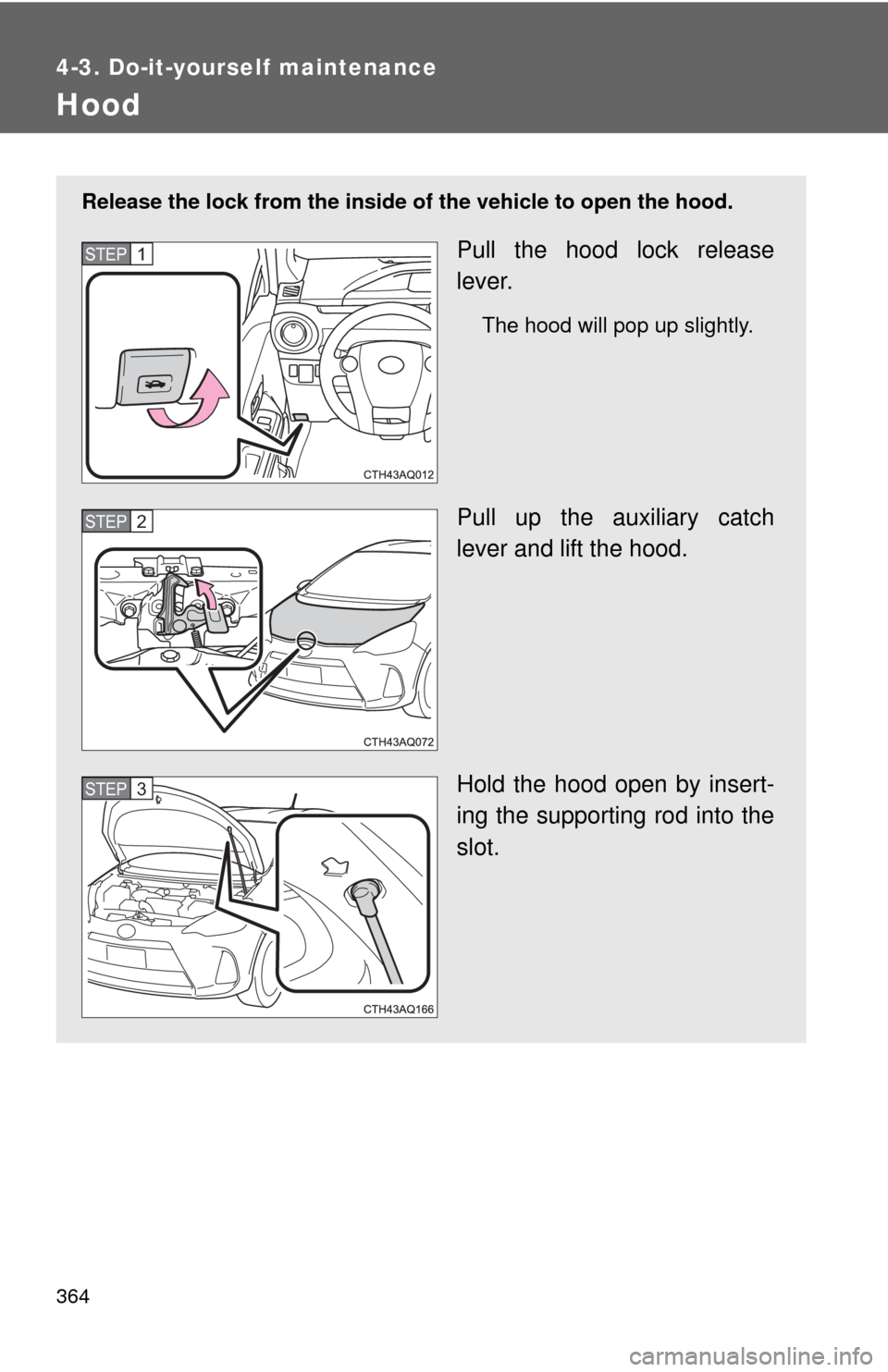

4-3. Do-it-yourself maintenance
Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release
lever.
The hood will pop up slightly.
Pull up the auxiliary catch
lever and lift the hood.
Hold the hood open by insert-
ing the supporting rod into the
slot.
STEP1
STEP2
STEP3
Page 493 of 563
490 5-2. Steps to take in an emergency
Start the hybrid system and check for the multi-information
display.
If the message does not disappear:Stop the hybrid system and c ontact your Toyota dealer.
If the message is not displayed: Have the vehicle inspected at the nearest Toyota dealer.
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
● After the hybrid system has been turned off, check that on the
multi-information display and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fan may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the radiator cap while the hybrid system and radiator are
hot.
Serious injuries, such as burns, may result from hot coolant and steam
released under pressure.
STEP6
Page 563 of 563
560
GAS STATION INFORMATION
Fuel filler door openerP. 105Tire inflation pressureP. 504Hood lock release lever P. 364
Auxiliary catch leverP. 364Fuel filler doorP. 1 0 5
Fuel tank capacity
(Reference) 9.5 gal. (36 L, 7.9 Imp. gal.)
Fuel type
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Cold tire inflation
pressure
P. 5 0 4
Engine oil capacity
(Drain and refill
reference)qt. (L, Imp. qt.)
With filter 3.9 (3.7, 3.3)
Without filter 3.6 (3.4, 3.0)
Engine oil type Toyota Genuine Motor Oil or equivalent
Oil grade: P. 499
ILSAC GF-5 multigrade engine oil
Recommended oil viscosity: SAE 0W-20
