service indicator TOYOTA PRIUS C 2014 NHP10 / 1.G Owners Manual

31
1-1. Hybrid system
1
Before driving
■
If a warning light comes on, a warn ing message is displayed, or the 12-
volt battery has been disconnected
The hybrid system may not start. In that case, try to start the system again. If
the “READY” indicator does not come on, contact your Toyota dealer.
■ Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be
started, refuel the vehicle with at least enough gasoline to make the low fuel
level warning light ( P. 439) stop flashing. If there is only a small amount of
fuel, the hybrid system may not be able to start. (The minimum amount of
fuel to add to make the low fuel level warning light stop flashing is about 1.3
gal. [5.0 L, 1.1 Imp. gal.] when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope.)
■ Electromagnetic waves
●High voltage parts and cables on the hybrid vehicles incorporate electro-
magnetic shielding, and therefore emit approximately the same amount
of electromagnetic waves as conventional gasoline powered vehicles or
home electronic appliances.
● Your vehicle may cause sound interference in some third party-produced
radio parts.
■ Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of
the hybrid battery (traction battery) can change in accordance with driving
style and driving conditions.

359
4-2. Maintenance
4
Maintenance and care

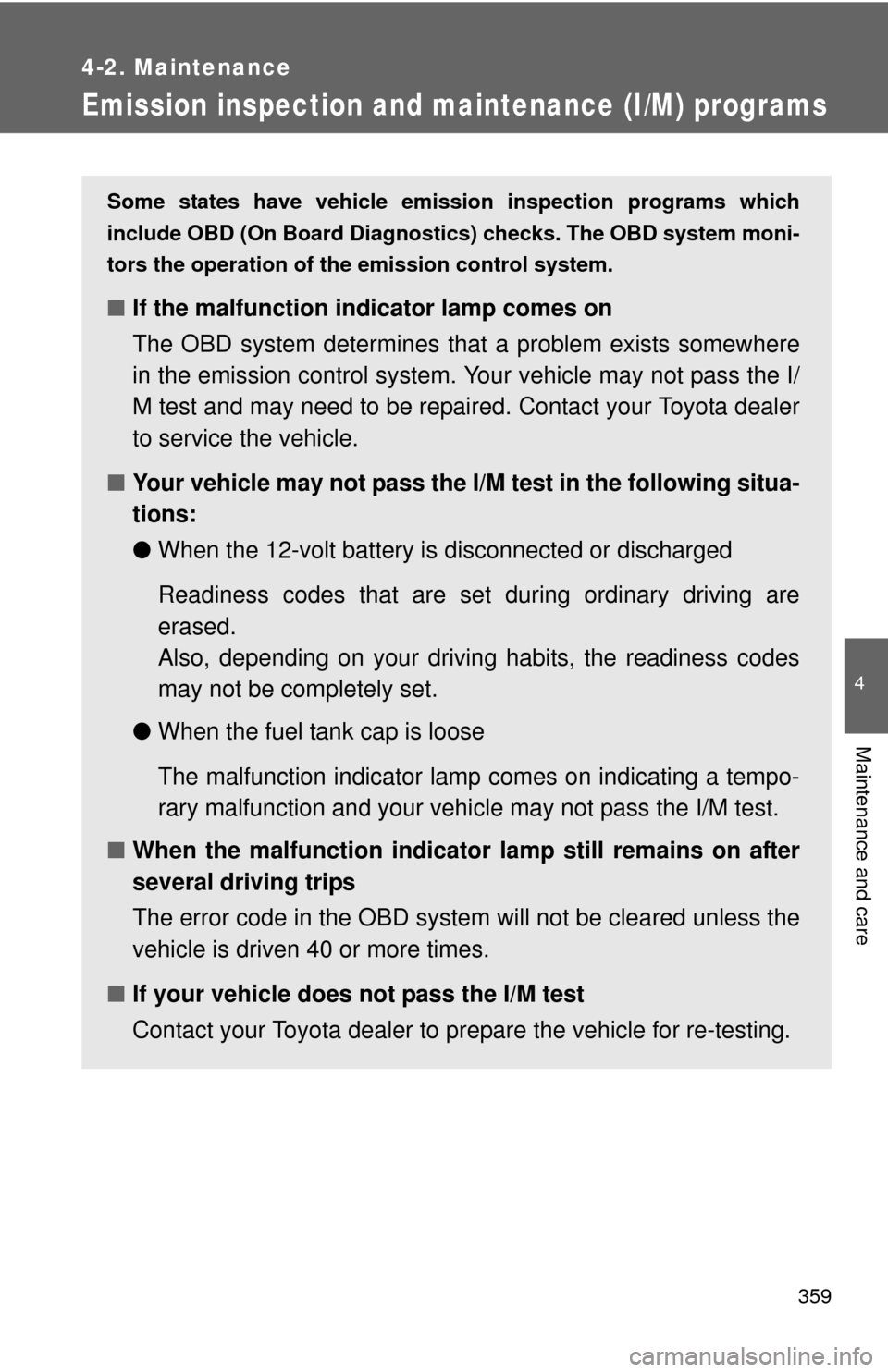

Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system moni-
tors the operation of th e emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere
in the emission control system. Your vehicle may not pass the I/
M test and may need to be repaired. Contact your Toyota dealer
to service the vehicle.
■ Your vehicle may not pass the I/M test in the following situa-
tions:
●When the 12-volt battery is disconnected or discharged
Readiness codes that are se t during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a tempo-
rary malfunction and your vehi cle may not pass the I/M test.
■ When the malfunction indicator lamp still remains on after
several driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Toyota dealer to prepare the vehicle for re-testing.

507
6-1. Specifications
6
Vehicle specifications
■
Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methyl-
cyclopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
● Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).DO NOT use gasoline
containing more than 15%
ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

554 Alphabetical index
SeatsAdjustment ..............................76
Adjustment precautions........... 76
Child seats/child restraint system
installation ........................... 140
Cleaning ................................ 349
Front seat adjustment .............76
Front seat adjustment precautions ...........................76
Head restraint..........................81
Properly sitting in the seat ..... 114
Seat heaters .......................... 337
Service reminder
indicators ............................... 184
Shift lever If the shift lever cannot
be shifted from P................. 477
Transmission ......................... 175
Shift lock system ..................... 477
Side airbags.............................. 116
Side marker lights Replacing light bulbs ............. 415
Wattage ................................. 505
Side mirror Adjusting and folding ...............96
Defogger ............................... 247 Smart key system
Entry function .......................... 47
Starting the hybrid
system ........................ 160, 164
Spare tire
Inflation pressure .................. 504
Storage location .................... 463
Spark plug ................................ 501
Specifications .......................... 496
Speedometer ............................ 181
Steering
Column lock release ..... 162, 168
Steering wheel Adjustment .............................. 93
Audio switches ...................... 288
Stop lights Replacing light bulbs ............. 415
Wattage................................. 505
Storage feature ........................ 324
Storage precautions ................ 228
Stuck If the vehicle becomes stuck ................................... 492
Sun visors ................................ 332
