962. Instrument cluster
PRIUS c_U (OM52E68U)
The following items are always displayed in the upper part of the
screen. (When using some menu items, these items will not be dis-
played.)Odometer/trip meter
P. 9 7
Average fuel consumption
Depending on whether the
odometer or trip meter is dis-
played, the displayed contents
differ. Use the displayed aver-
age fuel consumption as a ref-
erence.
● When the odometer is displayed: the average fuel consumption
since the hybrid system was started is displayed.
● When the trip meter is displayed: the average fuel consumption
since the trip meter was reset is displayed. The average fuel con-
sumption for trip meter A and trip meter B is displayed separately.
When the trip meter is reset, average fuel consumption is also reset.
( P. 97)
Clock
Change the time on the settings screen. ( P. 103)

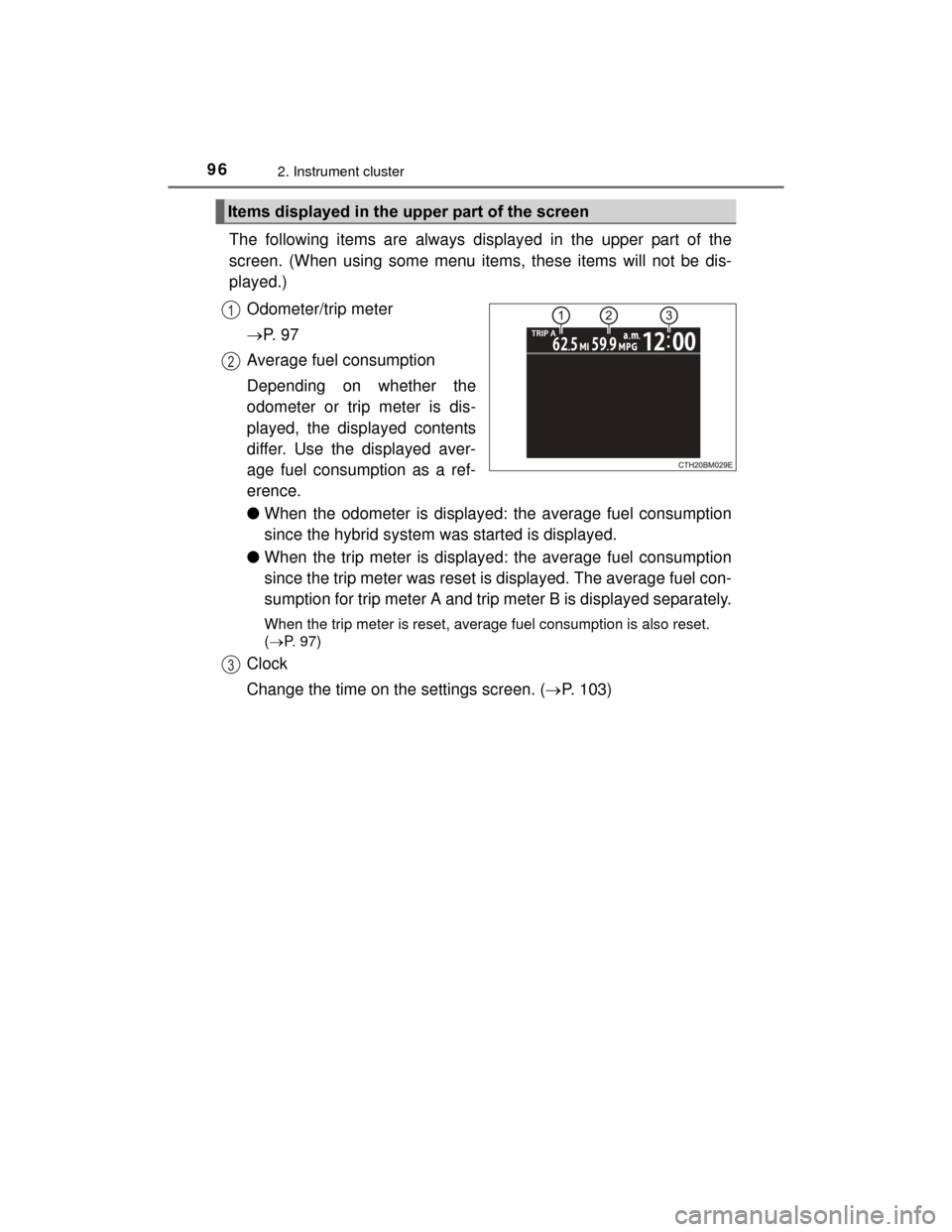

Items displayed in the upper part of the screen
1
2
3

972. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52E68U)■
Odometer/trip meter
Each time the “TRIP” switch is pressed, the display changes as fol-
lows:
Odometer
Displays the total distance
that the vehicle has been
driven.
On some models, pressing
and holding the “TRIP” switch
while the odometer is dis-
played will switch the speed-
ometer display between MPH
and km/h.
Trip meter
Displays the distance the vehicle has been driven since the
meter was last reset. The trip meters can be split and used in 2
categories, A or B.
Pressing and holding the “TRIP” switch will reset the trip meter.
1
2

992. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52E68U)
“ECO Savings”
If the price of gasoline is input, the cost of the consumed fuel according to
the driven distance is displayed. If the fuel consumption comparison is set,
the difference between the input fuel consumption and your vehicle's
actual fuel consumption is expressed as an amount of money that was
possibly saved. (P. 101)
“ECO Savings Record”*
Displays eco savings record. ( P. 102)
“Past Record”*
Displays the best 3 fuel consumption records and the current fuel con-
sumption ranking. Fuel consumption can also be displayed by the month.
( P. 114)
“Settings & Screen Off”
Operations such as changing each screen’s setting and the date/time can
be performed. ( P. 103)
*: Settings are set to off (initialized settings) at the time of shipping.
(P. 104)
■

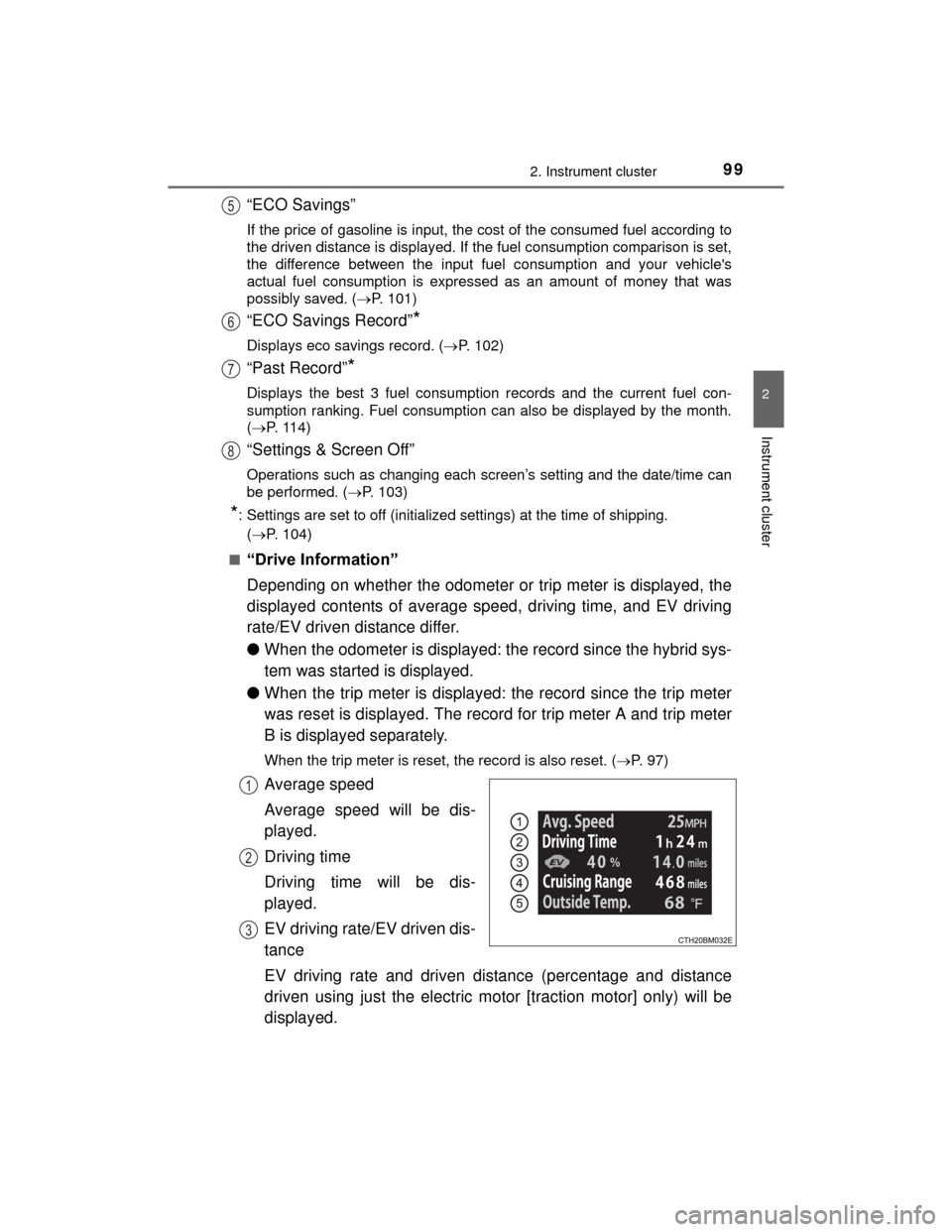

“Drive Information”
Depending on whether the odometer or trip meter is displayed, the
displayed contents of average speed, driving time, and EV driving
rate/EV driven distance differ.
● When the odometer is displayed: the record since the hybrid sys-
tem was started is displayed.
● When the trip meter is displayed: the record since the trip meter
was reset is displayed. The record for trip meter A and trip meter
B is displayed separately.
When the trip meter is reset, the record is also reset. ( P. 97)
Average speed
Average speed will be dis-
played.
Driving time
Driving time will be dis-
played.
EV driving rate/EV driven dis-
tance
EV driving rate and driven distance (percentage and distance
driven using just the electric motor [traction motor] only) will be
displayed.
5
6
7
8
1
2
3

1002. Instrument cluster
PRIUS c_U (OM52E68U)
Cruising range
Displays the estimated maximum distance that can be driven
with the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption.As a result, the actual distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
Vehicles without a smart key system:
when refueling, turn the engine switch to the “LOCK” position. If the
vehicle is refueled without turning the engine switch to the “LOCK”
position, the display may not be updated.
Vehicles with a smart key system:
when refueling, turn the “POWER” switch off. If the vehicle is refueled
without turning the “POWER” switch off, the display may not be
updated.
Outside temperature
 P. 3 5 7

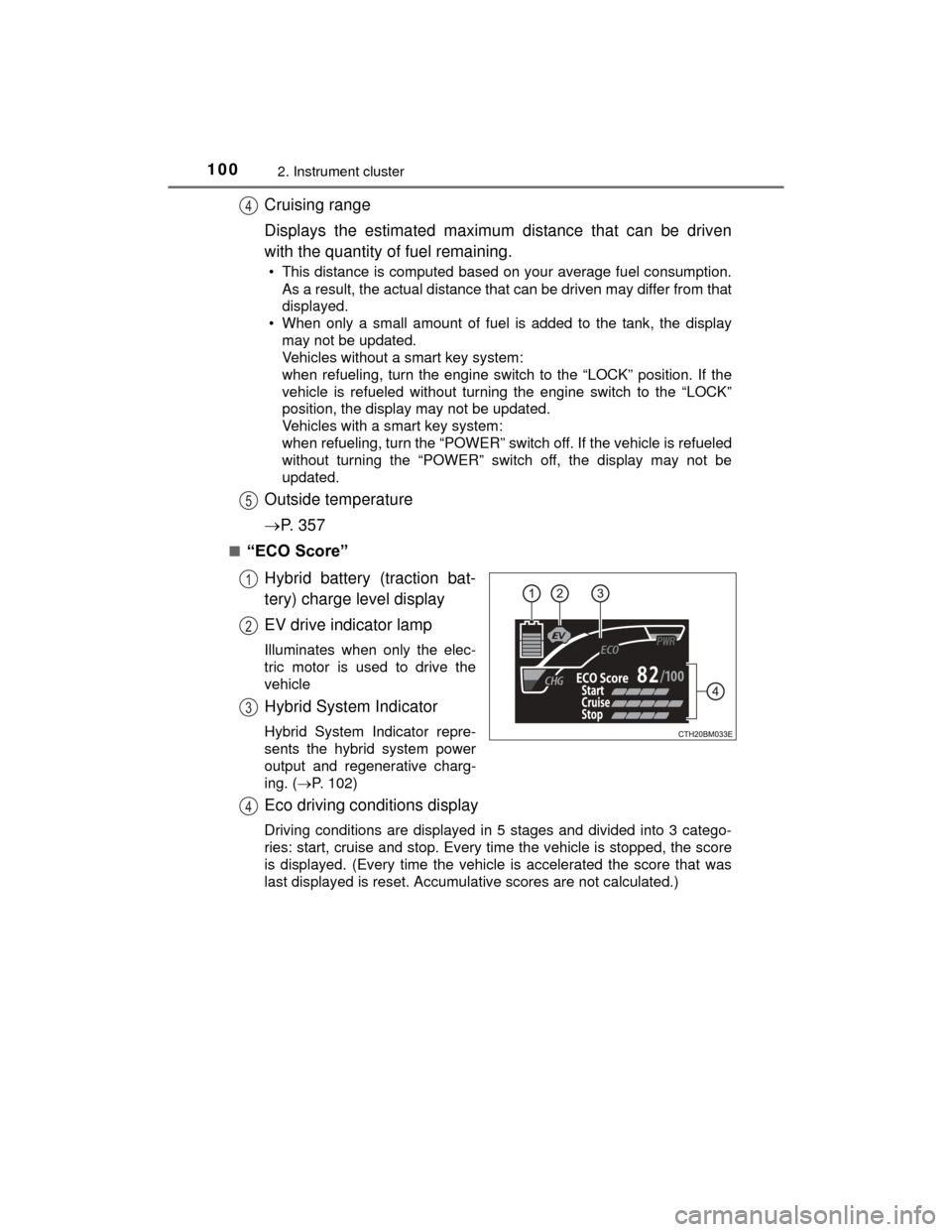

■“ECO Score”
Hybrid battery (traction bat-
tery) charge level display
EV drive indicator lamp
Illuminates when only the elec-
tric motor is used to drive the
vehicle
Hybrid System Indicator
Hybrid System Indicator repre-
sents the hybrid system power
output and regenerative charg-
ing. ( P. 102)
Eco driving conditions display
Driving conditions are displayed in 5 stages and divided into 3 catego-
ries: start, cruise and stop. Every time the vehicle is stopped, the score
is displayed. (Every time the vehicle is accelerated the score that was
last displayed is reset. Accumulative scores are not calculated.)
4
5
1
2
3
4

1012. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52E68U)■

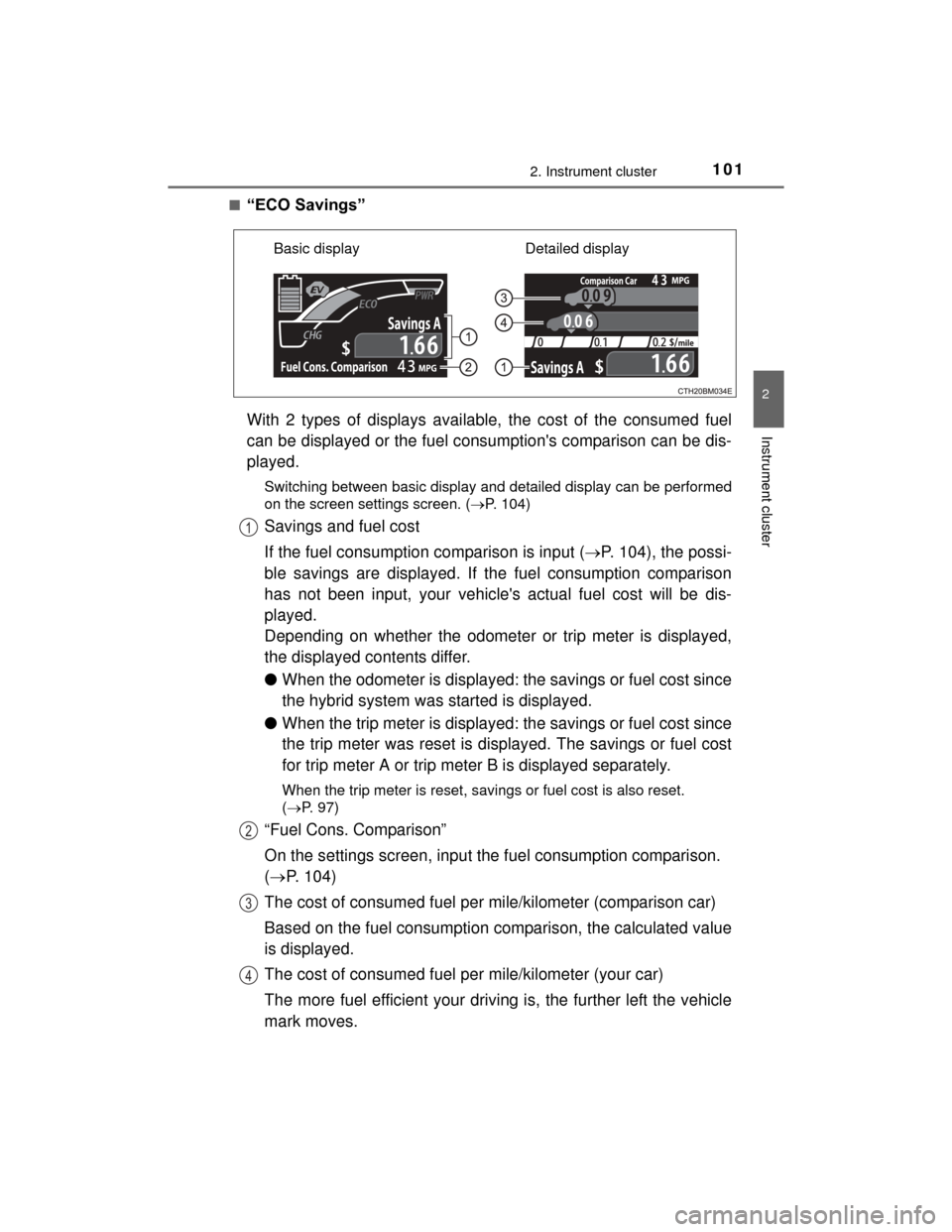

“ECO Savings”
With 2 types of displays available, the cost of the consumed fuel
can be displayed or the fuel consumption's comparison can be dis-
played.
Switching between basic display and detailed display can be performed
on the screen settings screen. (
P. 104)
Savings and fuel cost
If the fuel consumption comparison is input ( P. 104), the possi-
ble savings are displayed. If the fuel consumption comparison
has not been input, your vehicle's actual fuel cost will be dis-
played.
Depending on whether the odometer or trip meter is displayed,
the displayed contents differ.
● When the odometer is displayed: the savings or fuel cost since
the hybrid system was started is displayed.
● When the trip meter is displayed: the savings or fuel cost since
the trip meter was reset is displayed. The savings or fuel cost
for trip meter A or trip meter B is displayed separately.
When the trip meter is reset, savings or fuel cost is also reset.
(P. 97)
“Fuel Cons. Comparison”
On the settings screen, input the fuel consumption comparison.
( P. 104)
The cost of consumed fuel per mile/kilometer (comparison car)
Based on the fuel consumption comparison, the calculated value
is displayed.
The cost of consumed fuel per mile/kilometer (your car)
The more fuel efficient your driving is, the further left the vehicle
mark moves.
Basic display Detailed display
1
2
3
4

1042. Instrument cluster
PRIUS c_U (OM52E68U)■

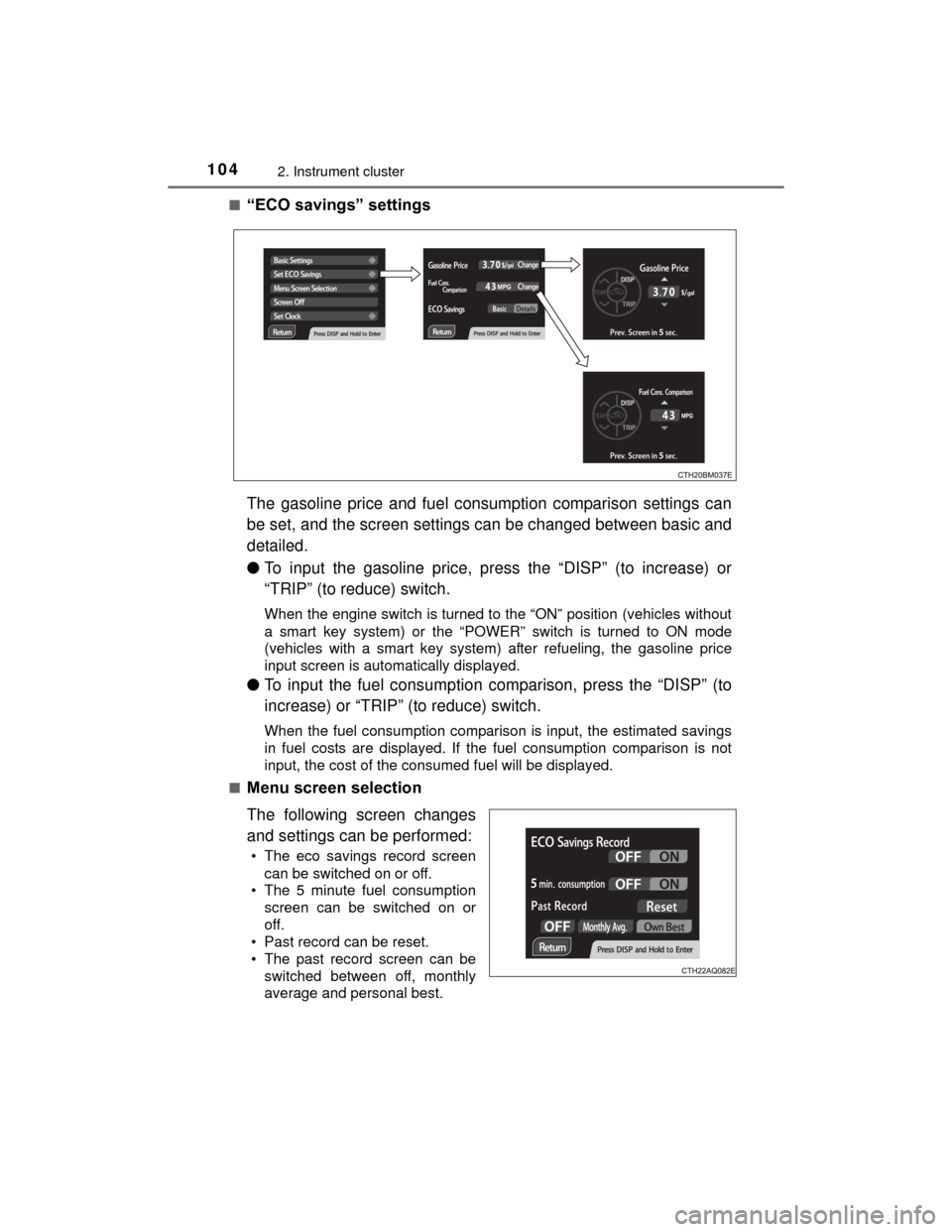

“ECO savings” settings
The gasoline price and fuel consumption comparison settings can
be set, and the screen settings can be changed between basic and
detailed.
●
To input the gasoline price, press the “DISP” (to increase) or
“TRIP” (to reduce) switch.
When the engine switch is turned to the “ON” position (vehicles without
a smart key system) or the “POWER” switch is turned to ON mode
(vehicles with a smart key system) after refueling, the gasoline price
input screen is automatically displayed.
●To input the fuel consumption comparison, press the “DISP” (to
increase) or “TRIP” (to reduce) switch.
When the fuel consumption comparison is input, the estimated savings
in fuel costs are displayed. If the fuel consumption comparison is not
input, the cost of the consumed fuel will be displayed.
■
Menu screen selection
The following screen changes
and settings can be performed:
• The eco savings record screen can be switched on or off.
• The 5 minute fuel consumption
screen can be switched on or
off.
• Past record can be reset.
• The past record screen can be
switched between off, monthly
average and personal best.

1062. Instrument cluster
PRIUS c_U (OM52E68U)■
When disconnecting and reconnect ing 12-volt battery terminals
The following information data will be reset:
● Clock
● Past record (aside from the top 3 results)
● Average fuel consumption
● Cruising range
● Average vehicle speed
● Driving time
● EV driving rate/EV driven distance
Additionally, some displays may return to their default settings.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
■Eco score
Eco score should be used as a guide only. Always drive safely in accor-
dance with road and traffic conditions.
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the hybrid system needs to be running during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

1112. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52E68U)■
Trip information
Multimedia system
Press the “CAR” button. ( P. 108)
If the “Energy Monitor” or “Past Reco rd” screen is displayed, touch “Trip
Information”.
Navigation system
Press the “APPS” button. ( P. 108)
Touch “Eco” on the “Apps” screen.
If the “Energy Monitor” or “Past Reco rd” screen is displayed, touch “Trip
Information”.
Resetting the consumption
data
Fuel consumption in the
past 15 minutes
Regenerated energy in the
past 15 minutes
Displays the average vehi-
cle speed since the hybrid
system was started
Displays the elapsed time since the hybrid system was started
Cruising range
One symbol indicates 50 Wh. Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual condi-
tions.

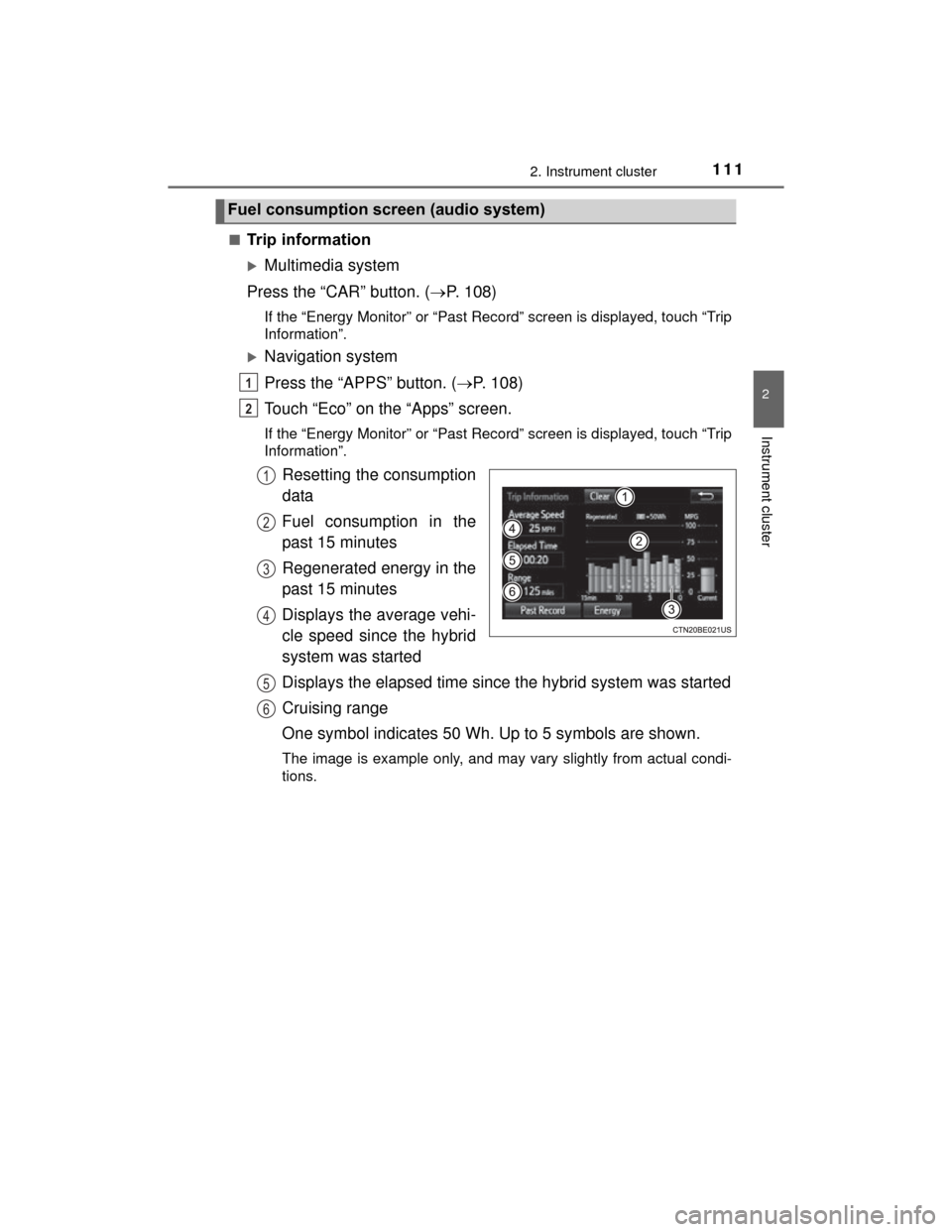

Fuel consumption screen (audio system)
1
2
1
2
3
4
5
6

1122. Instrument cluster
PRIUS c_U (OM52E68U)■

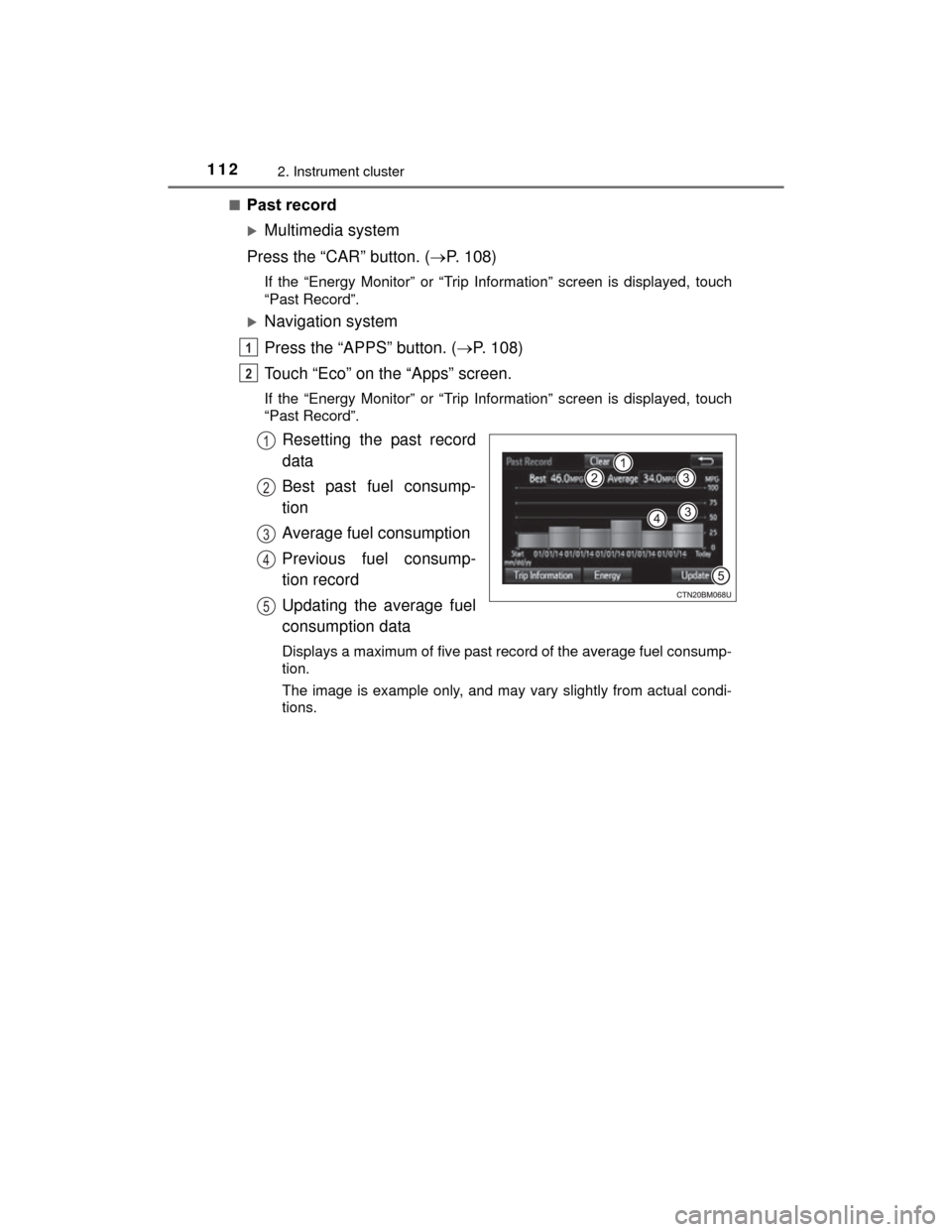

Past record
Multimedia system
Press the “CAR” button. ( P. 108)
If the “Energy Monitor” or “Trip Info rmation” screen is displayed, touch
“Past Record”.
Navigation system
Press the “APPS” button. ( P. 108)
Touch “Eco” on the “Apps” screen.
If the “Energy Monitor” or “Trip Info rmation” screen is displayed, touch
“Past Record”.
Resetting the past record
data
Best past fuel consump-
tion
Average fuel consumption
Previous fuel consump-
tion record
Updating the average fuel
consumption data
Displays a maximum of five past record of the average fuel consump-
tion.
The image is example only, and may vary slightly from actual condi-
tions.
1
2
1
2
3
4
5
