TOYOTA PRIUS C 2016 NHP10 / 1.G Owners Manual

201
4
Driving
PRIUS c_U (OM52F96U)
4-3. Operating the lights and wipers
Turning the end of the lever turns on the lights as follows:
Ty p e AThe daytime running
lights turn on. ( P. 203)
The side marker, park-
ing, tail, license plate,
daytime running lights
(  P. 203) and instru-
ment panel lights turn
on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
The daytime running
lights turn off. ( P. 203)
Headlight switch
The headlights can be operated manually.
Operating instructions
1
2
3
4

2024-3. Operating the lights and wipers
PRIUS c_U (OM52F96U)
Ty p e BThe daytime running
lights turn on. ( P. 203)
The side marker, park-
ing, tail, license plate,
daytime running lights
(  P. 203) and instru-
ment panel lights turn
on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the headlights on or off.
1
2
3
Turning on the high beam headlights
1
2

2034-3. Operating the lights and wipers
4
Driving
PRIUS c_U (OM52F96U)

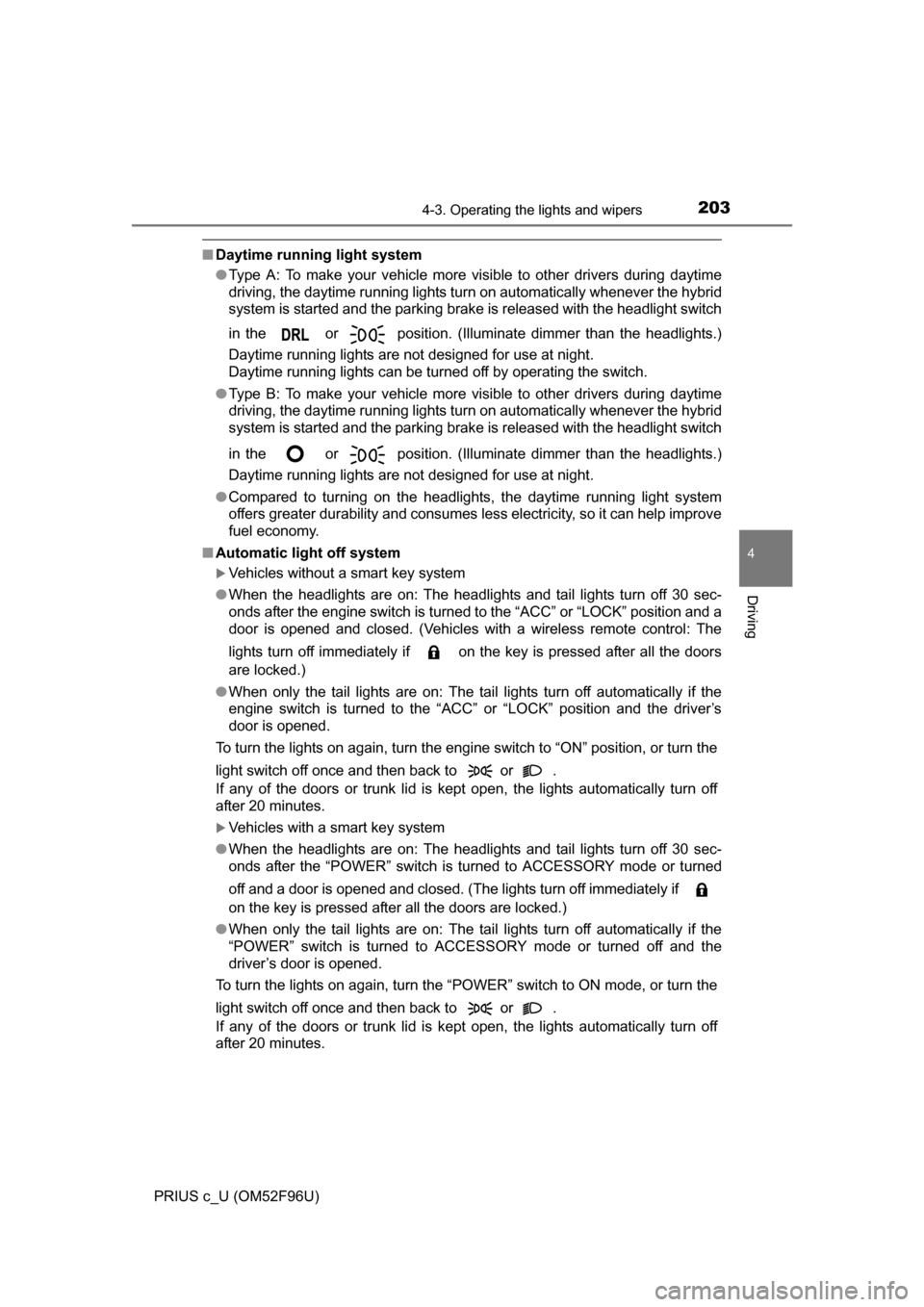

■Daytime running light system
●Type A: To make your vehicle more visible to other drivers during daytime
driving, the daytime running lights turn on automatically whenever the hybrid
system is started and the parking brake is released with the headlight switch
in the or position. (Illuminate dimmer than the headlights.)
Daytime running lights are not designed for use at night.
Daytime running lights can be turned off by operating the switch.
● Type B: To make your vehicle more visible to other drivers during daytime
driving, the daytime running lights turn on automatically whenever the hybrid
system is started and the parking brake is released with the headlight switch
in the or position. (Illuminate dimmer than the headlights.)
Daytime running lights are not designed for use at night.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help improve
fuel economy.
■ Automatic light off system
Vehicles without a smart key system
● When the headlights are on: The headlights and tail lights turn off 30 sec-
onds after the engine switch is turned to the “ACC” or “LOCK” position and a
door is opened and closed. (Vehicles with a wireless remote control: The
lights turn off immediately if on the key is pressed after all the doors
are locked.)
● When only the tail lights are on: The tail lights turn off automatically if the
engine switch is turned to the “ACC” or “LOCK” position and the driver’s
door is opened.
To turn the lights on again, turn the engine switch to “ON” position, or turn the
light switch off once and then back to or .
If any of the doors or trunk lid is kept open, the lights automatically turn off
after 20 minutes.
Vehicles with a smart key system
● When the headlights are on: The headlights and tail lights turn off 30 sec-
onds after the “POWER” switch is turned to ACCESSORY mode or turned
off and a door is opened and closed. (The lights turn off immediately if
on the key is pressed after all the doors are locked.)
● When only the tail lights are on: The tail lights turn off automatically if the
“POWER” switch is turned to ACCESSORY mode or turned off and the
driver’s door is opened.
To turn the lights on again, turn the “POWER” switch to ON mode, or turn the
light switch off once and then back to or .
If any of the doors or trunk lid is kept open, the lights automatically turn off
after 20 minutes.

2044-3. Operating the lights and wipers
PRIUS c_U (OM52F96U)■

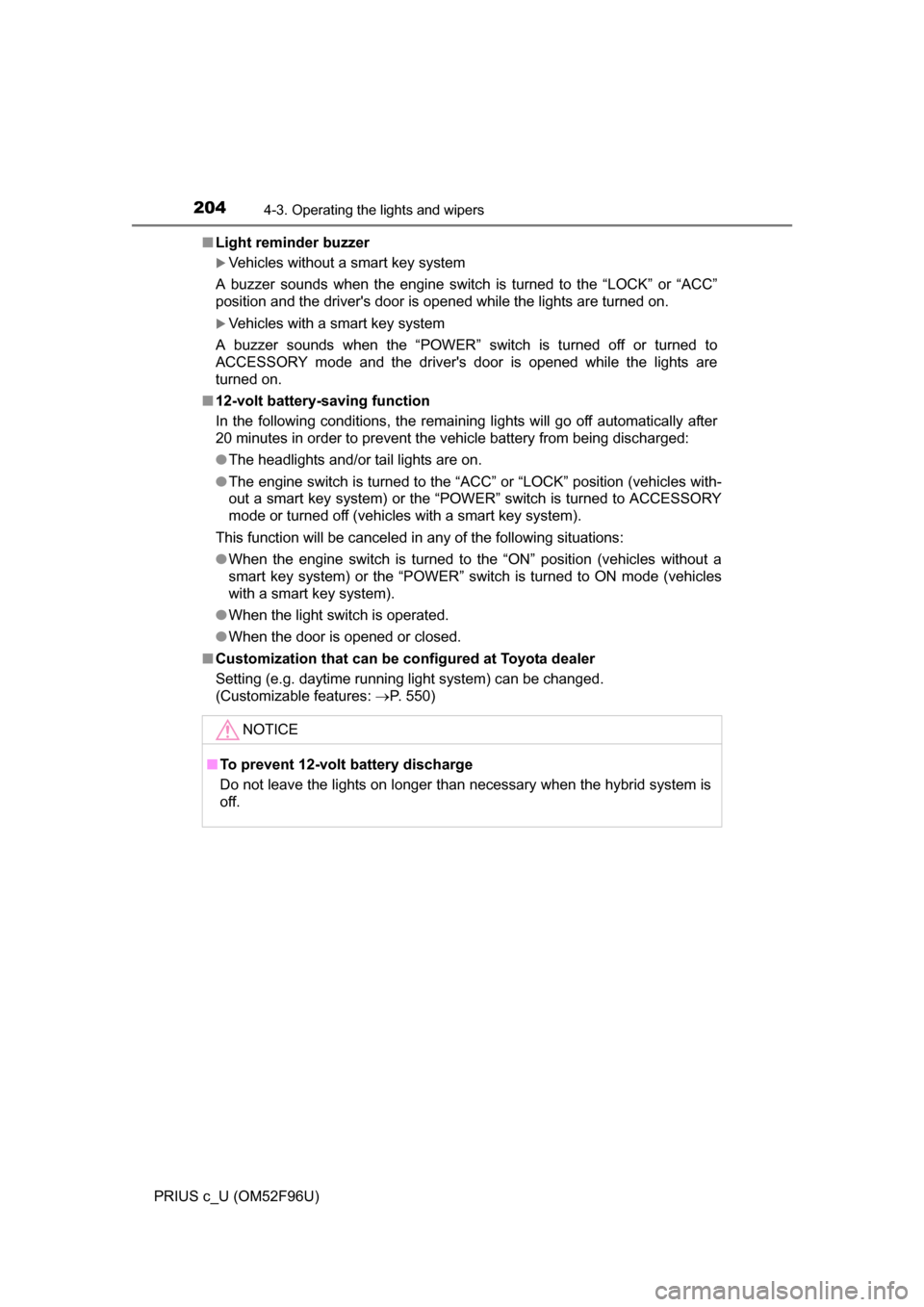

Light reminder buzzer
Vehicles without a smart key system
A buzzer sounds when the engine switch is turned to the “LOCK” or “ACC”
position and the driver's door is opened while the lights are turned on.
Vehicles with a smart key system
A buzzer sounds when the “POWER” switch is turned off or turned to
ACCESSORY mode and the driver's door is opened while the lights are
turned on.
■ 12-volt battery-saving function
In the following conditions, the remaining lights will go off automatically after
20 minutes in order to prevent the vehicle battery from being discharged:
●The headlights and/or tail lights are on.
● The engine switch is turned to the “ACC” or “LOCK” position (vehicles with-
out a smart key system) or the “POWER” switch is turned to ACCESSORY
mode or turned off (vehicles with a smart key system).
This function will be canceled in any of the following situations:
● When the engine switch is turned to the “ON” position (vehicles without a
smart key system) or the “POWER” swit ch is turned to ON mode (vehicles
with a smart key system).
● When the light switch is operated.
● When the door is opened or closed.
■ Customization that can be co nfigured at Toyota dealer
Setting (e.g. daytime running light system) can be changed.
(Customizable features: P. 550)
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is
off.

2054-3. Operating the lights and wipers
4
Driving
PRIUS c_U (OM52F96U)

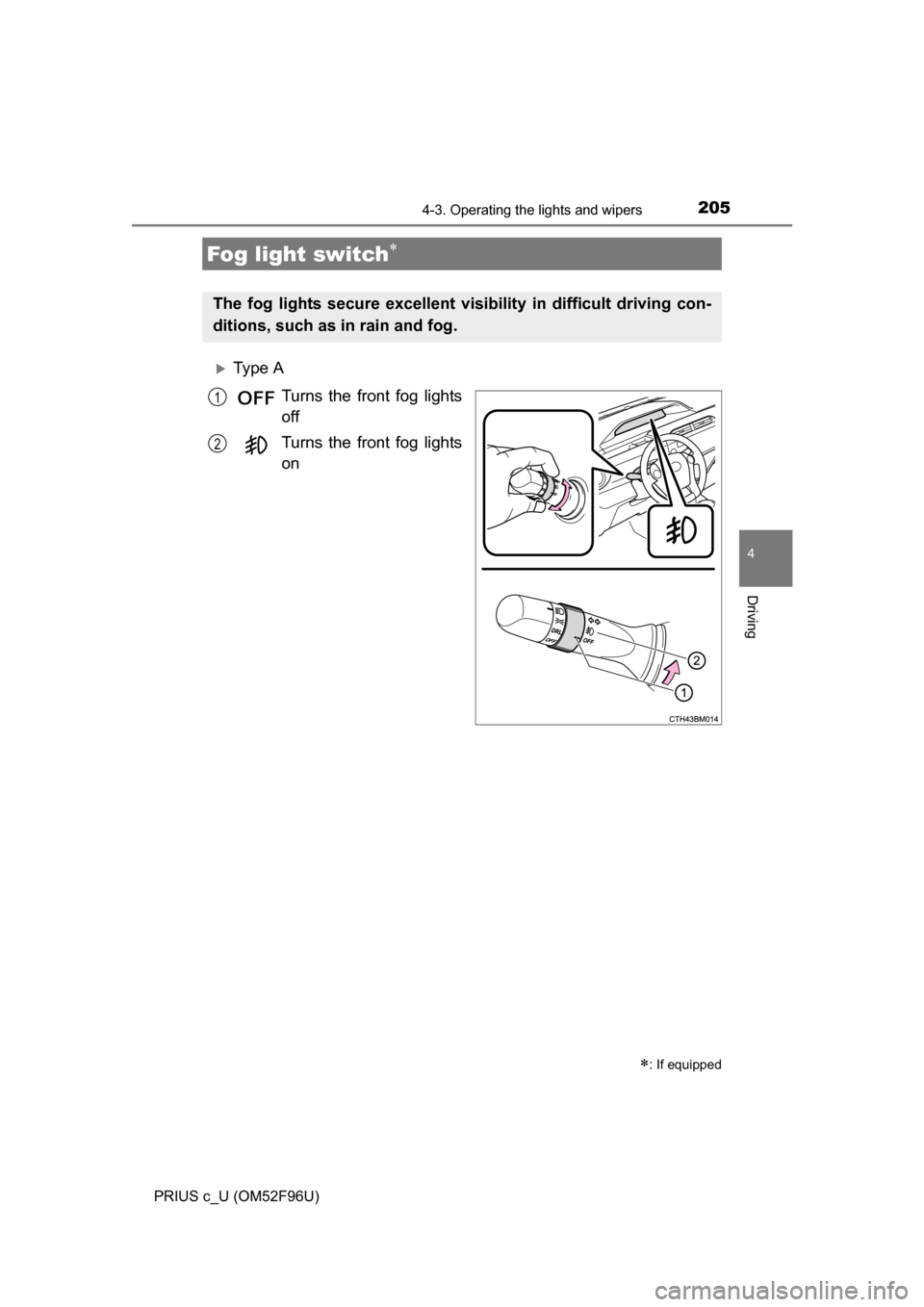

Ty p e ATurns the front fog lights
off
Turns the front fog lights
on
Fog light switch
: If equipped
The fog lights secure excellent visi bility in difficult driving con-
ditions, such as in rain and fog.
1
2

2064-3. Operating the lights and wipers
PRIUS c_U (OM52F96U)

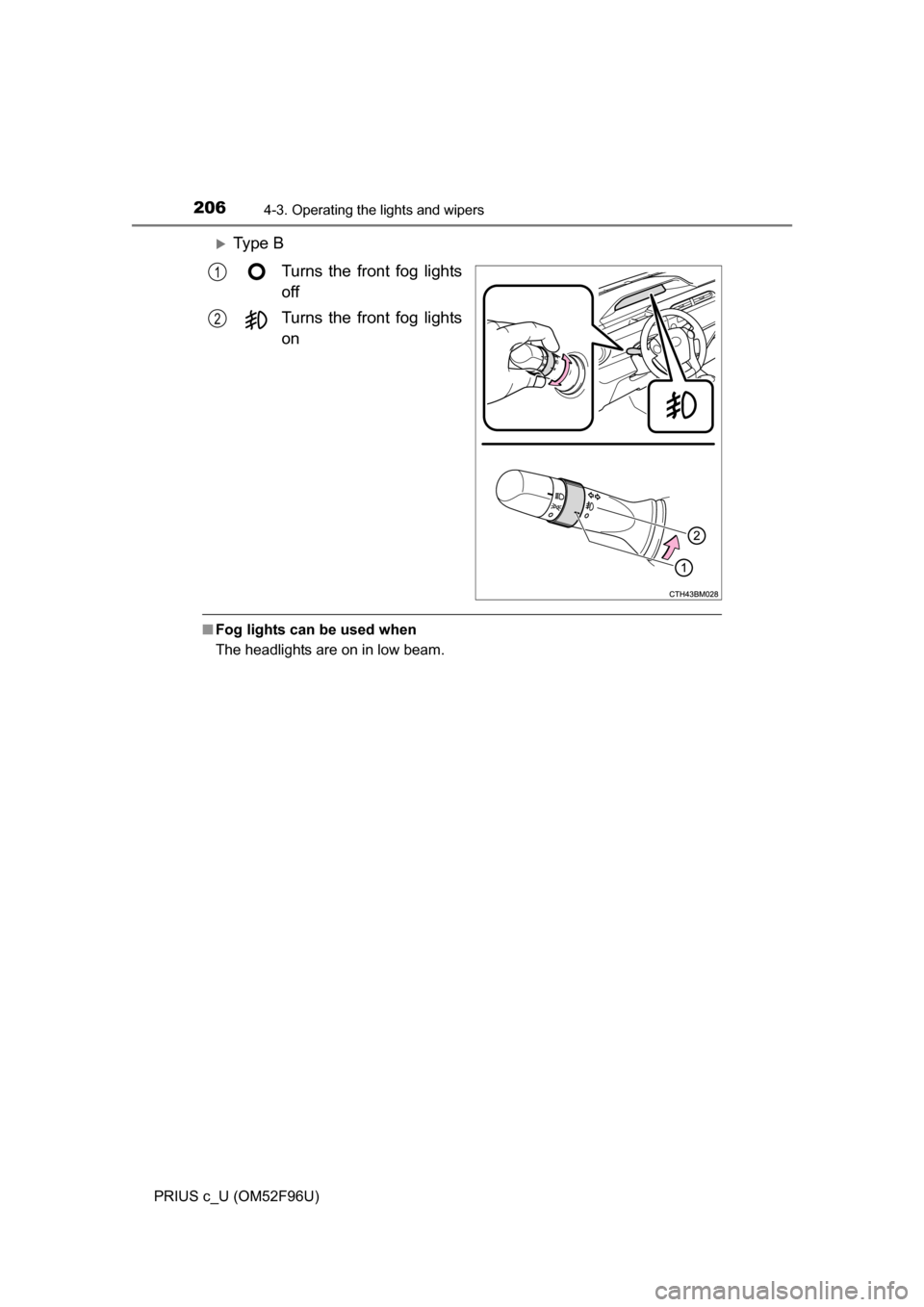

Ty p e BTurns the front fog lights
off
Turns the front fog lights
on
■Fog lights can be used when
The headlights are on in low beam.
1
2

2074-3. Operating the lights and wipers
4
Driving
PRIUS c_U (OM52F96U)

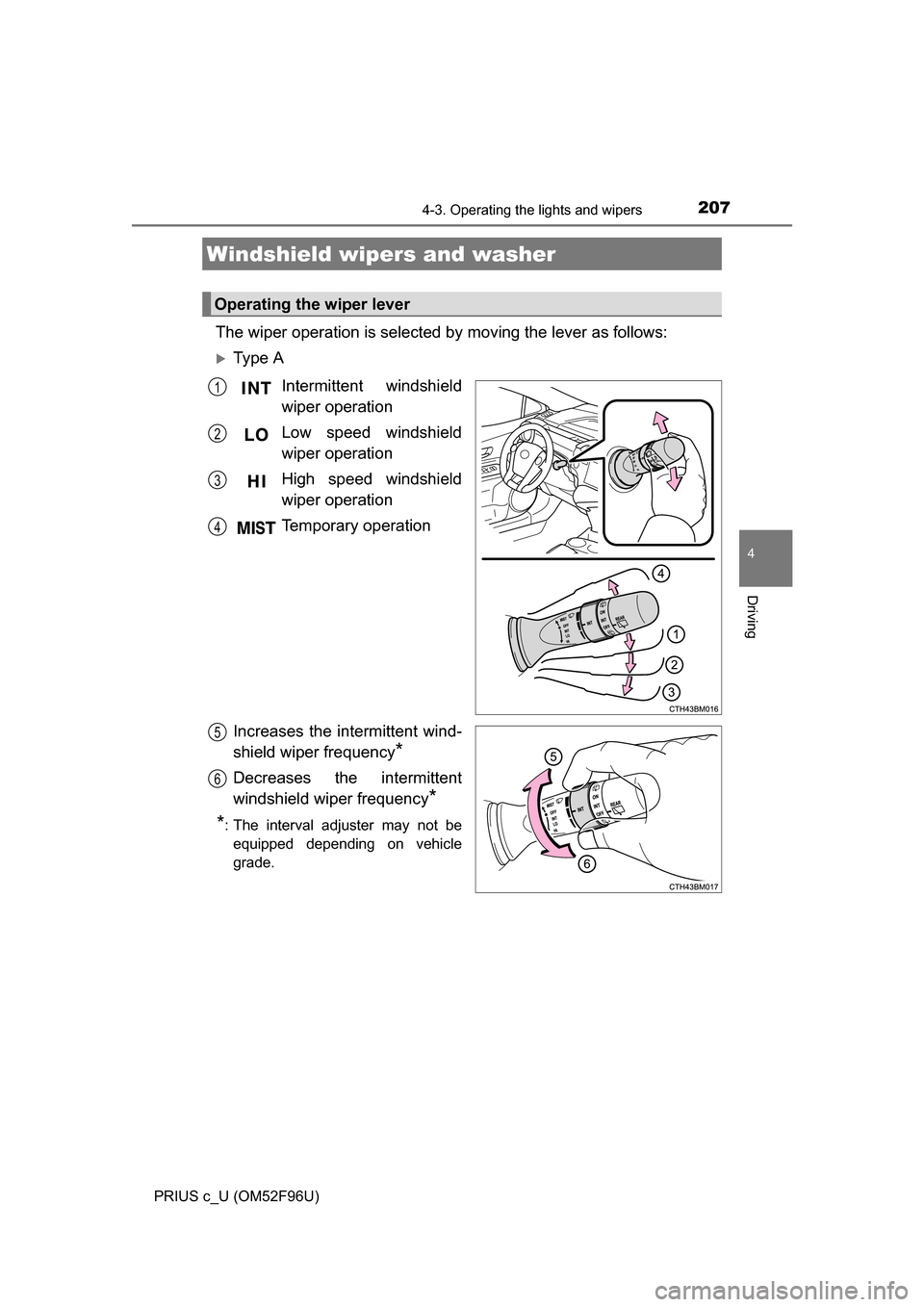

The wiper operation is selected by moving the lever as follows:
Ty p e AIntermittent windshield
wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
Increases the intermittent wind-
shield wiper frequency
*
Decreases the intermittent
windshield wiper frequency
*
*
: The interval adjuster may not be equipped depending on vehicle
grade.
Windshield wipers and washer
Operating the wiper lever
1
2
3
4
5
6

2084-3. Operating the lights and wipers
PRIUS c_U (OM52F96U)
Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
Ty p e BIntermittent windshield
wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
Increases the intermittent wind-
shield wiper frequency
*
Decreases the intermittent
windshield wiper frequency
*
*
: The interval adjuster may not be equipped depending on vehicle
grade.
7
1
2
3
4
5
6

2094-3. Operating the lights and wipers
4
Driving
PRIUS c_U (OM52F96U)

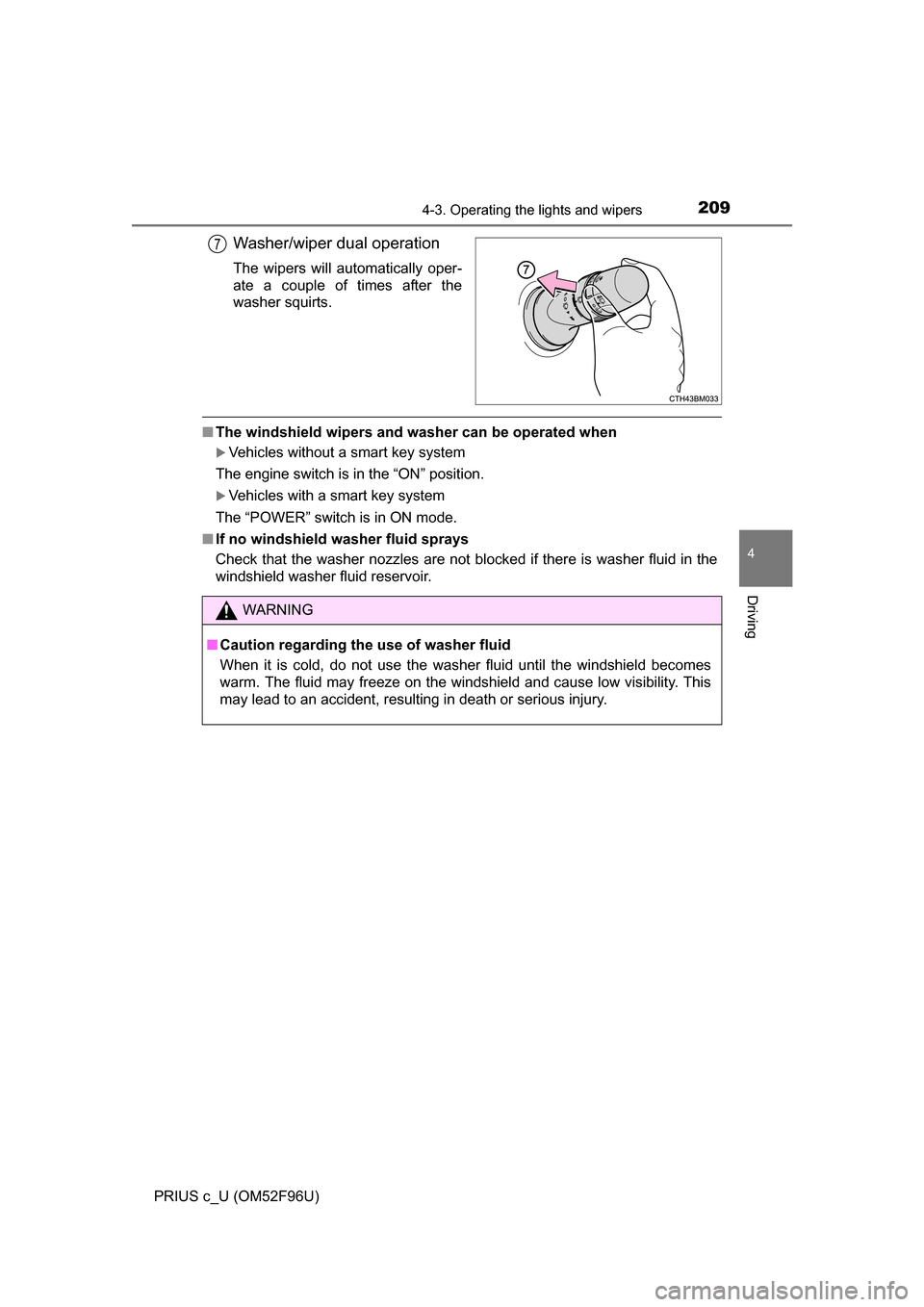

Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
■The windshield wipers and washer can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “POWER” switch is in ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
7
WARNING
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.

2104-3. Operating the lights and wipers
PRIUS c_U (OM52F96U)

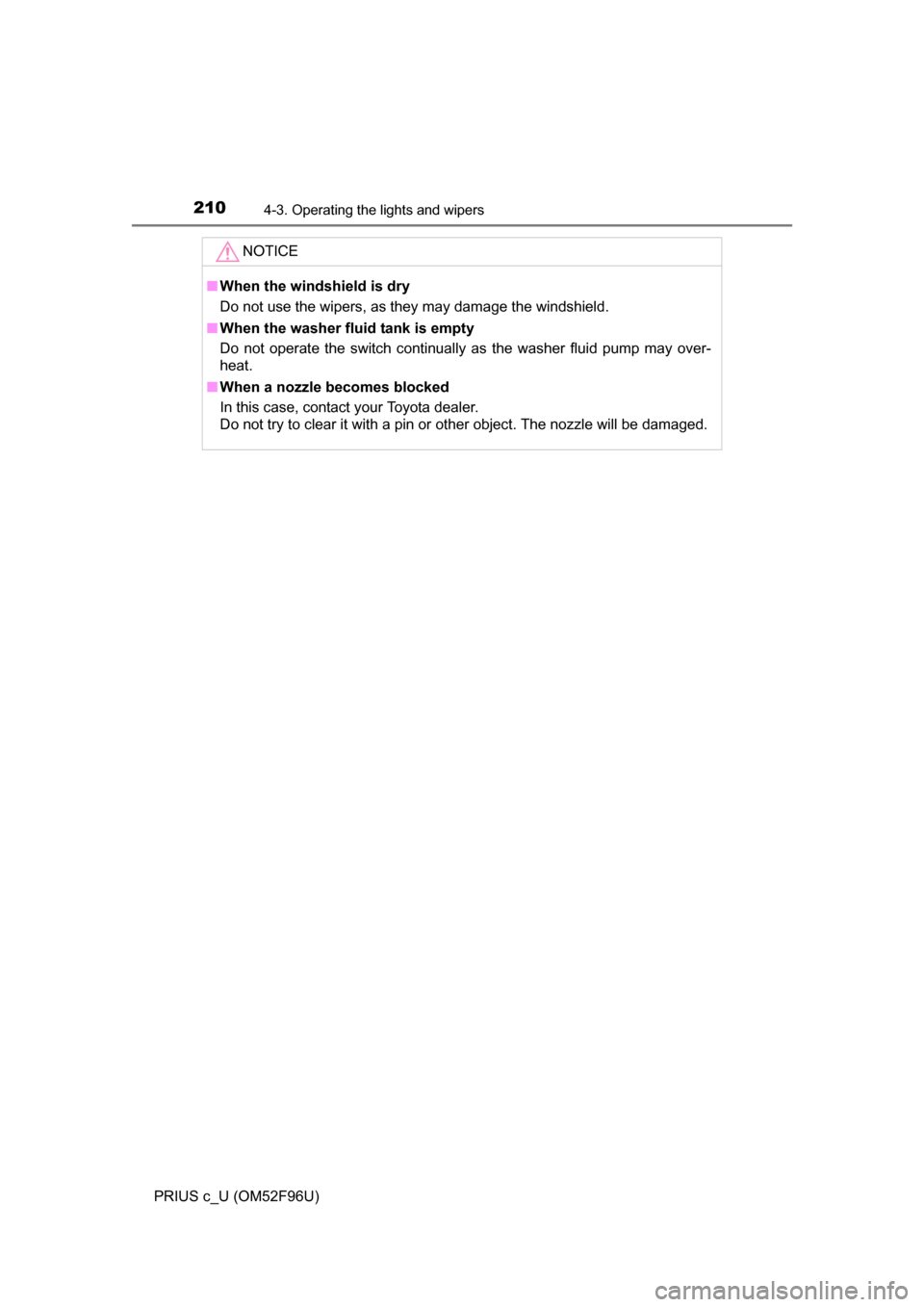

NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged\
.
