lock TOYOTA PRIUS C 2016 NHP10 / 1.G Quick Reference Guide

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
1
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1 6
Light control-Instrument cluster 9
Smart Key system
1,2 7
OVERVIEW
FEATURES/OPERATIONS
TOYOTA SAFETY SENSE
Audio 18
Auto lock/unlock1 17
Automatic air
conditioning/heating 16
Bluetooth
® Device
Pairing Section 36-45
Clock 22
Cruise control 20
Drive mode 11
Hill-start Assist Control (HAC) 23
Hybrid Synergy Drive System 10
Hybrid transmission 11
Lights & turn signals 15
Moon roof 17
Multi-Information Display (MID)
2 21
Parking brake 20
Power outlet-12V DC 18
Seat adjustments-Front 12
Seat-Folding down rear seat 13
Seat heaters 16
Seats-Head restraints 12
Steering wheel switches 19
Telephone controls (Bluetooth
®) 22Tilt and telescopic steering wheel 21
USB/AUX port 19
Windows-Power 13
Windshield wipers & washers 14
Auto High Beams (AHB) 30
Lane Departure Alert (LDA) 27-29
Pre-Collision System (PCS) 25-26
Quick overview-
Toyota Safety Sense C 24
Sensors 24
Doors-Child safety locks 32
Door locks 32
Floor mat installation 34
Seat belts 31
Spare tire & tools 32
Star Safety System™ 33-34
Tire Pressure Monitoring
(warning) System 31
SAFETY AND EMERGENCY FEATURES

Seat heater controls1
VSC OFF switch
“EV MODE” drive switch
“ECO MODE” drive switch
Shift lever
Tilt and telescopic steering lock release lever
Tire Pressure Monitoring (warning) System reset
Hood lock release lever
Fuel tank door opener
Lane Departure Alert (LDA) switch
1
Pre-Collision System (PCS) switch1
Instrument cluster light control dial
Power rearview mirror controls
Automatic High Beam (AHB) switch
1
1
If equipped2 For more information, refer to “Navigation System Owner’s Manual ” and
“2016 Entune™ Audio Quick Reference Guide.”
OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSESAFETY AND EMERGENCY FEATURES
3
Air Conditioning system
Lower center console switches
2016_Prius_c_QRG_D2_1.indd 311/13/15 11:19 PM

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
5
Anti-lock Brake System warning1
Slip indicator/Hill-start Assist Control indicator1
READY indicator
Front fog light indicator
Eco Mode indicator
EV Drive Mode indicator
2
If equipped.
Cruise control2/cruise control “SET” indicator2 indicator
EV drive indicator
SRS airbag on-off indicator1
Low fuel level warning
Automatic High Beam (AHB) indicator2
Pre-Collision System (PCS) warning2
Lane Departure Alert (LDA) indicator2
Shift position indicator
Parking brake warning
VSC OFF indicator1
Arrow direction indicates fuel tank door position

6
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Type AType B
Type AType B

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
7
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; Hybrid System is not engaged.
All systems OFF.
POWER ON
POWER ON
Push Depress
brake pedal
Carrying
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
Power (without starting Hybrid System)
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Back door lock/unlock
Carry remote to
lock/unlock
Unlocking operation*
Carry remote to unlock
Driver door unlock*
Grasp
Push to lockPush to unlock
Locking operation*
Carry remote to lock
All-door lock
Touch
* Front door handles only.

12
FEATURES/OPERATIONS
Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side; if equipped)
Seatback angle
Seats-Head restraints
Rear outboard
Front (adjustable type)/Rear center
Lock release button
Lock release buttons

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
13

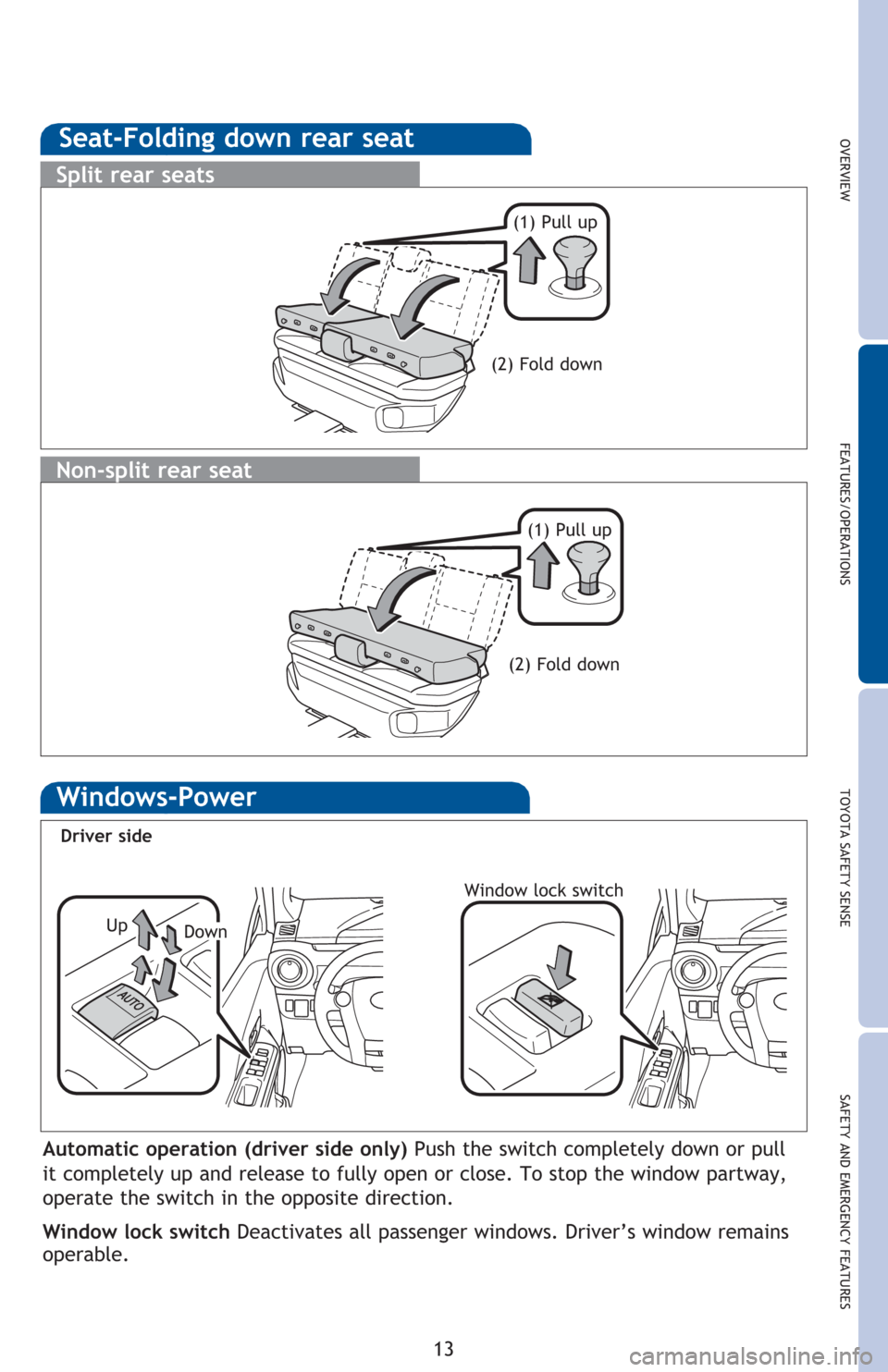

Seat-Folding down rear seat
Non-split rear seat
Split rear seats
(1) Pull up
(2) Fold down
(1) Pull up
(2) Fold down
Windows-Power
UpDown
Window lock switch
Automatic operation (driver side only) Push the switch completely down or pull
it completely up and release to fully open or close. To stop the window partway,
operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Driver side

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
17
Moon roof (if equipped)
Sliding operationTilting operation
Recommended open position to
minimize wind noise.
Open
Close
Push once to open; moon roof will automatically stop at the recommended
position. Push again to open completely.
Push once to open to recommended
position; again to open completely.
Close
Tilt
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
Vehicles without Smart Key system
-Doors unlock when the ignition switch is set from “ON” to “ACC” or “LOCK” and
driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the “POWER” switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
21
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Angle
Length
Lock release lever
Multi-Information Display (MID)
(1) Energy Monitor1
(2) Drive Information1
(3) ECO Score
(4) 5min Consumption1
(5) ECO Savings(6) ECO Savings Record
1
(7) Lane Departure Alert (LDA)2
(8) Past Record1
(9) Settings & Screen Off Push “DISP” to scroll through the following information screens:
After reaching the desired menu screen (1-7), wait for a moment and the details
screen will appear. However, to display the details of “Settings & Screen Off” (8),
push and hold the “DISP” button while on that menu screen.
With display showing ODO, press trip button to toggle km/h or MPH speed values.
1 Factory default is OFF. To activate, access settings through “Settings &
Screen Off.”
2 If equipped.

22
FEATURES/OPERATIONS
Clock
Refer to the Owner’s Manual for details on adjusting time.
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the telephone and the system.
Refer to “Bluetooth
® Device Pairing Section,” in this guide, for more information
about phone connections and compatibility.
Microphone (Type A, with moon roof)
Audio unitSteering wheel telephone switches
Volume
Start call
End call
Microphone (Type B, without moon roof)
Telephone controls (Bluetooth®)
