1112. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52J11U)
Multimedia system
Press the “CAR” button.
If the “Trip Information” or “Past
Record” screen is displayed, touch
“Energy”.
Navigation system
Press the “APPS” button.
Touch “Eco” on the “Apps”
screen.
If the “Trip Information” or “Past
Record” screen is displayed, touch
“Energy”.
Multi-information display
Push the “DISP” switch on the
steering wheel several times to
select the energy monitor display.
Energy monitor
1
2

1122. Instrument cluster
PRIUS c_U (OM52J11U)Audio system
Multi-information
display

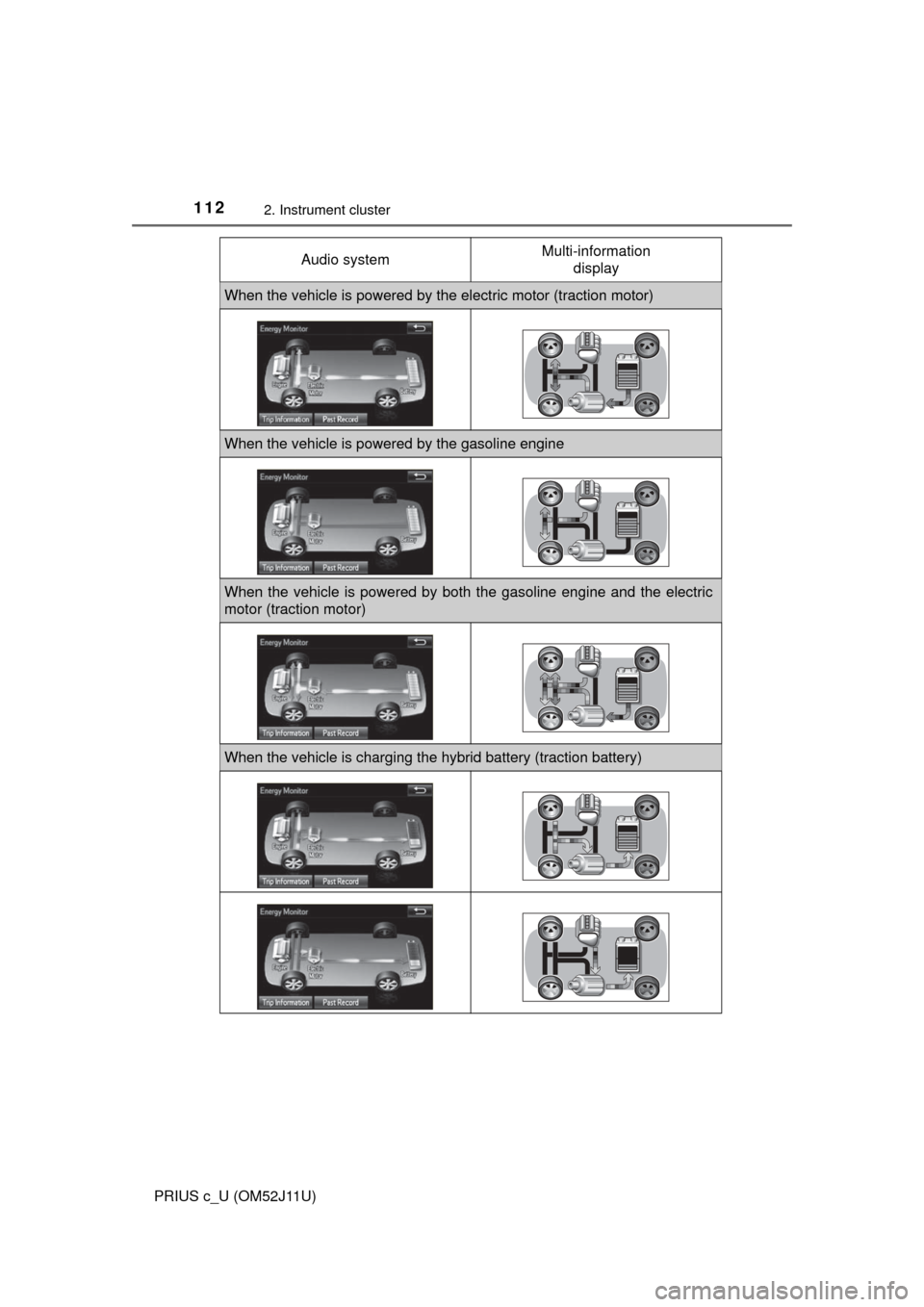

When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by the gasoline engine
When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor)
When the vehicle is charging the hybrid battery (traction battery)

1132. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52J11U)
These images are examples only, and may vary slightly from actual
conditions.

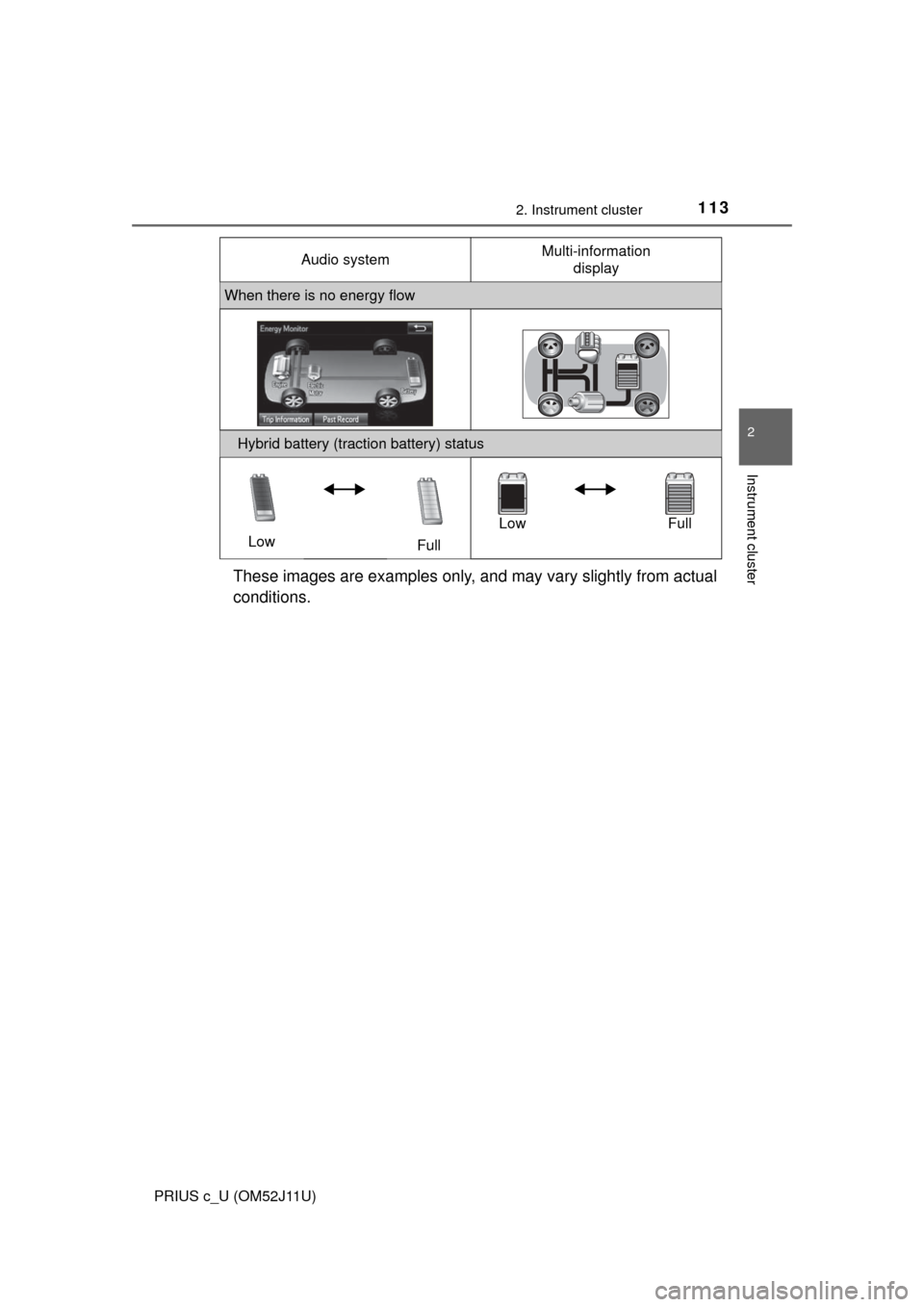

When there is no energy flow
Hybrid battery (traction battery) statusLow FullLow Full
Audio system
Multi-information
display

1142. Instrument cluster
PRIUS c_U (OM52J11U)■
Trip information
Multimedia system
Press the “CAR” button. ( →P. 111 )
If the “Energy Monitor” or “Past Record” screen is displayed, touch “Trip
Information”.
Navigation system
Press the “APPS” button. ( →P. 1 1 1 )
Touch “Eco” on the “Apps” screen.
If the “Energy Monitor” or “Past Record” screen is displayed, touch “Trip
Information”.
Resetting the consumption
data
Fuel consumption in the
past 15 minutes
Regenerated energy in the
past 15 minutes
Displays the average vehi-
cle speed since the hybrid
system was started
Displays the elapsed time since the hybrid system was started
Cruising range
One symbol indicates 50 Wh. Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual condi-
tions.
Fuel consumption screen (audio system)
1
2
1
2
3
4
5
6

1152. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52J11U)■
Past record
Multimedia system
Press the “CAR” button. ( →P. 111 )
If the “Energy Monitor” or “Trip In formation” screen is displayed, touch
“Past Record”.
Navigation system
Press the “APPS” button. ( →P. 1 1 1 )
Touch “Eco” on the “Apps” screen.
If the “Energy Monitor” or “Trip In formation” screen is displayed, touch
“Past Record”.
Resetting the past record
data
Best past fuel consump-
tion
Average fuel consumption
Previous fuel consump-
tion record
Updating the average fuel
consumption data
Displays a maximum of five past record of the average fuel consump-
tion.
The image is example only, and may vary slightly from actual condi-
tions.
1
2
1
2
3
4
5

1162. Instrument cluster
PRIUS c_U (OM52J11U)
There are 2 menu items available for the fuel consumption screen.
After pressing the “DISP” switch, se lect one of the menu items below
and the system will change to the details screen.
The “5min Consumption”, “Past Re cord” and “ECO Savings Record”
( → P. 104) screens are set to off (initialized settings) at the time of
shipping. ( →P. 107)
■“5min Consumption” screen
Displays the fuel consumption
history since the hybrid system
was started in intervals of 5
minutes. Current fuel consump-
tion is simultaneously dis-
played, enabling it to be
compared with fuel consump-
tion of up to the last 30 minutes.
Fuel consumption screen (Multi-information display)

1172. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52J11U)■
“Past Record”
There are 2 types of displays for the past record.
Personal best and monthly av
erage can be changed between on
the settings screen. ( →P. 107)
Personal Best
Displays the best 3 fuel consum ption records and the current fuel
consumption ranking.
Depending on whether the odometer or trip meter is displayed,
the displayed contents differ.
● When the odometer is displayed: the record since the hybrid
system was started is displayed.
● When the trip meter is display ed: the record since the trip
meter was reset is displayed. Th e record for trip meter A and
trip meter B is displayed separately.
The top 100 rankings are displayed. Records that are outside the top
100 are not displayed as a ranking.
Fuel consumption data for trips of less than 0.1 miles are not
recorded.
Monthly Average
Displays average fuel c onsumption by the month.
The current month, the last 3 months and the same month last year
are displayed, enabling a comparison to be made.
The past record can be rese t on the settings screen. (→P. 107)
1
2

1182. Instrument cluster
PRIUS c_U (OM52J11U)
■Remaining hybrid battery (tract ion battery) charge display
The charge amount of the hybrid battery (traction battery) is automatically
controlled by the hybrid system. For this reason, even if electricity is recov-
ered via the regenerative braking, or electricity is generated via the gasoline
engine, the displayed hybrid battery (traction battery) charge amount may not
reach the highest level (level 8). However, this does not indicate a malfunc-
tion.
■ Resetting the consumption data (audio system)
Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and the regenerated energy for the past 15 minutes. Selecting “Clear” on
the “Past Record” screen will reset the past records and best past fuel con-
sumption. Selecting “Yes” on the following screen will confirm resetting of all
the data.
■ Updating the past record data (audio system)
Selecting “Update” on the “Past Record” screen will update the past record
data.
