3425-10. Bluetooth® phone (Multimedia system)
PRIUS c_U (OM52J11U)
Press the “ ” button.
Select .
When an e-mail/SMS/MMS is received, the incoming message screen
pops up with sound and is ready to be operated on the screen. Select to check the message.
Select to refuse the message.
Select to call the message
sender.
Bluetooth® phone message function
Received messages can be forwarded from the connected
Bluetooth® phone, enabling checking and replying using the
multimedia system.
Depending on the type of Bluetooth
® phone connected, received
messages may not be transf erred to the message inbox.
If the phone does not support the message function, this func-
tion cannot be used.
Displaying message inbox screen
Receiving a message
1
2
1
2
3
Page 419 of 596
4197-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52J11U)

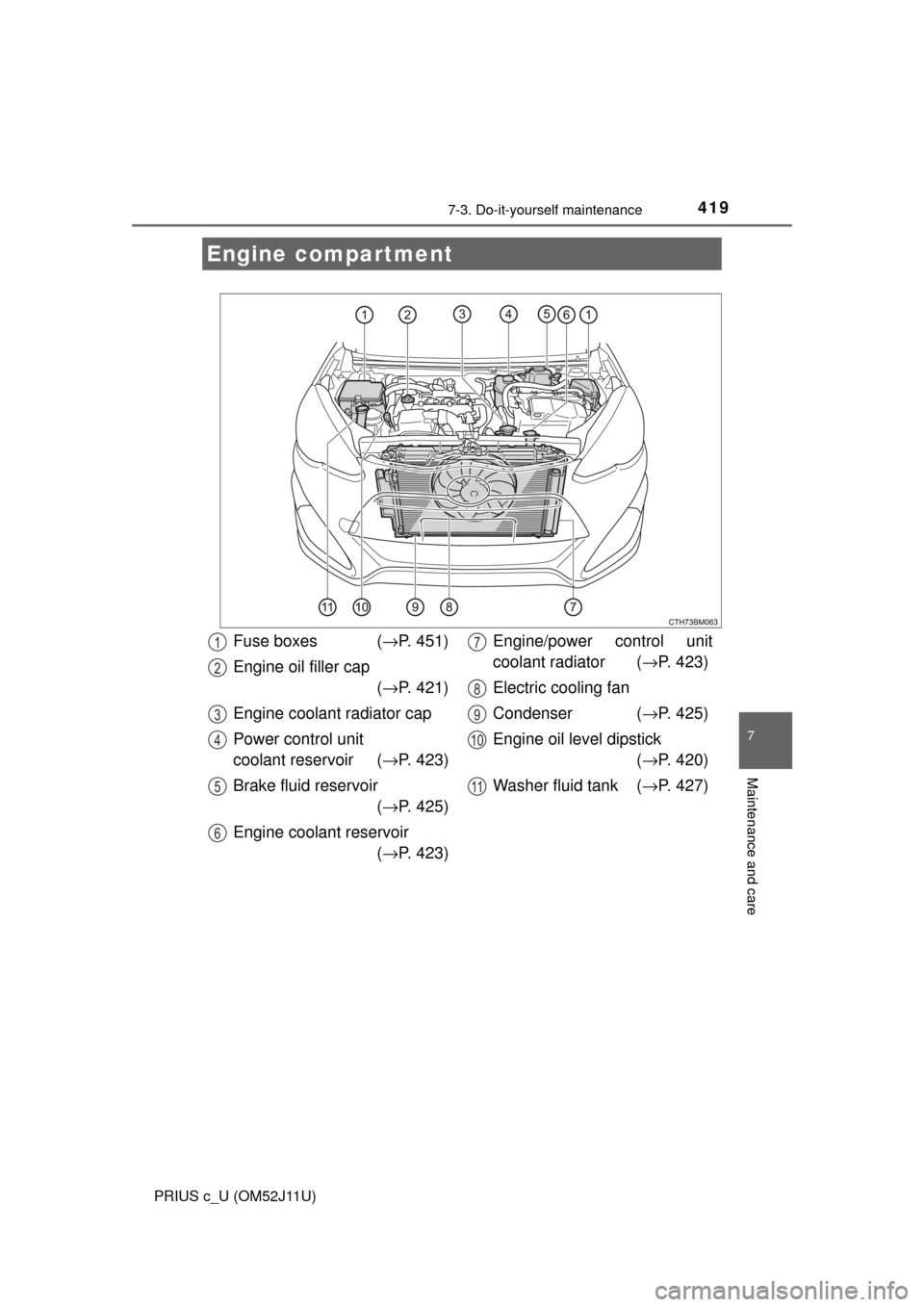

Engine compartment
Fuse boxes (→P. 451)
Engine oil filler cap (→ P. 421)
Engine coolant radiator cap
Power control unit
coolant reservoir ( →P. 423)
Brake fluid reservoir (→ P. 425)
Engine coolant reservoir (→ P. 423) Engine/power control unit
coolant radiator (
→P. 423)
Electric cooling fan
Condenser ( →P. 425)
Engine oil level dipstick (→ P. 420)
Washer fluid tank ( →P. 427)1
2
3
4
5
6
7
8
9
10
11
Page 451 of 596
4517-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52J11U)
Vehicles without a smart key system: Turn the engine switch off.
Vehicles with a smart key system: Turn the “POWER” switch off.
Engine compartment
Push the tab in and lift the cover off.
Under the instrument panel
Remove the cover.

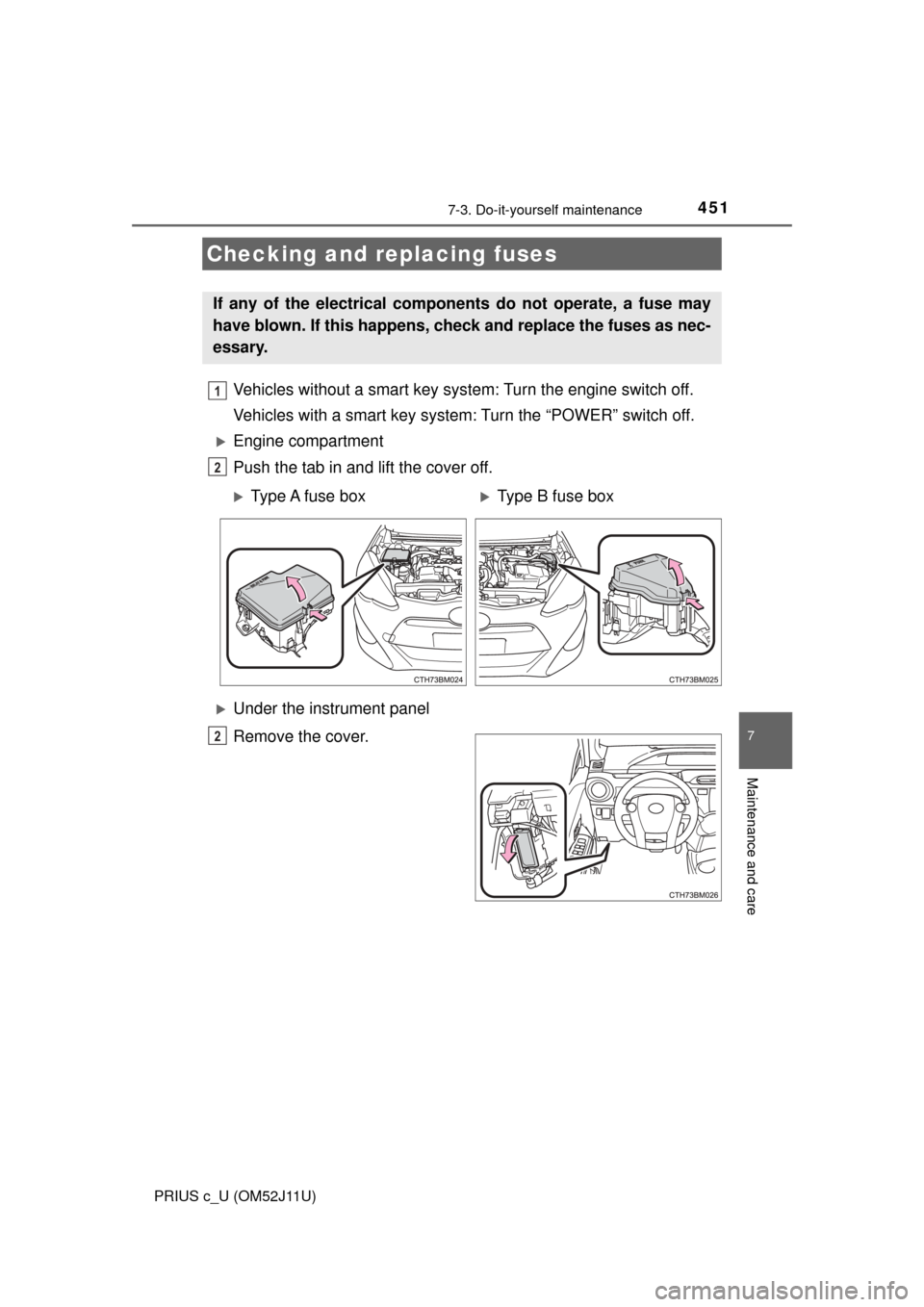

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Type A fuse boxType B fuse box
2
Page 453 of 596
4537-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52J11U)

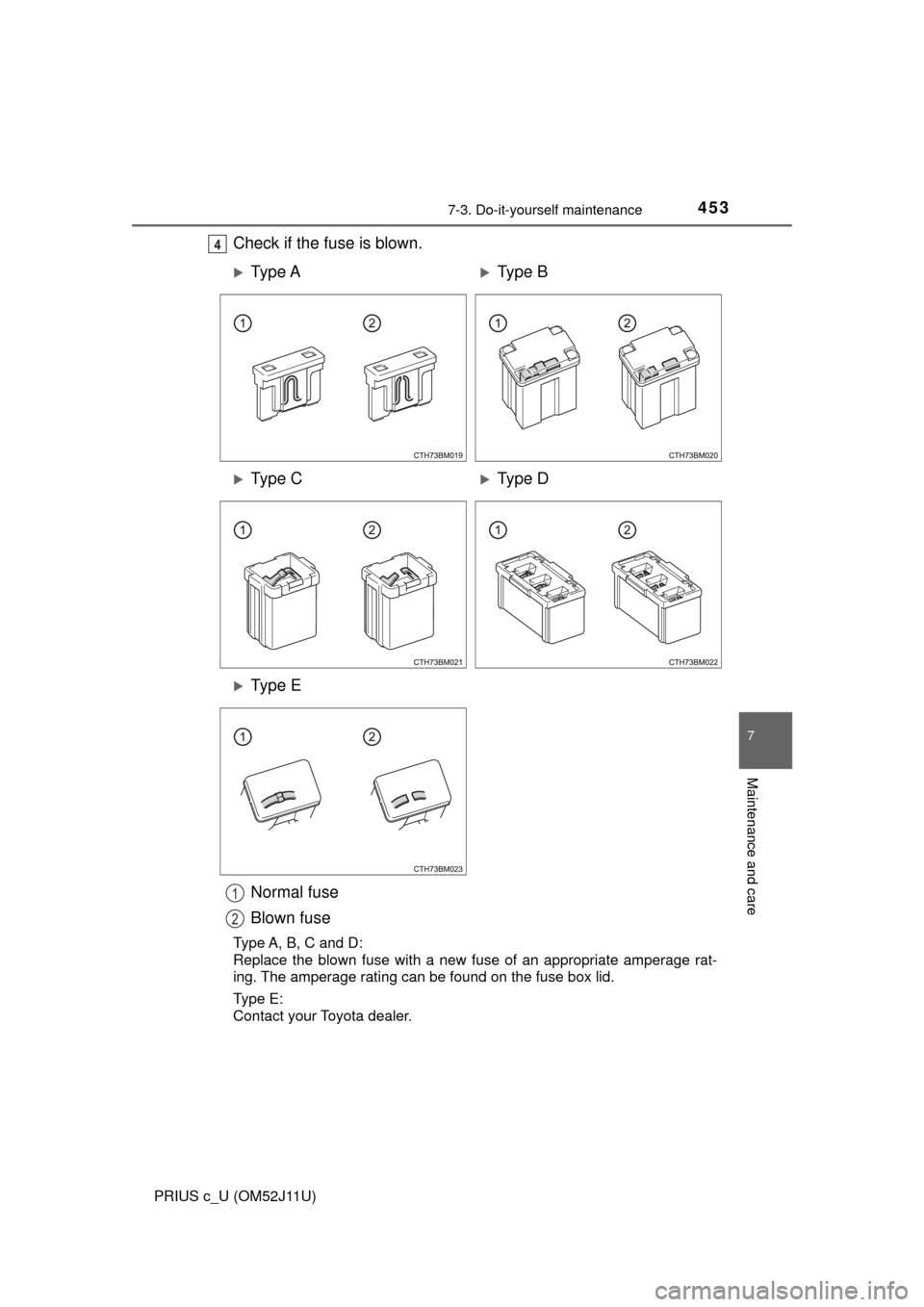

Check if the fuse is blown.4
Ty p e AType B
Ty p e CType D
Ty p e E
Normal fuse
Blown fuse
Type A, B, C and D:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact your Toyota dealer.
1
2
Page 454 of 596
4547-3. Do-it-yourself maintenance
PRIUS c_U (OM52J11U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( →P. 455)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use\
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
■ Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
Page 518 of 596
5188-2. Steps to take in an emergency
PRIUS c_U (OM52J11U)
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.

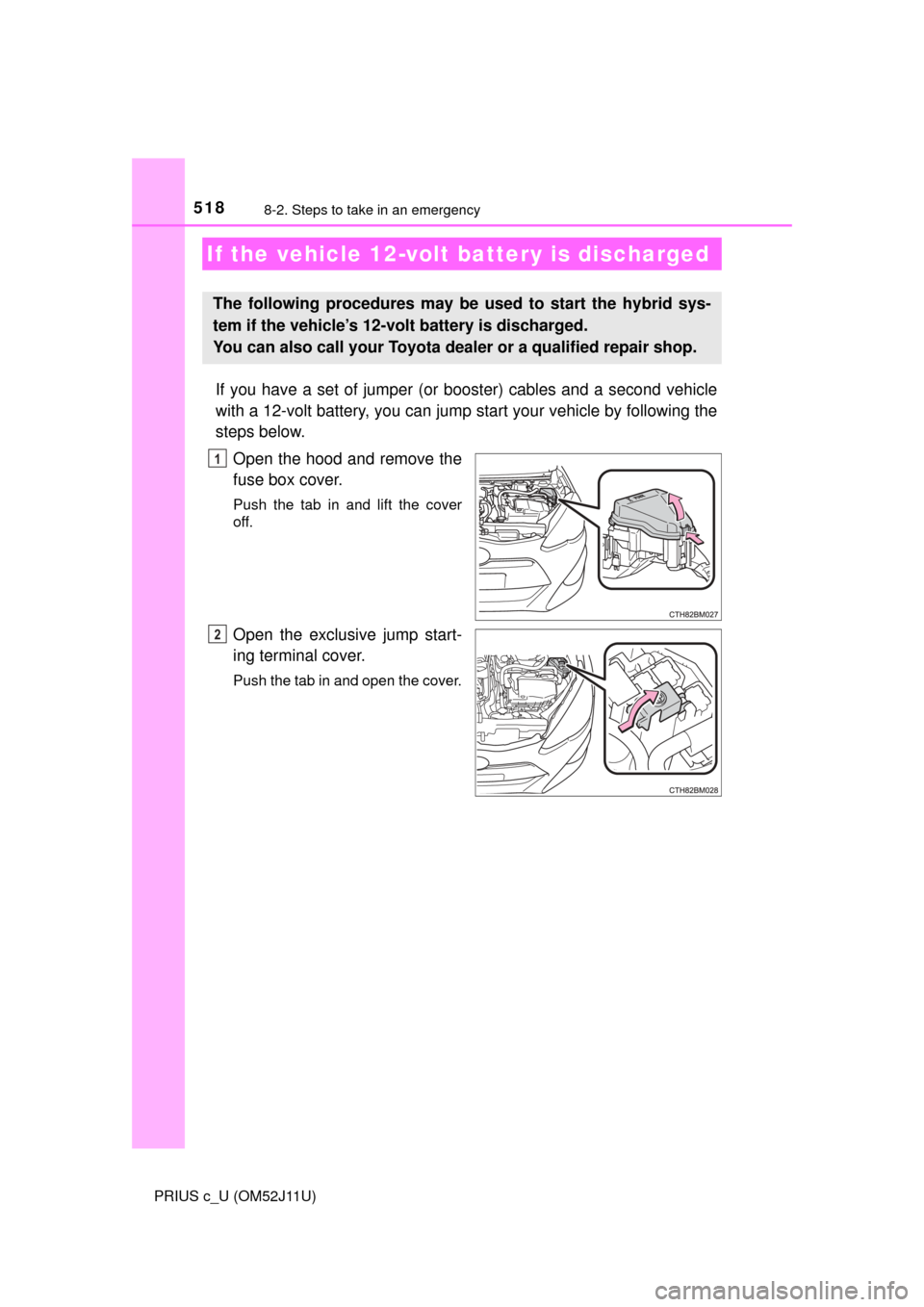

Open the hood and remove the
fuse box cover.
Push the tab in and lift the cover
off.
Open the exclusive jump start-
ing terminal cover.
Push the tab in and open the cover.
If the vehicle 12-volt battery is discharged
The following procedures may be used to start the hybrid sys-
tem if the vehicle’s 12-volt battery is discharged.
You can also call your Toyota de aler or a qualified repair shop.
1
2
Page 520 of 596
5208-2. Steps to take in an emergency
PRIUS c_U (OM52J11U)
Vehicles without a smart key system:
Maintain the engine speed of the second vehicle and start the
hybrid system of your vehicle by turning the engine switch to the
“ON” position.
Vehicles with a smart key system:
Maintain the engine speed of t he second vehicle and start the
hybrid system of your vehicle by turning the “POWER” switch to ON
mode.
Make sure the “READY” indicato r comes on. If the indicator does
not come on, contact your Toyota dealer.
Once the hybrid system has start ed, remove the jumper cables in
the exact reverse order from which they were connected.
Close the exclusive jump starting terminal cover, and reinstall the
fuse box cover to its original position.
When installing, first hook the fuse box cover onto the two rear tabs.
Once the hybrid system starts, ha ve the vehicle inspected at your
Toyota dealer as soon as possible.
6
7
8
9
Page 587 of 596
