TOYOTA PRIUS PLUG-IN 2013 Owners Manual

295
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47787U_(U)
2
When driving
Tu r n i n g o n t h e h i g h b e a m h e a d l i g h ts
With the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
Yo u c a n f l a s h t h e h i g h b e a m s
with the headlights on or off.
■Daytime running light system
●For the U.S.A.: To make your vehicle more visible to other drivers, the
daytime running lights turn on automatically whenever the hybrid system
is started and the parking brake is released.
Daytime running lights can be turned off by operating the switch. (if
equipped)
For Canada: To make your vehicle more visible to other drivers, the day-
time running lights turn on automatically (at a reduced intensity) whenever
the hybrid system is started and the parking brake is released. Daytime
running lights are not designed for use at night.
●For Canada: Compared to turning on the headlights, the daytime running
light system offers greater durability and consumes less electricity, so it
can help improve fuel economy.

296
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47787U_(U)
■Headlight control sensor (if equipped)
■Automatic light off system
●When the headlights come on: The headlights and tail lights turn off 30
seconds after a door is opened and closed if the “POWER” switch is
turned to ACCESSORY mode or turned off. (The lights turn off immedi-
ately if on the key is pressed after all the doors are locked.)
●When only the tail lights come on: The tail lights turn off automatically if
the “POWER” switch is turned to ACCESSORY mode or turned off and
the driver’s door is opened.
To turn the lights on again, turn the “POWER” switch to ON mode, or turn the
light switch off once and then back to or .
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
Air conditioning operation may also be
interrupted.
ITO23P105

297
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47787U_(U)
2
When driving
■Automatic headlight leveling system (if equipped)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 6 3 9 )
NOTICE
■To p r e v e n t 1 2 - v o l t b a t t e r y d i s c h a r g e
Do not leave the lights on longer than necessary when the hybrid system is
off.

298
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47787U_(U)

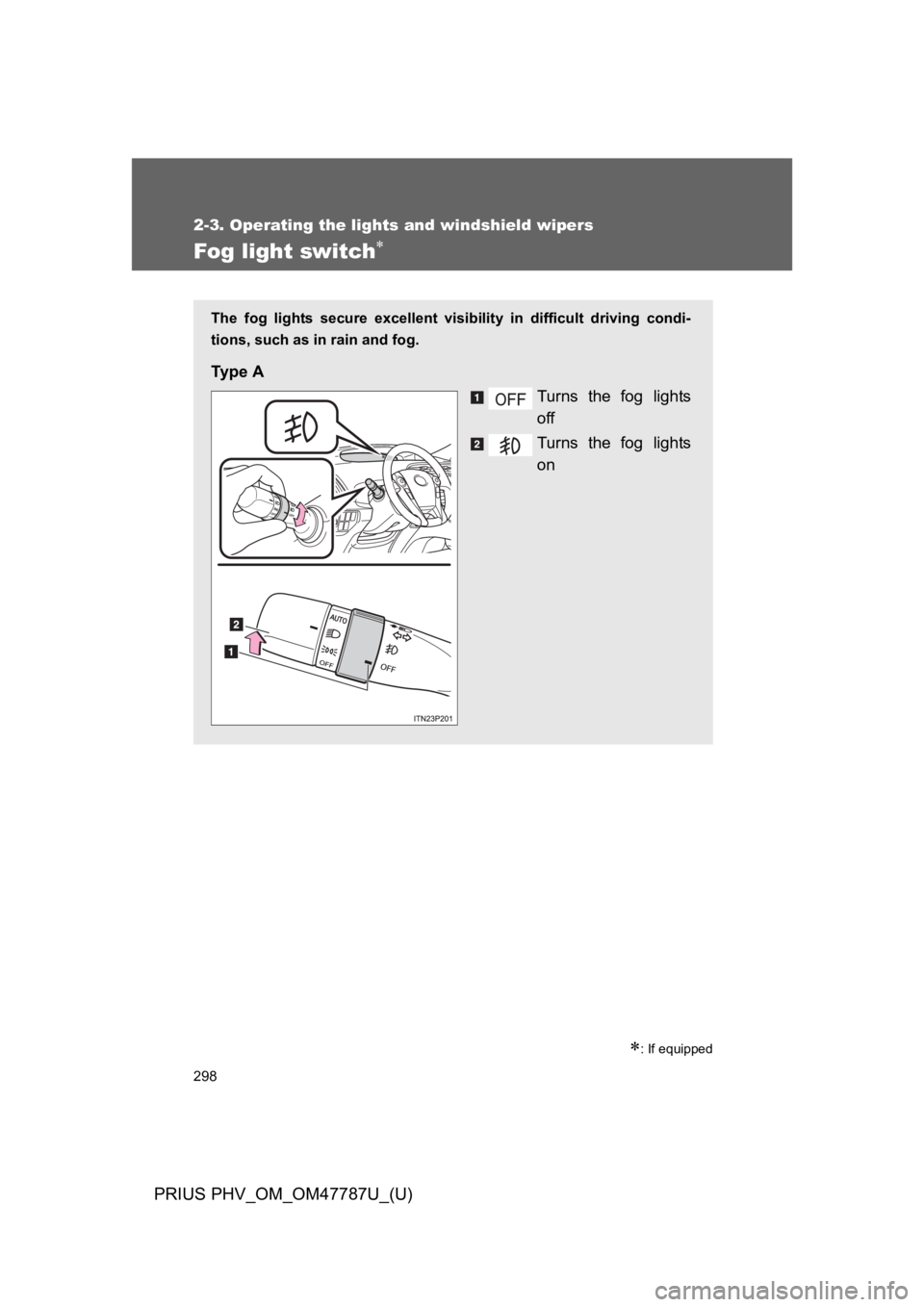

Fog light switch∗
∗: If equipped
The fog lights secure excellent visibility in difficult driving condi-
tions, such as in rain and fog.
Ty p e A
Turns the fog lights
off
Turns the fog lights
on

299
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47787U_(U)
2
When driving
■Fog lights can be used when
The headlights are on in low beam.
NOTICE
■To p r e v e n t 1 2 - v o l t b a t t e r y d i s c h a r g e
Do not leave the lights on longer than necessary when the hybrid system is
off.

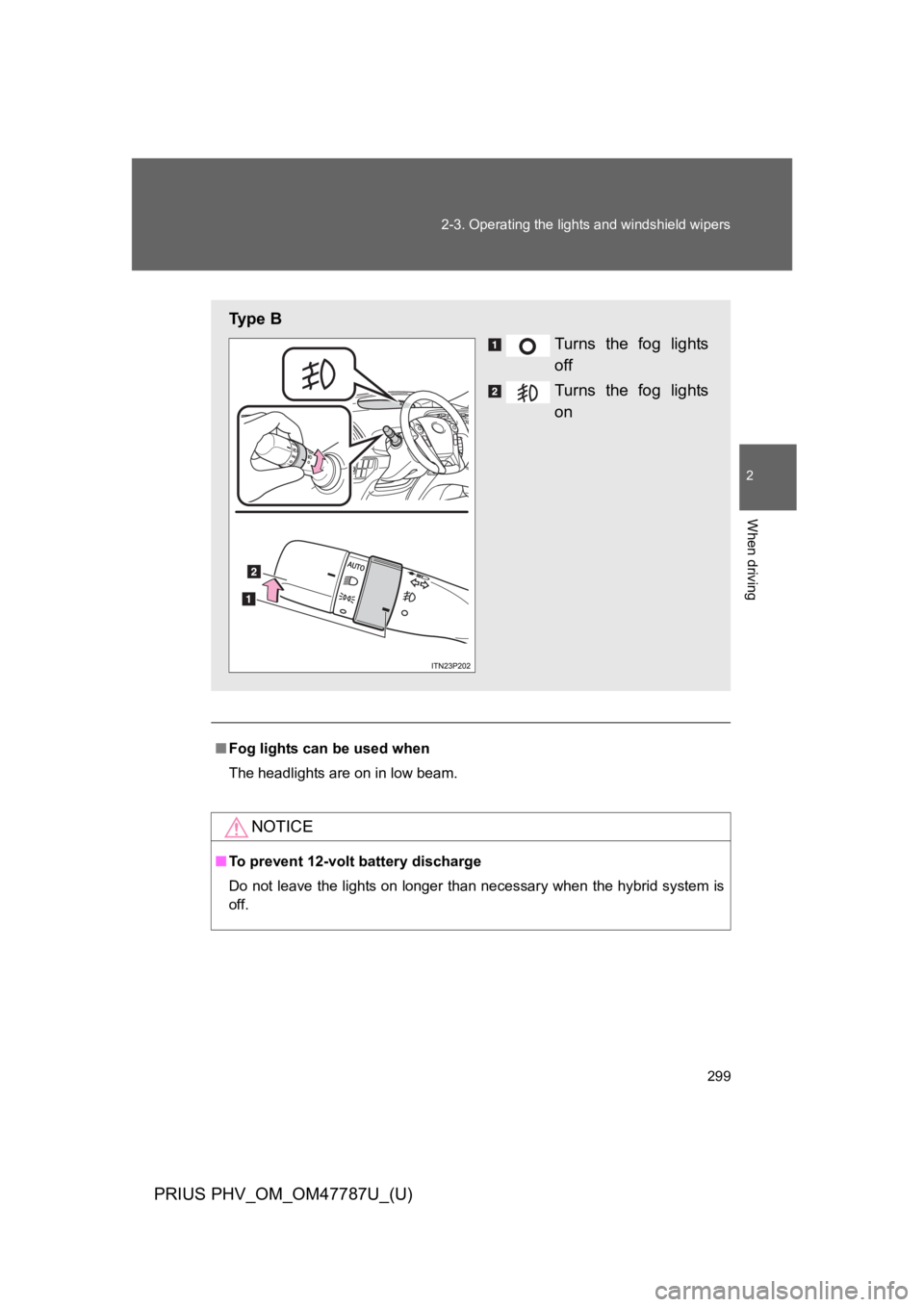

Ty p e B
Turns the fog lights
off
Turns the fog lights
on

300
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47787U_(U)

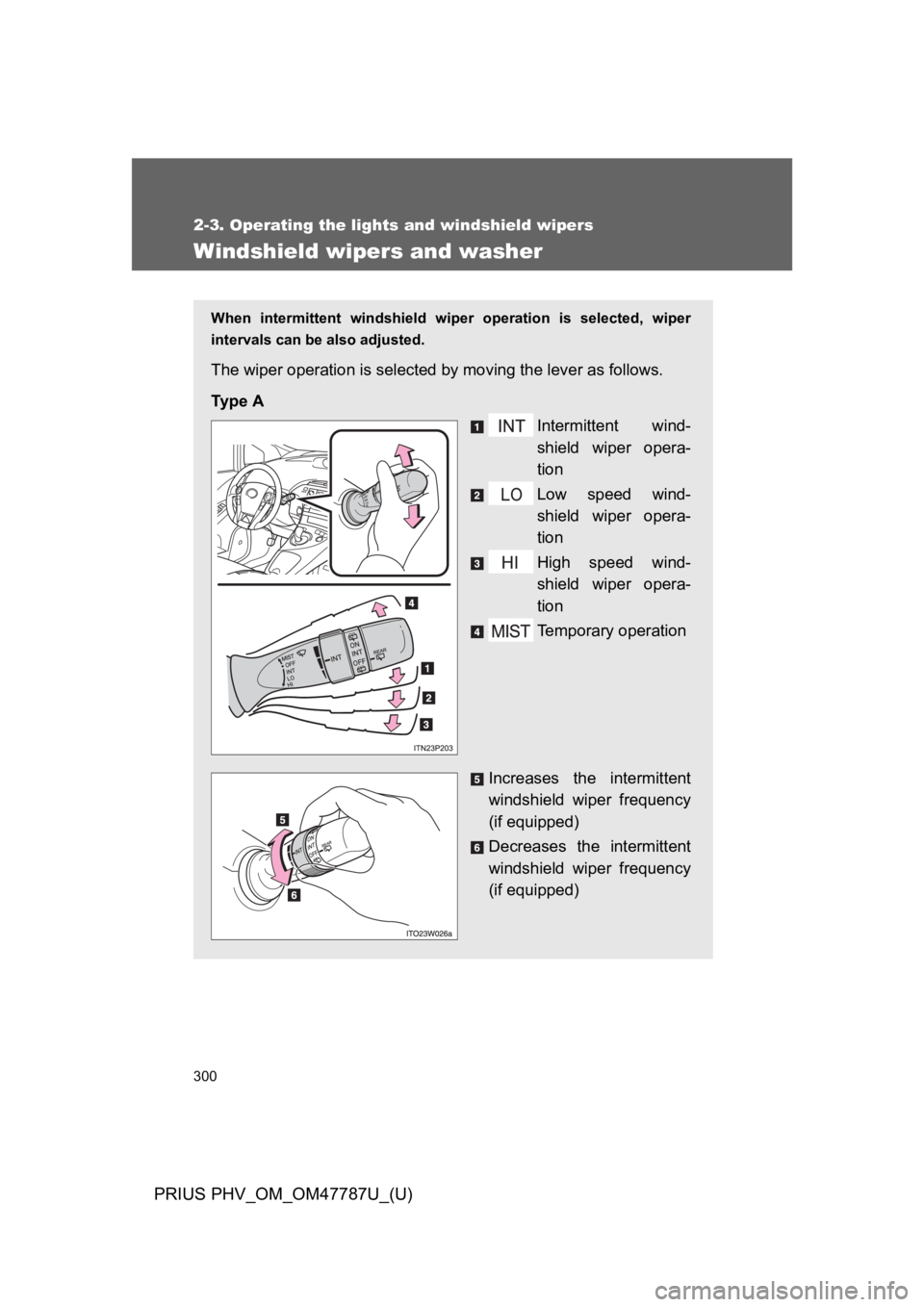

Windshield wipers and washer
When intermittent windshield wiper operation is selected, wiper
intervals can be also adjusted.
The wiper operation is selected by moving the lever as follows.
Ty p e A
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Te m p o r a r y o p e r a t i o n
Increases the intermittent
windshield wiper frequency
(if equipped)
Decreases the intermittent
windshield wiper frequency
(if equipped)

301
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47787U_(U)
2
When driving
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.
If the headlights are on, the
headlight cleaner will operate
once.

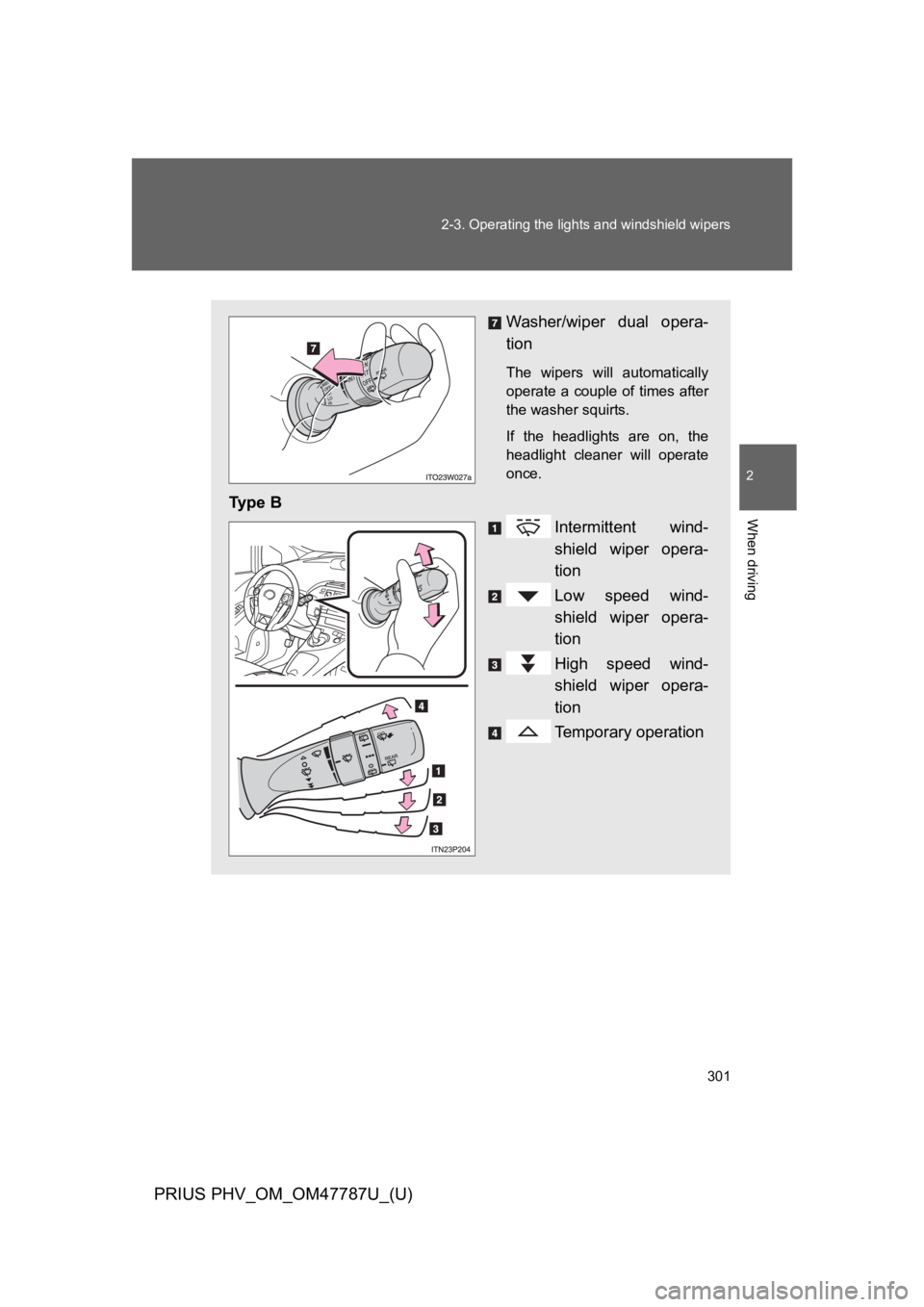

Ty p e B
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Te m p o r a r y o p e r a t i o n

302
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47787U_(U)
■The windshield wipers and washer can be operated when
The “POWER” switch is in ON mode.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
washer fluid tank.

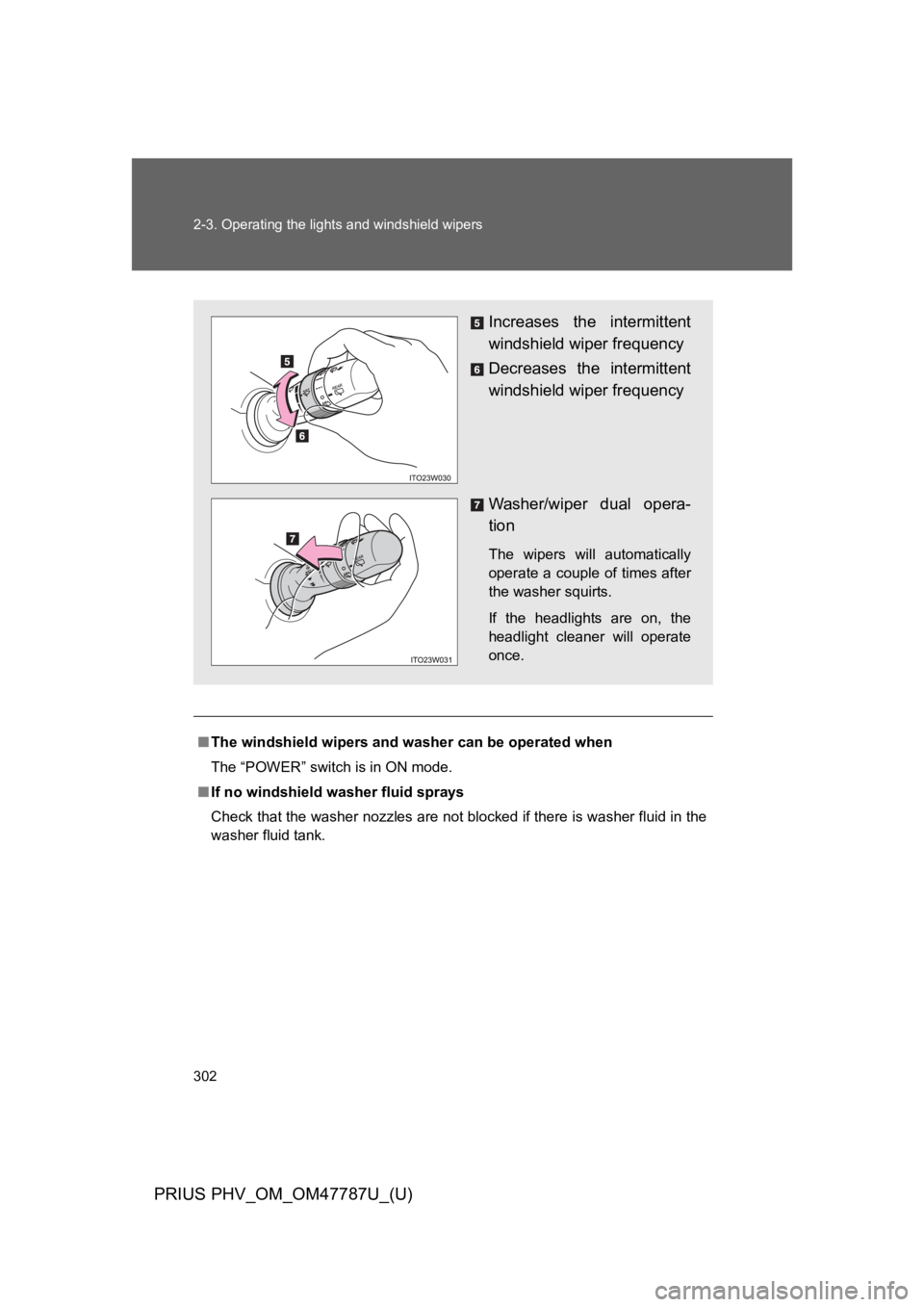

Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.
If the headlights are on, the
headlight cleaner will operate
once.

303
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47787U_(U)
2
When driving
CAUTION
■Caution regarding the use of washer fluid
When it is cold, do no use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
■To p r e v e n t 1 2 - v o l t b a t t e r y d i s c h a r g e
Do not leave the wipers on longer than necessary when the hybrid system is
off.

304
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47787U_(U)

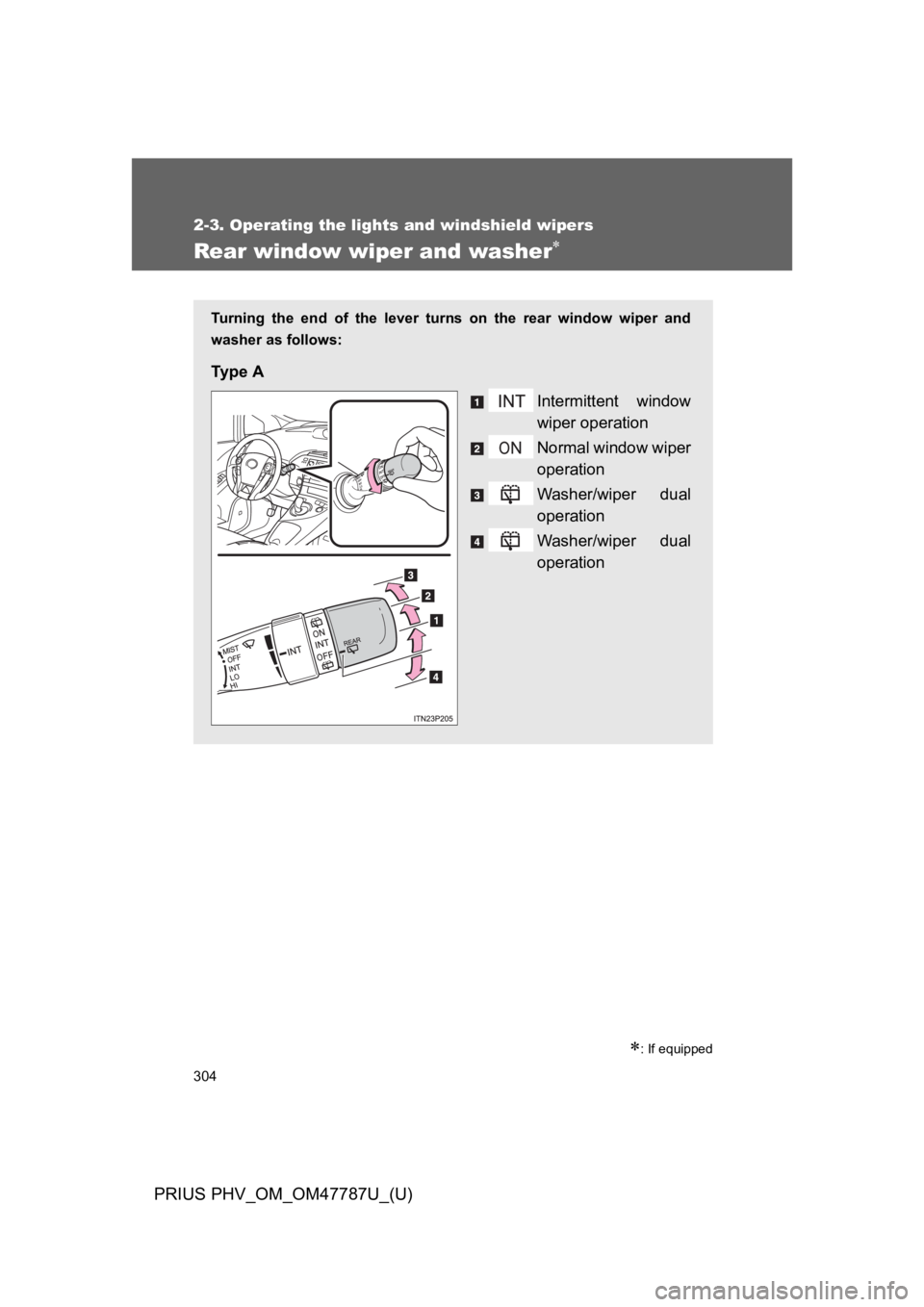

Rear window wiper and washer∗
∗: If equipped
Tu r n i n g t h e e n d o f t h e l e v e r t u r ns on the rear window wiper and
washer as follows:
Ty p e A
Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual
operation
Washer/wiper dual
operation
