TOYOTA PRIUS PLUG-IN 2013 Owners Manual

386
3-4. Using the storage features
PRIUS PHV_OM_OM47787U_(U)
Glove boxes
Upper glove box
Push the button.
Lower glove box
Push the button.
■Glove box light (lower glove box only)
The glove box light turns on when the tail lights are on.
CAUTION
■While driving
Keep the glove box closed when not in use. In the event of sudden braking
or sudden swerving, an accident may occur due to an occupant being struck
by the open glove box or the items stored inside.
Glove boxes

387
3-4. Using the storage features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
Console box
Pull up the lever to release the
lock.
Lift the console box lid to
open.
CAUTION
■While driving
Keep the console box closed when not is use. In the event of sudden brak-
ing or sudden swerving, an accident may occur due to an occupant being
struck by the open console box or the items stored inside.
Console box

388
3-4. Using the storage features
PRIUS PHV_OM_OM47787U_(U)
Cup holders
Front (type A)
Lift the lid.
Front (type B)
Rear (if equipped)
Pull down the armrest.
ITO35P113
Cup holders

389
3-4. Using the storage features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of sudden braking,
sudden swerving or an accident and cause injury. If possible, cover hot
drinks to prevent burns.
■When not in use
Keep the cup holders closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
Cup holders

390
3-4. Using the storage features
PRIUS PHV_OM_OM47787U_(U)
Bottle holders
ITO35P121
CAUTION
■Items unsuitable for the bottle holder
Do not place anything other than pet bottles in the bottle holders.
Other items may be thrown out of the holders in the event of sudden braking,
sudden swerving or an accident and cause injury.
NOTICE
■Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders

391
3-4. Using the storage features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
Auxiliary boxes
Ty p e A
Ty p e B
Push the lid.
The overhead console is useful
for temporarily storing small
items.
CAUTION
■While driving
Do not leave the overhead console open.
Items may fall out and cause injury.
■Maximum storage weight
Do not place any object heavier than 0.4 lb. (200 g) in it. The console may
be opened and cause injury.
Auxiliary boxes

392
PRIUS PHV_OM_OM47787U_(U)
3-5. Other interior features

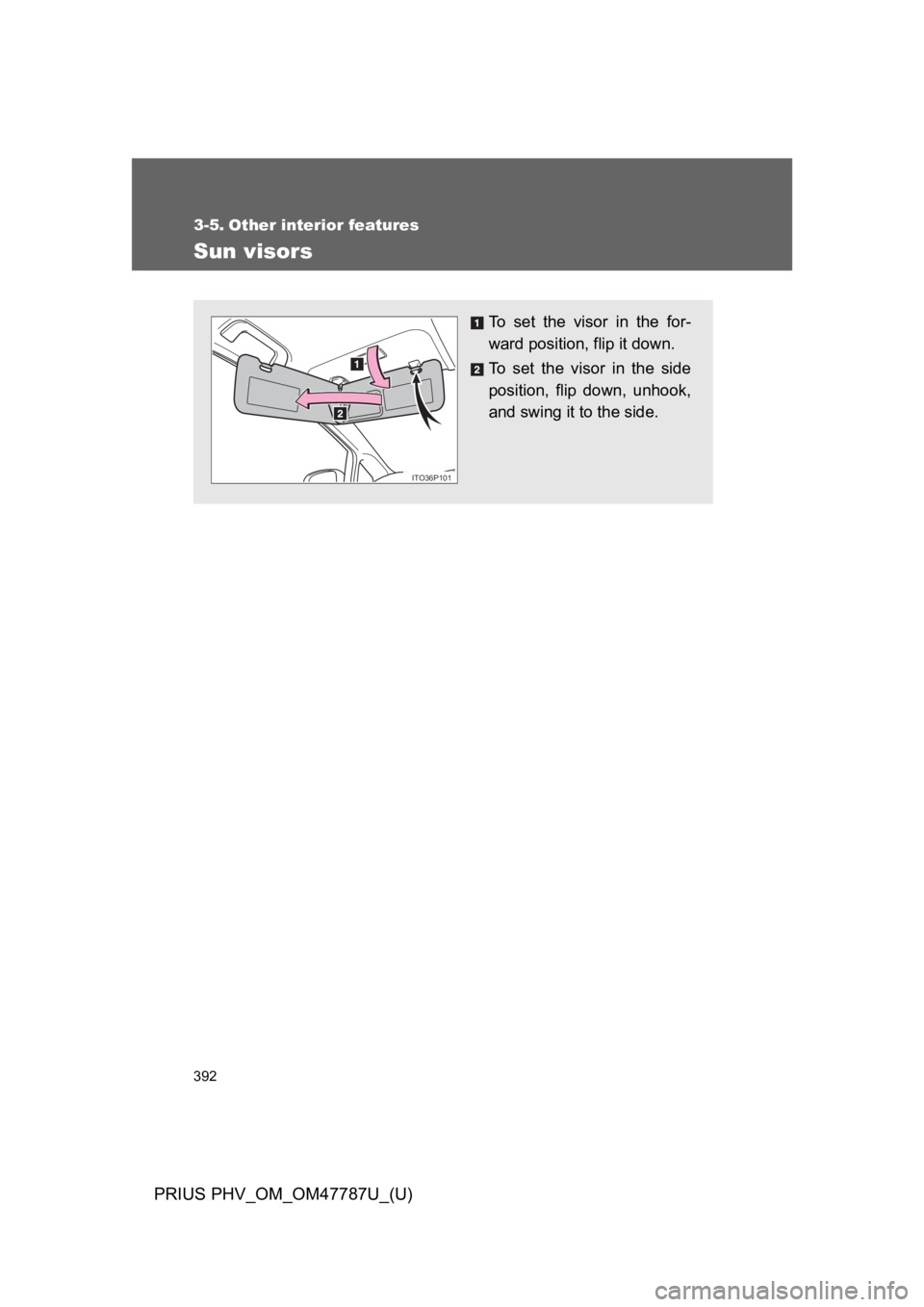

Sun visors
To s e t t h e v i s o r i n t h e f o r -
ward position, flip it down.
To s e t t h e v i s o r i n t h e s i d e
position, flip down, unhook,
and swing it to the side.
ITO36P101

393
3-5. Other interior features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
Vanity mir r or s
NOTICE
■To p r e v e n t 1 2 - v o l t b a t t e r y d i s c h a r g e
Do not leave the vanity lights on for extended periods while the hybrid sys-
tem is off.
Slide the cover to open.
The light turns on when the
cover is opened.
ITO36P103

394
3-5. Other interior features
PRIUS PHV_OM_OM47787U_(U)
Outside temperature display
■Operating conditions
The “POWER” switch is in ON mode.
■Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 16 mph [25 km/h])
●When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
■When -- is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
The displayed temperature ranges from -40 °F (-40 °C) up to 122 °F
(50 °C).

395
3-5. Other interior features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
Power outlets
■The power outlets can be used when
The “POWER” switch is in ACCESSORY or ON mode.
The power outlets can be used for 12 V accessories that run on less
than 10 A.
Instrument panel
Open the cover.
Rear console box
Open the cover.
