4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
4
Maintenance and care

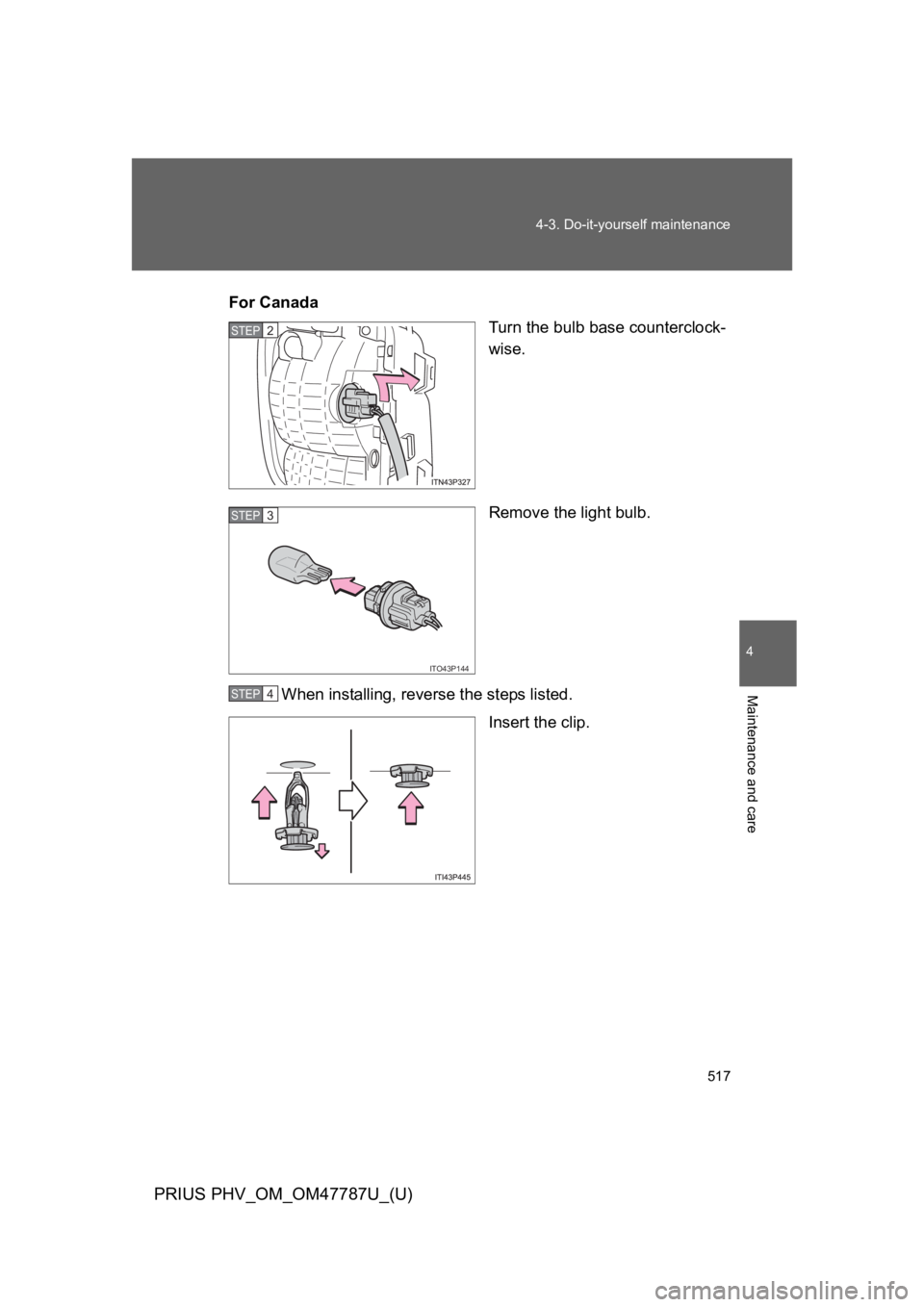

For CanadasTurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
Insert the clip.
STEP 2
ITO43P144
STEP 3
STEP 4

518
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)

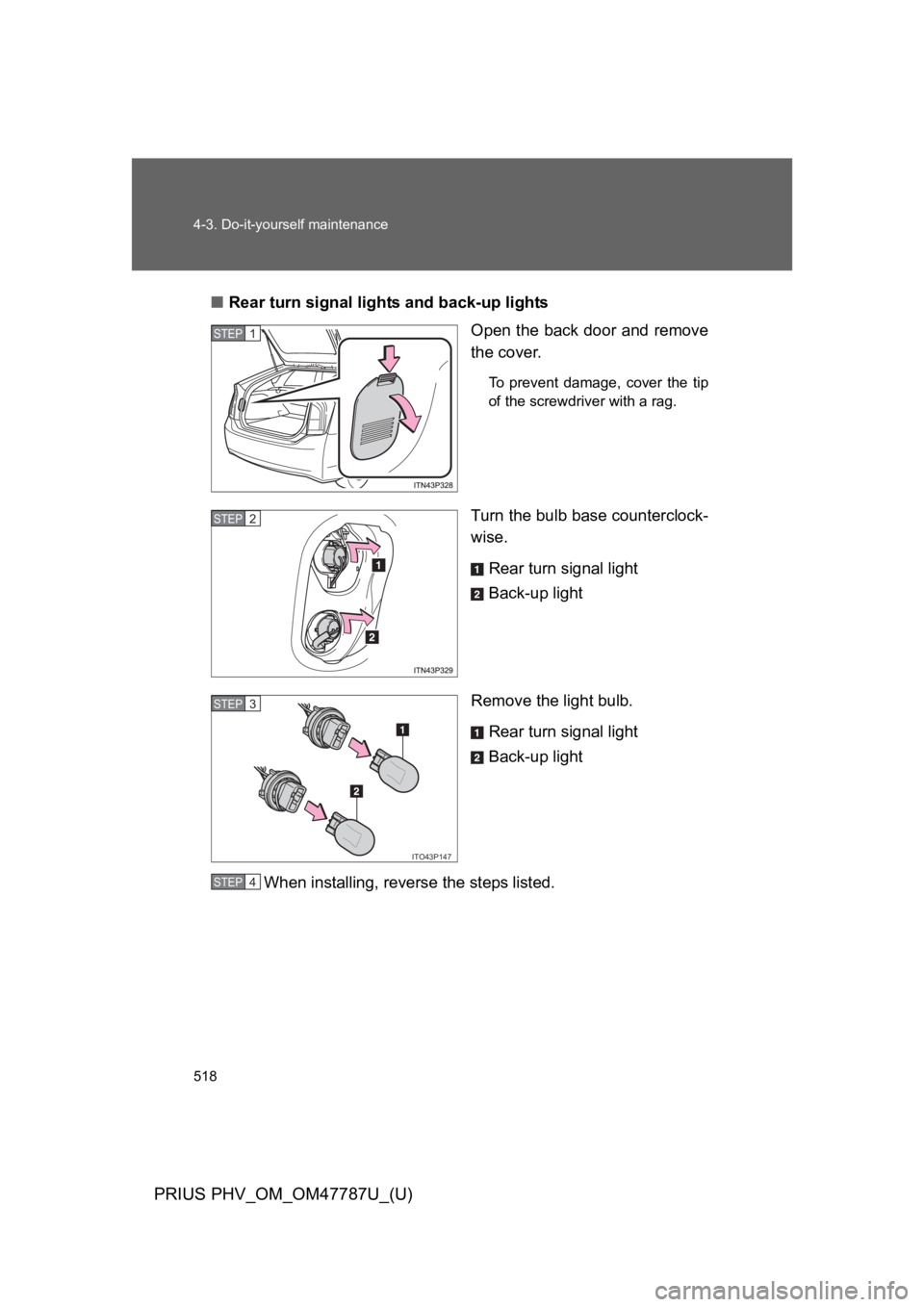

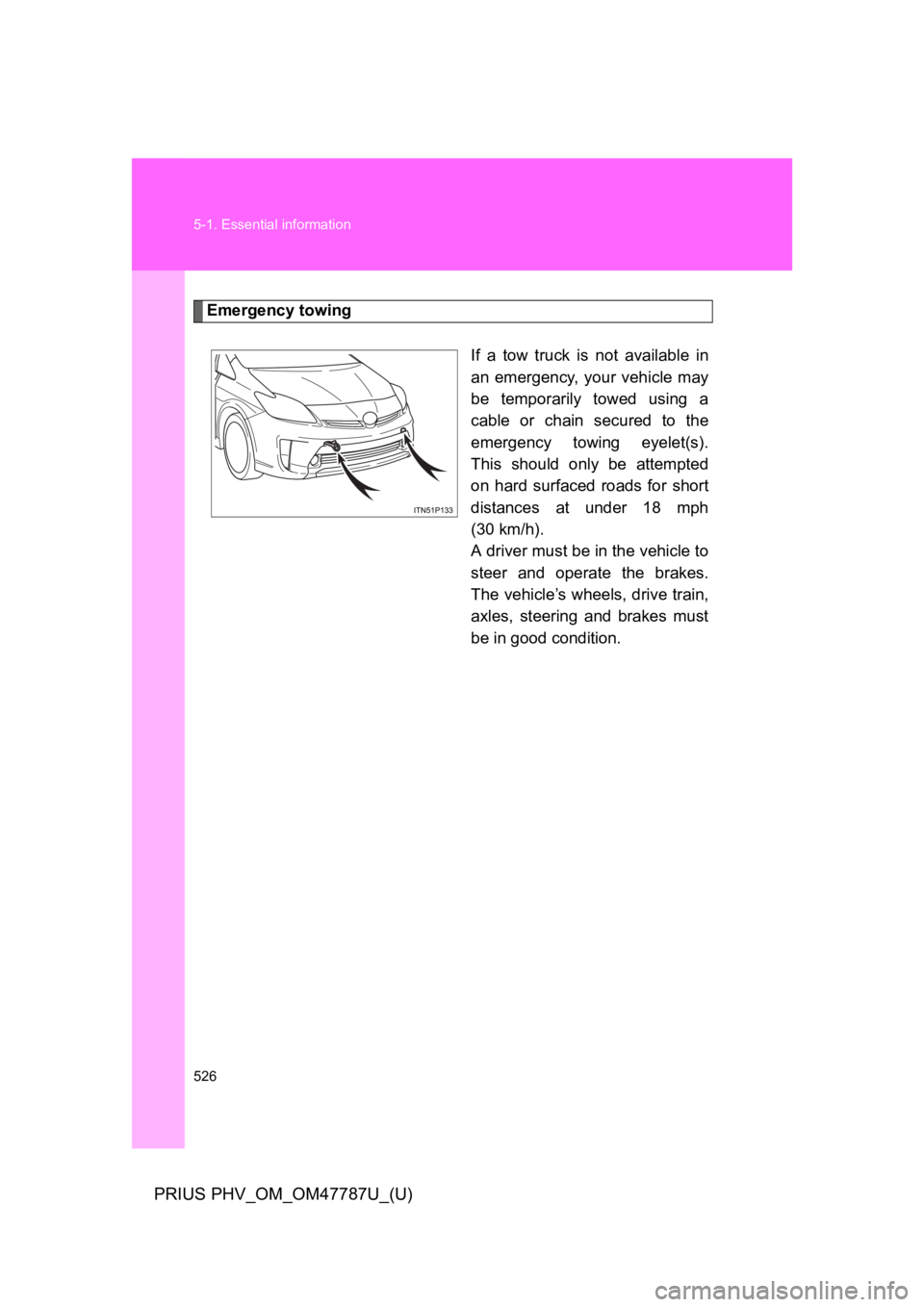

■Rear turn signal lights and back-up lights
Open the back door and remove
the cover.
To p r e v e n t d a m a g e , c o v e r t h e t i p
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Remove the light bulb.
Rear turn signal light
Back-up light
When installing, reverse the steps listed.
STEP 1
STEP 2
ITO43P147
STEP 3
STEP 4

519
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
4
Maintenance and care

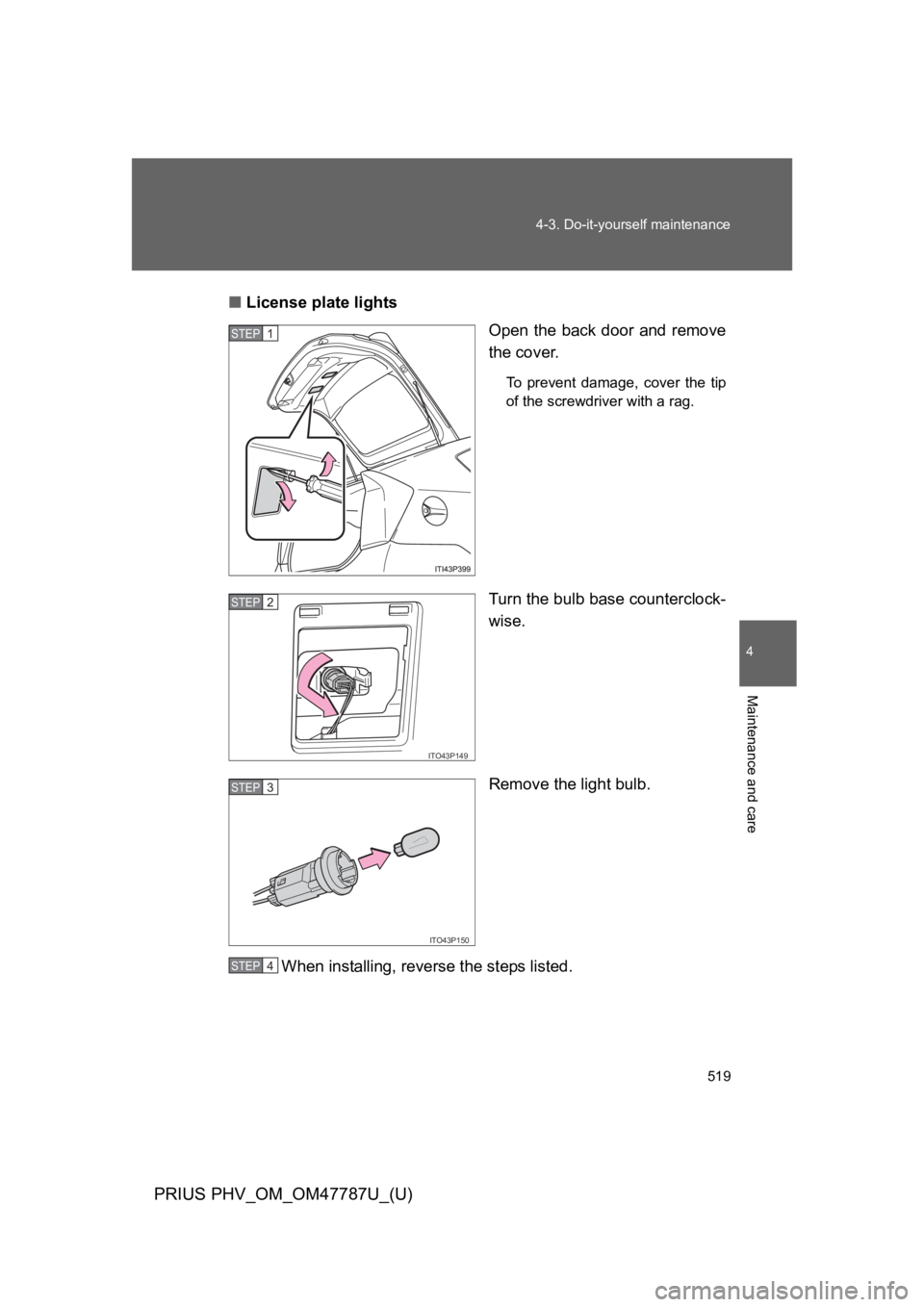

■License plate lights
Open the back door and remove
the cover.
To p r e v e n t d a m a g e , c o v e r t h e t i p
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P149
STEP 2
ITO43P150
STEP 3
STEP 4

520
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
●Headlight low beams (LED headlights)
●Parking lights (LED headlights)
●St op lights
●Ta i l l i g h t s
●High mounted stoplight
●Daytime running lights (except for Canada)
■LED lights
The headlight low beams (LED headlights), parking lights (LED headlights),
stop lights, tail lights, high mounted stoplight and daytime running lights
(except for Canada) consist of a number of LEDs. If any of the LEDs burn
out, take your vehicle to your Toyota dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Contact your Toyota dealer for more information in the following situations.
Te m p o r a r y c o n d e n s a t i o n b u i l d - u p o n t h e i n s i d e o f t h e h e a d l i g h t l e n s d o e s
not indicate a malfunction.
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
→P. 5 0 5

521
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
4
Maintenance and care
CAUTION
■Replacing light bulbs
●Be sure to stop the hybrid system and turn off the lights. Do not attempt to
replace the bulb immediately after turning off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■To p r e v e n t d a m a g e o r f i r e
Make sure bulbs are fully seated and locked.

522
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)

524
PRIUS PHV_OM_OM47787U_(U)
5-1. Essential information
Emergency flashers
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt
battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash.
To t u r n t h e m o f f , p r e s s t h e
switch once again.

5
When trouble arises
525
5-1. Essential information
PRIUS PHV_OM_OM47787U_(U)
If your vehicle needs to be towed
Before towing
The following may indicate a problem with your hybrid transmission.
Contact your Toyota dealer before towing.
●The hybrid system is operating but the vehicle will not move.
●The vehicle makes an abnormal sound.
If there is a malfunction in the P position control system, the smart
key system or the immobilizer system, or if the 12-volt battery is dis-
charged, the vehicle cannot be towed with the front wheels on the
ground, as the front wheels may be locked. In this case, transport the
vehicle with both front wheels or all four wheels lifted.
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commercial towing service, using a lift-type
truck or flat bed truck.
Use a safety chain system for all towing, and abide by all state/pro-
vincial and local laws.

526
5-1. Essential information
PRIUS PHV_OM_OM47787U_(U)
Emergency towing
If a tow truck is not available in
an emergency, your vehicle may
be temporarily towed using a
cable or chain secured to the
emergency towing eyelet(s).
This should only be attempted
on hard surfaced roads for short
distances at under 18 mph
(30 km/h).
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.

5
When trouble arises
527
5-1. Essential information
PRIUS PHV_OM_OM47787U_(U)
Installing towing eyelets

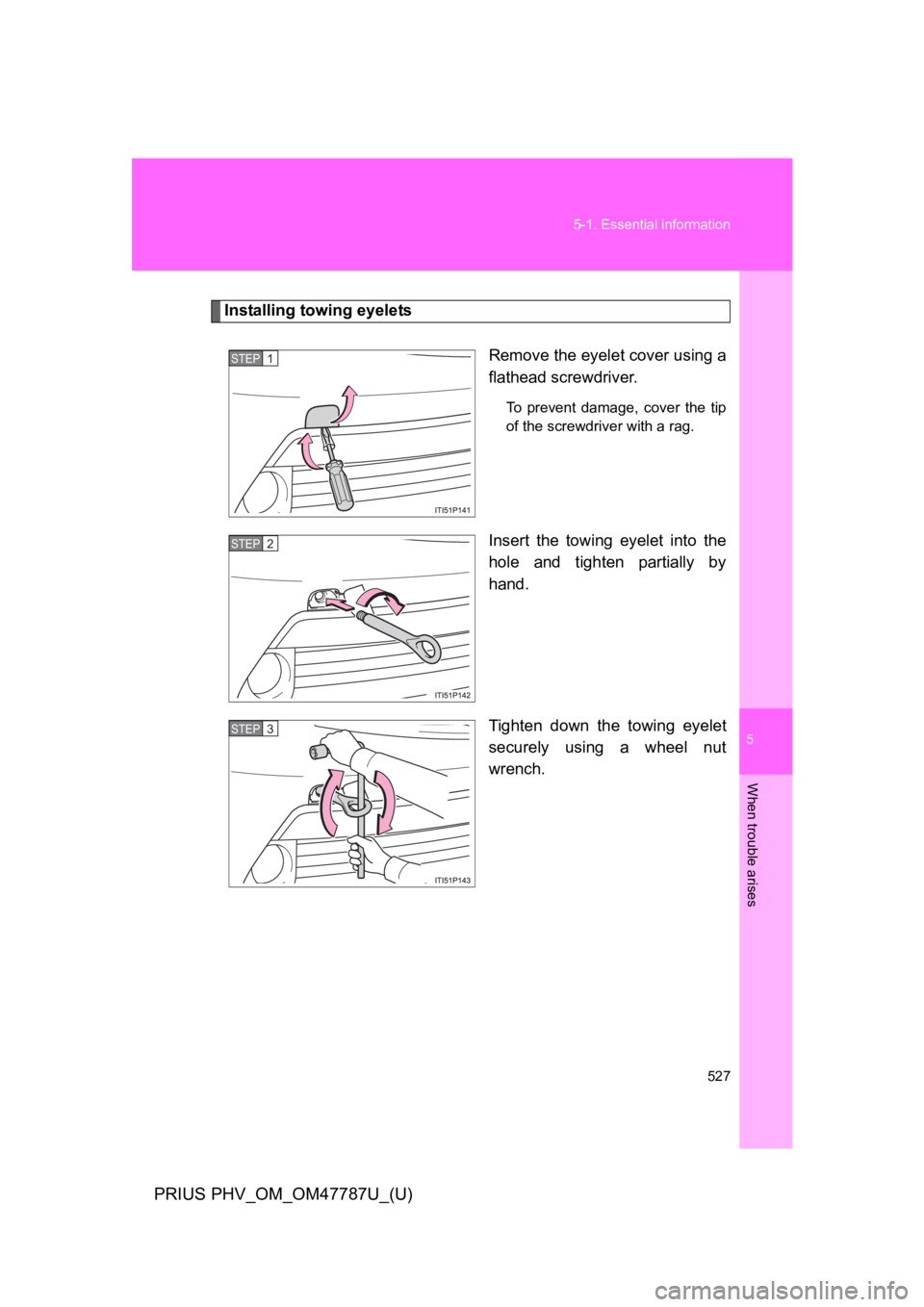

Remove the eyelet cover using a
flathead screwdriver.
To p r e v e n t d a m a g e , c o v e r t h e t i p
of the screwdriver with a rag.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.
STEP 1
STEP 2
STEP 3
