TOYOTA PRIUS PLUG-IN 2013 Owners Manual

619
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47787U_(U)

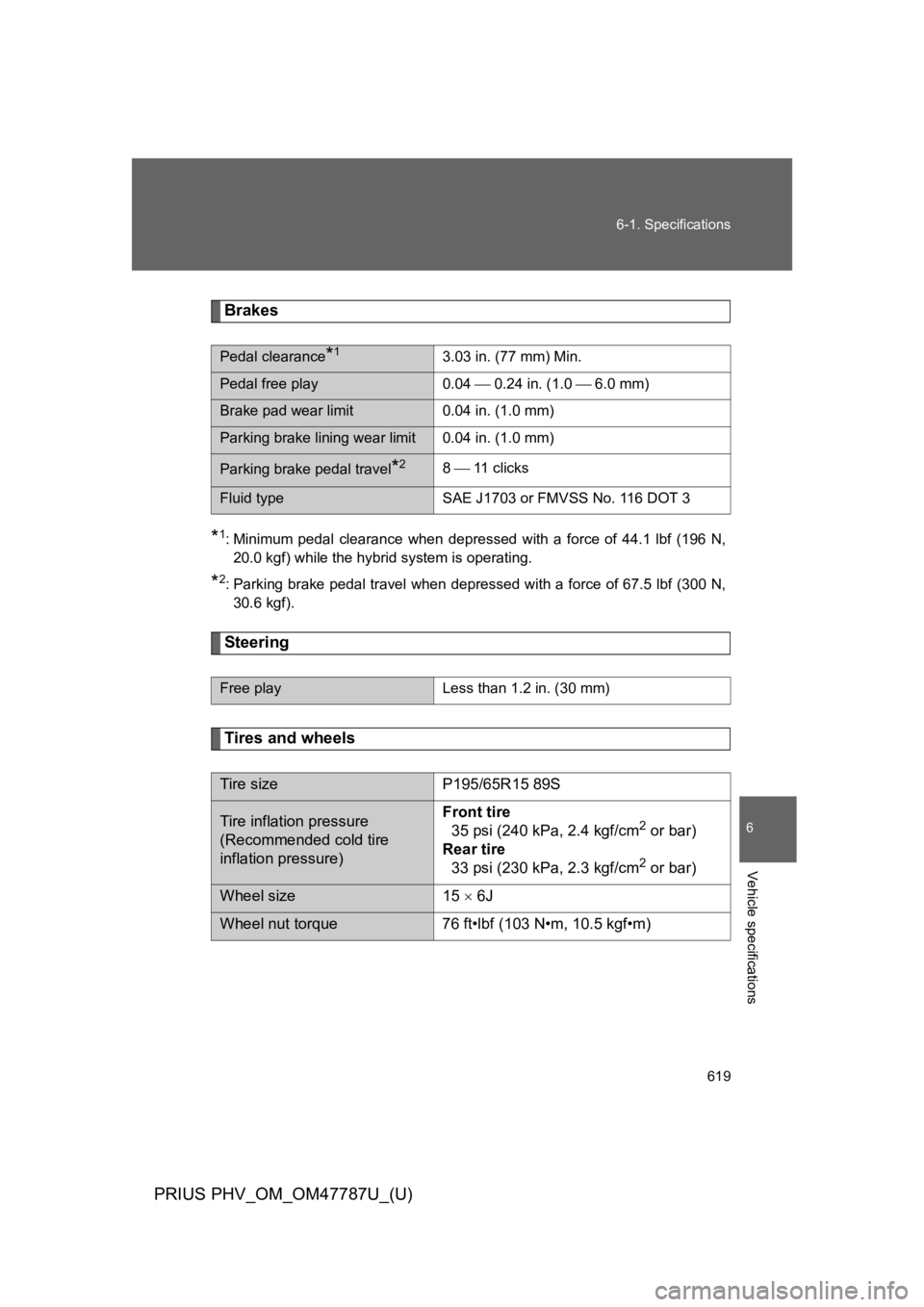

Brakes
*1:Minimum pedal clearance when depressed with a force of 44.1 lbf (196 N,
20.0 kgf) while the hybrid system is operating.
*2:Parking brake pedal travel when depressed with a force of 67.5 lbf (300 N,
30.6 kgf).
Steering
Tires and wheels
Pedal clearance*13.03 in. (77 mm) Min.
Pedal free play 0.04 ⎯ 0.24 in. (1.0 ⎯ 6.0 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake pedal travel*28 ⎯ 11 c l i c k s
Fluid type SAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)
Tire sizeP195/65R15 89S
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear tire
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Wheel size 15 × 6J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

620
6-1. Specifications
PRIUS PHV_OM_OM47787U_(U)
Light bulbs
A: H11 halogen bulbs
B: HB3 halogen bulbs
C: H16 halogen bulbs
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs
*: If equipped
Light BulbsBulb No.WType
Exterior
Halogen headlights
Low beam
High beam
LED headlights
High beam
H11
9005
9005
55
60
60
A
B
B
Fog lights*H16 19 C
Front turn signal lights WY21W 21 D
Front side marker lights W5W 5 E
Parking lights
(halogen headlights)W5W 5 E
Rear turn signal lights WY21W 21 D
Back-up lights W21W 21 E
License plate lights W5W 5 E
Interior
Front interior/personal lights⎯5E
Rear interior light⎯8F
Va n i t y l i g h t s⎯8E
Door courtesy lights⎯5E
Luggage compartment light⎯5F

621
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47787U_(U)

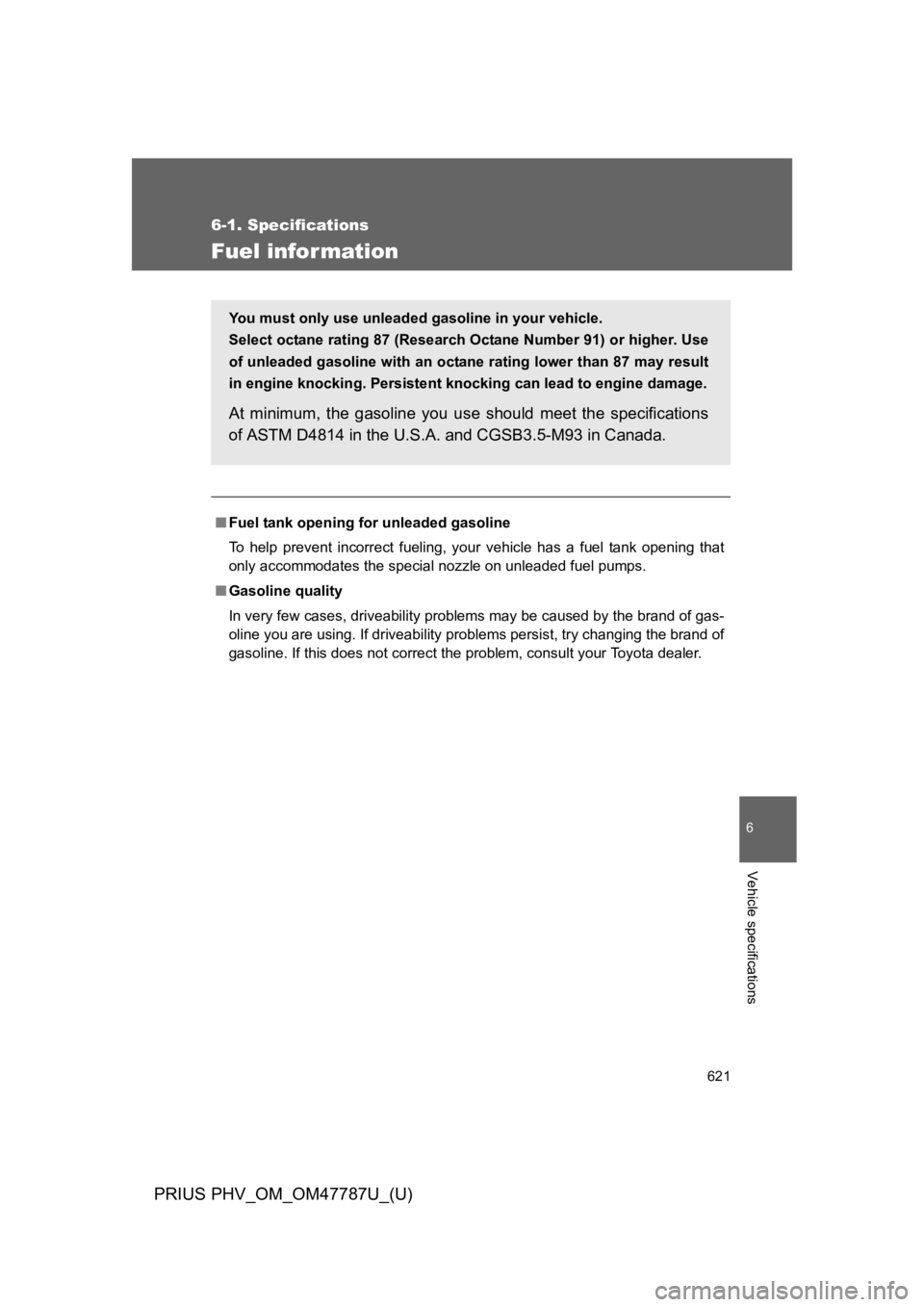

Fuel information
■Fuel tank opening for unleaded gasoline
To h e l p p r e v e n t i n c o r r e c t f u e l i n g , y o u r v e h i c l e h a s a f u e l t a n k o p e n i n g t h a t
only accommodates the special nozzle on unleaded fuel pumps.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
Yo u m u s t o n l y u s e u n l e a d e d g a s o l i n e i n y o u r v e h i c l e .
Select octane rating 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent knocking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

622
6-1. Specifications
PRIUS PHV_OM_OM47787U_(U)
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have devel-
oped a specification for fuel quality called the World-Wide Fuel Charter
(WWFC), which is expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emis-
sion levels. In the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets,
and improves customer satisfaction through better performance.
■Recommendation of the use of gasoline containing detergent additives
●To y o t a r e c o m m e n d s t h e u s e o f g a s o l i n e t h a t c o n t a i n s d e t e r g e n t a d d i t i v e s
to avoid the build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives con-
centration program.
●To y o t a s t r o n g l y r e c o m m e n d s t h e u s e o f To p T i e r D e t e r g e n t G a s o l i n e . F o r
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
To y o t a r e c o m m e n d s t h e u s e o f c l e a n e r b u r n i n g g a s o l i n e a n d a p p r o p r i a t e l y
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.

623
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47787U_(U)
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
●To y o t a d o e s n o t r e c o m m e n d t h e u s e o f g a s o l i n e c o n t a i n i n g m e t h a n o l .
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methyl-
cyclopentadienyl Manganese Tricarbonyl).
To y o t a d o e s n o t r e c o m m e n d t h e u s e o f g a s o l i n e t h a t c o n t a i n s M M T. I f f u e l
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
■If your engine knocks
●Consult your Toyota dealer.
●Yo u m a y o c c a s i o n a l l y n o t i c e l i g h t k n o c k i n g f o r a s h o r t t i m e w h i l e a c c e l e r -
ating or driving uphill. This is normal and there is no need for concern.

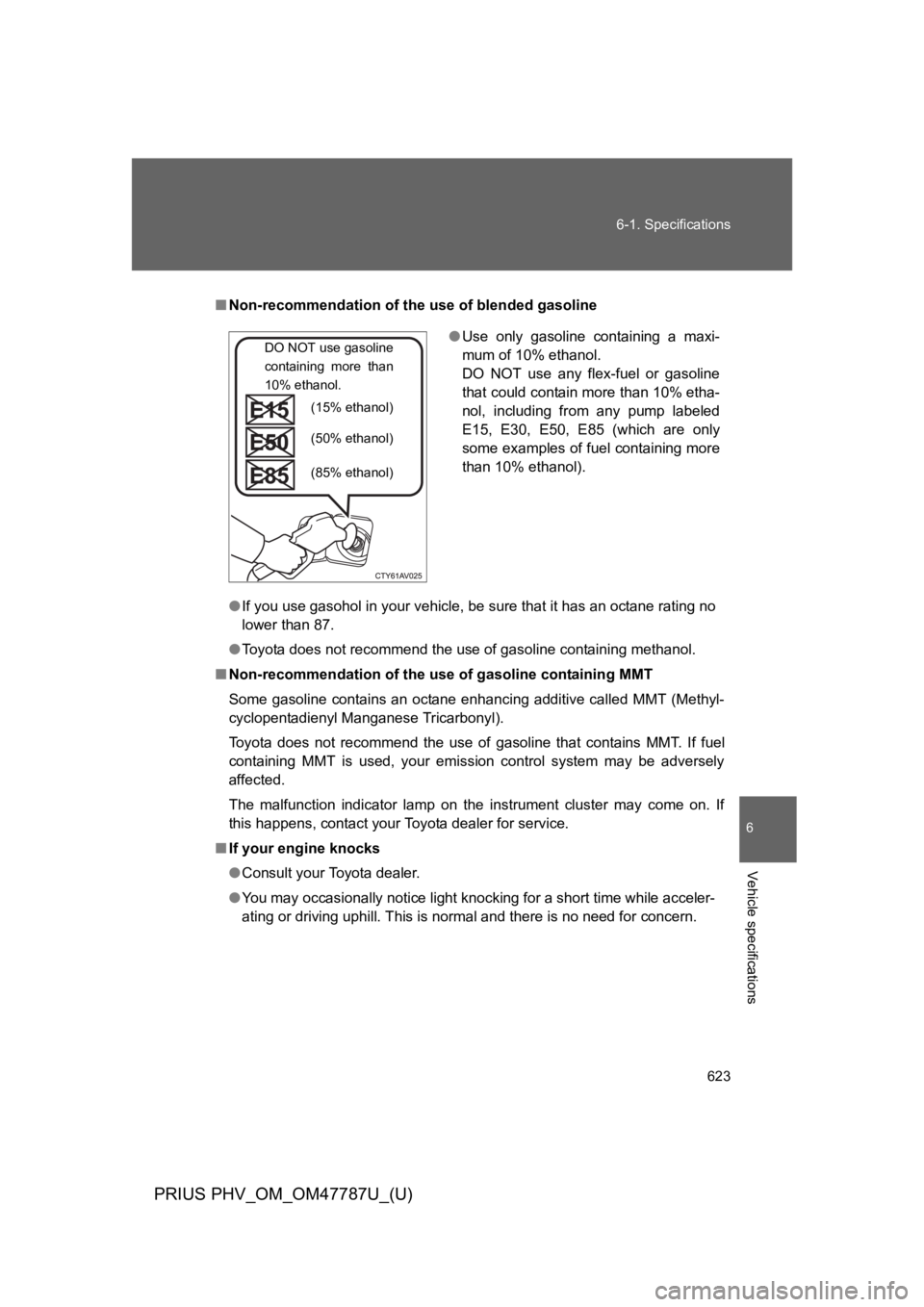

●Use only gasoline containing a maxi-
mum of 10% ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 10% etha-
nol, including from any pump labeled
E15, E30, E50, E85 (which are only
some examples of fuel containing more
than 10% ethanol).
DO NOT use gasoline
containing more than
10% ethanol.
(15% ethanol)
(50% ethanol)
(85% ethanol)

624
6-1. Specifications
PRIUS PHV_OM_OM47787U_(U)
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
●Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.
●Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If poor driveability is encountered after using a different type of fuel (poor hot
starting, vaporization, engine knocking, etc.), discontinue the use of that type
of fuel.
■When refueling with gasohol
Ta k e c a r e n o t t o s p i l l g a s o h o l . I t c a n d a m a g e y o u r v e h i c l e ’ s p a i n t .
■Notice about fuel
For plug-in hybrid vehicles, fuel may remain in the tank for a long time and
undergo changes in quality depending on the how the vehicle is used.
Refuel at least 5.3 gal. (20 L, 4.4 Imp.gal.) of fuel every 6 months (refuel a
total of at least 5.3 gal. [20 L, 4.4 Imp.gal.] over a 6-month period), as this
may affect components of the fuel system or the gasoline engine.

625
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47787U_(U)
Tire information
Ty p i c a l t i r e s y m b o l s
Tire size (→P. 6 2 7 )
DOT and Tire Identification Number (TIN) (→P. 6 2 6 )
Location of treadwear indicators (→P. 4 7 6 )
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the
strands which form the plies in a tire.
Summer tires or all season tires (→P. 4 8 1 )
An all season tire has “M+S” on the sidewall. A tire not marked
“M+S” is a summer tire.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked
“RADIAL” is a bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the
tire. A tube type tire has a tube inside the tire and the tube main-
tains the air pressure.

626
6-1. Specifications
PRIUS PHV_OM_OM47787U_(U)

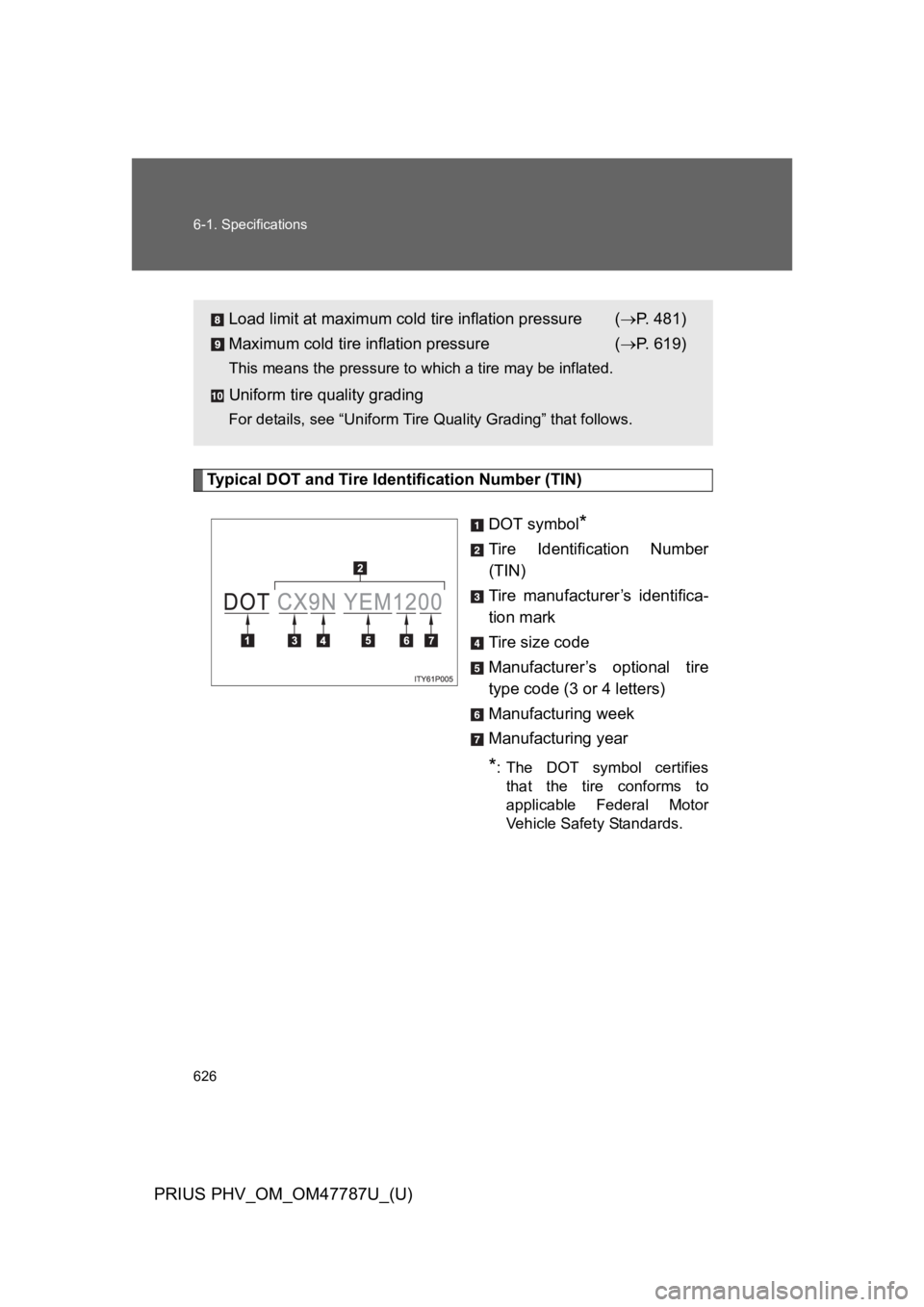

Ty p i c a l D O T a n d T i r e I d e n t i f i c a t i o n N u m b e r ( T I N )
DOT symbol*
Tire Identification Number
(TIN)
Tire manufacturer ’s identifica-
tion mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
*:The DOT symbol certifies
that the tire conforms to
applicable Federal Motor
Ve h i c l e S a f e t y Sta n d a r d s .
Load limit at maximum cold tire inflation pressure (→P. 4 8 1 )
Maximum cold tire inflation pressure (→P. 6 1 9 )
This means the pressure to which a tire may be inflated.
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.

627
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47787U_(U)
Tire size
■Ty p i c a l t i r e s i z e i n f o r m a t i o n
The illustration indicates typical tire size.
Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol
(alphabet with one letter)
■Tire dimensions
Section width
Tire height
Wheel diameter

628
6-1. Specifications
PRIUS PHV_OM_OM47787U_(U)

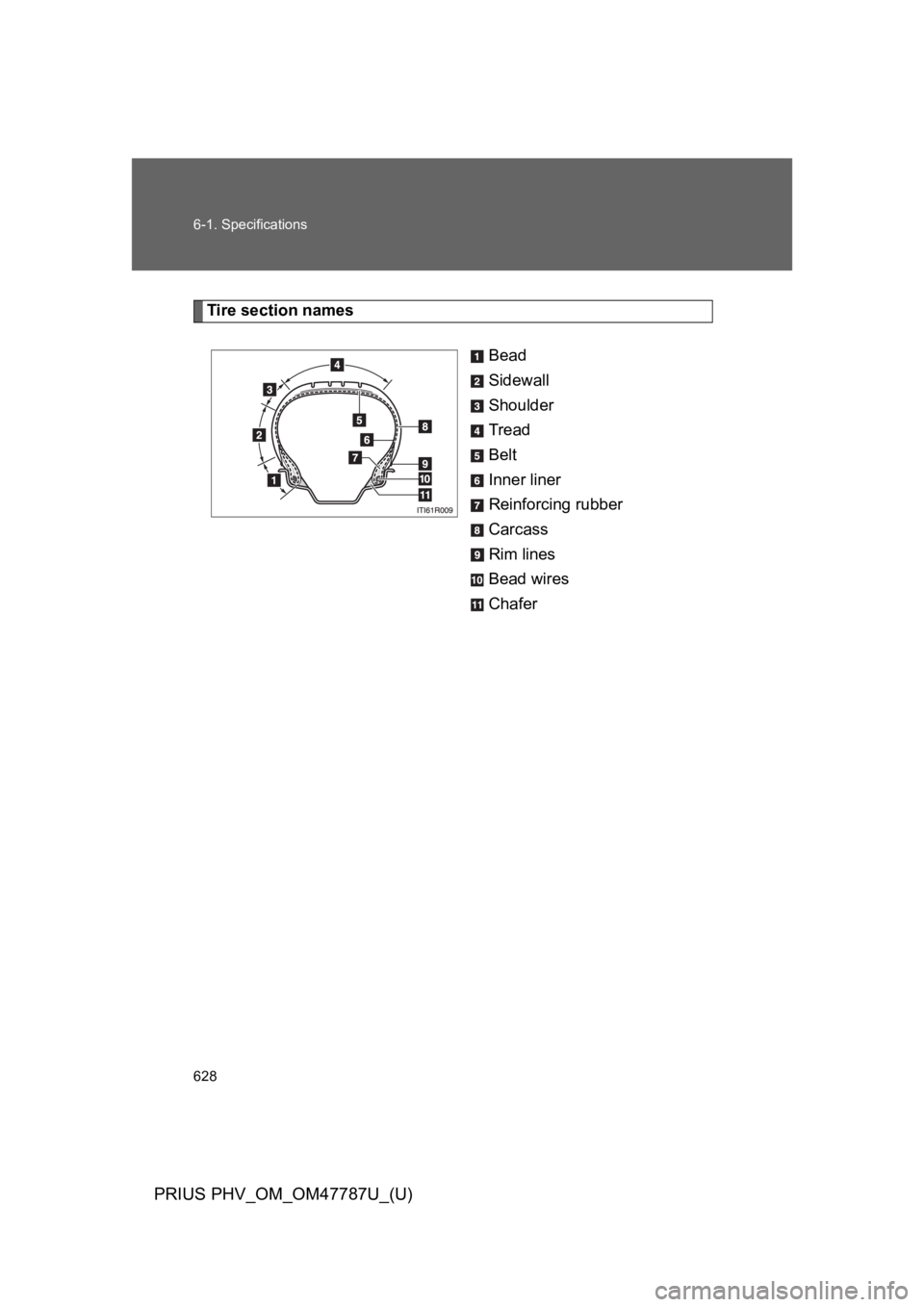

Tire section names
Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
