TOYOTA PRIUS PLUG-IN HYBRID 2013 1.G Owners Manual

391
3-4. Using the
storage features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
Auxiliary boxes
Ty p e A
Ty p e B Push the lid.
The overhead console is useful
for temporarily storing small
items.
CAUTION
■While driving
Do not leave the overhead console open.
Items may fall out and cause injury.
■ Maximum storage weight
Do not place any object heavier than 0.4 lb. (200 g) in it. The console may
be opened and cause injury.
Auxiliary boxes

392
PRIUS PHV_OM_OM47787U_(U)
3-5. Other interior features

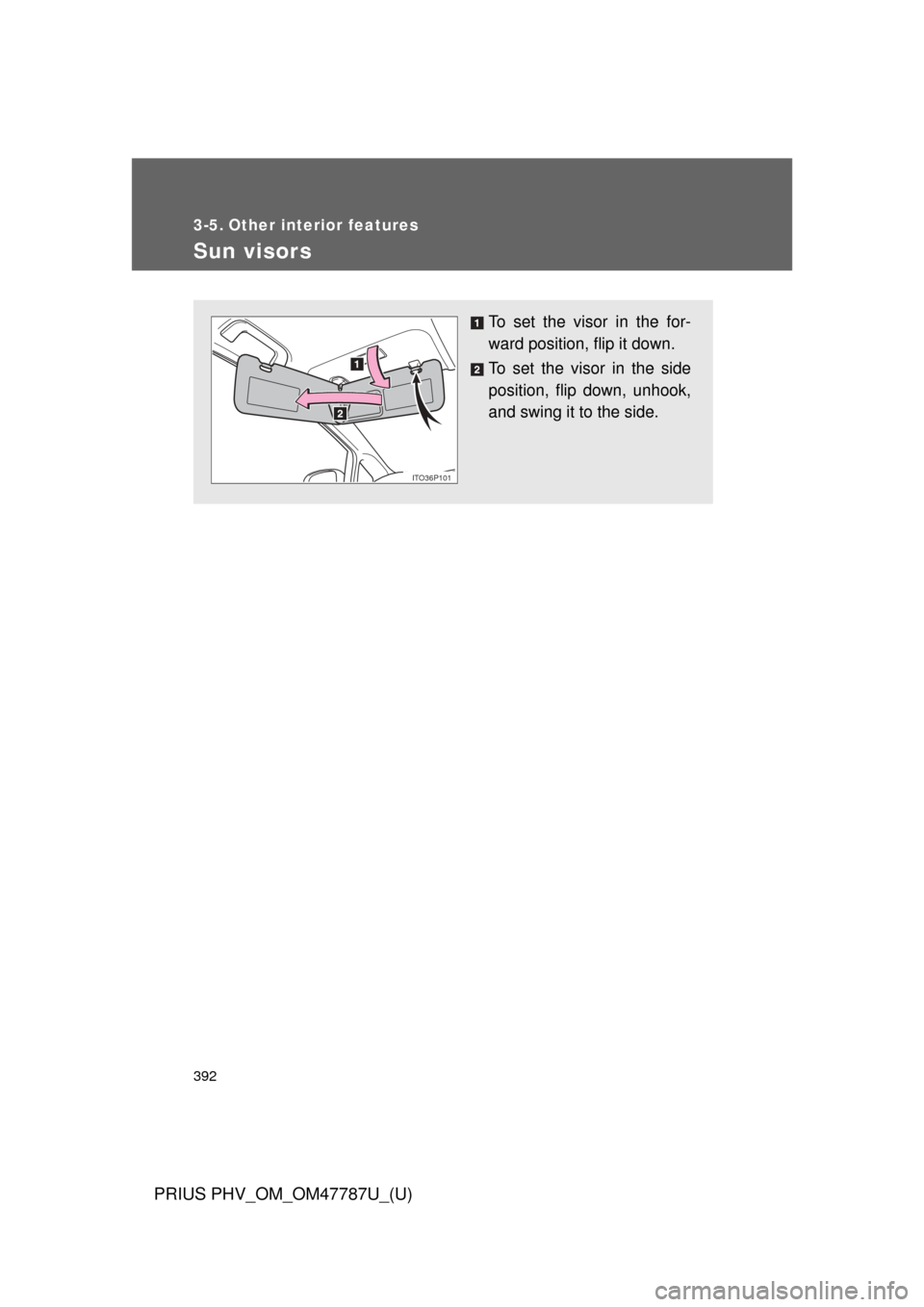

Sun visors
To set the visor in the for-
ward position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.
ITO36P101

393
3-5. Other interior features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
Vanity mirrors
NOTICE
■To prevent 12-volt battery discharge
Do not leave the vanity lights on for extended periods while the hybrid sys-
tem is off.
Slide the cover to open.
The light turns on when the
cover is opened.
ITO36P103

394
3-5. Other interior features
PRIUS PHV_OM_OM47787U_(U)
Outside temperature display
■Operating conditions
The “POWER” switch is in ON mode.
■ Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
● When stopped, or driving at low speeds (less than 16 mph [25 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
■ When -- is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
The displayed temperature ranges fr om -40 °F (-40 °C) up to 122 °F
(50 °C).

395
3-5. Other interior features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
Power outlets
■The power outlets can be used when
The “POWER” switch is in ACCESSORY or ON mode.
The power outlets can be used for 12 V accessories that run on less
than 10 A.
Instrument panel
Open the cover.
Rear console box Open the cover.

396 3-5. Other interior features
PRIUS PHV_OM_OM47787U_(U)
NOTICE
■To avoid damaging the power outlets
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
■ To prevent 12-volt battery discharge
Do not use the power outlets longer than necessary when the hybrid system
is off.

397
3-5. Other interior features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
Seat heaters
■The seat heaters can be used when
The “POWER” switch is in ON mode.
■ When not in use
Turn the seat heater off.
Heats the left front seat
Heats the right front seat
HI: Strong
LO: Weak
The indicator light of the side you
pressed (“HI” or “LO”) comes on.
To stop operation, gently press
the side of the button opposite the
side that was pressed.
The switch will return to its neutral
position and the indicator light will
go out.

398 3-5. Other interior features
PRIUS PHV_OM_OM47787U_(U)
CAUTION
■Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
● Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
■To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
■ To prevent 12-volt battery discharge
Turn the seat heaters off when the hybrid system is off.

399
3-5. Other interior features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
: If equipped
Pull the armrest down for use.
ITO36P111

400
3-5. Other interior features
PRIUS PHV_OM_OM47787U_(U)
Assist grips
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the cei ling can be used to support your
body while sitting on the seat.
