sensor TOYOTA PRIUS PLUG-IN HYBRID 2014 1.G Owner's Manual

341
2-4. Using other
driving systems
PRIUS PHV_OM_OM47856U_(U)
2
When driving
■Obstacles not detected
The sensor cannot detect plastic obstacles such as traffic cones. There may
also be occasions when the sensor cannot detect pedestrians, animals,
bicycles, motorcycles, trees, or snowdrifts.
■ Situations in which the pre-collis ion system does not function properly
The system may not function effectively in situations such as the following:
● On roads with sharp bends or uneven surfaces
● If a vehicle suddenly moves in front of your vehicle, such as at an inter-
section
● If a vehicle suddenly cuts in front of your vehicle, such as when overtak-
ing
● In inclement weather such as heavy rain, fog, snow or sand storms
● When your vehicle is skidding with the VSC system off
● When an extreme change in vehicle height occurs
● When the axis of the radar is out of adjustment
■ Automatic cancelation of the pre-collision system
When a malfunction occurs due to sensor contamination, etc. that results in
the sensors being unable to detect obstacles, the pre-collision system will be
automatically disabled. In this case, the system will not activate even if there
is a collision possibility.
■ When there is a malfunction in the system, or if th e system is tempo-
rarily unusable
Warning lights and/or warning messages will turn on or flash. ( P. 538, 550)

344 2-4. Using other driving systems
PRIUS PHV_OM_OM47856U_(U)
CAUTION
■When the sensor may not be correctly detecting the vehicle ahead
Apply the brakes as necessary in any of the following situations.
●When water or snow thrown up by the surrounding vehicles hinders the
functioning of the sensor
● When your vehicle is pointing upwards (caused by a heavy load in the lug-
gage compartment etc.)
● Vehicles that cut in suddenly
● Vehicles with small rear ends (trailers with no load on board etc.)
● Motorcycles traveling in the same lane
■ Handling the radar sensor
Observe the following to ensure the pre-collision system can function effec-
tively:
●Keep the sensor and grille cover clean at all times.
Clean the sensor and grille cover with a soft cloth so you do not mark or
damage them.
● Do not subject the sensor or surrounding area to a strong impact.
If the sensor moves even slightly off position, the system may become
inaccurate or malfunction. If the sensor or surrounding area is subject to a
strong impact, always have the area inspected and adjusted by your Toy-
ota dealer.
● Do not disassemble the sensor.
● Do not attach accessories or stickers to the sensor, grille cover or sur-
rounding area.
● Do not modify or paint the sensor and grille cover.

506 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
FUSEAmpereCircuit
14 STOP 10A Stop lights, high mounted stop-
light, brake system, driver support
system, vehicle proximity notifica-
tion system
15 P FR DOOR 25A Power windows
16 D FR DOOR 25A Power windows
17 DOOR RR 25A Power windows
18 DOOR RL 25A Power windows
19 S/ROOF 30A No circuit
20 ECU-IG NO.1 10A Electric cooling fans, multiplex
communication system, vehicle
proximity notification system
21 ECU-IG NO.2 10A Driver support system, Pre-Colli-
sion System, inside rear view mir-
ror, garage door opener, yaw rate
& G sensor, brake system, naviga-
tion system, tire pressure warning
system, seat belt pretensioners,
audio system, emergency flash-
ers, turn signal lights, windshield
wipers, headlight cleaner
22 GAUGE 10AHeadlight leveling system, gauges
and meters
23 A/C 10AAir conditioning system, Remote
Air Conditioning System
24 WASHER 15A Windshield washer

507
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care
FUSEAmpereCircuit
25 RR WIP 20A Rear window wiper and washer
26 WIP 30A Windshield wipers
27 MET 7.5A Gauges and meters
28 IGN 10ABrake system, driver support sys-
tem, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, SRS airbag sys-
tem, front passenger occupant
classification system (ECU and
sensors), power management sys-
tem, smart key system, front pas-
senger’s seat belt reminder light
29 PANEL 10AAir conditioning system, personal
light, transmission, P position
switch, navigation system, Remote
Air Conditioning System, headlight
cleaner, front passenger’s seat
belt reminder light, headlight level-
ing system, glove box light, clock,
audio system, MPH or km/h switch
30 TAIL 10AHeadlight leveling system, park-
ing lights, tail lights, license plate
lights, front fog lights, side marker
lights

5
When trouble arises
541
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
*1: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is
not fully closed (with the vehicle hav ing reached a speed of 3 mph [5 km/h]).
*2: Seat belt warning buzzer:
The driver’s and front passenger’s seat belts reminder sounds to alert the
driver and front passenger that his or her seat belt is not fastened. The
buzzer sounds intermittently for 10 seconds after the vehicle has reached a
speed of at least 12 mph (20 km/h). Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone for 20 more seconds.
■ SRS warning light
This warning light system monitors the airbag sensor assembly, front impact
sensors, side impact sensors (front), si de impact sensors (rear), driver’s seat
position sensor, driver’s seat belt buckle switch, front passenger occupant
classification system (ECU and sensors), “AIR BAG ON” indicator light, “AIR
BAG OFF” indicator light, front passenger’s seat belt buckle switch, seat belt
pretensioner assemblies, airbags, interconnecting wiring and power
sources. ( P. 187)
■ Front passenger occupant classifi cation system (ECU and sensors),
seat belt reminder and warning buzzer
● If luggage is placed on the front passenger seat, the front passenger
occupant classification system (ECU and sensors) may cause the warn-
ing light to flash and the warning buzzer to sound even if a passenger is
not sitting in the seat.
● If a cushion is placed on the seat, the front passenger occupant classifi-
cation system (ECU and sensors) may not detect a passenger, and the
warning light may not operate properly.

5
When trouble arises

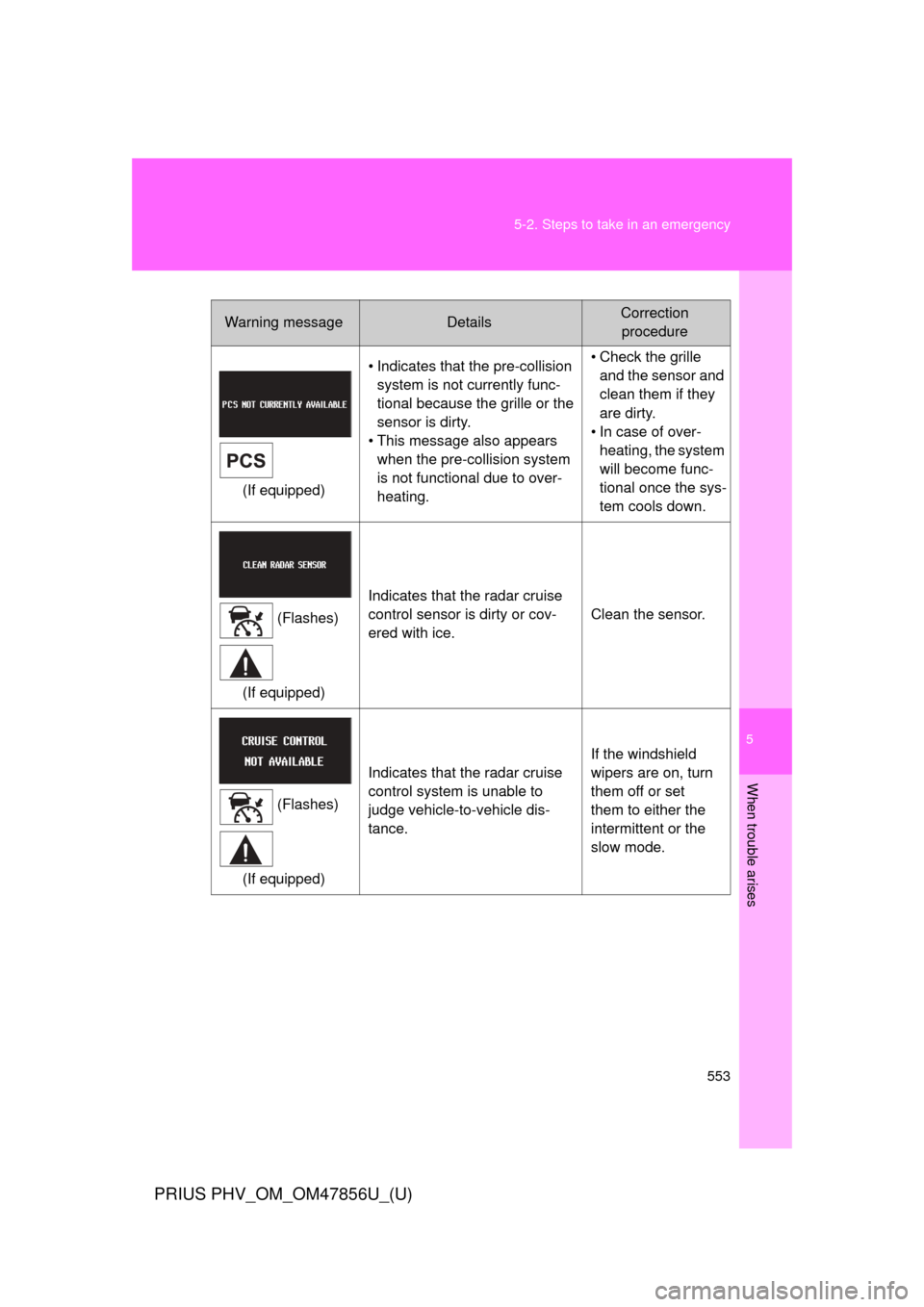

553
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Warning messageDetailsCorrection
procedure
(If equipped) • Indicates that the pre-collision
system is not currently func-
tional because the grille or the
sensor is dirty.
• This message also appears when the pre-collision system
is not functional due to over-
heating. • Check the grille
and the sensor and
clean them if they
are dirty.
• In case of over- heating, the system
will become func-
tional once the sys-
tem cools down.
(Flashes)
(If equipped) Indicates that the radar cruise
control sensor is dirty or cov-
ered with ice.
Clean the sensor.
(Flashes)
(If equipped) Indicates that the radar cruise
control system is unable to
judge vehicle-to-vehicle dis-
tance.
If the windshield
wipers are on, turn
them off or set
them to either the
intermittent or the
slow mode.

646 6-2. Customization
PRIUS PHV_OM_OM47856U_(U)
*: This function cannot be customized for vehicles sold in Canada.
ItemFunctionDefault set-tingCustom-ized
setting
Door lock
( P. 138,
594) Unlocking using
a key
Driver’s
door
unlocked in 1-step, all doors
unlocked in 2-step All doors
unlocked in 1-step –OO
Speed-detecting
automatic door
lock function OFF ON OOO
Shifting the shift
position to any
position other
than P locks all
doors ON OFF O O O
Shifting the shift
position to P
unlocks all doors ON OFF O O O
Opening driver’s
door unlocks all
doors OFF ON – O O
Automatic
light control
system
( P. 294) Light sensor
sensitivity
Level 3Levels 1 to
5 OOO
Time elapsed
before head-
lights automati-
cally turn off after
doors are closed 30 seconds
0 seconds
OOO
60 seconds
90 seconds
Daytime running
lights
*ON OFF O O O

648 6-2. Customization
PRIUS PHV_OM_OM47856U_(U)
ItemFunctionDefault set-tingCustom-ized
setting
Meter and
instrument
panel
( P. 259) Sensor sensitiv-
ity for darkening
the brightness of
the meter, navi-
gation system
and instrument
panel depend-
ing on the out-
side brightness
0 -2 to +2 – – O
Sensor sensitiv-
ity for returning
the brightness of
the meter, navi-
gation system
and instrument
panel to the orig-
inal level
depending on
the outside
brightness 0 -2 to +2 – – O
Automatic
air
conditioning
system
( P. 360) Enable/disable
automatic
operation of the
air conditioning
compressor
when the
“AUTO” switch
ON
ON OFF – O O
Heating/cooling
operation mini-
mized in Eco
drive mode ON OFF – – O

681
Alphabetical index
PRIUS PHV_OM_OM47856U_(U)
Switch
Audio remote control switches
*
Cruise control switch ............ 310
Driving mode selectswitch ................................. 249
Eco drive mode switch ......... 249
Emergency flasher switch .... 526
EV/HV mode selection switch ................................... 37
Fog light switch..................... 300
Fuel filler door opener switch ................................. 178
Hazard light switch ............... 526
Headlight cleaner switch ...... 309
Ignition switch ....................... 240
Light switches ....................... 294
Power door lock switch......... 138
“POWER” switch .................. 240
Power window switch ........... 175
Pre-collision braking off switch ................................. 338
Talk switch
*
Telephone switch*
Window lock switch .............. 175
Wipers and washer switch.... 302 Tail lights
Switch....................................294
Talk switch
*
Telephone switch*
Theft deterrent system Immobilizer system ...............183
Tire inflation pressure .............489
Tire information Glossary ................................635
Size .......................................631
Tire identification number ......630
Uniform Tire Quality
Grading ...............................633
Tires Chains ...................................353
Checking ...............................479
If you have a flat tire ..............569
Inflation pressure...................489
Inflation pressure sensor .......480
Information ............................629
Replacing ..............................451
Rotating tires .........................479
Size .......................................623
Snow tires .............................351
Tire pressure warning
system ........................479, 540
