TOYOTA PRIUS PLUG-IN HYBRID 2014 1.G Owners Manual

451
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care

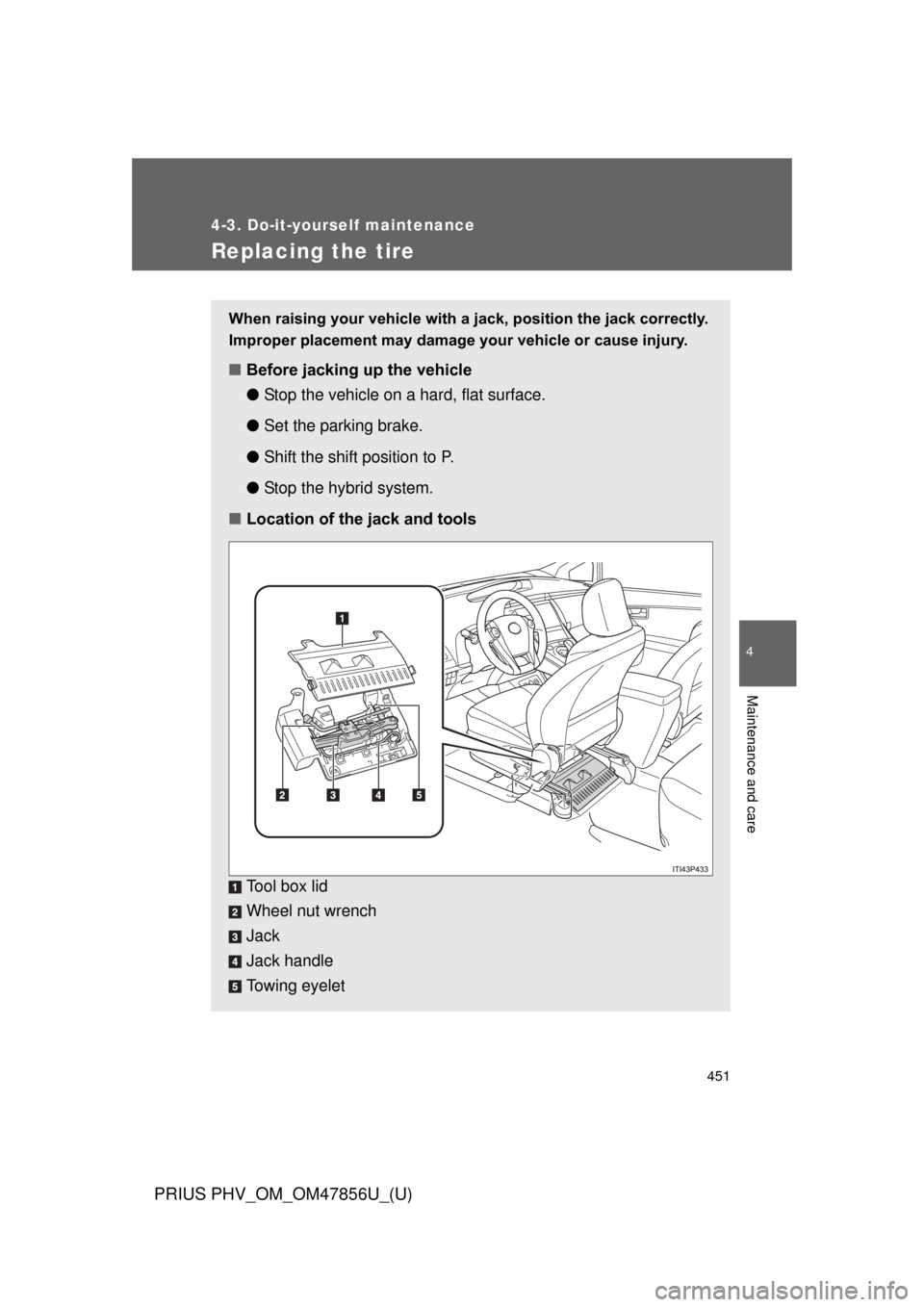

Replacing the tire
When raising your vehicle with a jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
■ Location of the jack and tools
Tool box lid
Wheel nut wrench
Jack
Jack handle
Towing eyelet

452 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)

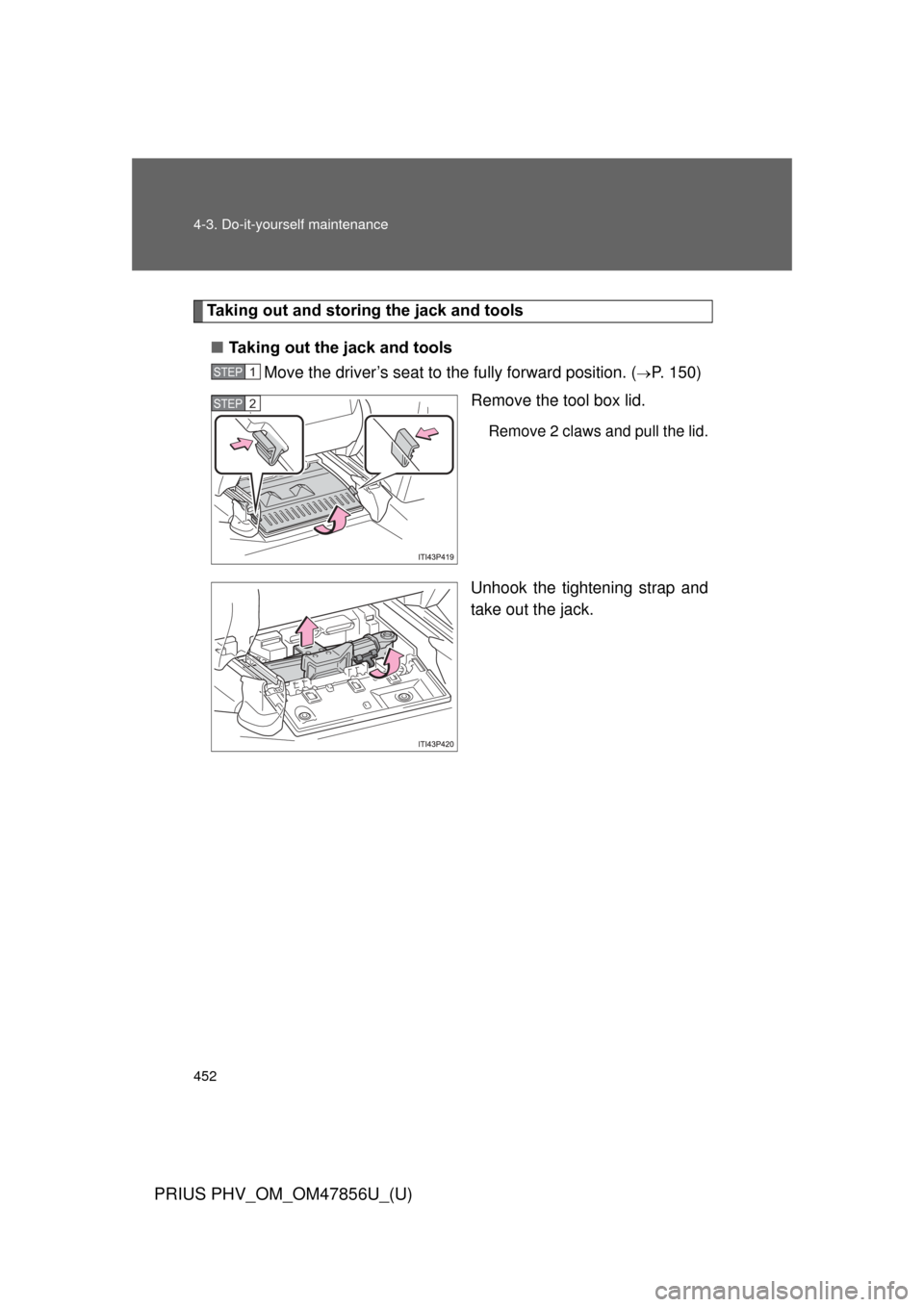

Taking out and storing the jack and tools■ Taking out the jack and tools
Move the driver’s seat to the fully forward position. (
P. 150)
Remove the tool box lid.
Remove 2 claws and pull the lid.
Unhook the tightening strap and
take out the jack.
STEP 1
STEP 2

453
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care

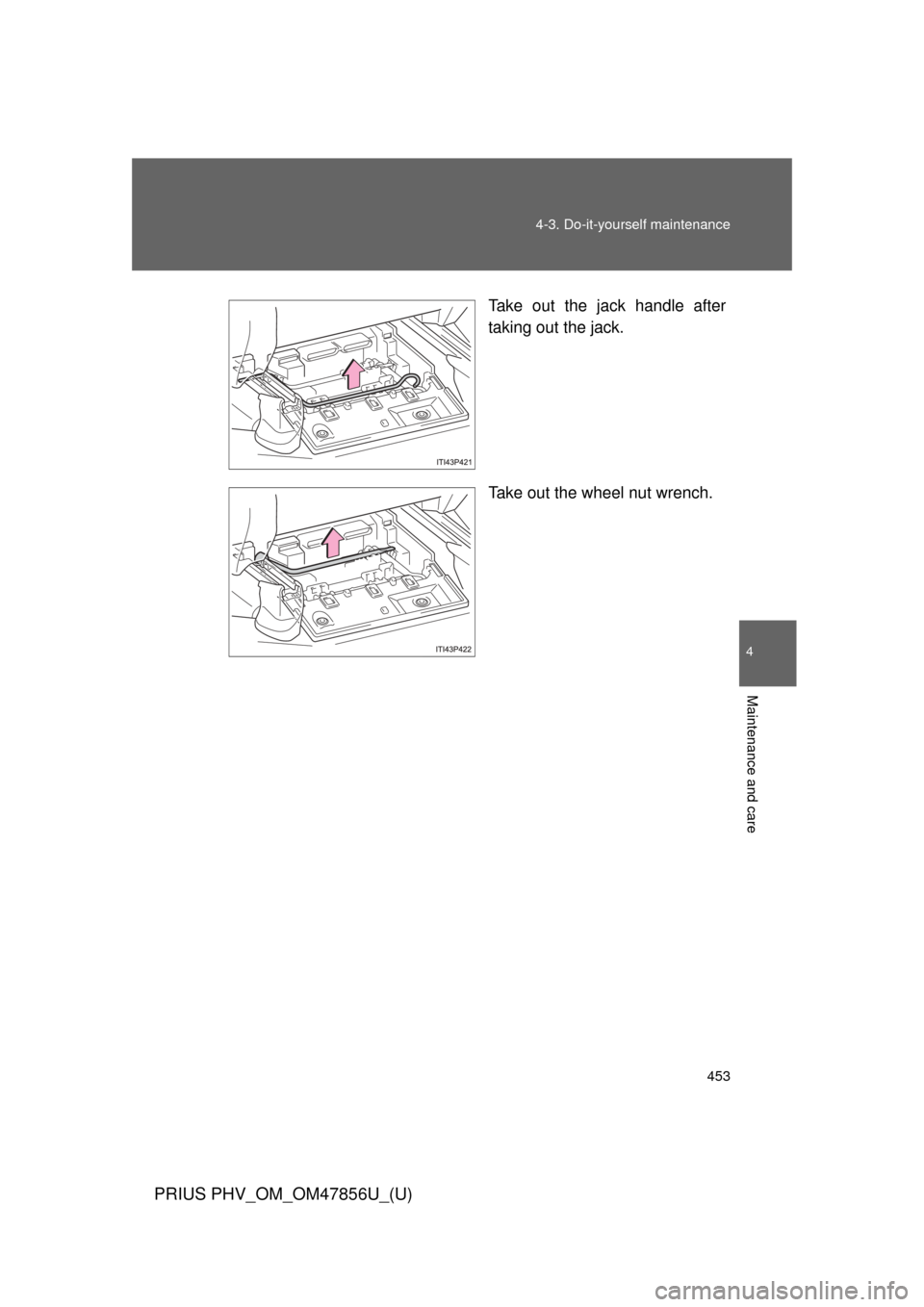

Take out the jack handle after
taking out the jack.
Take out the wheel nut wrench.

454 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)

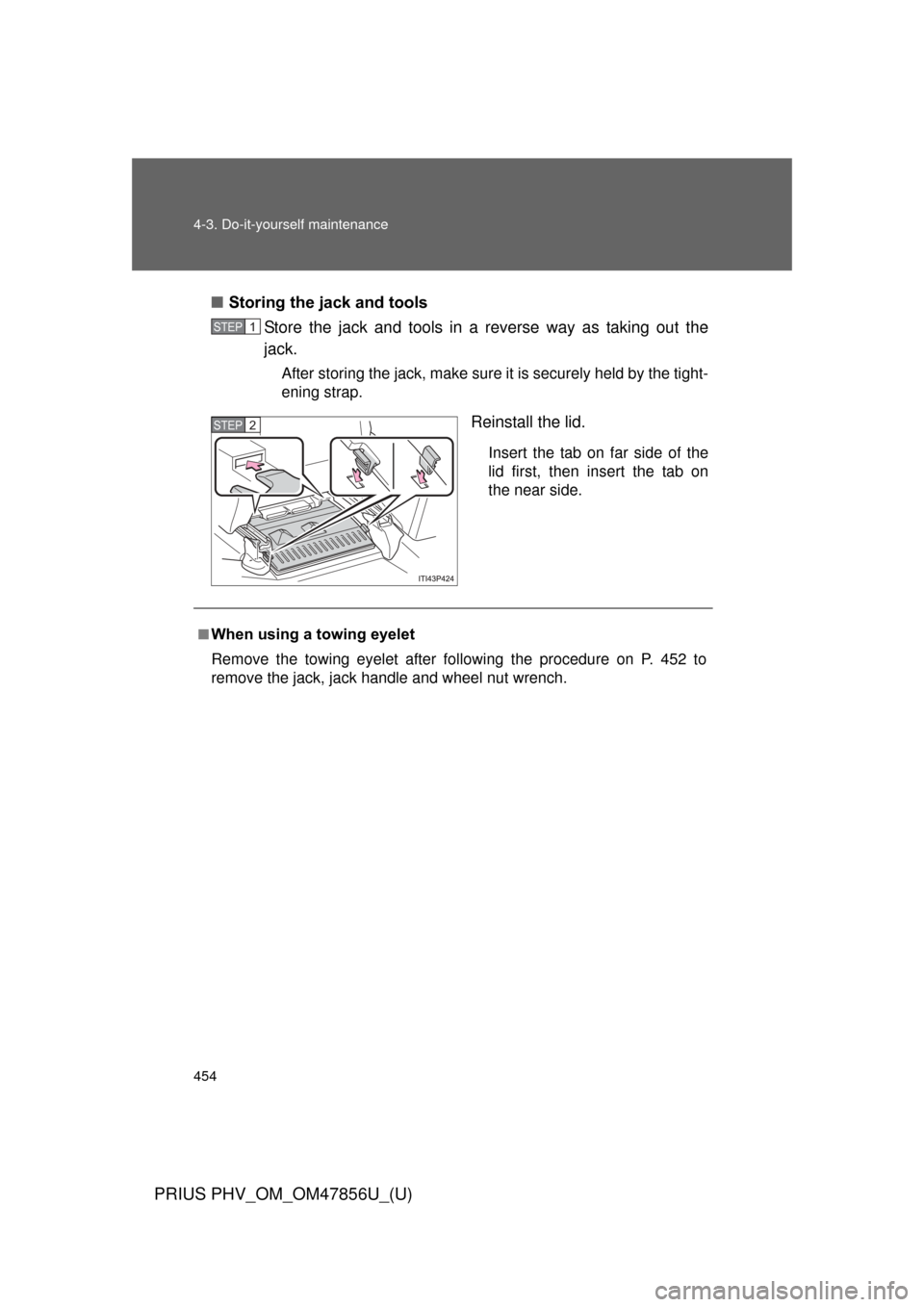

■Storing the jack and tools
Store the jack and tools in a reverse way as taking out the
jack.
After storing the jack, make sure it is securely held by the tight-
ening strap.
Reinstall the lid.
Insert the tab on far side of the
lid first, then insert the tab on
the near side.
STEP 1
STEP 2
■When using a towing eyelet
Remove the towing eyelet after following the procedure on P. 452 to
remove the jack, jack handle and wheel nut wrench.

455
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care

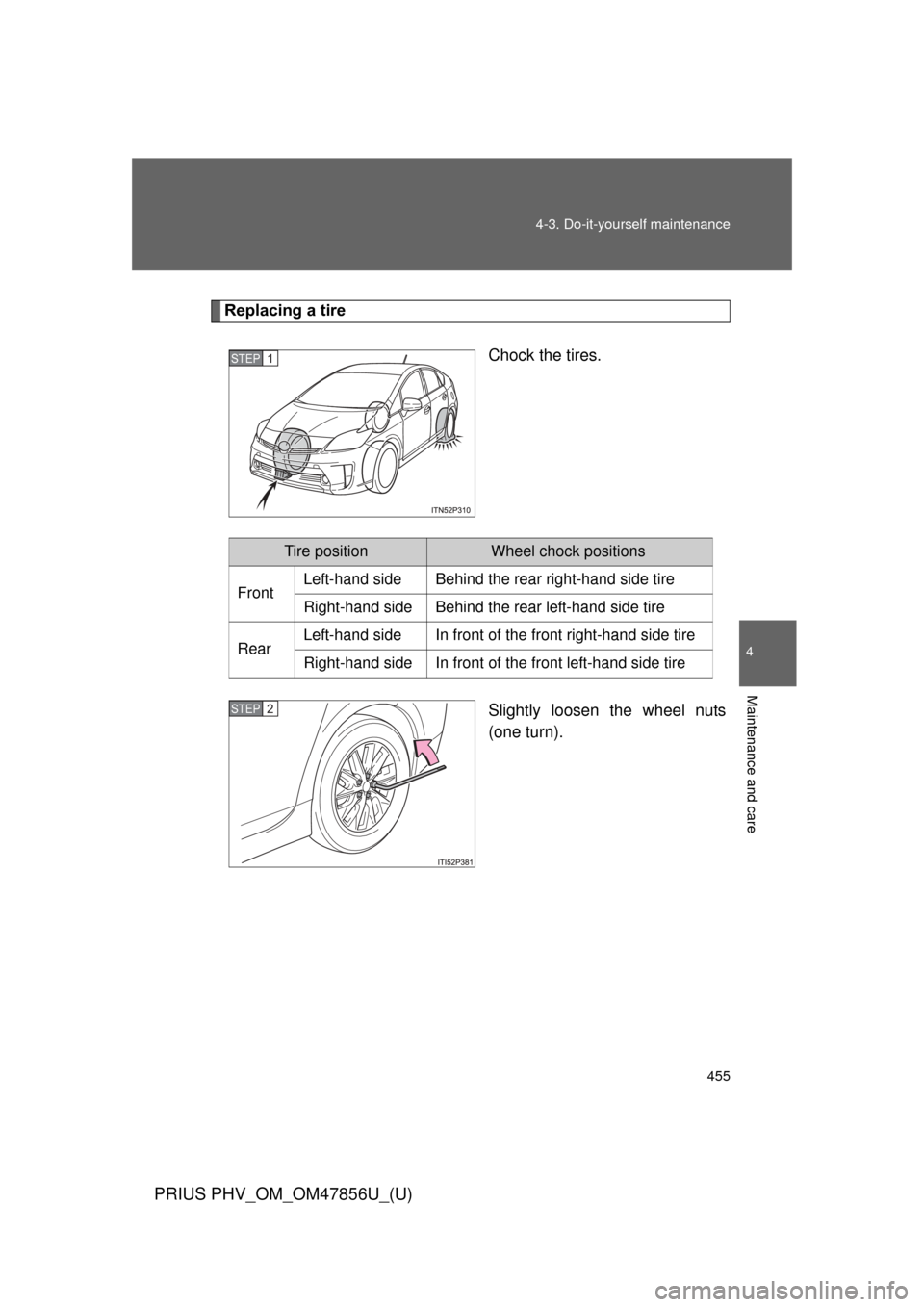

Replacing a tire
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
STEP 1
Tire positionWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
STEP 2

456 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)

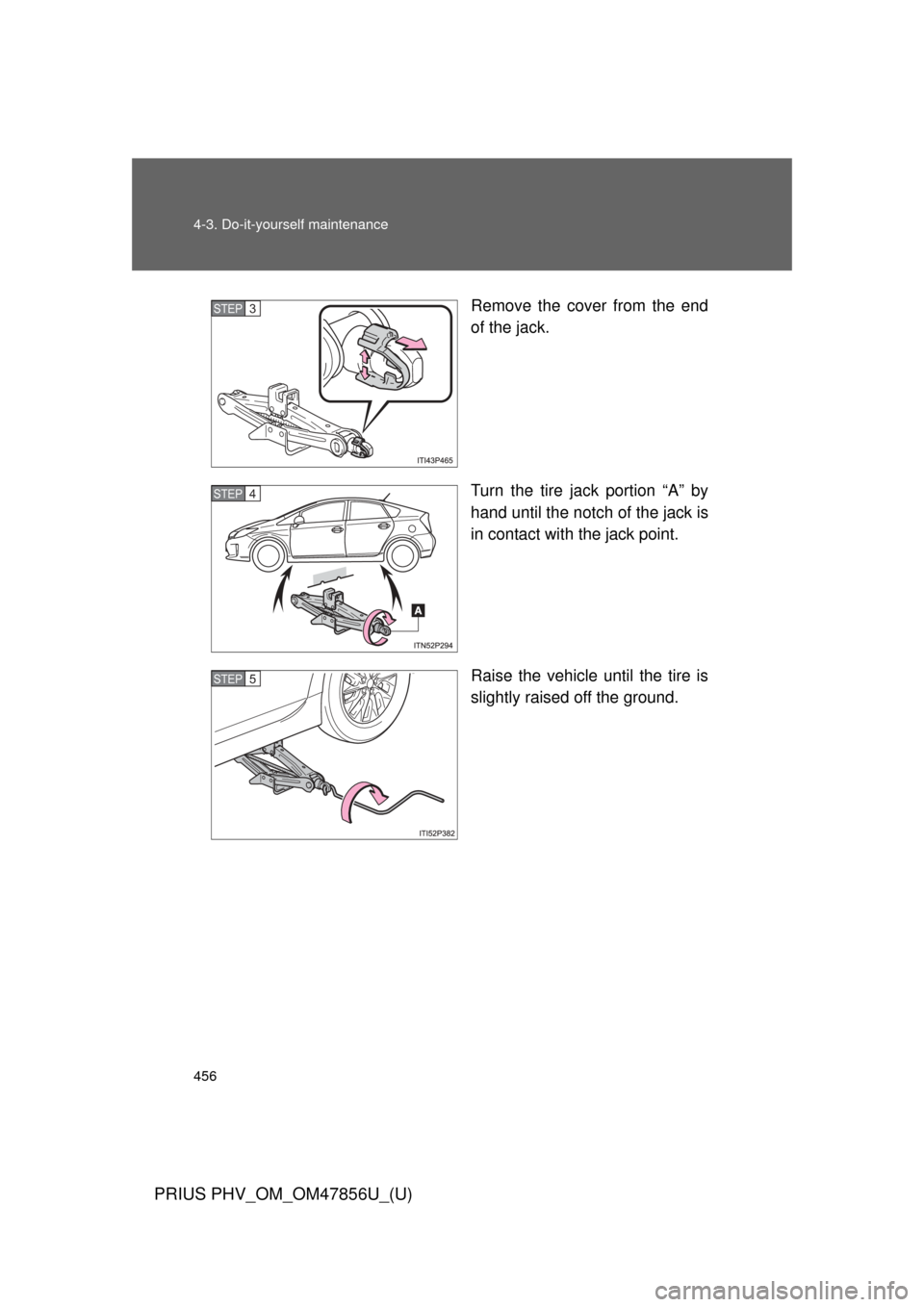

Remove the cover from the end
of the jack.
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.STEP 3
STEP 4
STEP 5

457
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care

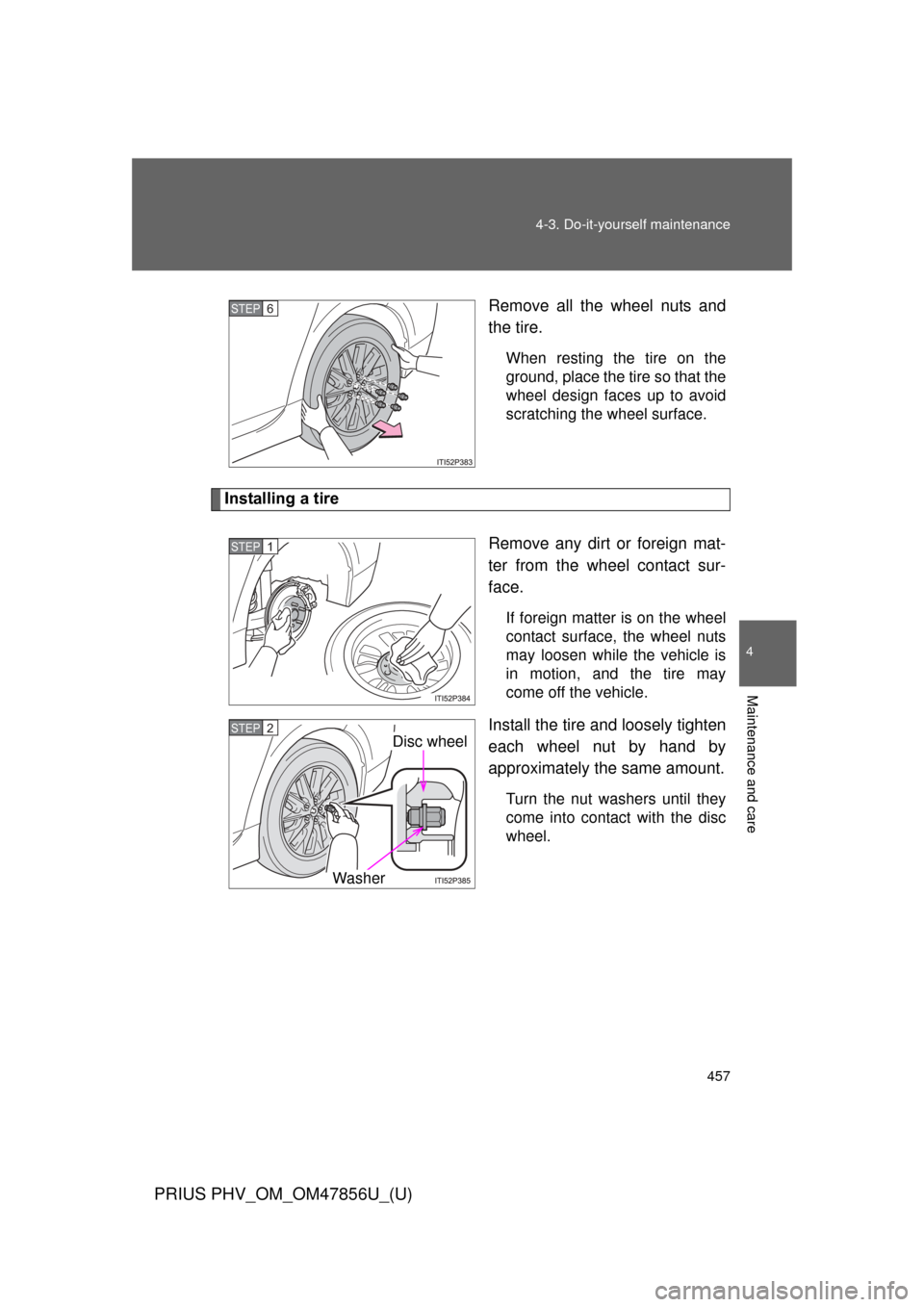

Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Installing a tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the tire and loosely tighten
each wheel nut by hand by
approximately the same amount.
Turn the nut washers until they
come into contact with the disc
wheel.
STEP 6
STEP 1
STEP 2 Disc wheel
Washer

458 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)

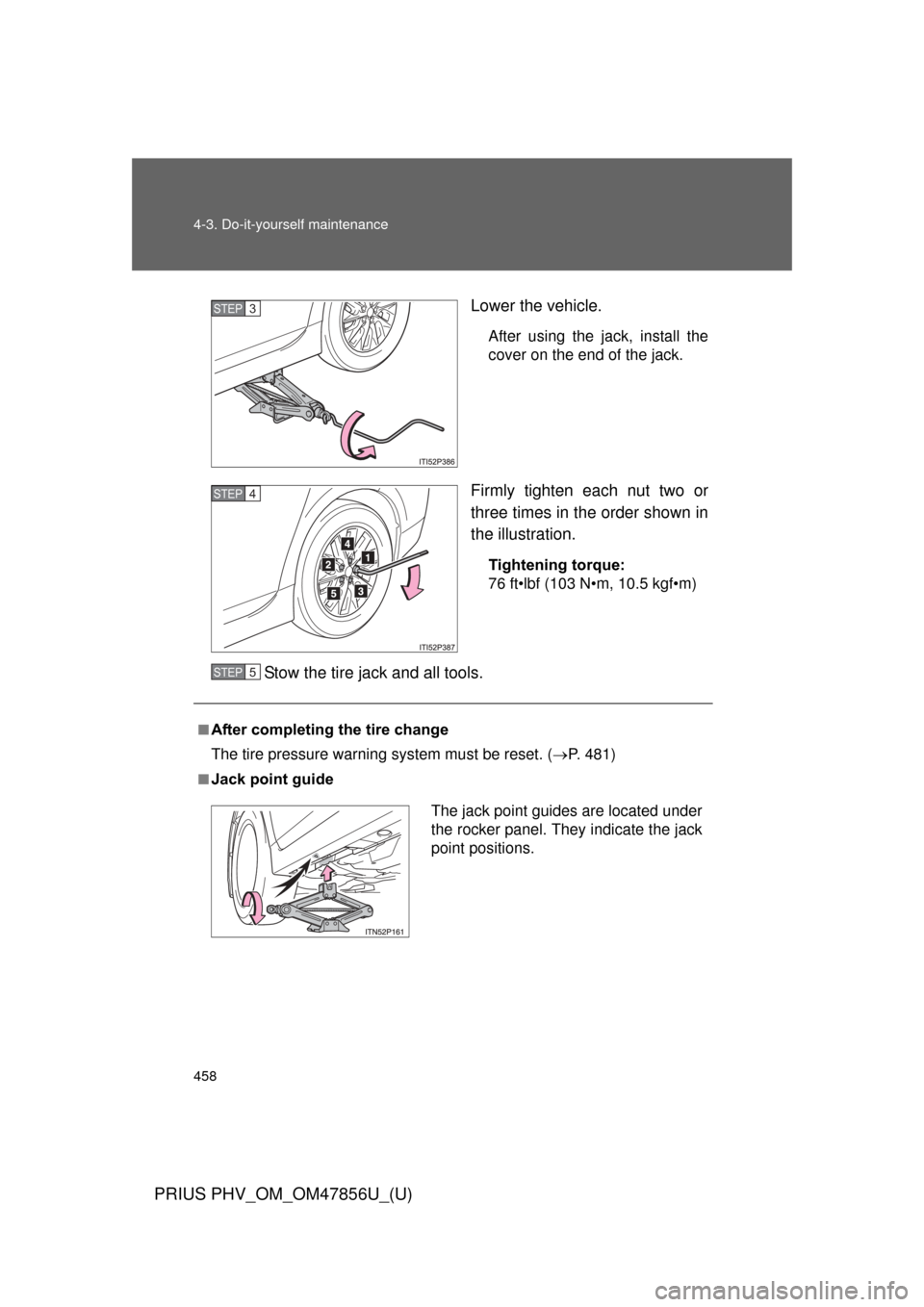

Lower the vehicle.
After using the jack, install the
cover on the end of the jack.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the tire jack and all tools.
STEP 3
STEP 4
■After completing the tire change
The tire pressure warning system must be reset. ( P. 481)
■Jack point guide
STEP 5
The jack point guides are located under
the rocker panel. They indicate the jack
point positions.

459
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care
CAUTION
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
Observe the following precautions:
●Do not use the tire jack for any pu
rpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes wi th this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body u nder the vehicle while it is supported
by the jack.
●Do not start or run the hybrid system while your vehicle is supported by
the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a hei ght greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.

460 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
CAUTION
■Replacing a tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifi- cally designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install the wheel nuts
with the tapered ends facing inward. ( P. 494)
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the po ssibility of personal injury during a
collision or sudden braking.
