ELECTRIC VEHICLE SYSTEM
The Prius Plug-in Hybrid system has features of both electric and hybrid vehicles.
Electricity received by charging from an external power source can be used to
supplement hybrid energy, and the vehicle can also be driven as an electric
vehicle using only the electric motor. The EV driving range can be extended by
using regenerative braking to store electricity in the traction battery.
Electric Vehicle System

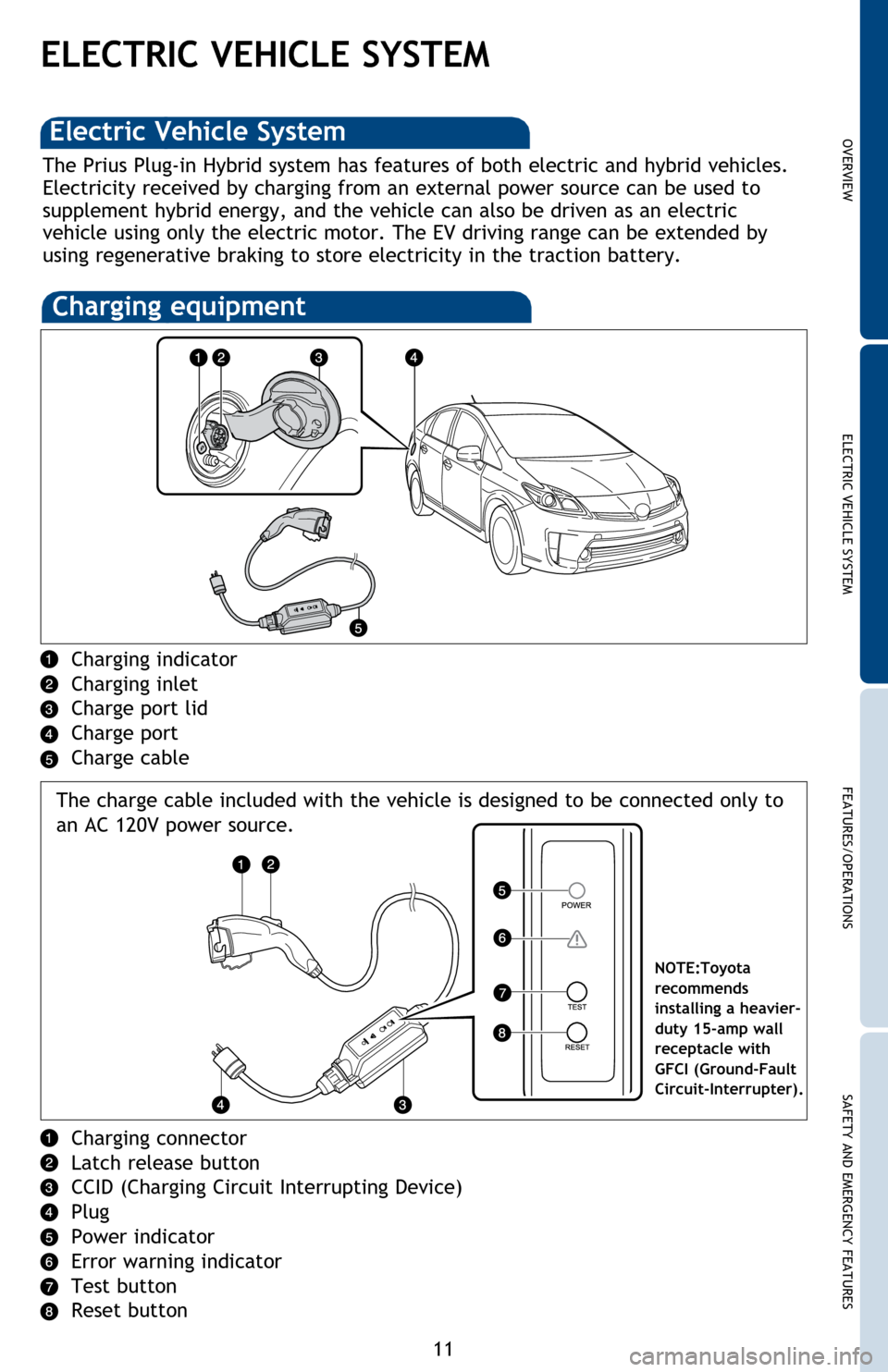

Charging indicator
Charging inlet
Charge port lid
Charge port
Charge cable
Charging equipment
Charging connector
Latch release button
CCID (Charging Circuit Interrupting Device)
Plug
Power indicator
Error warning indicator
Test button
Reset button
The charge cable included with the vehicle is designed to be connected only to
an AC 120V power source.
NOTE:Toyota
recommends
installing a heavier-
duty 15-amp wall
receptacle with
GFCI (Ground-Fault
Circuit-Interrupter).
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

20
FEATURES/OPERATIONS
Starting your vehicle
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition,
the engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are shown on the Multi-Information Display.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“POWER” switch OFF.
Refer to the Owner’s Manual for more details. (1) Depress the brake pedal, and
press the “POWER” switch
briefly and firmly.
(2) The “READY” light will blink. After a few seconds, when the
light remains steady and a beep
sounds, you may begin driving.

22
FEATURES/OPERATIONS
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
EV/HV Mode
EV Mode allows the electric motor (traction motor), powered by the hybrid battery
(traction battery), to be used to drive the vehicle under certain driving conditions.
EV Mode is the default Mode upon starting the vehicle if the battery has sufficient
charge. You can use the EV/HV button at any time to toggle between EV Mode and
hybrid mode.
Refer to the Owner’s Manual for more details.
Push
Angle
Length
Lock release lever
Parking brake
Set: Depress
Release: Depress again
