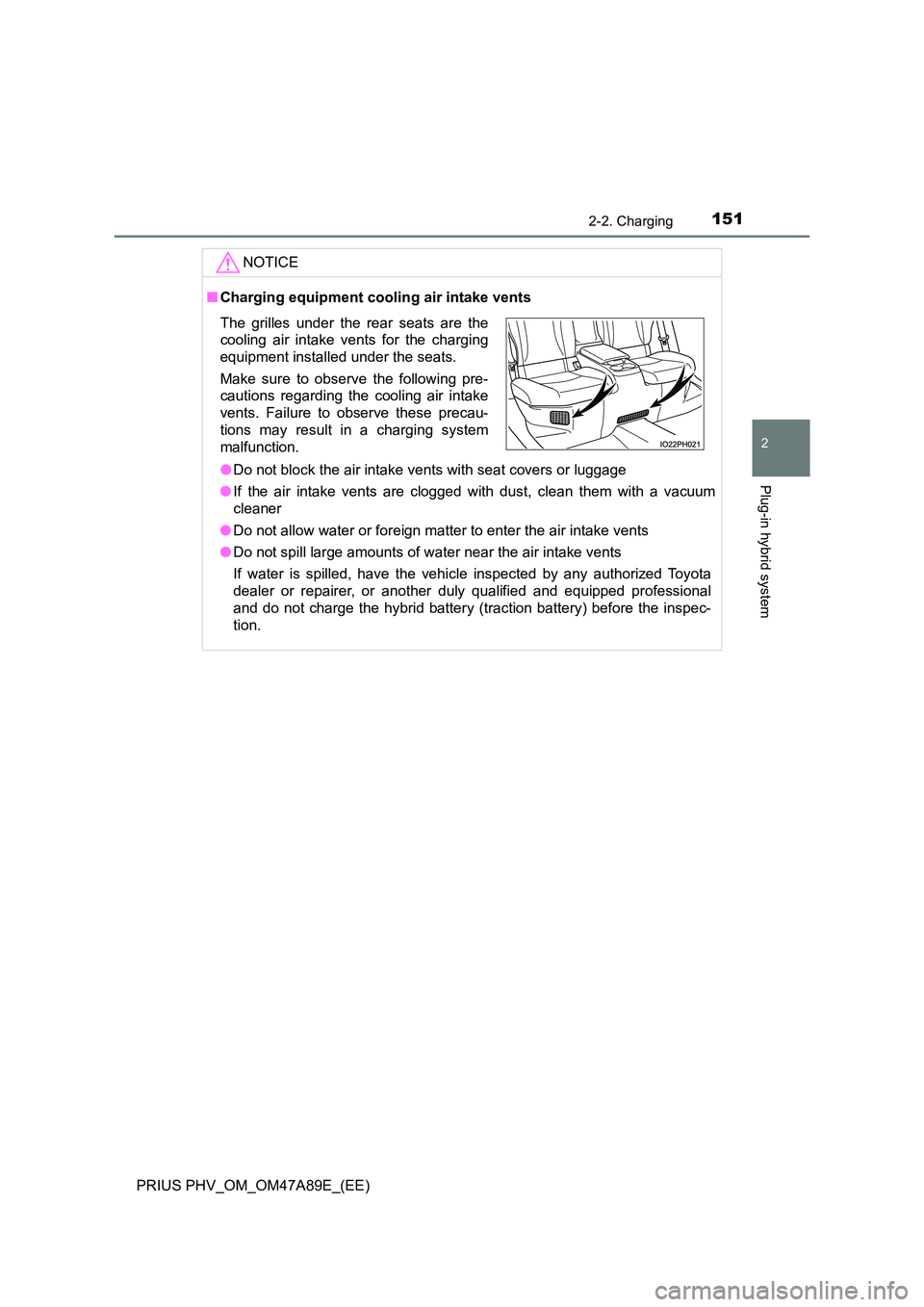

TOYOTA PRIUS PLUG-IN HYBRID 2016 Owners Manual

1512-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
NOTICE
■Charging equipment cooling air intake vents
● Do not block the air intake vents with seat covers or luggage
● If the air intake vents are clogged with dust, clean them with a vacuum
cleaner
● Do not allow water or foreign matter to enter the air intake vents
● Do not spill large amounts of water near the air intake vents
If water is spilled, have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional
and do not charge the hybrid battery (traction battery) before the inspec-
tion.
The grilles under the rear seats are the
cooling air intake vents for the charging
equipment installed under the seats.
Make sure to observe the following pre-
cautions regarding the cooling air intake
vents. Failure to observe these precau-
tions may result in a charging system
malfunction.

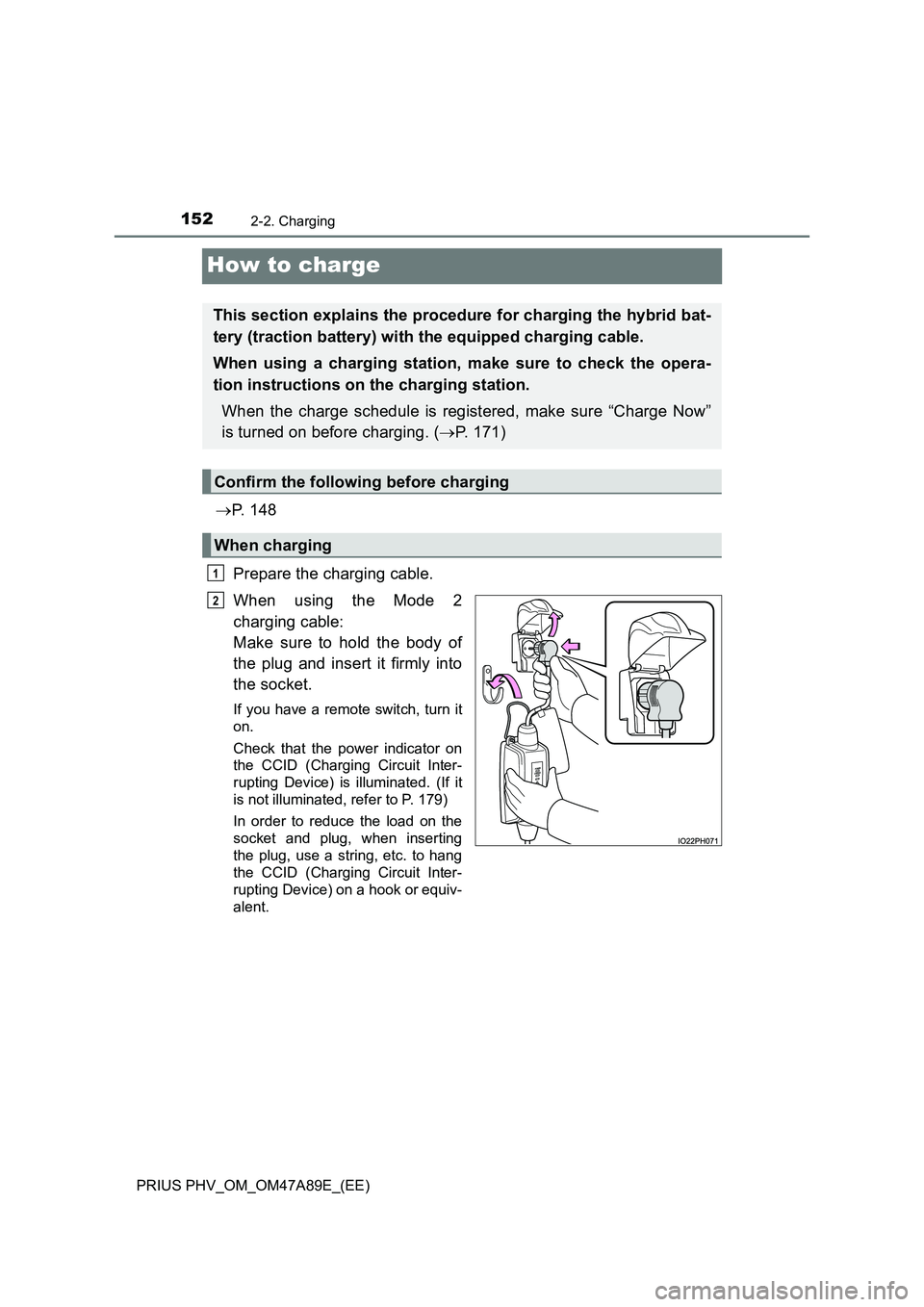

1522-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)
How to charge
P. 1 4 8
Prepare the charging cable.
When using the Mode 2
charging cable:
Make sure to hold the body of
the plug and insert it firmly into
the socket.
If you have a remote switch, turn it
on.
Check that the power indicator on
the CCID (Charging Circuit Inter-
rupting Device) is illuminated. (If it
is not illuminated, refer to P. 179)
In order to reduce the load on the
socket and plug, when inserting
the plug, use a string, etc. to hang
the CCID (Charging Circuit Inter-
rupting Device) on a hook or equiv-
alent.
This section explains the procedure for charging the hybrid bat-
tery (traction battery) with the equipped charging cable.
When using a charging station, make sure to check the opera-
tion instructions on the charging station.
When the charge schedule is registered, make sure “Charge Now”
is turned on before charging. ( P. 171)
Confirm the following before charging
When charging
1
2

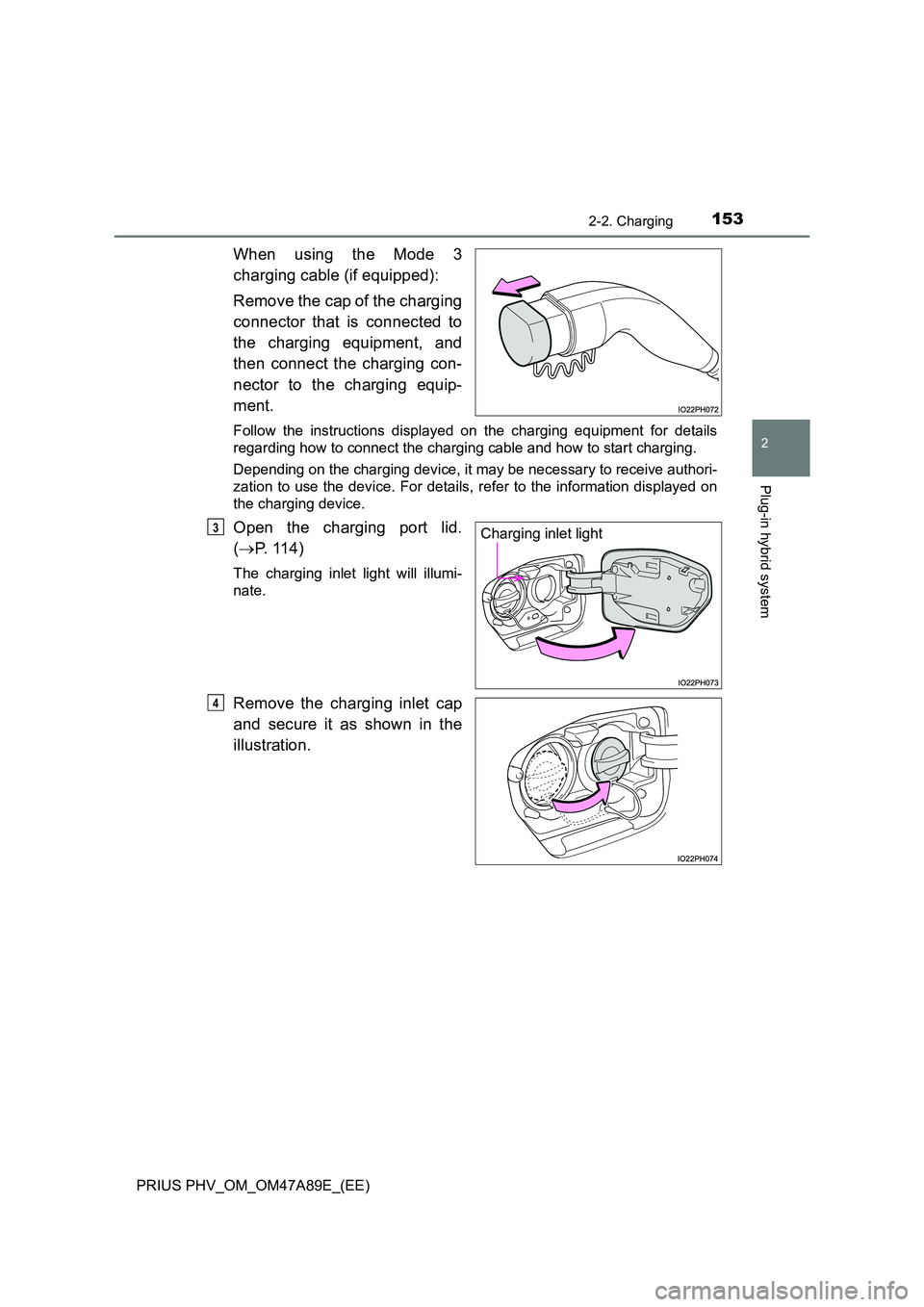

1532-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
When using the Mode 3
charging cable (if equipped):
Remove the cap of the charging
connector that is connected to
the charging equipment, and
then connect the charging con-
nector to the charging equip-
ment.
Follow the instructions displayed on the charging equipment for details
regarding how to connect the charging cable and how to start charging.
Depending on the charging device, it may be necessary to receive authori-
zation to use the device. For details, refer to the information displayed on
the charging device.
Open the charging port lid.
( P. 1 1 4 )
The charging inlet light will illumi-
nate.
Remove the charging inlet cap
and secure it as shown in the
illustration.
Charging inlet light3
4

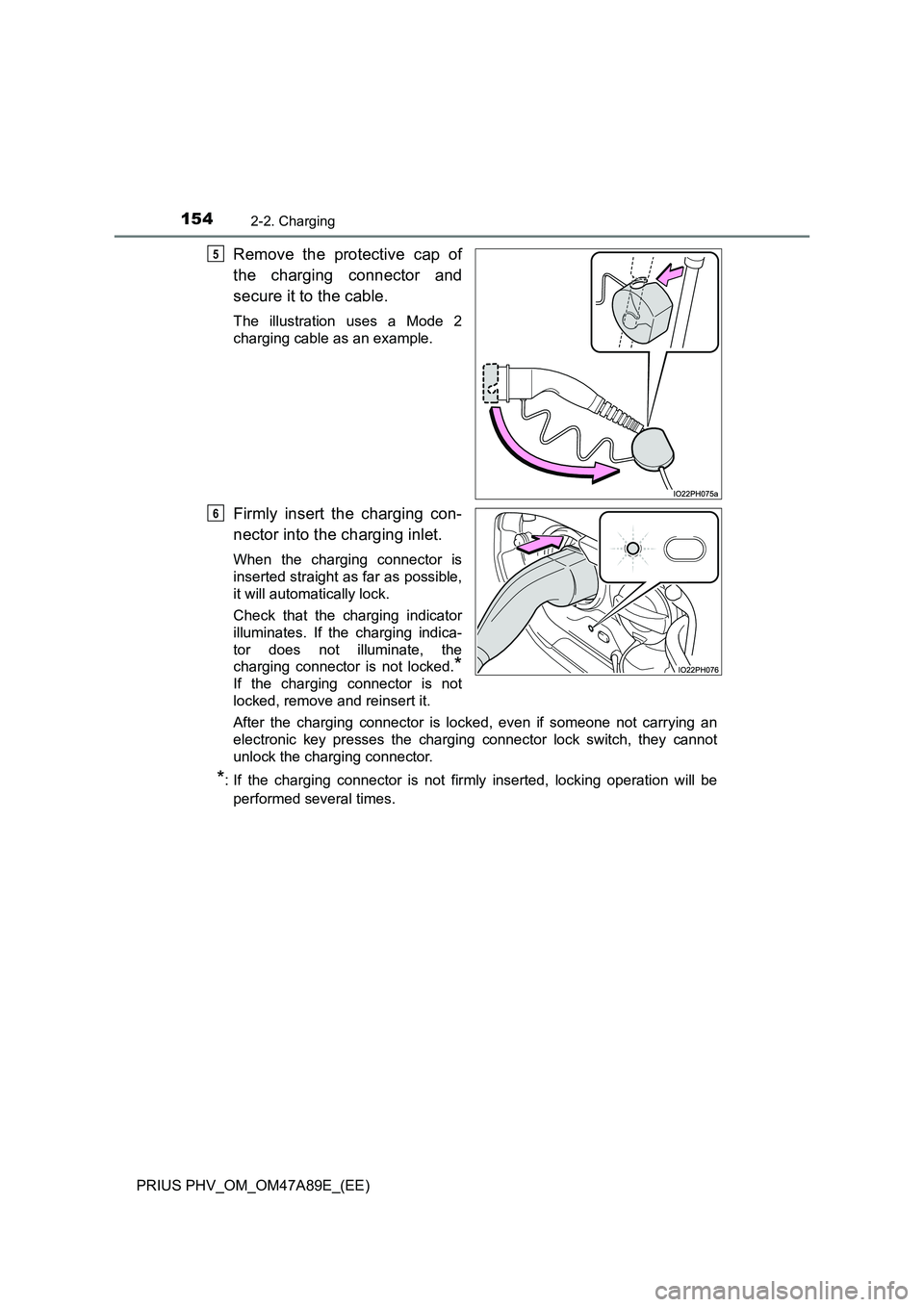

1542-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)
Remove the protective cap of
the charging connector and
secure it to the cable.
The illustration uses a Mode 2
charging cable as an example.
Firmly insert the charging con-
nector into the charging inlet.
When the charging connector is
inserted straight as far as possible,
it will automatically lock.
Check that the charging indicator
illuminates. If the charging indica-
tor does not illuminate, the
charging connector is not locked.
*
If the charging connector is not
locked, remove and reinsert it.
After the charging connector is locked, even if someone not carrying an
electronic key presses the charging connector lock switch, they cannot
unlock the charging connector.
*: If the charging connector is not firmly inserted, locking operation will be
performed several times.
5
6

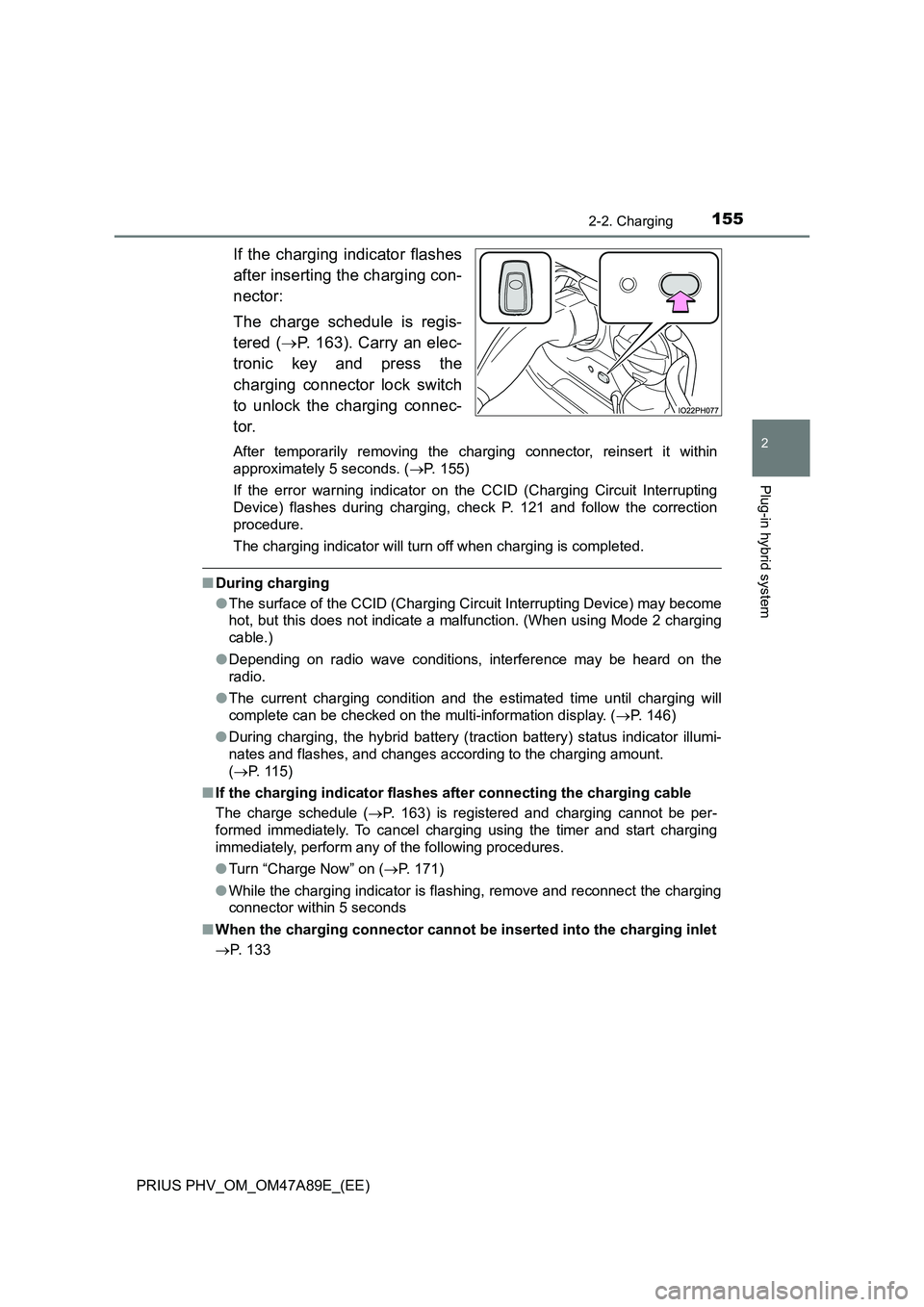

1552-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
If the charging indicator flashes
after inserting the charging con-
nector:
The charge schedule is regis-
tered (P. 163). Carry an elec-
tronic key and press the
charging connector lock switch
to unlock the charging connec-
tor.
After temporarily removing the charging connector, reinsert it within
approximately 5 seconds. (P. 155)
If the error warning indicator on the CCID (Charging Circuit Interrupting
Device) flashes during charging, check P. 121 and follow the correction
procedure.
The charging indicator will turn off when charging is completed.
■During charging
●The surface of the CCID (Charging Circuit Interrupting Device) may become
hot, but this does not indicate a malfunction. (When using Mode 2 charging
cable.)
●Depending on radio wave conditions, interference may be heard on the
radio.
●The current charging condition and the estimated time until charging will
complete can be checked on the multi-information display. (P. 146)
●During charging, the hybrid battery (traction battery) status indicator illumi-
nates and flashes, and changes according to the charging amount.
(P. 115)
■If the charging indicator flashes after connecting the charging cable
The charge schedule (P. 163) is registered and charging cannot be per-
formed immediately. To cancel charging using the timer and start charging
immediately, perform any of the following procedures.
●Turn “Charge Now” on (P. 171)
●While the charging indicator is flashing, remove and reconnect the charging
connector within 5 seconds
■When the charging connector cannot be inserted into the charging inlet
P. 133

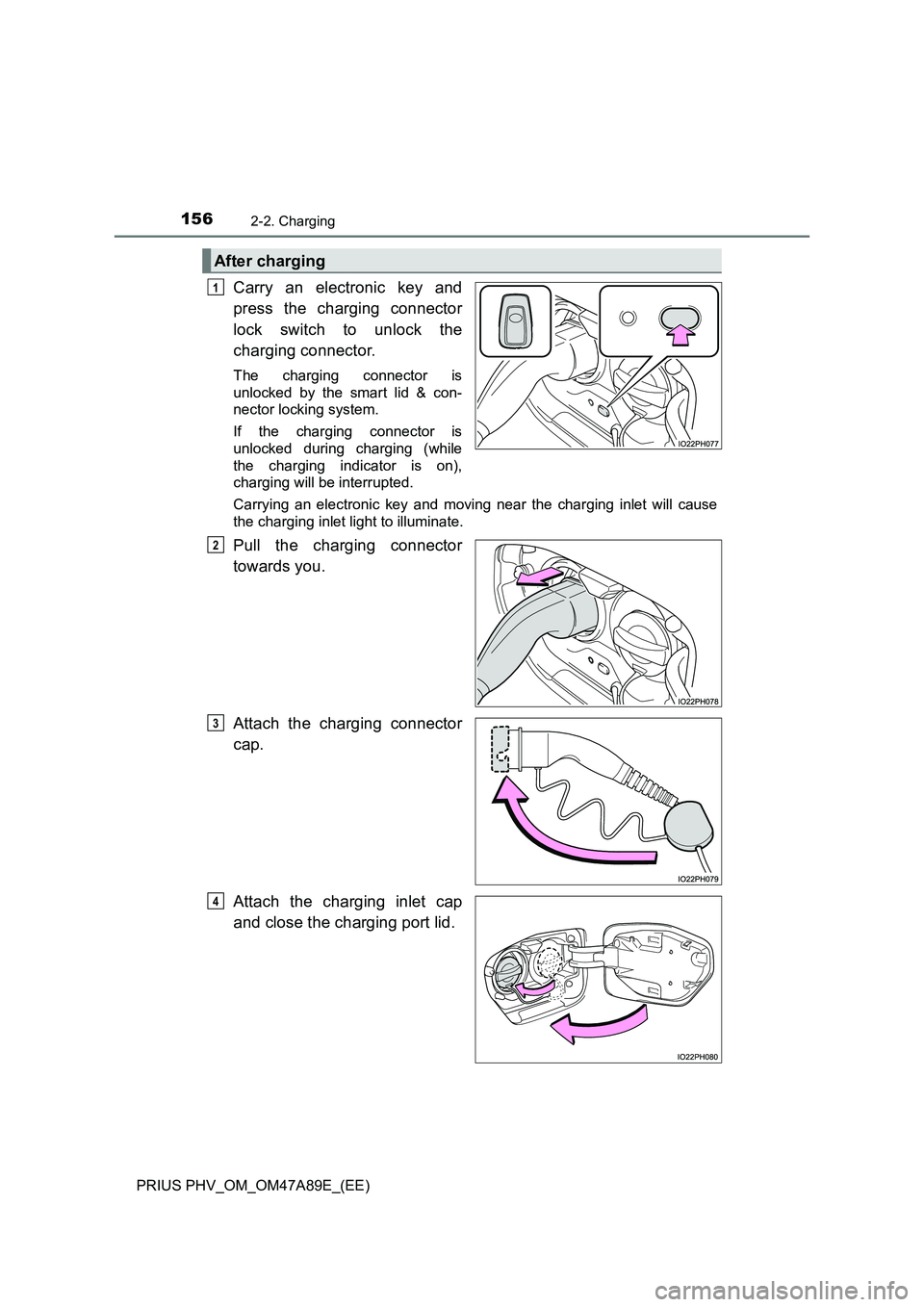

1562-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)
Carry an electronic key and
press the charging connector
lock switch to unlock the
charging connector.
The charging connector is
unlocked by the smart lid & con-
nector locking system.
If the charging connector is
unlocked during charging (while
the charging indicator is on),
charging will be interrupted.
Carrying an electronic key and moving near the charging inlet will cause
the charging inlet light to illuminate.
Pull the charging connector
towards you.
Attach the charging connector
cap.
Attach the charging inlet cap
and close the charging port lid.
After charging
1
2
3
4

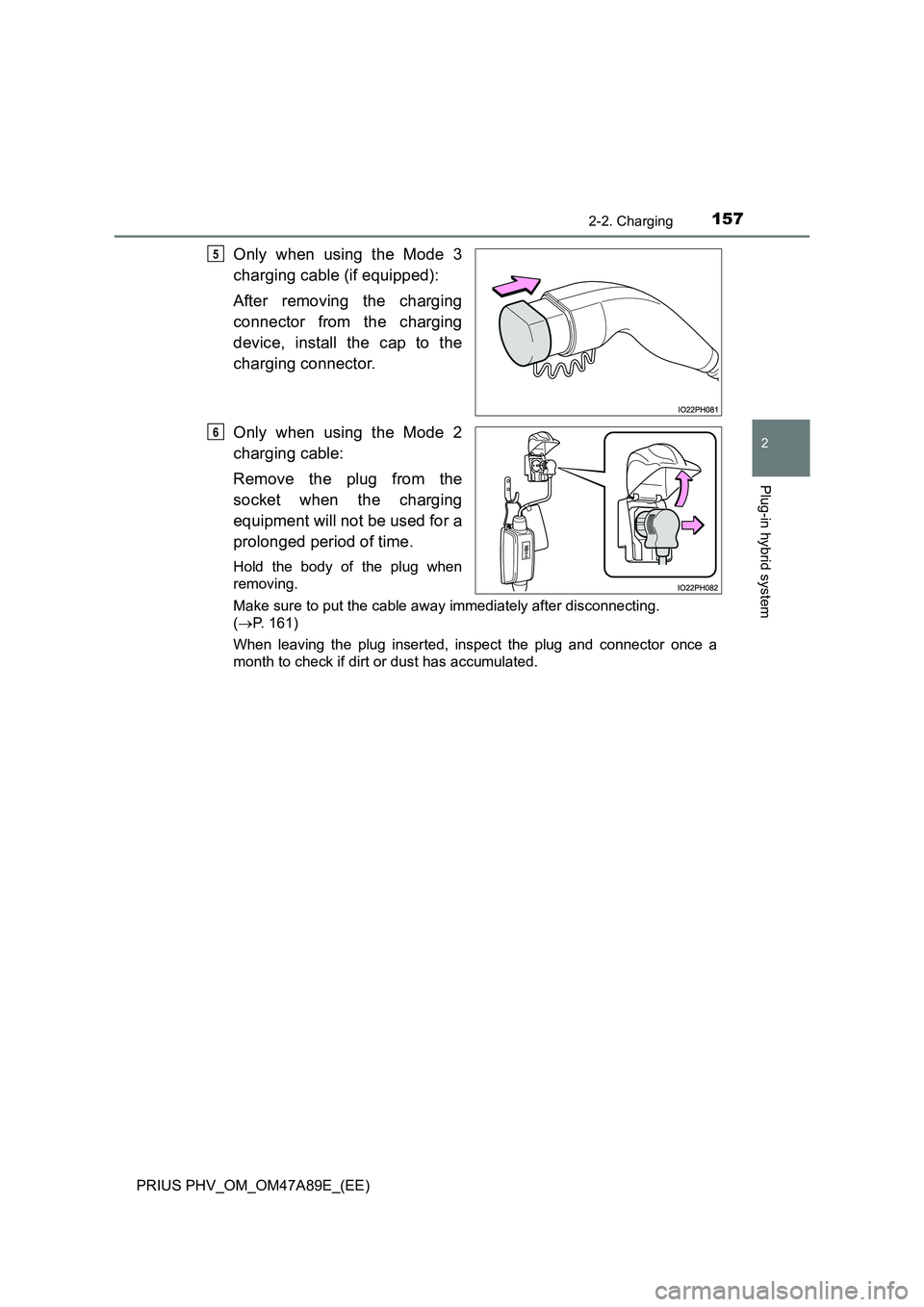

1572-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
Only when using the Mode 3
charging cable (if equipped):
After removing the charging
connector from the charging
device, install the cap to the
charging connector.
Only when using the Mode 2
charging cable:
Remove the plug from the
socket when the charging
equipment will not be used for a
prolonged period of time.
Hold the body of the plug when
removing.
Make sure to put the cable away immediately after disconnecting.
( P. 161)
When leaving the plug inserted, inspect the plug and connector once a
month to check if dirt or dust has accumulated.
5
6

1582-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)
■Charging time
 P. 140
■ Safety function
Charging will not start when the charging connector is not locked. If the
charging indicator does not illuminate even when the charging connector is
inserted, remove and reinsert the connector, and then check that the charging
indicator illuminates.
■ When the outside temperature is low or high
The level shown on the remaining charge display ( P. 227) may drop slightly
when the power switch is turned to ON mode, even if charging has been com-
pleted and the hybrid battery (traction battery) is fully charged. However, this
does not indicate a malfunction.
■ Charging time may increase
 P. 141
■ While charging
When the power switch is turned to ON mode and the energy monitor dis-
plays, the charging connector is displayed on the energy monitor and the flow
of electricity during charging is displayed ( P. 218). Also, when the charging
connector is locked, is displayed.
■ When removing the charging connector
■ Push lifter
Carry an electronic key and press the
charging connector lock switch and check
that the lock is released, and then pull the
charging connector towards you.
When the charging port lid is open, make
sure not to touch the push lifter. If it is
touched accidentally, the charging port lid
or connector lock may operate.
If they are accidentally operated, carry an
electronic key or unlock the doors, and
then press the charging connector lock
switch to unlock.Push lifter

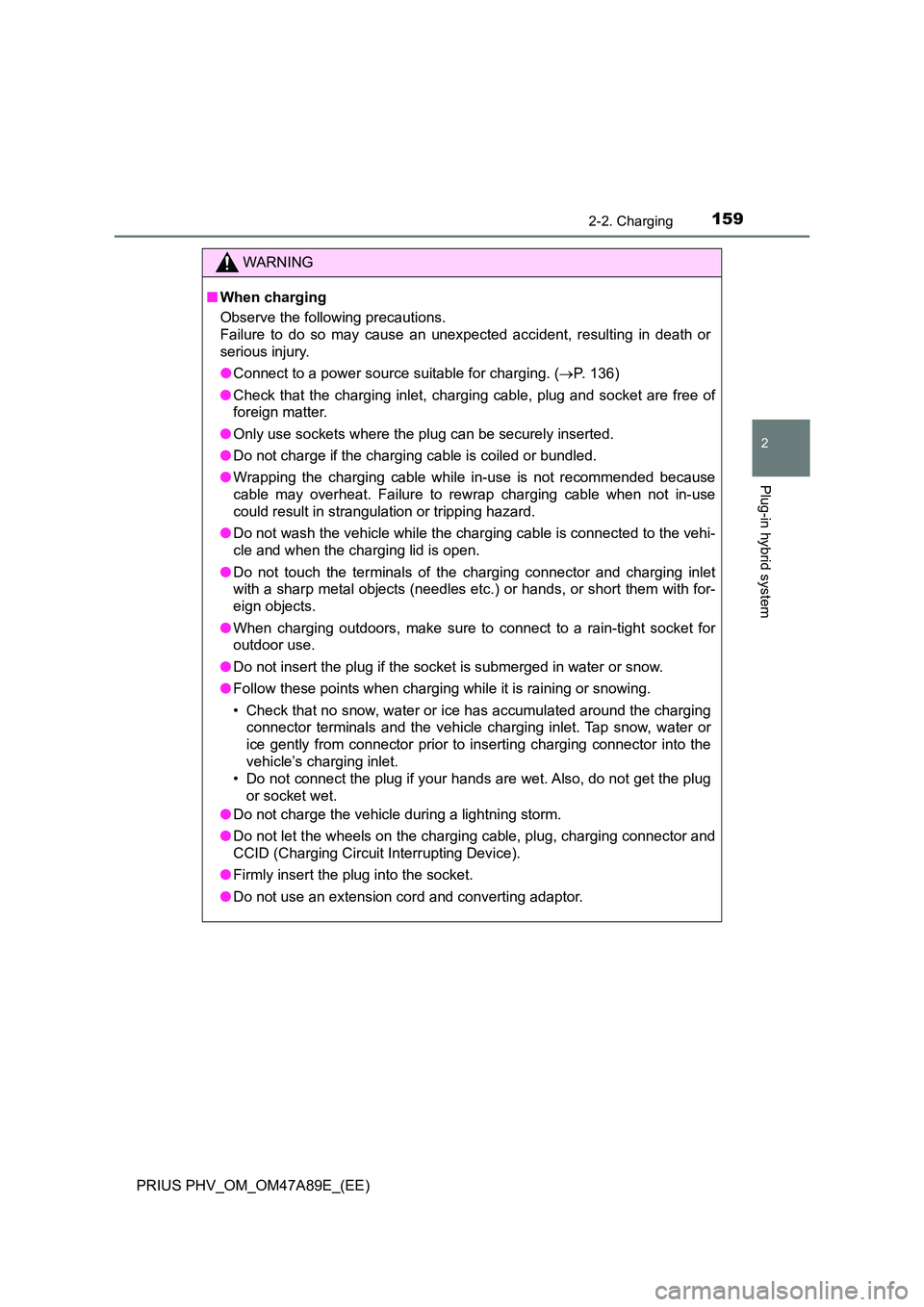

1592-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
WARNING
■When charging
Observe the following precautions.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
● Connect to a power source suitable for charging. (P. 136)
● Check that the charging inlet, charging cable, plug and socket are free of
foreign matter.
● Only use sockets where the plug can be securely inserted.
● Do not charge if the charging cable is coiled or bundled.
● Wrapping the charging cable while in-use is not recommended because
cable may overheat. Failure to rewrap charging cable when not in-use
could result in strangulation or tripping hazard.
● Do not wash the vehicle while the charging cable is connected to the vehi-
cle and when the charging lid is open.
● Do not touch the terminals of the charging connector and charging inlet
with a sharp metal objects (needles etc.) or hands, or short them with for-
eign objects.
● When charging outdoors, make sure to connect to a rain-tight socket for
outdoor use.
● Do not insert the plug if the socket is submerged in water or snow.
● Follow these points when charging while it is raining or snowing.
• Check that no snow, water or ice has accumulated around the charging
connector terminals and the vehicle charging inlet. Tap snow, water or
ice gently from connector prior to inserting charging connector into the
vehicle’s charging inlet.
• Do not connect the plug if your hands are wet. Also, do not get the plug
or socket wet.
● Do not charge the vehicle during a lightning storm.
● Do not let the wheels on the charging cable, plug, charging connector and
CCID (Charging Circuit Interrupting Device).
● Firmly insert the plug into the socket.
● Do not use an extension cord and converting adaptor.

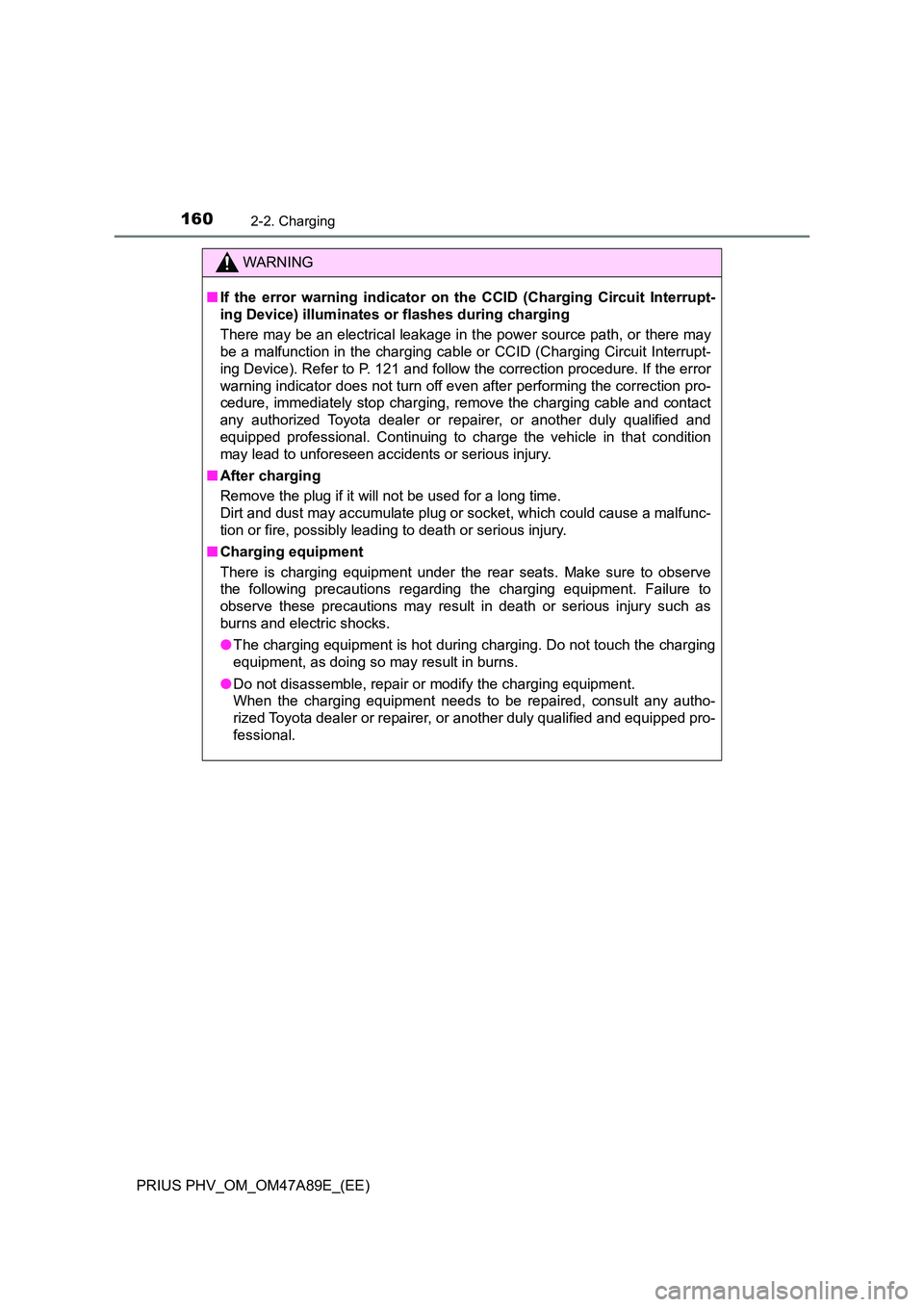

1602-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)
WARNING
■If the error warning indicator on the CCID (Charging Circuit Interrupt-
ing Device) illuminates or flashes during charging
There may be an electrical leakage in t he power source path, or there may
be a malfunction in the charging cable or CCID (Charging Circuit Interrupt-
ing Device). Refer to P. 121 and follow the correction procedure. If the error
warning indicator does not turn off even after performing the correction pro-
cedure, immediately stop charging, remove the charging cable and contact
any authorized Toyota dealer or r epairer, or another duly qualified and
equipped professional. Continuing to charge the vehicle in that condition
may lead to unforeseen accidents or serious injury.
■ After charging
Remove the plug if it will not be used for a long time.
Dirt and dust may accumulate plug or socket, which could cause a malfunc-
tion or fire, possibly leading to death or serious injury.
■ Charging equipment
There is charging equipment under the r ear seats. Make sure to observe
the following precautions regarding the charging equipment. Failure to
observe these precautions may result in death or serious injury such as
burns and electric shocks.
● The charging equipment is hot during charging. Do not touch the charging
equipment, as doing so may result in burns.
● Do not disassemble, repair or modify the charging equipment.
When the charging equipment needs to be repaired, consult any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
