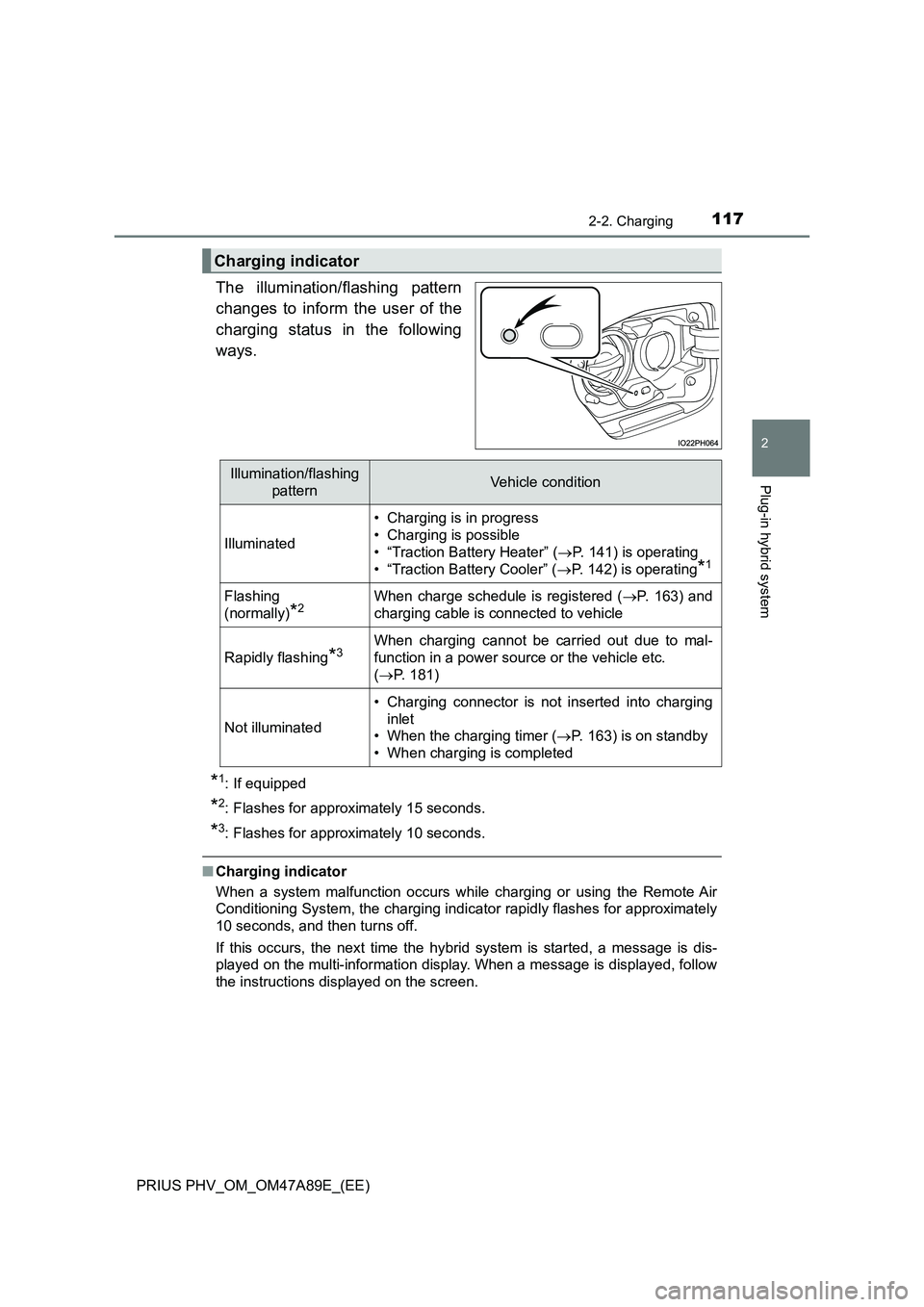

1172-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
The illumination/flashing pattern
changes to inform the user of the
charging status in the following
ways.
*1: If equipped
*2: Flashes for approximately 15 seconds.
*3: Flashes for approximately 10 seconds.
■Charging indicator
When a system malfunction occurs while charging or using the Remote Air
Conditioning System, the charging indicator rapidly flashes for approximately
10 seconds, and then turns off.
If this occurs, the next time the hybrid system is started, a message is dis-
played on the multi-information display. When a message is displayed, follow
the instructions displayed on the screen.
Charging indicator
Illumination/flashing
patternVehicle condition
Illuminated
• Charging is in progress
• Charging is possible
• “Traction Battery Heater” (P. 141) is operating
• “Traction Battery Cooler” (P. 142) is operating
*1
Flashing
(normally)
*2When charge schedule is registered (P. 163) and
charging cable is connected to vehicle
Rapidly flashing*3When charging cannot be carried out due to mal-
function in a power source or the vehicle etc.
(P. 181)
Not illuminated
• Charging connector is not inserted into charging
inlet
• When the charging timer (P. 163) is on standby
• When charging is completed
