parking brake TOYOTA PRIUS PLUG-IN HYBRID 2016 Owners Manual

3
1
9
8
7
6
5
4
2
PRIUS PHV_OM_OM47A89E_(EE)
3
3. Instrument cluster
Combination meter ............190
Warning lights and
indicators .........................199
Main display .......................207
Multi-information display ....215
Head-up display .................249
Energy monitor/
consumption screen ........256
4-1. Key information
Keys ...................................264
4-2. Opening, closing and
locking the doors
Side doors..........................269
Back door...........................274
Smart entry & start
system .............................279
4-3. Adjusting the seats
Front seats .........................296

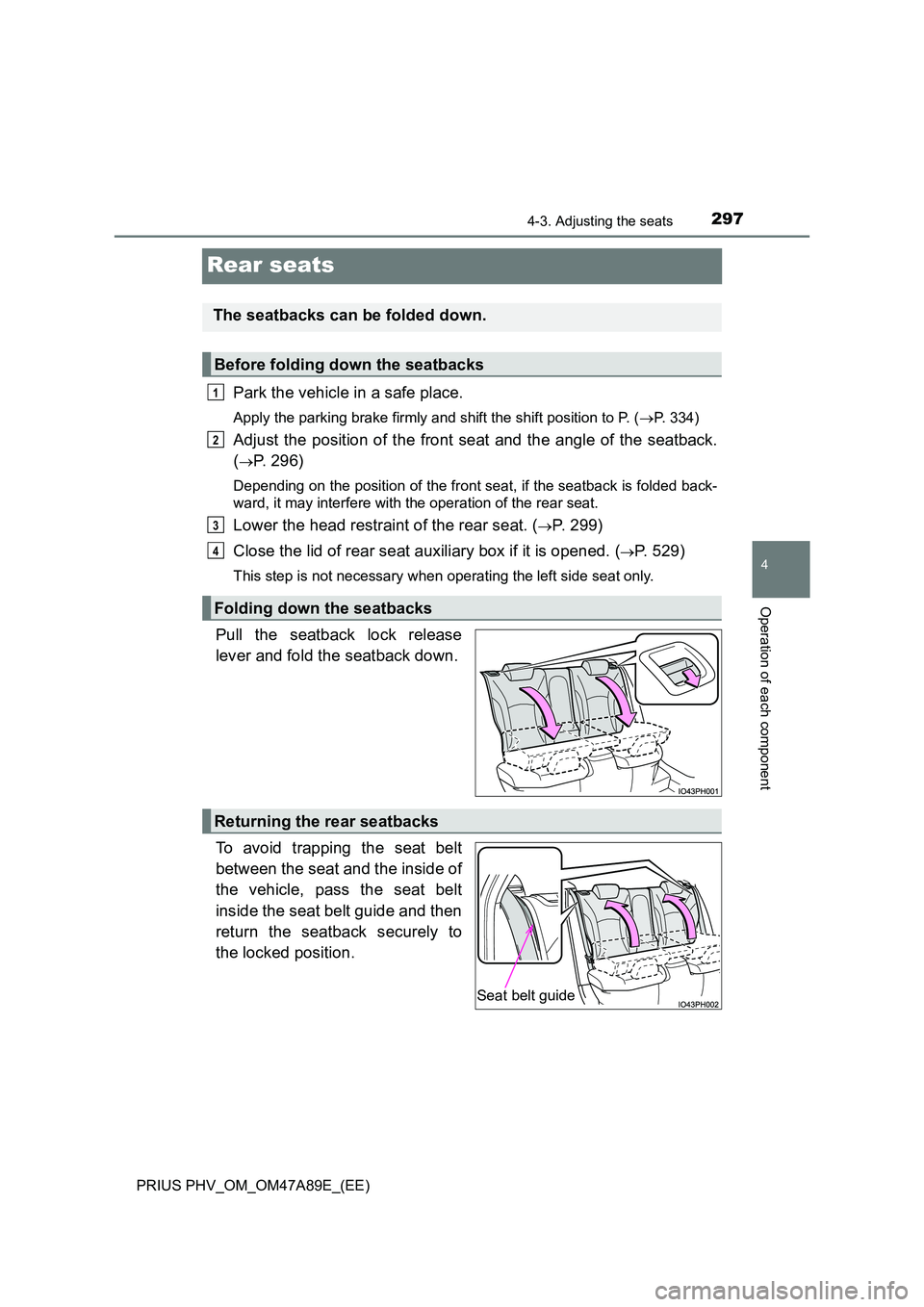

Rear seats .........................297
Head restraints ..................299
4-4. Adjusting the steering
wheel and mirrors
Steering wheel .................. 302
Inside rear view mirror....... 304
Outside rear view
mirrors ............................. 305
4-5. Opening and closing the
windows
Power windows ................. 307
5-1. Before driving
Driving the vehicle ............. 312
Cargo and luggage............ 324
Trailer towing..................... 326
5-2. Driving procedures
Power (ignition) switch ...... 327
Hybrid transmission........... 333
Turn signal lever................ 339
Parking brake .................... 340
5-3. Operating the lights
and wipers
Headlight switch ................ 341
AHS (Adaptive High-beam
System) ........................... 345
Fog light switch ................. 351
Windshield wipers and
washer ............................ 352
5-4. Refueling
Opening the fuel tank
cap .................................. 355
3Instrument cluster
4Operation of each
component
5Driving

17Pictorial index
PRIUS PHV_OM_OM47A89E_(EE)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 215
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 215
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
When the warning messages are displayed . . . . . . . . . . . . . . P. 650
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 498
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Front fog lights/rear fog lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 351
Windshield wipers and washer switch . . . . . . . . . . . . . . . . P. 352
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 352
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 578
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 632
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 357
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 563
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 302
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 509
Audio system
*
*
: Refer to “Navigation system Owner’s manual”.
5
6
7
8
9
10
11
12
13
14

23Pictorial index
PRIUS PHV_OM_OM47A89E_(EE)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 215
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 215
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
When the warning messages are displayed . . . . . . . . . . . . . . P. 650
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 498
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Front fog lights/rear fog lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 351
Windshield wipers and washer switch . . . . . . . . . . . . . . . . P. 352
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 352
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 578
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 632
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 357
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 563
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 302
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 509
Audio system
*
*
: Refer to “Navigation system Owner’s Manual”.
5
6
7
8
9
10
11
12
13
14

992-1. Plug-in hybrid system
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)■If the vehicle is not used for a long time
●The 12-volt battery may discharge. In this event, charge the 12-volt battery.
(P. 573)
In order to prevent the hybrid battery (traction battery) from becoming
extremely low in charge, charge the hybrid battery (traction battery) from
external power source or start the hybrid system at least once every 2 or 3
months, and turn the power switch off after the gasoline engine has
stopped automatically. (If the gasoline engine does not start up even after
approximately 10 seconds have passed since the “READY” indicator came
on, the power switch can be turned to off without any further action.)
●When the vehicle is left with the charging cable connected, the electricity
consumption amount of the 12-volt battery increases due to controls, such
as the system checking, operating. When the charging cable is not needed,
immediately remove it from the vehicle.
■Sounds and vibrations specific to a hybrid vehicle
There may be no engine sound or vibration even though the vehicle is able to
move with the “READY” indicator is illuminated. For safety, apply the parking
brake and make sure to shift the shift position to P when parked.
The following sounds or vibrations may occur when the hybrid system is
operating and are not a malfunction.
●Motor sounds may be heard from the engine compartment.
●Sounds may be heard from the hybrid battery (traction battery) when the
hybrid system starts or stops.
●Relay operating sounds such as a snap or soft clank will be emitted from the
hybrid battery (traction battery), behind the rear seats, when the hybrid sys-
tem is started or stopped.
●Sounds from the hybrid system may be heard when the back door is open.
●Sounds may be heard from the transmission when the gasoline engine
starts or stops, when driving at low speeds, or during idling.
●Engine sounds may be heard when accelerating sharply.
●Sounds may be heard due to regenerative braking when the brake pedal is
depressed or as the accelerator pedal is released.
●Vibration may be felt when the gasoline engine starts or stops.
●Cooling fan sounds may be heard from the air intake vent. (P. 102)
■Maintenance, repair, recycling, and disposal
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional regarding maintenance, repair, recycling and dis-
posal. Do not dispose of the vehicle yourself.

1052-1. Plug-in hybrid system
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)

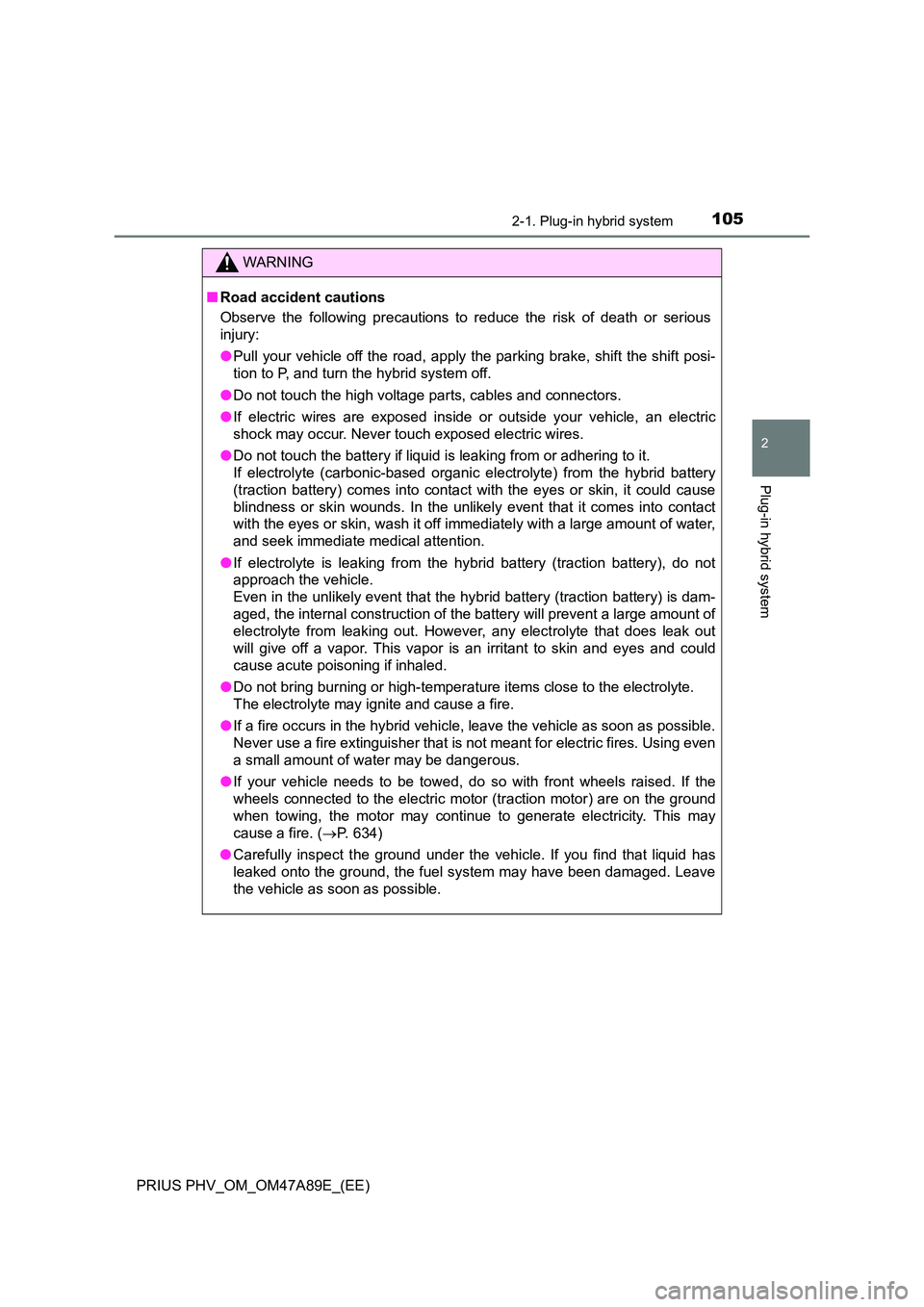

WARNING
■Road accident cautions
Observe the following precautions to reduce the risk of death or serious
injury:
● Pull your vehicle off the road, apply the parking brake, shift the shift posi-
tion to P, and turn the hybrid system off.
● Do not touch the high voltage parts, cables and connectors.
● If electric wires are exposed inside or outside your vehicle, an electric
shock may occur. Never touch exposed electric wires.
● Do not touch the battery if liquid is leaking from or adhering to it.
If electrolyte (carbonic-based organic el ectrolyte) from the hybrid battery
(traction battery) comes into contact with the eyes or skin, it could cause
blindness or skin wounds. In the unlikely event that it comes into contact
with the eyes or skin, wash it off immediately with a large amount of water,
and seek immediate medical attention.
● If electrolyte is leaking from the hybrid battery (traction battery), do not
approach the vehicle.
Even in the unlikely event that the hybrid battery (traction battery) is dam-
aged, the internal construction of the battery will prevent a large amount of
electrolyte from leaking out. However, any electrolyte that does leak out
will give off a vapor. This vapor is an irritant to skin and eyes and could
cause acute poisoning if inhaled.
● Do not bring burning or high-temperature items close to the electrolyte.
The electrolyte may ignite and cause a fire.
● If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible.
Never use a fire extinguisher that is not meant for electric fires. Using even
a small amount of water may be dangerous.
● If your vehicle needs to be towed, do so with front wheels raised. If the
wheels connected to the electric motor (traction motor) are on the ground
when towing, the motor may continue to generate electricity. This may
cause a fire. ( P. 634)
● Carefully inspect the ground under the vehicle. If you find that liquid has
leaked onto the ground, the fuel system may have been damaged. Leave
the vehicle as soon as possible.

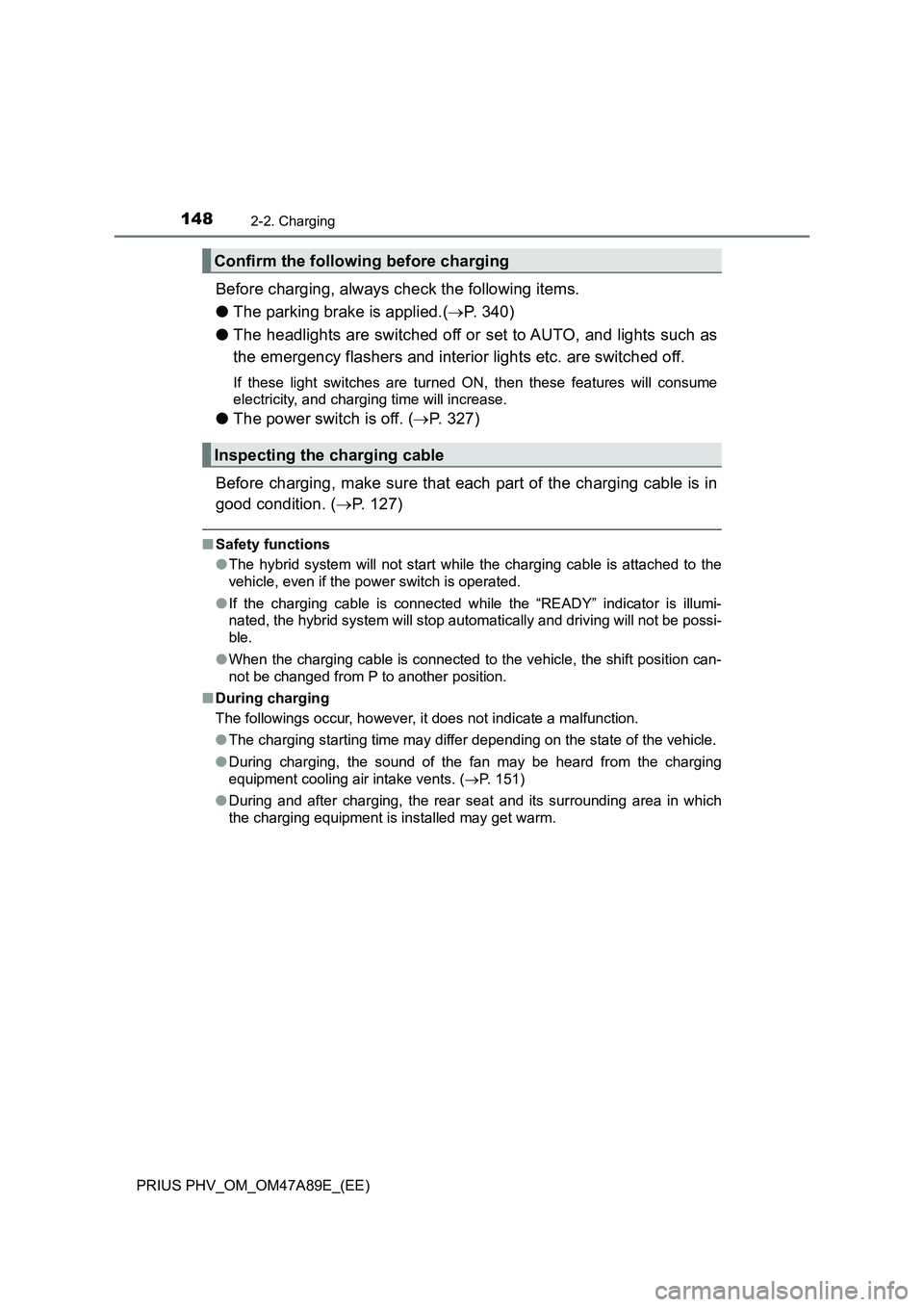

1482-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)
Before charging, always check the following items.
●The parking brake is applied.(P. 340)
●The headlights are switched off or set to AUTO, and lights such as
the emergency flashers and interior lights etc. are switched off.
If these light switches are turned ON, then these features will consume
electricity, and charging time will increase.
●The power switch is off. (P. 327)
Before charging, make sure that each part of the charging cable is in
good condition. (P. 127)
■Safety functions
●The hybrid system will not start while the charging cable is attached to the
vehicle, even if the power switch is operated.
●If the charging cable is connected while the “READY” indicator is illumi-
nated, the hybrid system will stop automatically and driving will not be possi-
ble.
●When the charging cable is connected to the vehicle, the shift position can-
not be changed from P to another position.
■During charging
The followings occur, however, it does not indicate a malfunction.
●The charging starting time may differ depending on the state of the vehicle.
●During charging, the sound of the fan may be heard from the charging
equipment cooling air intake vents. (P. 151)
●During and after charging, the rear seat and its surrounding area in which
the charging equipment is installed may get warm.
Confirm the following before charging
Inspecting the charging cable

2013. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)

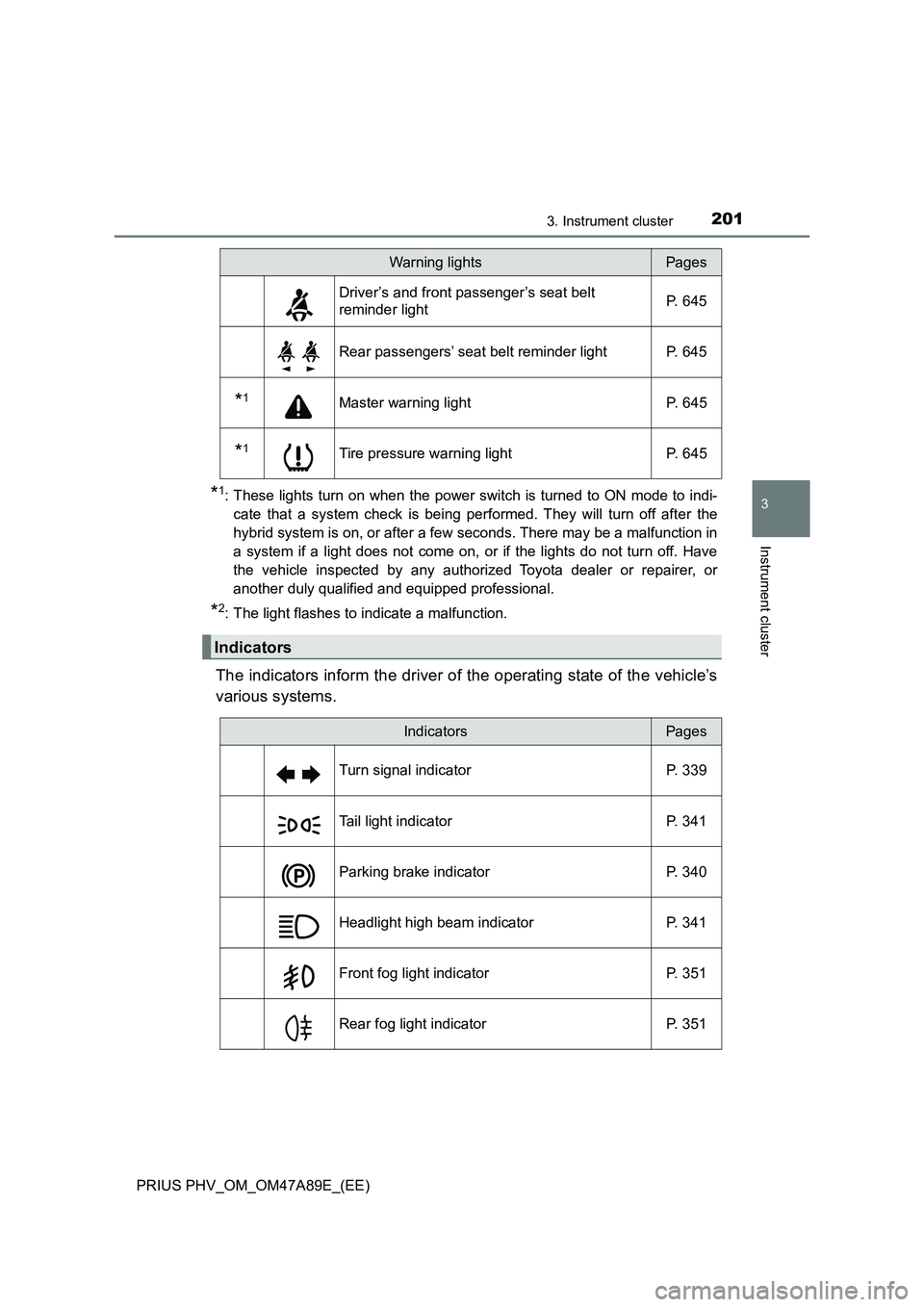

*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Driver’s and front passenger’s seat belt
reminder lightP. 645
Rear passengers’ seat belt reminder light P. 645
*1Master warning light P. 645
*1Tire pressure warning light P. 645
Indicators
Warning lightsPages
IndicatorsPages
Turn signal indicator P. 339
Tail light indicator P. 341
Parking brake indicator P. 340
Headlight high beam indicator P. 341
Front fog light indicator P. 351
Rear fog light indicator P. 351

2974-3. Adjusting the seats
PRIUS PHV_OM_OM47A89E_(EE)
4
Operation of each component
Rear seats
Park the vehicle in a safe place.
Apply the parking brake firmly and shift the shift position to P. (P. 334)
Adjust the position of the front seat and the angle of the seatback.
(P. 296)
Depending on the position of the front seat, if the seatback is folded back-
ward, it may interfere with the operation of the rear seat.
Lower the head restraint of the rear seat. (P. 299)
Close the lid of rear seat auxiliary box if it is opened. (P. 529)
This step is not necessary when operating the left side seat only.
Pull the seatback lock release
lever and fold the seatback down.
To avoid trapping the seat belt
between the seat and the inside of
the vehicle, pass the seat belt
inside the seat belt guide and then
return the seatback securely to
the locked position.
The seatbacks can be folded down.
Before folding down the seatbacks
Folding down the seatbacks
1
2
3
4
Returning the rear seatbacks
Seat belt guide

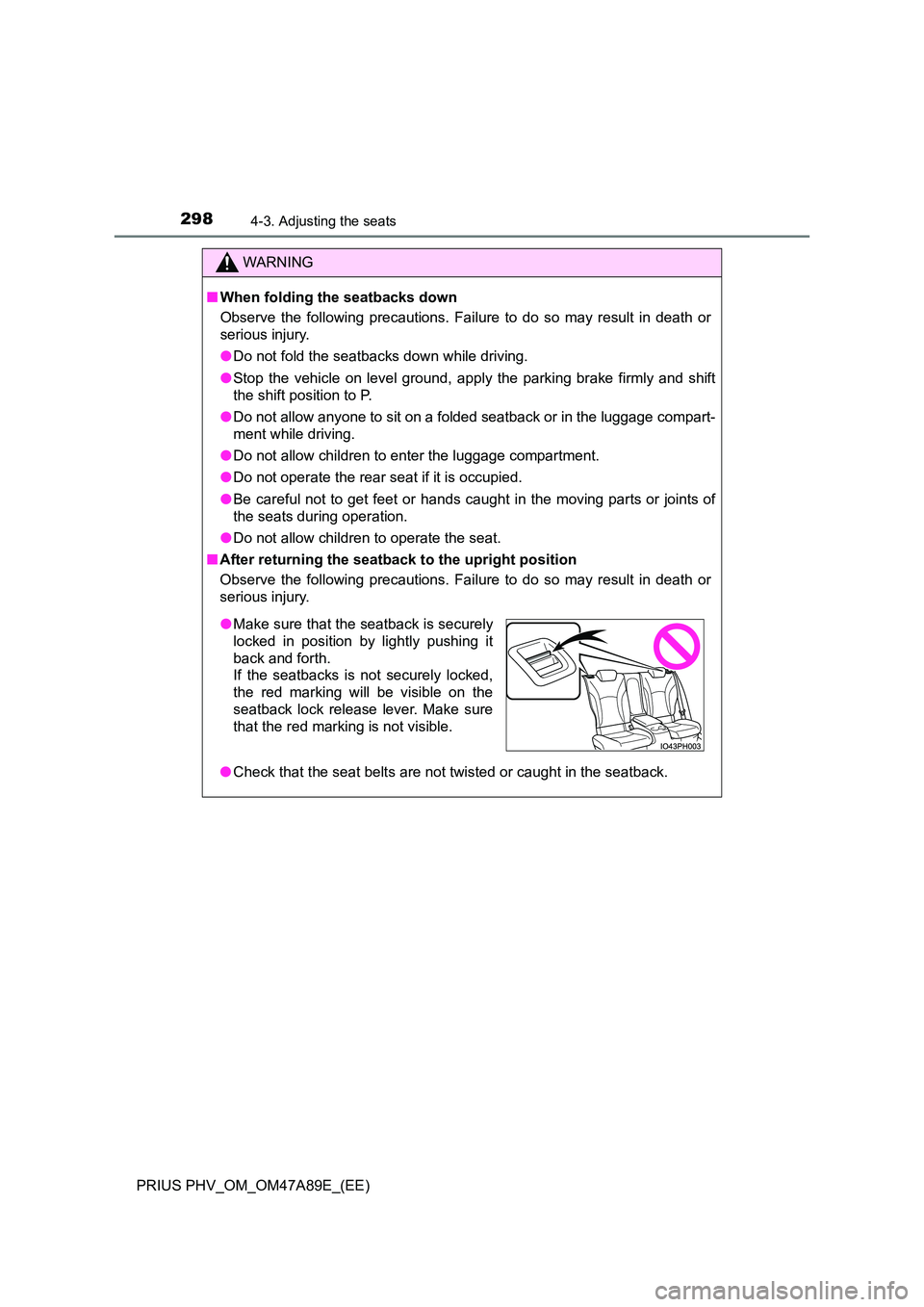

2984-3. Adjusting the seats
PRIUS PHV_OM_OM47A89E_(EE)
WARNING
■When folding the seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, apply the parking brake firmly and shift
the shift position to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● Do not operate the rear seat if it is occupied.
● Be careful not to get feet or hands caught in the moving parts or joints of
the seats during operation.
● Do not allow children to operate the seat.
■ After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Check that the seat belts are not twisted or caught in the seatback.
●Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatbacks is not securely locked,
the red marking will be visible on the
seatback lock release lever. Make sure
that the red marking is not visible.

311
5Driving
PRIUS PHV_OM_OM47A89E_(EE)5-1. Before driving
Driving the vehicle ............. 312
Cargo and luggage ............ 324
Trailer towing ..................... 326
5-2. Driving procedures
Power (ignition) switch ....... 327
Hybrid transmission ........... 333
Turn signal lever ................ 339
Parking brake .................... 340
5-3. Operating the lights
and wipers
Headlight switch ................ 341
AHS (Adaptive High-beam
System) ........................... 345
Fog light switch .................. 351
Windshield wipers and
washer ............................. 3525-4. Refueling
Opening the fuel tank
cap ................................... 355
5-5. Using the driving
support systems
Toyota Safety Sense ......... 359
PCS (Pre-Crash Safety
system) ............................ 368
LDA (Lane Departure Alert
with steering control) ....... 382
RSA (Road Sign Assist)..... 392
Dynamic radar cruise
control with full-speed
range ............................... 397
Driving mode select
switch............................... 412
Speed limiter ...................... 414
BSM
(Blind Spot Monitor) ......... 417
• The Blind Spot Monitor
function .......................... 423
• The Rear Crossing
Traffic Alert function ...... 427
Toyota parking
assist-sensor ................... 432
Intelligent Clearance
Sonar ............................... 443
S-IPA (Simple Intelligent
Parking Assist
System) ........................... 456
Driving assist systems ....... 491
5-6. Driving tips
Winter driving tips .............. 498
