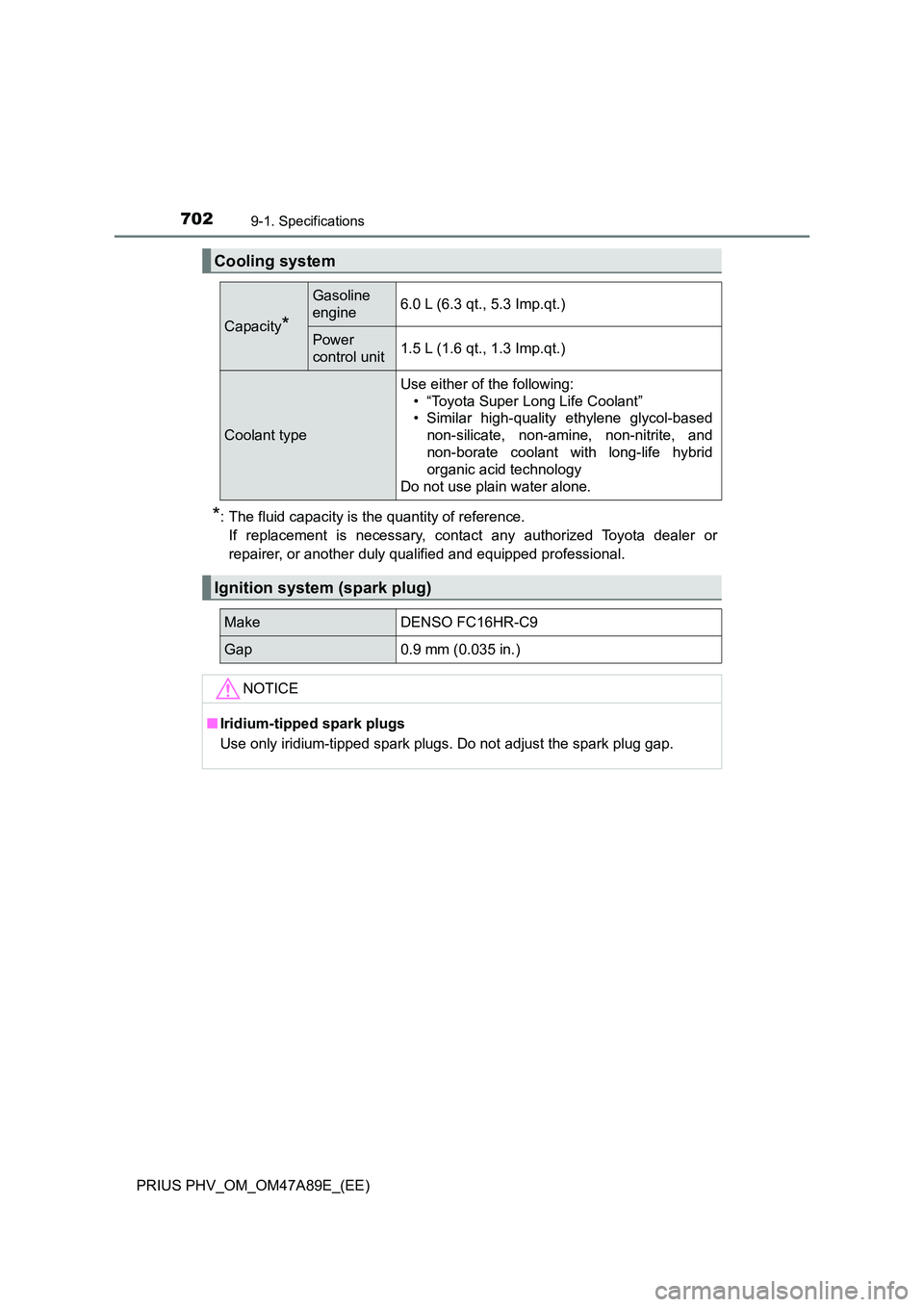

7029-1. Specifications
PRIUS PHV_OM_OM47A89E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Cooling system
Capacity*
Gasoline
engine6.0 L (6.3 qt., 5.3 Imp.qt.)
Power
control unit1.5 L (1.6 qt., 1.3 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-C9
Gap0.9 mm (0.035 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
