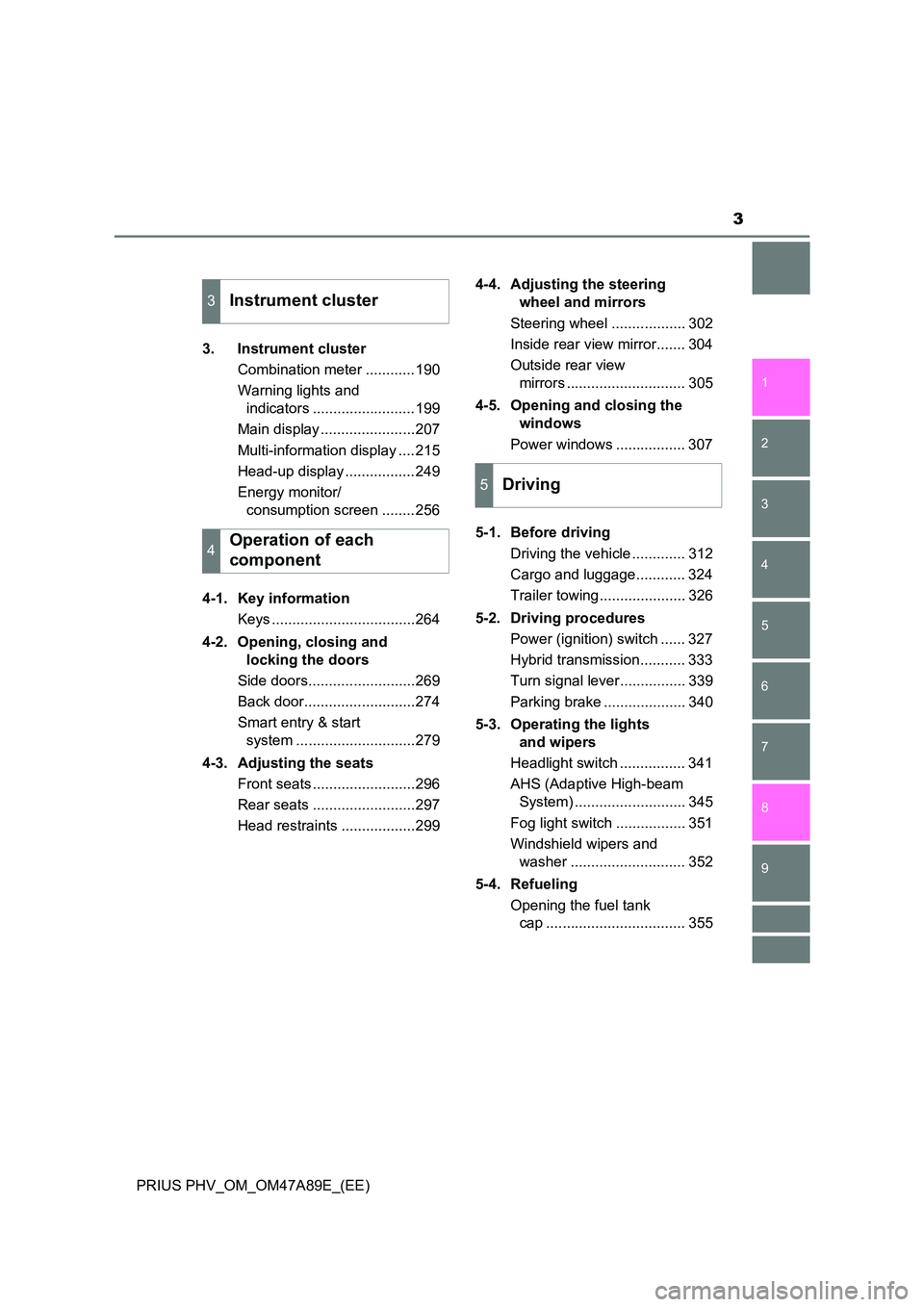

display TOYOTA PRIUS PLUG-IN HYBRID 2017 Owners Manual

3
1
9
8
7
6
5
4
2
PRIUS PHV_OM_OM47A89E_(EE)
3
3. Instrument cluster
Combination meter ............190
Warning lights and
indicators .........................199
Main display .......................207
Multi-information display ....215
Head-up display .................249
Energy monitor/
consumption screen ........256
4-1. Key information
Keys ...................................264
4-2. Opening, closing and
locking the doors
Side doors..........................269
Back door...........................274
Smart entry & start
system .............................279
4-3. Adjusting the seats
Front seats .........................296
Rear seats .........................297
Head restraints ..................299
4-4. Adjusting the steering
wheel and mirrors
Steering wheel .................. 302
Inside rear view mirror....... 304
Outside rear view
mirrors ............................. 305
4-5. Opening and closing the
windows
Power windows ................. 307
5-1. Before driving
Driving the vehicle ............. 312
Cargo and luggage............ 324
Trailer towing..................... 326
5-2. Driving procedures
Power (ignition) switch ...... 327
Hybrid transmission........... 333
Turn signal lever................ 339
Parking brake .................... 340
5-3. Operating the lights
and wipers
Headlight switch ................ 341
AHS (Adaptive High-beam
System) ........................... 345
Fog light switch ................. 351
Windshield wipers and
washer ............................ 352
5-4. Refueling
Opening the fuel tank
cap .................................. 355
3Instrument cluster
4Operation of each
component
5Driving

5
1
9
8
7
6
5
4
2
PRIUS PHV_OM_OM47A89E_(EE)
3

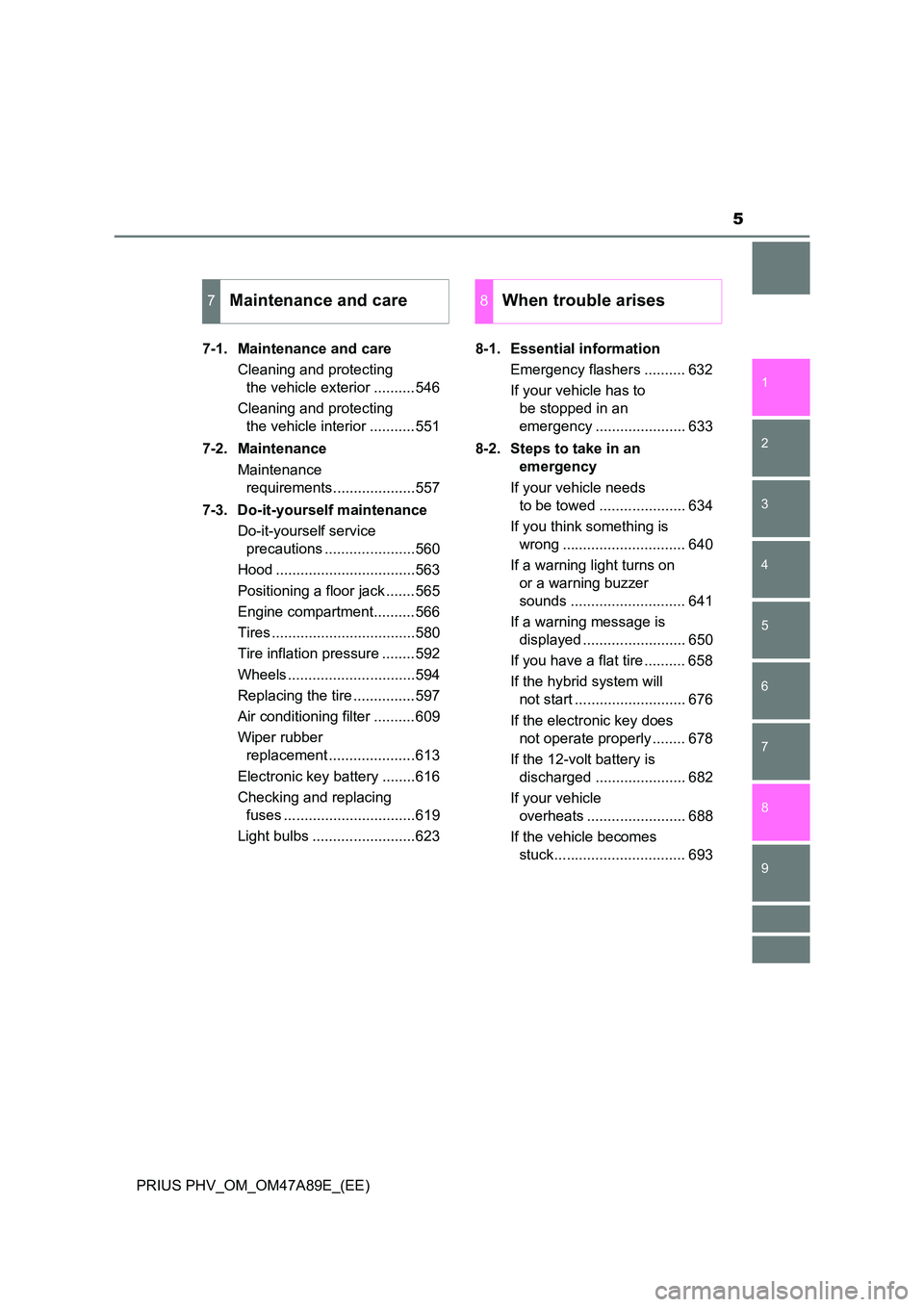

7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........546
Cleaning and protecting
the vehicle interior ...........551
7-2. Maintenance
Maintenance
requirements....................557
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ......................560
Hood ..................................563
Positioning a floor jack .......565
Engine compartment..........566
Tires ...................................580
Tire inflation pressure ........592
Wheels ...............................594
Replacing the tire ...............597
Air conditioning filter ..........609
Wiper rubber
replacement .....................613
Electronic key battery ........616
Checking and replacing
fuses ................................619
Light bulbs .........................623
8-1. Essential information
Emergency flashers .......... 632
If your vehicle has to
be stopped in an
emergency ...................... 633
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ..................... 634
If you think something is
wrong .............................. 640
If a warning light turns on
or a warning buzzer
sounds ............................ 641
If a warning message is
displayed ......................... 650
If you have a flat tire .......... 658
If the hybrid system will
not start ........................... 676
If the electronic key does
not operate properly ........ 678
If the 12-volt battery is
discharged ...................... 682
If your vehicle
overheats ........................ 688
If the vehicle becomes
stuck................................ 693
7Maintenance and care8When trouble arises

17Pictorial index
PRIUS PHV_OM_OM47A89E_(EE)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 215
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 215
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
When the warning messages are displayed . . . . . . . . . . . . . . P. 650
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 498
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Front fog lights/rear fog lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 351
Windshield wipers and washer switch . . . . . . . . . . . . . . . . P. 352
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 352
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 578
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 632
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 357
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 563
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 302
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 509
Audio system
*
*
: Refer to “Navigation system Owner’s manual”.
5
6
7
8
9
10
11
12
13
14

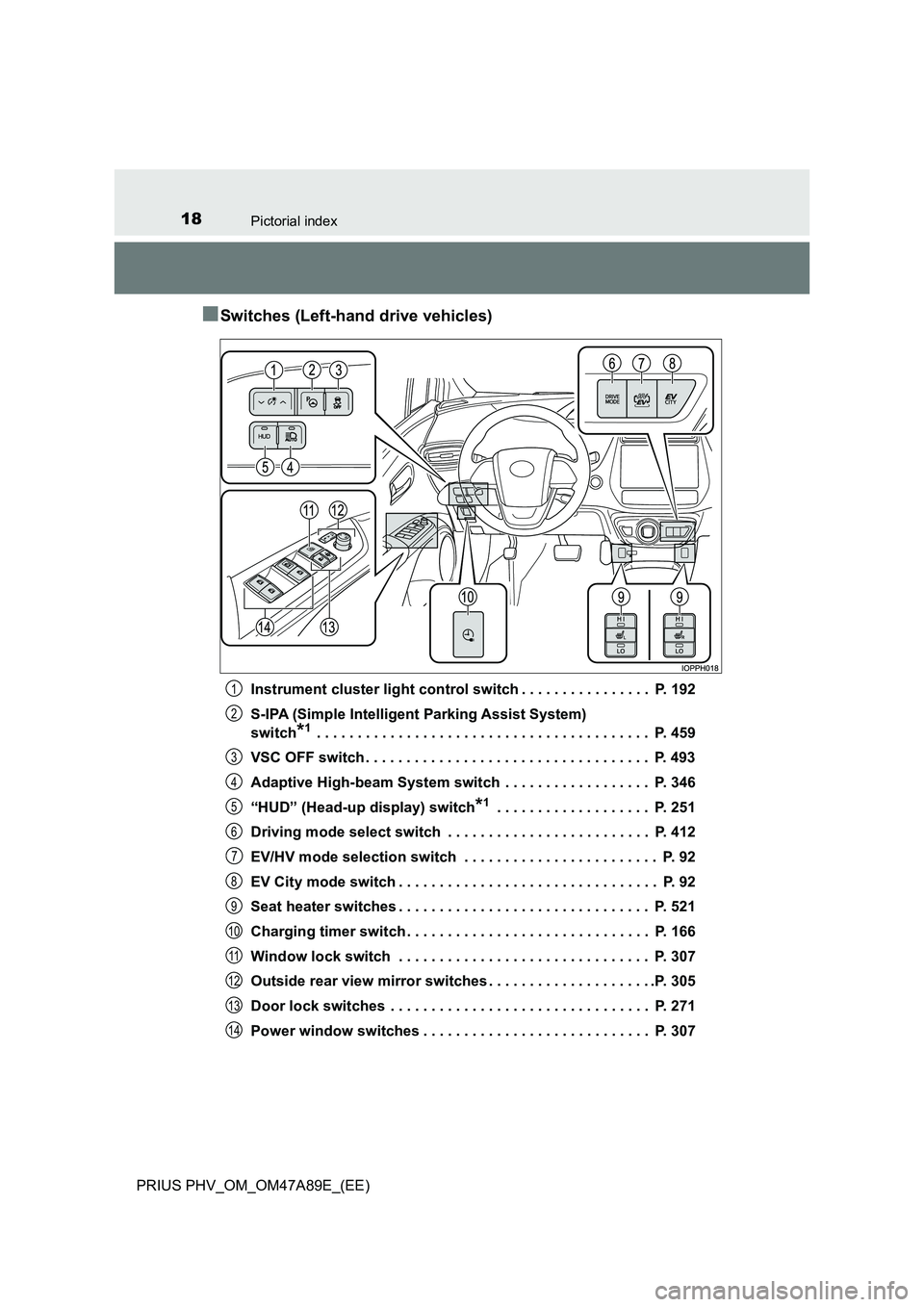

18Pictorial index
PRIUS PHV_OM_OM47A89E_(EE)
■Switches (Left-hand drive vehicles)
Instrument cluster light control switch . . . . . . . . . . . . . . . . P. 192
S-IPA (Simple Intelligent Parking Assist System)
switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 459
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 493
Adaptive High-beam System switch . . . . . . . . . . . . . . . . . . P. 346
“HUD” (Head-up display) switch*1 . . . . . . . . . . . . . . . . . . . P. 251
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
EV/HV mode selection switch . . . . . . . . . . . . . . . . . . . . . . . . P. 92
EV City mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 92
Seat heater switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 521
Charging timer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 307
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . .P. 305
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 271
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 307
1
2
3
4
5
6
7
8
9
10
11
12
13
14

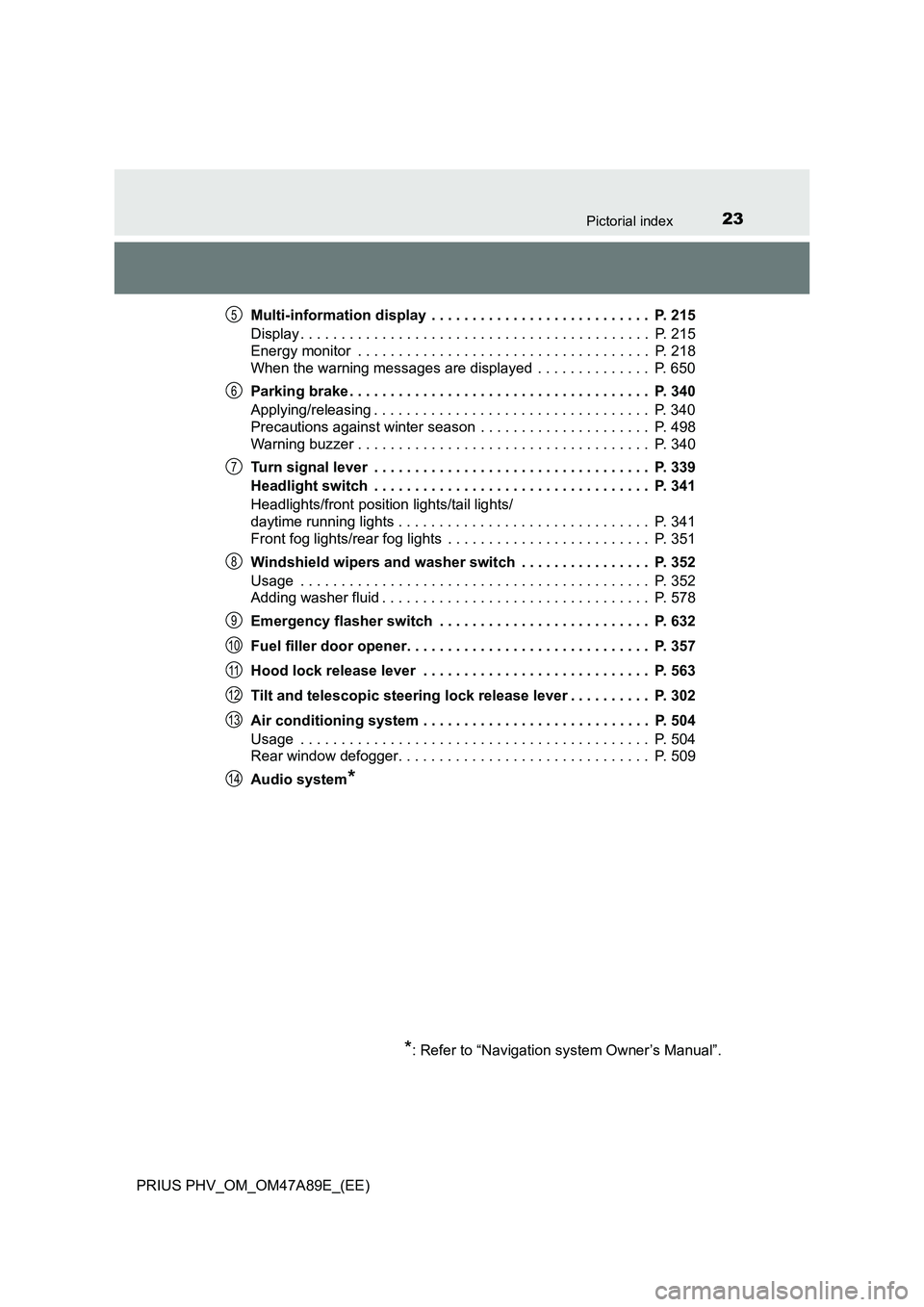

23Pictorial index
PRIUS PHV_OM_OM47A89E_(EE)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 215
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 215
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
When the warning messages are displayed . . . . . . . . . . . . . . P. 650
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 498
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Front fog lights/rear fog lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 351
Windshield wipers and washer switch . . . . . . . . . . . . . . . . P. 352
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 352
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 578
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 632
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 357
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 563
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 302
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 509
Audio system
*
*
: Refer to “Navigation system Owner’s Manual”.
5
6
7
8
9
10
11
12
13
14

24Pictorial index
PRIUS PHV_OM_OM47A89E_(EE)

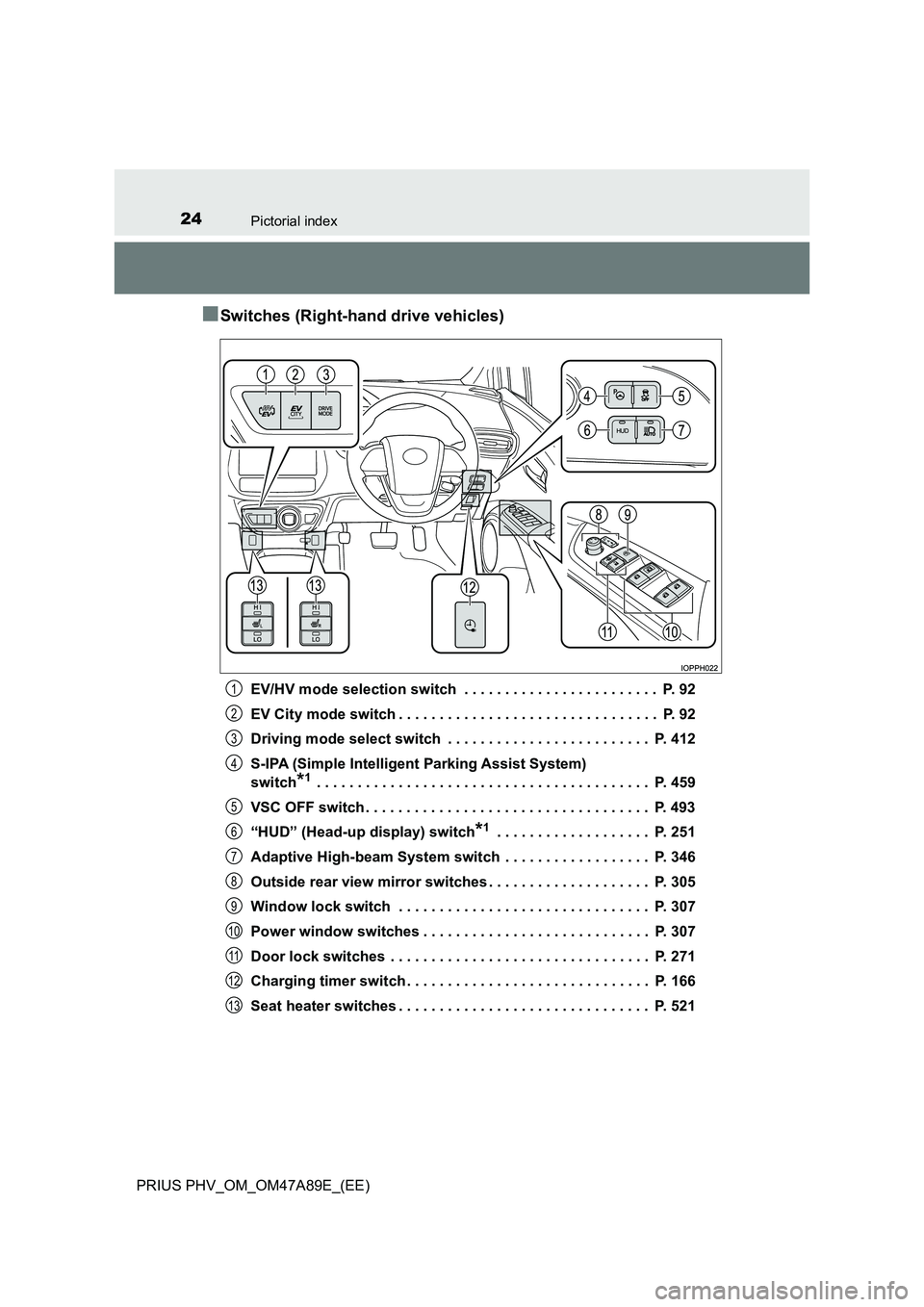

■Switches (Right-hand drive vehicles)
EV/HV mode selection switch . . . . . . . . . . . . . . . . . . . . . . . . P. 92
EV City mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 92
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
S-IPA (Simple Intelligent Parking Assist System)
switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 459
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 493
“HUD” (Head-up display) switch*1 . . . . . . . . . . . . . . . . . . . P. 251
Adaptive High-beam System switch . . . . . . . . . . . . . . . . . . P. 346
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 305
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 307
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 307
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 271
Charging timer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Seat heater switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 521
1
2
3
4
5
6
7
8
9
10
11
12
13

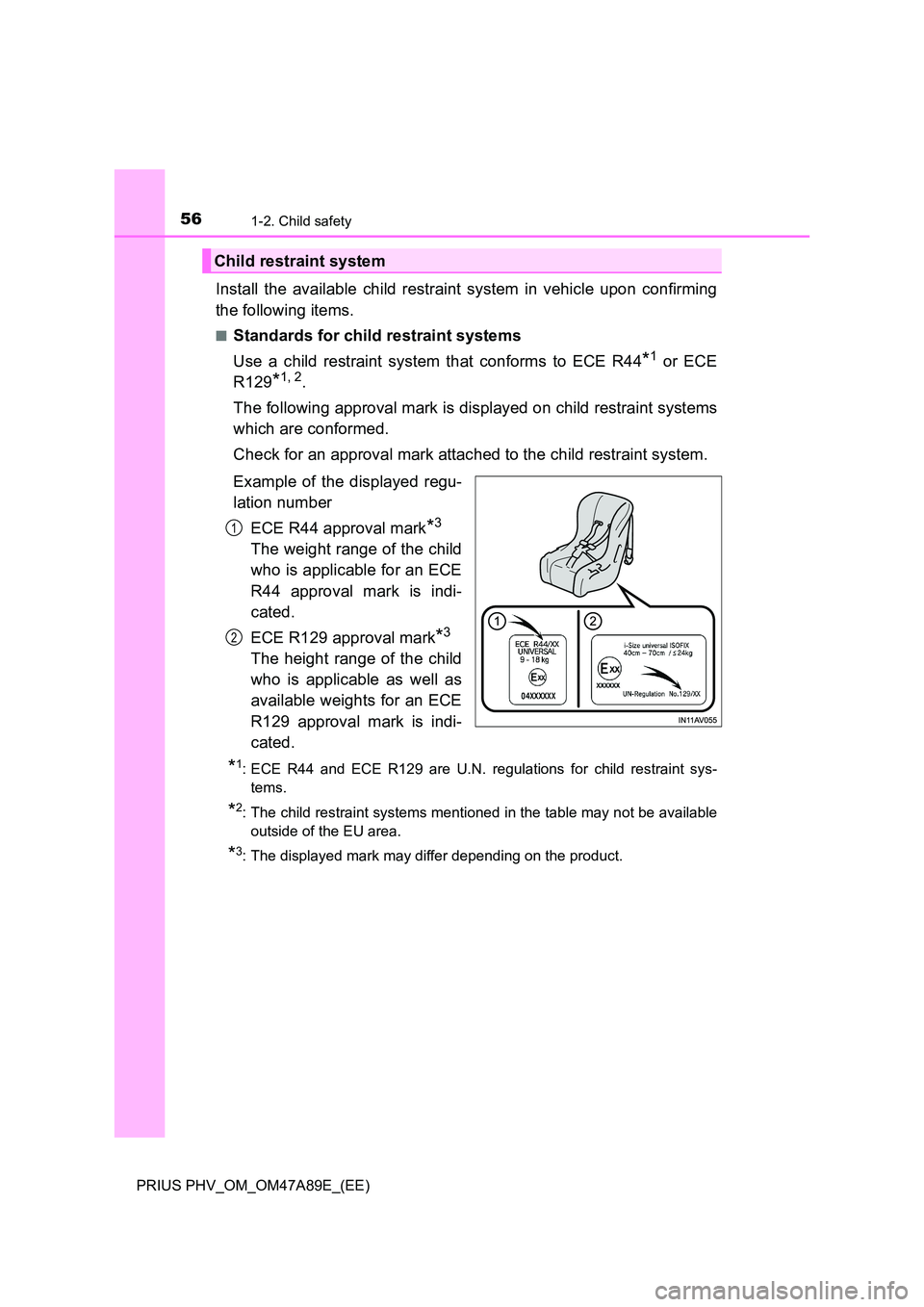

561-2. Child safety
PRIUS PHV_OM_OM47A89E_(EE)
Install the available child restraint system in vehicle upon confirming
the following items.
■Standards for child restraint systems
Use a child restraint system that conforms to ECE R44*1 or ECE
R129*1, 2.
The following approval mark is displayed on child restraint systems
which are conformed.
Check for an approval mark attached to the child restraint system.
Example of the displayed regu-
lation number
ECE R44 approval mark*3
The weight range of the child
who is applicable for an ECE
R44 approval mark is indi-
cated.
ECE R129 approval mark*3
The height range of the child
who is applicable as well as
available weights for an ECE
R129 approval mark is indi-
cated.
*1: ECE R44 and ECE R129 are U.N. regulations for child restraint sys-
tems.
*2: The child restraint systems mentioned in the table may not be available
outside of the EU area.
*3: The displayed mark may differ depending on the product.
Child restraint system
1
2

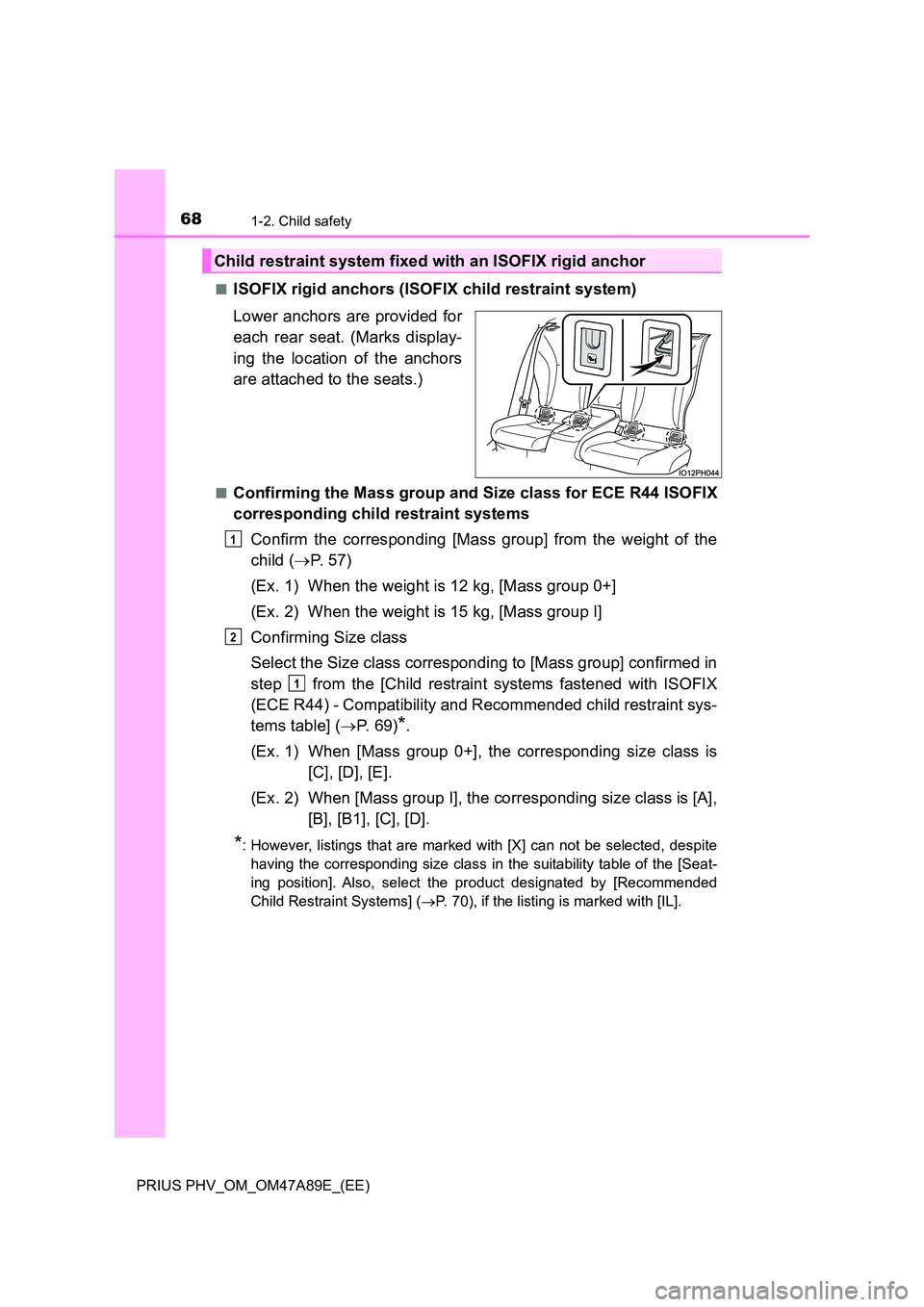

681-2. Child safety
PRIUS PHV_OM_OM47A89E_(EE)
■ISOFIX rigid anchors (ISOFIX child restraint system)
Lower anchors are provided for
each rear seat. (Marks display-
ing the location of the anchors
are attached to the seats.)
■Confirming the Mass group and Size class for ECE R44 ISOFIX
corresponding child restraint systems
Confirm the corresponding [Mass group] from the weight of the
child ( P. 57)
(Ex. 1) When the weight is 12 kg, [Mass group 0+]
(Ex. 2) When the weight is 15 kg, [Mass group I]
Confirming Size class
Select the Size class corresponding to [Mass group] confirmed in
step from the [Child restraint systems fastened with ISOFIX
(ECE R44) - Compatibility and Recommended child restraint sys-
tems table] ( P. 69)*.
(Ex. 1) When [Mass group 0+], the corresponding size class is
[C], [D], [E].
(Ex. 2) When [Mass group I], the corresponding size class is [A],
[B], [B1], [C], [D].
*: However, listings that are marked with [X] can not be selected, despite
having the corresponding size class in the suitability table of the [Seat-
ing position]. Also, select the product designated by [Recommended
Child Restraint Systems] ( P. 70), if the listing is marked with [IL].
Child restraint system fixed with an ISOFIX rigid anchor
1
2
1

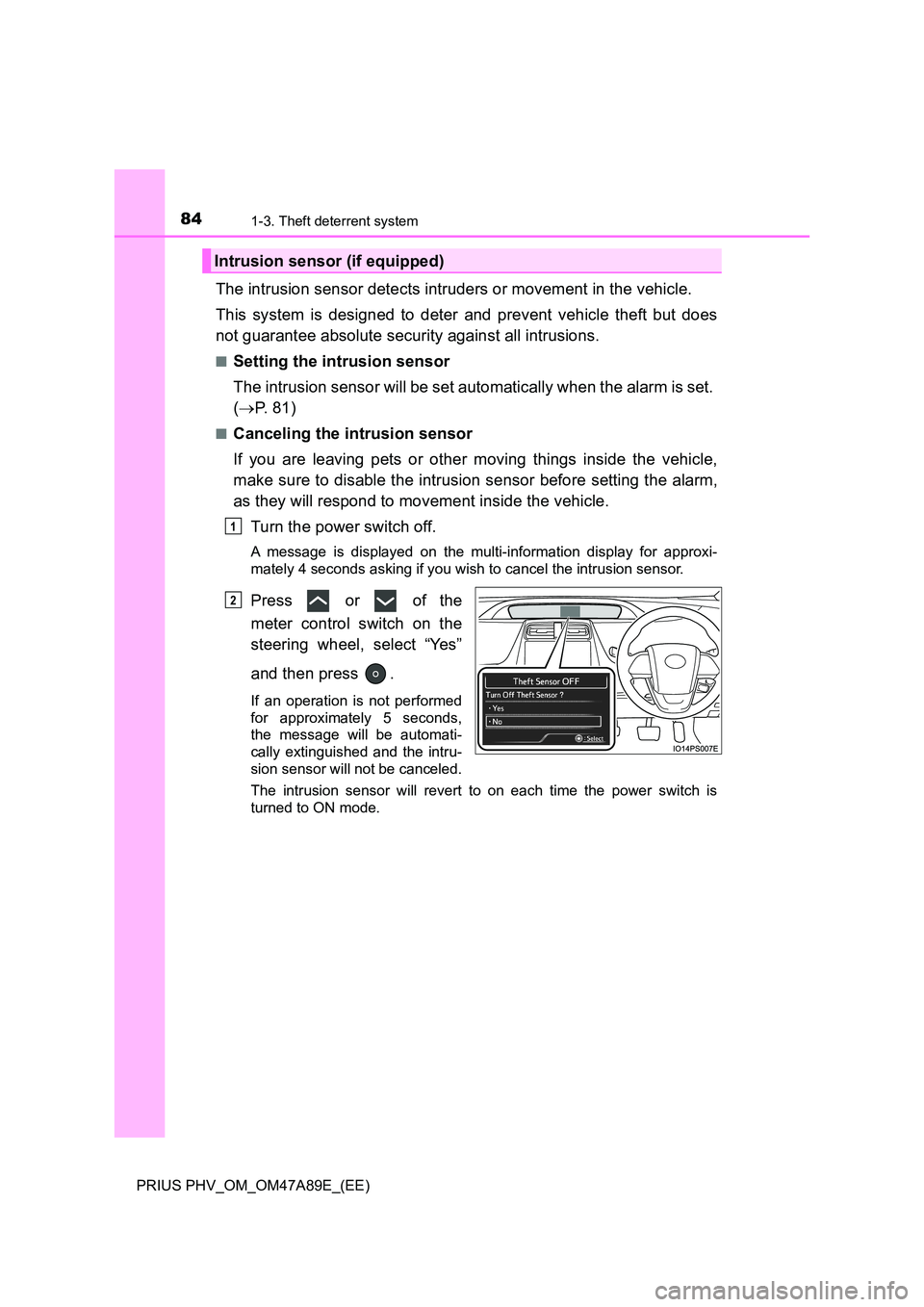

841-3. Theft deterrent system
PRIUS PHV_OM_OM47A89E_(EE)
The intrusion sensor detects intruders or movement in the vehicle.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set.
( P. 8 1 )
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to disable the intrusion sensor before setting the alarm,
as they will respond to movement inside the vehicle.
Turn the power switch off.
A message is displayed on the multi-information display for approxi-
mately 4 seconds asking if you wish to cancel the intrusion sensor.
Press or of the
meter control switch on the
steering wheel, select “Yes”
and then press .
If an operation is not performed
for approximately 5 seconds,
the message will be automati-
cally extinguished and the intru-
sion sensor will not be canceled.
The intrusion sensor will revert to on each time the power switch is
turned to ON mode.
Intrusion sensor (if equipped)
1
2

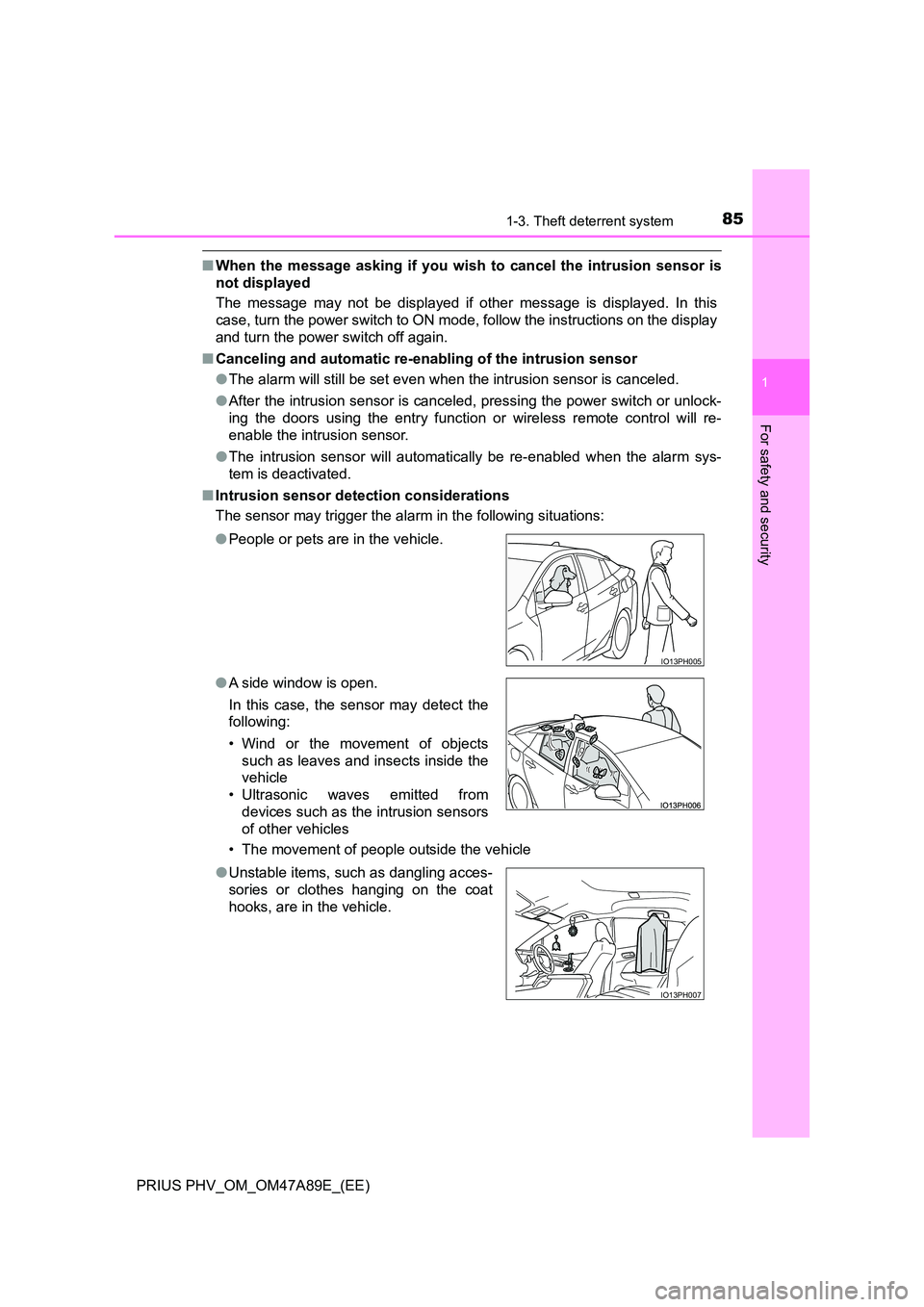

851-3. Theft deterrent system
1
PRIUS PHV_OM_OM47A89E_(EE)
For safety and security
■When the message asking if you wish to cancel the intrusion sensor is
not displayed
The message may not be displayed if other message is displayed. In this
case, turn the power switch to ON mode, follow the instructions on the display
and turn the power switch off again.
■ Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function or wireless remote control will re-
enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
■ Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
• The movement of people outside the vehicle
● People or pets are in the vehicle.
● A side window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
IO13PH005
● Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.
IO13PH007
