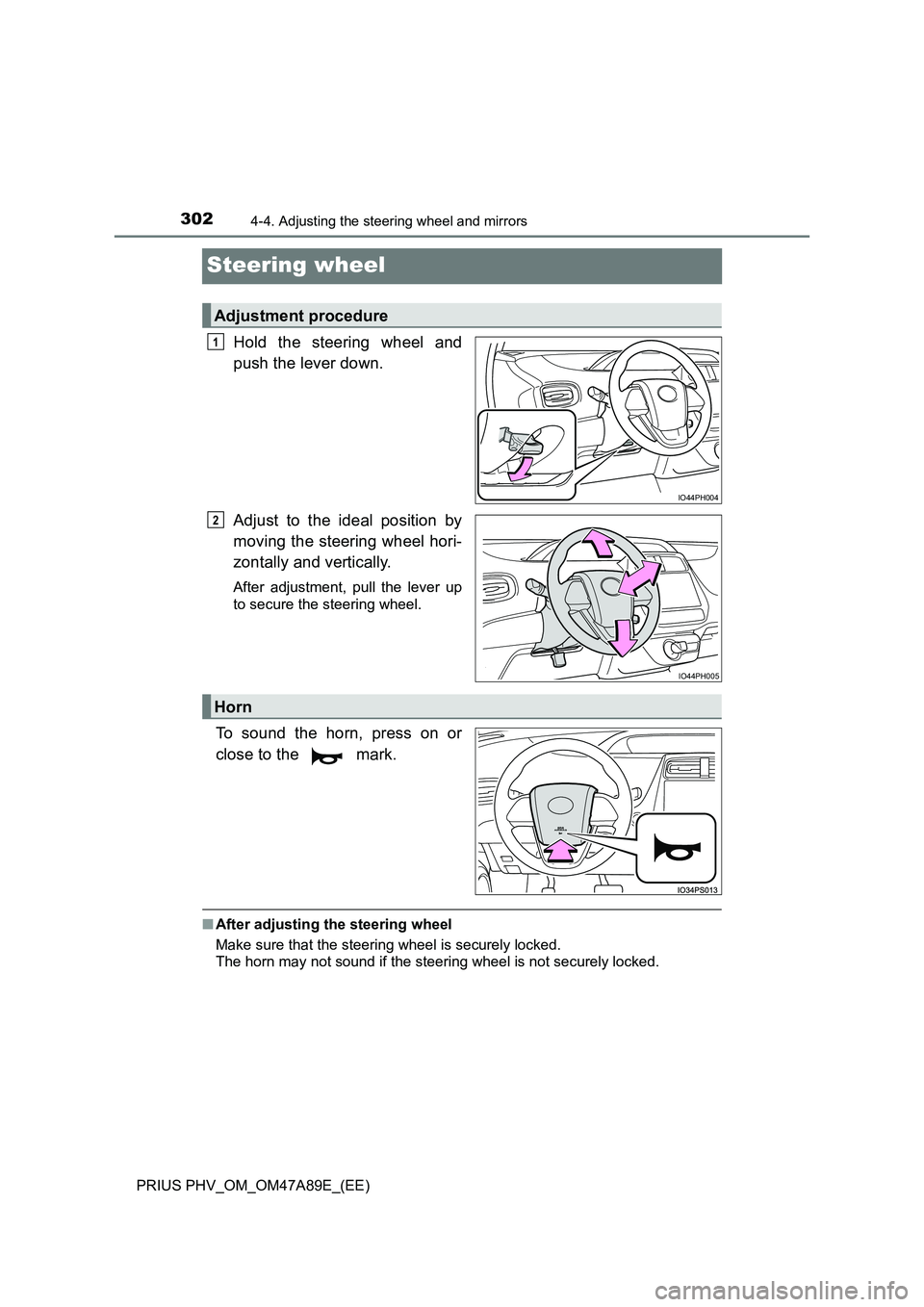

3024-4. Adjusting the steering wheel and mirrors
PRIUS PHV_OM_OM47A89E_(EE)
Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Adjustment procedure
IO44PH004
1
IO44PH005
2
Horn

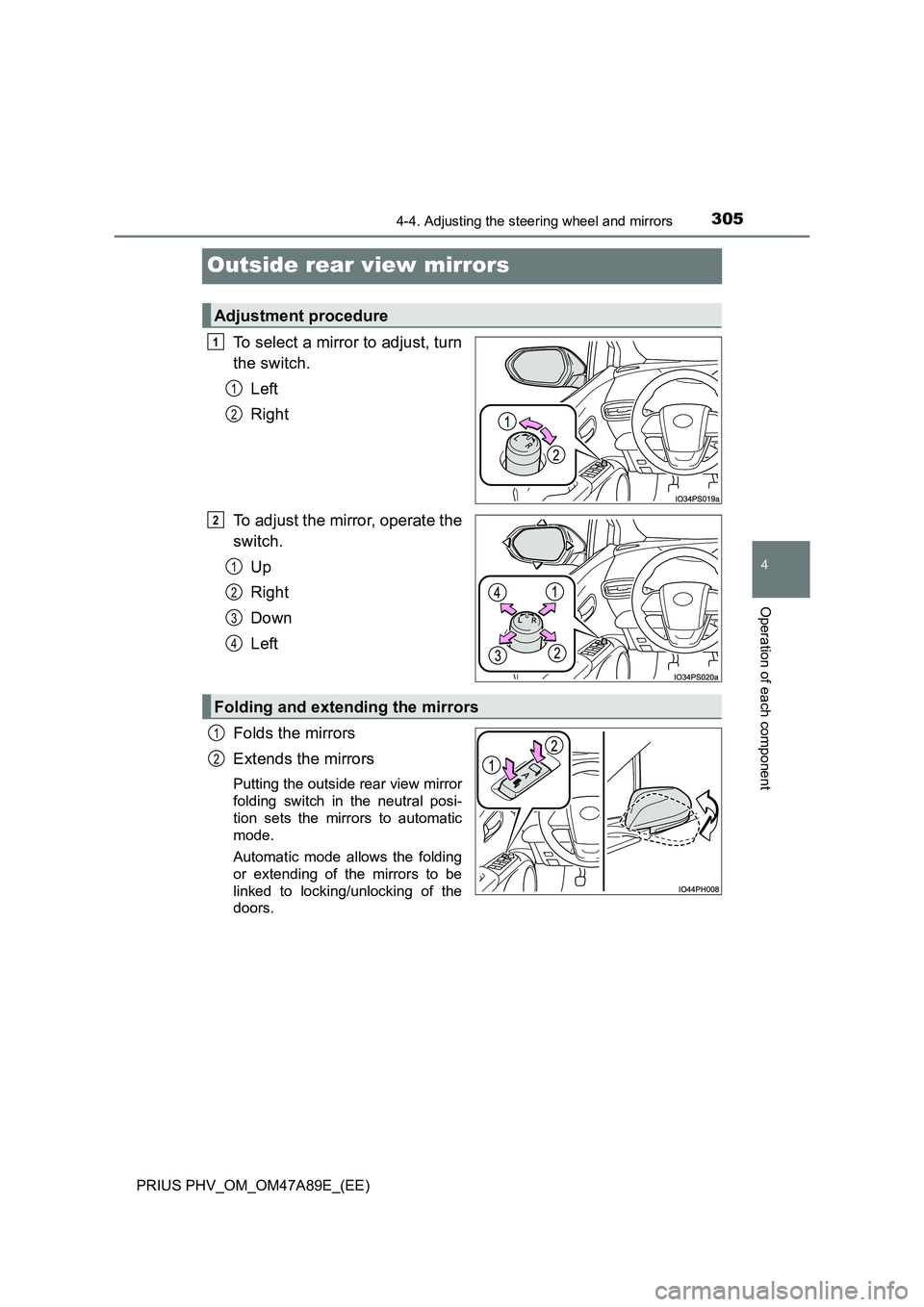

3054-4. Adjusting the steering wheel and mirrors
PRIUS PHV_OM_OM47A89E_(EE)
4
Operation of each component
Outside rear view mirrors
To select a mirror to adjust, turn
the switch.
Left
Right
To adjust the mirror, operate the
switch.
Up
Right
Down
Left
Folds the mirrors
Extends the mirrors
Putting the outside rear view mirror
folding switch in the neutral posi-
tion sets the mirrors to automatic
mode.
Automatic mode allows the folding
or extending of the mirrors to be
linked to locking/unlocking of the
doors.
Adjustment procedure
1
1
2
2
1
2
3
4
Folding and extending the mirrors
1
2

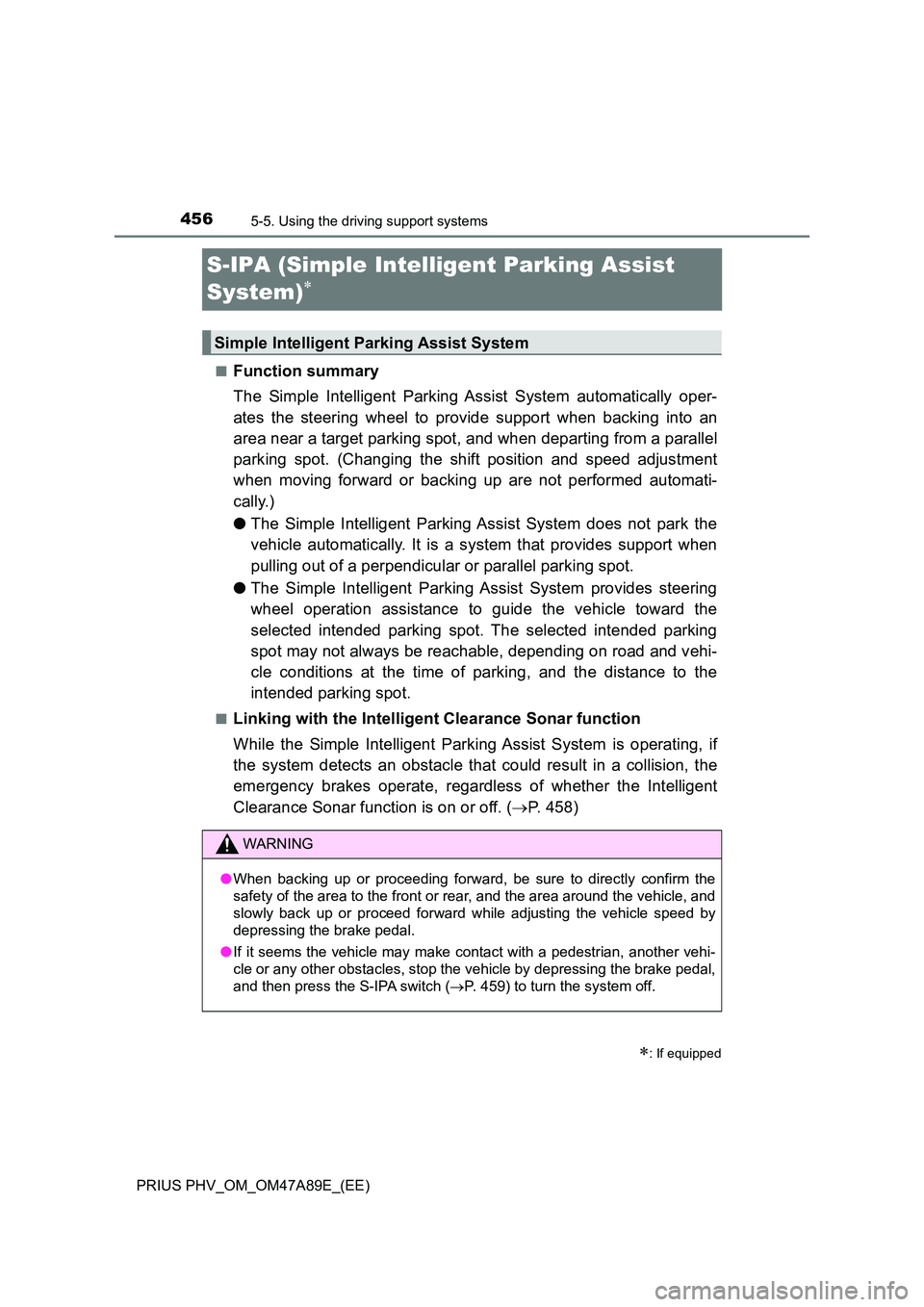

4565-5. Using the driving support systems
PRIUS PHV_OM_OM47A89E_(EE)
S-IPA (Simple Intelligent Parking Assist
System)
■Function summary
The Simple Intelligent Parking Assist System automatically oper-
ates the steering wheel to provide support when backing into an
area near a target parking spot, and when departing from a parallel
parking spot. (Changing the shift position and speed adjustment
when moving forward or backing up are not performed automati-
cally.)
● The Simple Intelligent Parking Assist System does not park the
vehicle automatically. It is a system that provides support when
pulling out of a perpendicular or parallel parking spot.
● The Simple Intelligent Parking Assist System provides steering
wheel operation assistance to guide the vehicle toward the
selected intended parking spot. The selected intended parking
spot may not always be reachable, depending on road and vehi-
cle conditions at the time of parking, and the distance to the
intended parking spot.
■Linking with the Intelligent Clearance Sonar function
While the Simple Intelligent Parking Assist System is operating, if
the system detects an obstacle that could result in a collision, the
emergency brakes operate, regardless of whether the Intelligent
Clearance Sonar function is on or off. ( P. 458)
: If equipped
Simple Intelligent Parking Assist System
WARNING
●When backing up or proceeding forward, be sure to directly confirm the
safety of the area to the front or rear, and the area around the vehicle, and
slowly back up or proceed forward while adjusting the vehicle speed by
depressing the brake pedal.
● If it seems the vehicle may make contact with a pedestrian, another vehi-
cle or any other obstacles, stop the vehicle by depressing the brake pedal,
and then press the S-IPA switch ( P. 459) to turn the system off.

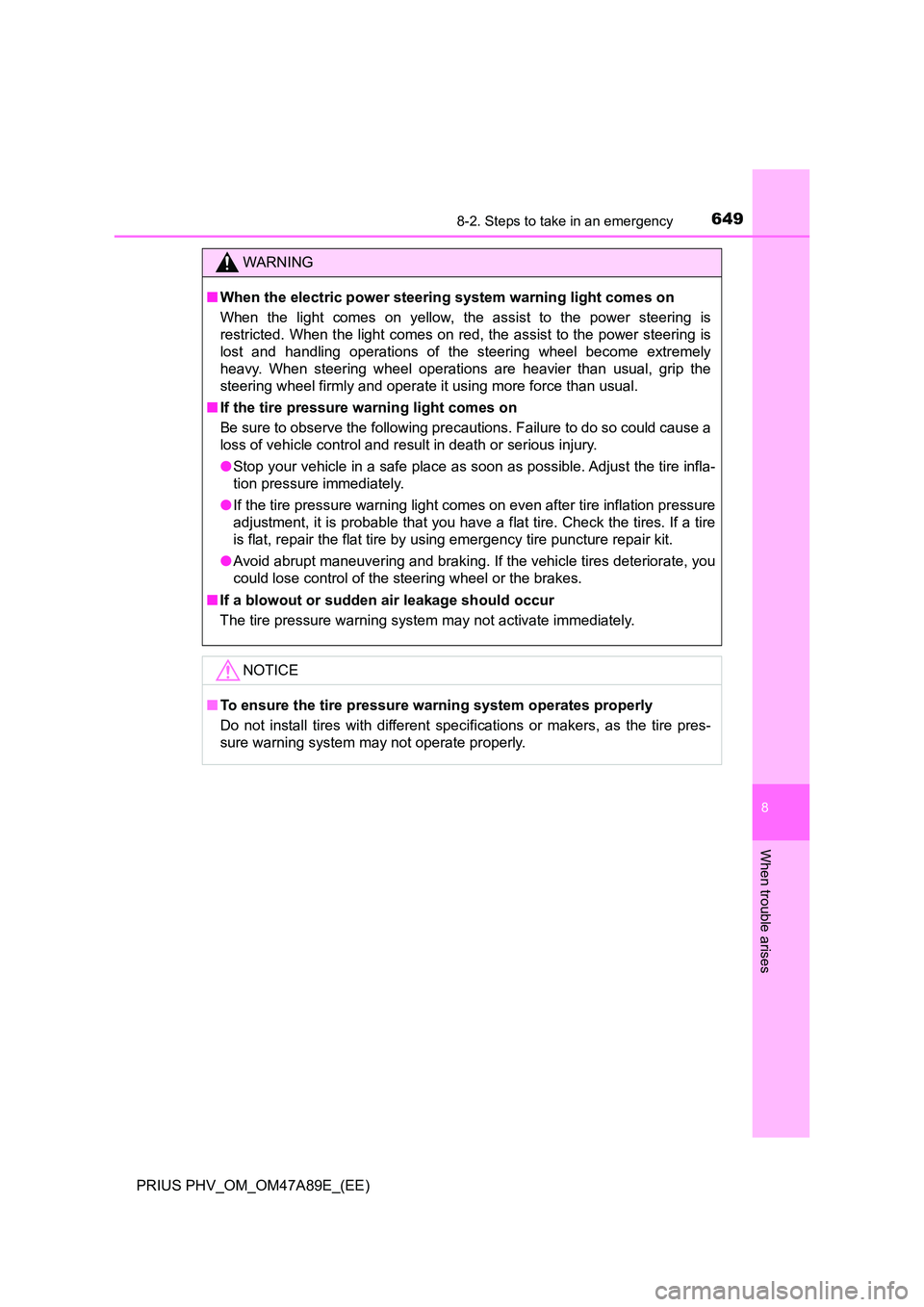

6498-2. Steps to take in an emergency
PRIUS PHV_OM_OM47A89E_(EE)
8
When trouble arises
WARNING
■When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steering is
restricted. When the light comes on red, the assist to the power steering is
lost and handling operations of the steering wheel become extremely
heavy. When steering wheel operations are heavier than usual, grip the
steering wheel firmly and operate it using more force than usual.
■ If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire
is flat, repair the flat tire by us ing emergency tire puncture repair kit.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
NOTICE
■ To ensure the tire pressure warning system operates properly
Do not install tires with different specif ications or makers, as the tire pres-
sure warning system may not operate properly.

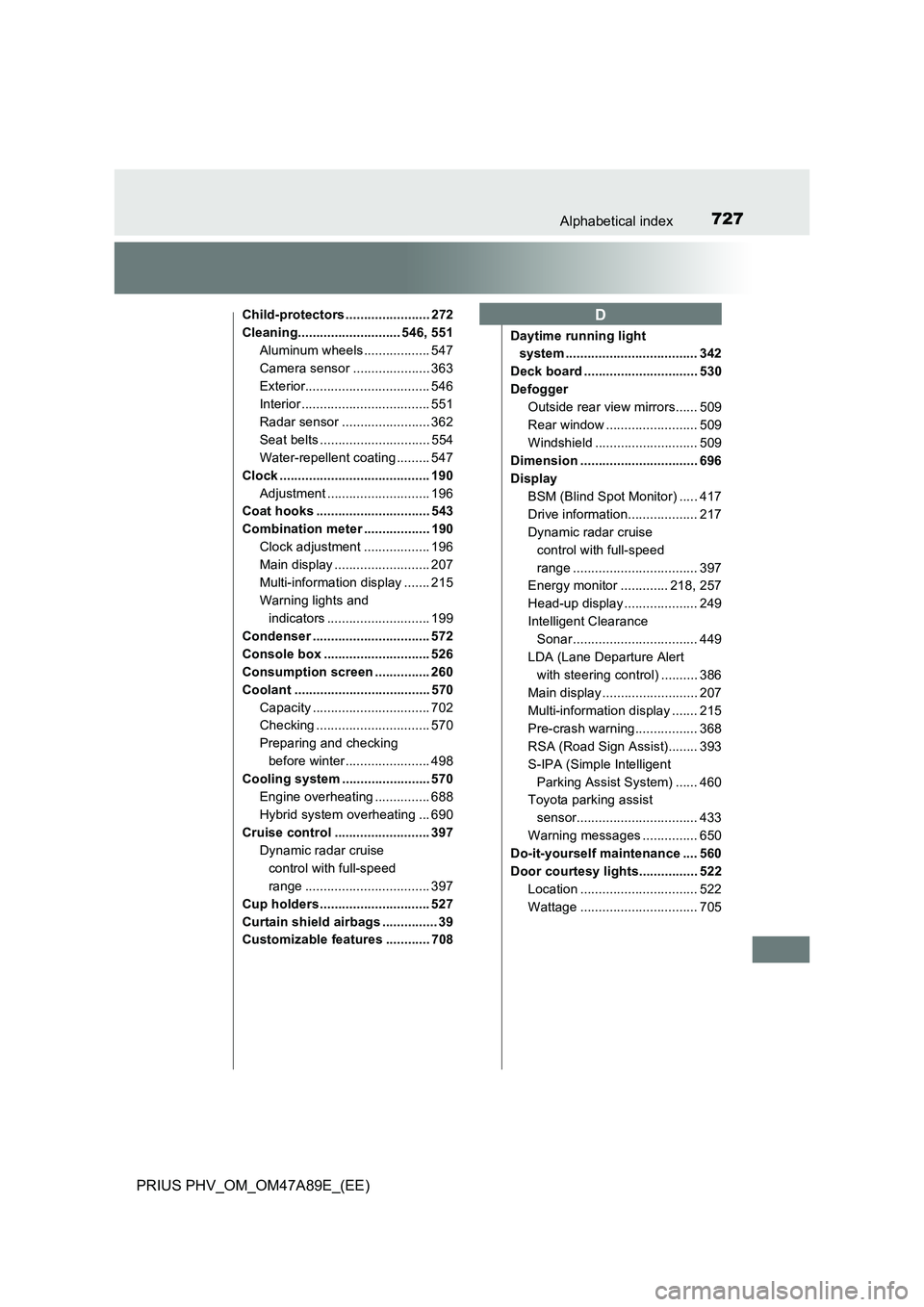

727Alphabetical index
PRIUS PHV_OM_OM47A89E_(EE)
Child-protectors ....................... 272
Cleaning............................ 546, 551
Aluminum wheels .................. 547
Camera sensor ..................... 363
Exterior.................................. 546
Interior ................................... 551
Radar sensor ........................ 362
Seat belts .............................. 554
Water-repellent coating ......... 547
Clock ......................................... 190
Adjustment ............................ 196
Coat hooks ............................... 543
Combination meter .................. 190
Clock adjustment .................. 196
Main display .......................... 207
Multi-information display ....... 215
Warning lights and
indicators ............................ 199
Condenser ................................ 572
Console box ............................. 526
Consumption screen ............... 260
Coolant ..................................... 570
Capacity ................................ 702
Checking ............................... 570
Preparing and checking
before winter....................... 498
Cooling system ........................ 570
Engine overheating ............... 688
Hybrid system overheating ... 690
Cruise control .......................... 397
Dynamic radar cruise
control with full-speed
range .................................. 397
Cup holders .............................. 527
Curtain shield airbags ............... 39
Customizable features ............ 708Daytime running light
system .................................... 342
Deck board ............................... 530
Defogger
Outside rear view mirrors...... 509
Rear window ......................... 509
Windshield ............................ 509
Dimension ................................ 696
Display
BSM (Blind Spot Monitor) ..... 417
Drive information................... 217
Dynamic radar cruise
control with full-speed
range .................................. 397
Energy monitor ............. 218, 257
Head-up display .................... 249
Intelligent Clearance
Sonar.................................. 449
LDA (Lane Departure Alert
with steering control) .......... 386
Main display .......................... 207
Multi-information display ....... 215
Pre-crash warning................. 368
RSA (Road Sign Assist)........ 393
S-IPA (Simple Intelligent
Parking Assist System) ...... 460
Toyota parking assist
sensor................................. 433
Warning messages ............... 650
Do-it-yourself maintenance .... 560
Door courtesy lights................ 522
Location ................................ 522
Wattage ................................ 705D

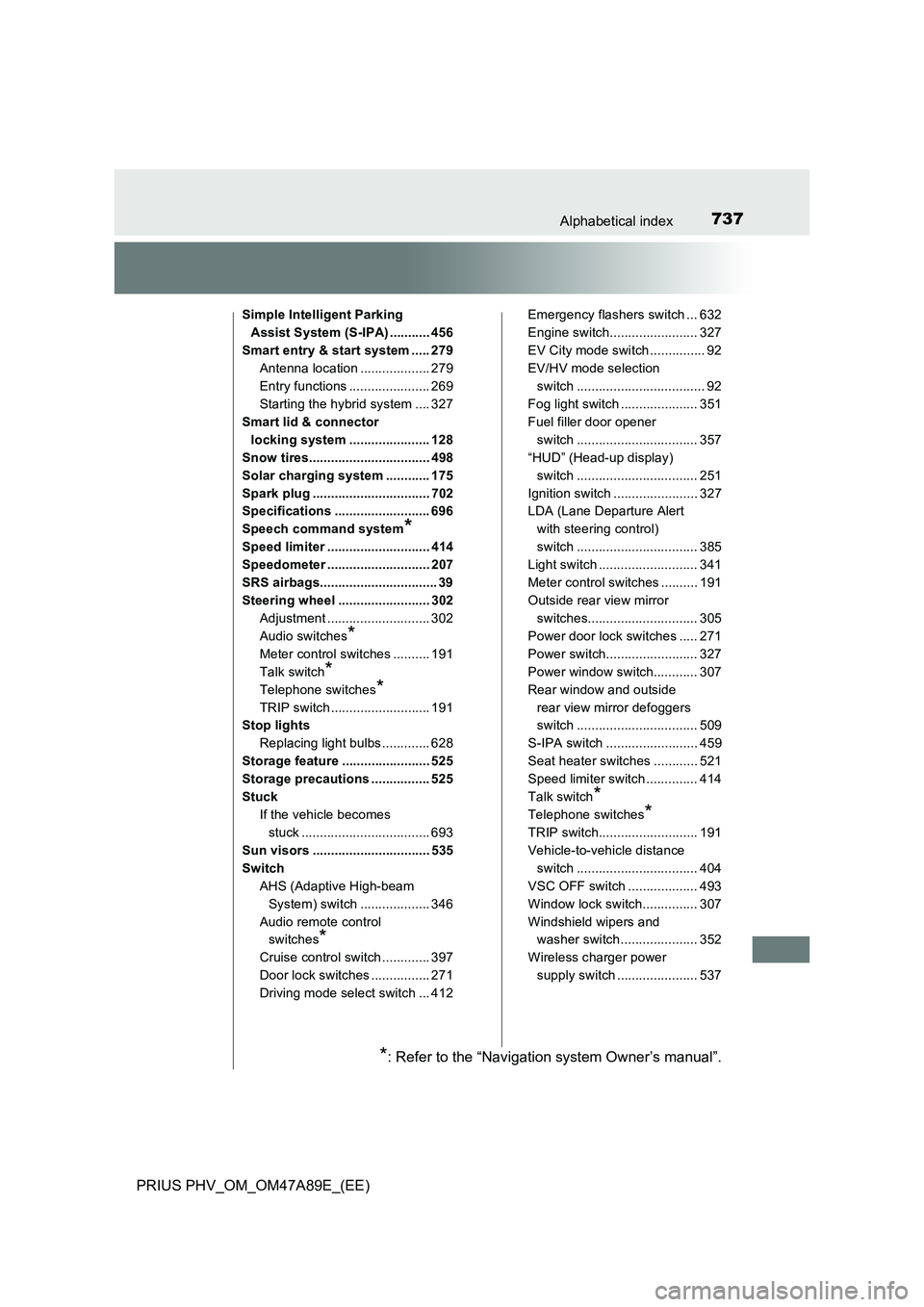

737Alphabetical index
PRIUS PHV_OM_OM47A89E_(EE)
Simple Intelligent Parking
Assist System (S-IPA) ........... 456
Smart entry & start system ..... 279
Antenna location ................... 279
Entry functions ...................... 269
Starting the hybrid system .... 327
Smart lid & connector
locking system ...................... 128
Snow tires................................. 498
Solar charging system ............ 175
Spark plug ................................ 702
Specifications .......................... 696
Speech command system
*
Speed limiter ............................ 414
Speedometer ............................ 207
SRS airbags................................ 39
Steering wheel ......................... 302
Adjustment ............................ 302
Audio switches
*
Meter control switches .......... 191
Talk switch
*
Telephone switches*
TRIP switch ........................... 191
Stop lights
Replacing light bulbs ............. 628
Storage feature ........................ 525
Storage precautions ................ 525
Stuck
If the vehicle becomes
stuck ................................... 693
Sun visors ................................ 535
Switch
AHS (Adaptive High-beam
System) switch ................... 346
Audio remote control
switches
*
Cruise control switch ............. 397
Door lock switches ................ 271
Driving mode select switch ... 412Emergency flashers switch ... 632
Engine switch........................ 327
EV City mode switch ............... 92
EV/HV mode selection
switch ................................... 92
Fog light switch ..................... 351
Fuel filler door opener
switch ................................. 357
“HUD” (Head-up display)
switch ................................. 251
Ignition switch ....................... 327
LDA (Lane Departure Alert
with steering control)
switch ................................. 385
Light switch ........................... 341
Meter control switches .......... 191
Outside rear view mirror
switches.............................. 305
Power door lock switches ..... 271
Power switch......................... 327
Power window switch............ 307
Rear window and outside
rear view mirror defoggers
switch ................................. 509
S-IPA switch ......................... 459
Seat heater switches ............ 521
Speed limiter switch .............. 414
Talk switch
*
Telephone switches*
TRIP switch........................... 191
Vehicle-to-vehicle distance
switch ................................. 404
VSC OFF switch ................... 493
Window lock switch............... 307
Windshield wipers and
washer switch ..................... 352
Wireless charger power
supply switch ...................... 537
*: Refer to the “Navigation system Owner’s manual”.
