2463. Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)
*1: “LO” is displayed if the temperature is adjusted to the lowest setting, and
“HI” is displayed if the temperature is adjusted to the highest setting.
*2: The selectable modes differ depending on whether a passenger is present.
(P. 532)
■
Adjusting the settings
Press to display the cursor.
Press or of the meter control switches to select the
desired item to set.
Press or of the meter control switches to select the set-
ting item or setting value.
The air conditioning system cannot be stopped by performing opera-
tions on the air conditioning settings screen. Please use the air condi-
tioning switch to stop the air conditioning system.
ItemSettings
Eco score
(A/C score)P. 247
Temperature
settingChanges according to operation of the meter control
switches
*1
Outside air and
recirculated air
modes
(Outside air mode)
(Recirculated air mode)
Fan speed1 to 7
“CLIMATE
PREFERENCE”“NORMAL”“ECO”“FAST”
S-FLOW mode“On (Driver
Priority)”
*2“On (Fr Seat
Only)”
*2“Off (All seat)”
1
2
3
4
5
6
1
2
3

2473. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)■
Eco score (A/C score)
The current air conditioning system usage status is evaluated in 5
levels to determine whether it is Eco-friendly.
The evaluation changes according to the air conditioning system
usage status. When the power switch is turned off, the current total
driving score
*1 and advice*2 related to using the air conditioning
system are displayed. (P. 202)
Low score
*3
High score
Avoiding excessive use of the
air conditioning system and
using the air conditioning sys-
tem at the appropriate setting
according to the ambient tem-
perature and number of passen-
gers and with the S-FLOW
mode ( ) and “CLIMATE
PREFERENCE” will result in a
high evaluation.
*1: The Eco score (A/C score) is not evaluated for approximately 1 minute
after the power switch is turned to ON mode.
*2: This advice may not be displayed depending on the situation.
*3: For items not evaluated with an Eco score (A/C score), the display
reads 0.
1
2

2483. Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)
■Operating switches of the air conditioning system operation panel
●The pop-up display function that displays when the air conditioning settings
are changed using the air conditioning system switches can be turned off in
the “Meter Customize” settings. (P. 253)
■Eco score (A/C score)
●The setting status of the following air conditioning system functions are
reflected in the score.
• Temperature setting
• Fan speed setting
• Outside air and recirculated air modes
• “A/C” button
• S-FLOW mode
• “CLIMATE PREFERENCE”
●The Eco score (A/C score) is evaluated according to the ambient tempera-
ture and cabin temperature. Accordingly, even if the same settings are
always used for the air conditioning system, the evaluation will change
according to such factors as the season and weather.
●When the air conditioning system is not being used or the airflow mode is
set to or , the Eco score (A/C score) is not evaluated. (While the
air conditioning system is not evaluated, its usage status is not reflected in
the total Eco score result.)
●The Eco score (A/C score) is a function that helps select an air conditioning
system setting which reduces electricity and fuel consumption, not a func-
tion that satisfies both comfortability and low fuel consumption. ●When the air conditioning system
switches are operated to change the air
conditioning settings while a screen
other than the air conditioning system
settings screen is displayed on the multi-
information display, a pop-up display for
the air conditioning settings contents is
displayed. However, air conditioning
system settings cannot be changed on
the pop-up display.

2583. Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)
Meter control switches
These switches are used when adjusting the display position and bright-
ness of the head-up display. (P. 260)
“HUD” (Head-up display) switch (P. 259)
Vehicle speed display
Right-hand drive vehicles:
The speed unit appears under the vehicle speed display.
Cruise control display (P. 422)
Hybrid System Indicator (P. 229)
The display contents of the Hybrid System Indicator are different in EV
mode and HV mode.
EV driving range
Indicates the estimated distance that can be driven using the current
remaining hybrid battery (traction battery).
(P. 1 1 9 )
When the air conditioning system is operating, the driving range with the
air conditioning system on is displayed.
The EV driving range may shorten even when not driving due to power
consumption by the system.
Insert display (P. 2 6 1)
This display inserts information from each driving support system accord-
ing to driving conditions.
1
2
3
4
5
6
7

2673. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)
The current remaining charge in the hybrid battery (traction battery) is
displayed on the energy monitor screen.
The system automatically switches to the HV mode when the neces-
sary amount of battery charge for EV driving in EV mode is insuffi-
cient.
The hybrid battery (traction bat-
tery) for EV mode is fully
charged
There is a remaining charge in
the hybrid battery (traction bat-
tery).
The hybrid battery (traction bat-
tery) for EV mode is not remain-
ing
The hybrid battery (traction bat-
tery) for HV mode is fully
charged
When the hybrid battery (traction
battery) charge for EV mode is
depleted, the hybrid battery (trac-
tion battery) charge for HV mode is
displayed.
The hybrid battery (traction battery) is not remaining
The image is an example only, and may vary slightly from actual condi-
tions.
The approximate distance that
can be driven using only the elec-
tric motor (traction motor).
• Displayed only in EV mode.
• When the air conditioning is on,
the displayed value may differ
from the Hybrid System Indicator.
(P. 234)
• The image is an example only,
and may vary slightly from actual
conditions.

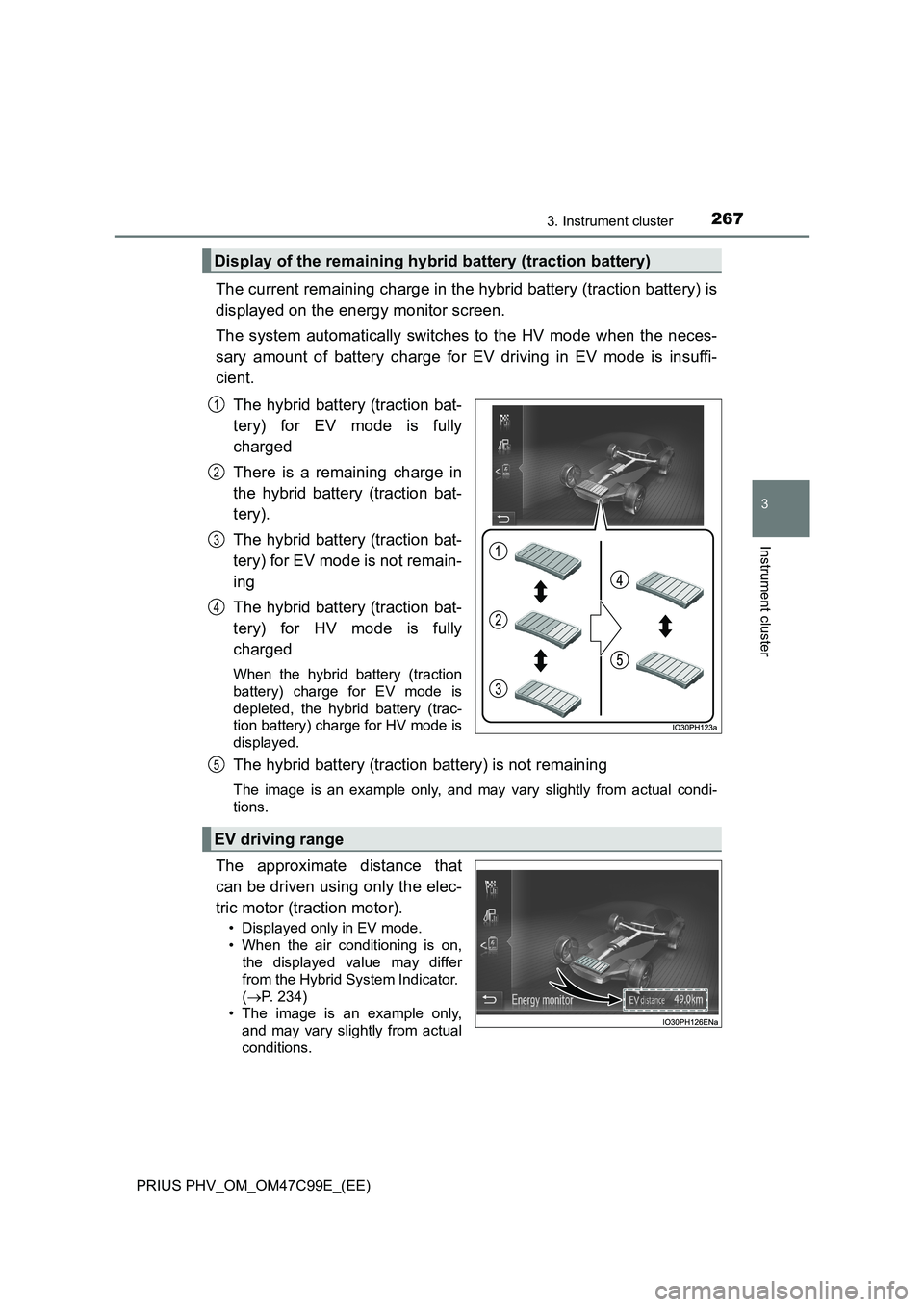

Display of the remaining hybrid battery (traction battery)
1
2
3
4
EV driving range
5
