fuse box TOYOTA PRIUS PLUG-IN HYBRID 2021 Owners Manual

6377-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
7
Maintenance and care

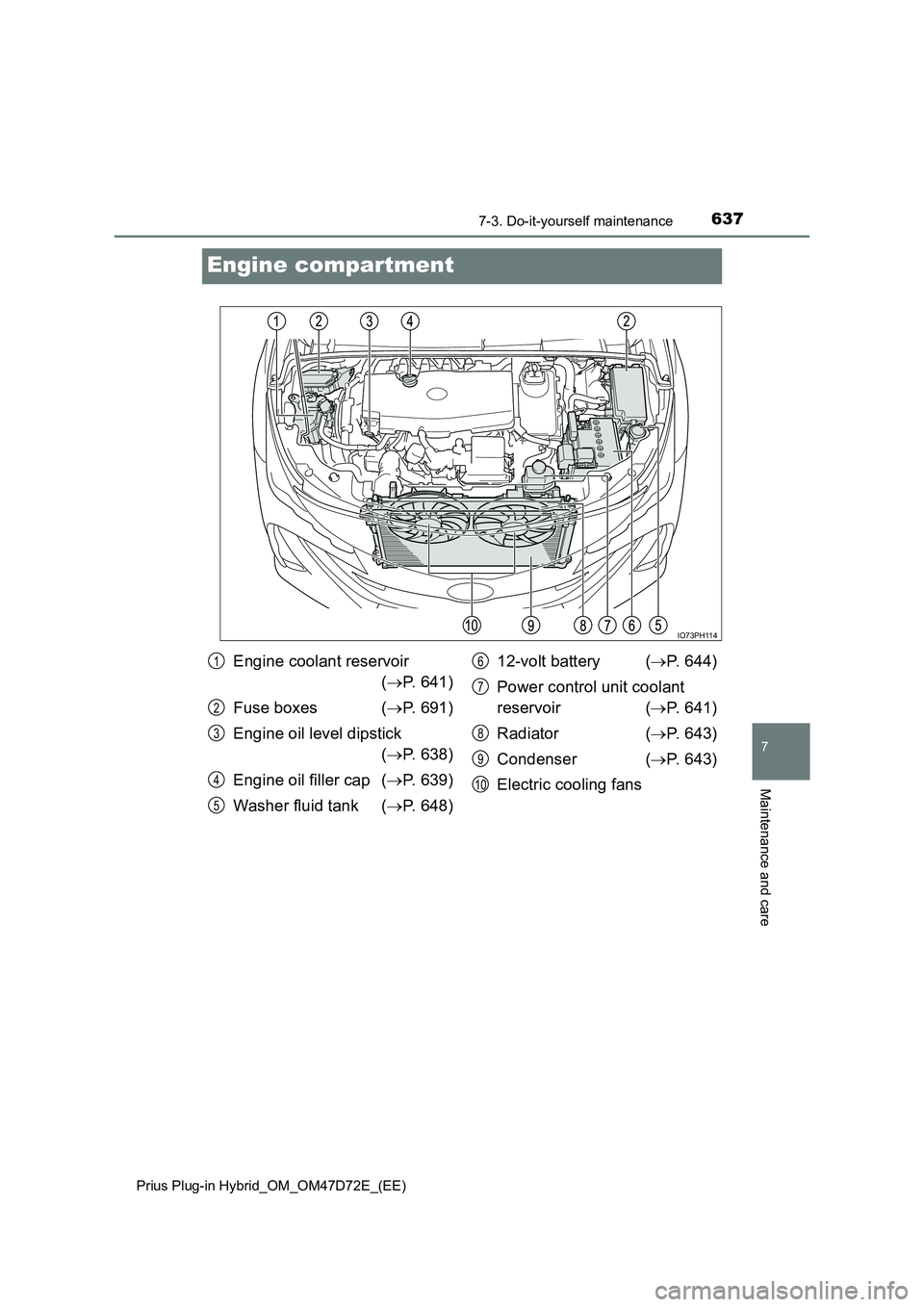

Engine compartment
IO73PH114
Engine coolant reservoir
( P. 641)
Fuse boxes ( P. 691)
Engine oil level dipstick
( P. 638)
Engine oil filler cap ( P. 639)
Washer fluid tank ( P. 648)
12-volt battery ( P. 644)
Power control unit coolant
reservoir ( P. 641)
Radiator ( P. 643)
Condenser ( P. 643)
Electric cooling fans
1
2
3
4
5
6
7
8
9
10

6917-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
7
Maintenance and care

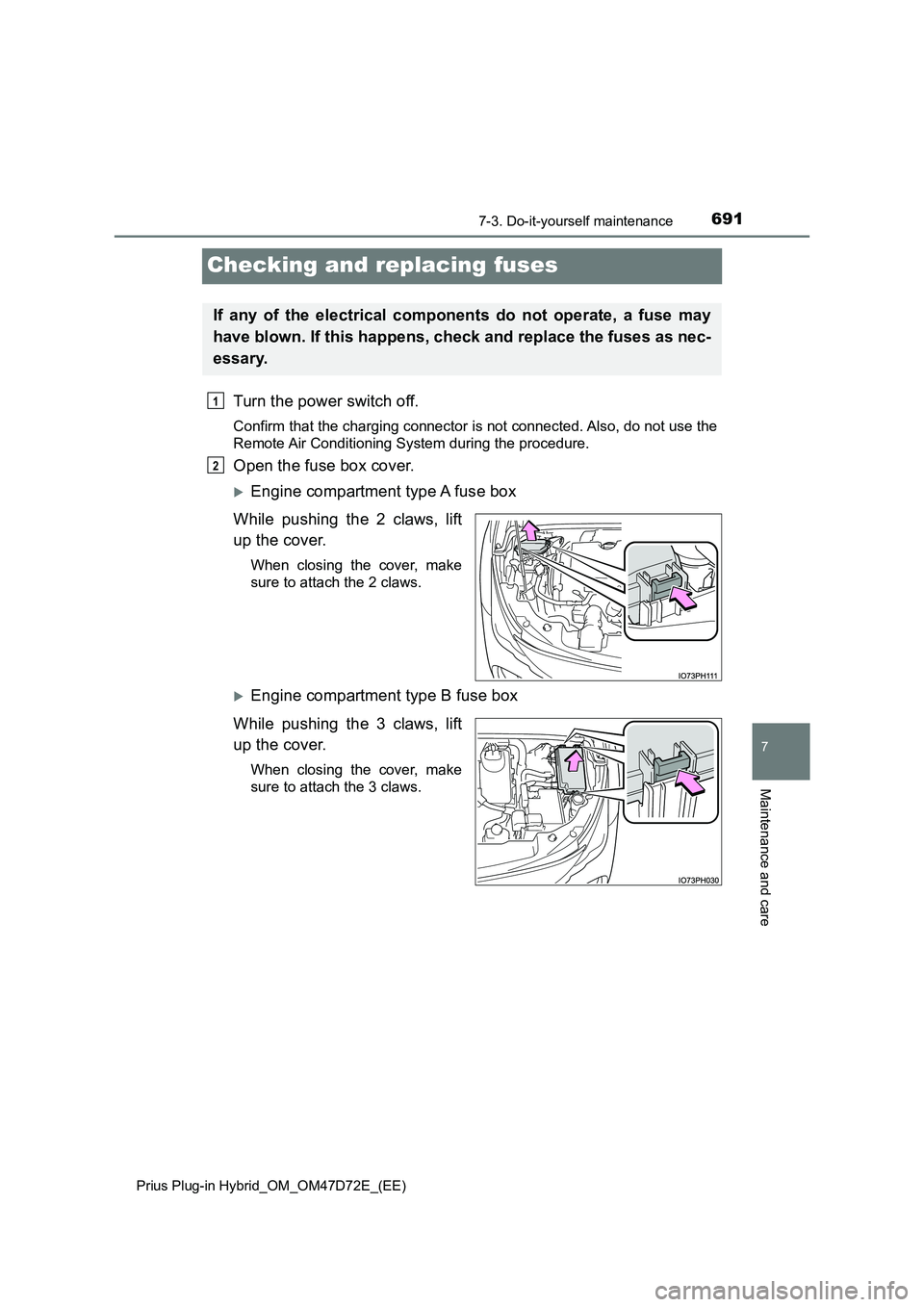

Checking and replacing fuses
Turn the power switch off.
Confirm that the charging connector is not connected. Also, do not use the
Remote Air Conditioning System during the procedure.
Open the fuse box cover.
Engine compartment type A fuse box
While pushing the 2 claws, lift
up the cover.
When closing the cover, make
sure to attach the 2 claws.
Engine compartment type B fuse box
While pushing the 3 claws, lift
up the cover.
When closing the cover, make
sure to attach the 3 claws.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2

6937-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
7
Maintenance and care

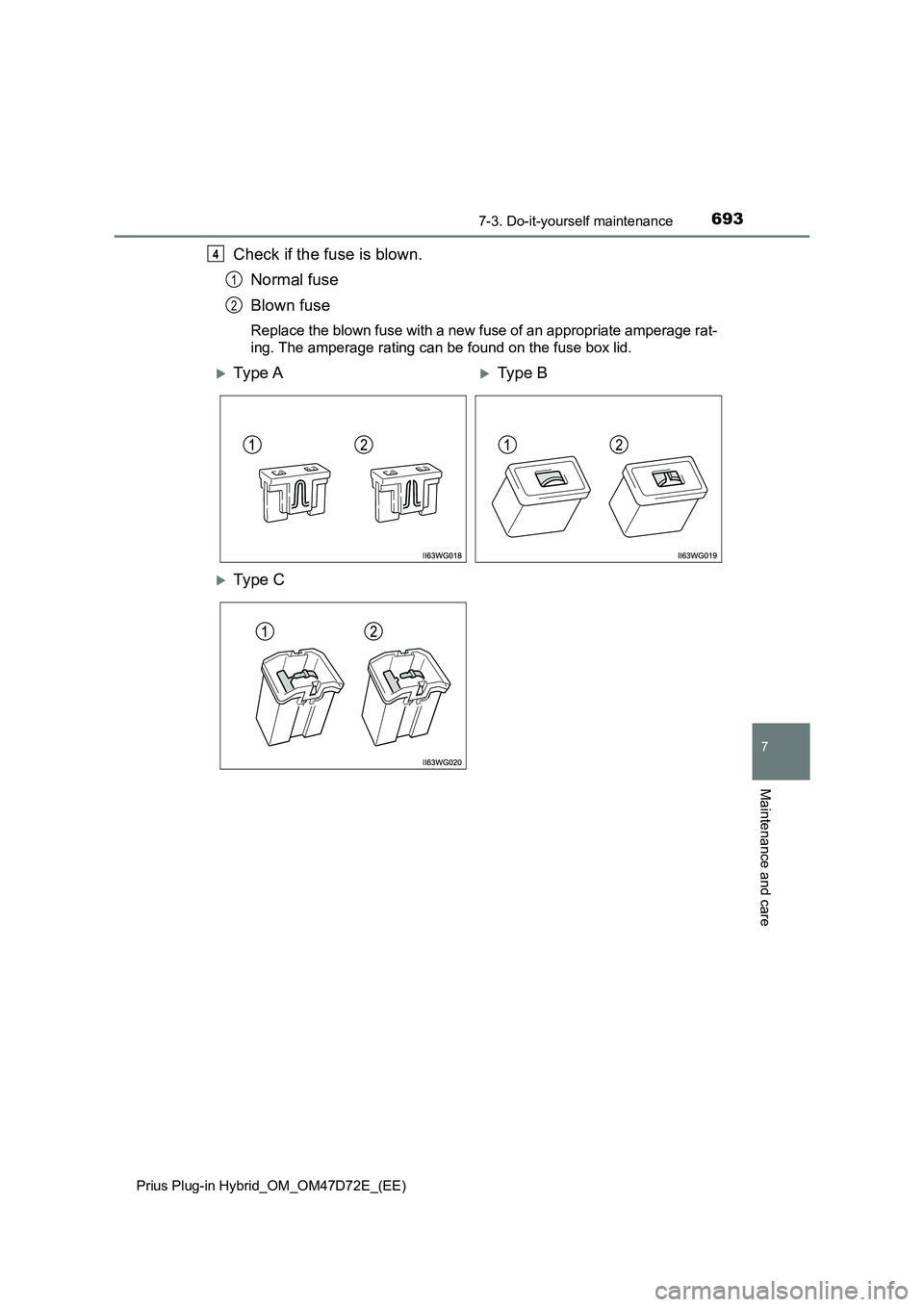

Check if the fuse is blown.
Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
4
1
2
Ty pe AType B
Ty pe C

6947-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

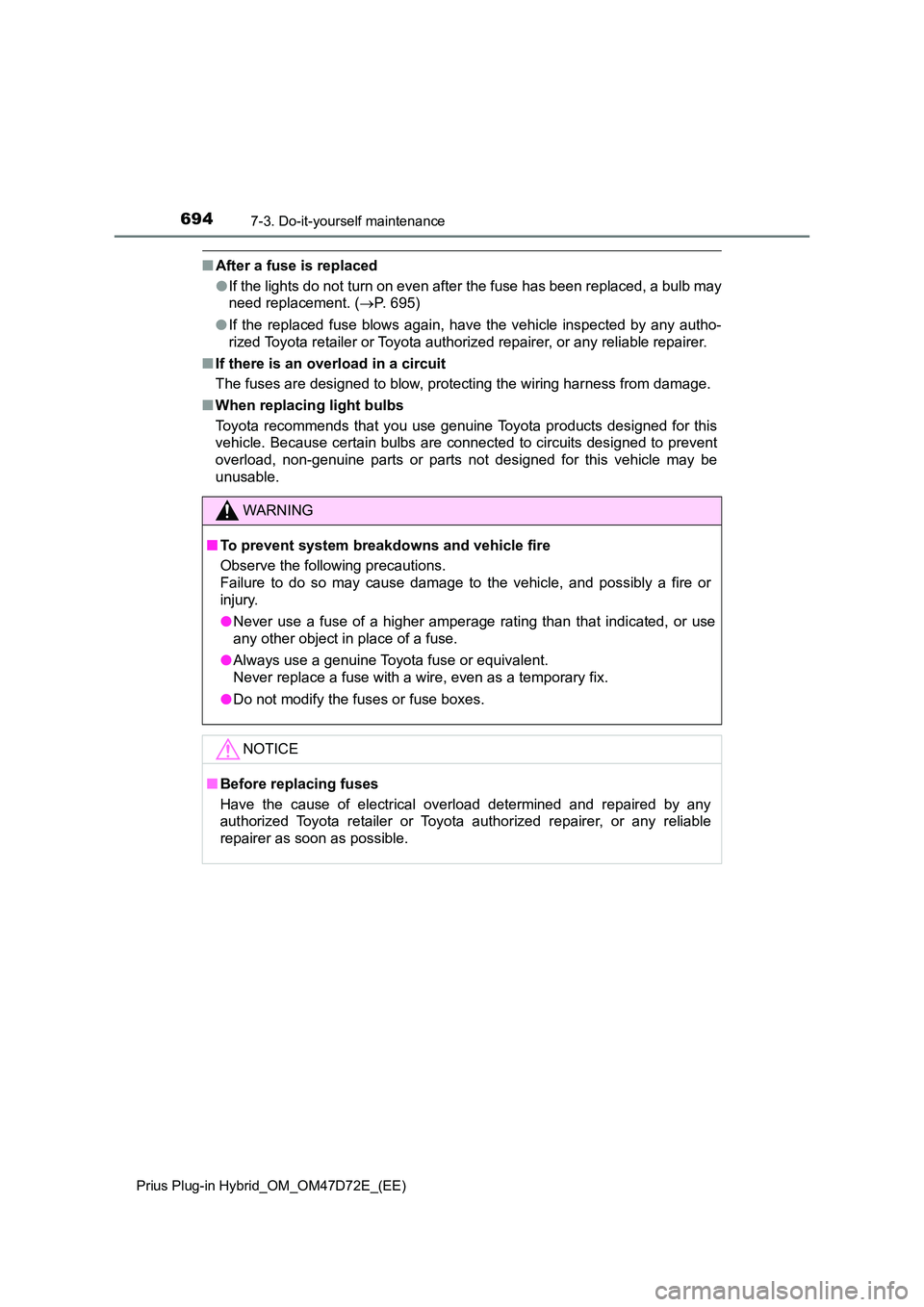

■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 695)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.

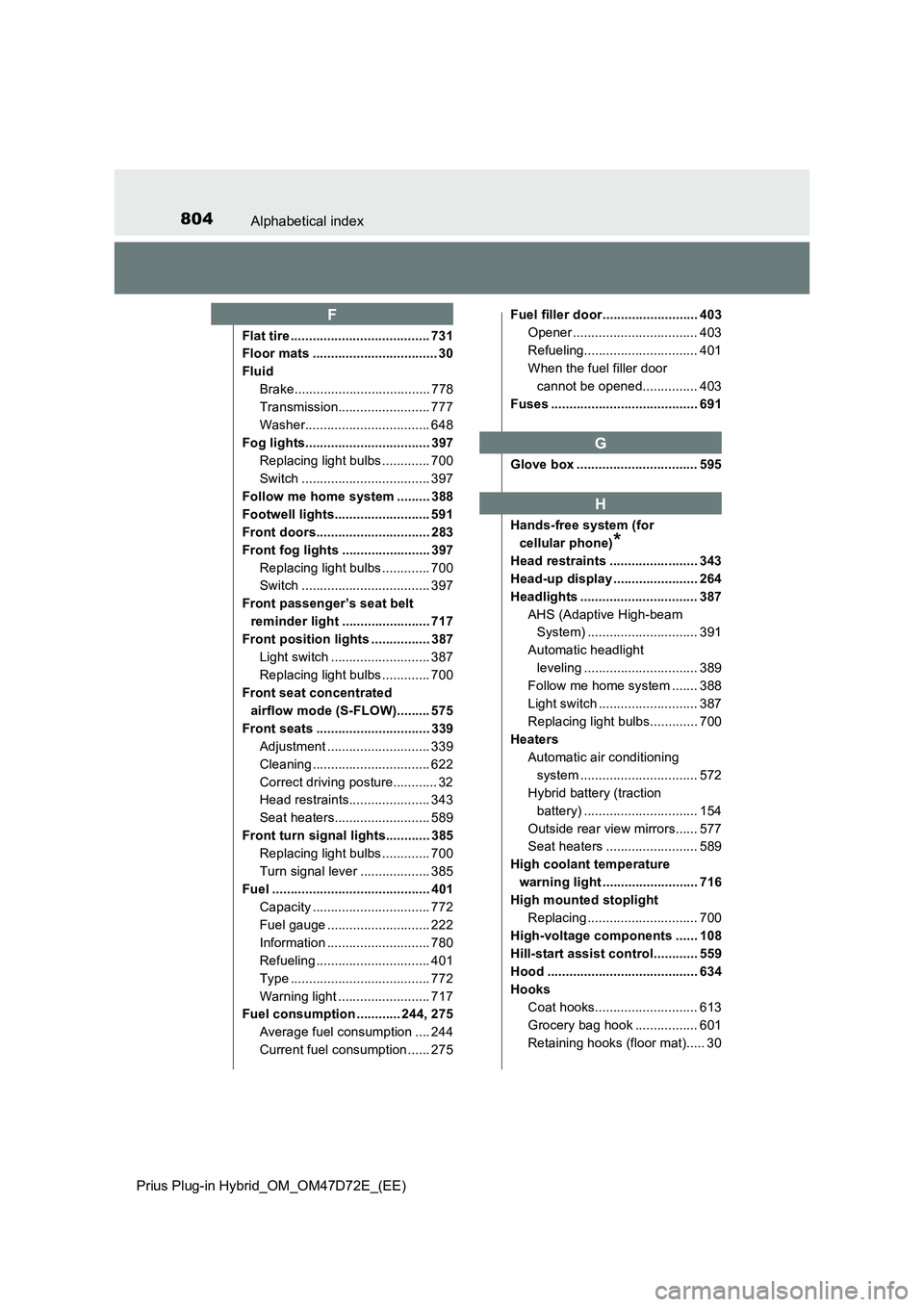

804Alphabetical index
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Flat tire ...................................... 731
Floor mats .................................. 30
Fluid
Brake..................................... 778
Transmission......................... 777
Washer.................................. 648
Fog lights.................................. 397
Replacing light bulbs ............. 700
Switch ................................... 397
Follow me home system ......... 388
Footwell lights.......................... 591
Front doors............................... 283
Front fog lights ........................ 397
Replacing light bulbs ............. 700
Switch ................................... 397
Front passenger’s seat belt
reminder light ........................ 717
Front position lights ................ 387
Light switch ........................... 387
Replacing light bulbs ............. 700
Front seat concentrated
airflow mode (S-FLOW)......... 575
Front seats ............................... 339
Adjustment ............................ 339
Cleaning ................................ 622
Correct driving posture............ 32
Head restraints...................... 343
Seat heaters.......................... 589
Front turn signal lights............ 385
Replacing light bulbs ............. 700
Turn signal lever ................... 385
Fuel ........................................... 401
Capacity ................................ 772
Fuel gauge ............................ 222
Information ............................ 780
Refueling ............................... 401
Type ...................................... 772
Warning light ......................... 717
Fuel consumption ............ 244, 275
Average fuel consumption .... 244
Current fuel consumption ...... 275Fuel filler door.......................... 403
Opener .................................. 403
Refueling............................... 401
When the fuel filler door
cannot be opened............... 403
Fuses ........................................ 691
Glove box ................................. 595
Hands-free system (for
cellular phone)
*
Head restraints ........................ 343
Head-up display ....................... 264
Headlights ................................ 387
AHS (Adaptive High-beam
System) .............................. 391
Automatic headlight
leveling ............................... 389
Follow me home system ....... 388
Light switch ........................... 387
Replacing light bulbs............. 700
Heaters
Automatic air conditioning
system ................................ 572
Hybrid battery (traction
battery) ............................... 154
Outside rear view mirrors...... 577
Seat heaters ......................... 589
High coolant temperature
warning light .......................... 716
High mounted stoplight
Replacing .............................. 700
High-voltage components ...... 108
Hill-start assist control............ 559
Hood ......................................... 634
Hooks
Coat hooks............................ 613
Grocery bag hook ................. 601
Retaining hooks (floor mat)..... 30
F
G
H
