TOYOTA PRIUS PLUG-IN HYBRID 2022 Owners Manual

4095-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving

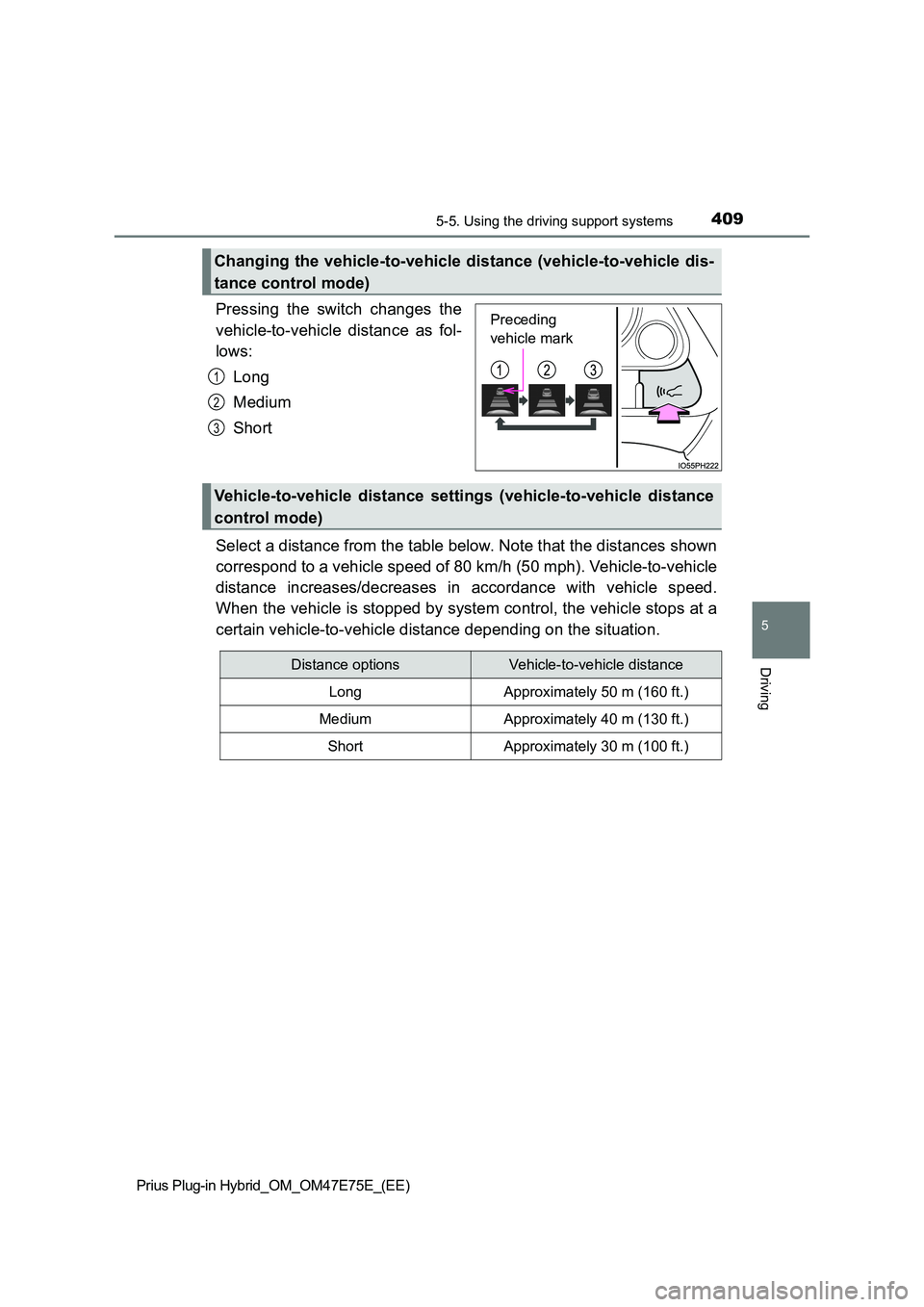

Pressing the switch changes the
vehicle-to-vehicle distance as fol-
lows:
Long
Medium
Short
Select a distance from the table below. Note that the distances shown
correspond to a vehicle speed of 80 km/h (50 mph). Vehicle-to-v ehicle
distance increases/decreases in accordance with vehicle speed.
When the vehicle is stopped by system control, the vehicle stop s at a
certain vehicle-to-vehicle distance depending on the situation.
Changing the vehicle-to-vehicle distance (vehicle-to-vehicle di s-
tance control mode)
Preceding
vehicle mark
1
2
3
Vehicle-to-vehicle distance settings (vehicle-to-vehicle distan ce
control mode)
Distance optionsVehicle-to-vehicle distance
LongApproximately 50 m (160 ft.)
MediumApproximately 40 m (130 ft.)
ShortApproximately 30 m (100 ft.)

4105-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
After the vehicle ahead of you
starts off, push the lever up.
Your vehicle will also resume fol-
low-up cruising if the accelerator
pedal is depressed after the vehi-
cle ahead of you starts off.
Pulling the lever toward you
cancels the speed control.
The speed control is also canceled
when the brake pedal is
depressed.
(When the vehicle has been
stopped by system control,
depressing the brake pedal does
not cancel the setting.)
Pushing the lever up resumes the cruise control and returns vehicle
speed to the set speed.
Resuming follow-up cruising when the vehicle has been stopped
by system control (vehicle-to-vehicle distance control mode)
Canceling and resuming the speed control
1
2

4115-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
When your vehicle is too close to
a vehicle ahead, and sufficient
automatic deceleration via the
cruise control is not possible, the
display will flash and the buzzer
will sound to alert the driver. An
example of this would be if
another driver cuts in front of you
while you are following a vehicle.
Depress the brake pedal to
ensure an appropriate vehicle-to-
vehicle distance.
QWarnings may not occur when
In the following instances, warnings may not occur even when the
vehicle-to-vehicle distance is small.
OWhen the speed of the preceding vehicle matches or exceeds
your vehicle speed
OWhen the preceding vehicle is traveling at an extremely slow
speed
OImmediately after the cruise control speed was set
OWhen depressing the accelerator pedal
Approach warning (vehicle-to-vehicle distance control mode)

4125-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

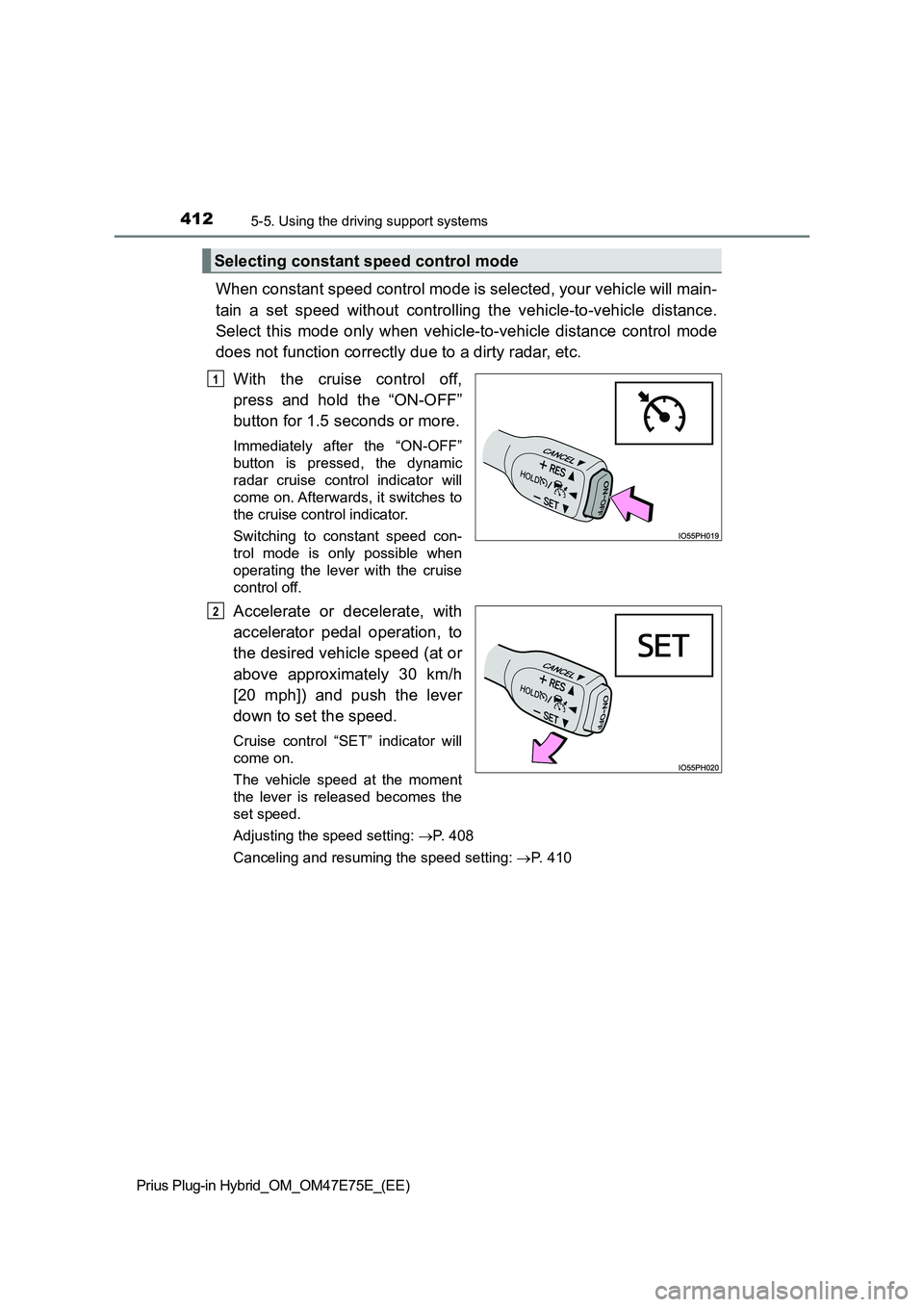

When constant speed control mode is selected, your vehicle will main-
tain a set speed without controlling the vehicle-to-vehicle distance.
Select this mode only when vehicle-to-vehicle distance control mode
does not function correctly due to a dirty radar, etc.
With the cruise control off,
press and hold the “ON-OFF”
button for 1.5 seconds or more.
Immediately after the “ON-OFF”
button is pressed, the dynamic
radar cruise control indicator will
come on. Afterwards, it switches to
the cruise control indicator.
Switching to constant speed con-
trol mode is only possible when
operating the lever with the cruise
control off.
Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed (at or
above approximately 30 km/h
[20 mph]) and push the lever
down to set the speed.
Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
Adjusting the speed setting: P. 408
Canceling and resuming the speed setting: P. 410
Selecting constant speed control mode
1
2

4135-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
When this function is enabled and the system is operating in vehicle-
to-vehicle distance control mode (P. 405), when a speed limit sign is
detected, the recognized speed limit will be displayed with an up/
down arrow. The set speed can be increased/reduced to the recog-
nized speed limit by pushing the lever up or down.
OWhen the current set speed is
lower than the recognized
speed limit
Push the lever up.
OWhen the current set speed is
higher than the recognized
speed limit
Push the lever down.
Dynamic Radar Cruise Control with Road Sign Assist can be enabled/
disabled in on the multi-information display. (P. 220)
When the Dynamic Radar Cruise Control with Road Sign Assist is
operating, while driving down a hill, the vehicle speed may exceed the
set speed.
In this case, the displayed set vehicle speed will be highlighted and a
buzzer will sound to alert the driver.
Dynamic Radar Cruise Control with Road Sign Assist
Enabling/Disabling the Dynamic Radar Cruise Control with Road
Sign Assist

4145-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QDynamic radar cruise control with full-speed range can be set when
OThe shift position is in D.
OThe desired set speed can be set when the vehicle speed is approximately
30 km/h (20 mph) or more.
(However, when the vehicle speed is set while driving at below approxi-
mately 30 km/h [20 mph], the set speed will be set to approximately 30 km/h
[20 mph].)
QAccelerating after setting the vehicle speed
The vehicle can accelerate by operating the accelerator pedal. After acceler-
ating, the set speed resumes. However, during vehicle-to-vehicle distance
control mode, the vehicle speed may decrease below the set speed in order
to maintain the distance to the preceding vehicle.
QWhen the vehicle stops while follow-up cruising
OPushing the lever up while the vehicle ahead stops will resume follow-up
cruising if the vehicle ahead starts off within approximately 3 seconds after
the lever is pushed up.
OIf the vehicle ahead starts off within 3 seconds after your vehicle stops, fol-
low-up cruising will be resumed.
QAutomatic cancelation of vehicle-to-vehicle distance control mode
Vehicle-to-vehicle distance control mode is automatically canceled in the fol-
lowing situations.
OVSC is activated.
OTRC is activated for a period of time.
OWhen the VSC or TRC system is turned off.
OThe sensor cannot detect correctly because it is covered in some way.
OWhen the brake control or output restriction control of a driving support sys-
tem operates.
(For example: Pre-Collision System, Drive-Start Control)
OThe parking brake is operated.
OThe vehicle is stopped by system control on a steep incline.
OThe following are detected when the vehicle has been stopped by system
control:
• The driver is not wearing a seat belt.
• The driver’s door is opened.
• The vehicle has been stopped for about 3 minutes.
The shift position may automatically change to P. (P. 332)
If vehicle-to-vehicle distance control mode is automatically canceled for any
reasons other than the above, there may be a malfunction in the system.
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

4155-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
QAutomatic cancelation of constant speed control mode
Constant speed control mode is automatically canceled in the following situa-
tions:
OActual vehicle speed is more than approximately 16 km/h (10 mph) below
the set vehicle speed.
OActual vehicle speed falls below approximately 30 km/h (20 mph).
OVSC is activated.
OTRC is activated for a period of time.
OWhen the VSC or TRC system is turned off.
OWhen the brake control or output restriction control of a driving support sys-
tem operates.
(For example: Pre-Collision System, Drive-Start Control)
If constant speed control mode is automatically canceled for any reasons
other than the above, there may be a malfunction in the system. Contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
QThe Dynamic Radar Cruise Control with Road Sign Assist may not oper-
ate properly when
As the Dynamic Radar Cruise Control with Road Sign Assist may not oper-
ate properly in conditions in which RSA may not operate or detect correctly
(P. 399), when using this function, make sure to check the speed limit
sign displayed.
In the following situations, the set speed may not be changed to the recog-
nized speed limit by pushing the lever up or down.
OIf speed limit information is not available
OWhen the recognized speed limit is the same as the set speed
OWhen the recognized speed limit is outside of the speed range that the
dynamic radar cruise control system can operate
QBrake operation
A brake operation sound may be heard and the brake pedal response may
change, but these are not malfunctions.
QWarning messages and buzzers for dynamic radar cruise control with
full-speed range
Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution while driving. If a warning message
is shown on the multi-information display, read the message and follow the
instructions. (P. 366, 665)

4165-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)QWhen the sensor may not be correctly detecting the vehicle ahead
In the case of the following and depending on the conditions, operate the
brake pedal when deceleration of the system is insufficient or operate the
accelerator pedal when acceleration is required.
As the sensor may not be able to correctly detect these types of vehicles, the
approach warning (P. 411) may not be activated.
OVehicles that cut in suddenly
OVehicles traveling at low speeds
OVehicles that are not moving in the same lane
OVehicles with small rear ends (trailers with no load on board, etc.)
OMotorcycles traveling in the same lane
OWhen water or snow thrown up by the surrounding vehicles hinders the
detecting of the sensor
OWhen your vehicle is pointing upwards
(caused by a heavy load in the luggage
compartment, etc.)
OPreceding vehicle has an extremely high
ground clearance

4175-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
QConditions under which the vehicle-to-vehicle distance control mode
may not function correctly
In the case of the following conditions, operate the brake pedal (or accelera-
tor pedal, depending on the situation) as necessary.
As the sensor may not be able to correctly detect vehicles ahead, the system
may not operate properly.
OWhen the vehicle ahead of you decelerates suddenly
OWhen driving on a road surrounded by a structure, such as in a tunnel or on
a bridge
OWhile the vehicle speed is decreasing to the set speed after the vehicle
accelerates by depressing the accelerator pedal OWhen the road curves or when the lanes
are narrow
OWhen steering wheel operation or your
position in the lane is unstable

4185-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

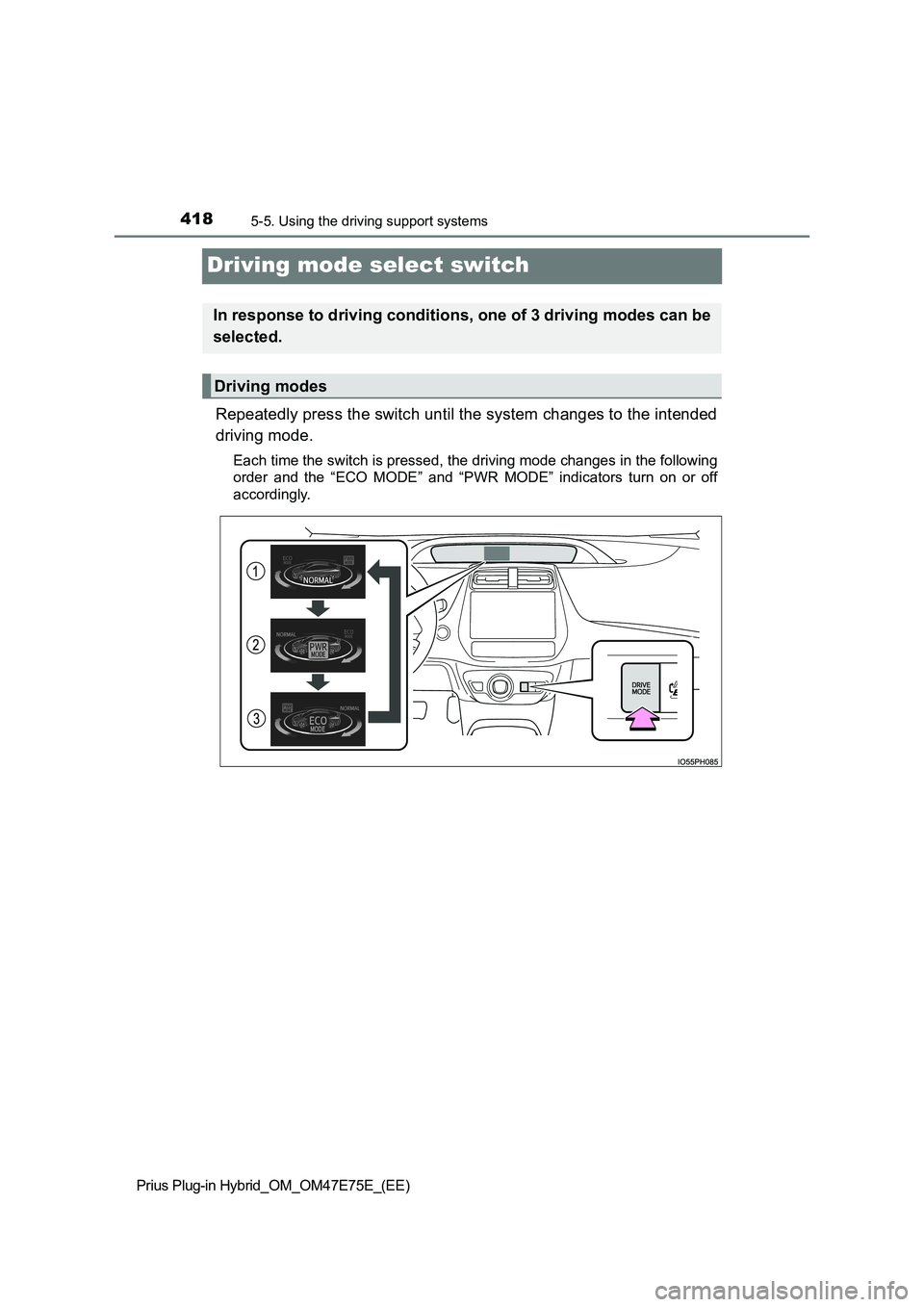

Driving mode select switch
Repeatedly press the switch until the system changes to the intended
driving mode.
Each time the switch is pressed, the driving mode changes in the following
order and the “ECO MODE” and “PWR MODE” indicators turn on or off
accordingly.
In response to driving conditions, one of 3 driving modes can be
selected.
Driving modes
