2363. Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q

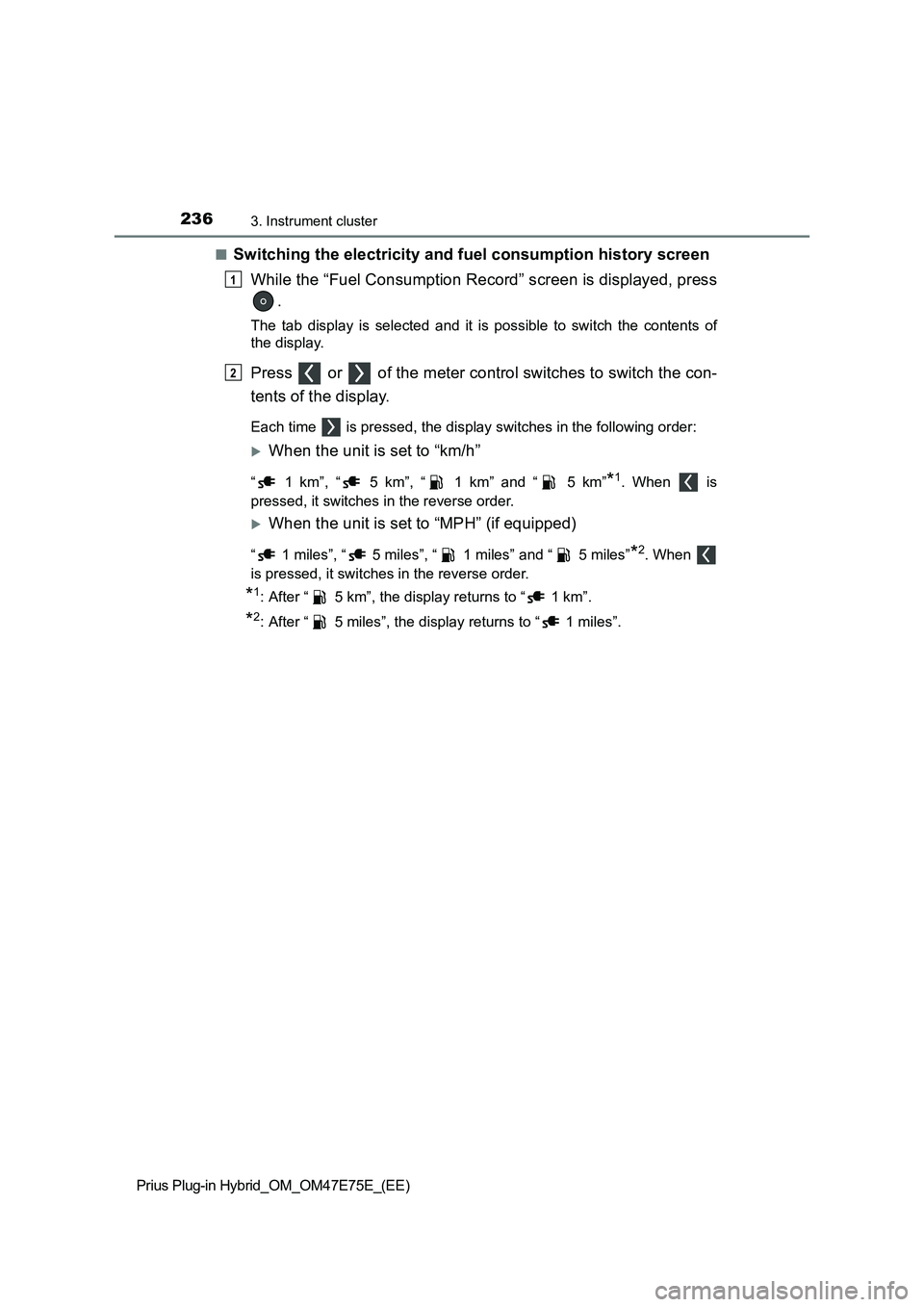

Switching the electricity and fuel consumption history screen
While the “Fuel Consumption Record” screen is displayed, press
.
The tab display is selected and it is possible to switch the contents of
the display.
Press or of the meter control switches to switch the con-
tents of the display.
Each time is pressed, the display switches in the following order:
When the unit is set to “km/h”
“ 1 km”, “ 5 km”, “ 1 km” and “ 5 km”*1. When is
pressed, it switches in the reverse order.
When the unit is set to “MPH” (if equipped)
“ 1 miles”, “ 5 miles”, “ 1 miles” and “ 5 miles”*2. When
is pressed, it switches in the reverse order.
*1: After “ 5 km”, the display returns to “ 1 km”.
*2: After “ 5 miles”, the display returns to “ 1 miles”.
1
2

2373. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
X“Drive Monitor”

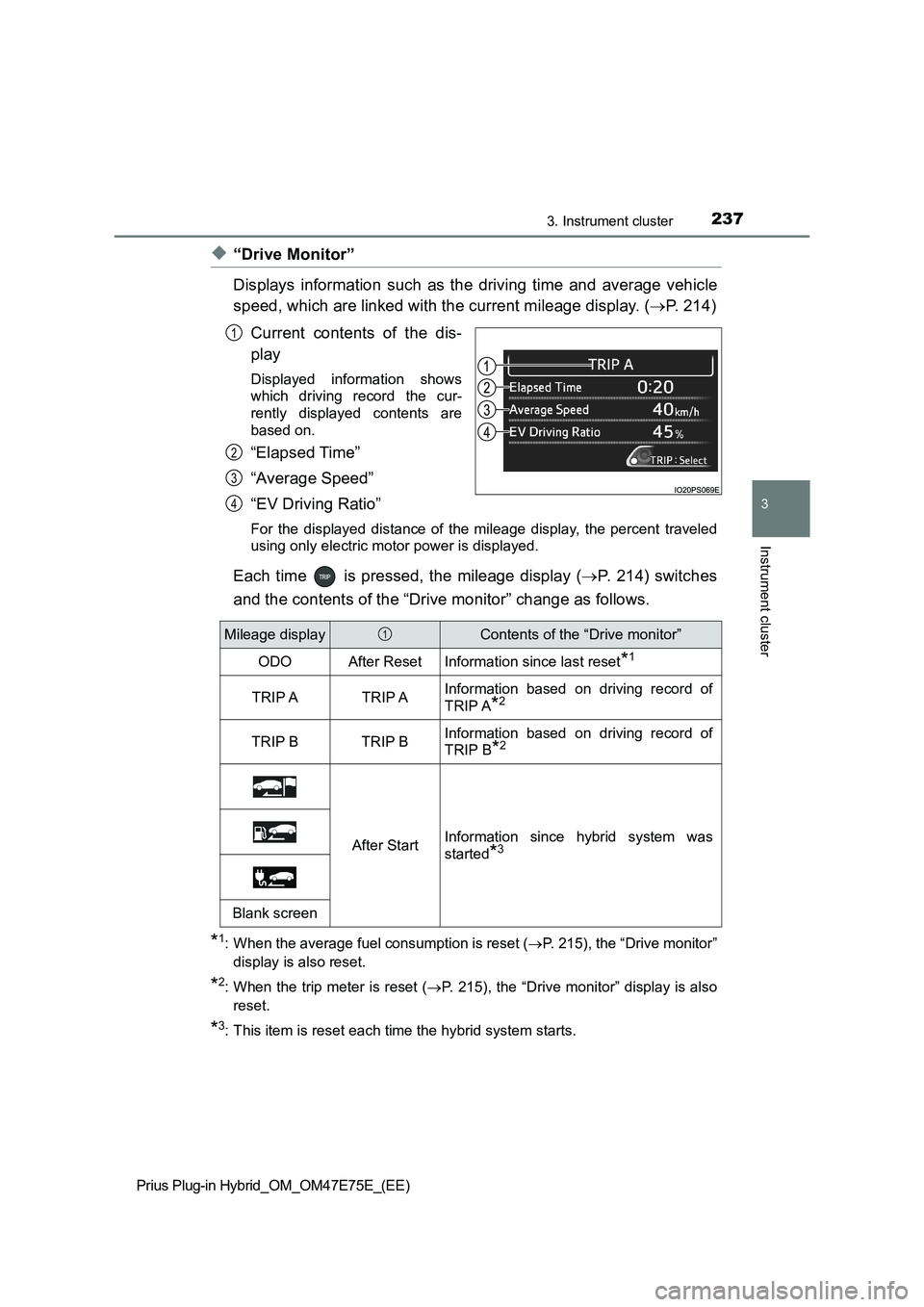

Displays information such as the driving time and average vehicle
speed, which are linked with the current mileage display. (P. 214)
Current contents of the dis-
play
Displayed information shows
which driving record the cur-
rently displayed contents are
based on.
“Elapsed Time”
“Average Speed”
“EV Driving Ratio”
For the displayed distance of the mileage display, the percent traveled
using only electric motor power is displayed.
Each time is pressed, the mileage display (P. 214) switches
and the contents of the “Drive monitor” change as follows.
*1: When the average fuel consumption is reset (P. 215), the “Drive monitor”
display is also reset.
*2: When the trip meter is reset (P. 215), the “Drive monitor” display is also
reset.
*3: This item is reset each time the hybrid system starts.
1
2
3
4
Mileage displayContents of the “Drive monitor”
ODOAfter ResetInformation since last reset*1
TRIP ATRIP AInformation based on driving record of
TRIP A
*2
TRIP BTRIP BInformation based on driving record of
TRIP B
*2
After StartInformation since hybrid system was
started
*3
Blank screen
1

2383. Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
X“Drive Monitor 2”

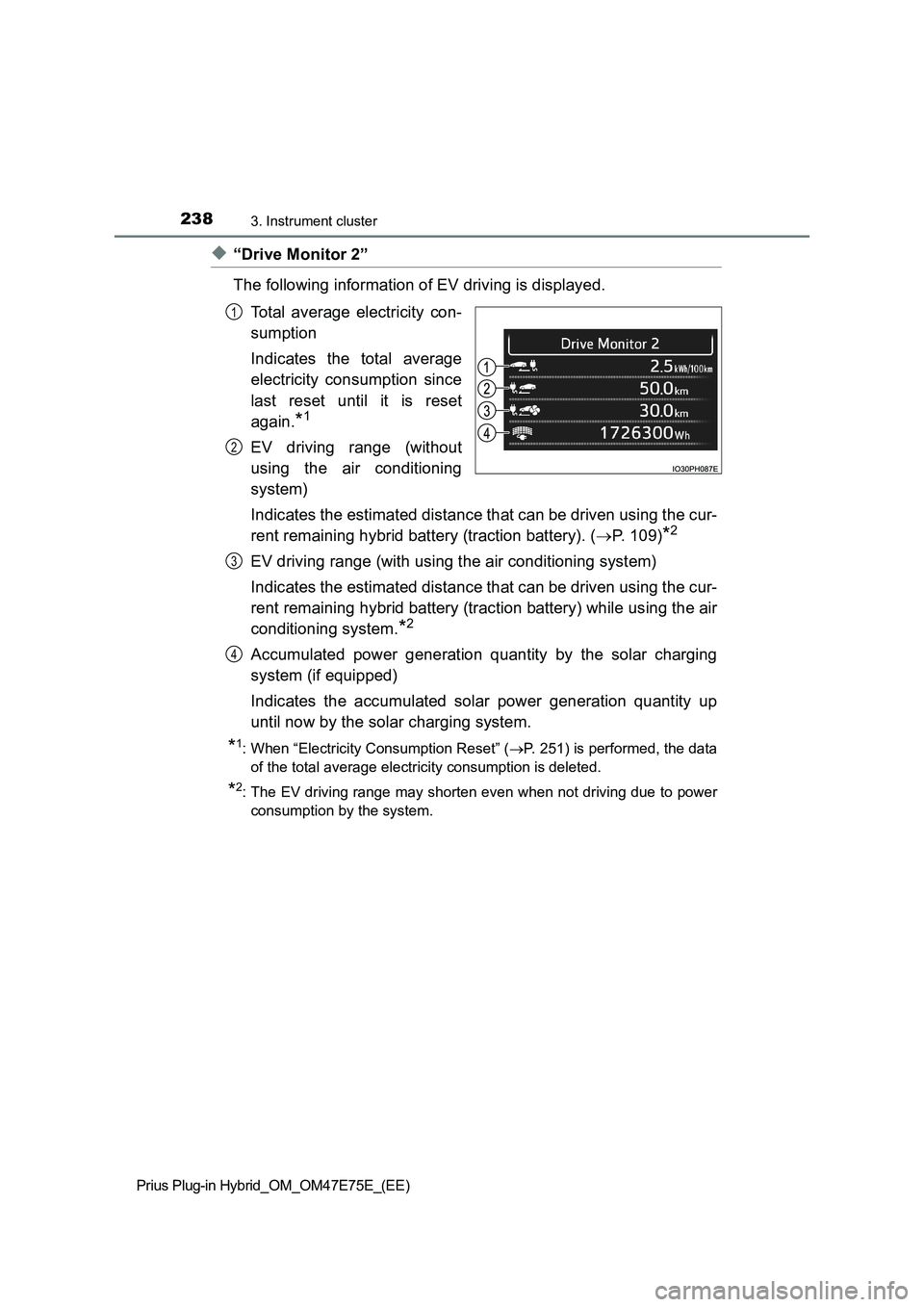

The following information of EV driving is displayed.
Total average electricity con-
sumption
Indicates the total average
electricity consumption since
last reset until it is reset
again.
*1
EV driving range (without
using the air conditioning
system)
Indicates the estimated distance that can be driven using the cur-
rent remaining hybrid battery (traction battery). (P. 109)
*2
EV driving range (with using the air conditioning system)
Indicates the estimated distance that can be driven using the cur-
rent remaining hybrid battery (traction battery) while using the air
conditioning system.
*2
Accumulated power generation quantity by the solar charging
system (if equipped)
Indicates the accumulated solar power generation quantity up
until now by the solar charging system.
*1: When “Electricity Consumption Reset” (P. 251) is performed, the data
of the total average electricity consumption is deleted.
*2: The EV driving range may shorten even when not driving due to power
consumption by the system.
1
2
3
4

2393. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
X“Eco-Diary”
The history of the average electricity consumption, air conditioning
system load ratio (“A/C Load Ratio”)
*, distance traveled and aver-
age fuel consumption can be displayed in a table according to day
(“Daily”) or month (“Monthly”) units.
*: It indicates the percentage of the electricity consumed from the hybrid
battery (traction battery) that is consumed by the air conditioning sys-
tem.
Q

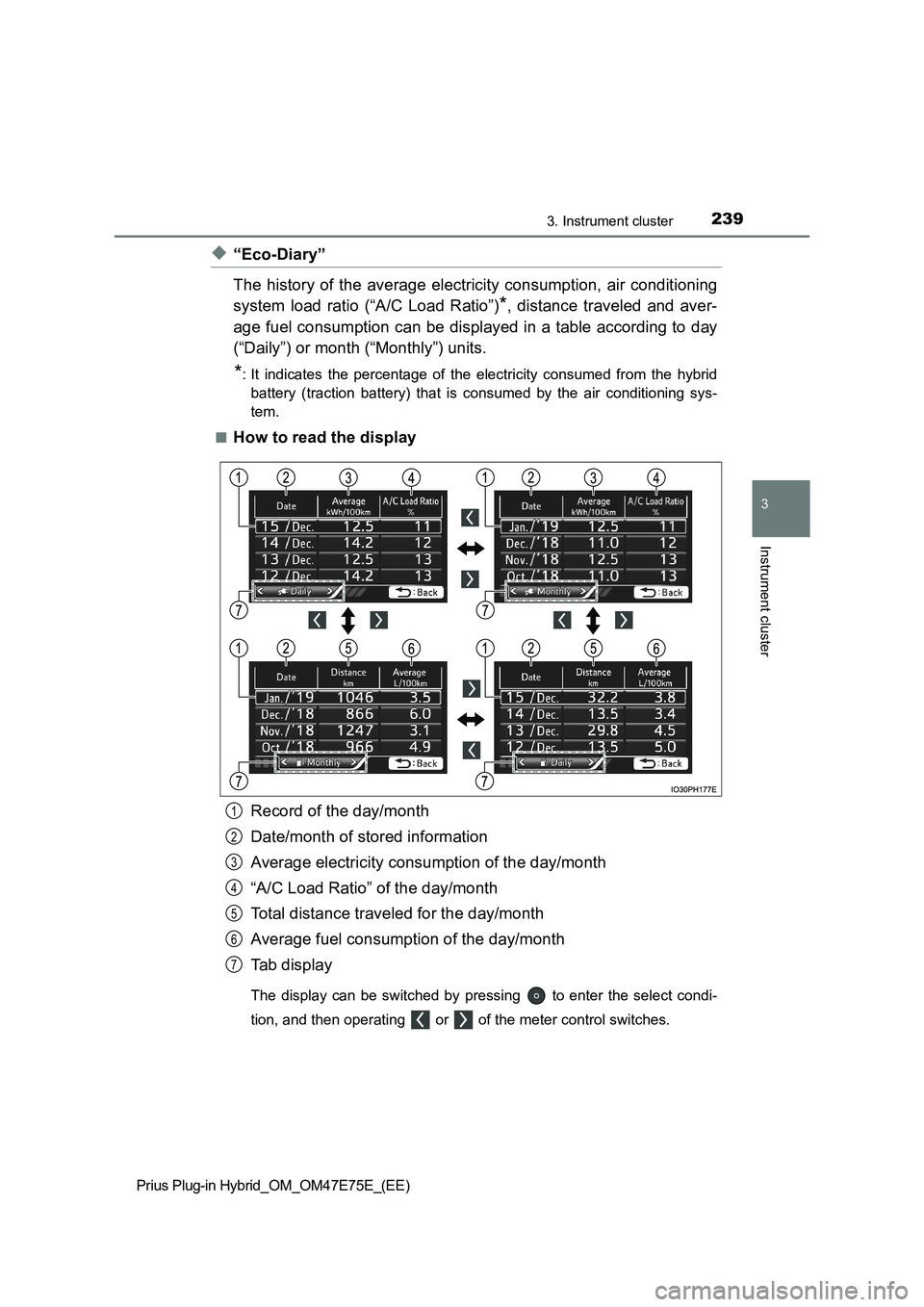

How to read the display
Record of the day/month
Date/month of stored information
Average electricity consumption of the day/month
“A/C Load Ratio” of the day/month
Total distance traveled for the day/month
Average fuel consumption of the day/month
Tab display
The display can be switched by pressing to enter the select condi-
tion, and then operating or of the meter control switches.
1
2
3
4
5
6
7

2403. Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q
Checking history
When each screen is selected, past records from the following
ranges can be displayed by pressing or of the meter con-
trol switches.
OIf the above number of records is exceeded, the oldest informa-
tion is deleted.
OTo reset the history, perform “History Reset” in the “Meter Custo-
mize” settings (P. 250). (“Daily” and “Monthly” information can
be reset independently.)
QCalendar setting
P. 252
The clock settings can be
changed.
Displayed screenDisplayed informationStored information
“Daily”
4 reports
Up to 32 reports
(8 screens)
“Monthly”Up to 12 reports
(3 screens)

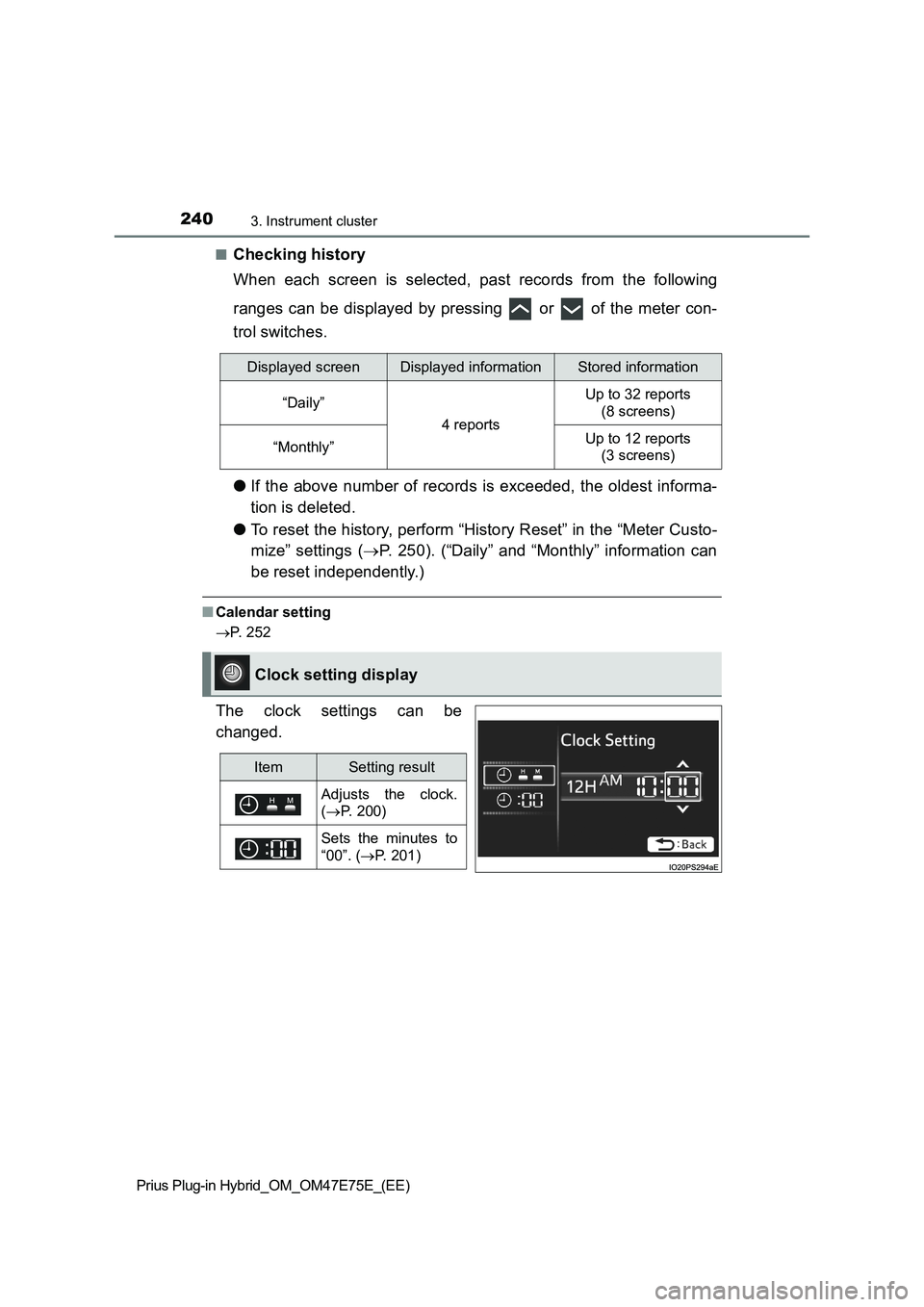

Clock setting display
ItemSetting result
Adjusts the clock.
(P. 200)
Sets the minutes to
“00”. (P. 201)

2413. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

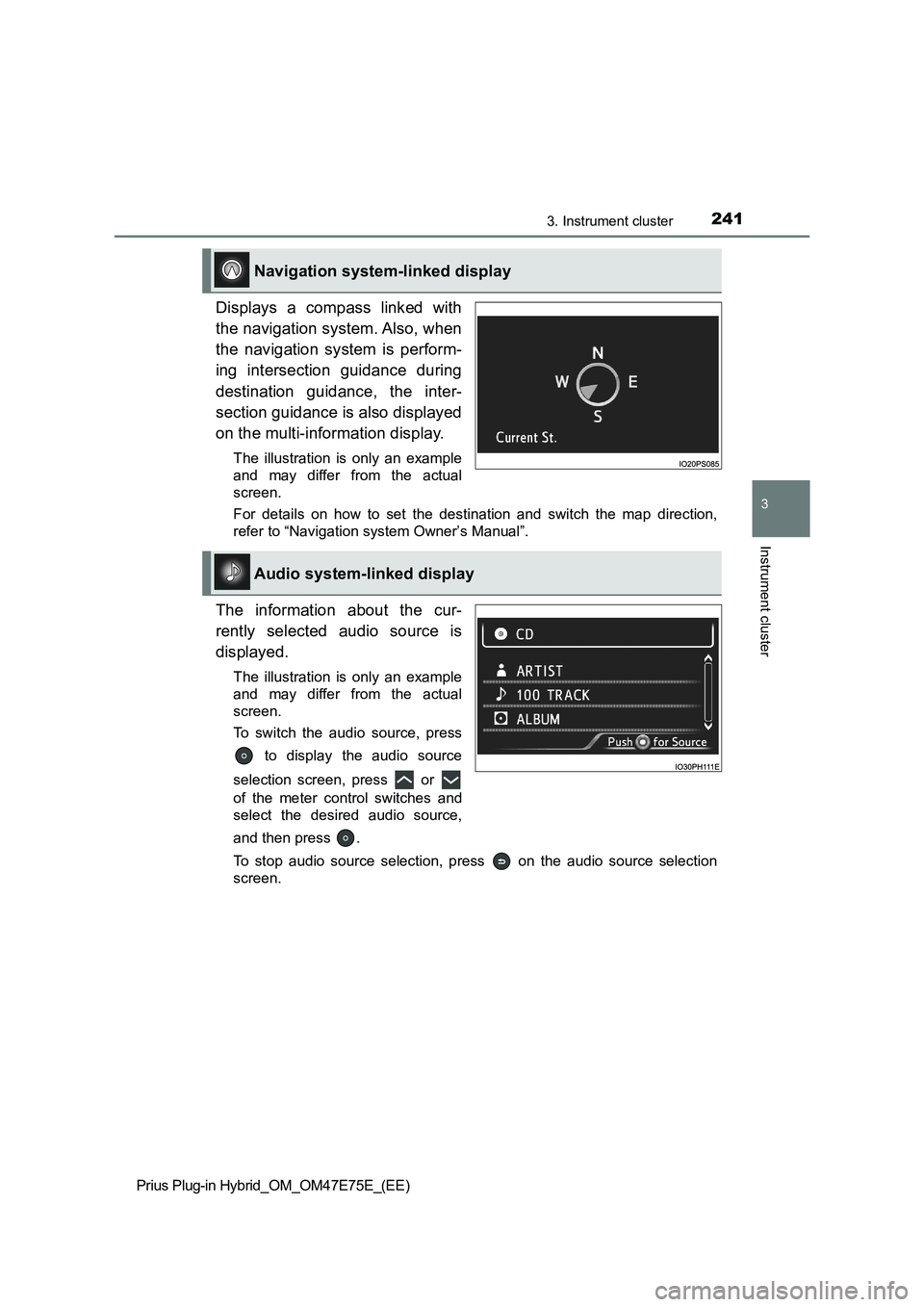

Displays a compass linked with
the navigation system. Also, when
the navigation system is perform-
ing intersection guidance during
destination guidance, the inter-
section guidance is also displayed
on the multi-information display.
The illustration is only an example
and may differ from the actual
screen.
For details on how to set the destination and switch the map direction,
refer to “Navigation system Owner’s Manual”.
The information about the cur-
rently selected audio source is
displayed.
The illustration is only an example
and may differ from the actual
screen.
To switch the audio source, press
to display the audio source
selection screen, press or
of the meter control switches and
select the desired audio source,
and then press .
To stop audio source selection, press on the audio source selection
screen.
Navigation system-linked display
Audio system-linked display

2423. Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
The condition of the air conditioning system settings can be checked
on the screen and the air conditioning system settings can be
changed using the meter control switches.
On the air conditioning settings screen, press or of the meter con-
trol switches to switch the contents of the display.
For details regarding the air conditioning system function, refer to P. 522.
Q

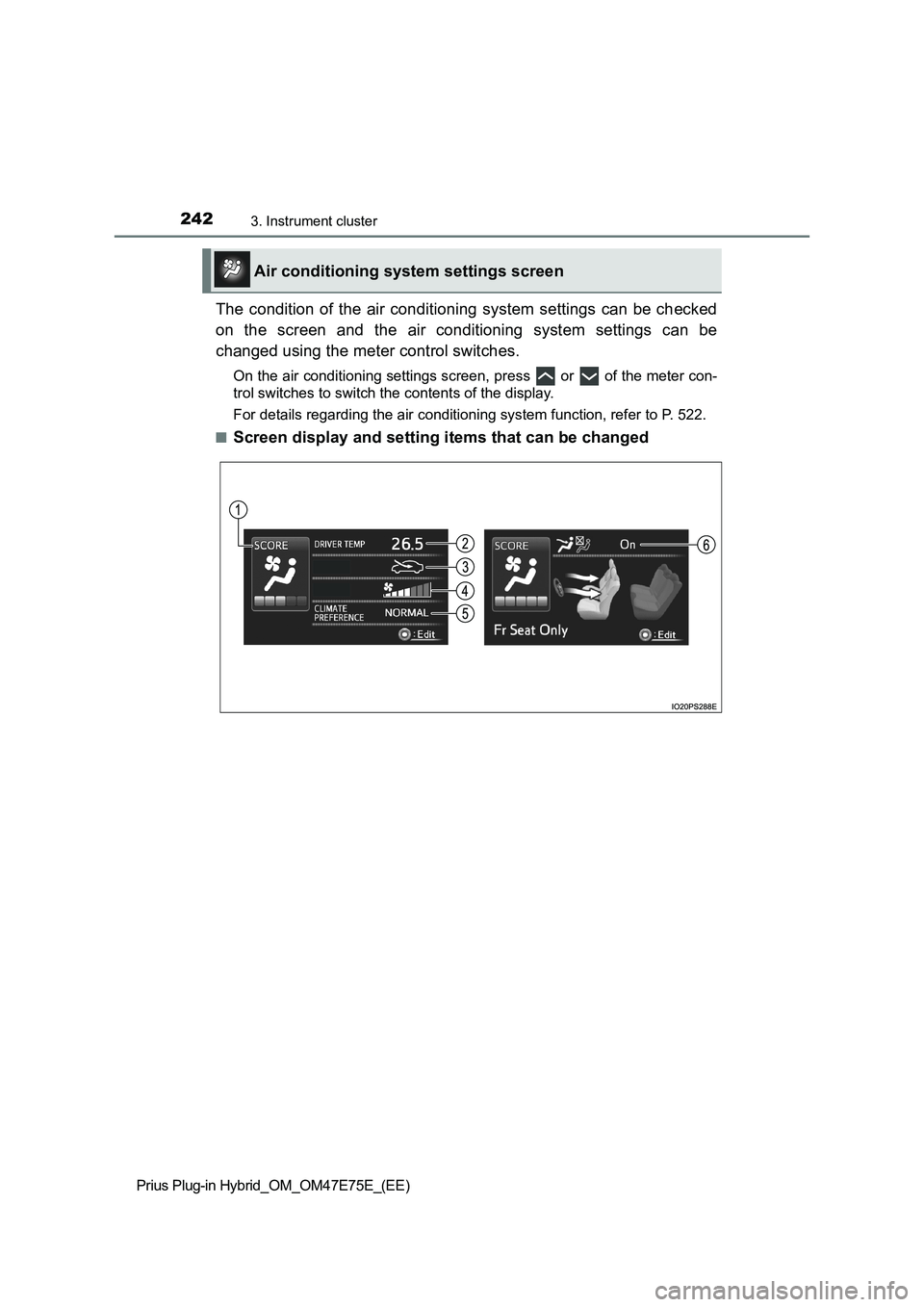

Screen display and setting items that can be changed
Air conditioning system settings screen

2433. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

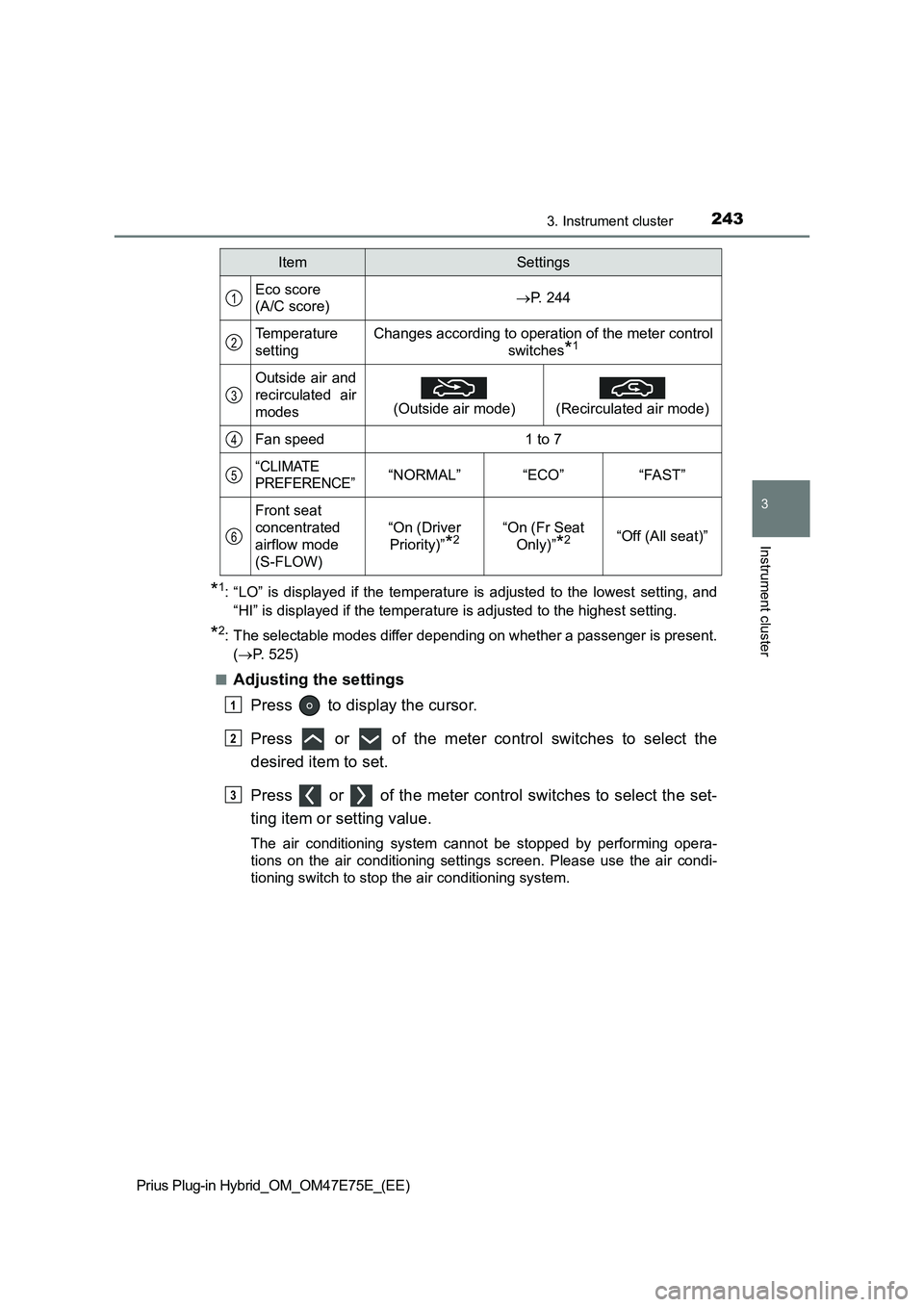

*1: “LO” is displayed if the temperature is adjusted to the lowest setting, and
“HI” is displayed if the temperature is adjusted to the highest setting.
*2: The selectable modes differ depending on whether a passenger is present.
(P. 525)
Q
Adjusting the settings
Press to display the cursor.
Press or of the meter control switches to select the
desired item to set.
Press or of the meter control switches to select the set-
ting item or setting value.
The air conditioning system cannot be stopped by performing opera-
tions on the air conditioning settings screen. Please use the air condi-
tioning switch to stop the air conditioning system.
ItemSettings
Eco score
(A/C score)P. 244
Temperature
settingChanges according to operation of the meter control
switches
*1
Outside air and
recirculated air
modes
(Outside air mode)
(Recirculated air mode)
Fan speed1 to 7
“CLIMATE
PREFERENCE”“NORMAL”“ECO”“FAST”
Front seat
concentrated
airflow mode
(S-FLOW)
“On (Driver
Priority)”
*2“On (Fr Seat
Only)”
*2“Off (All seat)”
1
2
3
4
5
6
1
2
3

2443. Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q

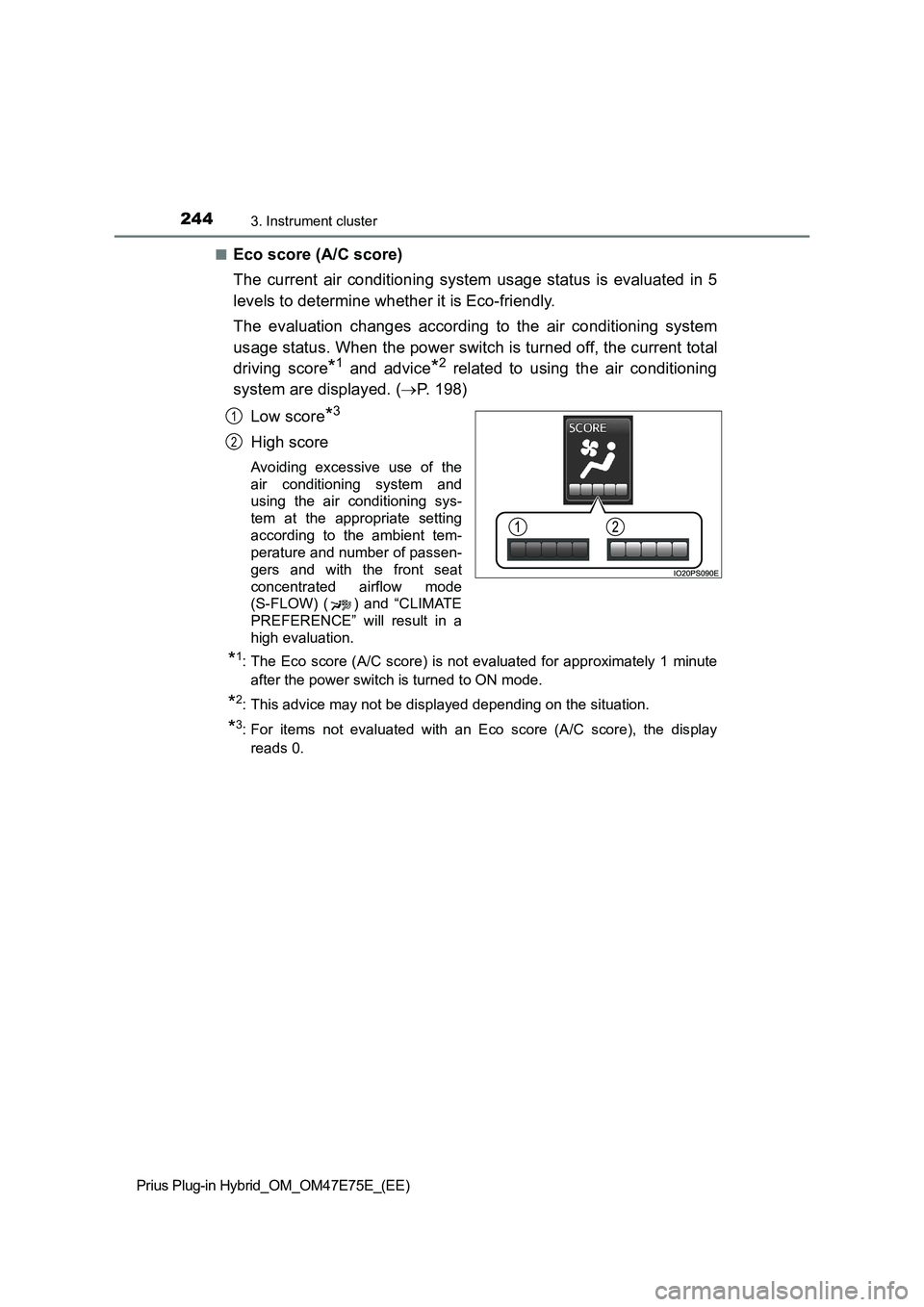

Eco score (A/C score)
The current air conditioning system usage status is evaluated in 5
levels to determine whether it is Eco-friendly.
The evaluation changes according to the air conditioning system
usage status. When the power switch is turned off, the current total
driving score
*1 and advice*2 related to using the air conditioning
system are displayed. (P. 1 9 8 )
Low score
*3
High score
Avoiding excessive use of the
air conditioning system and
using the air conditioning sys-
tem at the appropriate setting
according to the ambient tem-
perature and number of passen-
gers and with the front seat
concentrated airflow mode
(S-FLOW) ( ) and “CLIMATE
PREFERENCE” will result in a
high evaluation.
*1: The Eco score (A/C score) is not evaluated for approximately 1 minute
after the power switch is turned to ON mode.
*2: This advice may not be displayed depending on the situation.
*3: For items not evaluated with an Eco score (A/C score), the display
reads 0.
1
2

2453. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QOperating switches of the air conditioning system operation panel

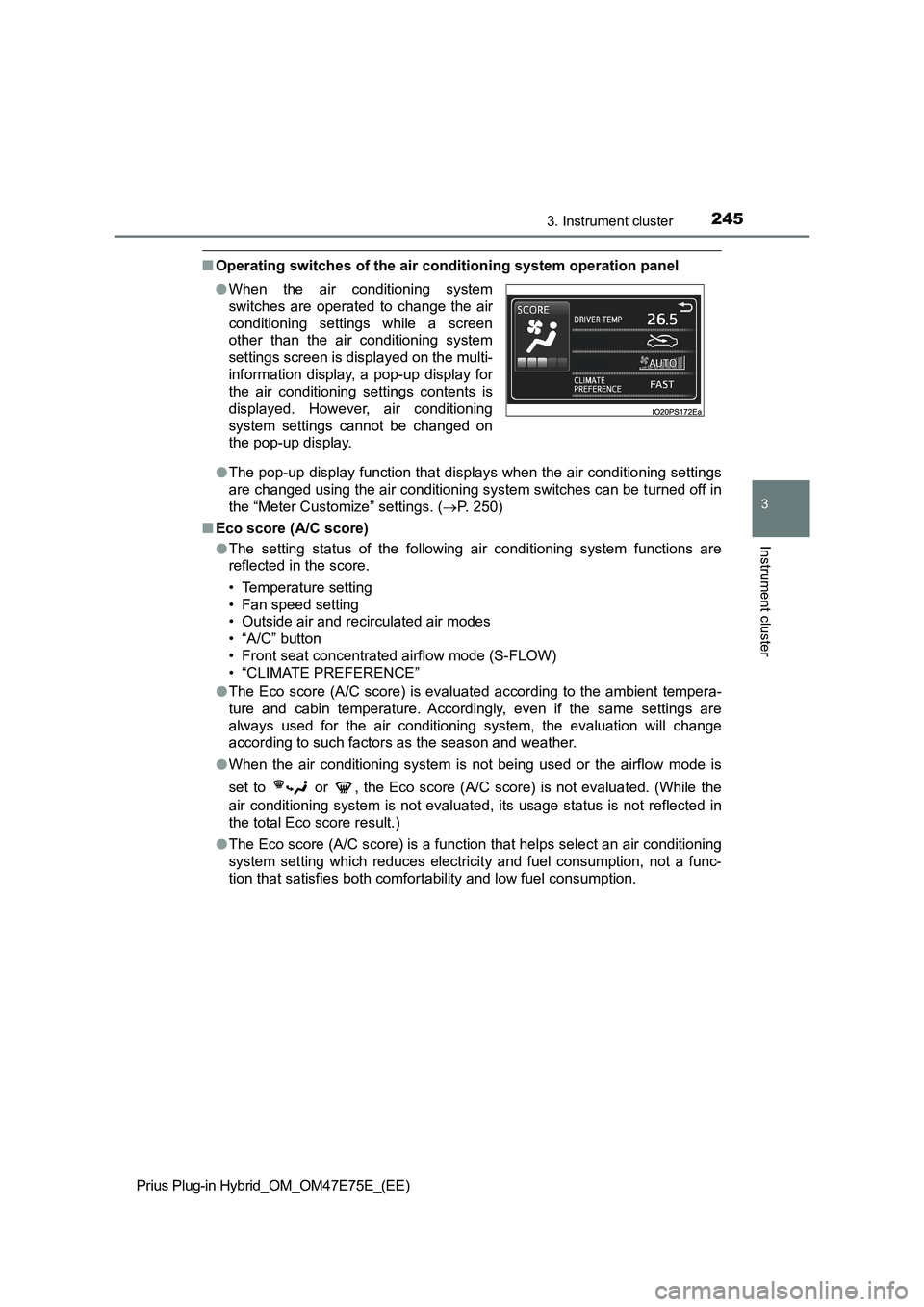

OThe pop-up display function that displays when the air conditioning settings
are changed using the air conditioning system switches can be turned off in
the “Meter Customize” settings. (P. 250)
QEco score (A/C score)
OThe setting status of the following air conditioning system functions are
reflected in the score.
• Temperature setting
• Fan speed setting
• Outside air and recirculated air modes
• “A/C” button
• Front seat concentrated airflow mode (S-FLOW)
• “CLIMATE PREFERENCE”
OThe Eco score (A/C score) is evaluated according to the ambient tempera-
ture and cabin temperature. Accordingly, even if the same settings are
always used for the air conditioning system, the evaluation will change
according to such factors as the season and weather.
OWhen the air conditioning system is not being used or the airflow mode is
set to or , the Eco score (A/C score) is not evaluated. (While the
air conditioning system is not evaluated, its usage status is not reflected in
the total Eco score result.)
OThe Eco score (A/C score) is a function that helps select an air conditioning
system setting which reduces electricity and fuel consumption, not a func-
tion that satisfies both comfortability and low fuel consumption. OWhen the air conditioning system
switches are operated to change the air
conditioning settings while a screen
other than the air conditioning system
settings screen is displayed on the multi-
information display, a pop-up display for
the air conditioning settings contents is
displayed. However, air conditioning
system settings cannot be changed on
the pop-up display.
