7179-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications

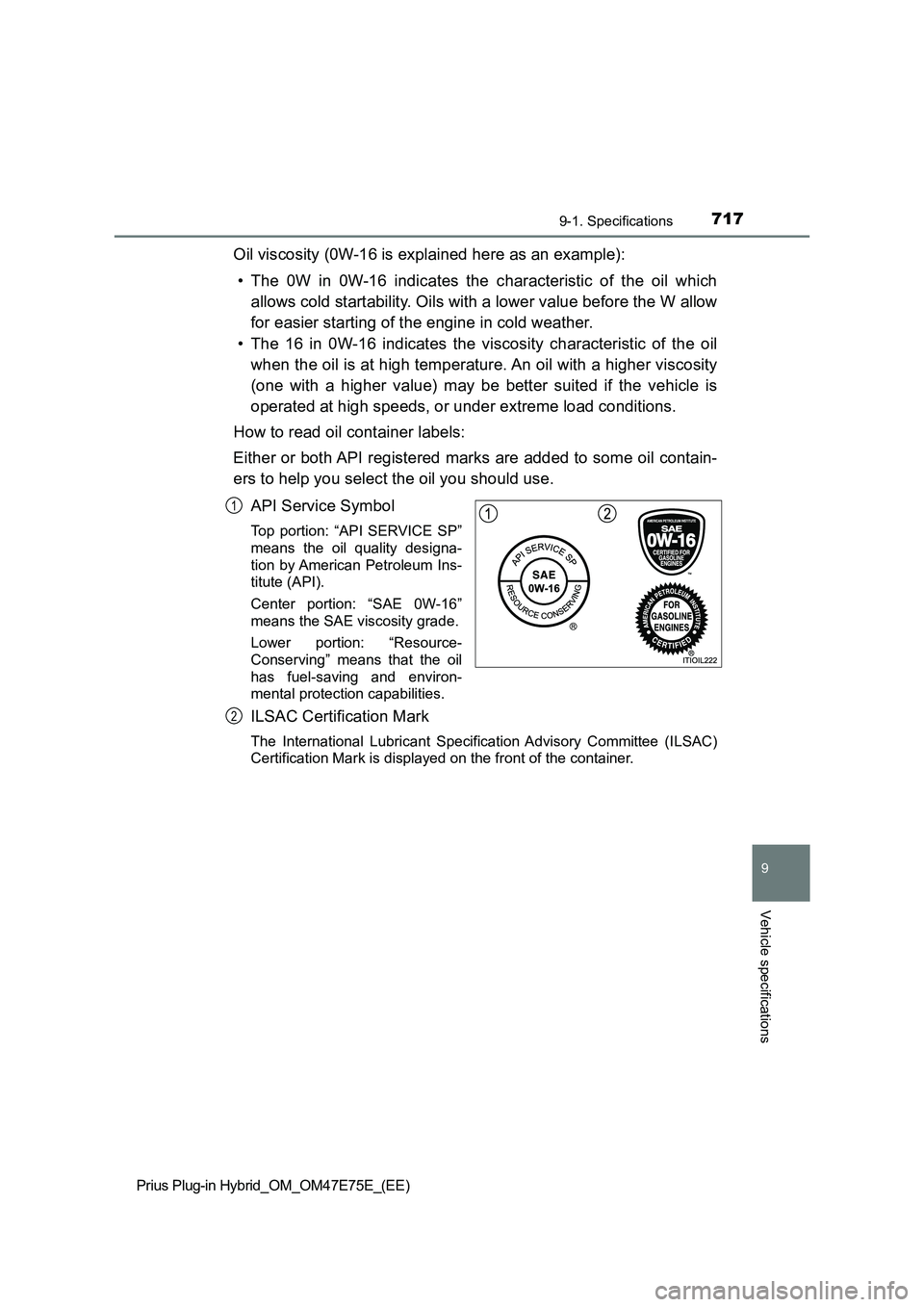

Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

7189-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or
Toyota authorized repairer, or any reliable repairer.
Cooling system
Capacity*
Gasoline
engine6.2 L (6.6 qt., 5.5 Imp.qt.)
Power
control unit1.5 L (1.6 qt., 1.3 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-CY9
Gap0.9 mm (0.035 in.)
NOTICE
Q Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.

7229-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

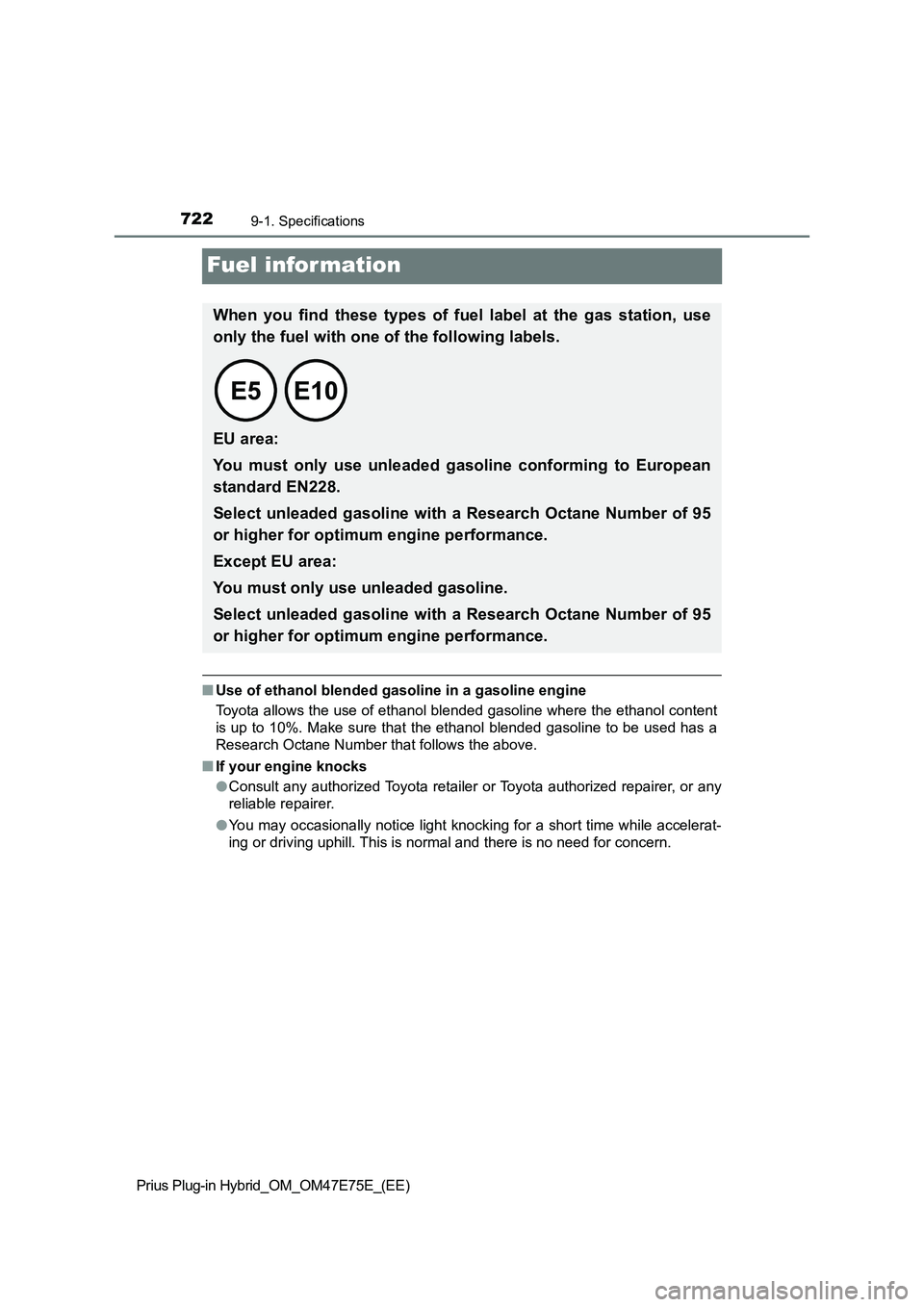

Fuel infor mation
QUse of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
QIf your engine knocks
OConsult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
OYou may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

7239-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications

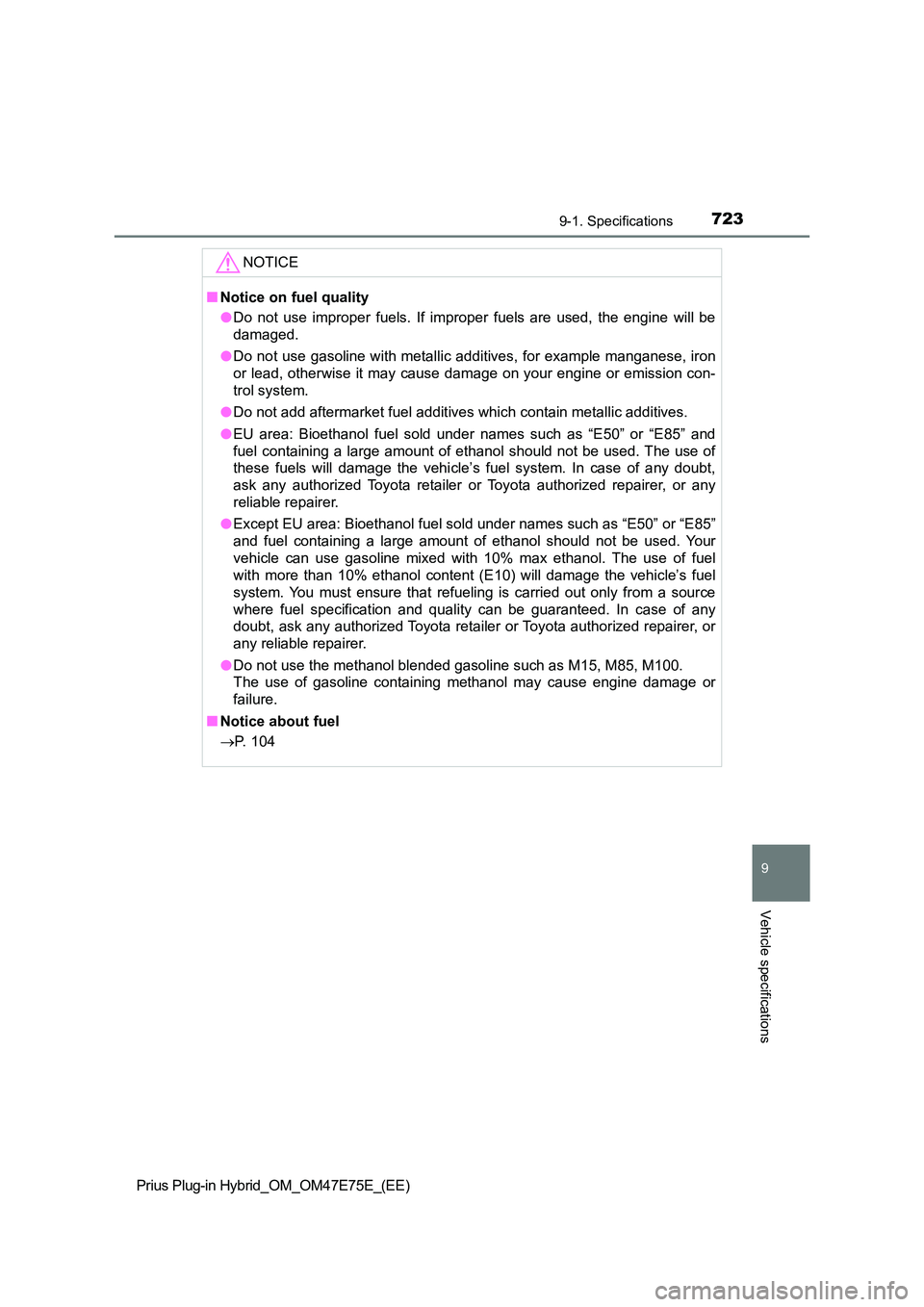

NOTICE
QNotice on fuel quality
O Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
O Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emissi on con-
trol system.
O Do not add aftermarket fuel additives which contain metallic additives.
O EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. T he use of
these fuels will damage the vehi cle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repaire r, or any
reliable repairer.
O Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be use d. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicl e’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
O Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.
Q Notice about fuel
 P. 104

743Alphabetical index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Child-protectors ....................... 276
Cleaning............................ 566, 572
Aluminum wheels .................. 567
Exterior.................................. 566
Front camera......................... 358
Hybrid battery (traction
battery) air intake vent ........ 573
Interior ................................... 572
Radar sensor ........................ 357
Seat belts .............................. 575
Water-repellent coating ......... 567
Clock ......................................... 194
Adjustment ............................ 200
Coat hooks ............................... 563
Combination meter .................. 194
Clock adjustment .................. 200
Main display .......................... 212
Multi-information display ....... 220
Warning lights and
indicators ............................ 204
Condenser ................................ 593
Console box ............................. 545
Consumption screen ............... 264
Coolant ..................................... 591
Capacity ................................ 718
Checking ............................... 591
Preparing and checking
before winter....................... 516
Cooling system ........................ 591
Engine overheating ............... 703
Hybrid system overheating ... 705
Cruise control
Dynamic radar cruise control
with full-speed range .......... 401
Cup holders .............................. 546
Curtain shield airbags ............... 39
Customizable features ............ 724Daytime running light
system .................................... 338
Deck board ............................... 550
Defogger
Outside rear view mirrors...... 527
Rear window ......................... 527
Windshield ............................ 527
Dimension ................................ 712
Display
Drive information................... 222
Dynamic radar cruise control
with full-speed range .......... 401
Energy monitor ............. 223, 261
Head-up display .................... 254
LTA (Lane Tracing Assist) .... 388
Main display .......................... 212
Multi-information display ....... 220
Parking Support Brake
function ............................... 468
Pre-collision warning............. 369
RCTA detection screen......... 423
RSA (Road Sign Assist)........ 396
S-IPA (Simple Intelligent
Parking Assist System) ...... 477
Toyota parking assist
sensor................................. 451
Warning messages ............... 665
Do-it-yourself maintenance .... 581
Door courtesy lights................ 541
Location ................................ 541
Wattage ................................ 721D

745Alphabetical index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Emergency brake signal ......... 510
Emergency flashers................. 646
Emergency brake signal ....... 510
Emergency tire puncture
repair kit ................................. 673
Energy monitor ................ 223, 261
Engine
Accessory mode ................... 325
Compartment ........................ 587
Engine switch ........................ 323
Exhaust gas precautions......... 50
Hood ..................................... 584
How to start the hybrid
system ................................ 323
Identification number............. 714
If the hybrid system will not
start..................................... 691
If your vehicle has to be
stopped in an emergency ... 647
Ignition switch (power
switch) ................................ 323
Overheating .......................... 703
Power switch ......................... 323
Engine coolant ......................... 591
Capacity ................................ 718
Checking ............................... 591
Preparing and checking
before winter....................... 516Engine oil ................................. 588
Capacity ................................ 715
Checking ............................... 588
Oil pressure warning light ..... 658
Preparing and checking
before winter....................... 516
Engine switch (power
switch) .................................... 323
Auto power off function ......... 325
Changing the power switch
modes................................. 325
If your vehicle has to be
stopped in an emergency ... 647
Starting the hybrid system .... 323
EPS (Electric Power
Steering)................................. 510
Function ................................ 510
Warning light ......................... 658
EV City mode switch ................. 88
EV driving range ...................... 109
EV mode ..................................... 85
EV/HV mode selection
switch ....................................... 88
Exhaust gas precautions .......... 50
Extended Headlight
Lighting system..................... 338

747Alphabetical index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Hooks
Coat hooks ............................ 563
Grocery bag hook ................. 551
Retaining hooks (floor mat) ..... 30
Horn .......................................... 297
HV mode ..................................... 85
Hybrid battery (traction
battery) ..................................... 98
Air intake vent ......................... 99
Charging ............................... 111
Location .................................. 98
Specification.......................... 715
Status indicator ..................... 113
Hybrid battery (traction
battery) air intake vent ............ 99
Cleaning ................................ 573
Hybrid system ............................ 84
Brake Override System ......... 310
Consumption screen ..... 234, 264
Drive-Start Control ................ 310
Emergency shut off system..... 99
Energy monitor.............. 223, 261
High voltage components ....... 98
Hybrid System Indicator ........ 226
If the hybrid system will not
start..................................... 691
Overheating .......................... 703
Plug-in hybrid system
precautions ........................... 98
Plug-in hybrid vehicle driving
tips ...................................... 105
Power switch ......................... 323
Regenerative braking .............. 93
Starting the hybrid system .... 323
Vehicle proximity notification
system .................................. 93
Hybrid System Indicator ......... 226
Hybrid transmission ................ 329Identification ............................ 713
Engine................................... 714
Vehicle .................................. 713
Ignition switch (power
switch) .................................... 323
Auto power off function ......... 325
Changing the power switch
modes................................. 325
If your vehicle has to be
stopped in an emergency ... 647
Starting the hybrid system .... 323
Illuminated entry system ........ 543
Immobilizer system ................... 74
Indicators ................................. 204
Initialization .............................. 734
Items to initialize ................... 734
Parking Support Brake
function ............................... 470
Power windows ..................... 304
S-IPA (Simple Intelligent
Parking Assist System) ...... 498
Tire pressure warning
system ................................ 602
Inside rear view mirror ............ 299
Instrument cluster light
control .................................... 196
Interior lights............................ 541
Switch ........................... 542, 543
Wattage ................................ 721
Intrusion sensor ........................ 79
ISOFIX lower anchorages ......... 70I
*: Refer to “Navigation system Owner’s manual”.

748Alphabetical index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Jack ........................................... 613
Positioning a floor jack .......... 586
Vehicle-equipped jack ........... 613
Jack handle .............................. 613
Jam protection function .......... 304
Keyless entry ........................... 273
Smart entry & start system.... 283
Wireless remote control ........ 273
Keys .......................................... 268
Battery-saving function ......... 285
Electronic key........................ 268
Engine switch ........................ 323
If the electronic key does not
operate properly ................. 693
If you lose your keys ..... 269, 272
Key number plate .................. 268
Keyless entry ........................ 273
Mechanical key ..................... 269
Power switch ......................... 323
Replacing the battery ............ 631
Smart entry & start system.... 283
Warning buzzer ..................... 284
Wireless remote control ........ 268
Knee airbags .............................. 39
Language (multi-information
display) ................................... 250Lever
Auxiliary catch lever .............. 584
Hood lock release lever ........ 584
Shift lever .............................. 329
Tilt and telescopic steering
lock release lever ............... 297
Turn signal lever ................... 335
Wiper lever............................ 348
License plate lights ................. 337
Light switch ........................... 337
Replacing light bulbs............. 643
Light
AHS (Adaptive High-beam
System) .............................. 341
Door courtesy lights .............. 541
Emergency flasher switch ..... 646
Extended Headlight
Lighting system .................. 338
Fog light switch ..................... 347
Headlight switch.................... 337
Illuminated entry system ....... 543
Interior lights ................. 542, 543
Interior light list...................... 541
Luggage compartment
light..................................... 279
Personal lights ...................... 542
Replacing light bulbs............. 638
Shift lever light ...................... 541
Turn signal lever ................... 335
Vanity lights .......................... 555
Wattage ................................ 721
Light bulbs
Replacing .............................. 638
Wattage ................................ 721
LTA (Lane Tracing Assist) ...... 379
Luggage cover ......................... 553
J
K
L

750Alphabetical index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Navigation system*
Odometer .................................. 214
Oil
Engine oil .............................. 715
Opener
Back door .............................. 278
Fuel filler door ....................... 353
Hood ..................................... 584
Outside rear view mirrors ....... 301
Adjustment ............................ 301
BSM (Blind Spot Monitor) ..... 423
Folding .................................. 301
Outside rear view mirror
defoggers............................ 527
Outside temperature
display .................................... 212
Overhead console.................... 548
Overheating .............................. 703
P position switch ..................... 330
Panoramic view monitor
*
Parking assist sensors
Parking Support Brake
function ............................... 462
S-IPA (Simple Intelligent
Parking Assist System)....... 473
Toyota parking
assist-sensor ...................... 450Parking brake ........................... 336
Operation .............................. 336
Parking brake engaged
warning buzzer ................... 336
Parking lock ............................. 330
Parking Support Brake
function .................................. 462
PCS (Pre-Collision System) .... 368
Enabling/disabling the
system ................................ 372
Function ................................ 368
Warning light ......................... 659
Personal lights ......................... 541
Switch ................................... 542
Wattage ................................ 721
Plug-in hybrid system ............... 84
Driving tips ............................ 105
EV City mode .......................... 85
EV driving range ................... 109
EV mode ................................. 85
EV/HV mode selection
switch ................................... 88
Features.................................. 84
How to charge....................... 155
HV mode ................................. 85
Hybrid battery (traction
battery) charge mode ........... 85
Power control unit coolant ..... 591
Capacity ................................ 718
Checking ............................... 591
Preparing and checking
before winter....................... 516
Radiator ................................ 593
N
O
P

753Alphabetical index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Side turn signal lights ............. 335
Replacing light bulbs ............. 643
Turn signal lever ................... 335
Side windows ........................... 303
Water-repellent coating ......... 567
Simple Intelligent Parking
Assist System (S-IPA) ........... 473
Smart entry & start system ..... 283
Antenna location ................... 283
Entry functions ...................... 273
Starting the hybrid system .... 323
Smart lid & connector
locking system ...................... 130
Snow tires................................. 516
Solar charging system ............ 178
Spark plug ................................ 718
Specifications .......................... 712
Speech command system
*
Speed limiter ............................ 420
Speedometer ............................ 212
SRS airbags................................ 39
Steering wheel ......................... 297
Adjustment ............................ 297
Audio switches
*
Meter control switches .......... 195
Talk switch
*
Telephone switches*
TRIP switch ........................... 214
Stop lights
Replacing light bulbs ............. 643
Storage feature ........................ 544
Storage precautions ................ 544
Stuck
If the vehicle becomes
stuck ................................... 708
Sun visors ................................ 555Switch
Adaptive High-beam System
switch ................................. 342
Audio remote control
switches
*
Camera switch*
Charging schedule switch ..... 169
Cruise control switch............. 401
Door lock switches ................ 275
Driving mode select switch ... 418
Emergency flashers switch ... 646
Engine switch........................ 323
EV City mode switch ............... 88
EV/HV mode selection
switch ................................... 88
Fog light switch ..................... 347
Fuel filler door opener
switch ................................. 353
“HUD” (Head-up display)
switch ................................. 256
Ignition switch ....................... 323
Instrument cluster light
control switch...................... 196
LTA (Lane Tracing Assist)
switch ................................. 387
Light switch ........................... 337
Meter control switches .......... 195
Outside rear view mirror
switches.............................. 301
P position switch ................... 330
Power door lock switches ..... 275
Power switch......................... 323
Power window switch............ 303
*: Refer to “Navigation system Owner’s manual”.
