boot TOYOTA PRIUS PLUG-IN HYBRID 2022 Owners Manual

1062-1. Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
XAccelerator pedal/brake pedal operation
ODrive your vehicle smoothly. Avoid abrupt acceleration and
deceleration. Gradual acceleration and deceleration will make
more effective use of the electric motor (traction motor) without
having to use gasoline engine power.
OAvoid repeated acceleration. Repeated acceleration consumes
hybrid battery (traction battery) power, resulting in poor fuel con-
sumption. Battery power can be restored by driving with the
accelerator pedal slightly released.
XWhen braking
Make sure to operate the brakes gently and a timely manner. A
greater amount of electrical energy can be regenerated when slow-
ing down.
XDelays
Repeated acceleration and deceleration, as well as long waits at
traffic lights, will lead to high fuel and electricity consumption.
Check traffic reports before leaving and avoid delays as much as
possible. When driving in a traffic jam, gently release the brake
pedal to allow the vehicle to move forward slightly while avoiding
overuse of the accelerator pedal. Doing so can help control exces-
sive electricity and fuel consumption.
XHighway driving
OControl and maintain the vehicle at a constant speed. Before
stopping at a toll booth or similar, allow plenty of time to release
the accelerator and gently apply the brakes. A greater amount of
electrical energy can be regenerated when slowing down.
OElectricity consumption will increase significantly when driving at
high speeds in EV mode. If there will be a long distance to the
next external charging point after leaving a freeway, it is recom-
mended to drive in HV mode while on the freeway and change to
EV mode after leaving the freeway.

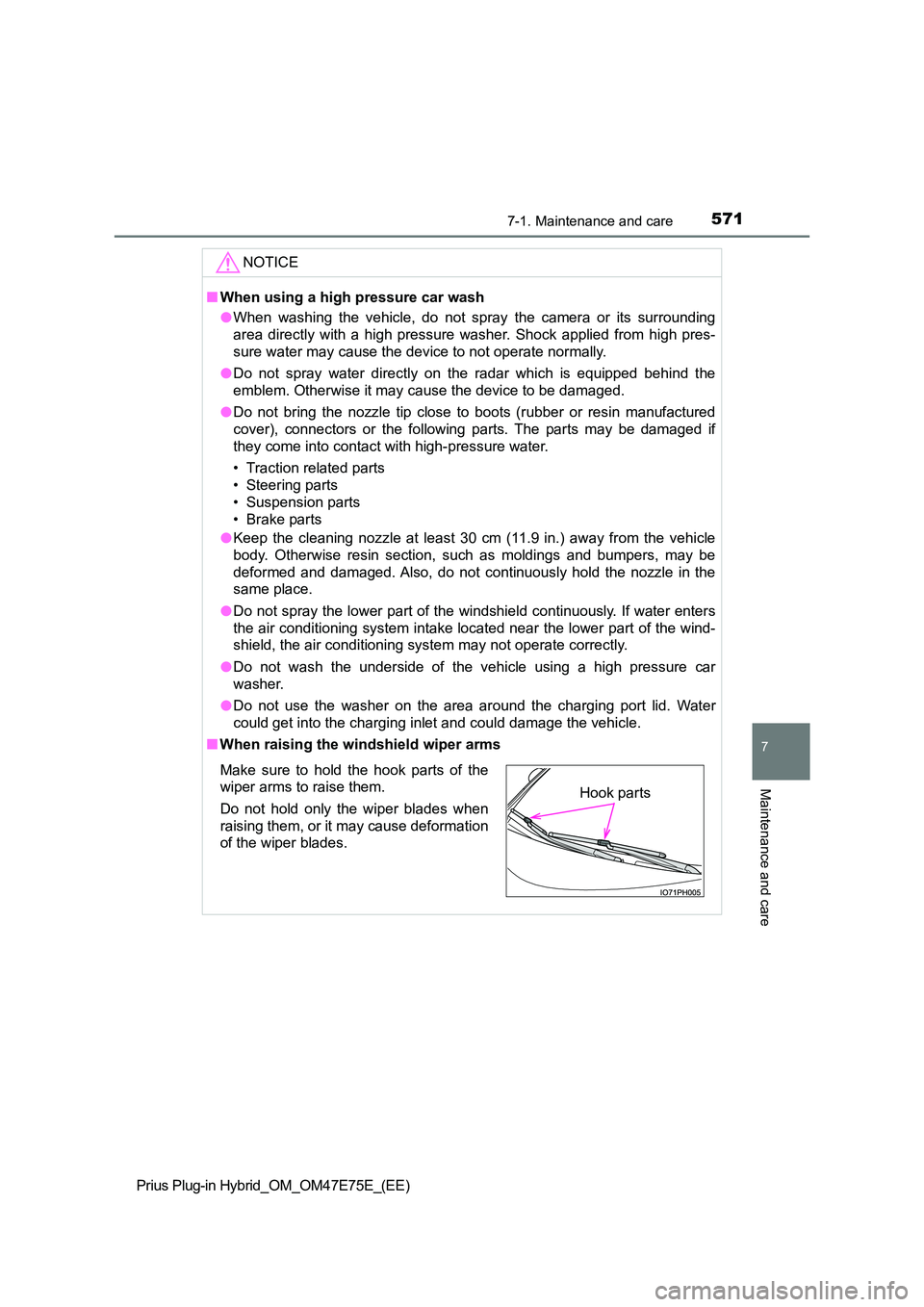

5717-1. Maintenance and care
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care
NOTICE
QWhen using a high pressure car wash
O When washing the vehicle, do not spray the camera or its surrounding
area directly with a high pressure washer. Shock applied from h igh pres-
sure water may cause the device to not operate normally.
O Do not spray water directly on the radar which is equipped behind the
emblem. Otherwise it may cause the device to be damaged.
O Do not bring the nozzle tip close to boots (rubber or resin manufactured
cover), connectors or the following parts. The parts may be dam aged if
they come into contact with high-pressure water.
• Traction related parts
• Steering parts
• Suspension parts
• Brake parts
O Keep the cleaning nozzle at least 30 cm (11.9 in.) away from the vehicle
body. Otherwise resin section, such as moldings and bumpers, ma y be
deformed and damaged. Also, do not continuously hold the nozzle in the
same place.
O Do not spray the lower part of the windshield continuously. If water enters
the air conditioning system intake located near the lower part of the wind-
shield, the air conditioning system may not operate correctly.
O Do not wash the underside of the vehicle using a high pressure car
washer.
O Do not use the washer on the area around the charging port lid. Water
could get into the charging inlet and could damage the vehicle.
Q When raising the windshield wiper arms
Make sure to hold the hook parts of the
wiper arms to raise them.
Do not hold only the wiper blades when
raising them, or it may cause deformation
of the wiper blades.
Hook parts
