brake sensor TOYOTA PRIUS PLUG-IN HYBRID 2022 Owners Manual

TABLE OF CONTENTS4
Prius Plug-in Hybrid_OM_OM47E75E_(EE)5-5. Using the driving
support systems
Toyota Safety Sense .........355
PCS (Pre-Collision
System) ...........................368
LTA (Lane Tracing
Assist) ..............................379
RSA (Road Sign Assist).....395
Dynamic radar cruise
control with full-speed
range ...............................401
Driving mode select
switch...............................418
Speed limiter ......................420
BSM
(Blind Spot Monitor) .........423
• The Blind Spot Monitor
function ..........................439
• The Rear Crossing
Traffic Alert function.......443
Toyota parking
assist-sensor ...................450
Parking Support Brake
function ............................462
S-IPA (Simple Intelligent
Parking Assist
System) ...........................473
GPF (Gasoline Particulate
Filter) system ...................508
Driving assist systems .......509
5-6. Driving tips
Winter driving tips ..............5166-1. Using the air conditioning
system and defogger
Automatic air conditioning
system............................. 522
Remote Air Conditioning
System ............................ 535
Seat heaters ...................... 539
6-2. Using the interior lights
Interior lights list ................ 541
• Front interior light .......... 542
• Front personal lights ..... 542
• Rear interior light .......... 543
6-3. Using the storage features
List of storage features...... 544
• Glove box ...................... 545
• Console box .................. 545
• Cup holders .................. 546
• Bottle holders/
door pockets ................. 547
• Auxiliary boxes .............. 548
• Seat back pockets ........ 549
Luggage compartment
features ........................... 550
6-4. Using the other interior
features
Other interior features ....... 555
• Sun visors ..................... 555
• Vanity mirrors ................ 555
• Power outlets ................ 556
• Wireless charger ........... 557
• Armrest ......................... 563
• Coat hooks .................... 563
• Assist grips ................... 564
6Interior features

2483. Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q
Settings table
ItemSettingsSetting result
“On”
Turns the LTA (Lane Tracing Assist) lane
centering function on and off. (P. 379)
“Off”
“On”
Turns the LTA (Lane Tracing Assist) steer-
ing assist function on and off. (P. 379)
“Off”
“High”Switches the LTA (Lane Tracing Assist)
alert sensitivity. (P. 379)
“Standard”
“On”
Turns the PCS (Pre-Collision System) on
and off. (P. 372)
“Off”
Early
Switches the PCS (Pre-Collision System)
warning timing. (P. 372)Middle
Late
*1“On”Turns the Toyota parking assist-sensor on
and off. (P. 450)
“Off”
*1“On”Turns the Parking Support Brake function
on and off. (P. 464)
“Off”
*1“On”Turns the Blind Spot Monitor on and off.
(P. 424)
“Off”
“On”
Turns the LTA (Lane Tracing Assist) vehicle
sway warning on and off. (P. 379)
“Off”
“High”
Switches the LTA (Lane Tracing Assist)
vehicle sway warning sensitivity. (P. 379)“Standard”
“Low”
*1HeightChanges the display position and bright-
ness of the head-up display. (P. 257)
Brightness
“On”
Turns the RSA (Road Sign Assist) on and
off. (P. 395)
“Off”
“On”Turns the Dynamic Radar Cruise Control
with Road Sign Assist on and off.
(P. 413)
“Off”

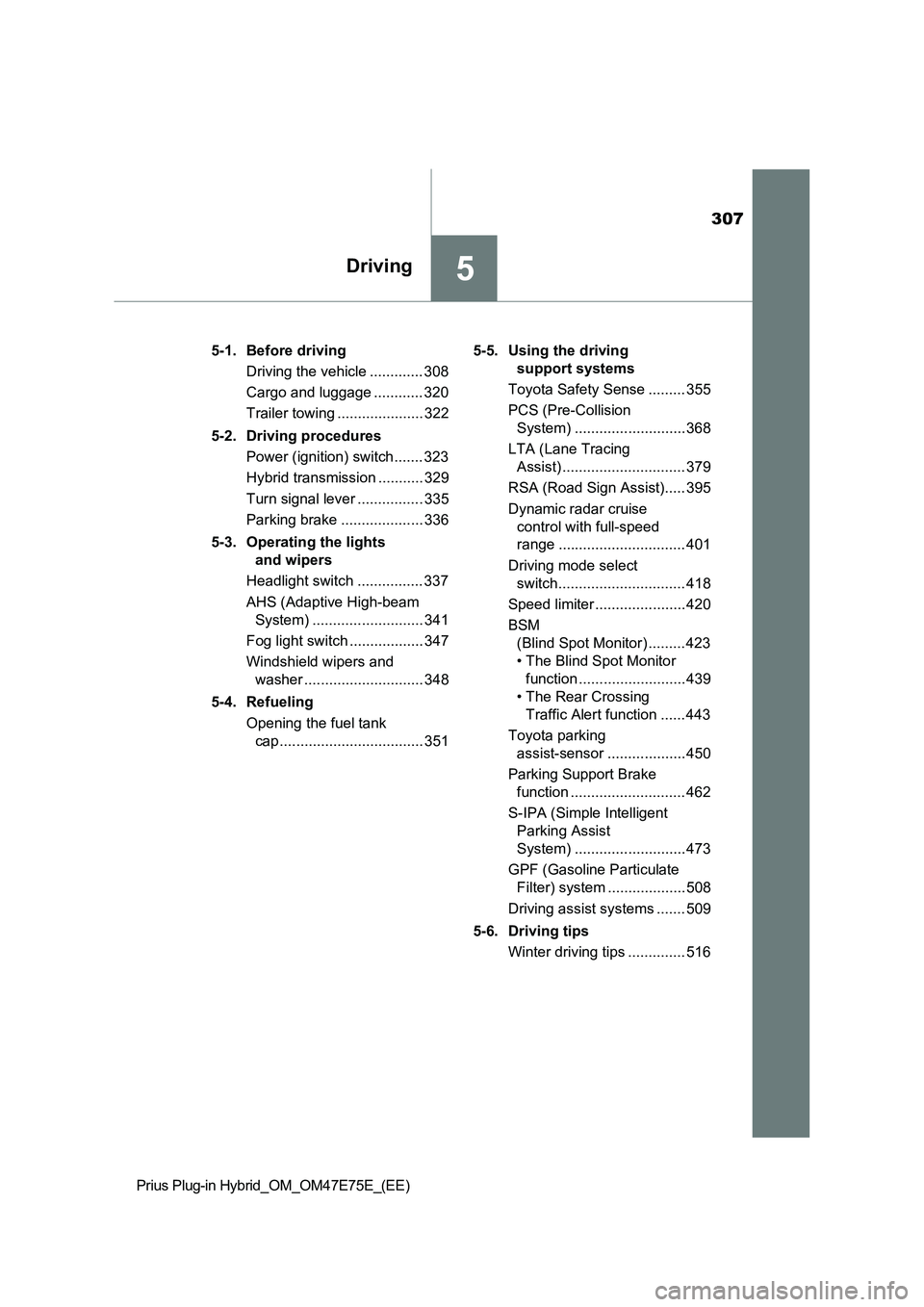

307
5Driving
Prius Plug-in Hybrid_OM_OM47E75E_(EE)5-1. Before driving
Driving the vehicle ............. 308
Cargo and luggage ............ 320
Trailer towing ..................... 322
5-2. Driving procedures
Power (ignition) switch ....... 323
Hybrid transmission ........... 329
Turn signal lever ................ 335
Parking brake .................... 336
5-3. Operating the lights
and wipers
Headlight switch ................ 337
AHS (Adaptive High-beam
System) ........................... 341
Fog light switch .................. 347
Windshield wipers and
washer ............................. 348
5-4. Refueling
Opening the fuel tank
cap ................................... 3515-5. Using the driving
support systems
Toyota Safety Sense ......... 355
PCS (Pre-Collision
System) ........................... 368
LTA (Lane Tracing
Assist) .............................. 379
RSA (Road Sign Assist)..... 395
Dynamic radar cruise
control with full-speed
range ............................... 401
Driving mode select
switch............................... 418
Speed limiter ...................... 420
BSM
(Blind Spot Monitor) ......... 423
• The Blind Spot Monitor
function .......................... 439
• The Rear Crossing
Traffic Alert function ...... 443
Toyota parking
assist-sensor ................... 450
Parking Support Brake
function ............................ 462
S-IPA (Simple Intelligent
Parking Assist
System) ........................... 473
GPF (Gasoline Particulate
Filter) system ................... 508
Driving assist systems ....... 509
5-6. Driving tips
Winter driving tips .............. 516

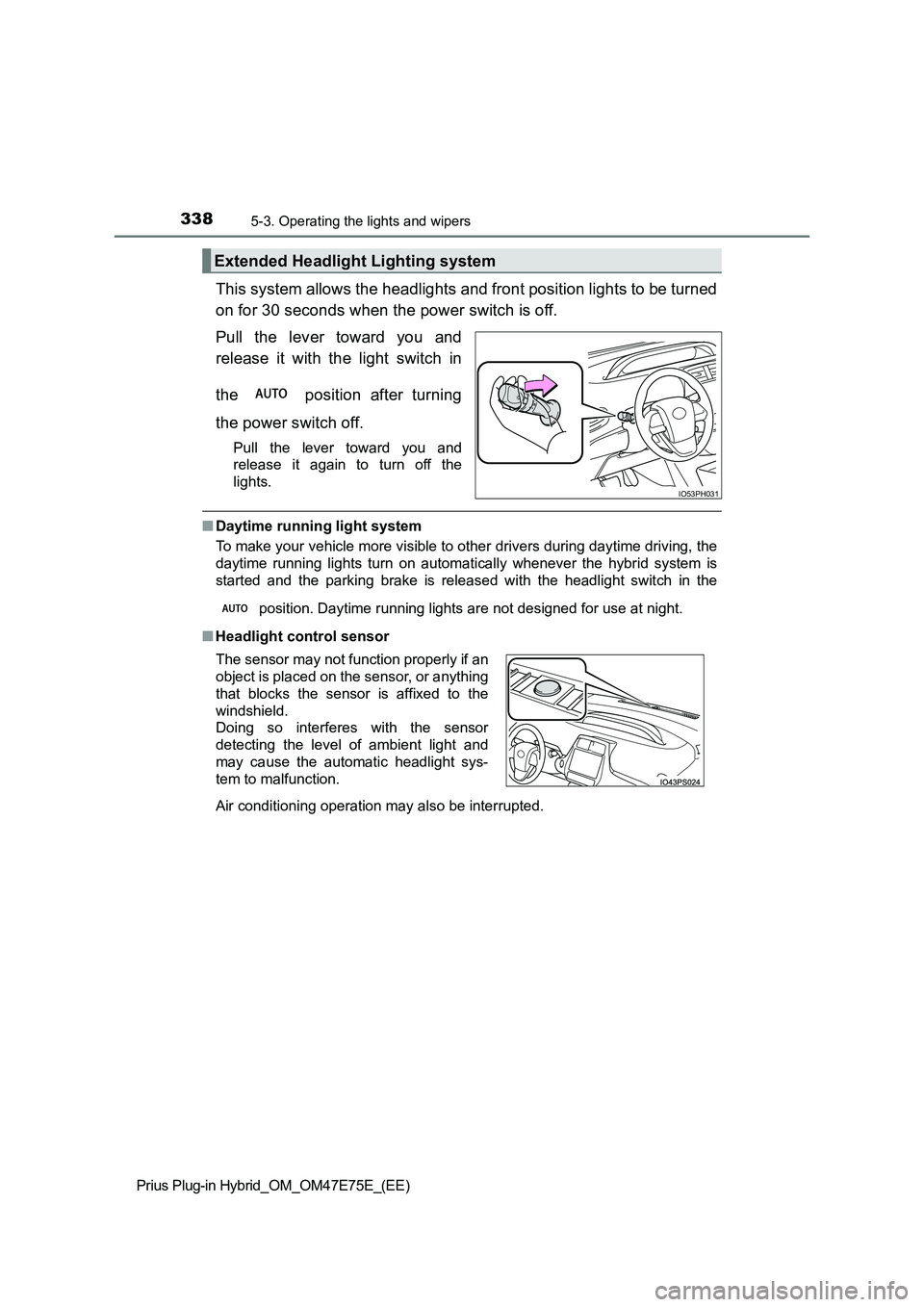

3385-3. Operating the lights and wipers
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
This system allows the headlights and front position lights to be turned
on for 30 seconds when the power switch is off.
Pull the lever toward you and
release it with the light switch in
the position after turning
the power switch off.
Pull the lever toward you and
release it again to turn off the
lights.
Q Daytime running light system
To make your vehicle more visible to other drivers during dayti me driving, the
daytime running lights turn on automatically whenever the hybri d system is
started and the parking brake is released with the headlight sw itch in the
position. Daytime running lights are not designed for use at n ight.
Q Headlight control sensor
Extended Headlight Lighting system
IO53PH031
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
Air conditioning operation may also be interrupted.

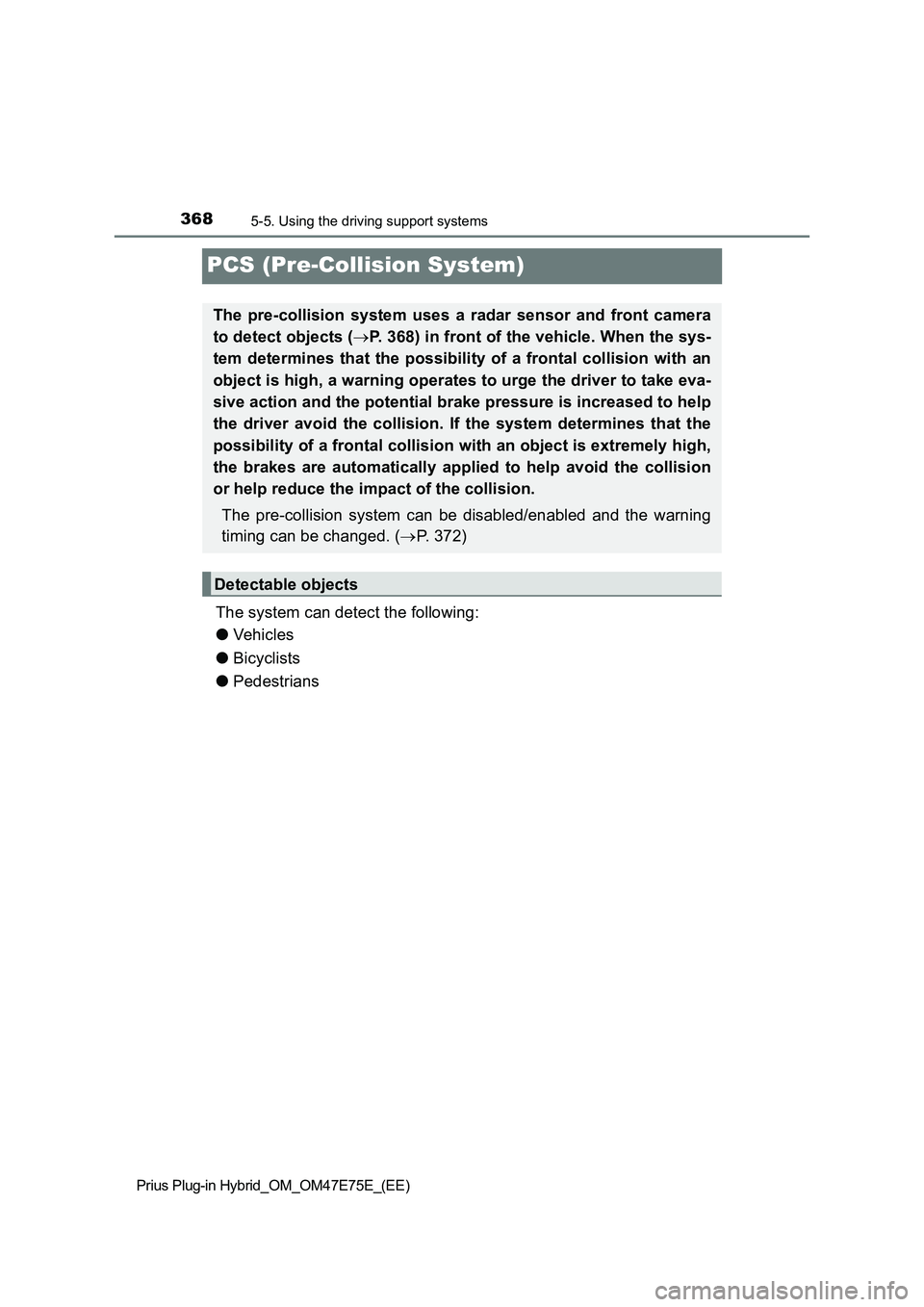

3685-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
PCS (Pre-Collision System)
The system can detect the following:
OVe hi cl e s
OBicyclists
OPedestrians
The pre-collision system uses a radar sensor and front camera
to detect objects (P. 368) in front of the vehicle. When the sys-
tem determines that the possibility of a frontal collision with an
object is high, a warning operates to urge the driver to take eva-
sive action and the potential brake pressure is increased to help
the driver avoid the collision. If the system determines that the
possibility of a frontal collision with an object is extremely high,
the brakes are automatically applied to help avoid the collision
or help reduce the impact of the collision.
The pre-collision system can be disabled/enabled and the warning
timing can be changed. (P. 372)
Detectable objects

3785-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)• While driving on a curve and for a few seconds after driving on a curve
• If your vehicle is skidding
• If the wheels are misaligned
• If a wiper blade is blocking the front camera
• The vehicle is being driven at extremely high speeds
• When driving on a hill
• If the radar sensor or front camera is misaligned
OIn some situations such as the following, sufficient braking force may not be
obtained, preventing the system from performing properly:
• If the braking functions cannot operate to their full extent, such as when
the brake parts are extremely cold, extremely hot, or wet
• If the vehicle is not properly maintained (brakes or tires are excessively
worn, improper tire inflation pressure, etc.)
• When the vehicle is being driven on a gravel road or other slippery sur-
face
QIf VSC is disabled
OIf VSC is disabled (P. 511), the pre-collision brake assist and pre-collision
braking functions are also disabled.
OThe PCS warning light will turn on and “VSC Turned Off Pre-Collision Brake
System Unavailable” will be displayed on the multi-information display. • If the front of the vehicle is raised or
lowered

4145-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QDynamic radar cruise control with full-speed range can be set when
OThe shift position is in D.
OThe desired set speed can be set when the vehicle speed is approximately
30 km/h (20 mph) or more.
(However, when the vehicle speed is set while driving at below approxi-
mately 30 km/h [20 mph], the set speed will be set to approximately 30 km/h
[20 mph].)
QAccelerating after setting the vehicle speed
The vehicle can accelerate by operating the accelerator pedal. After acceler-
ating, the set speed resumes. However, during vehicle-to-vehicle distance
control mode, the vehicle speed may decrease below the set speed in order
to maintain the distance to the preceding vehicle.
QWhen the vehicle stops while follow-up cruising
OPushing the lever up while the vehicle ahead stops will resume follow-up
cruising if the vehicle ahead starts off within approximately 3 seconds after
the lever is pushed up.
OIf the vehicle ahead starts off within 3 seconds after your vehicle stops, fol-
low-up cruising will be resumed.
QAutomatic cancelation of vehicle-to-vehicle distance control mode
Vehicle-to-vehicle distance control mode is automatically canceled in the fol-
lowing situations.
OVSC is activated.
OTRC is activated for a period of time.
OWhen the VSC or TRC system is turned off.
OThe sensor cannot detect correctly because it is covered in some way.
OWhen the brake control or output restriction control of a driving support sys-
tem operates.
(For example: Pre-Collision System, Drive-Start Control)
OThe parking brake is operated.
OThe vehicle is stopped by system control on a steep incline.
OThe following are detected when the vehicle has been stopped by system
control:
• The driver is not wearing a seat belt.
• The driver’s door is opened.
• The vehicle has been stopped for about 3 minutes.
The shift position may automatically change to P. (P. 332)
If vehicle-to-vehicle distance control mode is automatically canceled for any
reasons other than the above, there may be a malfunction in the system.
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

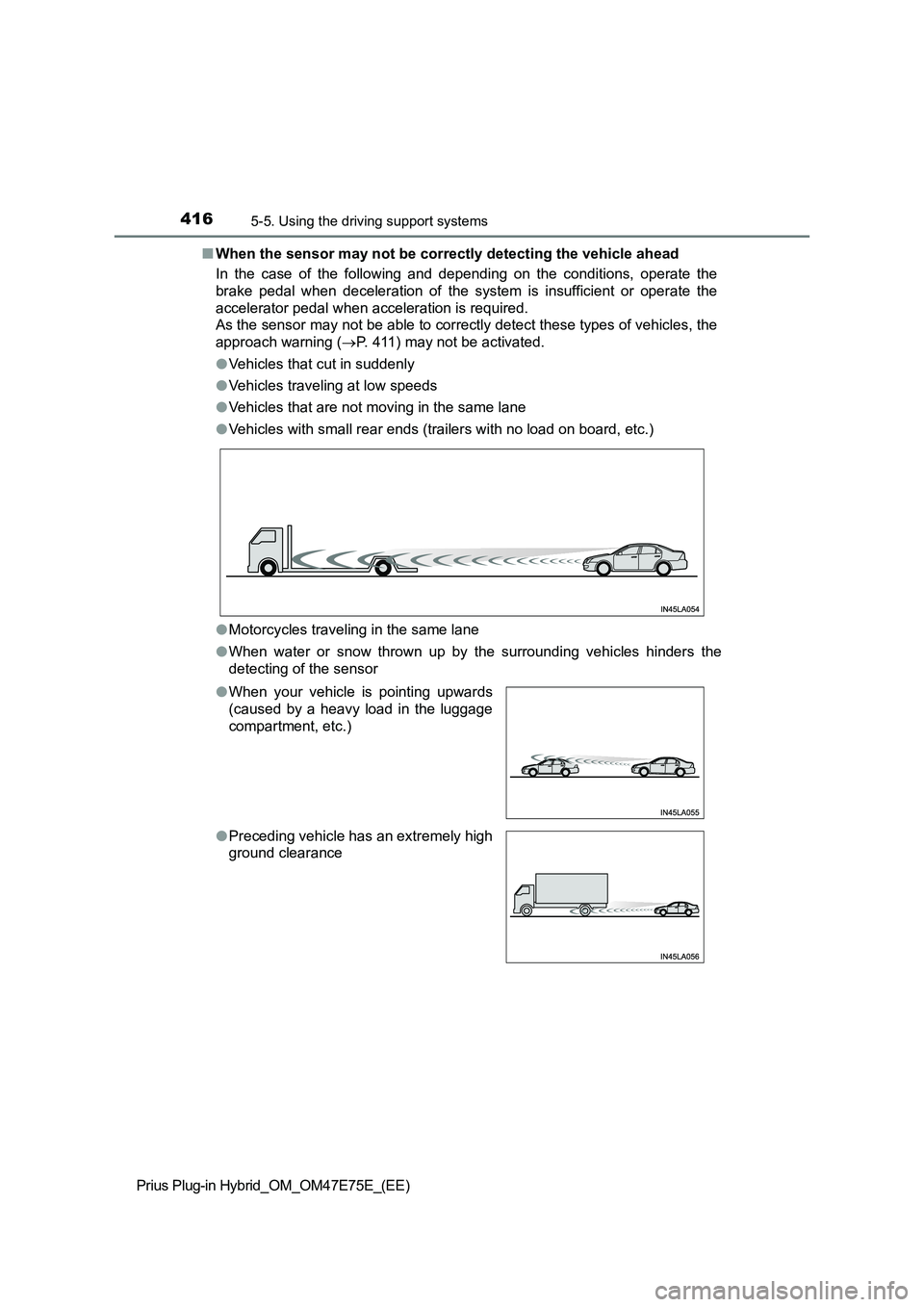

4165-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)QWhen the sensor may not be correctly detecting the vehicle ahead
In the case of the following and depending on the conditions, operate the
brake pedal when deceleration of the system is insufficient or operate the
accelerator pedal when acceleration is required.
As the sensor may not be able to correctly detect these types of vehicles, the
approach warning (P. 411) may not be activated.
OVehicles that cut in suddenly
OVehicles traveling at low speeds
OVehicles that are not moving in the same lane
OVehicles with small rear ends (trailers with no load on board, etc.)
OMotorcycles traveling in the same lane
OWhen water or snow thrown up by the surrounding vehicles hinders the
detecting of the sensor
OWhen your vehicle is pointing upwards
(caused by a heavy load in the luggage
compartment, etc.)
OPreceding vehicle has an extremely high
ground clearance

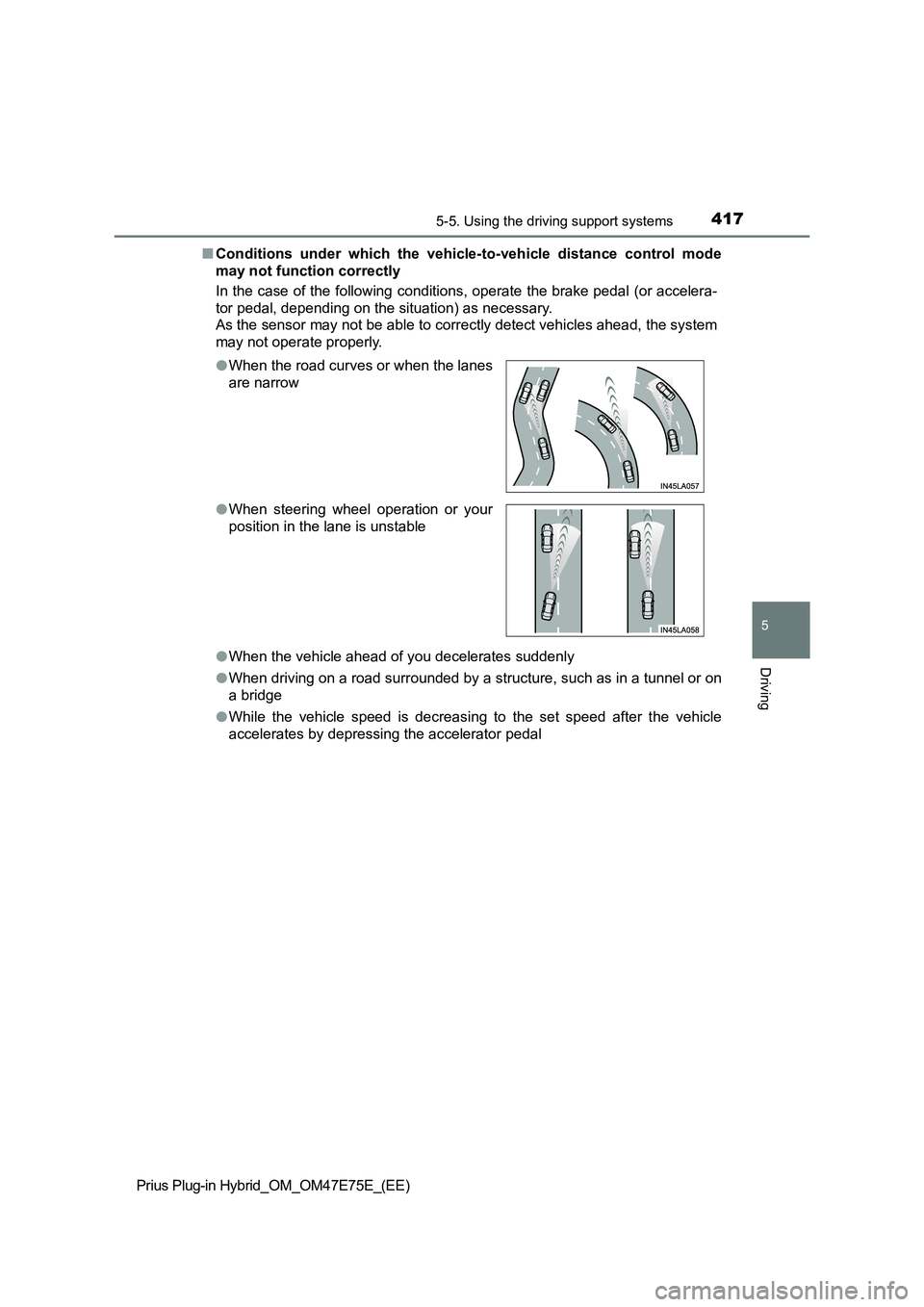

4175-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
QConditions under which the vehicle-to-vehicle distance control mode
may not function correctly
In the case of the following conditions, operate the brake pedal (or accelera-
tor pedal, depending on the situation) as necessary.
As the sensor may not be able to correctly detect vehicles ahead, the system
may not operate properly.
OWhen the vehicle ahead of you decelerates suddenly
OWhen driving on a road surrounded by a structure, such as in a tunnel or on
a bridge
OWhile the vehicle speed is decreasing to the set speed after the vehicle
accelerates by depressing the accelerator pedal OWhen the road curves or when the lanes
are narrow
OWhen steering wheel operation or your
position in the lane is unstable

4585-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)OWhen vehicle horns, vehicle detectors, motorcycle engines, air brakes of
large vehicles, the clearance sonar of other vehicles or other devices which
produce ultrasonic waves are near the vehicle
OA sensor is coated with a sheet of spray or heavy rain.
OIf objects draw too close to the sensor.
OWhen a pedestrian is wearing clothing that does not reflect ultrasonic waves
(ex. skirts with gathers or frills).
OWhen objects that are not perpendicular to the ground, not perpendicular to
the vehicle traveling direction, uneven, or waving are in the detection range.
OStrong wind is blowing
OWhen driving in inclement weather such as fog, snow or a sandstorm
OWhen an object that cannot be detected is between the vehicle and a
detected object
OIf an object such as a vehicle, motorcycle, bicycle or pedestrian cuts in front
of the vehicle or runs out from the side of the vehicle
OIf the orientation of a sensor has been changed due to a collision or other
impact
OWhen equipment that may obstruct a sensor is installed, such as a towing
eyelet, bumper protector (an additional trim strip, etc.), bicycle carrier, or
snow plow
OIf the front of the vehicle is raised or lowered due to the carried load
OIf the vehicle cannot be driven in a stable manner, such as when the vehicle
has been in an accident or is malfunctioning
OWhen tire chains, a compact spare tire or an emergency tire puncture repair
kit are used.
