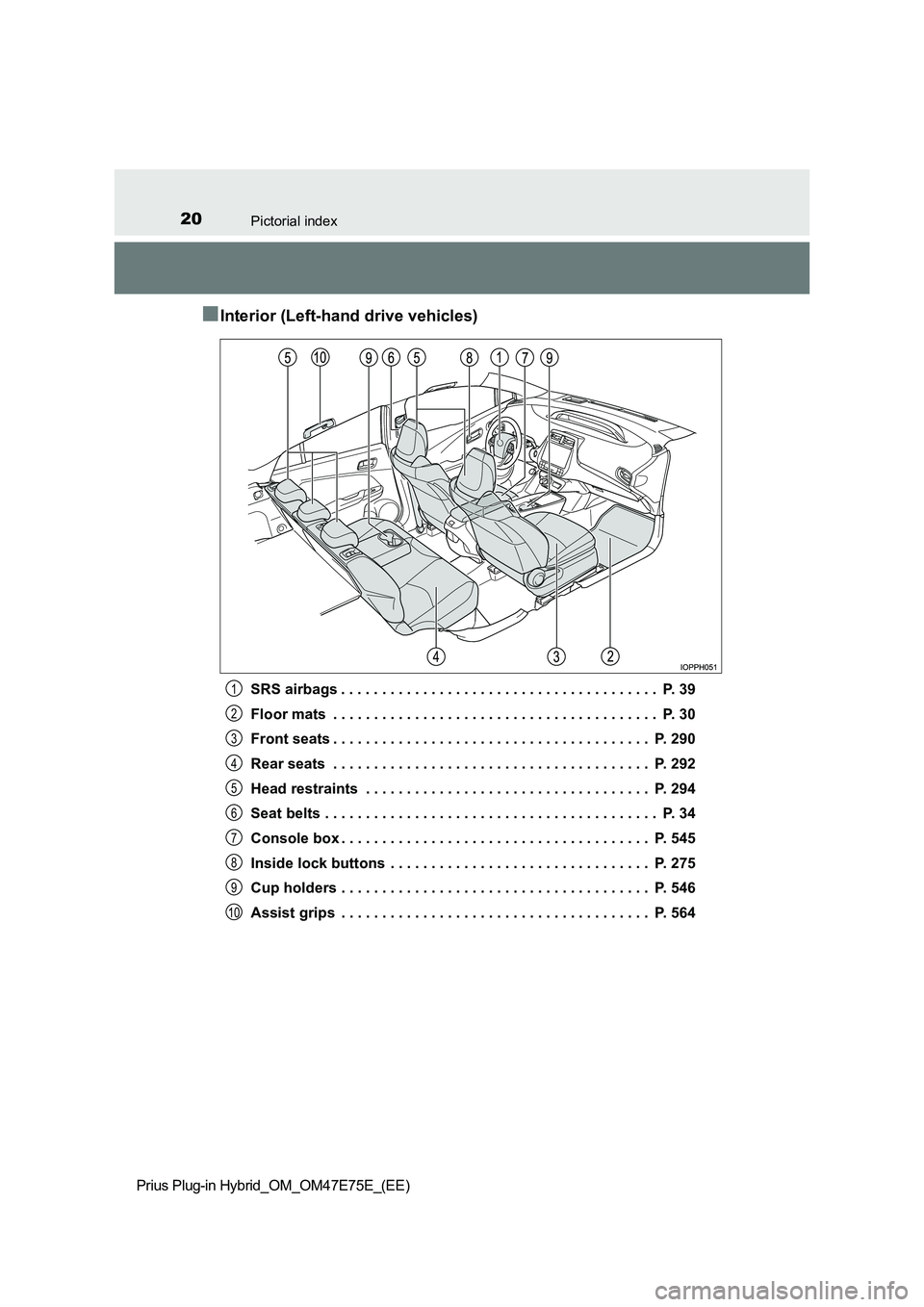

20Pictorial index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QInterior (Left-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 39
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 294
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 545
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 275
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 564
1
2
3
4
5
6
7
8
9
10

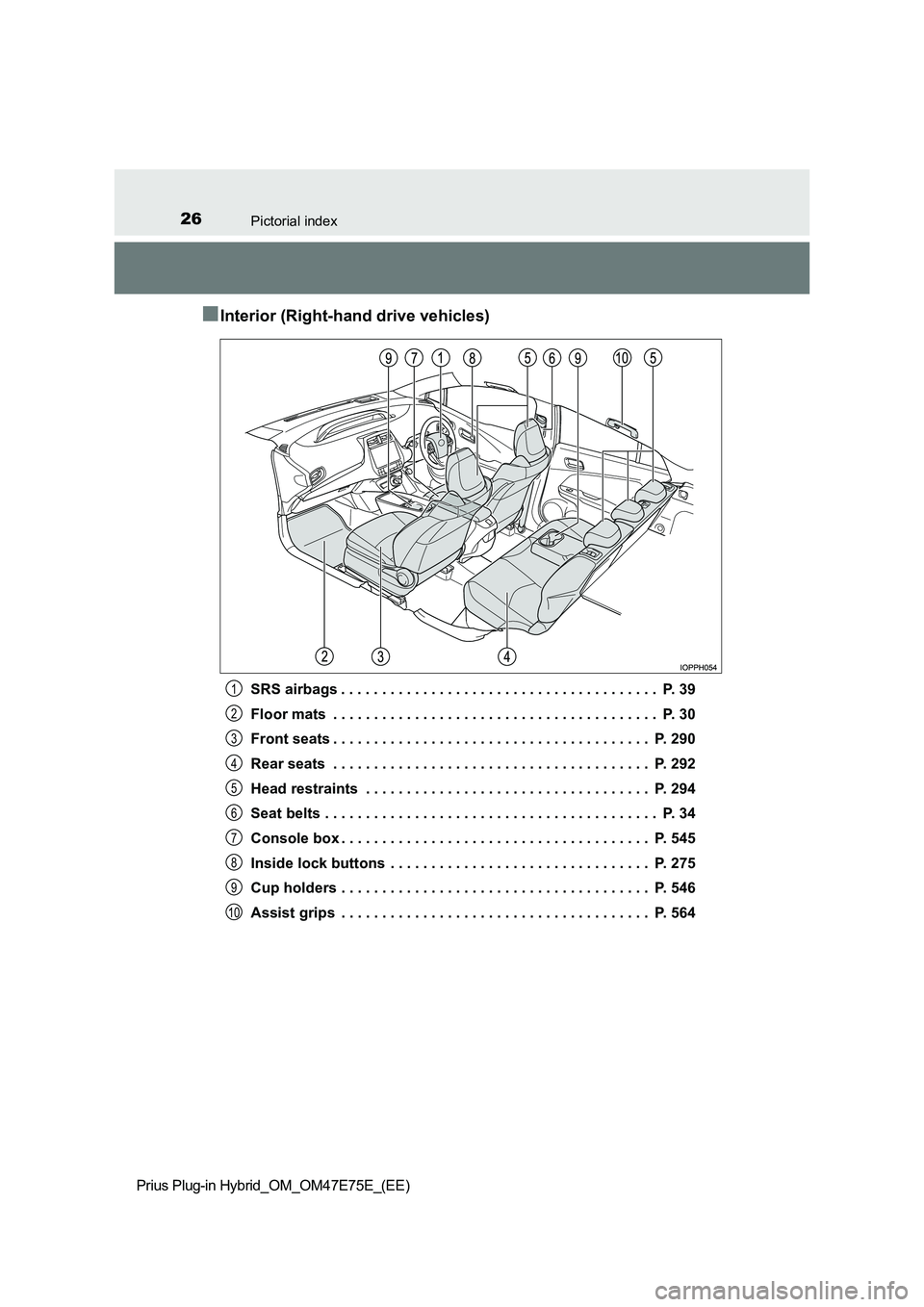

26Pictorial index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QInterior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 39
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 294
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 545
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 275
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 564
1
2
3
4
5
6
7
8
9
10

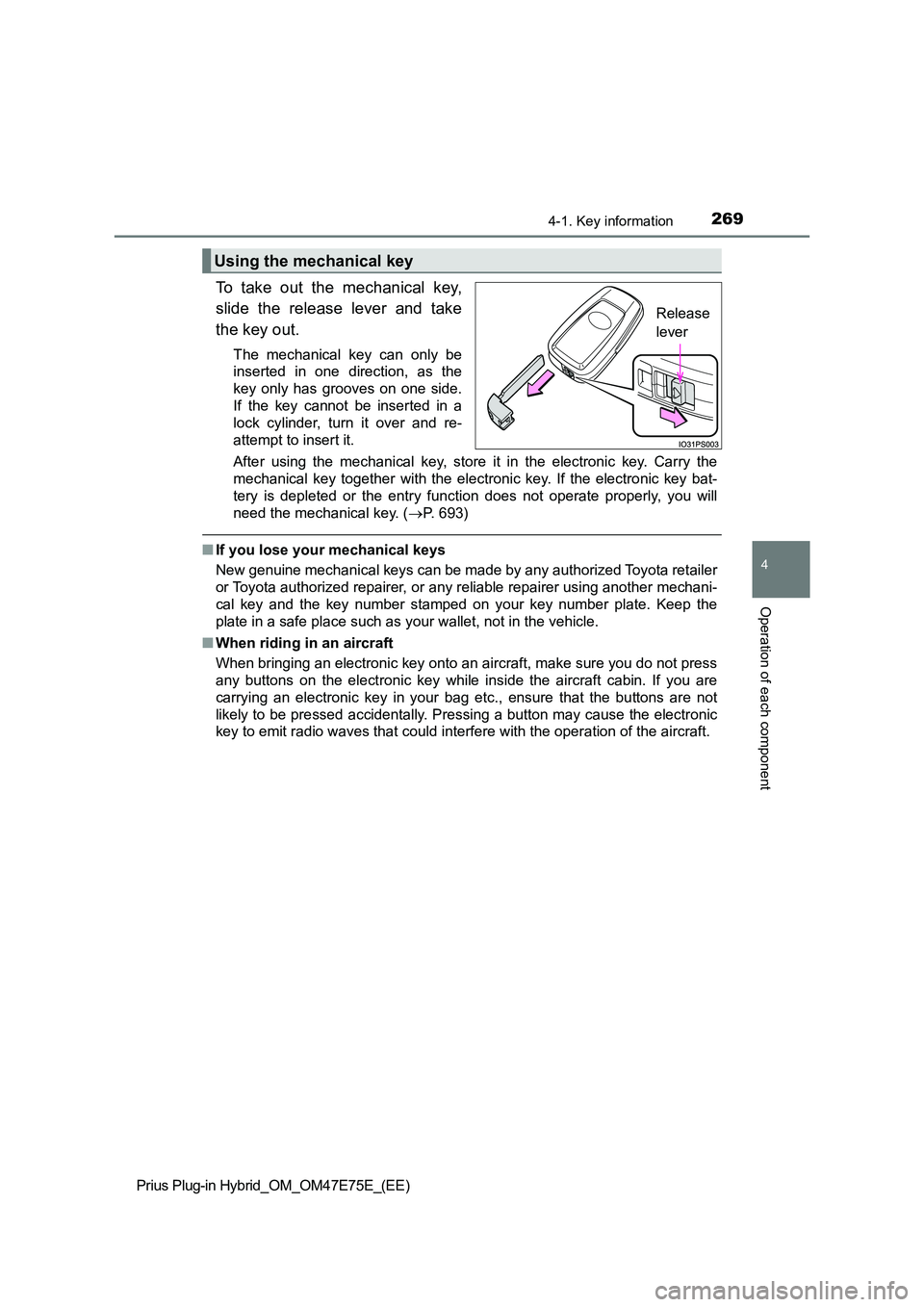

2694-1. Key information
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component
To take out the mechanical key,
slide the release lever and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electro nic key bat-
tery is depleted or the entry function does not operate properl y, you will
need the mechanical key. ( P. 693)
QIf you lose your mechanical keys
New genuine mechanical keys can be made by any authorized Toyot a retailer
or Toyota authorized repairer, or any reliable repairer using a nother mechani-
cal key and the key number stamped on your key number plate. Ke ep the
plate in a safe place such as your wallet, not in the vehicle.
Q When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press
any buttons on the electronic key while inside the aircraft cab in. If you are
carrying an electronic key in your bag etc., ensure that the bu ttons are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.
Using the mechanical key
Release
lever

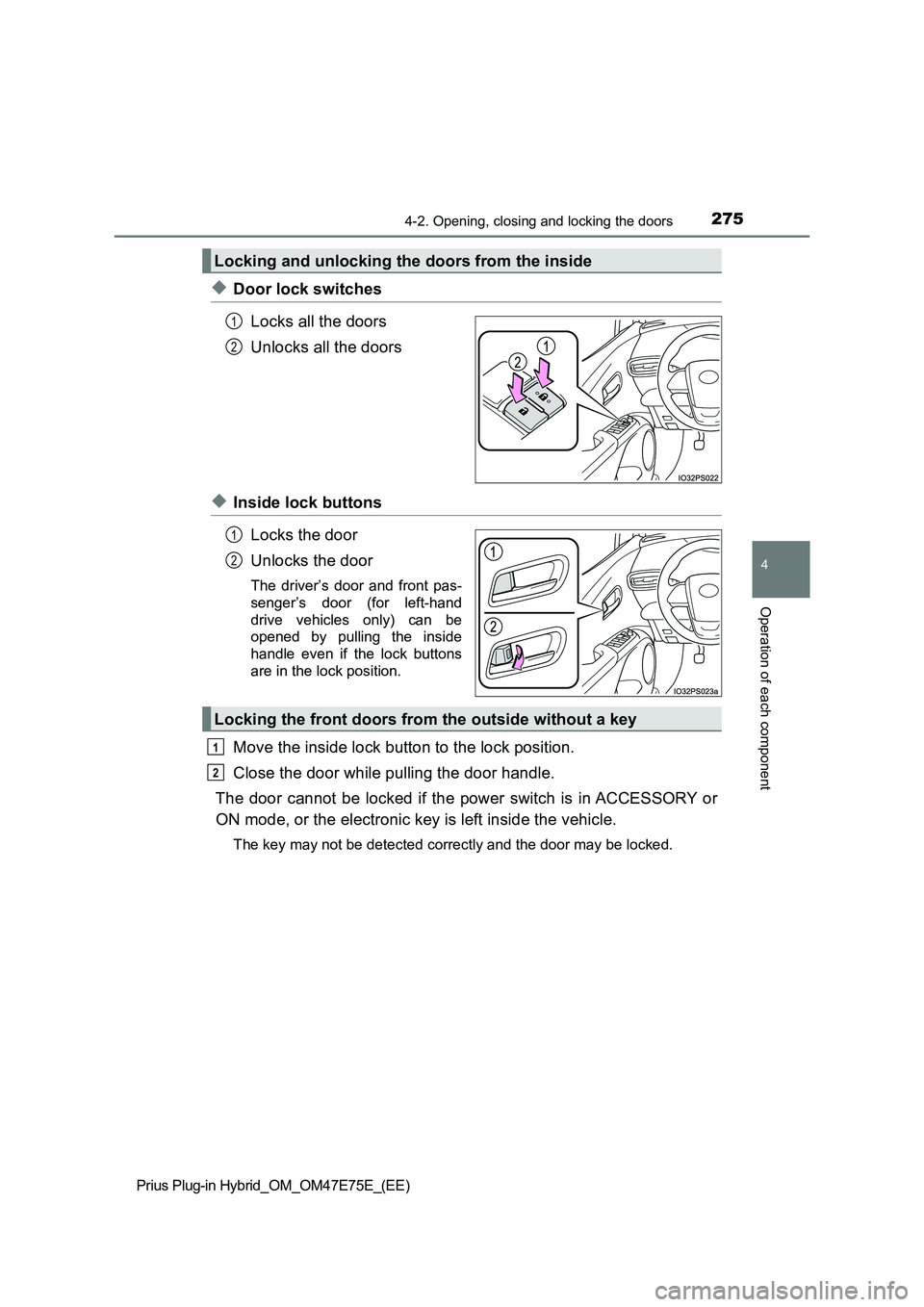

2754-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component
XDoor lock switches
Locks all the doors
Unlocks all the doors
XInside lock buttons
Locks the door
Unlocks the door
The driver’s door and front pas-
senger’s door (for left-hand
drive vehicles only) can be
opened by pulling the inside
handle even if the lock buttons
are in the lock position.
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the power switch is in ACCESSORY or
ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Locking and unlocking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2

2774-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component
QCustomization
Settings (e.g. operation signal) can be changed.
(Customizable features: P. 724)
WARNING
QTo prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant c ould be
thrown out of the vehicle, resul ting in death or serious injury.
O Ensure that all doors are properly closed.
O Do not pull the inside handle of the doors while driving.
Be especially careful for the driver’s door and front passenger ’s door (for
left-hand drive vehicles only), as the door may be opened even if the
inside lock buttons are in locked position.
O Set the rear door child-protector locks when children are seated in the rear
seats.
Q When opening or closing a door
Check the surroundings of the vehicle such as whether the vehic le is on an
incline, whether there is enough space for a door to open and w hether a
strong wind is blowing. When opening or closing the door, hold the door
handle tightly to prepare for any unpredictable movement.
Q When using the wireless remote control and operating the power win-
dows
Operate the power window after checking to make sure that there is no pos-
sibility of any passenger having any of their body parts caught in the side
window. Also, do not allow children to operate the wireless rem ote control. It
is possible for children and other passengers to get caught in the power
window.

2854-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component
QWhen “Smart Entry & Start System Malfunction See Owner’s Manual” is
displayed on the multi-information display
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer
immediately.
Q Battery-saving function
The battery-saving function will be activated in order to preve nt the electronic
key battery and the 12-volt battery from being discharged while the vehicle is
not in operation for a long time.
O In the following situations, the smart entry & start system may take some
time to unlock the doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.) of
the outside of the vehicle for 10 minutes or longer.
• The smart entry & start system has not been used for 5 days or longer.
O If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver’s d oor. In this
case, take hold of the driver’s door handle, or use the wireles s remote con-
trol or the mechanical key, to unlock the doors.
Q Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.
