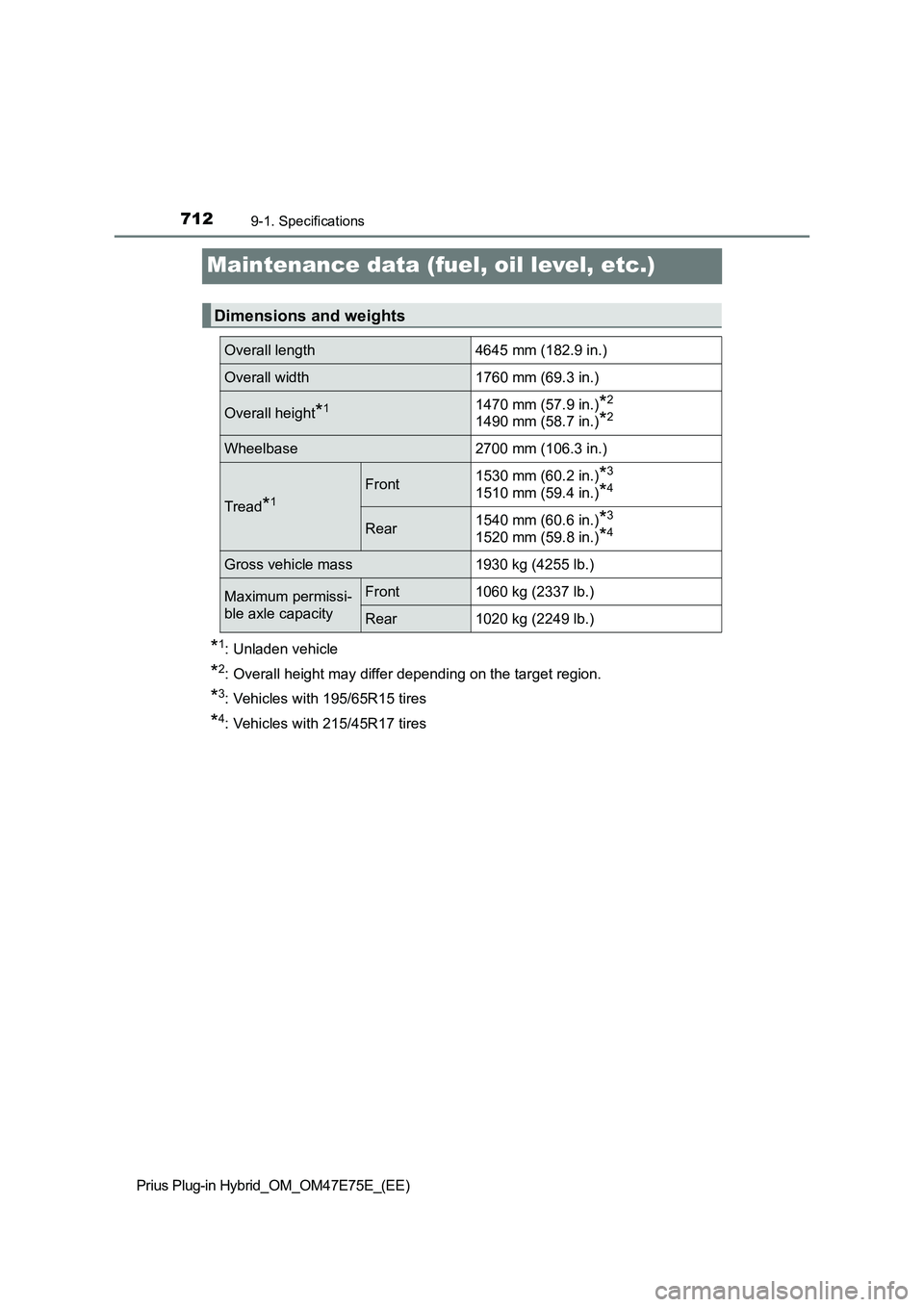

dimensions TOYOTA PRIUS PLUG-IN HYBRID 2022 Owners Manual

7129-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Overall height may differ depending on the target region.
*3: Vehicles with 195/65R15 tires
*4: Vehicles with 215/45R17 tires
Dimensions and weights
Overall length4645 mm (182.9 in.)
Overall width1760 mm (69.3 in.)
Overall height*11470 mm (57.9 in.)*2
1490 mm (58.7 in.)*2
Wheelbase2700 mm (106.3 in.)
Tread*1
Front1530 mm (60.2 in.)*3
1510 mm (59.4 in.)*4
Rear1540 mm (60.6 in.)*3
1520 mm (59.8 in.)*4
Gross vehicle mass1930 kg (4255 lb.)
Maximum permissi-
ble axle capacityFront1060 kg (2337 lb.)
Rear1020 kg (2249 lb.)
