7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........566
Cleaning and protecting
the vehicle interior ...........572
7-2. Maintenance
Maintenance
requirements....................578
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ......................581
Hood ..................................584
Positioning a floor jack .......586
Engine compartment..........587
Tires ...................................600
Tire inflation pressure ........608
Wheels ...............................610
Replacing the tire ...............612
Air conditioning filter ..........624
Wiper insert
replacement .....................628
Electronic key battery ........631
Checking and replacing
fuses ................................634
Light bulbs .........................638
8-1. Essential information
Emergency flashers .......... 646
If your vehicle has to
be stopped in an
emergency ...................... 647
If the vehicle is submerged
or water on the road
is rising ............................ 648
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ..................... 650
If you think something is
wrong .............................. 656
If a warning light turns on
or a warning buzzer
sounds ............................ 657
If a warning message is
displayed ......................... 665
If you have a flat tire .......... 673
If the hybrid system will
not start ........................... 691
If the electronic key does
not operate properly ........ 693
If the 12-volt battery is
discharged ...................... 697
If your vehicle
overheats ........................ 703
If the vehicle becomes
stuck................................ 708
7Maintenance and care8When trouble arises

10
Prius Plug-in Hybrid_OM_OM47E75E_(EE)The vehicle is equipped with sophisticated computers that will record certain
data, such as:
• Engine speed/Electric motor speed (traction motor speed)
• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the driving assist systems
• Images from the cameras
Your vehicle is equipped with cameras. Contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer for the loca-
tion of recording cameras.
• Hybrid battery (traction battery) status
The recorded data varies according to the vehicle grade level, options and
destinations with which it is equipped.
These computers do not record conversations or sounds, and only record
images outside of the vehicle in certain situations.
OData usage
Toyota may use the data recorded in this computer to diagnose malfunc-
tions, conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if
the vehicle is leased
• In response to an official request by the police, a court of law or a govern-
ment agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner
ORecorded image information can be erased by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
The image recording function can be disabled. However, if the function is
disabled, data from when the system operates will not be available.
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer, before
you scrap your vehicle.

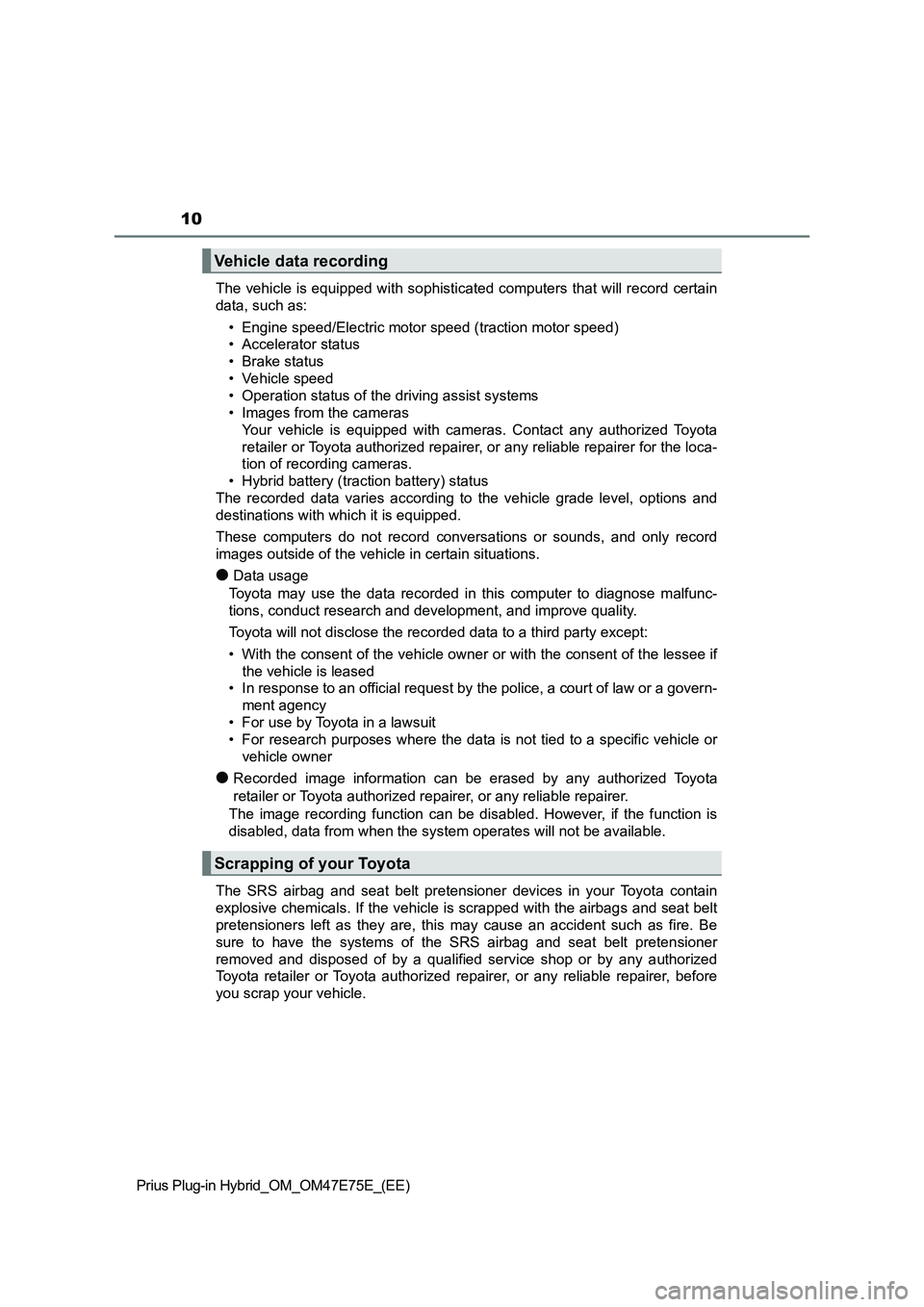

Vehicle data recording
Scrapping of your Toyota

15Pictorial index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 516
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 568
Replacing the wiper insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 628
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 351
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 351
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 714
Charging port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111
Charging method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 142
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 600
Replacing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 612
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 721
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 516
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 600
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 673
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 584
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 584
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 715
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 703
Headlights/front position lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Front fog lights/rear fog lights . . . . . . . . . . . . . . . . . . . . . . . P. 347
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Back-up lights
Shifting the shift position to R . . . . . . . . . . . . . . . . . . . . . . . . . P. 329
4
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 638, Watts: P. 721)
9
10
11
12
13
14

451-1. For safe use
1
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety and security

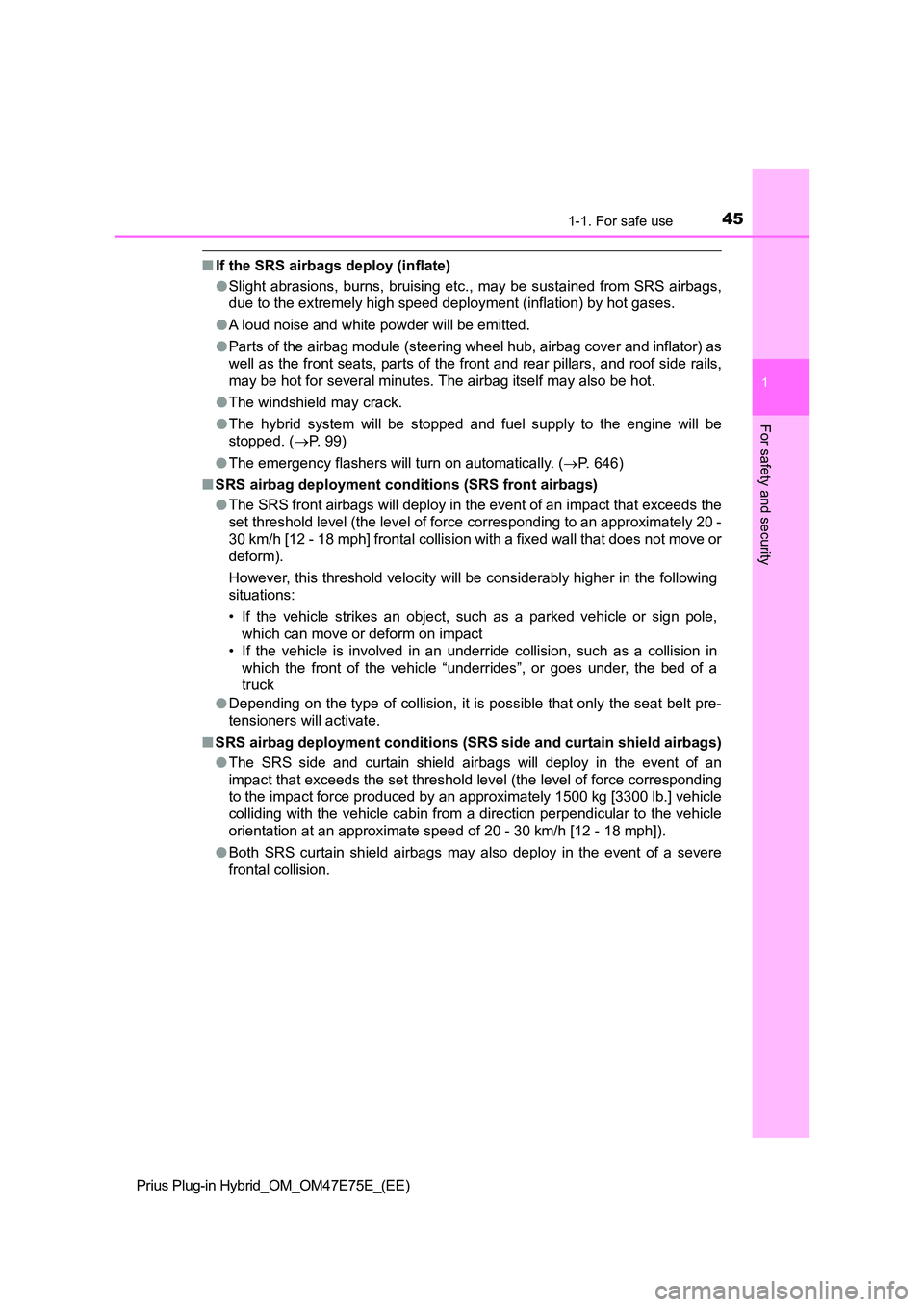

QIf the SRS airbags deploy (inflate)
O Slight abrasions, burns, bruising etc., may be sustained from SRS airbags,
due to the extremely high speed depl oyment (inflation) by hot gases.
O A loud noise and white powder will be emitted.
O Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front and rear pillars, a nd roof side rails,
may be hot for several minutes. The airbag itself may also be h ot.
O The windshield may crack.
O The hybrid system will be stopped and fuel supply to the engine will be
stopped. ( P. 99)
O The emergency flashers will turn on automatically. (P. 646)
Q SRS airbag deployment conditions (SRS front airbags)
O The SRS front airbags will deploy in the event of an impact that exceeds the
set threshold level (the level of force corresponding to an app roximately 20 -
30 km/h [12 - 18 mph] frontal collision with a fixed wall that does not move or
deform).
However, this threshold veloci ty will be considerably higher in the following
situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in
which the front of the vehicle “underrides”, or goes under, the bed of a
truck
O Depending on the type of collision, it is possible that only the seat belt pre-
tensioners will activate.
Q SRS airbag deployment conditions (SRS side and curtain shield airbags)
O The SRS side and curtain shield airbags will deploy in the event of an
impact that exceeds the set threshold level (the level of force corresponding
to the impact force produced by an approximately 1500 kg [3300 lb.] vehicle
colliding with the vehicle cabin from a direction perpendicular to the vehicle
orientation at an approximate speed of 20 - 30 km/h [12 - 18 mp h]).
O Both SRS curtain shield airbags may also deploy in the event of a severe
frontal collision.

842-1. Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

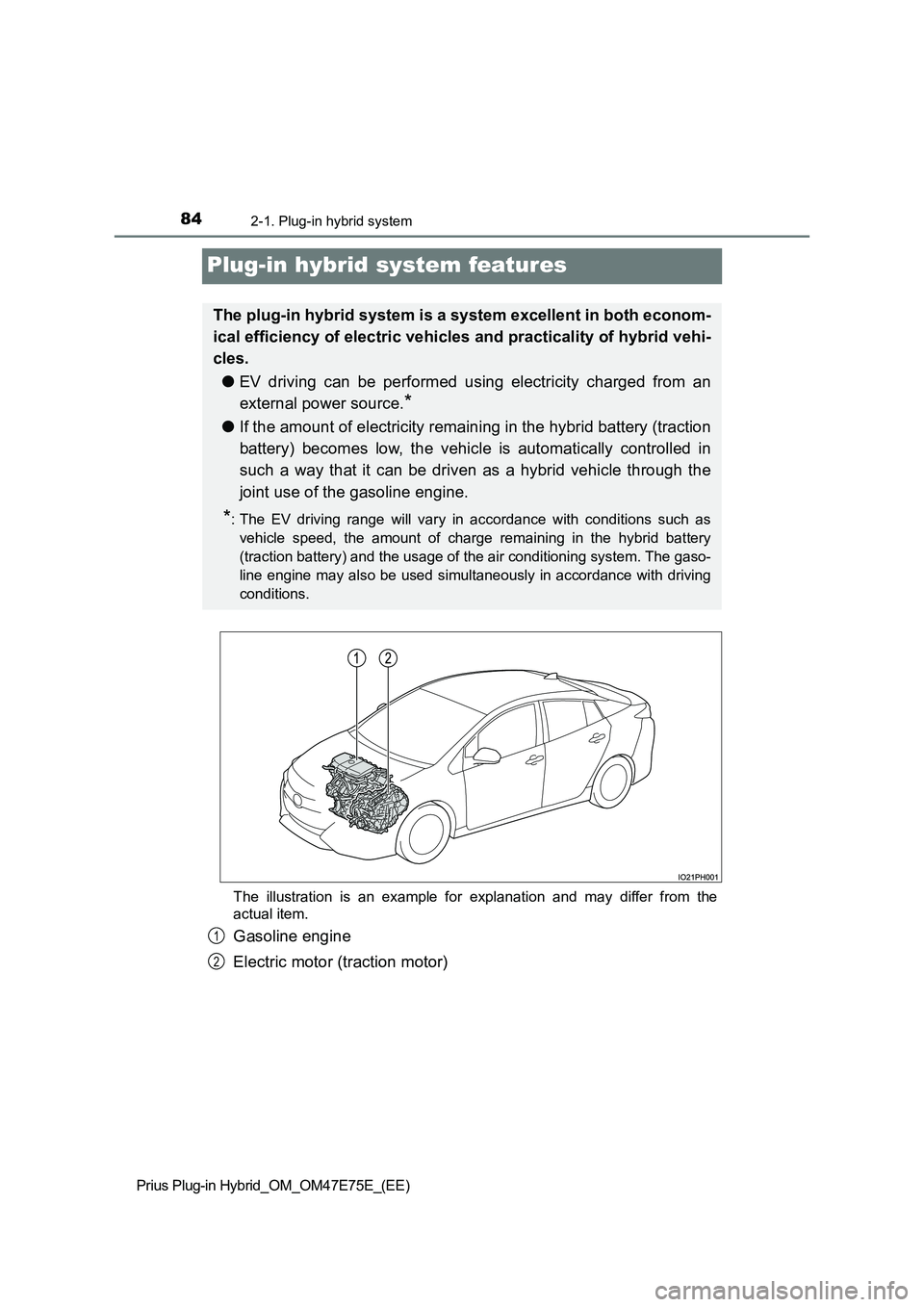

Plug-in hybrid system features
The illustration is an example for explanation and may differ from the
actual item.
Gasoline engine
Electric motor (traction motor)
The plug-in hybrid system is a system excellent in both econom-
ical efficiency of electric vehicles and practicality of hybrid vehi-
cles.
O EV driving can be performed using electricity charged from an
external power source.*
O If the amount of electricity remaining in the hybrid battery (traction
battery) becomes low, the vehicle is automatically controlled i n
such a way that it can be driven as a hybrid vehicle through th e
joint use of the gasoline engine.
*: The EV driving range will vary in accordance with conditions s uch as
vehicle speed, the amount of charge remaining in the hybrid bat tery
(traction battery) and the usage of the air conditioning system . The gaso-
line engine may also be used simultaneously in accordance with driving
conditions.
1
2

852-1. Plug-in hybrid system
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
The plug-in hybrid system operates in the following modes.
The multi-information display can be used to check which mode the plug-in
hybrid system is currently being driven in. (P. 220)
EV mode
When a sufficient amount of electricity is remaining after
charging
*1, EV driving is performed using electricity stored in the
hybrid battery (traction battery).
*2
When in EV mode, the EV drive mode indicator illuminates.
*1: The amount of remaining charge can be checked on the multi-informa-
tion display etc. (P. 232)
*2: Depending on the situation, EV driving may be canceled and both gaso-
line engine and electric motor are used. (P. 94)
Plug-in hybrid system operation mode
1

862-1. Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
EV City mode (P. 8 8 )
When a sufficient amount of electricity for EV driving is remaining in
the hybrid battery (traction battery)
*1, the operation mode can be
switched to EV City mode.
EV City mode limits motor output and minimizes the operation of
the gasoline engine.
*2 Therefore, the vehicle can be driven with
only electric motor (traction motor) in city areas, etc.
When in EV City mode, the EV City mode indicator illuminates.
*1: The amount of remaining charge can be checked on the multi-informa-
tion display etc. (P. 232)
*2: When acceleration is required, fully depress the accelerator pedal to
start the gasoline engine.
HV mode
When in HV mode, the vehicle is driven using both the gasoline
engine and electric motor (traction motor). (P. 9 2 )
OIf electricity needed for EV driving in EV mode is not remaining,
the operation mode will be automatically switched to HV mode.
OThe operation mode can be switched to HV mode at any timing
by operating the switch to keep electricity for EV driving etc.
*
(P. 88). Switching to HV mode when driving on a highway or
when driving uphill is recommended in order to conserve battery
power.
When in HV mode, the EV drive mode indicator and EV City mode indi-
cator turn off.
*: The EV driving range may reduce even after switching to HV mode.
2
3

872-1. Plug-in hybrid system
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

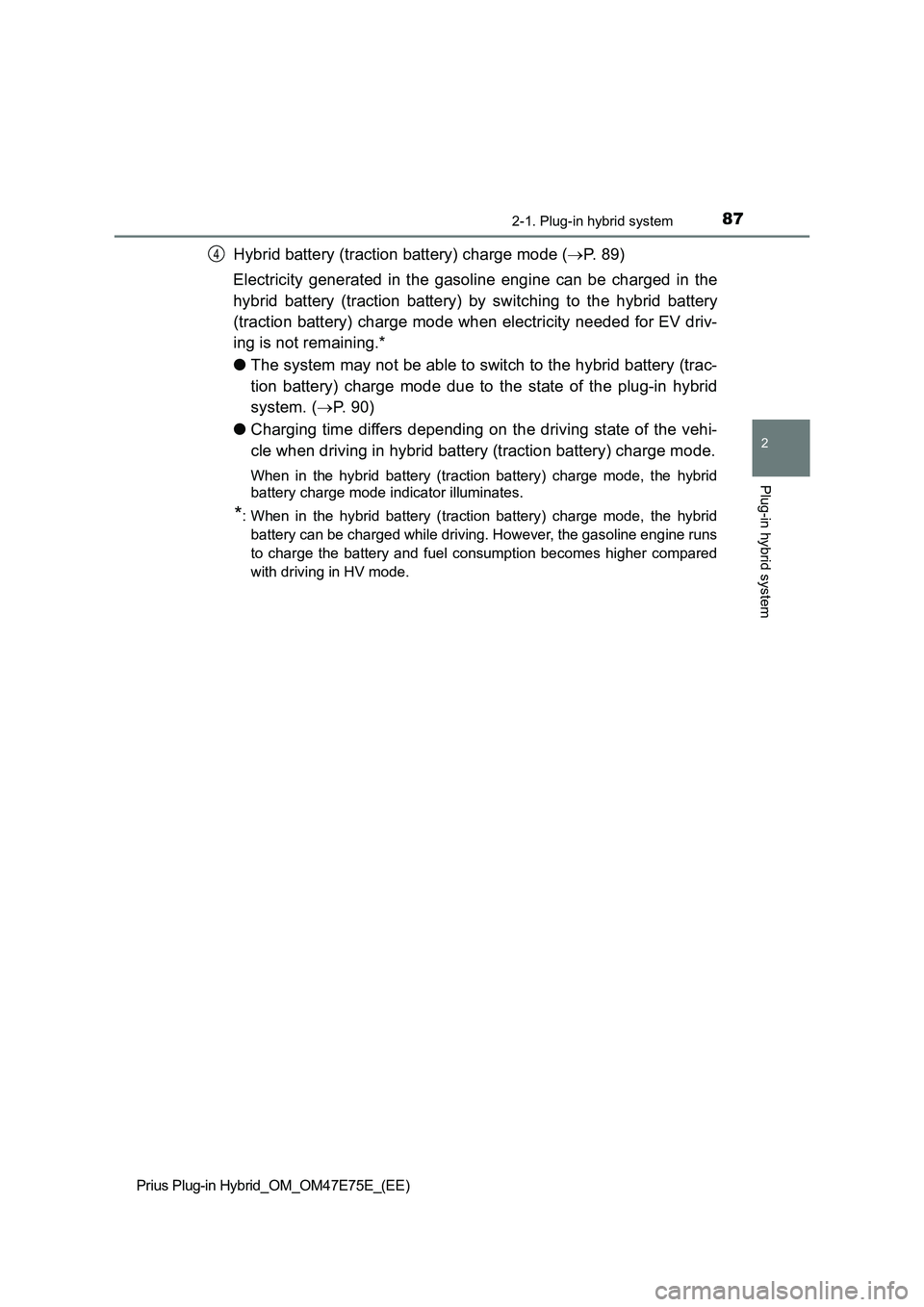

Hybrid battery (traction battery) charge mode (P. 8 9 )
Electricity generated in the gasoline engine can be charged in the
hybrid battery (traction battery) by switching to the hybrid battery
(traction battery) charge mode when electricity needed for EV driv-
ing is not remaining.*
OThe system may not be able to switch to the hybrid battery (trac-
tion battery) charge mode due to the state of the plug-in hybrid
system. (P. 9 0 )
OCharging time differs depending on the driving state of the vehi-
cle when driving in hybrid battery (traction battery) charge mode.
When in the hybrid battery (traction battery) charge mode, the hybrid
battery charge mode indicator illuminates.
*: When in the hybrid battery (traction battery) charge mode, the hybrid
battery can be charged while driving. However, the gasoline engine runs
to charge the battery and fuel consumption becomes higher compared
with driving in HV mode.
4

902-1. Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QIf the plug-in hybrid system operation mode cannot be changed
In the following situations, the plug-in hybrid system operation mode cannot
be changed even if the EV/HV mode selection switch or EV City mode switch
is pressed. (In this case, the warning message is displayed on the multi-infor-
mation display when the switch is pressed.)
OWhen electricity needed for EV driving is not remaining (when in EV/EV City
mode)
OWhen the traction battery is almost completely charged (hybrid battery [trac-
tion battery] charge mode)
QWhen EV City mode is canceled
When EV City mode is canceled, either automatically or by pressing the EV
City mode switch, while the accelerator pedal is depressed, the drive torque
and vehicle speed may increase even if the accelerator pedal is maintained
at a fixed position. When EV City mode is canceled, a buzzer will sound and
the EV City mode indicator will flash and go off.
QWhen switching from EV mode to another mode using the switch
When the power switch is turned off, operation mode switching is canceled
and the system returns to EV mode the next time the vehicle is started.
QHybrid battery (traction battery) charge mode
OThe following may occur to protect the system, etc.
• Cannot switch to hybrid battery (traction battery) charge mode or cannot
cancel it
• Gasoline engine does not start or stops even after switching to hybrid bat-
tery (traction battery) charge mode
OIf a load to the system is large, such as when the power consumption of the
air conditioning system is large or when the temperature of the engine cool-
ant is high, it may take longer time than usual to charge using the hybrid bat-
tery (traction battery) charge mode, or charging to the hybrid battery
(traction battery) may not be performed.

912-1. Plug-in hybrid system
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q
When in EV mode
In EV mode, EV driving (driving using only the electric motor)
* is
possible. However, depending on the situation, EV driving may be
canceled and both gasoline engine and electric motor are used
(P. 94). Also, if a little electricity is remaining in the hybrid battery
(traction battery), HV mode is automatically selected. To drive in EV
mode long, observe the followings.
OAvoid sudden acceleration and sudden deceleration, and be sure
to drive smoothly.
If you repeatedly accelerate, the hybrid battery (traction battery)
charge will deplete quickly. Also, EV driving may be canceled by
rapid acceleration or vehicle speed.
ORestrain your speed as much as possible. The distance that can
be driven in EV mode will reduce considerably at high speeds.
*: The EV driving range can be checked using the multi-information dis-
play etc. (P. 215, 231, 238, 255)
Q
When in EV City mode
In EV City mode, EV driving (driving using only the electric motor) is
possible.
*1
OMotor output is limited at the same level unless the accelerator
pedal is fully depressed.
When it is necessary to accelerate the vehicle, depress the
accelerator pedal completely or cancel EV City mode as needed.
OIn the following situations, EV City mode is automatically can-
celed.
*2
• When driving in EV driving is not possible. (P. 9 4 )
• When Dynamic radar cruise control with full-speed range is
activated.
• When the accelerator pedal is fully depressed.
*1: The EV driving range can be checked using the multi-information dis-
play etc. (P. 215, 231, 238, 255)
*2: Depending on the circumstances, EV City mode may also be canceled
in situations other than those above.
Control when driving in each mode
