1953. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

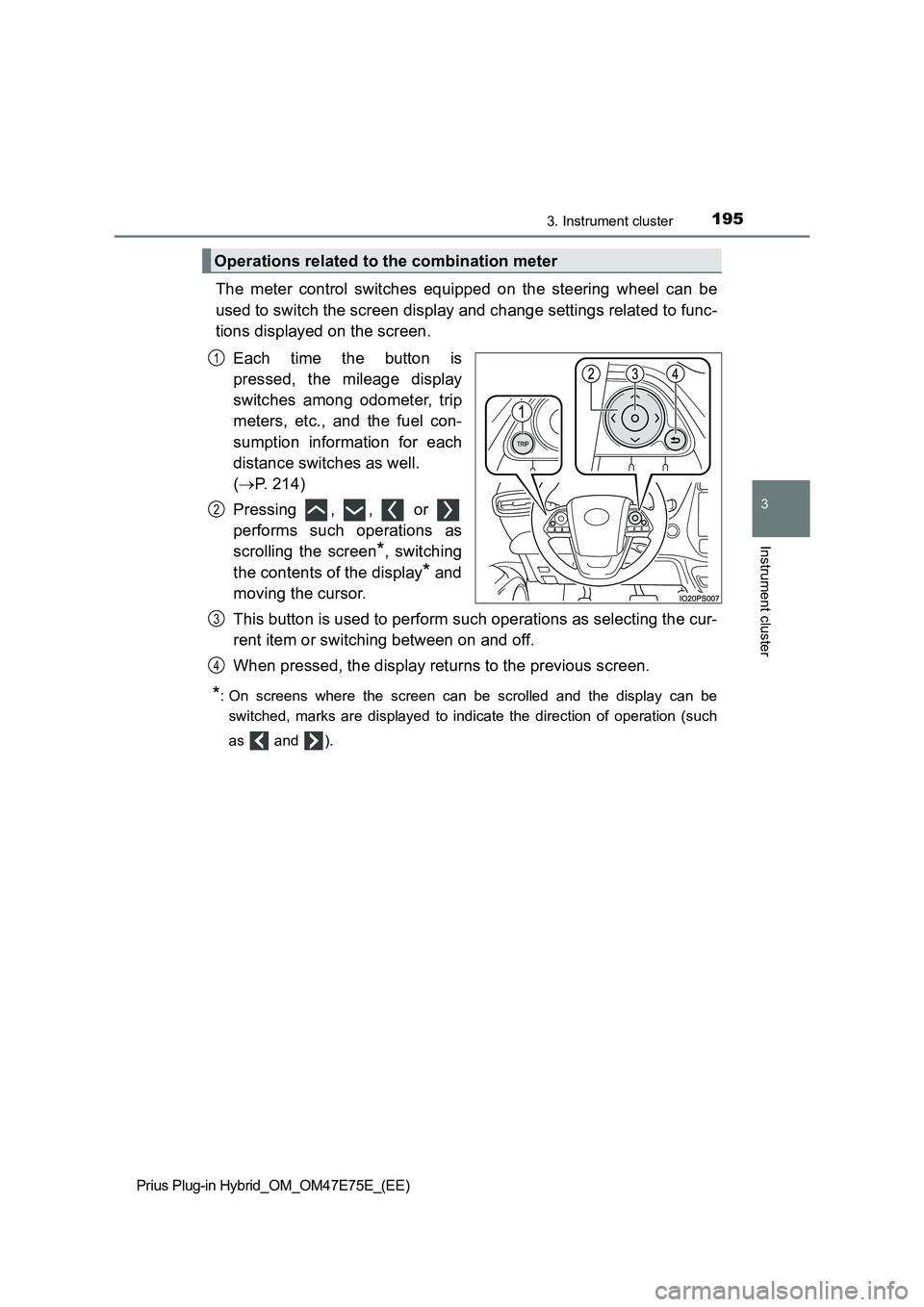

The meter control switches equipped on the steering wheel can be
used to switch the screen display and change settings related to func-
tions displayed on the screen.
Each time the button is
pressed, the mileage display
switches among odometer, trip
meters, etc., and the fuel con-
sumption information for each
distance switches as well.
(P. 214)
Pressing , , or
performs such operations as
scrolling the screen
*, switching
the contents of the display
* and
moving the cursor.
This button is used to perform such operations as selecting the cur-
rent item or switching between on and off.
When pressed, the display returns to the previous screen.
*: On screens where the screen can be scrolled and the display can be
switched, marks are displayed to indicate the direction of operation (such
as and ).
Operations related to the combination meter
1
2
3
4

2133. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 3°C (37°F) or less, and then
stops flashing.
Mileage display (odometer/trip meters/driving range)
The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. (P. 214)
Average fuel consumption display
The average electricity and fuel consumption that is linked with the con-
tents of the mileage display can be displayed. (P. 214)
Sub-screen (when RSA [Road Sign Assist] and speed limiter are
off)
Information such as the Hybrid System Indicator and current fuel con-
sumption can be displayed. (P. 216)
Sub-screen (when RSA [Road Sign Assist] and/or speed limiter is
on)
Displays information related to RSA (Road Sign Assist)* or speed limiter.
(P. 395, 420)
*: When RSA (Road Sign Assist) information is displayed in the screen
of the multi-information display (P. 246), RSA (Road Sign Assist) infor-
mation is not displayed on the sub-screen.
1
2
3
4
5
6
7

2153. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
*1: If is pressed and held while this item is displayed, the information is
reset.
*2: This item is reset each time the hybrid system starts.
*3: This value is not displayed if electricity needed for EV driving is not remain-
ing.
*4: When the air conditioning system is operating, the icon display changes to
and the driving range with the air conditioning system on is dis-
played.
*5: The EV driving range may shorten even when not driving due to power
consumption by the system.
Mileage display Average fuel consumption display
1ODO (Odometer)
Total mileage
Average fuel consumption since
last reset
Average fuel consumption since
last reset
*1
2TRIP A (Trip meter A)
Mileage since last reset
*1
TRIP A average fuel consumption
Average fuel consumption since
TRIP A was reset
*1
3TRIP B (Trip meter B)
Mileage since last reset
*1
TRIP B average fuel consumption
Average fuel consumption since
TRIP B was reset
*1
4
(Mileage since hybrid sys-
tem was started)
Mileage since hybrid system
started
*2
Average fuel consumption after
hybrid system started
Average fuel consumption since
hybrid system was started
*2
5
(Distance to empty)
Approximate distance vehicle
can travel based on current
remaining fuel amount
Blank screen
6
(EV driving range)
Approximate driving range using
only the electric motor (traction
motor) (P. 109)
*3, 4, 5
Blank screen
7Blank screenBlank screen
12

750Alphabetical index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Navigation system*
Odometer .................................. 214
Oil
Engine oil .............................. 715
Opener
Back door .............................. 278
Fuel filler door ....................... 353
Hood ..................................... 584
Outside rear view mirrors ....... 301
Adjustment ............................ 301
BSM (Blind Spot Monitor) ..... 423
Folding .................................. 301
Outside rear view mirror
defoggers............................ 527
Outside temperature
display .................................... 212
Overhead console.................... 548
Overheating .............................. 703
P position switch ..................... 330
Panoramic view monitor
*
Parking assist sensors
Parking Support Brake
function ............................... 462
S-IPA (Simple Intelligent
Parking Assist System)....... 473
Toyota parking
assist-sensor ...................... 450Parking brake ........................... 336
Operation .............................. 336
Parking brake engaged
warning buzzer ................... 336
Parking lock ............................. 330
Parking Support Brake
function .................................. 462
PCS (Pre-Collision System) .... 368
Enabling/disabling the
system ................................ 372
Function ................................ 368
Warning light ......................... 659
Personal lights ......................... 541
Switch ................................... 542
Wattage ................................ 721
Plug-in hybrid system ............... 84
Driving tips ............................ 105
EV City mode .......................... 85
EV driving range ................... 109
EV mode ................................. 85
EV/HV mode selection
switch ................................... 88
Features.................................. 84
How to charge....................... 155
HV mode ................................. 85
Hybrid battery (traction
battery) charge mode ........... 85
Power control unit coolant ..... 591
Capacity ................................ 718
Checking ............................... 591
Preparing and checking
before winter....................... 516
Radiator ................................ 593
N
O
P
