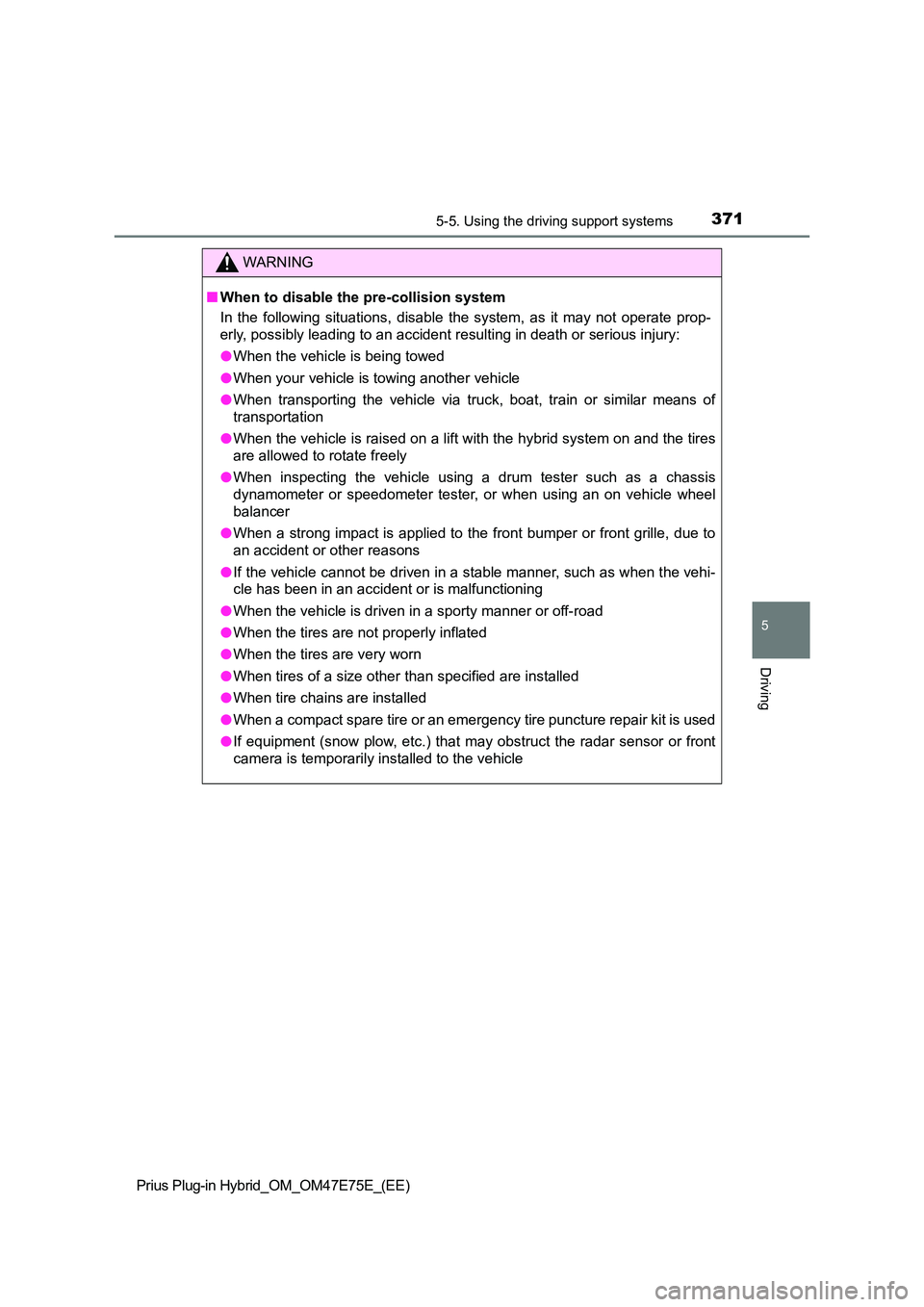

3715-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
WARNING
QWhen to disable the pre-collision system
In the following situations, disable the system, as it may not operate prop-
erly, possibly leading to an accident resulting in death or ser ious injury:
O When the vehicle is being towed
O When your vehicle is towing another vehicle
O When transporting the vehicle via truck, boat, train or similar means of
transportation
O When the vehicle is raised on a lift with the hybrid system on and the tires
are allowed to rotate freely
O When inspecting the vehicle using a drum tester such as a chassis
dynamometer or speedometer tester, or when using an on vehicle wheel
balancer
O When a strong impact is applied to the front bumper or front grille, due to
an accident or other reasons
O If the vehicle cannot be driven in a stable manner, such as when the vehi-
cle has been in an accident or is malfunctioning
O When the vehicle is driven in a sporty manner or off-road
O When the tires are not properly inflated
O When the tires are very worn
O When tires of a size other than specified are installed
O When tire chains are installed
O When a compact spare tire or an emergency tire puncture repair kit is used
O If equipment (snow plow, etc.) that may obstruct the radar sensor or front
camera is temporarily installed to the vehicle

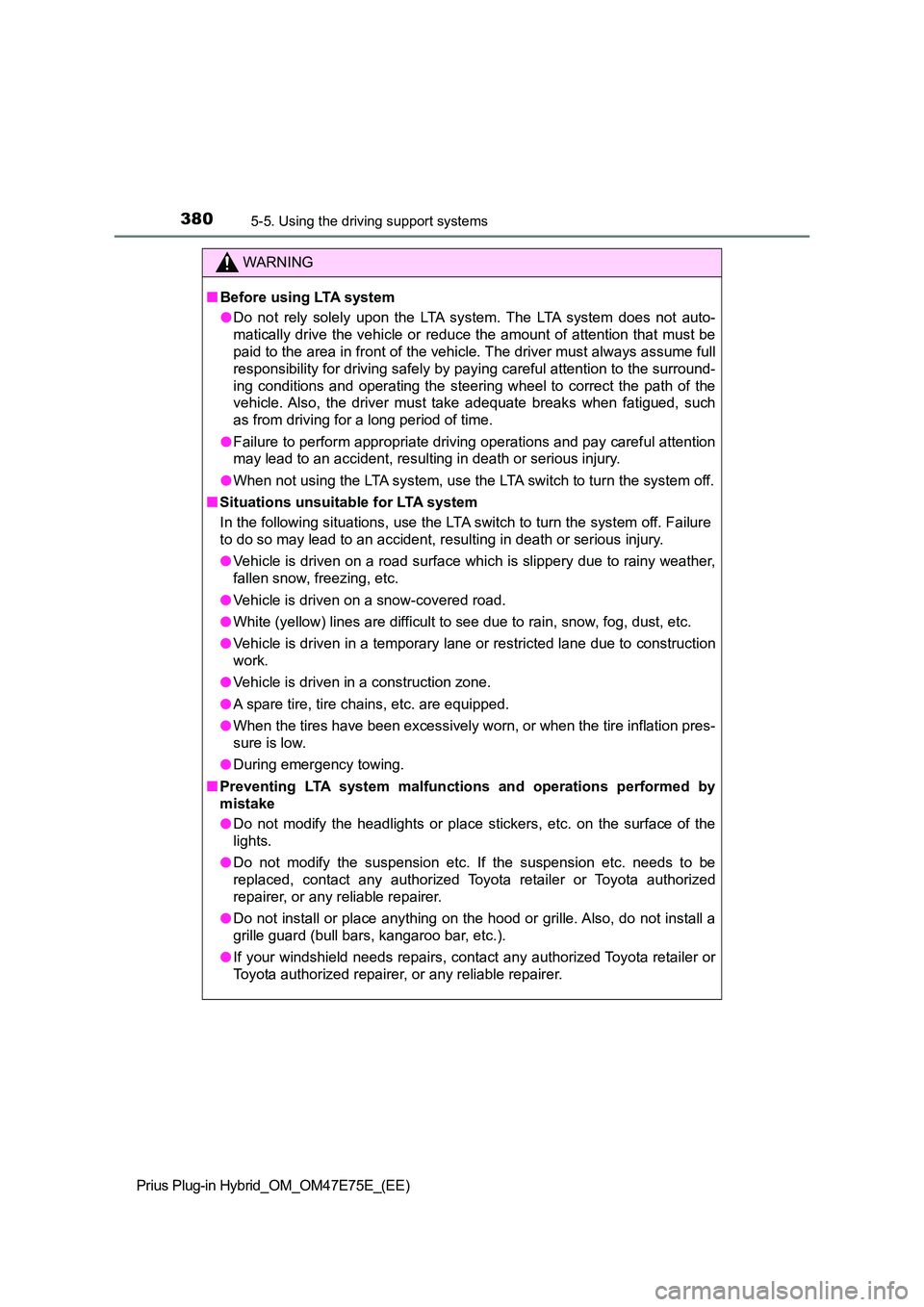

3805-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
QBefore using LTA system
O Do not rely solely upon the LTA system. The LTA system does not auto-
matically drive the vehicle or reduce the amount of attention t hat must be
paid to the area in front of the vehicle. The driver must always assume full
responsibility for driving safely by paying careful attention t o the surround-
ing conditions and operating the steering wheel to correct the path of the
vehicle. Also, the driver must take adequate breaks when fatigu ed, such
as from driving for a long period of time.
O Failure to perform appropriate driving operations and pay careful attention
may lead to an accident, resulting in death or serious injury.
O When not using the LTA system, use the LTA switch to turn the system off.
Q Situations unsuitable for LTA system
In the following situations, use the LTA switch to turn the sys tem off. Failure
to do so may lead to an accident, resulting in death or serious injury.
O Vehicle is driven on a road surface which is slippery due to rainy weather,
fallen snow, freezing, etc.
O Vehicle is driven on a snow-covered road.
O White (yellow) lines are difficult to see due to rain, snow, fog, dust, etc.
O Vehicle is driven in a temporary lane or restricted lane due to construction
work.
O Vehicle is driven in a construction zone.
O A spare tire, tire chains, etc. are equipped.
O When the tires have been excessively worn, or when the tire inflation pres-
sure is low.
O During emergency towing.
Q Preventing LTA system malfunctions and operations performed by
mistake
O Do not modify the headlights or place stickers, etc. on the surface of the
lights.
O Do not modify the suspension etc. If the suspension etc. needs to be
replaced, contact any authorized Toyota retailer or Toyota auth orized
repairer, or any reliable repairer.
O Do not install or place anything on the hood or grille. Also, do not install a
grille guard (bull bars, kangaroo bar, etc.).
O If your windshield needs repairs, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.

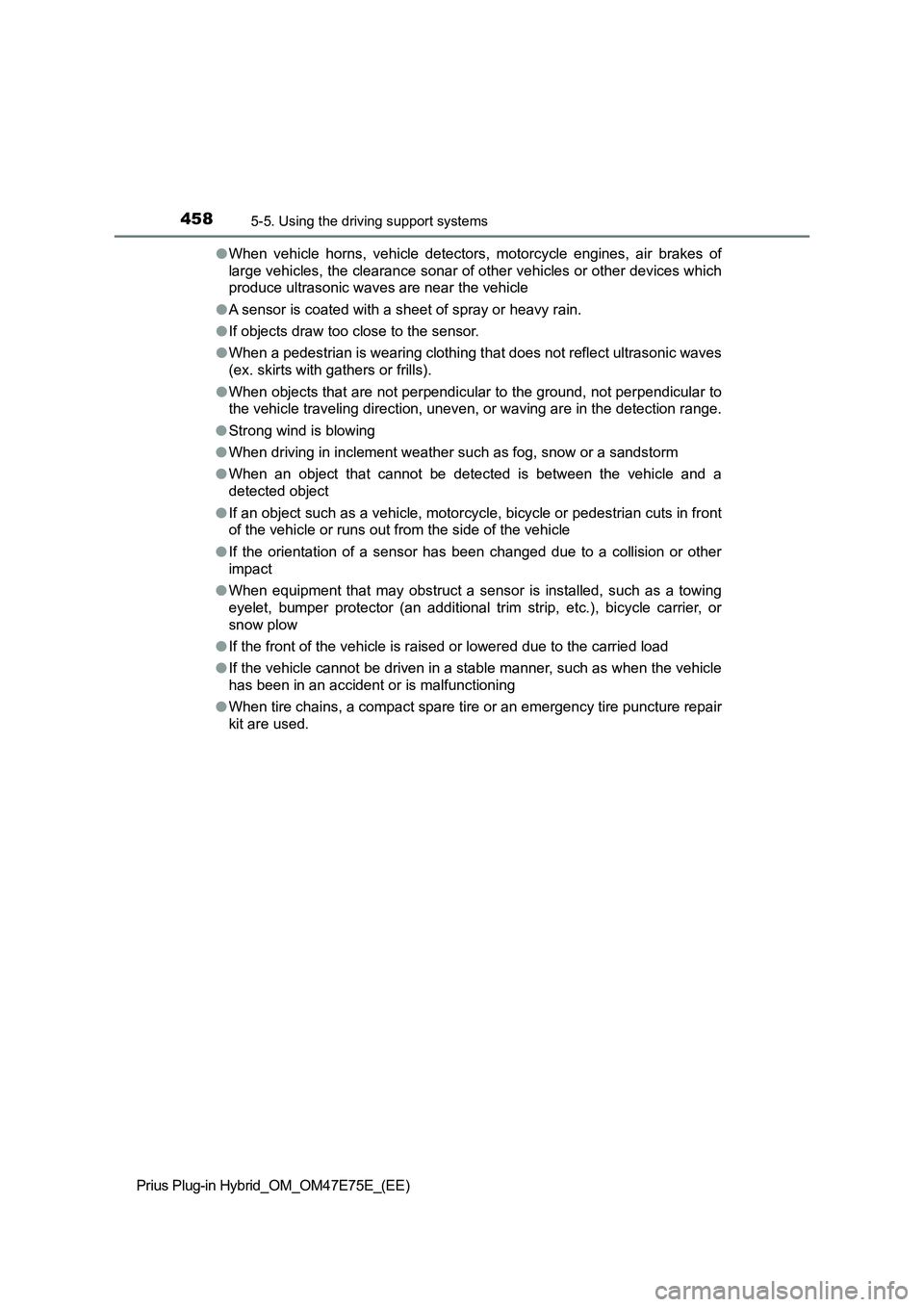

4585-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)OWhen vehicle horns, vehicle detectors, motorcycle engines, air brakes of
large vehicles, the clearance sonar of other vehicles or other devices which
produce ultrasonic waves are near the vehicle
OA sensor is coated with a sheet of spray or heavy rain.
OIf objects draw too close to the sensor.
OWhen a pedestrian is wearing clothing that does not reflect ultrasonic waves
(ex. skirts with gathers or frills).
OWhen objects that are not perpendicular to the ground, not perpendicular to
the vehicle traveling direction, uneven, or waving are in the detection range.
OStrong wind is blowing
OWhen driving in inclement weather such as fog, snow or a sandstorm
OWhen an object that cannot be detected is between the vehicle and a
detected object
OIf an object such as a vehicle, motorcycle, bicycle or pedestrian cuts in front
of the vehicle or runs out from the side of the vehicle
OIf the orientation of a sensor has been changed due to a collision or other
impact
OWhen equipment that may obstruct a sensor is installed, such as a towing
eyelet, bumper protector (an additional trim strip, etc.), bicycle carrier, or
snow plow
OIf the front of the vehicle is raised or lowered due to the carried load
OIf the vehicle cannot be driven in a stable manner, such as when the vehicle
has been in an accident or is malfunctioning
OWhen tire chains, a compact spare tire or an emergency tire puncture repair
kit are used.

4715-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
WARNING
QWhen to disable the Parking Support Brake
In the following situations, disable the Parking Support Brake as the system
may operate even though there is no possibility of a collision.
O When inspecting the vehicle using a chassis roller, chassis dynamo or free
roller
O When loading the vehicle onto a boat, truck or other transport vessel
O If the suspension has been modified or tires of a size other than specified
are installed
O If the front of the vehicle is raised or lowered due to the carried load
O When equipment that may obstruct a sensor is installed, such as a towing
eyelet, bumper protector (an addi tional trim strip, etc.), bicycle carrier, or
snow plow
O When using automatic car washing devices
O If the vehicle cannot be driven in a stable manner, such as when the vehi-
cle has been in an accident or is malfunctioning
O When the vehicle is driven in a sporty manner or off-road
O When the tires are not properly inflated
O When the tires are very worn
O When tire chains, compact spare tire or an emergency tire puncture repair
kit are used
Q To ensure the system can operate properly
 P. 4 6 0
Q Handling the suspension
Do not modify the suspension, as changes to the height or incli ne of the
vehicle may prevent the sensors from correctly detecting obstac les, may
cause the system not operate, or may cause the system to operat e unnec-
essarily.
Q If the Parking Support Brake function (static objects) operates unnec-
essarily, such as at a railroad crossing
 P. 4 6 9
Q Notes when washing the vehicle
 P. 4 6 1

5065-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
ODo not use the system in the following situations, as the system may be
unable to correctly assist you in reaching the target parking s pot and may
lead to an unexpected accident.
• In an area that is not a parking lot
• A parking lot that is not paved and has no parking space lines , such as
a sand or gravel parking lot
• A parking lot that has a slope or undulations in the road
• A frozen, snow-covered or slippery road
• The asphalt is melting due to hot weather
• There is an obstacle between the vehicle and the target parkin g spot
• Using tire chains
O Do not use tire other than that provided by the manufacturer. The system
may not operate properly. When replacing tires, contact any aut horized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
O The system may not be able position the vehicle in the set location in the
following situations.
• The tires are extremely worn or the tire pressure is low
• The vehicle is carrying very heavy load
• The vehicle is tilted due to having luggage, etc. located on o ne side of
the vehicle
• There are road heaters installed in the parking lot to prevent the road
surface from freezing.
In any other situations when the set position and vehicle posit ion greatly
differ, have the vehicle inspected by any authorized Toyota ret ailer or
Toyota authorized repairer, or any reliable repairer.
O Make sure to observe the following precautions regarding the exit parallel
parking assist mode.
Exit parallel parking assist mode is a function used when depar ting from a
parallel parking spot. However, this function may not be usable if obsta-
cles or people are detected in front of the vehicle. Only use t his function
when departing from a parallel parking spot. In the event that the steering
control operates, either turn the system off using the S-IPA sw itch or oper-
ate the steering wheel to stop the control.
O If exit parallel parking assist mode is mistakenly used in the following situ-
ations, the vehicle may make contact with an obstacle.
The departure function is operated in a direction where an obst acle is
present, but the obstacle is not detected by the side sensors ( situations
such as when the vehicle is directly beside a pole).

5145-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
QThe ABS does not operate effectively when
O The limits of tire gripping performance have been exceeded (such as
excessively worn tires on a snow covered road).
O The vehicle hydroplanes while driving at high speed on wet or slick roads.
Q Stopping distance when the ABS is operating may exceed that of nor-
mal conditions
The ABS is not designed to shorten the vehicle’s stopping dista nce. Always
maintain a safe distance from the vehicle in front of you, espe cially in the
following situations:
O When driving on dirt, gravel or snow-covered roads
O When driving with tire chains
O When driving over bumps in the road
O When driving over roads with potholes or uneven surfaces
Q TRC/VSC may not operate effectively when
Directional control and power may not be achievable while drivi ng on slip-
pery road surfaces, even if the TRC/VSC system is operating. Dr ive the
vehicle carefully in conditions where stability and power may b e lost.
Q Hill-start assist control does not operate effectively when
O Do not overly rely on hill-start assist control. Hill-start assist control may
not operate effectively on steep inclines and roads covered wit h ice.
O Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attem pt to use
hill-start assist control to hold the vehicle on an incline, as doing so may
lead to an accident.
Q When the TRC/ABS/VSC is activated
The slip indicator light flashes. Always drive carefully. Reckl ess driving may
cause an accident. Exercise particular care when the indicator light flashes.

5165-6. Driving tips
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Winter driving tips
OUse fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
OHave a service technician inspect the condition of the 12-volt bat-
tery.
OHave the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following according to the driving conditions:
ODo not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
OTo ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
OCheck for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
ORemove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

5195-6. Driving tips
5
Driving
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

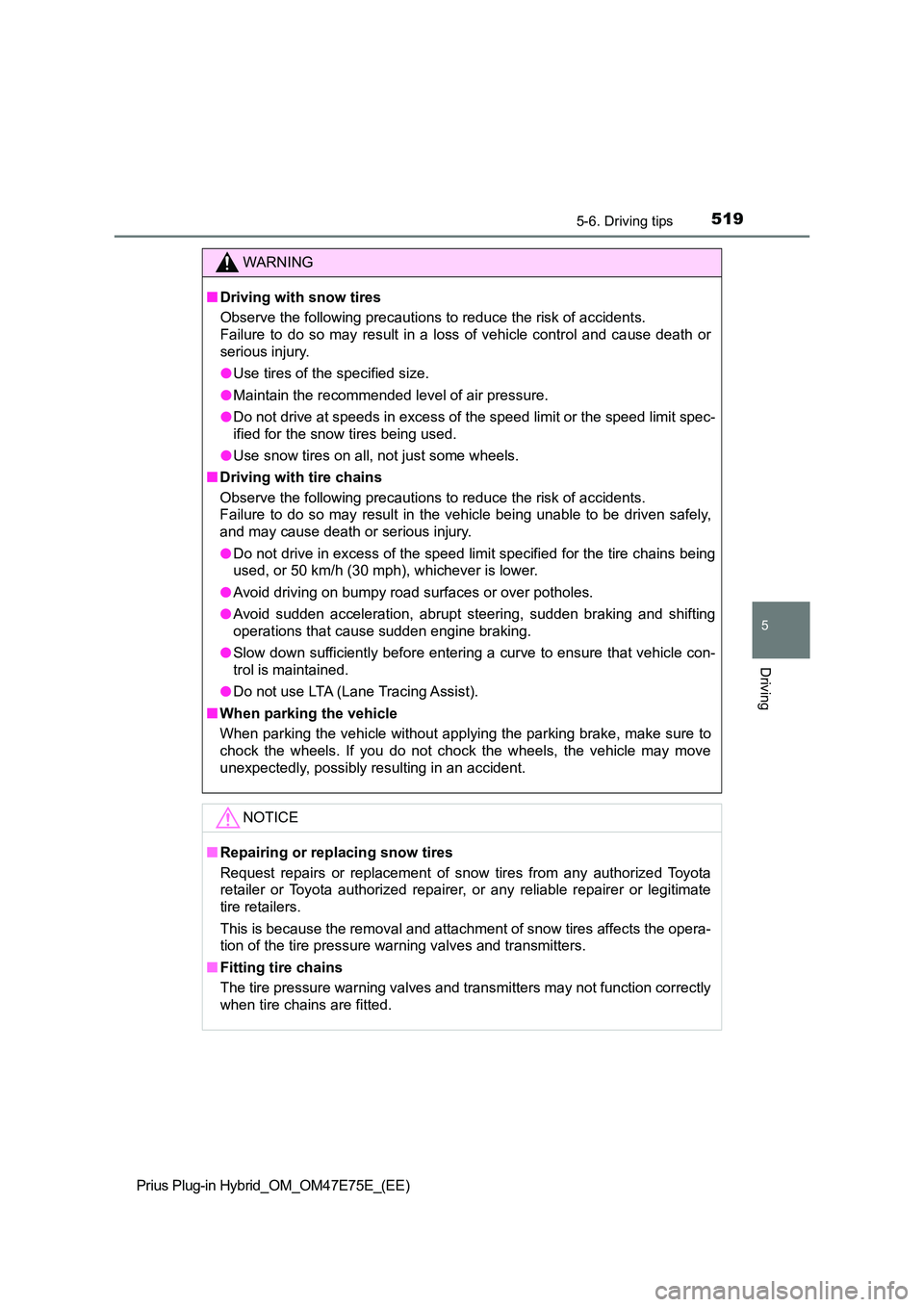

WARNING
QDriving with snow tires
Observe the following precautions to reduce the risk of acciden ts.
Failure to do so may result in a loss of vehicle control and ca use death or
serious injury.
O Use tires of the specified size.
O Maintain the recommended level of air pressure.
O Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
O Use snow tires on all, not just some wheels.
Q Driving with tire chains
Observe the following precautions to reduce the risk of acciden ts.
Failure to do so may result in the vehicle being unable to be d riven safely,
and may cause death or serious injury.
O Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
O Avoid driving on bumpy road surfaces or over potholes.
O Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
O Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
O Do not use LTA (Lane Tracing Assist).
Q When parking the vehicle
When parking the vehicle without applying the parking brake, ma ke sure to
chock the wheels. If you do not chock the wheels, the vehicle m ay move
unexpectedly, possibly resulting in an accident.
NOTICE
Q Repairing or replacing snow tires
Request repairs or replacement of snow tires from any authorize d Toyota
retailer or Toyota authorized repairer, or any reliable repaire r or legitimate
tire retailers.
This is because the removal and attachment of snow tires affect s the opera-
tion of the tire pressure warning valves and transmitters.
Q Fitting tire chains
The tire pressure warning valves and transmitters may not funct ion correctly
when tire chains are fitted.

6037-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care

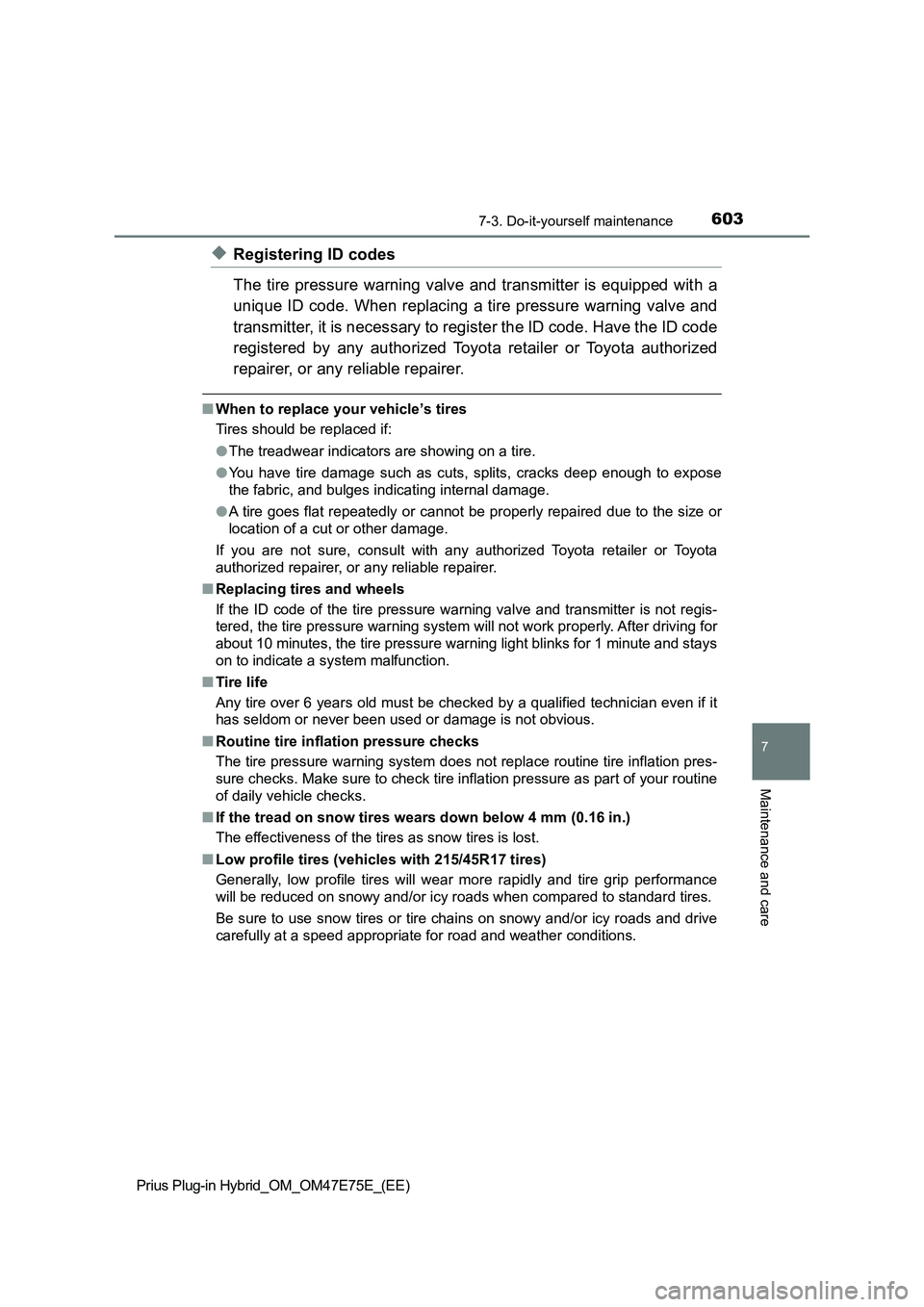

XRegistering ID codes
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to register the ID code. Have the ID code
registered by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
QWhen to replace your vehicle’s tires
Tires should be replaced if:
OThe treadwear indicators are showing on a tire.
OYou have tire damage such as cuts, splits, cracks deep enough to expose
the fabric, and bulges indicating internal damage.
OA tire goes flat repeatedly or cannot be properly repaired due to the size or
location of a cut or other damage.
If you are not sure, consult with any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
QReplacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not regis-
tered, the tire pressure warning system will not work properly. After driving for
about 10 minutes, the tire pressure warning light blinks for 1 minute and stays
on to indicate a system malfunction.
QTire life
Any tire over 6 years old must be checked by a qualified technician even if it
has seldom or never been used or damage is not obvious.
QRoutine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pres-
sure checks. Make sure to check tire inflation pressure as part of your routine
of daily vehicle checks.
QIf the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.
QLow profile tires (vehicles with 215/45R17 tires)
Generally, low profile tires will wear more rapidly and tire grip performance
will be reduced on snowy and/or icy roads when compared to standard tires.
Be sure to use snow tires or tire chains on snowy and/or icy roads and drive
carefully at a speed appropriate for road and weather conditions.

6047-3. Do-it-yourself maintenance

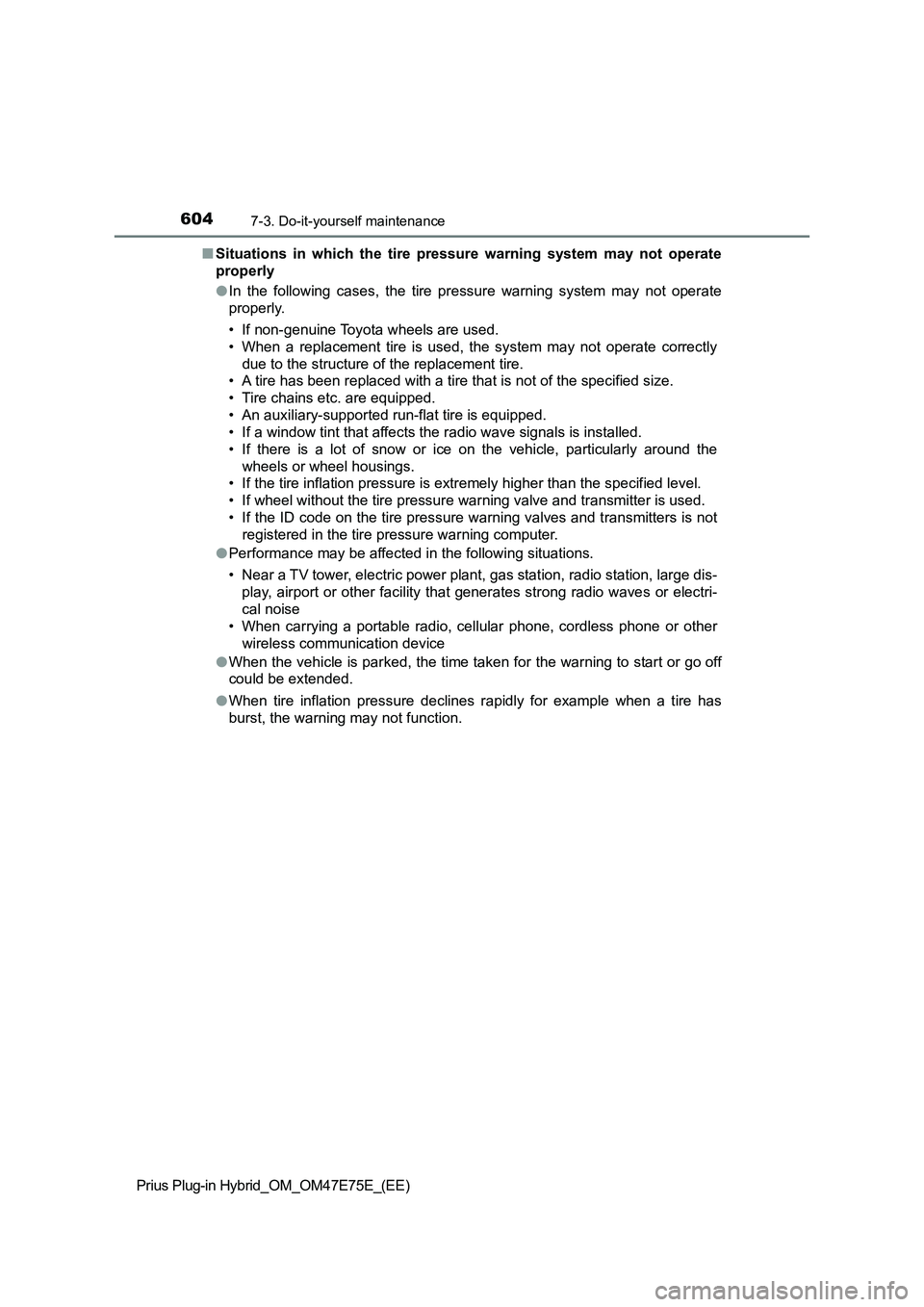

Prius Plug-in Hybrid_OM_OM47E75E_(EE)QSituations in which the tire pressure warning system may not operate
properly
OIn the following cases, the tire pressure warning system may not operate
properly.
• If non-genuine Toyota wheels are used.
• When a replacement tire is used, the system may not operate correctly
due to the structure of the replacement tire.
• A tire has been replaced with a tire that is not of the specified size.
• Tire chains etc. are equipped.
• An auxiliary-supported run-flat tire is equipped.
• If a window tint that affects the radio wave signals is installed.
• If there is a lot of snow or ice on the vehicle, particularly around the
wheels or wheel housings.
• If the tire inflation pressure is extremely higher than the specified level.
• If wheel without the tire pressure warning valve and transmitter is used.
• If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer.
OPerformance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
• When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device
OWhen the vehicle is parked, the time taken for the warning to start or go off
could be extended.
OWhen tire inflation pressure declines rapidly for example when a tire has
burst, the warning may not function.
