TOYOTA PRIUS PLUG-IN HYBRID 2023 Owners Manual

6698-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
8
When trouble arises
■Warning messages
The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.
■ System warning lights
The master warning light does not come on or flash in the following cases.
Instead, a separate system warning light will come on along with a message
or image shown on the multi-information display.
● “Antilock Brake System Malfunction Visit Your Dealer”:
The ABS warning light comes on. ( P. 660)
● “Braking Power Low Visit Your Dealer”:
The brake system warning light (yellow) will come on. ( P. 659)
● Indicates that a door is not fully closed while the vehicle is stopped.:
The Open door warning light comes on. ( P. 6 6 2 )
■ If “Visit Your Dealer” is shown
The system or part shown on the multi- information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
■ If a message about an operation is shown
● If a message about an operation of the accelerator pedal or brake pedal is
shown
• A warning message about an operation of the brake pedal may be shown
while the driving assist systems such as PCS (Pre-Collision System) or
the dynamic radar cruise control with full-speed range is operating. If a
warning message is shown, be sure to decelerate the vehicle or follow an
instruction shown on the multi-information display.
• A warning message is shown when Brake Override System operates.
( P. 310, 673)
• A warning message is shown when Drive-Start Control or Parking Sup-
port Brake function (if equipped) operates ( P. 310, 468). Follow the
instructions on the multi-information display.
● If a message about an operation of the power switch is shown
An instruction for operation of the power switch is shown when the incorrect
procedure for starting the hybrid system is performed or the power switch is
operated incorrectly. Follow the instructions shown on the multi-information
display to operate the power switch again.
● If a message about a shift operation is shown
To prevent the shift position from being selected incorrectly or the vehicle
from moving unexpectedly, the shift position may be changed automatically
( P. 331) or shift operation may be required. In this case, change the shift
position following the instructions on the multi-information display.

6708-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
●If a message or image about an open/close state of a part or replenishment
of a consumable is shown
Confirm the part indicated by the multi-information display or a warning light,
and then perform the coping method such as closing the open door or
replenishing a consumable.
■ If “See Owner’s Manual” is shown
● If “Braking Power Low Stop in a Safe Place See Owner’s Manual” is shown,
this may be a malfunction. Immediately stop the vehicle in a safe place and
contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer. Continuing to drive the vehicle may be dangerous.
● If “Engine Oil Pressure Low” is shown, this may be a malfunction. Immedi-
ately stop the vehicle in a safe place and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
● If the following messages are shown, there may be a malfunction. Immedi-
ately have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
• “Plug-in charging system malfunction.”
• “Hybrid System Malfunction”
• “Check Engine”
• “Hybrid Battery System Malfunction”
• “Accelerator System Malfunction”
• “Smart Entry & Start System Malfunction See Owner’s Manual”
● If “Exhaust Filter Full See Owner’s Manual” is shown on the multi-informa-
tion display is shown, follow the instruction. ( P. 5 0 8 )
■ If “Shift System Not Active Apply Parking Brake Securely While Parking
See Owner’s Manual” is shown
Indicates a temporary operation failure or malfunction in the shift control sys-
tem. Immediately have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
When the message is shown, the hybrid system may not be started or the
shift position may not be changed normally. (Coping method: P. 674)
■ If “Shift System Malfunction Apply Parking Brake Securely While Park-
ing See Owner’s Manual” is shown
Indicates a malfunction in the shift control system. Immediately have the vehi-
cle inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
When the message is shown, the hybrid system may not be started or the
shift position may not be changed normally. (Coping method: P. 674)

6718-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
8
When trouble arises

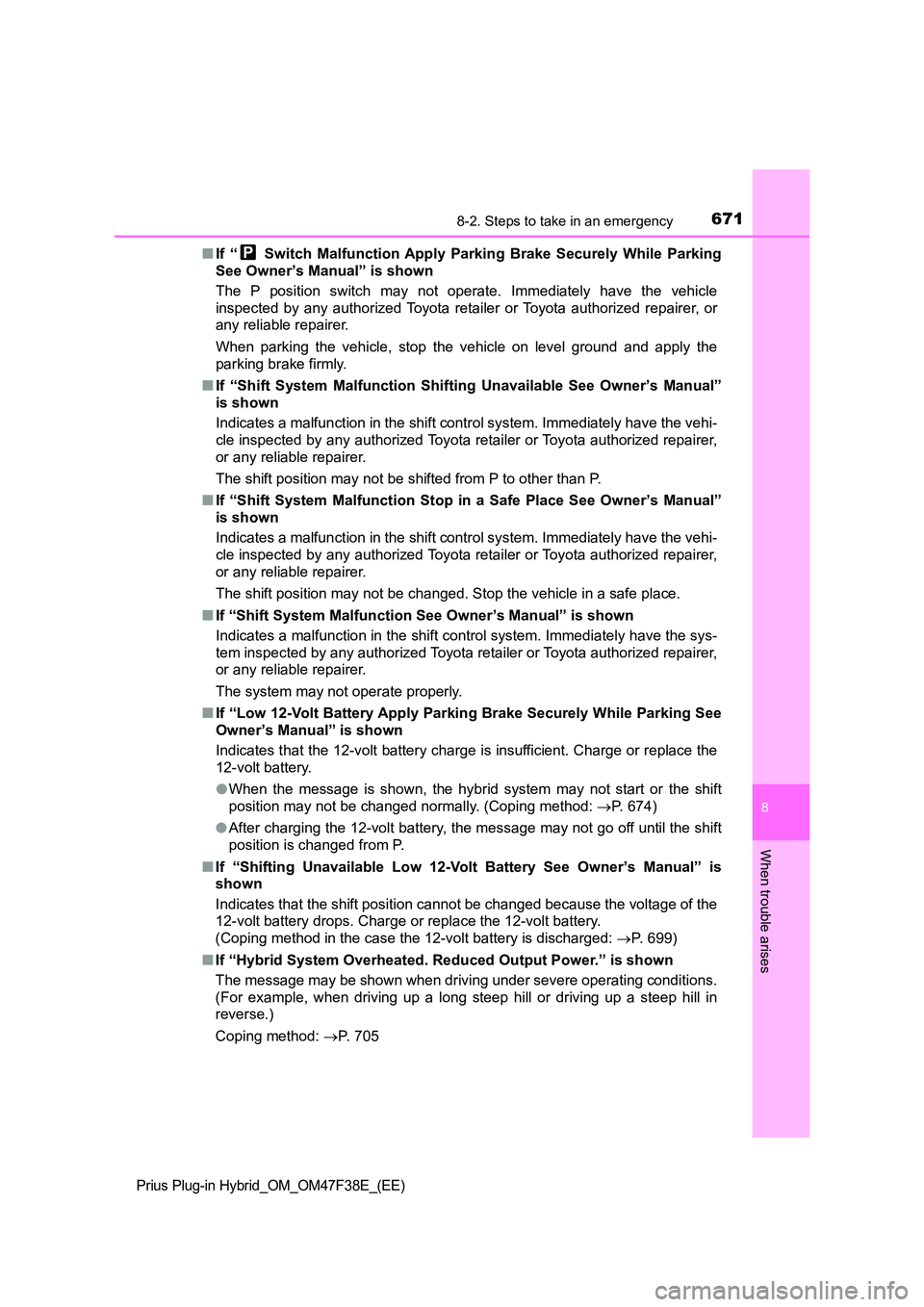

■If “ Switch Malfunction Apply Parking Brake Securely While Parking
See Owner’s Manual” is shown
The P position switch may not operate. Immediately have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
When parking the vehicle, stop the vehicle on level ground and apply the
parking brake firmly.
■ If “Shift System Malfunction Shifting Unavailable See Owner’s Manual”
is shown
Indicates a malfunction in the shift control system. Immediately have the vehi-
cle inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
The shift position may not be shifted from P to other than P.
■ If “Shift System Malfunction Stop in a Safe Place See Owner’s Manual”
is shown
Indicates a malfunction in the shift control system. Immediately have the vehi-
cle inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
The shift position may not be changed. Stop the vehicle in a safe place.
■ If “Shift System Malfunction See Owner’s Manual” is shown
Indicates a malfunction in the shift control system. Immediately have the sys-
tem inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
The system may not operate properly.
■ If “Low 12-Volt Battery Apply Parking Brake Securely While Parking See
Owner’s Manual” is shown
Indicates that the 12-volt battery charge is insufficient. Charge or replace the
12-volt battery.
● When the message is shown, the hybrid system may not start or the shift
position may not be changed normally. (Coping method: P. 674)
● After charging the 12-volt battery, the message may not go off until the shift
position is changed from P.
■ If “Shifting Unavailable Low 12-Volt Battery See Owner’s Manual” is
shown
Indicates that the shift position cannot be changed because the voltage of the
12-volt battery drops. Charge or replace the 12-volt battery.
(Coping method in the case the 12-volt battery is discharged: P. 699)
■ If “Hybrid System Overheated. Reduced Output Power.” is shown
The message may be shown when driving under severe operating conditions.
(For example, when driving up a long steep hill or driving up a steep hill in
reverse.)
Coping method: P. 705

6728-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

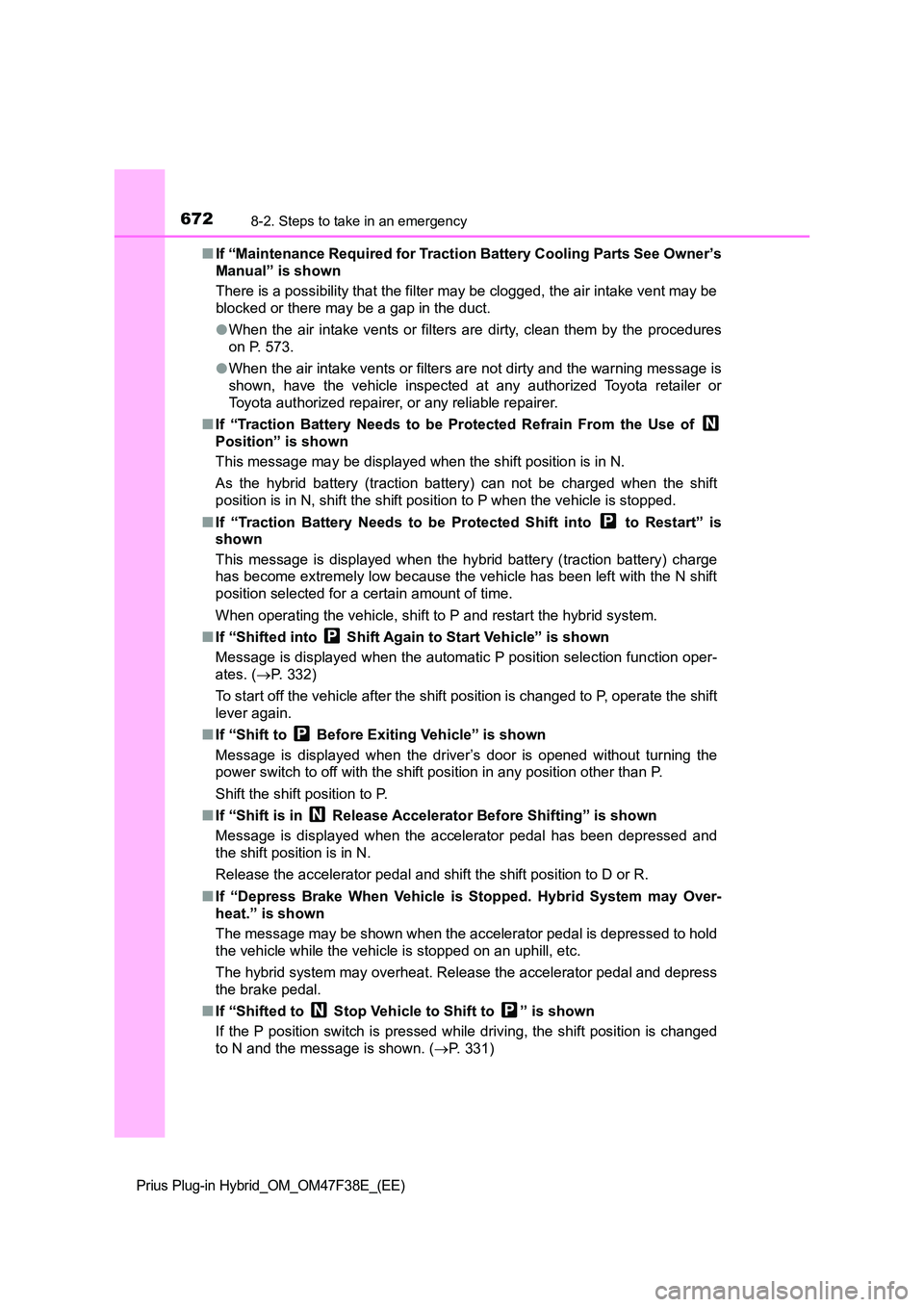

■If “Maintenance Required for Traction Battery Cooling Parts See Owner’s
Manual” is shown
There is a possibility that the filter may be clogged, the air intake vent may be
blocked or there may be a gap in the duct.
● When the air intake vents or filters are dirty, clean them by the procedures
on P. 573.
● When the air intake vents or filters are not dirty and the warning message is
shown, have the vehicle inspected at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
■ If “Traction Battery Needs to be Protected Refrain From the Use of
Position” is shown
This message may be displayed when the shift position is in N.
As the hybrid battery (traction battery) can not be charged when the shift
position is in N, shift the shift position to P when the vehicle is stopped.
■ If “Traction Battery Needs to be Protected Shift into to Restart” is
shown
This message is displayed when the hybrid battery (traction battery) charge
has become extremely low because the vehicle has been left with the N shift
position selected for a certain amount of time.
When operating the vehicle, shift to P and restart the hybrid system.
■ If “Shifted into Shift Again to Start Vehicle” is shown
Message is displayed when the automatic P position selection function oper-
ates. ( P. 332)
To start off the vehicle after the shift position is changed to P, operate the shift
lever again.
■ If “Shift to Before Exiting Vehicle” is shown
Message is displayed when the driver’s door is opened without turning the
power switch to off with the shift position in any position other than P.
Shift the shift position to P.
■ If “Shift is in Release Accelerator Before Shifting” is shown
Message is displayed when the accelerator pedal has been depressed and
the shift position is in N.
Release the accelerator pedal and shift the shift position to D or R.
■ If “Depress Brake When Vehicle is Stopped. Hybrid System may Over-
heat.” is shown
The message may be shown when the accelerator pedal is depressed to hold
the vehicle while the vehicle is stopped on an uphill, etc.
The hybrid system may overheat. Release the accelerator pedal and depress
the brake pedal.
■ If “Shifted to Stop Vehicle to Shift to ” is shown
If the P position switch is pressed while driving, the shift position is changed
to N and the message is shown. ( P. 331)

6738-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
8
When trouble arises
■If “Auto Power OFF to Conserve Battery” is shown
The power switch has been turned off by the automatic power off function.
When starting the hybrid system next time, operate the hybrid system for
approximately 5 minutes to recharge the 12-volt battery.
■ If “Engine Oil Level Low Add or Replace” is displayed
The engine oil level may be low. Check the level of the engine oil, and add
engine oil if necessary. This message may be displayed if the vehicle is
stopped on a slope. Move the vehicle to a level surface and check if the mes-
sage disappears.
■ If “Accelerator and Brake Pedals Pressed Simultaneously” is shown
The accelerator and brake pedals are being depressed simultaneously.
( P. 310)
Release the accelerator pedal and depress the brake pedal.
■ If a message that indicates the malfunction of front camera is displayed
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 366, 659)
● PCS (Pre-Collision System)
● LTA (Lane Tracing Assist)
● AHS (Adaptive High-beam System)
● RSA (Road Sign Assist)
● Dynamic radar cruise control with full-speed range
■ If a message that indicates the malfunction of radar sensor is displayed
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 366, 659)
● PCS (Pre-Collision System)
● LTA (Lane Tracing Assist)
● Dynamic radar cruise control with full-speed range
■ If “Radar Cruise Control Unavailable See Owner’s Manual” is shown
The dynamic radar cruise control with full-speed range system is suspended
temporarily or until the problem show n in the message is resolved. (causes
and coping methods: P. 366)
■ If “Radar Cruise Control Unavailable” is shown
The dynamic radar cruise control with full-speed range system cannot be
used temporarily. Use the system when it becomes available again.

6748-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■If the shift position cannot be changed or the power switch is turned to
ACCESSORY mode even if trying to turn the power switch off when a
warning message is shown
If the 12-volt battery is discharged or the shift control system is malfunction-
ing, the followings may occur.
● The shift position may not be changed to P.
When parking, stop the vehicle on level ground and apply the parking brake
firmly.
● The hybrid system may not start.
● The power switch may be turned to ACCESSORY mode even if trying to
turn the power switch off.
In this case, the power switch may be turned off after applying the parking
brake.
● The automatic P position selection function (P. 332) may not operate.
Before turning the power switch off, be sure to press the P position switch
and check that the shift position is in P by the shift position indicator or P
position switch indicator.
■ Warning buzzer
 P. 665
NOTICE
■If “Maintenance Required for Traction Battery at Your Dealer” is shown
The hybrid battery (traction battery) is scheduled to be inspected or
replaced. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer immediately.
● Continuing to drive the vehicle without having the hybrid battery (traction
battery) inspected will cause the hybrid system not to start.
● If the hybrid system does not start, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer immediately.

6758-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
8
When trouble arises

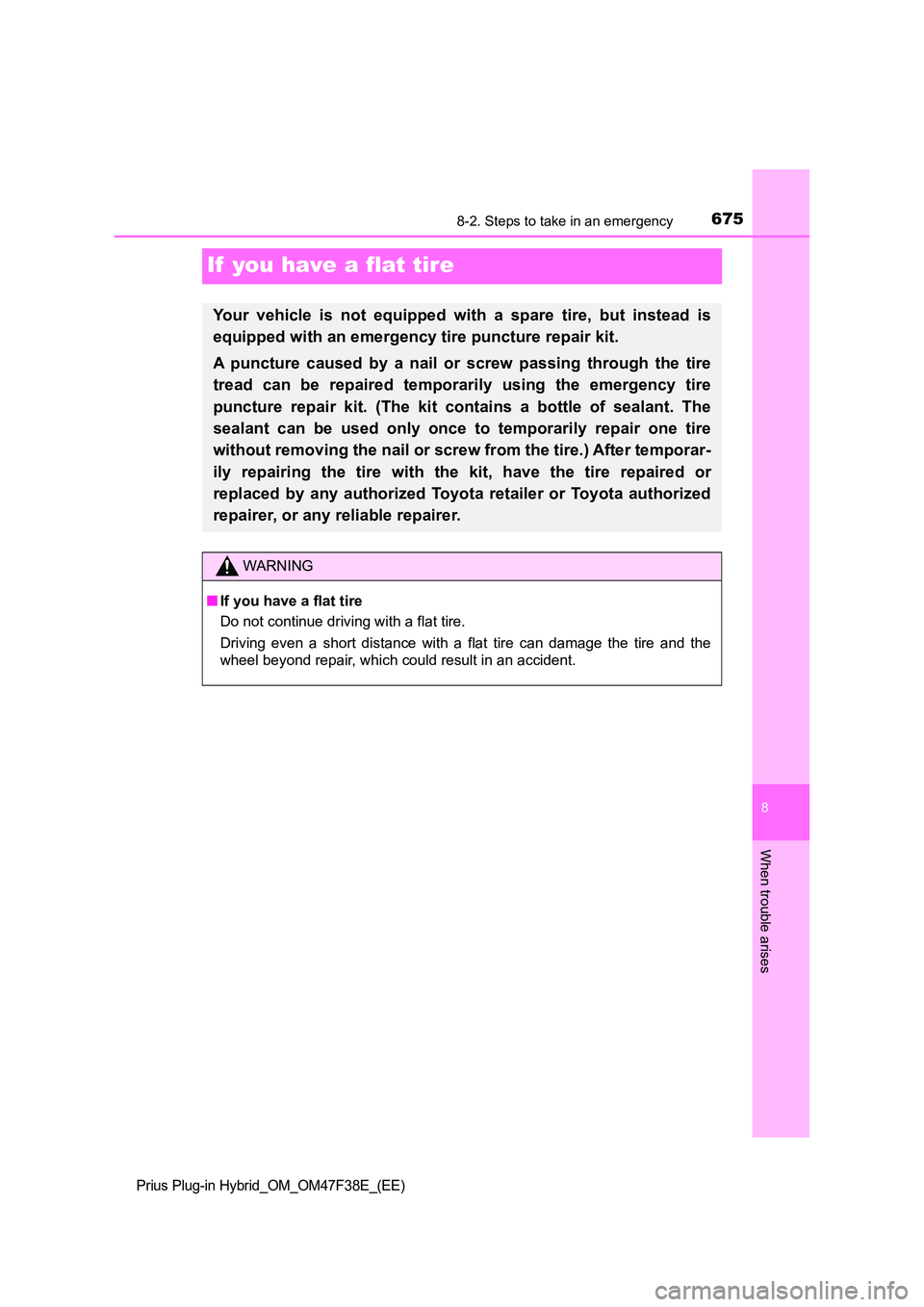

If you have a flat tire
Your vehicle is not equipped with a spare tire, but instead is
equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire
tread can be repaired temporarily using the emergency tire
puncture repair kit. (The kit contains a bottle of sealant. The
sealant can be used only once to temporarily repair one tire
without removing the nail or screw from the tire.) After temporar-
ily repairing the tire with the kit, have the tire repaired or
replaced by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.

6768-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers.
● Check the degree of the tire damage.
A tire should only be repaired
with the emergency tire punc-
ture repair kit if the damage is
caused by a nail or screw pass-
ing through the tire tread.
• Do not remove the nail or
screw from the tire. Remov-
ing the object may widen the
opening and make emer-
gency repair with the repair
kit impossible.
• To avoid sealant leakage, move the vehicle until the area of the
puncture, if known, is positioned at the top of the tire.
■ A flat tire that cannot be repaired with the emergency tire puncture repair
kit
In the following cases, the tire c annot be repaired with the emergency tire
puncture repair kit. Contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
● When the tire is damaged due to driving without sufficient air pressure
● When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured
● When more than one sharp objects such as nails or screws have passed
through the tread on a single tire
● When the sealant has expired
Before repairing the tire

6778-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
8
When trouble arises
Emergency tire puncture repair kit
Location of the emergency tire puncture repair kit

6788-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

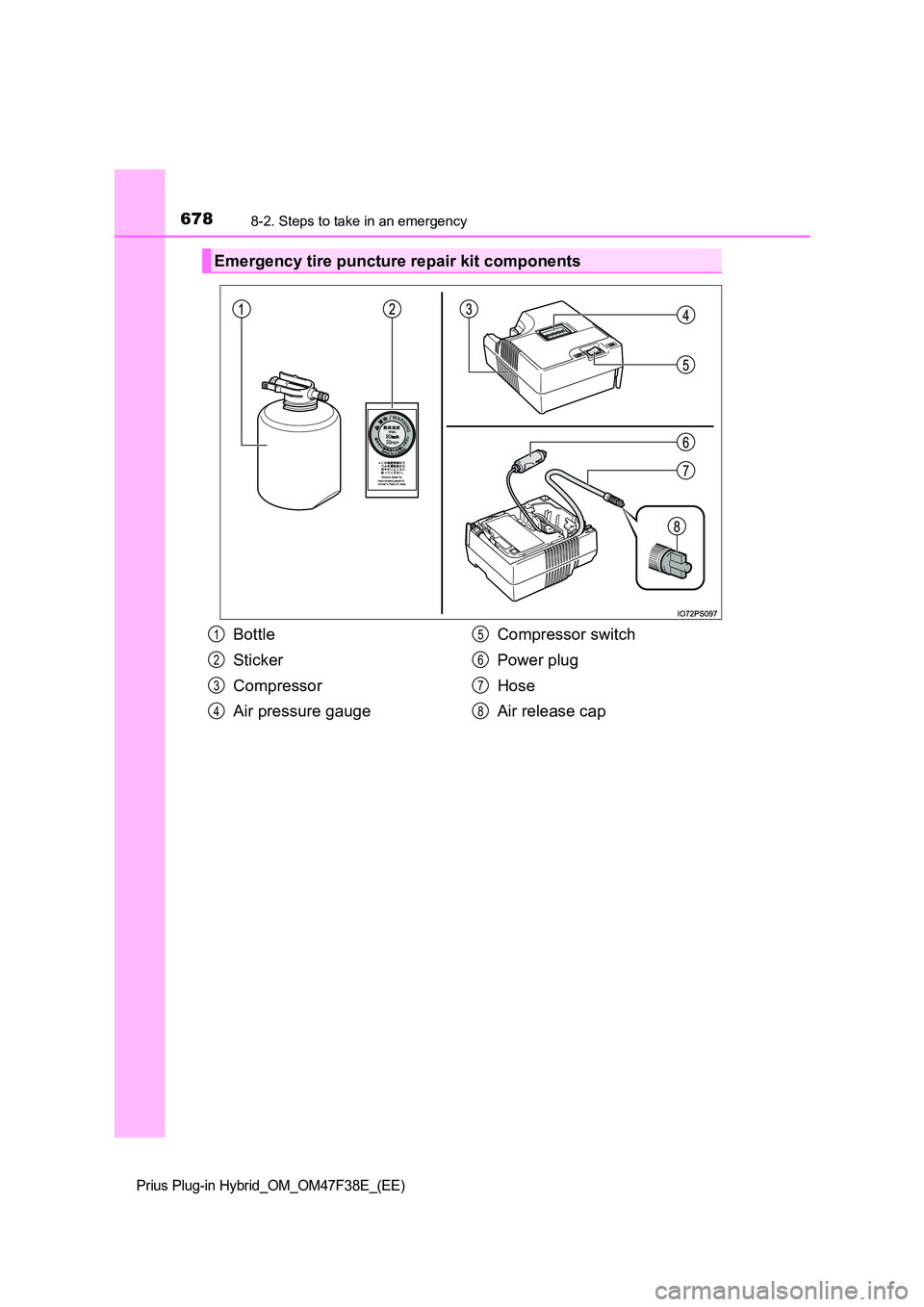

Emergency tire puncture repair kit components
Bottle
Sticker
Compressor
Air pressure gauge
Compressor switch
Power plug
Hose
Air release cap
1
2
3
4
5
6
7
8
